Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#71908) — 277 parça

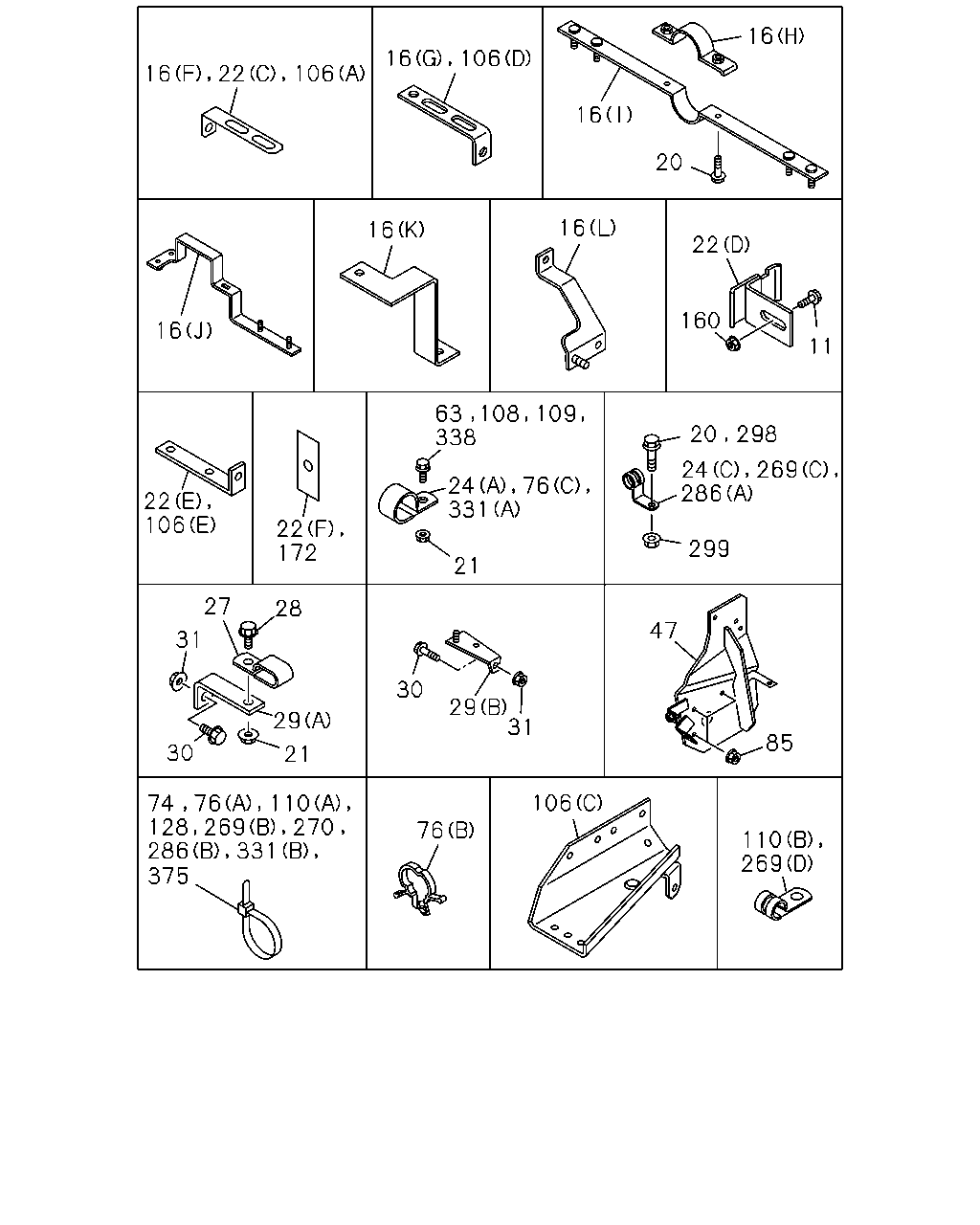

331 270 110 76 74 128 286 269 375 21 29 30 29 31 106 76 110 269 85 47 299 286 31 27 28 30 172 22 106 22 108 109 76 24 331 21 20 298 269 160 11 22 16 63 338 16 16 20 16 16 106 16 106 22 16 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; CLIP BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	02	1	1204-	●
11	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	1009-1203	●	●
11	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	1009-1203	●	●
11	BOLT; CLIP BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	01	1	1009-1203	●
11	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	1204-	●	●
11	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	1204-		●
11	BOLT; CLIP BRKT WHEEL BASE 4900MM(49W) M8X25 FLANGE	0-28650-825-0	01	1	1204-	●
11	BOLT; CLIP BRKT WHEEL BASE 4900MM(49W) M8X30 FLANGE	0-28650-830-0	01	1	1009-	●
16	BRACKET; PIPE CLIP (A)	1-34656-009-0	01	1	1009-		●
16	BRACKET; PIPE CLIP (B)	1-47476-699-2	01	1	1009-		●
16	BRACKET; PIPE CLIP (F) L=100 H=30	1-47477-645-2	01	1	1009-		●
16	BRACKET; PIPE CLIP (C)	1-47478-588-0	01	1	1009-1110		●
16	BRACKET; PIPE CLIP (C)	1-47478-588-0	01	1	1009-1110		●
16	BRACKET; PIPE CLIP (M)	8-98199-761-0	01	1	1111-1211		●
16	BRACKET; PIPE CLIP (M)	8-98199-761-0	01	1	1111-1211		●
16	BRACKET; PIPE CLIP (N)	8-98212-967-0	01	1	1212-		●
16	BRACKET; PIPE CLIP (N)	8-98212-967-0	01	1	1212-		●
16	BRACKET; PIPE CLIP (D)	1-47479-249-0	01	1	1009-1110		●
16	BRACKET; PIPE CLIP (D)	1-47479-249-0	01	1	1009-1110		●
16	BRACKET; PIPE CLIP (N)	8-98199-763-0	01	1	1111-1211		●
16	BRACKET; PIPE CLIP (N)	8-98199-763-0	01	1	1111-1211		●
16	BRACKET; PIPE CLIP (M)	8-98212-968-0	01	1	1212-		●
16	BRACKET; PIPE CLIP (M)	8-98212-968-0	01	1	1212-		●
16	BRACKET; PIPE CLIP (G)	1-47479-598-0	01	1	1009-		●
16	BRACKET; PIPE CLIP (H)	1-47479-546-0	02	1	1009-	●
16	BRACKET; PIPE CLIP (I)	1-47479-720-0	02	1	1009-	●
16	BRACKET; PIPE CLIP (J)	1-47479-901-0	02	1	1009-	●
16	BRACKET; PIPE CLIP (K)	8-98086-226-0	01	1	1009-	●
16	BRACKET; PIPE CLIP (L)	8-98110-074-0	01	1	1009-	●
16	BRACKET; PIPE CLIP WHEEL BASE 6600MM(66W) (E) L=60 H=30	1-47477-716-1	01	1	1009-	●
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1009-		●
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1009-		●
20	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1009-	●	●
21	NUT; CLIP M8	0-91110-508-0	01	1	1009-1203		●
21	NUT; CLIP M8	0-91110-508-0	01	1	1009-1203		●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1204-		●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1204-		●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1009-1203	●	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1009-1203		●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1009-1203		●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1204-	●	●
22	BRACKET; CLIP (B) L=145	1-47475-655-0	01	1	1009-	●	●
22	BRACKET; CLIP (A) L=60 H=30	1-47477-716-1	01	1	1009-	●	●
22	BRACKET; CLIP (A) L=60 H=30	1-47477-716-1	01	1	1009-	●	●
22	BRACKET; CLIP (E) L=95	1-82698-557-0	01	1	1009-	●	●
22	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	01	1	1009-	●
22	BRACKET; CLIP (F)	1-47479-554-0	01	1	1009-	●
22	BRACKET; CLIP (D)	1-47479-693-0	01	1	1009-	●
24	CLIP; PIPE A/T ALLISON 4430(Y5V) (C) ID=25 H=30 L=35	1-09700-875-0	01	1	1303-	●	●
24	CLIP; PIPE (B) ID=25 L=50	1-09701-019-0	03	1	1009-1302		●
24	CLIP; PIPE EXC. ENGINE REAR PTO(SV1) (B) ID=25 L=50	1-09701-019-0	03	1	1009-1302	●
24	CLIP; PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) ID=25 L=50	1-09701-019-0	03	1	1303-		●
24	CLIP; PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (B) ID=25 L=50	1-09701-019-0	03	1	1303-	●
24	CLIP; PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	1009-	●	●
24	CLIP; PIPE ENGINE REAR PTO(SV1) (B) ID=25 L=50	1-09701-019-0	02	1	1009-1302	●
24	CLIP; PIPE A/T ALLISON 4430(Y5V) (B) ID=25 L=50	1-09701-019-0	02	1	1303-	●	●
24	CLIP; PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (B) ID=25 L=50	1-09701-019-0	02	1	1303-	●
27	CLIP; FLEX HOSE ID=25 H=30 L=35	1-09700-875-0	01	1	1009-	●	●
28	BOLT; CLIP,FLEX HOSE BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8X20 FLANGE	0-28650-820-0	01	1	1009-1203	●	●
29	BRACKET; CLIP,AIR PIPE BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A)	1-47475-927-0	01	1	1009-1010	●	●
29	BRACKET; CLIP,AIR PIPE BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) L=68	1-47475-525-0	01	1	1011-1203	●	●
29	BRACKET; CLIP,AIR PIPE BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97609-096-0	01	1	1204-	●	●
30	BOLT; CLIP BRKT BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8X30 FLANGE	0-28650-830-0	01	1	1009-1203	●	●
30	BOLT; CLIP BRKT BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8X25 FLANGE	0-28650-825-0	01	1	1204-	●	●
31	NUT; CLIP BRKT BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 FLANGE	0-91180-108-0	01	1	1009-	●	●
47	BRACKET; PIPE CLIP A/T ALLISON 4430(Y5V)	8-98091-266-1	01	1	1303-1402	●	●
47	BRACKET; PIPE CLIP A/T ALLISON 4430(Y5V)	8-98255-490-0	01	1	1403-	●	●
63	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1009-	●	●
74	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) L=350	1-09707-183-0	07	1	1009-	●
74	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) L=350	1-09707-183-0	11	1	1009-	●
76	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	08	1	1009-		●
76	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (A) L=350	1-09707-183-0	08	1	1009-	●
76	CLIP; NYLON TUBE (B) ID=24-30 L=18	1-09709-297-0	01	1	1009-	●	●
76	CLIP; NYLON TUBE (C) ID=39 L=33	8-98009-359-0	01	1	1009-	●	●
76	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) (A) L=350	1-09707-183-0	05	1	1009-1203	●
76	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) (A) L=350	1-09707-183-0	06	1	1204-	●
85	NUT; CLIP BRKT A/T ALLISON 4430(Y5V) M10 FLANGE	0-91180-210-0	03	1	1303-	●	●
106	BRACKET; TUBE CLIP (B) L=115 H=30	1-47477-715-3	01	1	1009-		●
106	BRACKET; TUBE CLIP WHEEL BASE 6600MM(66W) (B) L=115 H=30	1-47477-715-3	01	1	1009-	●
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	01	1	1009-1302	●	●
106	BRACKET; TUBE CLIP SHIFT PATTERN SINGLE-H<EDY> (A) L=100 H=30	1-47477-645-2	01	1	1303-1303	●	●
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	01	1	1303-	●	●
106	BRACKET; TUBE CLIP (B) L=90	1-47477-755-1	02	1	1009-	●	●
106	BRACKET; TUBE CLIP (D)	1-47479-598-0	02	1	1009-1302	●	●
106	BRACKET; TUBE CLIP SHIFT PATTERN SINGLE-H<EDY> (D)	1-47479-598-0	02	1	1303-1303	●	●
106	BRACKET; TUBE CLIP (D)	1-47479-598-0	02	1	1303-	●	●
106	BRACKET; TUBE CLIP (C)	8-98100-335-0	01	1	1009-	●	●
106	BRACKET; TUBE CLIP WHEEL BASE 4900MM(49W) (E) L=60 H=30	1-47477-716-1	01	1	1009-	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1009-	●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	02	1	1009-	●	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	03	1	1009-	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	04	1	1009-	●	●
110	CLIP; BAND,NYLON TUBE (B) ID=19 L=20	0-95235-836-0	02	1	1009-	●	●
110	CLIP; BAND,NYLON TUBE ANTILOCK BRAKE SYSTEM(BFA) (A) L=350	1-09707-183-0	10	1	1009-	●	●
110	CLIP; BAND,NYLON TUBE EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) L=350	1-09707-183-0	09	1	1009-1203	●
128	CLIP; NYLON TUBE L=350	1-09707-183-0	07	1	1009-		●
128	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) ENGINE REAR PTO(SV1) L=350	1-09707-183-0	07	1	1009-	●
128	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) L=350	1-09707-183-0	06	1	1009-	●
128	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) L=350	1-09707-183-0	10	1	1009-	●
160	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	1009-	●
172	BRACKET; TUBE CLIP	1-47479-554-0	01	1	1009-	●
269	CLIP; BAND,NYLON TUBE (D) ID=28 L=40	1-09701-261-0	02	1	1009-1203		●
269	CLIP; BAND,NYLON TUBE (D) ID=28 L=40	1-09701-261-0	01	1	1204-		●
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	31	1	1009-		●
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	09	1	1009-		●
269	CLIP; BAND,NYLON TUBE (D) ID=33 L=30	8-97619-250-0	01	1	1009-		●
269	CLIP; BAND,NYLON TUBE (C) ID=28 H=45 L=30	1-09700-948-0	02	1	1009-1203	●	●
269	CLIP; BAND,NYLON TUBE (C) ID=28 H=45 L=30	1-09700-948-0	01	1	1204-	●	●
269	CLIP; BAND,NYLON TUBE (D) ID=28 L=40	1-09701-261-0	01	1	1009-1203	●	●
269	CLIP; BAND,NYLON TUBE (D) ID=28 L=40	1-09701-261-0	01	1	1009-1203		●
269	CLIP; BAND,NYLON TUBE (D) ID=28 L=40	1-09701-261-0	02	1	1204-	●	●
269	CLIP; BAND,NYLON TUBE (D) ID=28 L=40	1-09701-261-0	02	1	1204-		●
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	03	1	1009-	●
269	CLIP; BAND,NYLON TUBE (A) ID=39 L=33	8-98009-359-0	06	1	1009-	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 4900MM(49W) (B) L=350	1-09707-183-0	21	1	1009-1203	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 4900MM(49W) (B) L=350	1-09707-183-0	20	1	1204-	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6600MM(66W) (B) L=350	1-09707-183-0	30	1	1009-1203	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6600MM(66W) (B) L=350	1-09707-183-0	29	1	1204-	●
270	CLIP; NYLON TUBE L=350	1-09707-183-0	01	1	1009-		●
286	CLIP; NYLON TUBE (A) ID=21 L=30 H=40	1-09700-991-1	03	1	1009-1203		●
286	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (A) ID=21 L=30 H=40	1-09700-991-1	03	1	1009-1203	●
286	CLIP; NYLON TUBE (A) ID=21 L=30 H=40	1-09700-991-1	03	1	1204-		●
286	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) EXC. ENGINE REAR PTO(SV1) (A) ID=21 L=30 H=40	1-09700-991-1	03	1	1204-	●
286	CLIP; NYLON TUBE (B) L=350	1-09707-183-0	02	1	1009-1203		●
286	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (B) L=350	1-09707-183-0	02	1	1009-1203	●
286	CLIP; NYLON TUBE (B) L=350	1-09707-183-0	02	1	1204-		●
286	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) EXC. ENGINE REAR PTO(SV1) (B) L=350	1-09707-183-0	02	1	1204-	●
286	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (A) ID=21 L=30 H=40	1-09700-991-1	02	1	1009-	●
286	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (B) L=350	1-09707-183-0	03	1	1009-	●
298	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	1009-1203		●
298	BOLT; CLIP WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	03	1	1009-1203	●
298	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	1204-		●
298	BOLT; CLIP WHEEL BASE 6600MM(66W) EXC. ENGINE REAR PTO(SV1) M8X25 FLANGE	0-28650-825-0	03	1	1204-	●
298	BOLT; CLIP WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) M8X25 FLANGE	0-28650-825-0	02	1	1009-	●
299	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1009-1203		●
299	NUT; CLIP WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	03	1	1009-1203	●
299	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1204-		●
299	NUT; CLIP WHEEL BASE 6600MM(66W) EXC. ENGINE REAR PTO(SV1) M8 FLANGE	0-91180-108-0	03	1	1204-	●
299	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1009-	●	●
299	NUT; CLIP WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) M8 FLANGE	0-91180-108-0	02	1	1009-	●
331	CLIP; NYLON TUBE ZF9S1310 M/T(Y5K) (B) L=350	1-09707-183-0	04	1	1009-1203	●	●
331	CLIP; NYLON TUBE (B) L=350	1-09707-183-0	04	1	1204-	●	●
331	CLIP; NYLON TUBE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	1009-	●	●
331	CLIP; NYLON TUBE TRANSMISSION-FULLER RTO11908(Y5L) (B) L=350	1-09707-183-0	03	1	1009-1203	●	●
338	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1009-	●	●
375	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	1009-	●	●

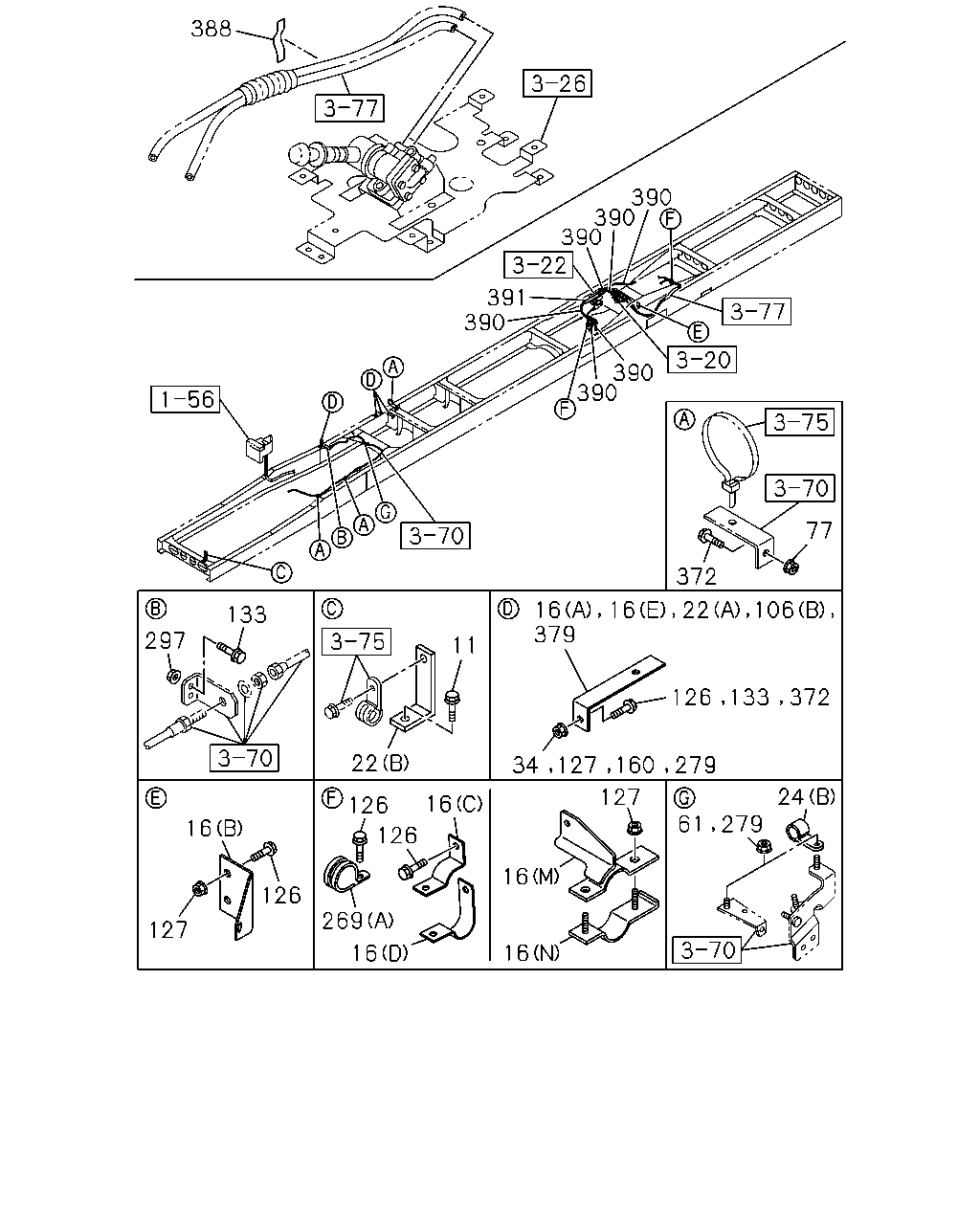

388 390 390 390 391 390 390 390 77 106 22 372 16 16 379 126 133 372 279 160 127 34 11 22 133 297 16 127 126 269 16 126 126 16 16 16 127 61 279 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; CLIP BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	02	1	1204-	●
11	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	1009-1203	●	●
11	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	1009-1203	●	●
11	BOLT; CLIP BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	01	1	1009-1203	●
11	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	1204-	●	●
11	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	1204-		●
11	BOLT; CLIP BRKT WHEEL BASE 4900MM(49W) M8X25 FLANGE	0-28650-825-0	01	1	1204-	●
11	BOLT; CLIP BRKT WHEEL BASE 4900MM(49W) M8X30 FLANGE	0-28650-830-0	01	1	1009-	●
16	BRACKET; PIPE CLIP (A)	1-34656-009-0	01	1	1009-		●
16	BRACKET; PIPE CLIP (B)	1-47476-699-2	01	1	1009-		●
16	BRACKET; PIPE CLIP (F) L=100 H=30	1-47477-645-2	01	1	1009-		●
16	BRACKET; PIPE CLIP (C)	1-47478-588-0	01	1	1009-1110		●
16	BRACKET; PIPE CLIP (C)	1-47478-588-0	01	1	1009-1110		●
16	BRACKET; PIPE CLIP (M)	8-98199-761-0	01	1	1111-1211		●
16	BRACKET; PIPE CLIP (M)	8-98199-761-0	01	1	1111-1211		●
16	BRACKET; PIPE CLIP (N)	8-98212-967-0	01	1	1212-		●
16	BRACKET; PIPE CLIP (N)	8-98212-967-0	01	1	1212-		●
16	BRACKET; PIPE CLIP (D)	1-47479-249-0	01	1	1009-1110		●
16	BRACKET; PIPE CLIP (D)	1-47479-249-0	01	1	1009-1110		●
16	BRACKET; PIPE CLIP (N)	8-98199-763-0	01	1	1111-1211		●
16	BRACKET; PIPE CLIP (N)	8-98199-763-0	01	1	1111-1211		●
16	BRACKET; PIPE CLIP (M)	8-98212-968-0	01	1	1212-		●
16	BRACKET; PIPE CLIP (M)	8-98212-968-0	01	1	1212-		●
16	BRACKET; PIPE CLIP (G)	1-47479-598-0	01	1	1009-		●
16	BRACKET; PIPE CLIP (H)	1-47479-546-0	02	1	1009-	●
16	BRACKET; PIPE CLIP (I)	1-47479-720-0	02	1	1009-	●
16	BRACKET; PIPE CLIP (J)	1-47479-901-0	02	1	1009-	●
16	BRACKET; PIPE CLIP (K)	8-98086-226-0	01	1	1009-	●
16	BRACKET; PIPE CLIP (L)	8-98110-074-0	01	1	1009-	●
16	BRACKET; PIPE CLIP WHEEL BASE 6600MM(66W) (E) L=60 H=30	1-47477-716-1	01	1	1009-	●
22	BRACKET; CLIP (B) L=145	1-47475-655-0	01	1	1009-	●	●
22	BRACKET; CLIP (A) L=60 H=30	1-47477-716-1	01	1	1009-	●	●
22	BRACKET; CLIP (A) L=60 H=30	1-47477-716-1	01	1	1009-	●	●
22	BRACKET; CLIP (E) L=95	1-82698-557-0	01	1	1009-	●	●
22	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	01	1	1009-	●
22	BRACKET; CLIP (F)	1-47479-554-0	01	1	1009-	●
22	BRACKET; CLIP (D)	1-47479-693-0	01	1	1009-	●
24	CLIP; PIPE A/T ALLISON 4430(Y5V) (C) ID=25 H=30 L=35	1-09700-875-0	01	1	1303-	●	●
24	CLIP; PIPE (B) ID=25 L=50	1-09701-019-0	03	1	1009-1302		●
24	CLIP; PIPE EXC. ENGINE REAR PTO(SV1) (B) ID=25 L=50	1-09701-019-0	03	1	1009-1302	●
24	CLIP; PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) ID=25 L=50	1-09701-019-0	03	1	1303-		●
24	CLIP; PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (B) ID=25 L=50	1-09701-019-0	03	1	1303-	●
24	CLIP; PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	1009-	●	●
24	CLIP; PIPE ENGINE REAR PTO(SV1) (B) ID=25 L=50	1-09701-019-0	02	1	1009-1302	●
24	CLIP; PIPE A/T ALLISON 4430(Y5V) (B) ID=25 L=50	1-09701-019-0	02	1	1303-	●	●
24	CLIP; PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (B) ID=25 L=50	1-09701-019-0	02	1	1303-	●
34	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1009-	●	●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1009-		●
61	NUT; CLIP FIX EXC. ENGINE REAR PTO(SV1) M8 FLANGE	0-91180-108-0	03	1	1009-	●
61	NUT; CLIP FIX ENGINE REAR PTO(SV1) M8 FLANGE	0-91180-108-0	02	1	1009-	●
77	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	1009-		●
77	NUT; CLIP BRKT WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	01	1	1009-	●
106	BRACKET; TUBE CLIP (B) L=115 H=30	1-47477-715-3	01	1	1009-		●
106	BRACKET; TUBE CLIP WHEEL BASE 6600MM(66W) (B) L=115 H=30	1-47477-715-3	01	1	1009-	●
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	01	1	1009-1302	●	●
106	BRACKET; TUBE CLIP SHIFT PATTERN SINGLE-H<EDY> (A) L=100 H=30	1-47477-645-2	01	1	1303-1303	●	●
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	01	1	1303-	●	●
106	BRACKET; TUBE CLIP (B) L=90	1-47477-755-1	02	1	1009-	●	●
106	BRACKET; TUBE CLIP (D)	1-47479-598-0	02	1	1009-1302	●	●
106	BRACKET; TUBE CLIP SHIFT PATTERN SINGLE-H<EDY> (D)	1-47479-598-0	02	1	1303-1303	●	●
106	BRACKET; TUBE CLIP (D)	1-47479-598-0	02	1	1303-	●	●
106	BRACKET; TUBE CLIP (C)	8-98100-335-0	01	1	1009-	●	●
106	BRACKET; TUBE CLIP WHEEL BASE 4900MM(49W) (E) L=60 H=30	1-47477-716-1	01	1	1009-	●
126	BOLT; CLIP BRKT M8X20 FLANGE	0-28650-820-0	02	1	1009-1110		●
126	BOLT; CLIP BRKT M8X20 FLANGE	0-28650-820-0	02	1	1009-1110		●
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	03	1	1009-		●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1009-	●	●
126	BOLT; CLIP BRKT WHEEL BASE 4900MM(49W) M8X25 FLANGE	0-28650-825-0	02	1	1009-	●
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	04	1	1009-	●
126	BOLT; CLIP BRKT M8X20 FLANGE	0-28650-820-0	01	1	1009-	●
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	02	1	1009-	●
126	BOLT; CLIP BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	03	1	1009-	●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	05	1	1009-1110		●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	09	1	1111-1211		●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	05	1	1212-		●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	04	1	1009-1211	●
127	NUT; CLIP BRKT WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	04	1	1009-1211	●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	04	1	1212-	●	●
127	NUT; CLIP BRKT WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	04	1	1212-	●
127	NUT; CLIP BRKT WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	03	1	1009-	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1009-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	1009-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1009-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1009-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	04	1	1009-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28050-825-0	01	1	1009-	●
160	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	1009-	●
269	CLIP; BAND,NYLON TUBE (D) ID=28 L=40	1-09701-261-0	02	1	1009-1203		●
269	CLIP; BAND,NYLON TUBE (D) ID=28 L=40	1-09701-261-0	01	1	1204-		●
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	31	1	1009-		●
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	09	1	1009-		●
269	CLIP; BAND,NYLON TUBE (D) ID=33 L=30	8-97619-250-0	01	1	1009-		●
269	CLIP; BAND,NYLON TUBE (C) ID=28 H=45 L=30	1-09700-948-0	02	1	1009-1203	●	●
269	CLIP; BAND,NYLON TUBE (C) ID=28 H=45 L=30	1-09700-948-0	01	1	1204-	●	●
269	CLIP; BAND,NYLON TUBE (D) ID=28 L=40	1-09701-261-0	01	1	1009-1203	●	●
269	CLIP; BAND,NYLON TUBE (D) ID=28 L=40	1-09701-261-0	01	1	1009-1203		●
269	CLIP; BAND,NYLON TUBE (D) ID=28 L=40	1-09701-261-0	02	1	1204-	●	●
269	CLIP; BAND,NYLON TUBE (D) ID=28 L=40	1-09701-261-0	02	1	1204-		●
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	03	1	1009-	●
269	CLIP; BAND,NYLON TUBE (A) ID=39 L=33	8-98009-359-0	06	1	1009-	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 4900MM(49W) (B) L=350	1-09707-183-0	21	1	1009-1203	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 4900MM(49W) (B) L=350	1-09707-183-0	20	1	1204-	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6600MM(66W) (B) L=350	1-09707-183-0	30	1	1009-1203	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6600MM(66W) (B) L=350	1-09707-183-0	29	1	1204-	●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1009-1203		●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1204-		●
279	NUT; BRKT WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	05	1	1204-	●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1009-	●	●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	1009-1203	●
279	NUT; BRKT WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	06	1	1204-	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1009-1203	●	●
297	NUT; BRKT EXC. ENGINE REAR PTO(SV1) M8 FLANGE	0-91180-108-0	02	1	1009-1203	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1204-	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-1203	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1204-	●
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1009-		●
372	BOLT; CLIP BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	02	1	1009-	●
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	02	1	1009-		●
372	BOLT; CLIP BRKT EXC. ENGINE REAR PTO(SV1) M8X30 FLANGE	0-28650-830-0	02	1	1009-	●
379	BRACKET; NYLON TUBE L=60 H=30	1-47477-716-1	02	1	1009-		●
379	BRACKET; NYLON TUBE EXC. ENGINE REAR PTO(SV1) L=60 H=30	1-47477-716-1	02	1	1009-	●
388	SEAL 100X40	1-72498-022-1	03	1	1009-	●	●
390	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	1303-		●
390	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	03	1	1303-		●
390	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1009-	●	●
390	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1009-	●	●
390	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-	●	●
390	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-	●	●
391	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1009-	●	●
391	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1009-	●	●
391	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	1009-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
