Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11317 - FXZ(AUST)EURO5
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶
3-77 — BRAKE PIPING; AIR,REAR
(#71907) — 89 parça
Tümü
A - FGZ5MX
B - FGY5MX
◀
[377A] NO.1 (17 parça)
[377A] NO.4 (25 parça)
[377A] NO.5 (23 parça)
[377A] NO.3 (11 parça)
[377A] NO.2 (13 parça)
▶

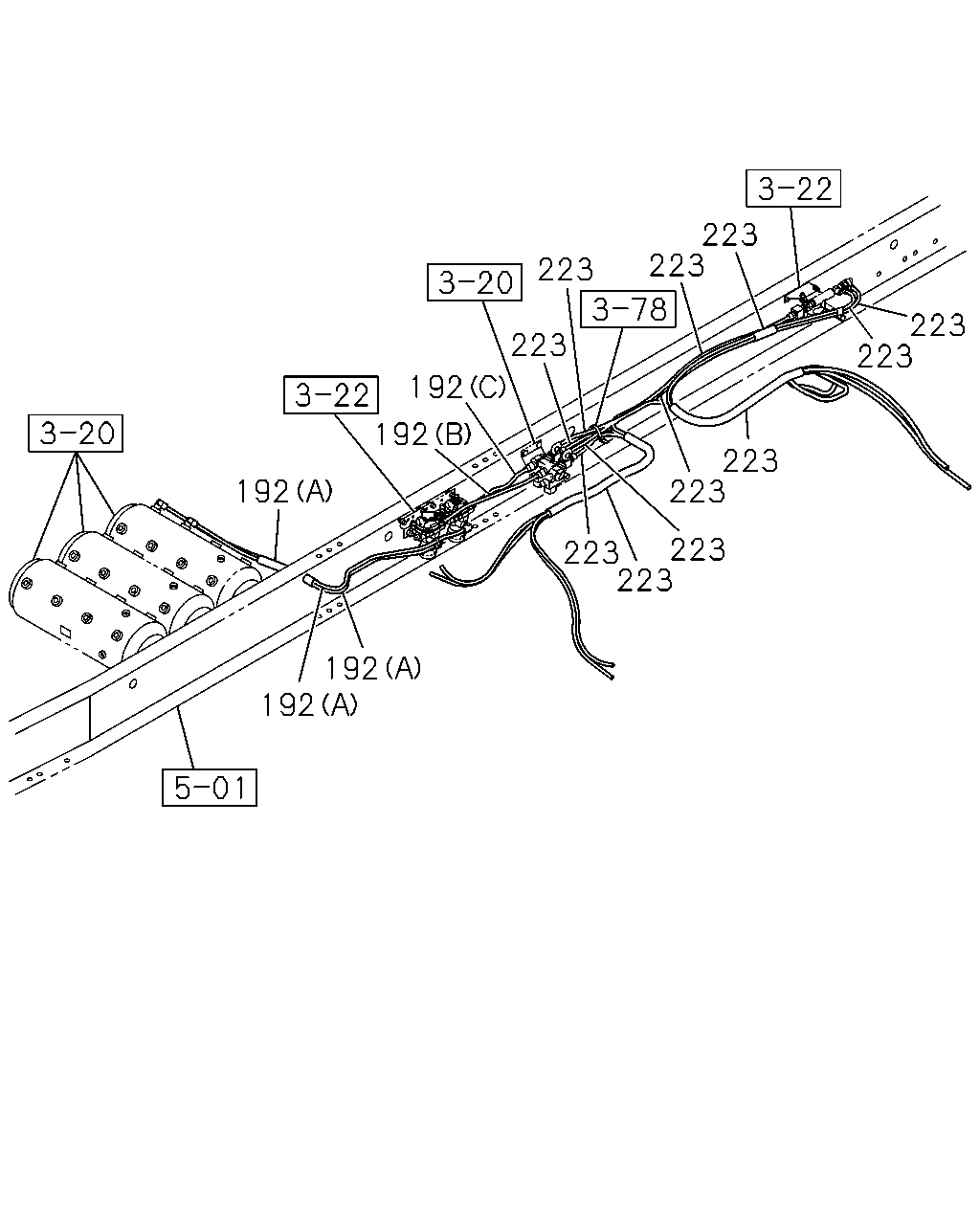

192
192
192
192
192
223
223
223
223
223
223
223
223
223
223
223
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
192
TUBE; NYLON
(B)
8-98105-916-0
01
1
1009-
●
192
TUBE; NYLON
(C)
8-98122-535-0
01
1
1009-
●
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=6
1-87411-003-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=12000 OD=8
1-87411-010-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
1009-
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
1009-
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
1009-
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=15
1-87411-025-0
AR
1
1009-
●
●
223
TUBE; CORRUGATE
SERVICED BY L=4000 ID=19
1-87411-028-0
AR
1
1009-
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
1009-
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87411-033-0
AR
1
1009-
●
●

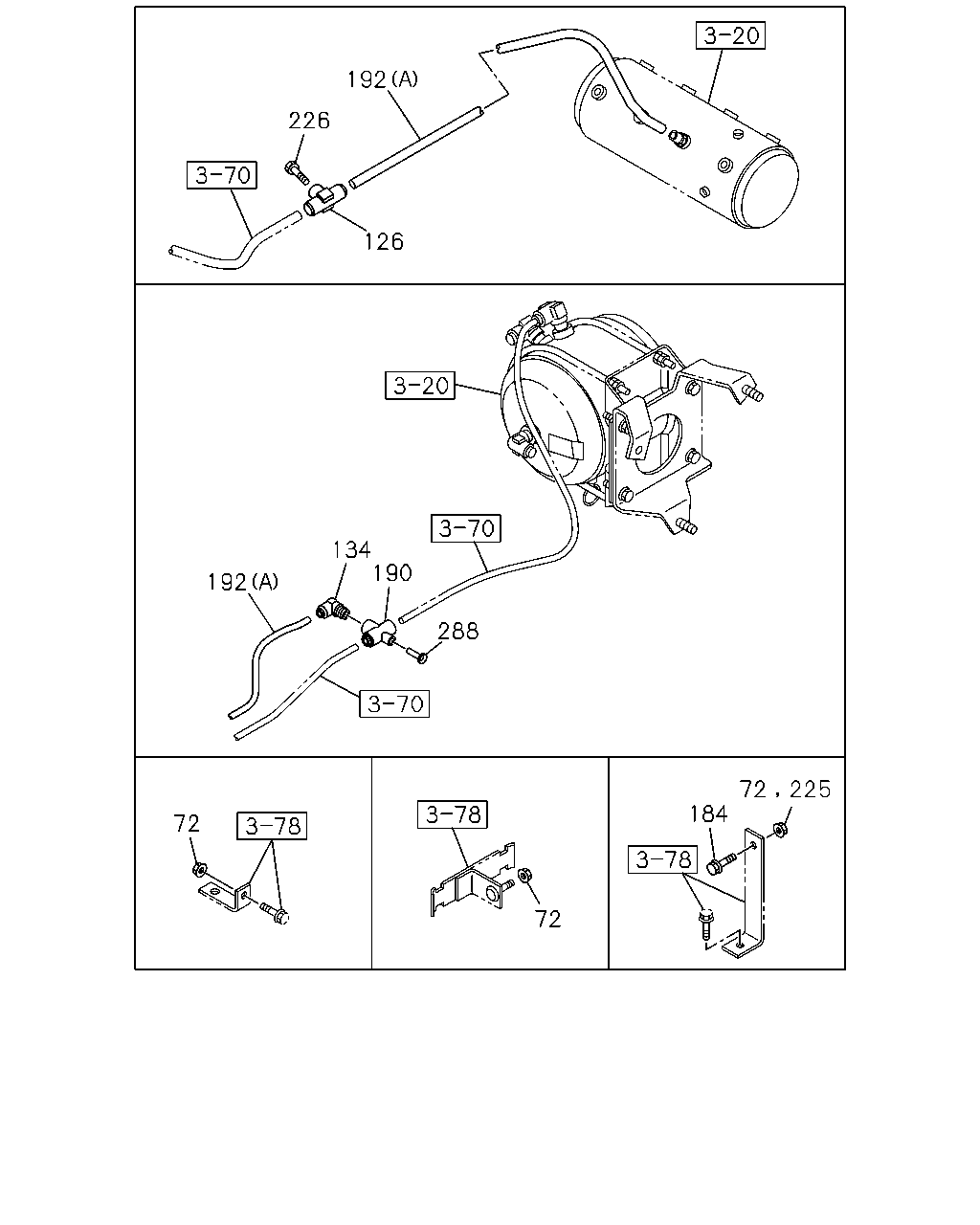

72
72
184
72
225
192
134
288
126
226
192
190
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
72
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1204-
●
72
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1009-1203
●
●
72
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1009-1203
●
72
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1009-1203
●
72
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1204-
●
●
126
UNION; NYLON TUBE
DIN7.5X2 & M8 2WAY
1-09661-128-0
01
1
1009-
●
●
134
CONNECTOR
DIN6 & R3/8 ELBOW
1-09661-234-0
01
1
1009-
●
●
184
BOLT; TUBE CLIP
M8X25 FLANGE
0-28650-825-0
01
1
1009-
●
●
184
BOLT; TUBE CLIP
M8X35 FLANGE
0-28650-835-0
02
1
1009-
●
●
190
UNION; 3 WAY
DIN8 & RC3/8 3WAY
1-09661-129-0
01
1
1009-
●
●
192
TUBE; NYLON
(B)
8-98105-916-0
01
1
1009-
●
192
TUBE; NYLON
(C)
8-98122-535-0
01
1
1009-
●
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=6
1-87411-003-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=12000 OD=8
1-87411-010-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
1009-
●
●
225
NUT; TUBE CLIP
M8 FLANGE
0-91180-108-0
03
1
1009-
●
●
226
BOLT; UNION
M8X20 FLANGE
0-28650-820-0
01
1
1009-
●
●
226
BOLT; UNION
M8X20 FLANGE
0-28650-820-0
01
1
1009-
●
●
288
PLUG
A/T ALLISON 4430(Y5V) OD=8 PLASTIC
1-09661-616-0
01
1
1303-
●
●

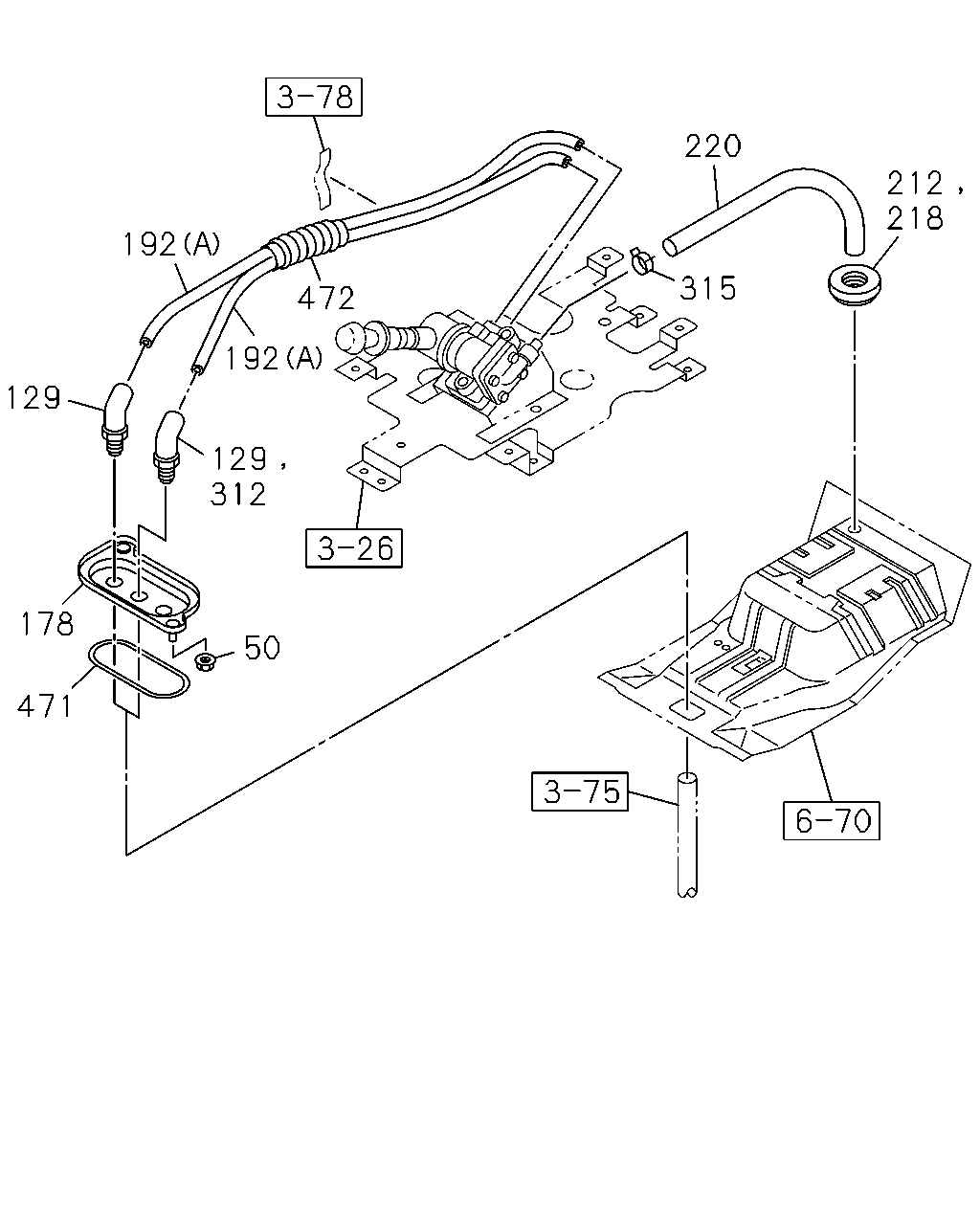

192
129
178
471
50
312
129
192
472
220
315
212
218
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
50
NUT; UNION BRKT
M8 FLANGE
0-91180-108-0
02
1
1009-
●
●
129
CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW
8-97611-963-1
01
1
1009-1101
●
●
129
CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW
8-97611-963-1
02
1
1102-
●
●
178
BRACKET; UNION
8-98017-054-1
01
1
1009-
●
●
192
TUBE; NYLON
(B)
8-98105-916-0
01
1
1009-
●
192
TUBE; NYLON
(C)
8-98122-535-0
01
1
1009-
●
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=6
1-87411-003-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=12000 OD=8
1-87411-010-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
1009-
●
●
212
GROMMET; AIR PIPE
OD=24
9-61166-007-0
01
1
1102-1105
●
●
218
GROMMET; VINYL HOSE
OD=24
9-61166-007-0
01
1
1106-
●
●
218
GROMMET; VINYL HOSE
OD=24
9-61166-007-0
01
1
1009-1101
●
●
220
HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000
9-09914-701-0
01
1
1009-
●
●
312
CONNECTOR; SUPPLY
DIN13 & M18 ELBOW
8-97611-963-1
01
1
1009-1101
●
●
315
CLIP
ID=14
8-94238-572-0
01
1
1009-
●
●
471
SEAL; BRKT
1-79738-832-0
01
1
1009-
●
●
472
TUBE; SPUTTER
8-98108-051-0
01
1
1009-
●
●

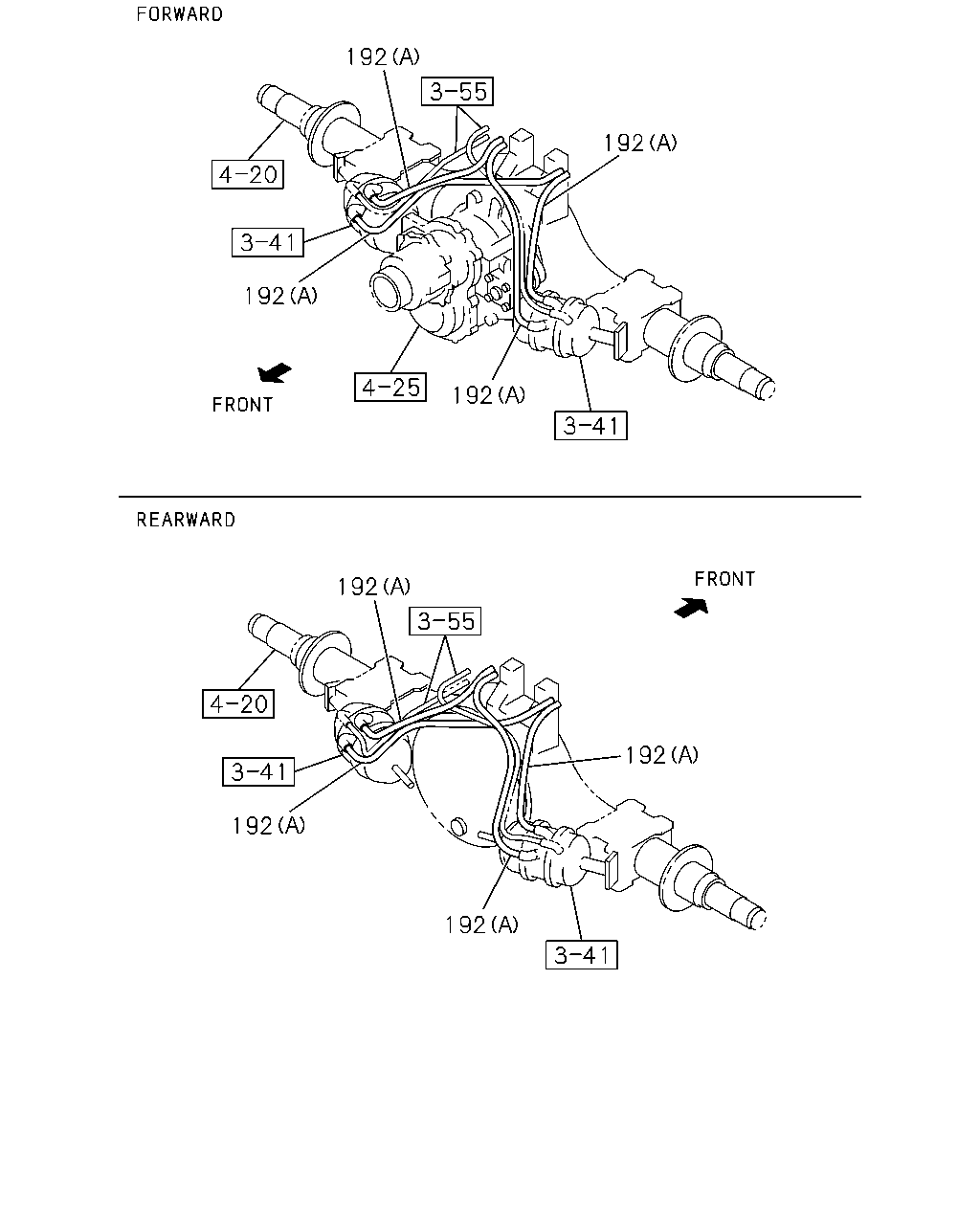

192
192
192
192
192
192
192
192
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
192
TUBE; NYLON
(B)
8-98105-916-0
01
1
1009-
●
192
TUBE; NYLON
(C)
8-98122-535-0
01
1
1009-
●
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=6
1-87411-003-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=12000 OD=8
1-87411-010-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
1009-
●
●

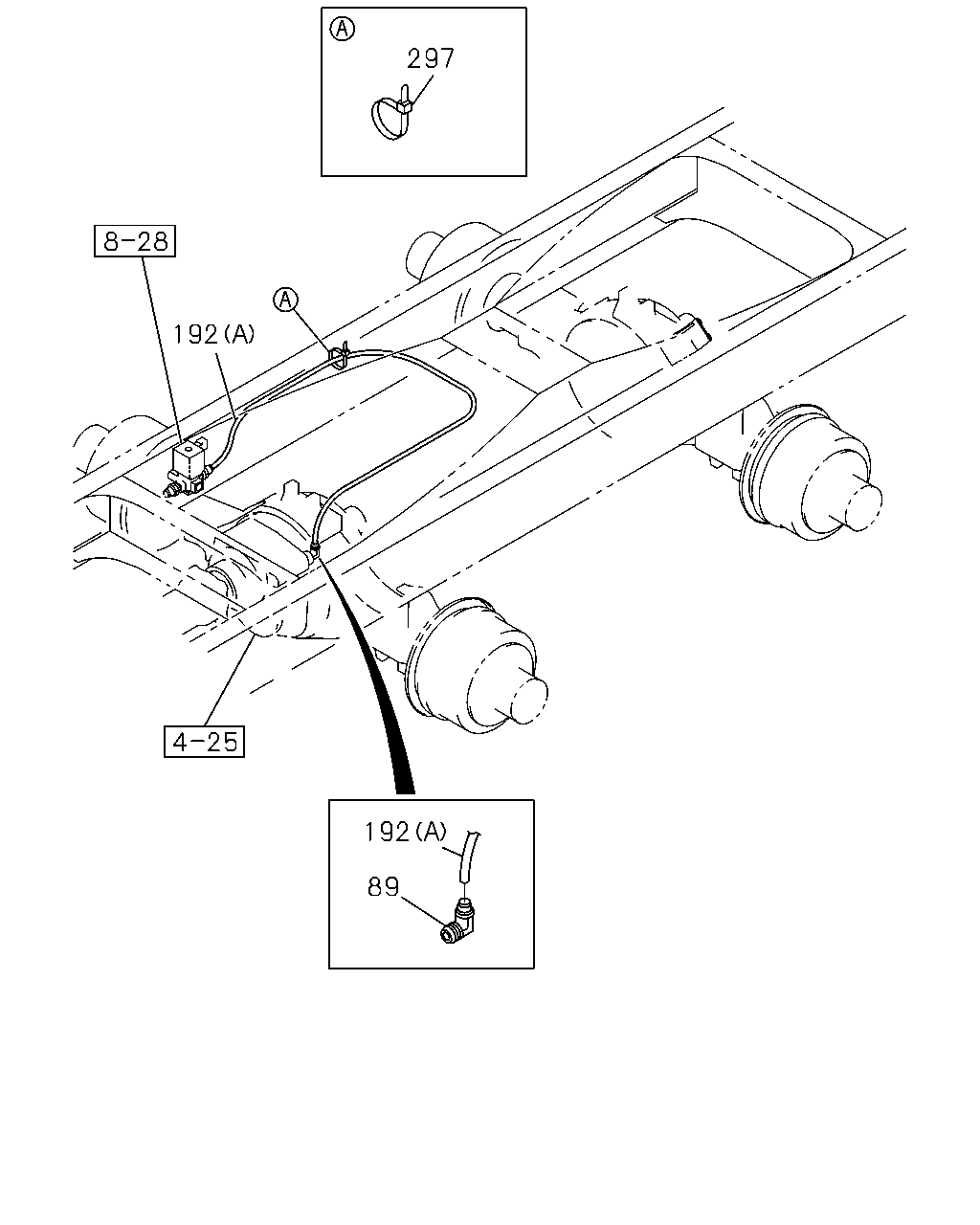

297
192
192
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
89
CONNECTOR; NYLON TUBE
DIN8 & R1/4 ELBOW
1-09661-209-0
03
1
1009-
●
●
192
TUBE; NYLON
(B)
8-98105-916-0
01
1
1009-
●
192
TUBE; NYLON
(C)
8-98122-535-0
01
1
1009-
●
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=6
1-87411-003-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=12000 OD=8
1-87411-010-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1009-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
1009-
●
●
297
CLIP; BAND
ZF9S1310 M/T(Y5K) L=350
1-09707-183-0
01
1
1009-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
