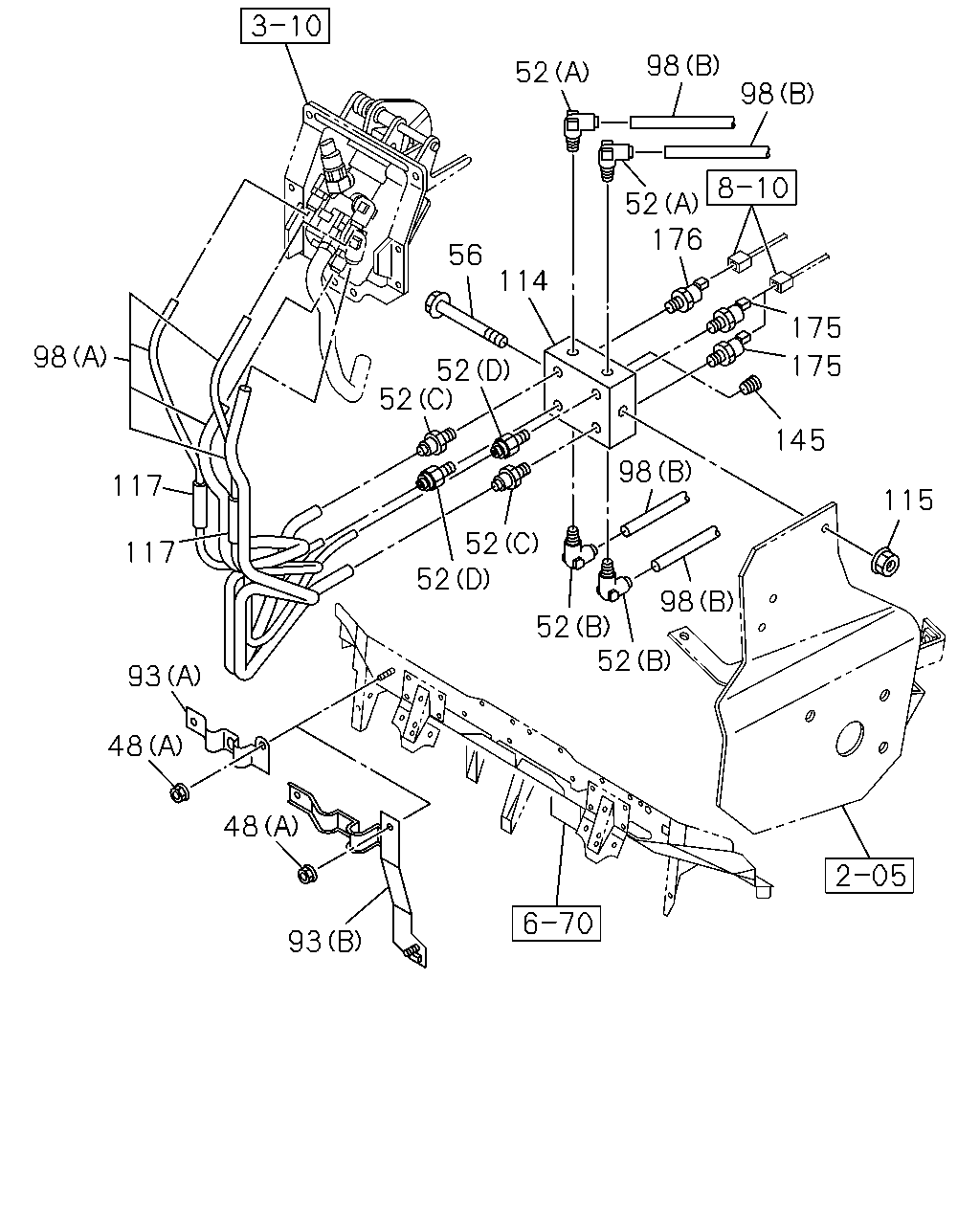

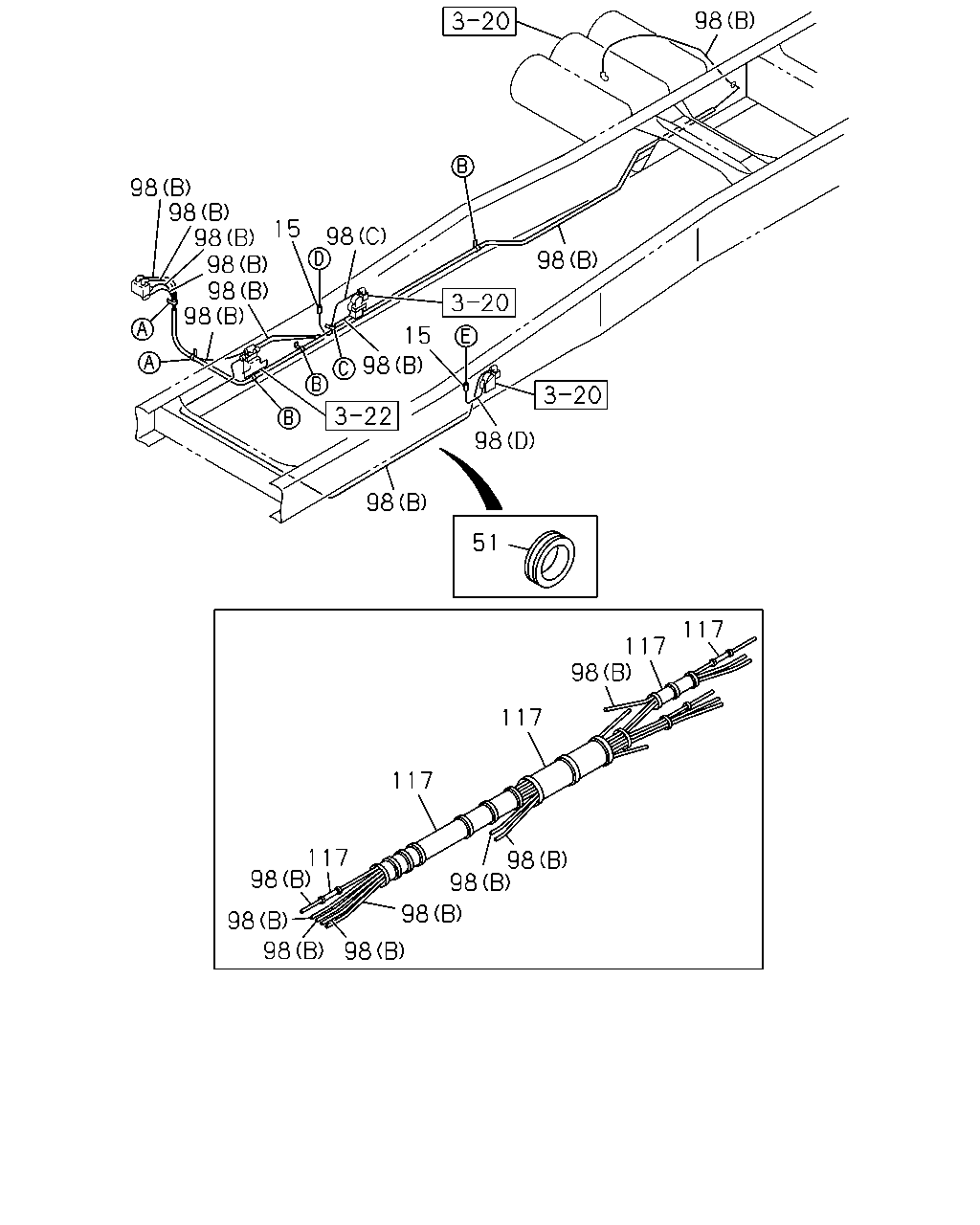

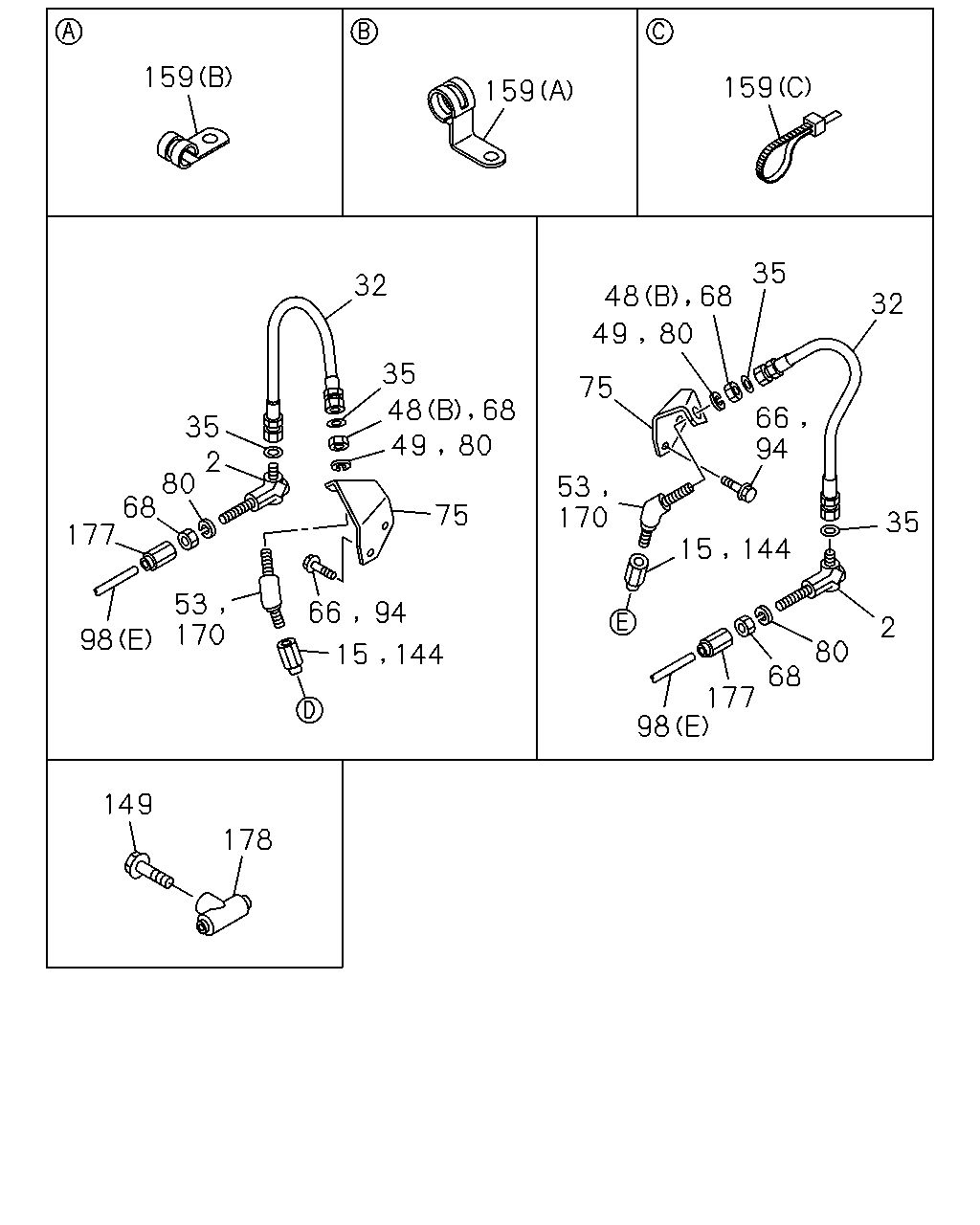

3-75 — BRAKE PIPING; AIR,FRONT (#71906) — 103 parça

98 117 117 93 48 48 93 56 52 52 114 52 98 98 52 176 175 145 175 115 98 98 52 52 52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	NUT; UNION BRKT (B) M20	0-91111-520-0	01	1	1009-1101	●	●
48	NUT; UNION BRKT (A) M6 FLANGE	0-91180-106-0	02	1	1009-	●	●
52	CONNECTOR; NYLON TUBE (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1009-	●	●
52	CONNECTOR; NYLON TUBE (B) DIN12 & R1/4 ELBOW	1-09660-958-0	02	1	1009-	●	●
52	CONNECTOR; NYLON TUBE (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	1009-	●	●
52	CONNECTOR; NYLON TUBE (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	1009-	●	●
56	BOLT; UNION BRKT M8X100 FLANGE	0-28050-800-0	01	1	1009-	●	●
93	BRACKET; UNION,TUBE (A)	8-98044-013-0	01	1	1009-1201	●	●
93	BRACKET; UNION,TUBE (B)	8-98186-924-0	01	1	1202-	●	●
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98174-965-0	01	1	1009-	●	●
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (D)	8-98174-966-0	01	1	1009-	●	●
98	TUBE; NYLON (A)	8-98091-307-0	01	1	1009-	●	●
98	TUBE; NYLON (E) L=240 OD=12	8-98096-505-0	02	1	1009-	●	●
98	TUBE; NYLON EXC. ANTILOCK BRAKE SYSTEM(BFA) (D)	8-98086-217-0	01	1	1009-1203		●
98	TUBE; NYLON EXC. ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98106-552-0	01	1	1009-1203		●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1009-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1009-	●	●
98	TUBE; NYLON (B) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1009-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-	●	●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1009-	●	●
114	UNION; NYLON TUBE	8-98057-394-1	01	1	1009-	●	●
115	NUT; TUBE UNION M8 FLANGE	0-91180-108-0	01	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=13	1-87411-023-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1009-	●	●
145	PLUG PT1/4	9-99204-513-0	01	1	1009-	●	●
175	SENSOR; AIR PRESS THREAD R1/4	1-80220-023-1	02	1	1009-	●	●
176	SWITCH; AIR PRESS STAMP 0.3	8-98010-857-0	01	1	1009-	●	●

98 98 98 98 98 98 98 117 117 117 117 98 117 51 98 98 98 15 98 98 98 15 98 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	1009-1101	●	●
51	GROMMET; NYLON TUBE EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=28 OD=35 T=25	1-09332-011-1	01	1	1009-1203		●
51	GROMMET; NYLON TUBE EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=28 OD=35 T=17	9-09956-256-2	01	1	1009-1203		●
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98174-965-0	01	1	1009-	●	●
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (D)	8-98174-966-0	01	1	1009-	●	●
98	TUBE; NYLON (A)	8-98091-307-0	01	1	1009-	●	●
98	TUBE; NYLON (E) L=240 OD=12	8-98096-505-0	02	1	1009-	●	●
98	TUBE; NYLON EXC. ANTILOCK BRAKE SYSTEM(BFA) (D)	8-98086-217-0	01	1	1009-1203		●
98	TUBE; NYLON EXC. ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98106-552-0	01	1	1009-1203		●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1009-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1009-	●	●
98	TUBE; NYLON (B) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1009-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-	●	●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=13	1-87411-023-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1009-	●	●

159 159 159 32 35 68 48 75 49 80 53 170 15 144 94 66 35 2 80 68 177 98 178 149 144 15 66 94 170 53 98 177 68 80 2 35 75 80 49 68 48 35 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	UNION; AIR PIPE M20 & M20 ELBOW	1-09654-128-1	02	1	1009-	●	●
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	1009-1101	●	●
32	HOSE; FLEX,FRT	0-87847-470-1	02	1	1009-	●	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	1009-	●	●
48	NUT; UNION BRKT (B) M20	0-91111-520-0	01	1	1009-1101	●	●
48	NUT; UNION BRKT (A) M6 FLANGE	0-91180-106-0	02	1	1009-	●	●
49	WASHER; LK,UNION BRKT ID=20.2	0-91510-520-0	01	1	1009-1101	●	●
53	UNION; ELBOW M20	1-09654-199-2	02	1	1009-1101	●	●
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	04	1	1102-1203	●	●
66	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	04	1	1204-	●	●
68	NUT; UNION M20	0-91111-520-0	02	1	1009-1101	●	●
68	NUT; UNION TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) ANTILOCK BRAKE SYSTEM(BFA) INTERNATIONAL STANDARD ISO 10STUD<B3V> M20	0-91111-520-0	02	1	1102-1210	●	●
68	NUT; UNION M20	0-91111-520-0	02	1	1102-1210	●	●
68	NUT; UNION M20	0-91111-520-0	02	1	1211-	●	●
68	NUT; UNION ANTILOCK BRAKE SYSTEM(BFA) INTERNATIONAL STANDARD ISO 10STUD<B3V> M20	0-91111-520-0	02	1	1211-	●	●
68	NUT; UNION M20	0-91111-520-0	01	1	1009-1101	●	●
75	BRACKET; UNION	8-98164-201-1	01	1	1009-	●	●
75	BRACKET; UNION	8-98164-202-1	01	1	1009-	●	●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	02	1	1009-1101	●	●
80	WASHER; LK,UNION TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) ANTILOCK BRAKE SYSTEM(BFA) INTERNATIONAL STANDARD ISO 10STUD<B3V> ID=20.2	0-91510-520-0	02	1	1102-1210	●	●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	02	1	1102-1210	●	●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	02	1	1211-	●	●
80	WASHER; LK,UNION ANTILOCK BRAKE SYSTEM(BFA) INTERNATIONAL STANDARD ISO 10STUD<B3V> ID=20.2	0-91510-520-0	02	1	1211-	●	●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	01	1	1009-1101	●	●
94	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	04	1	1009-1101	●	●
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98174-965-0	01	1	1009-	●	●
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (D)	8-98174-966-0	01	1	1009-	●	●
98	TUBE; NYLON (A)	8-98091-307-0	01	1	1009-	●	●
98	TUBE; NYLON (E) L=240 OD=12	8-98096-505-0	02	1	1009-	●	●
98	TUBE; NYLON EXC. ANTILOCK BRAKE SYSTEM(BFA) (D)	8-98086-217-0	01	1	1009-1203		●
98	TUBE; NYLON EXC. ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98106-552-0	01	1	1009-1203		●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1009-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1009-	●	●
98	TUBE; NYLON (B) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1009-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-	●	●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1009-	●	●
144	ADAPTER DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	1102-	●	●
149	BOLT; UNION EXC. ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE	0-28650-820-0	01	1	1009-1203		●
149	BOLT; UNION EXC. ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE	0-28650-825-0	01	1	1009-1203		●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	15	1	1009-	●
159	CLIP; NYLON TUBE (A) ID=31 H=30 L=35	1-09700-994-0	03	1	1009-	●	●
159	CLIP; NYLON TUBE (B) ID=26 L=26	1-09701-236-0	01	1	1009-	●	●
159	CLIP; NYLON TUBE (B) ID=29 L=35	5-09700-293-1	01	1	1009-	●	●
159	CLIP; NYLON TUBE (B) ID=39 L=33	8-98009-359-0	01	1	1009-	●	●
159	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) (C) L=350	1-09707-183-0	14	1	1009-		●
159	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (C) L=350	1-09707-183-0	16	1	1009-		●
170	UNION; FLARE M20	1-09654-199-2	02	1	1102-	●	●
177	CONNECTOR DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	1009-	●	●
178	UNION EXC. ANTILOCK BRAKE SYSTEM(BFA) DIN7.5X2 & M8 2WAY	1-09661-128-0	02	1	1009-1203		●
