◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11317 - FXZ(AUST)EURO5 ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#71905) — 91 parça

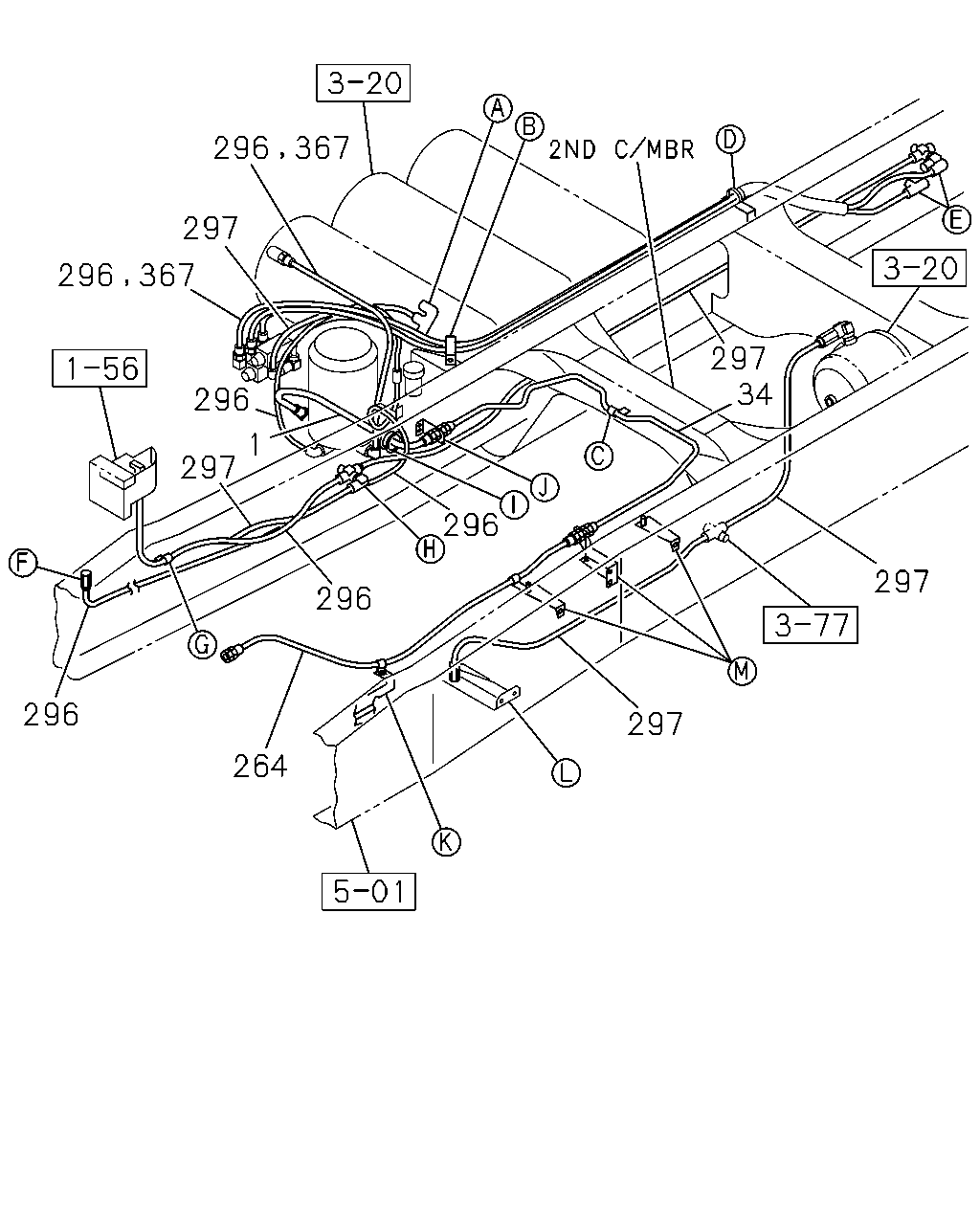

çizim 121280
296 367 297 367 296 296 297 1 296 264 296 296 297 34 297 297
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
BATTERY 115E41L<8MA> 		8-98100-332-0 01 1 1009- ● ●
1 HOSE; FLEX,AIR TANK
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		1-09363-940-0 01 1 1009- ● ●
34 PIPE; AIR
L=1258 		8-97618-580-0 01 1 1009- ● ●
264 HOSE; FLEX
A/T ALLISON 4430(Y5V) L=1160 		8-98208-138-0 01 1 1303- ● ●
264 HOSE; FLEX
L=1150 		1-09363-791-0 01 1 1009-1302 ●
264 HOSE; FLEX
EXC. ENGINE REAR PTO(SV1) L=1150 		1-09363-791-0 01 1 1009-1302 ●
264 HOSE; FLEX
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) L=1150 		1-09363-791-0 01 1 1303- ●
264 HOSE; FLEX
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) L=1150 		1-09363-791-0 01 1 1303- ●
264 HOSE; FLEX
ENGINE REAR PTO(SV1) L=1000 		1-09363-794-0 01 1 1009-1302 ●
264 HOSE; FLEX
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) L=1000 		1-09363-794-0 01 1 1303- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1009- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1009- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1009- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1009- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1009- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1009- ● ●
çizim 121598
297 90 258 435 436 296 229 273 343 258 297 80 444 297 434 296 367 296 258 80 367 296 80 444 91
BalonParca AdiParca NoAdetTipApplied Date A B
80 UNION; 3 WAY
(A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 1009- ●
80 UNION; 3 WAY
ZF9S1310 M/T(Y5K) (B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1009-1302 ● ●
80 UNION; 3 WAY
(B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1009-1302 ●
80 UNION; 3 WAY
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1303- ● ●
80 UNION; 3 WAY
(B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1303- ●
90 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1009- ● ●
91 BRACKET; TUBE CLIP
L=60 H=30 		1-47477-716-1 02 1 1009- ●
91 BRACKET; TUBE CLIP
WHEEL BASE 6600MM(66W) L=60 H=30 		1-47477-716-1 02 1 1009- ●
229 ADAPTER; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1009- ● ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1009-1302 ● ●
229 ADAPTER; NYLON TUBE
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1303- ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1009- ● ●
258 CONNECTOR; NYLON TUBE
ZF9S1310 M/T(Y5K) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1009-1302 ● ●
258 CONNECTOR; NYLON TUBE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1303- ● ●
273 GROMMET
ID=32 OD=40 T=18 		1-09891-003-0 01 1 1009- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1009- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1009- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009- ● ●
343 UNION; NYLON TUBE
TRANSMISSION-FULLER RTO11908(Y5L) DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 1009-1302 ● ●
343 UNION; NYLON TUBE
TRANSMISSION-FULLER RTO11908(Y5L),A/T ALLISON 4430(Y5V) DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 1303- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1009- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1009- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1009- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1009- ● ●
434 CLIP
ID=8 H=20 L=20 		1-09700-604-0 01 1 1009- ● ●
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1009- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1009- ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1009- ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1009- ●
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 02 1 1009- ●

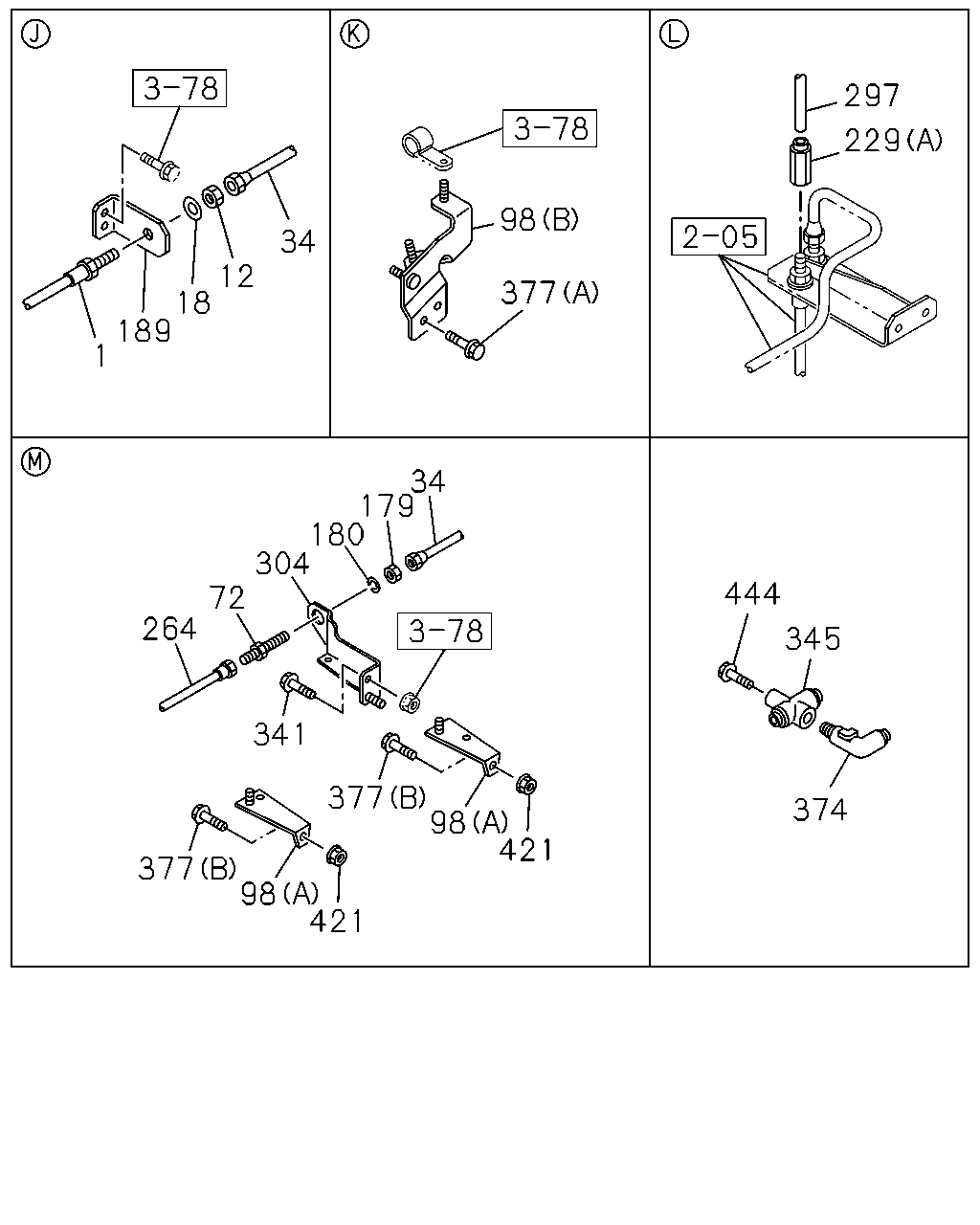

çizim 121668
1 189 18 12 34 264 72 304 180 179 34 341 377 98 421 377 98 421 374 345 444 377 98 297 229
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
BATTERY 115E41L<8MA> 		8-98100-332-0 01 1 1009- ● ●
1 HOSE; FLEX,AIR TANK
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		1-09363-940-0 01 1 1009- ● ●
12 NUT; UNION
M22 		0-91111-522-0 01 1 1009- ● ●
18 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1009- ● ●
34 PIPE; AIR
L=1258 		8-97618-580-0 01 1 1009- ● ●
72 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 1009- ● ●
98 BRACKET; AIR PIPE
(A) 		8-97609-096-0 02 1 1009- ● ●
98 BRACKET; AIR PIPE
(B) 		8-97610-999-0 01 1 1009- ● ●
179 NUT; UNION
M22 		0-91111-522-0 01 1 1009- ● ●
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1009- ● ●
189 BRACKET; FLEX HOSE 1-47479-473-0 01 1 1009- ● ●
229 ADAPTER; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1009- ● ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1009-1302 ● ●
229 ADAPTER; NYLON TUBE
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1303- ● ●
264 HOSE; FLEX
A/T ALLISON 4430(Y5V) L=1160 		8-98208-138-0 01 1 1303- ● ●
264 HOSE; FLEX
L=1150 		1-09363-791-0 01 1 1009-1302 ●
264 HOSE; FLEX
EXC. ENGINE REAR PTO(SV1) L=1150 		1-09363-791-0 01 1 1009-1302 ●
264 HOSE; FLEX
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) L=1150 		1-09363-791-0 01 1 1303- ●
264 HOSE; FLEX
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) L=1150 		1-09363-791-0 01 1 1303- ●
264 HOSE; FLEX
ENGINE REAR PTO(SV1) L=1000 		1-09363-794-0 01 1 1009-1302 ●
264 HOSE; FLEX
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) L=1000 		1-09363-794-0 01 1 1303- ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009- ● ●
304 BRACKET; UNION 8-97610-362-1 01 1 1009- ● ●
341 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1009- ● ●
345 UNION; AIR PIPE
DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 1009- ●
374 CONNECTOR
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1009- ●
377 BOLT; BRKT FIX
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1009- ● ●
377 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1009- ● ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009- ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1009- ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1009- ●
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 02 1 1009- ●
