Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11317 - FXZ(AUST)EURO5
▶
3 - Brakes, Brake System
▶
3-41 - REAR BRAKE POWER CHAMBER
▶

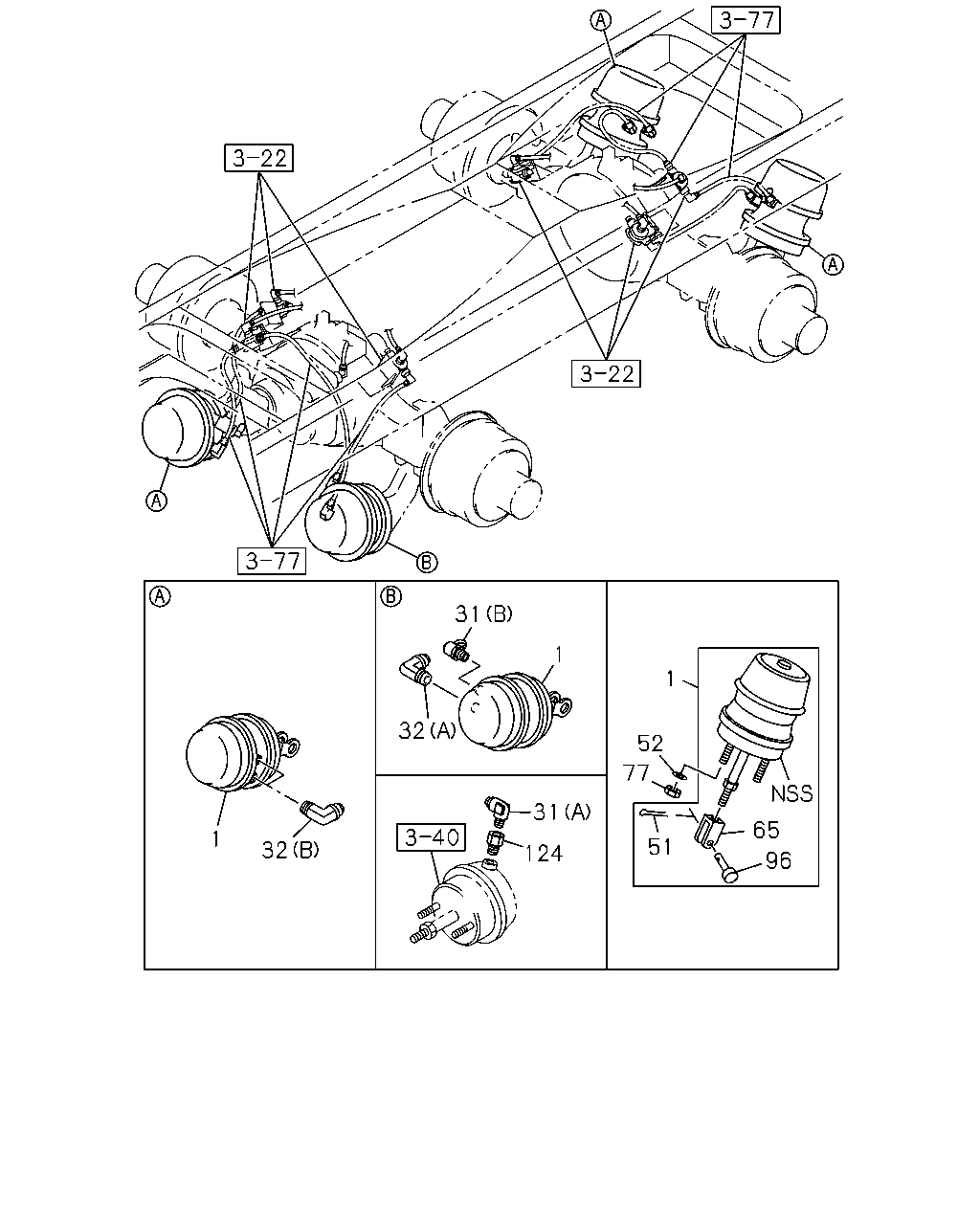

3-41 — REAR BRAKE POWER CHAMBER
(#71901) — 23 parça
Tümü
A - FGY5MX
B - FGZ5MX
96
51
65
52
77
1
124
1
32
31
31
32
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH
1-48250-943-0
01
1
1009-1206
●
●
1
CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH
1-48250-943-0
01
1
1009-1206
●
●
1
CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH
1-48250-957-0
01
1
1207-
●
●
1
CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH
1-48250-957-0
01
1
1207-
●
●
1
CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH
1-48250-944-0
01
1
1009-1206
●
●
1
CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH
1-48250-944-0
01
1
1009-1206
●
●
1
CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH
1-48250-958-0
01
1
1207-
●
●
1
CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH
1-48250-958-0
01
1
1207-
●
●
31
CONNECTOR
(A) DIN12 & NPTF3/8 ELBOW
1-09660-962-0
02
1
1009-
●
●
31
CONNECTOR
(B) R1/4 & M16 TEST CONNECTOR
1-47459-013-1
01
1
1009-
●
●
32
CONNECTOR; SPR CHAMBER
(A) DIN12 & NPTF3/8 & RC1/4 3WAY
1-09660-804-0
01
1
1009-
●
●
32
CONNECTOR; SPR CHAMBER
(B) DIN12 & NPTF3/8 ELBOW
1-09660-962-0
07
1
1009-
●
●
51
PIN; SPLIT
1-48259-275-0
02
1
1009-
●
●
51
PIN; SPLIT
1-48259-275-0
02
1
1009-
●
●
52
WASHER; PL
1-41519-038-0
04
1
1009-
●
●
52
WASHER; PL
1-41519-038-0
04
1
1009-
●
●
65
JOINT; JAW
1-48259-321-0
02
1
1009-
●
●
65
JOINT; JAW
1-48259-321-0
02
1
1009-
●
●
77
NUT; SPR CHAMBER BRK
1-87050-052-0
04
1
1009-
●
●
77
NUT; SPR CHAMBER BRK
1-87050-052-0
04
1
1009-
●
●
96
PIN; JAW JOINT
1-48259-273-0
02
1
1009-
●
●
96
PIN; JAW JOINT
1-48259-273-0
02
1
1009-
●
●
124
ADAPTER
R1/4 & PT3/8
8-98113-889-0
01
1
1009-
●
●
