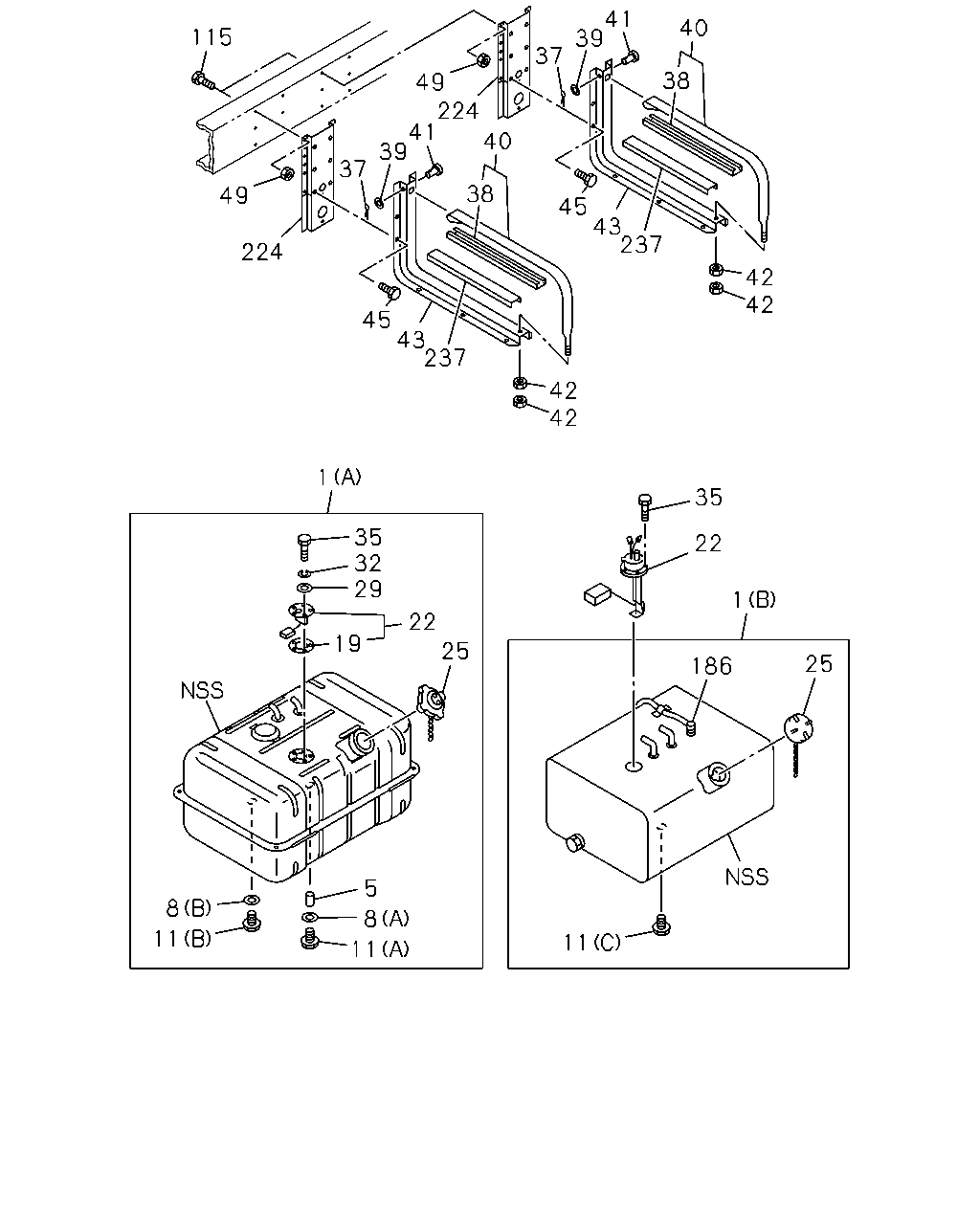

1-40 — FUEL TANK (#719) — 67 parça

41 39 40 37 115 38 49 224 41 39 40 37 38 49 45 43 237 224 42 42 45 43 237 42 42 1 35 35 32 29 22 1 22 19 25 25 186 5 8 8 11 11 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; FUEL (A) 720X610X496 200L	1-22400-571-4	01	1	9204-	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE(N20) (A) 720X610X496 200L	1-22400-571-4	01	1	9204-			●
1	TANK; FUEL FUEL TANK 200L MCSR(PK6) (B) 869X597X413 200L	1-22400-819-0	01	1	9204-			●
5	STRAINER; FUEL TANK	1-22460-001-1	01	1	9204-9402	●
5	STRAINER; FUEL TANK FUEL TANK 200L FRAME SIDE(N20)	1-22460-001-1	01	1	9204-9402			●
8	GASKET; DRAIN PLUG,FUEL TANK (A) T=1.60	1-22416-001-0	01	1	9204-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE(N20) (A) T=1.60	1-22416-001-0	01	1	9204-			●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	9-09923-030-0	01	1	9204-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE(N20) (B) T=2.0	9-09923-030-0	01	1	9204-			●
11	PLUG; DRAIN,FUEL TANK (B)	1-09604-052-0	01	1	9204-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE(N20) (B)	1-09604-052-0	01	1	9204-			●
11	PLUG; DRAIN,FUEL TANK (A) M18X12	1-09604-081-0	01	1	9204-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE(N20) (A) M18X12	1-09604-081-0	01	1	9204-			●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L MCSR(PK6) (C)	1-09604-082-0	01	1	9204-			●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	01	1	9204-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE(N20)	9-83135-003-0	01	1	9204-			●
22	UNIT; FUEL TANK	1-83141-056-0	01	1	9204-	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE(N20)	1-83141-056-0	01	1	9204-			●
22	UNIT; FUEL TANK FUEL TANK 200L MCSR(PK6)	1-83141-086-1	01	1	9204-			●
25	CAP; FILLER,FUEL TANK	1-22440-033-2	01	1	9204-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE(N20)	1-22440-033-2	01	1	9204-			●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L MCSR(PK6)	1-22440-050-0	01	1	9204-			●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	01	1	9204-	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE(N20) ID=5.3	9-09160-505-0	01	1	9204-			●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	05	1	9204-	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE(N20) ID=5.1	9-09150-505-0	05	1	9204-			●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	9204-	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE(N20) M5X10	9-93497-510-0	05	1	9204-			●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L MCSR(PK6)	1-09187-007-0	05	1	9204-			●
37	PIN; SPLIT,SUPPORT BELT FUEL TANK 200L MCSR(PK6) OD=3.7 L=28	9-08114-028-0	02	1	9204-			●
38	INSULATION; SUPPORT BELT L=650	1-22553-022-1	02	1	9204-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE(N20) L=650	1-22553-022-1	02	1	9204-			●
39	WASHER; PL,SUPPORT BELT FUEL TANK 200L MCSR(PK6) ID=17	9-09164-516-0	02	1	9204-			●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-1	02	1	9204-9404	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE(N20) L=1030	1-22550-204-1	02	1	9204-9404			●
40	BELT; SUPPORT,FUEL TANK L=1040	1-22550-194-2	02	1	9405-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE(N20) L=1040	1-22550-194-2	02	1	9405-			●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L MCSR(PK6) L=1035	1-22550-221-0	02	1	9204-			●
41	PIN; SUPPORT BELT FUEL TANK 200L MCSR(PK6) OD=16 L=75	9-08224-675-0	02	1	9204-			●
42	NUT; SUPPORT BELT M10	9-09110-410-0	04	1	9204-	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE(N20) M10	9-09110-410-0	04	1	9204-			●
42	NUT; SUPPORT BELT FUEL TANK 200L MCSR(PK6)	1-09487-027-1	04	1	9204-			●
43	BRACKET; FUEL TANK	1-53461-309-1	02	1	9204-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE(N20)	1-53461-309-1	02	1	9204-			●
43	BRACKET; FUEL TANK FUEL TANK 200L MCSR(PK6)	1-53461-355-2	02	1	9204-			●
45	BOLT; BRKT,FUEL TANK M12X40 W/LK WASHER	0-50041-240-0	12	1	9204-9307	●		●
45	BOLT; BRKT,FUEL TANK M12X40 FLANGE	0-28081-240-0	12	1	9308-9412	●		●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L MCSR(PK6) M12X40 FLANGE	0-28081-240-0	12	1	9501-			●
45	BOLT; BRKT,FUEL TANK M12X35 W/LK WASHER	0-50041-235-0	12	1	9501-	●	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L FRAME SIDE(N20) M12X35 W/LK WASHER	0-50041-235-0	12	1	9501-			●
49	NUT; BRKT M12	9-99110-412-0	12	1	9204-9308	●		●
49	NUT; BRKT M12	9-99110-412-0	12	1	9505-		●
115	BOLT; BRKT M12X40 W/LK WASHER	0-50041-240-0	12	1	9204-9307	●		●
115	BOLT; BRKT M12X40 FLANGE	0-28081-240-0	12	1	9308-	●	●	●
186	VALVE; GT,FUEL TANK FUEL TANK 200L MCSR(PK6)	1-22453-005-0	01	1	9204-			●
224	BRACKET; FUEL TANK BRKT TO FRAME	1-53461-383-1	02	1	9204-	●	●
224	BRACKET; FUEL TANK BRKT TO FRAME FUEL TANK 200L FRAME SIDE(N20)	1-53461-383-1	02	1	9204-			●
224	BRACKET; FUEL TANK BRKT TO FRAME FUEL TANK 200L MCSR(PK6)	1-53461-397-0	02	1	9204-			●
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	9204-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE(N20) L=580	1-22553-003-0	02	1	9204-			●

329 330 331 329 331 324 331 329 331 330

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
324	PROTECTOR; FUEL SEDIMENTER	1-19759-012-0	01	1	9505-		●
329	JOINT ASM; EYE,FUEL PIPE (A)	5-09674-054-0	01	1	9204-	●		●
329	JOINT ASM; EYE,FUEL PIPE (B)	5-15411-472-0	01	1	9204-9504	●		●
329	JOINT ASM; EYE,FUEL PIPE (B)	5-15411-472-0	01	1	9505-	●	●	●
329	JOINT ASM; EYE,FUEL PIPE (B)	5-15411-472-0	01	1	9505-		●
330	BOLT; EYE,JOINT M14X27 FLANGE	1-09675-086-0	02	1	9204-	●	●	●
331	GASKET; EYE JOINT ID=14.2 OD=19.2	1-09630-085-0	04	1	9204-	●	●	●
