Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#71897) — 191 parça

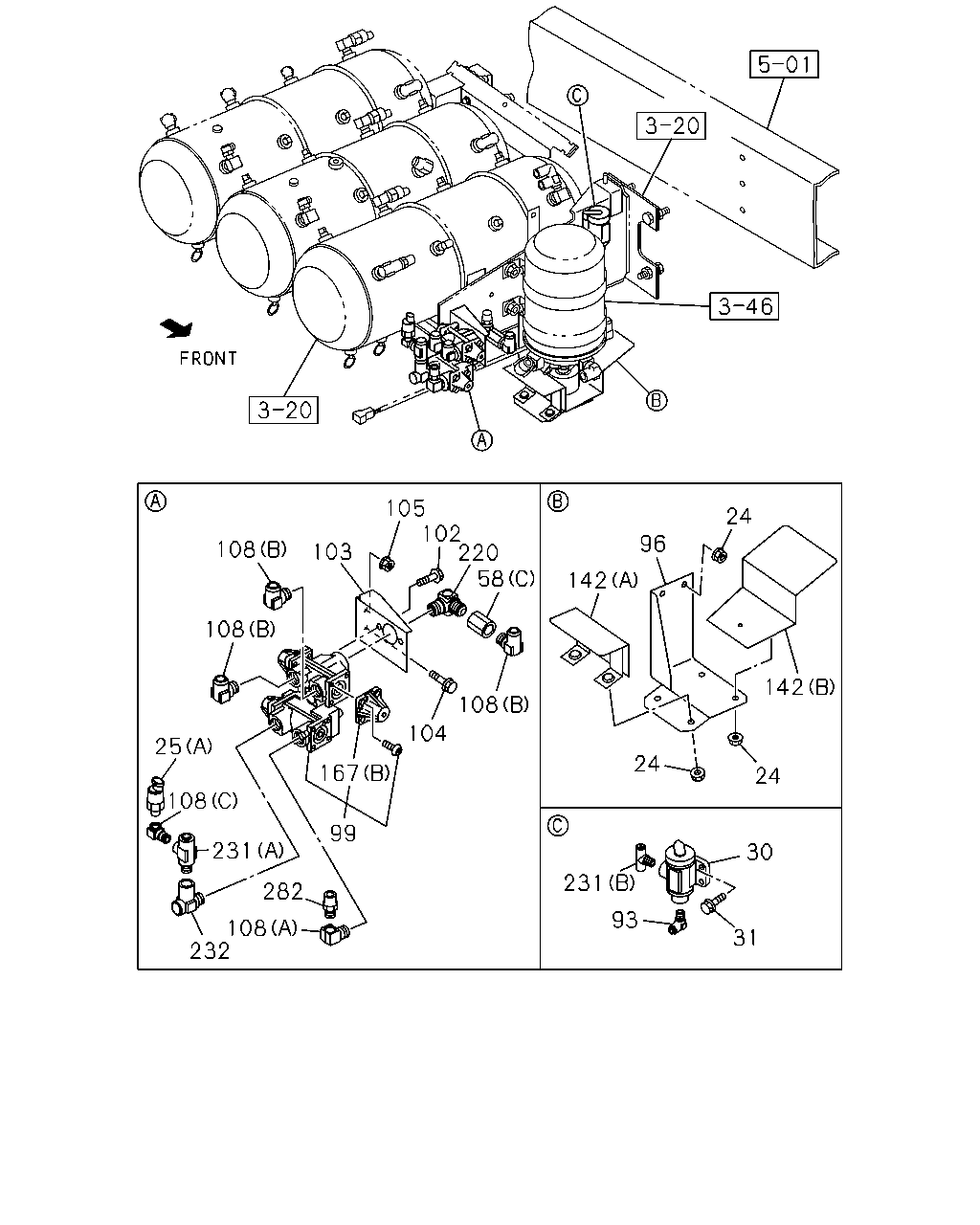

96 24 142 24 24 142 58 220 102 105 103 108 108 25 108 231 99 108 232 282 167 104 108 231 93 31 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	NUT M8 FLANGE	0-91180-108-0	06	1	1009-	●	●
25	SWITCH; PRESSURE (A) STAMP 5.5	8-97609-249-0	01	1	1009-	●	●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-2	01	1	1009-	●	●
30	GOVERNOR; AIR CONT	1-48350-063-2	01	1	1009-	●	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	1009-	●	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1009-1103	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	1104-	●
58	ADAPTER WHEEL BASE 6600MM(66W) (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	1104-		●
58	ADAPTER (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1009-	●	●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A) M22 ADAPTER	1-48219-154-0	02	1	1009-	●	●
58	ADAPTER WHEEL BASE 4900MM(49W) (B) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1009-		●
58	ADAPTER WHEEL BASE 6600MM(66W) (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	1009-1103		●
93	CONNECTOR; GOV DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1009-	●	●
96	BRACKET	8-98093-436-0	01	1	1009-	●	●
99	VALVE; PROTECTION	1-48110-294-3	01	1	1009-	●	●
102	BOLT; PROTECTION VALVE M8X16 FLANGE	0-28050-816-0	02	1	1009-	●	●
103	BRACKET; PROTECTION VALVE	8-98093-563-0	01	1	1009-	●	●
104	BOLT; BRKT,VALVE M10X20 FLANGE	0-28651-020-0	01	1	1009-	●	●
105	NUT; BRKT,VALVE M10 FLANGE	0-91180-210-0	01	1	1009-	●	●
108	CONNECTOR; ELBOW (C) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1009-	●	●
108	CONNECTOR; ELBOW (A) PT3/8 ELBOW	1-09660-696-0	01	1	1009-	●	●
108	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1009-	●	●
142	PROTECTOR; HEAT (A)	8-98093-437-1	01	1	1009-	●	●
142	PROTECTOR; HEAT (B)	8-98093-438-1	01	1	1009-	●	●
167	COVER; VALVE (B)	1-48119-625-0	04	1	1204-	●	●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-070-0	02	1	1009-	●	●
220	CONNECTOR; 3WAY DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1009-	●	●
231	CONNECTOR; NYLON TUBE (A) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1009-	●	●
231	CONNECTOR; NYLON TUBE (B)	1-09661-073-0	01	1	1009-	●	●
232	VALVE; CHECK DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1009-	●	●
282	CONNECTOR; STRAIGHT DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1009-	●	●

8 73 12 2 55 12 56 4 12 5 12 2 55 12 8 12 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA)	1-48210-997-0	02	1	1009-	●	●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X35 FLANGE	0-28651-035-0	02	1	1009-	●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X35 FLANGE	0-28651-035-0	04	1	1009-		●
5	NUT ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91180-210-0	02	1	1009-	●
5	NUT ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91180-210-0	04	1	1009-		●
8	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X35 FLANGE	0-28651-035-0	04	1	1009-	●
8	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE	0-28650-825-0	04	1	1009-		●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-	●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1009-	●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (D) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	1009-	●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-	●	●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1009-		●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1009-		●
55	PLUG; SUPPLY ANTILOCK BRAKE SYSTEM(BFA) PT3/8	9-09204-517-0	02	1	1009-	●	●
56	BRACKET; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (B)	8-98031-257-0	01	1	1009-	●
56	BRACKET; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47479-937-0	01	1	1009-		●
73	NUT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91180-210-0	04	1	1009-	●
73	NUT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	04	1	1009-		●

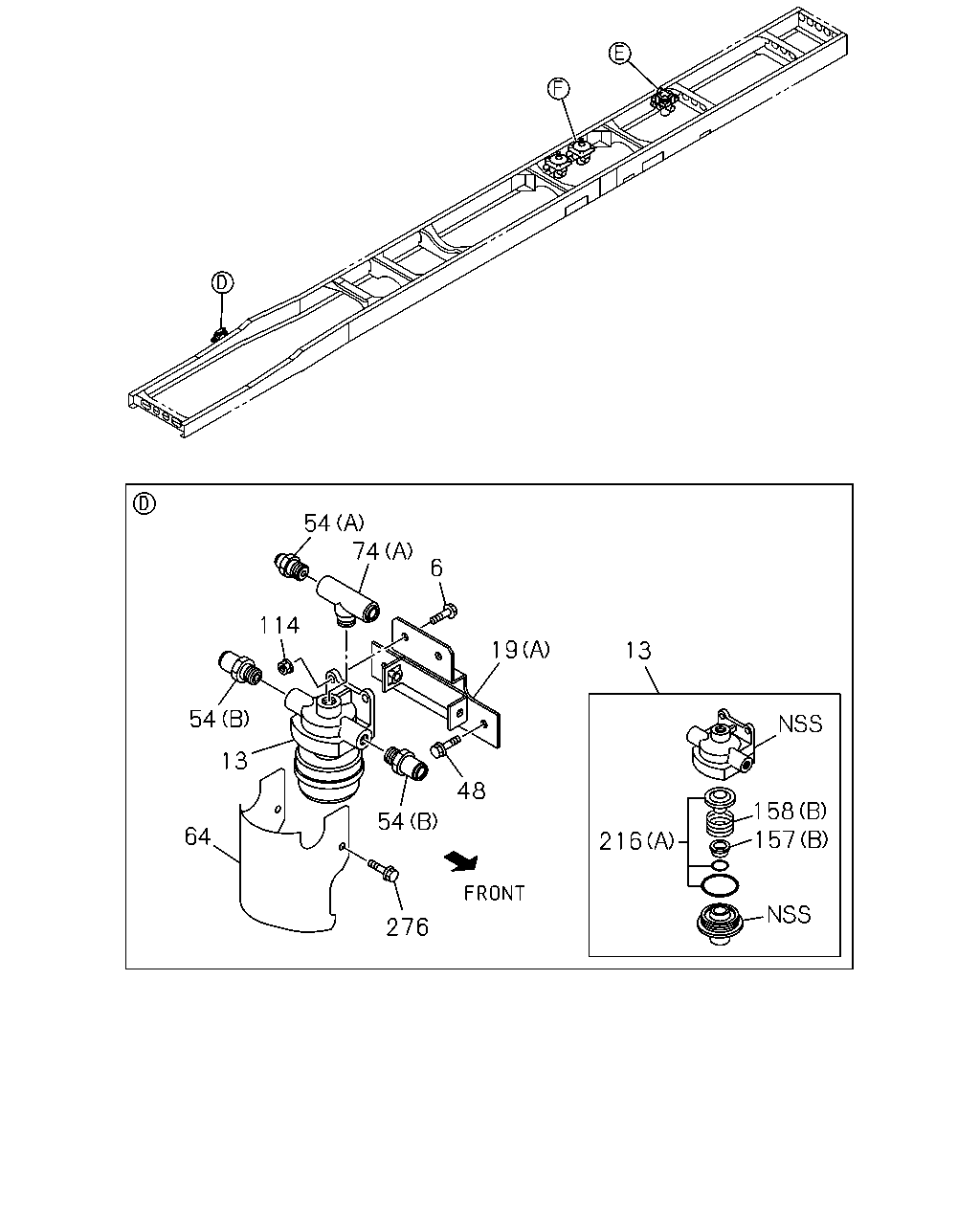

54 74 6 19 48 54 276 64 13 54 114 13 216 157 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	BOLT; VLV M8X30 FLANGE	0-28650-830-0	02	1	1009-	●
6	BOLT; VLV M8X25 FLANGE	0-28650-825-0	02	1	1009-	●	●
6	BOLT; VLV M8X25 FLANGE	0-28650-825-0	02	1	1009-		●
13	VALVE ASM; QUICK RELEASE REAR	8-98170-207-0	02	1	1009-	●	●
13	VALVE ASM; QUICK RELEASE FRONT	1-48410-726-1	01	1	1009-	●	●
19	BRACKET; QUICK RELEASE VLV (B) REARWARD	8-98033-795-0	01	1	1009-	●
19	BRACKET; QUICK RELEASE VLV (C) FORWARD	8-98069-343-0	01	1	1009-	●
19	BRACKET; QUICK RELEASE VLV (A)	1-47471-014-0	01	1	1009-	●	●
19	BRACKET; QUICK RELEASE VLV (D)	8-98033-795-0	02	1	1009-		●
48	BOLT; QUICK RELEASE VLV M8X30 FLANGE	0-28650-830-0	02	1	1009-	●	●
54	CONNECTOR; QUICK RELEASE VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1009-	●	●
54	CONNECTOR; QUICK RELEASE VLV (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1009-	●	●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1009-	●	●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1009-	●	●
64	PROTECTOR; QUICK RELEASE VALVE	8-98043-421-0	01	1	1009-	●	●
74	CONNECTOR; 3WAY (A) DIN12 & R3/8 & RC3/8 3WAY	1-09661-232-0	01	1	1009-	●	●
74	CONNECTOR; 3WAY (B) DIN8 & R3/8 & RC1/4 3WAY	1-09661-536-0	01	1	1009-		●
114	NUT; VLV M8 FLANGE	0-91180-108-0	02	1	1009-	●	●
157	RETAINER; VALVE (A)	1-48419-020-0	02	1	1009-	●	●
157	RETAINER; VALVE (A)	1-48419-020-0	01	1	1009-	●	●
157	RETAINER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (B)	1-48213-002-0	02	1	1009-	●	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	1009-	●	●
158	SPRING; VALVE (B)	9-48419-003-0	02	1	1009-	●	●
158	SPRING; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47819-089-0	02	1	1009-	●	●
216	REPAIR KIT; QUICK RELEASE VLV (B)	8-98171-596-0	02	1	1009-	●	●
216	REPAIR KIT; QUICK RELEASE VLV (A)	1-85576-235-0	01	1	1009-1109	●	●
216	REPAIR KIT; QUICK RELEASE VLV (A)	1-85576-484-0	01	1	1110-	●	●
276	BOLT; PROTECTOR M8X20 FLANGE	0-28650-820-0	02	1	1009-	●	●

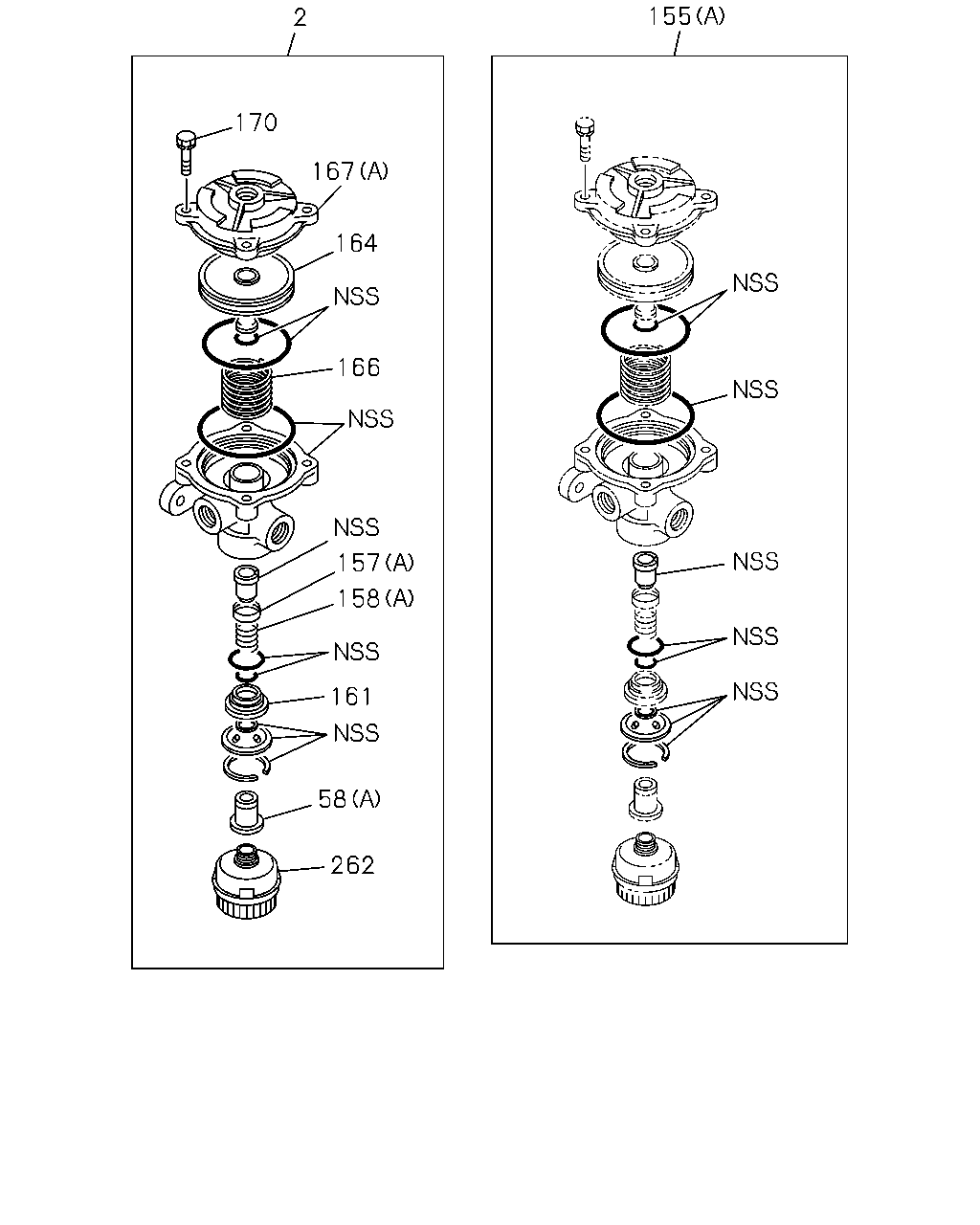

2 155 170 167 164 166 157 158 161 58 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA)	1-48210-997-0	02	1	1009-	●	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1009-1103	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	1104-	●
58	ADAPTER WHEEL BASE 6600MM(66W) (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	1104-		●
58	ADAPTER (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1009-	●	●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A) M22 ADAPTER	1-48219-154-0	02	1	1009-	●	●
58	ADAPTER WHEEL BASE 4900MM(49W) (B) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1009-		●
58	ADAPTER WHEEL BASE 6600MM(66W) (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	1009-1103		●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	1009-	●	●
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-85576-294-0	02	1	1009-	●	●
157	RETAINER; VALVE (A)	1-48419-020-0	02	1	1009-	●	●
157	RETAINER; VALVE (A)	1-48419-020-0	01	1	1009-	●	●
157	RETAINER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (B)	1-48213-002-0	02	1	1009-	●	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	1009-	●	●
158	SPRING; VALVE (B)	9-48419-003-0	02	1	1009-	●	●
158	SPRING; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47819-089-0	02	1	1009-	●	●
161	GUIDE; VALVE ANTILOCK BRAKE SYSTEM(BFA)	1-48129-014-0	02	1	1009-	●	●
164	PISTON; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA)	1-48219-071-0	02	1	1009-	●	●
166	SPRING; PISTON ANTILOCK BRAKE SYSTEM(BFA)	1-47819-090-0	02	1	1009-	●	●
167	COVER; VALVE (B)	1-48119-625-0	04	1	1204-	●	●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-070-0	02	1	1009-	●	●
170	SCREW; COVER TO BODY ANTILOCK BRAKE SYSTEM(BFA)	1-48219-039-0	08	1	1009-	●	●
262	SILENCER; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA)	1-48219-149-0	02	1	1009-	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	02	1	1009-	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1009-	●	●

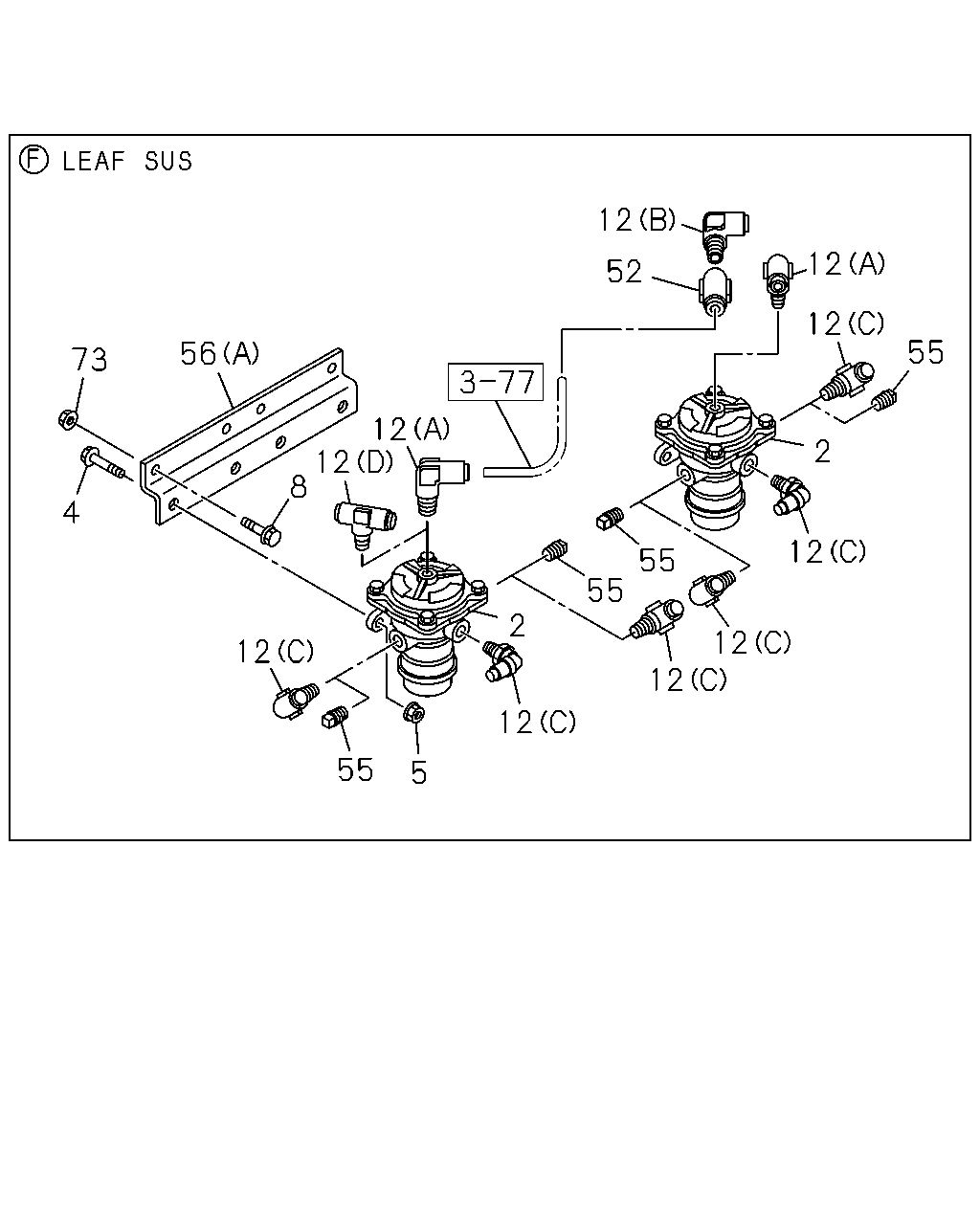

73 4 56 12 12 8 12 55 5 12 2 55 55 12 12 12 2 55 12 12 52 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA)	1-48210-997-0	02	1	1009-	●	●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X35 FLANGE	0-28651-035-0	02	1	1009-	●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X35 FLANGE	0-28651-035-0	04	1	1009-		●
5	NUT ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91180-210-0	02	1	1009-	●
5	NUT ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91180-210-0	04	1	1009-		●
8	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X35 FLANGE	0-28651-035-0	04	1	1009-	●
8	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE	0-28650-825-0	04	1	1009-		●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-	●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1009-	●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (D) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	1009-	●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-	●	●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1009-		●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1009-		●
52	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) DIN8 & R3/8 & RC1/4 3WAY	8-97620-116-0	01	1	1009-		●
55	PLUG; SUPPLY ANTILOCK BRAKE SYSTEM(BFA) PT3/8	9-09204-517-0	02	1	1009-	●	●
56	BRACKET; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (B)	8-98031-257-0	01	1	1009-	●
56	BRACKET; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47479-937-0	01	1	1009-		●
73	NUT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91180-210-0	04	1	1009-	●
73	NUT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	04	1	1009-		●

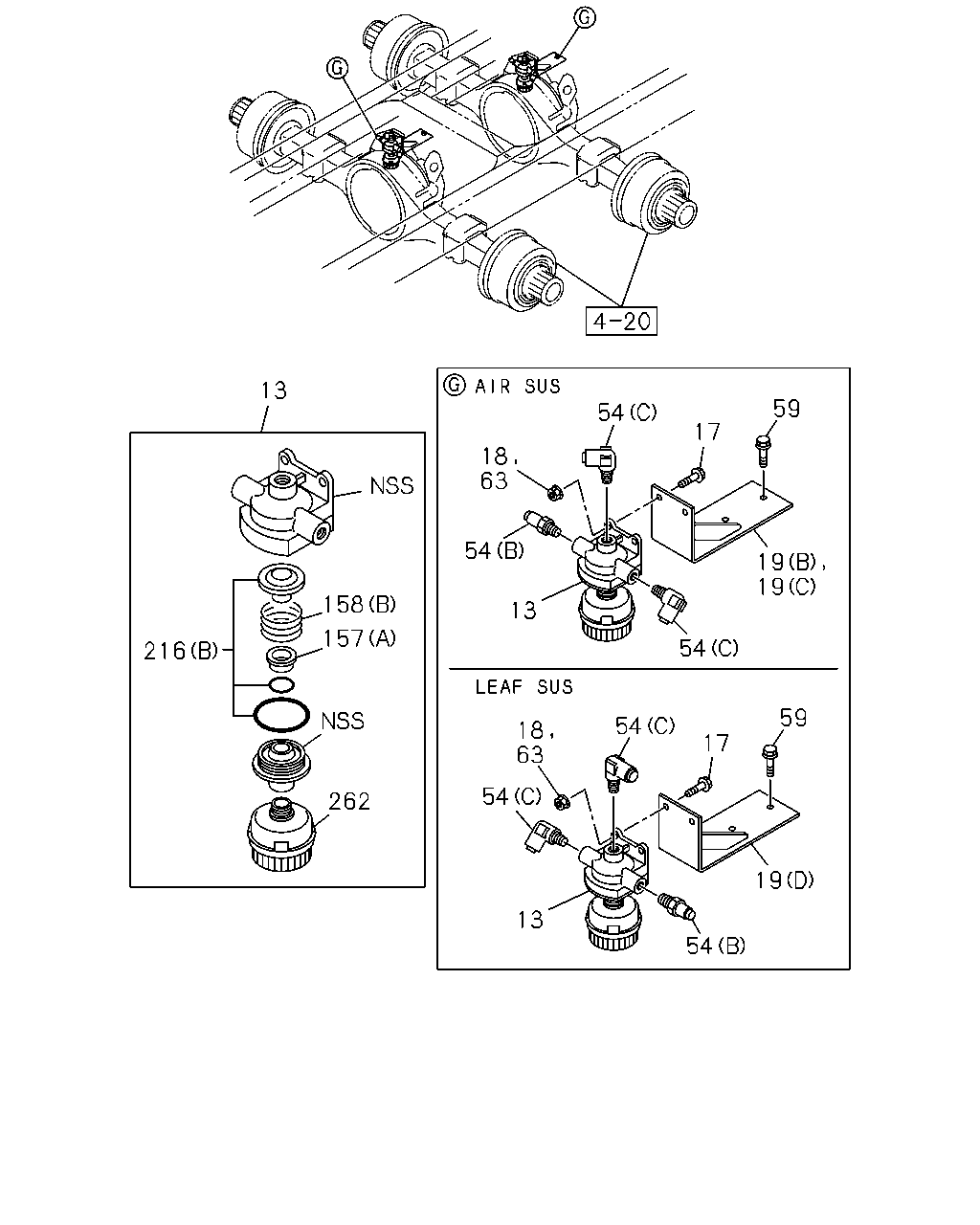

13 216 158 157 262 18 63 54 13 54 17 59 19 19 54 18 63 54 13 54 17 59 19 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	VALVE ASM; QUICK RELEASE REAR	8-98170-207-0	02	1	1009-	●	●
13	VALVE ASM; QUICK RELEASE FRONT	1-48410-726-1	01	1	1009-	●	●
17	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1009-	●	●
18	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1009-	●	●
19	BRACKET; QUICK RELEASE VLV (B) REARWARD	8-98033-795-0	01	1	1009-	●
19	BRACKET; QUICK RELEASE VLV (C) FORWARD	8-98069-343-0	01	1	1009-	●
19	BRACKET; QUICK RELEASE VLV (A)	1-47471-014-0	01	1	1009-	●	●
19	BRACKET; QUICK RELEASE VLV (D)	8-98033-795-0	02	1	1009-		●
54	CONNECTOR; QUICK RELEASE VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1009-	●	●
54	CONNECTOR; QUICK RELEASE VLV (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1009-	●	●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1009-	●	●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1009-	●	●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28050-816-0	04	1	1009-	●	●
63	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	1009-	●	●
157	RETAINER; VALVE (A)	1-48419-020-0	02	1	1009-	●	●
157	RETAINER; VALVE (A)	1-48419-020-0	01	1	1009-	●	●
157	RETAINER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (B)	1-48213-002-0	02	1	1009-	●	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	1009-	●	●
158	SPRING; VALVE (B)	9-48419-003-0	02	1	1009-	●	●
158	SPRING; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47819-089-0	02	1	1009-	●	●
216	REPAIR KIT; QUICK RELEASE VLV (B)	8-98171-596-0	02	1	1009-	●	●
216	REPAIR KIT; QUICK RELEASE VLV (A)	1-85576-235-0	01	1	1009-1109	●	●
216	REPAIR KIT; QUICK RELEASE VLV (A)	1-85576-484-0	01	1	1110-	●	●
262	SILENCER; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA)	1-48219-149-0	02	1	1009-	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	02	1	1009-	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1009-	●	●

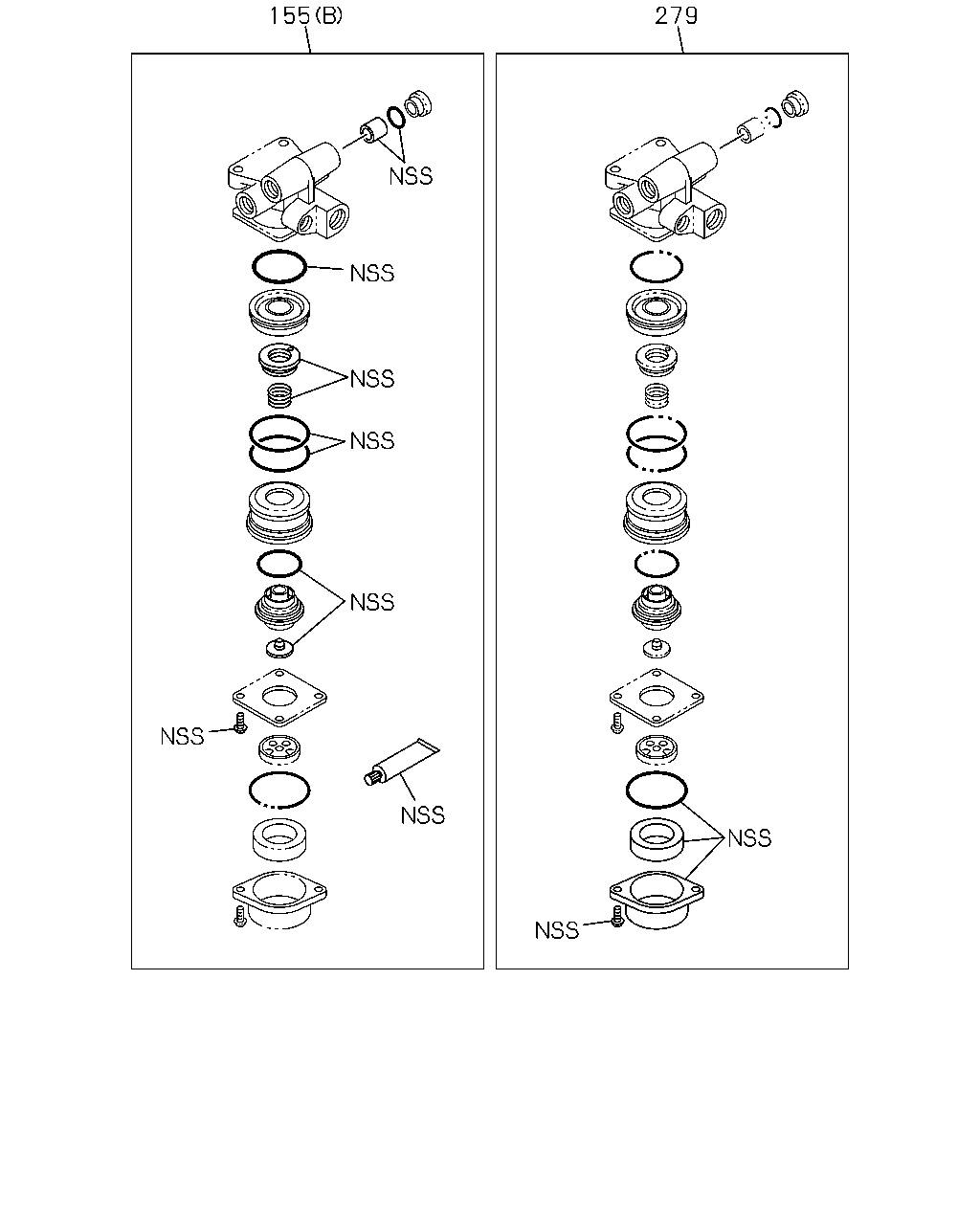

155 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	1009-	●	●
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-85576-294-0	02	1	1009-	●	●
279	REPAIR KIT; SILENCER	1-85576-409-0	01	1	1009-	●	●

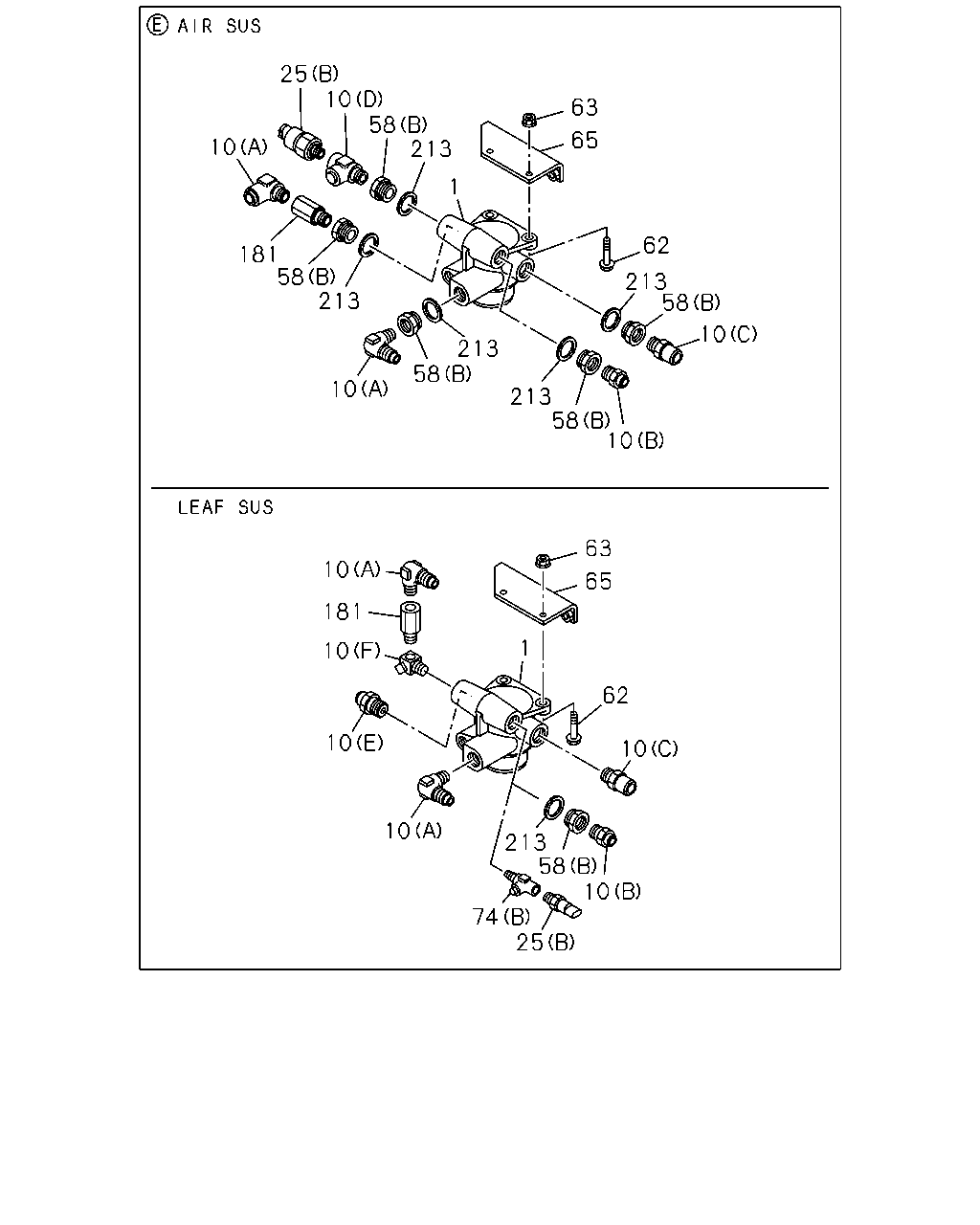

25 10 58 213 1 63 65 62 213 58 10 10 181 58 213 10 58 213 213 58 10 10 181 10 10 10 63 65 62 1 10 213 58 10 74 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; RELAY RWD RR	1-48240-354-1	01	1	1009-	●	●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-1103	●
10	CONNECTOR WHEEL BASE 6600MM(66W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-1103		●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1104-	●
10	CONNECTOR WHEEL BASE 4900MM(49W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1104-		●
10	CONNECTOR (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1009-	●
10	CONNECTOR (C) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	1009-1103	●
10	CONNECTOR WHEEL BASE 6600MM(66W) (C) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	1009-1103		●
10	CONNECTOR (C) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1104-	●
10	CONNECTOR WHEEL BASE 4900MM(49W) (C) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1104-		●
10	CONNECTOR (D) DIN8 & R3/8 & RC1/4 3WAY	1-09661-536-0	01	1	1009-	●
10	CONNECTOR (F) PT3/8 ELBOW	1-09660-696-0	01	1	1009-		●
10	CONNECTOR (E) DIN8 & M22 STRAIGHT	1-09661-091-0	01	1	1009-		●
10	CONNECTOR WHEEL BASE 4900MM(49W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-1103		●
10	CONNECTOR WHEEL BASE 6600MM(66W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1104-		●
10	CONNECTOR WHEEL BASE 4900MM(49W) (C) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1009-1103		●
10	CONNECTOR WHEEL BASE 6600MM(66W) (C) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	1104-		●
25	SWITCH; PRESSURE (A) STAMP 5.5	8-97609-249-0	01	1	1009-	●	●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-2	01	1	1009-	●	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1009-1103	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	1104-	●
58	ADAPTER WHEEL BASE 6600MM(66W) (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	1104-		●
58	ADAPTER (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1009-	●	●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A) M22 ADAPTER	1-48219-154-0	02	1	1009-	●	●
58	ADAPTER WHEEL BASE 4900MM(49W) (B) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1009-		●
58	ADAPTER WHEEL BASE 6600MM(66W) (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	1009-1103		●
62	BOLT; BRKT FIX M8X30 FLANGE	0-28650-830-0	02	1	1009-	●	●
63	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	1009-	●	●
65	BRACKET; RELAY VLV RR	1-47471-032-0	01	1	1009-	●
65	BRACKET; RELAY VLV RR	8-98105-921-0	01	1	1009-		●
74	CONNECTOR; 3WAY (A) DIN12 & R3/8 & RC3/8 3WAY	1-09661-232-0	01	1	1009-	●	●
74	CONNECTOR; 3WAY (B) DIN8 & R3/8 & RC1/4 3WAY	1-09661-536-0	01	1	1009-		●
181	ADAPTER; PRESSURE SW PT3/8	1-48319-058-0	01	1	1009-1103	●	●
181	ADAPTER; PRESSURE SW PT3/8	1-48319-058-0	01	1	1104-		●
213	GASKET ID=22.5	9-09571-422-0	04	1	1009-1103	●
213	GASKET ID=22.5	9-09571-422-0	03	1	1104-	●
213	GASKET WHEEL BASE 6600MM(66W) ID=22.5	9-09571-422-0	03	1	1104-		●
213	GASKET WHEEL BASE 4900MM(49W) ID=22.5	9-09571-422-0	02	1	1009-		●
213	GASKET WHEEL BASE 6600MM(66W) ID=22.5	9-09571-422-0	03	1	1009-1103		●

240

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	1009-	●	●

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	241	REPAIR KIT; PROTECTION VALVE	1-85576-451-2	01	1	1204-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
