Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#71896) — 596 parça

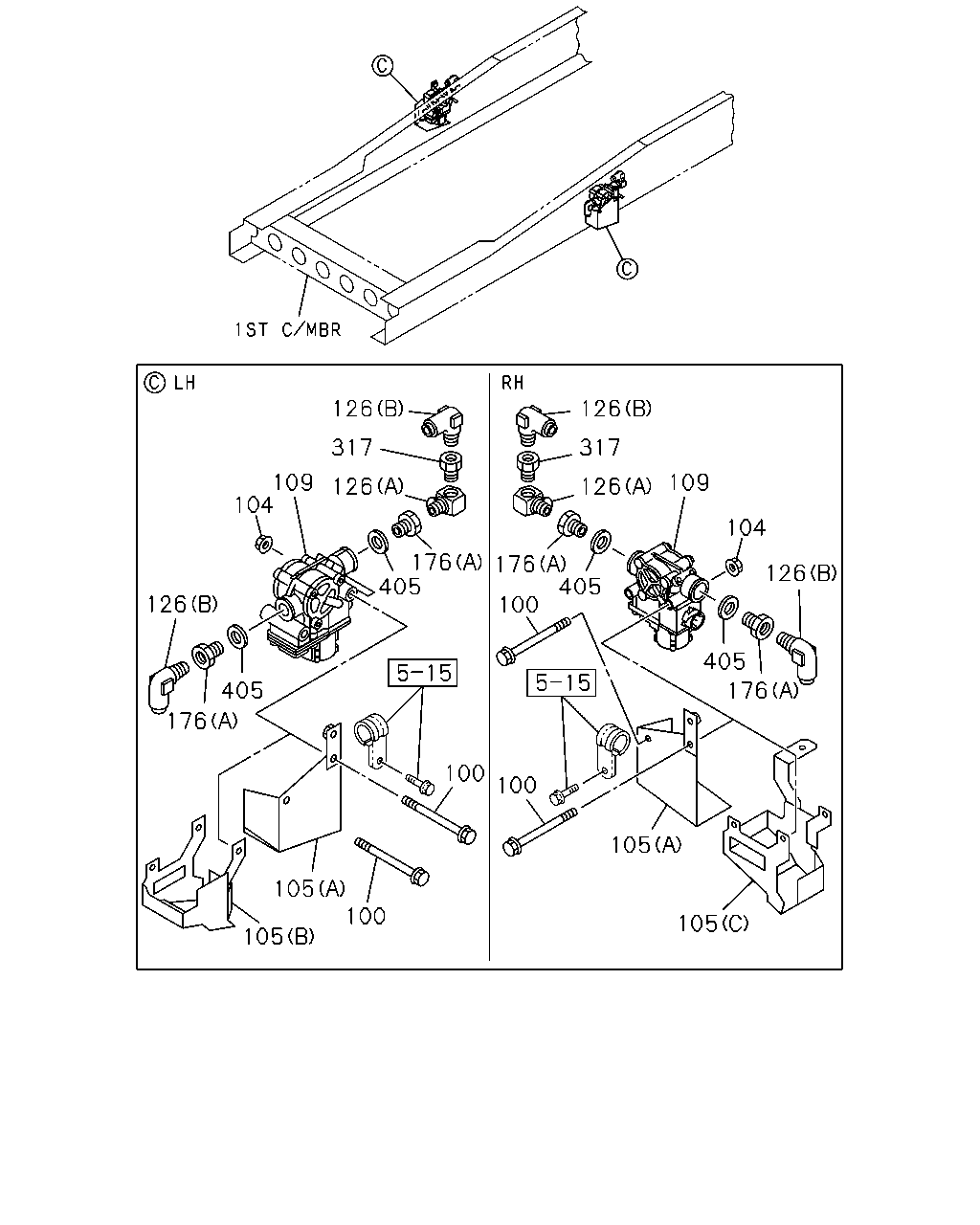

126 109 104 126 176 405 126 405 176 100 105 100 105 126 317 109 126 104 176 405 100 405 176 100 105 105 317 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE	0-28050-880-0	04	1	1009-	●	●
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8X140 FLANGE	0-28055-814-0	02	1	1009-	●	●
104	NUT; BRKT M10	0-91110-510-0	04	1	1009-	●	●
104	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-	●	●
104	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1009-	●	●
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98061-815-0	01	1	1009-1504	●	●
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (B)	8-98300-152-0	01	1	1505-	●	●
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98164-196-0	01	1	1009-1504	●	●
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98300-155-0	01	1	1505-	●	●
109	MODULATOR; FRT ANTILOCK BRAKE SYSTEM(BFA)	1-48240-115-0	02	1	1009-1504	●	●
109	MODULATOR; FRT ANTILOCK BRAKE SYSTEM(BFA)	8-98215-454-0	02	1	1505-	●	●
126	CONNECTOR; ELBOW (D) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1009-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	1009-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1009-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1009-	●
126	CONNECTOR; ELBOW TRANSMISSION-FULLER RTO11908(Y5L) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1009-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-		●
126	CONNECTOR; ELBOW ENGINE REAR PTO(SV1) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-		●
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (B) PT3/8	1-09664-210-0	02	1	1009-	●
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1009-	●	●
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1009-	●	●
317	CONNECTOR; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) PT3/8	1-09664-210-0	01	1	1009-	●	●
405	GASKET ANTILOCK BRAKE SYSTEM(BFA) ID=22.5	9-09571-422-0	04	1	1009-	●	●

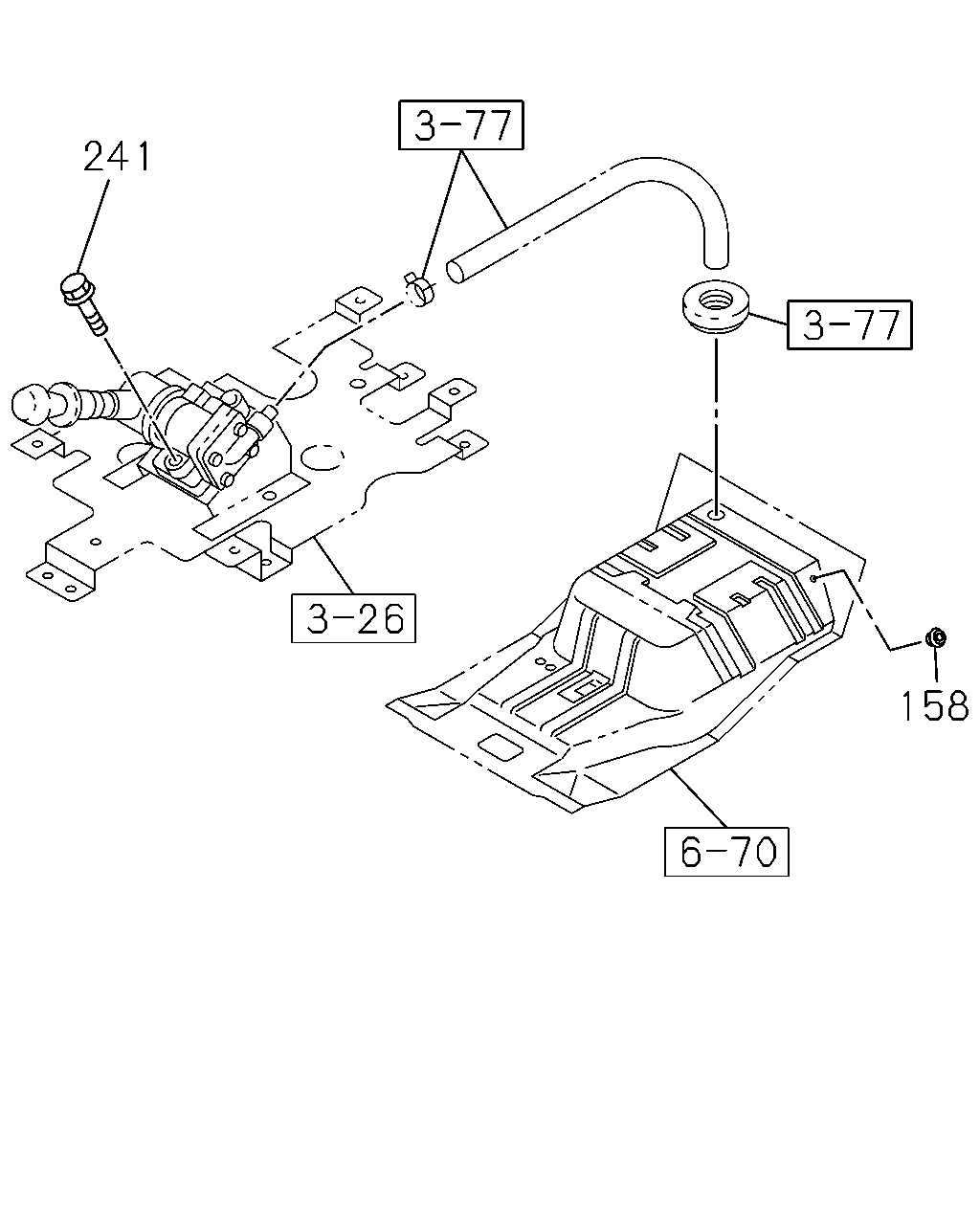

241 158

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	158	GROMMET; PIPE OD=35	8-94122-971-0	01	1	1009-	●	●
	241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	1009-	●	●

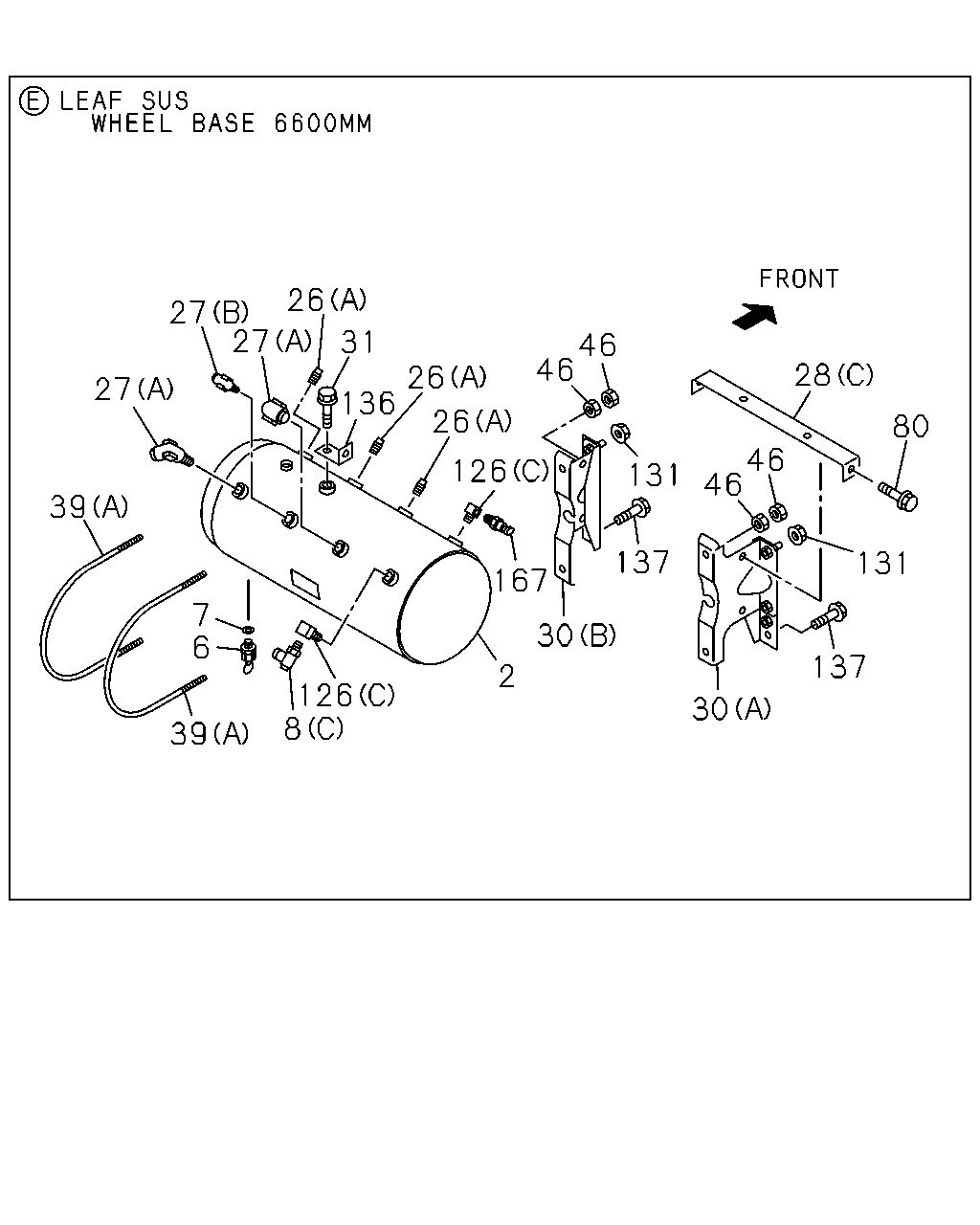

27 26 27 31 27 39 136 7 6 39 8 126 2 26 26 126 167 30 46 46 131 137 30 137 46 46 131 80 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	TANK; AIR	8-97617-855-1	01	1	1009-1106	●	●
2	TANK; AIR	8-98187-713-0	01	1	1107-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1009-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-1203	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-1203	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-1203	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6600MM(66W)	1-48312-015-0	01	1	1009-1203	●	●
6	COCK; DRAIN,AIR TANK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L)	1-48312-015-0	01	1	1009-1203	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1)	1-48312-015-0	01	1	1009-1203		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1204-1302	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1204-1302	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1204-1302	●	●
6	COCK; DRAIN,AIR TANK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L)	1-48312-015-0	01	1	1204-1302	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6600MM(66W)	1-48312-015-0	01	1	1204-1302	●
6	COCK; DRAIN,AIR TANK EXC. ENGINE REAR PTO(SV1)	1-48312-015-0	01	1	1204-1302		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1303-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1303-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1303-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1303-	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6600MM(66W)	1-48312-015-0	01	1	1303-	●
6	COCK; DRAIN,AIR TANK EXC. ENGINE REAR PTO(SV1)	1-48312-015-0	01	1	1303-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1009-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-1203	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-1203	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-1203	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1009-1203	●	●
7	GASKET; DRAIN COCK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) ID=14	1-09630-145-0	01	1	1009-1203	●	●
7	GASKET; DRAIN COCK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) ID=14	1-09630-145-0	01	1	1009-1203		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1204-1302	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1204-1302	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1204-1302	●	●
7	GASKET; DRAIN COCK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) ID=14	1-09630-145-0	01	1	1204-1302	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1204-1302	●
7	GASKET; DRAIN COCK EXC. ENGINE REAR PTO(SV1) ID=14	1-09630-145-0	01	1	1204-1302		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1303-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1303-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1303-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1303-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1303-	●
7	GASKET; DRAIN COCK EXC. ENGINE REAR PTO(SV1) ID=14	1-09630-145-0	01	1	1303-		●
8	CONNECTOR; AIR TANK (B) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	01	1	1009-	●
8	CONNECTOR; AIR TANK EXC. ENGINE REAR PTO(SV1) (B) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	01	1	1009-		●
8	CONNECTOR; AIR TANK (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1009-	●	●
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-	●	●
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-	●	●
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-	●	●
26	PLUG; SUB AIR TANK TRANSMISSION-FULLER RTO11908(Y5L) (A) PT3/8	9-09204-517-0	01	1	1009-	●	●
26	PLUG; SUB AIR TANK WHEEL BASE 6600MM(66W) (A) PT3/8	9-09204-517-0	03	1	1009-	●	●
26	PLUG; SUB AIR TANK ZF9S1310 M/T(Y5K) (A) PT3/8	9-09204-517-0	02	1	1009-1302	●	●
26	PLUG; SUB AIR TANK WHEEL BASE 4900MM(49W) (A) PT3/8	9-09204-517-0	02	1	1009-1302		●
26	PLUG; SUB AIR TANK ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) (A) PT3/8	9-09204-517-0	02	1	1303-	●	●
26	PLUG; SUB AIR TANK WHEEL BASE 4900MM(49W) (A) PT3/8	9-09204-517-0	02	1	1303-		●
26	PLUG; SUB AIR TANK WHEEL BASE 4900MM(49W) (B) PT1/4	9-99204-513-0	01	1	1009-		●
27	UNION; ELBOW,AIR TANK WHEEL BASE 6600MM(66W) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1009-	●	●
27	UNION; ELBOW,AIR TANK WHEEL BASE 6600MM(66W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-	●	●
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	1009-	●	●
28	BRACKET; AIR TANK (D)	8-98092-756-1	01	1	1009-	●	●
28	BRACKET; AIR TANK (E)	8-98093-562-1	01	1	1009-	●	●
28	BRACKET; AIR TANK (F)	8-98100-984-0	01	1	1009-	●	●
28	BRACKET; AIR TANK (B)	8-98112-257-0	01	1	1009-	●	●
28	BRACKET; AIR TANK WHEEL BASE 6600MM(66W) (C)	8-97621-120-1	01	1	1009-1010	●	●
28	BRACKET; AIR TANK WHEEL BASE 6600MM(66W) (C)	8-97621-120-1	01	1	1011-	●
30	BRACKET; AIR TANK,SUB (C)	8-97618-393-0	01	1	1009-	●
30	BRACKET; AIR TANK,SUB EXC. ENGINE REAR PTO(SV1) (C)	8-97618-393-0	01	1	1009-		●
30	BRACKET; AIR TANK,SUB (D)	8-97618-394-0	02	1	1009-	●
30	BRACKET; AIR TANK,SUB EXC. ENGINE REAR PTO(SV1) (D)	8-97618-394-0	02	1	1009-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 6600MM(66W) (A)	8-97618-390-1	01	1	1009-	●	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 6600MM(66W) (B)	8-97618-391-1	01	1	1009-	●	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 4900MM(49W) (E)	8-98100-865-0	01	1	1009-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 4900MM(49W) (F)	8-98100-866-0	01	1	1009-		●
31	BOLT; BRKT TO FRAME M8X20 FLANGE	0-28650-820-0	01	1	1009-	●	●
39	U-BOLT; AIR TANK ENGINE REAR PTO(SV1) (A) L=253	1-48317-248-1	04	1	1204-		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1009-1203	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1009-1203	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1009-1203	●
39	U-BOLT; AIR TANK EXC. ENGINE REAR PTO(SV1) (A) L=253	1-48317-248-1	02	1	1009-1203		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1204-	●	●
39	U-BOLT; AIR TANK WHEEL BASE 6600MM(66W) (A) L=253	1-48317-248-1	02	1	1204-	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1204-		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	04	1	1009-1203	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	06	1	1204-	●
39	U-BOLT; AIR TANK EXC. ENGINE REAR PTO(SV1) (A) L=253	1-48317-248-1	06	1	1204-		●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1009-	●	●
46	NUT; U-BOLT ENGINE REAR PTO(SV1) M8	0-91110-508-0	16	1	1204-		●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-1203	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-1203	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-1203	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-1203	●
46	NUT; U-BOLT EXC. ENGINE REAR PTO(SV1) M8	0-91110-508-0	08	1	1009-1203		●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1204-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1204-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1204-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1009-1203	●	●
46	NUT; U-BOLT M8	0-91110-508-0	24	1	1204-	●
46	NUT; U-BOLT EXC. ENGINE REAR PTO(SV1) M8	0-91110-508-0	24	1	1204-		●
80	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1009-	●	●
80	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X20 FLANGE	0-28650-820-0	02	1	1009-1010	●	●
80	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X20 FLANGE	0-28650-820-0	02	1	1011-	●
126	CONNECTOR; ELBOW (D) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1009-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	1009-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1009-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1009-	●
126	CONNECTOR; ELBOW TRANSMISSION-FULLER RTO11908(Y5L) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1009-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-		●
126	CONNECTOR; ELBOW ENGINE REAR PTO(SV1) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-		●
131	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	02	1	1009-	●
131	NUT; BRKT FIX WHEEL BASE 6600MM(66W) M12 FLANGE	0-91180-212-0	02	1	1009-		●
131	NUT; BRKT FIX WHEEL BASE 4900MM(49W) M12 FLANGE	0-91180-212-0	03	1	1009-		●
136	BRACKET; CLIP L=55 B=25	1-47478-439-0	01	1	1009-	●	●
137	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	02	1	1009-	●
137	BOLT; BRKT WHEEL BASE 6600MM(66W) M12X30 FLANGE	0-28651-230-0	02	1	1009-		●
137	BOLT; BRKT WHEEL BASE 4900MM(49W) M12X30 FLANGE	0-28651-230-0	04	1	1009-		●
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB STAMP 5.5	8-97609-249-0	01	1	1009-	●	●

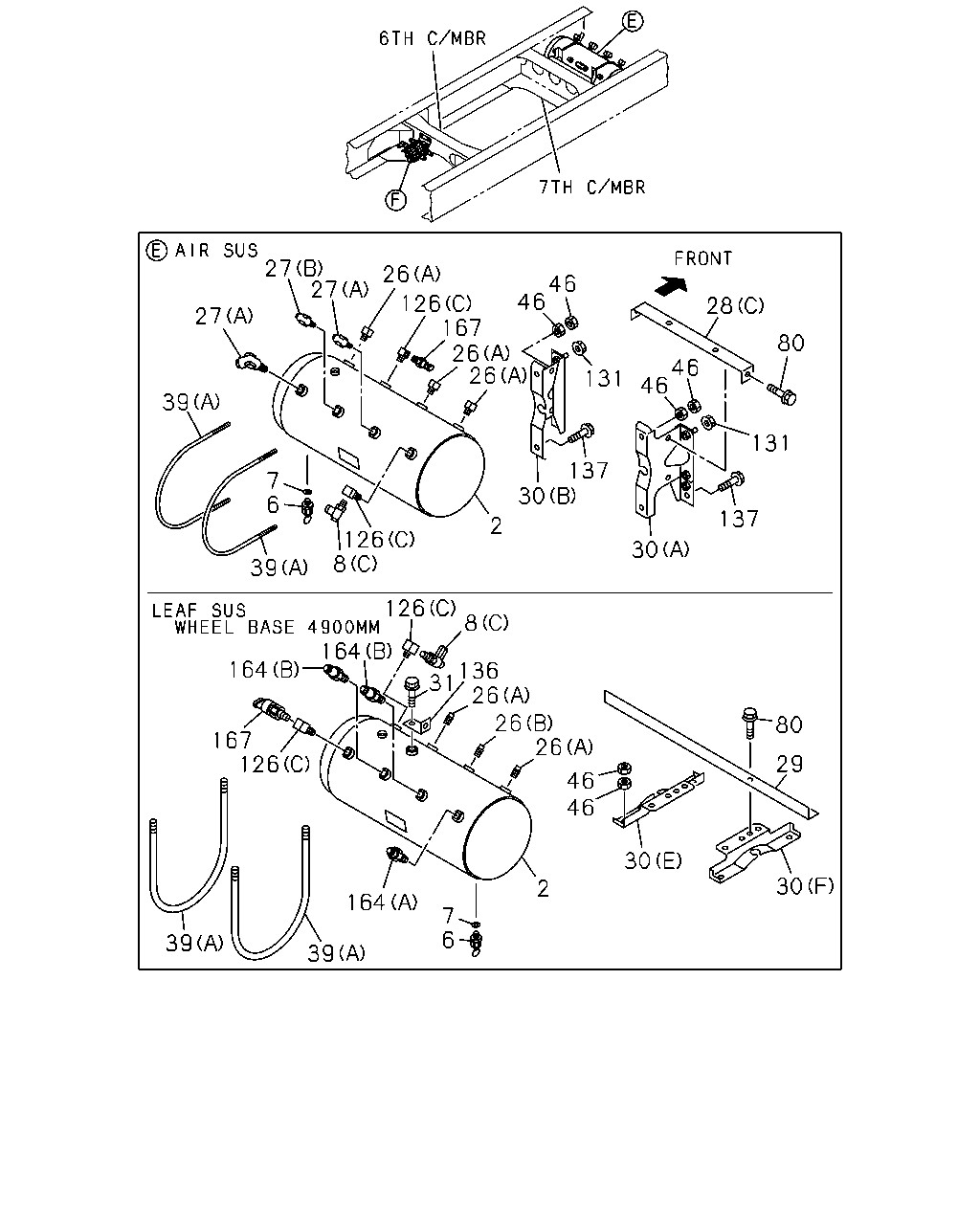

27 27 26 126 167 26 26 46 46 28 80 131 46 46 131 137 30 137 30 2 126 8 39 7 6 39 27 80 29 30 30 46 46 26 26 26 136 8 126 164 164 167 126 164 7 6 2 39 39 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	TANK; AIR	8-97617-855-1	01	1	1009-1106	●	●
2	TANK; AIR	8-98187-713-0	01	1	1107-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1009-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-1203	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-1203	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-1203	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6600MM(66W)	1-48312-015-0	01	1	1009-1203	●	●
6	COCK; DRAIN,AIR TANK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L)	1-48312-015-0	01	1	1009-1203	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1)	1-48312-015-0	01	1	1009-1203		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1204-1302	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1204-1302	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1204-1302	●	●
6	COCK; DRAIN,AIR TANK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L)	1-48312-015-0	01	1	1204-1302	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6600MM(66W)	1-48312-015-0	01	1	1204-1302	●
6	COCK; DRAIN,AIR TANK EXC. ENGINE REAR PTO(SV1)	1-48312-015-0	01	1	1204-1302		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1303-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1303-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1303-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1303-	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6600MM(66W)	1-48312-015-0	01	1	1303-	●
6	COCK; DRAIN,AIR TANK EXC. ENGINE REAR PTO(SV1)	1-48312-015-0	01	1	1303-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1009-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-1203	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-1203	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-1203	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1009-1203	●	●
7	GASKET; DRAIN COCK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) ID=14	1-09630-145-0	01	1	1009-1203	●	●
7	GASKET; DRAIN COCK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) ID=14	1-09630-145-0	01	1	1009-1203		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1204-1302	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1204-1302	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1204-1302	●	●
7	GASKET; DRAIN COCK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) ID=14	1-09630-145-0	01	1	1204-1302	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1204-1302	●
7	GASKET; DRAIN COCK EXC. ENGINE REAR PTO(SV1) ID=14	1-09630-145-0	01	1	1204-1302		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1303-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1303-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1303-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1303-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1303-	●
7	GASKET; DRAIN COCK EXC. ENGINE REAR PTO(SV1) ID=14	1-09630-145-0	01	1	1303-		●
8	CONNECTOR; AIR TANK (B) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	01	1	1009-	●
8	CONNECTOR; AIR TANK EXC. ENGINE REAR PTO(SV1) (B) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	01	1	1009-		●
8	CONNECTOR; AIR TANK (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1009-	●	●
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-	●	●
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-	●	●
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-	●	●

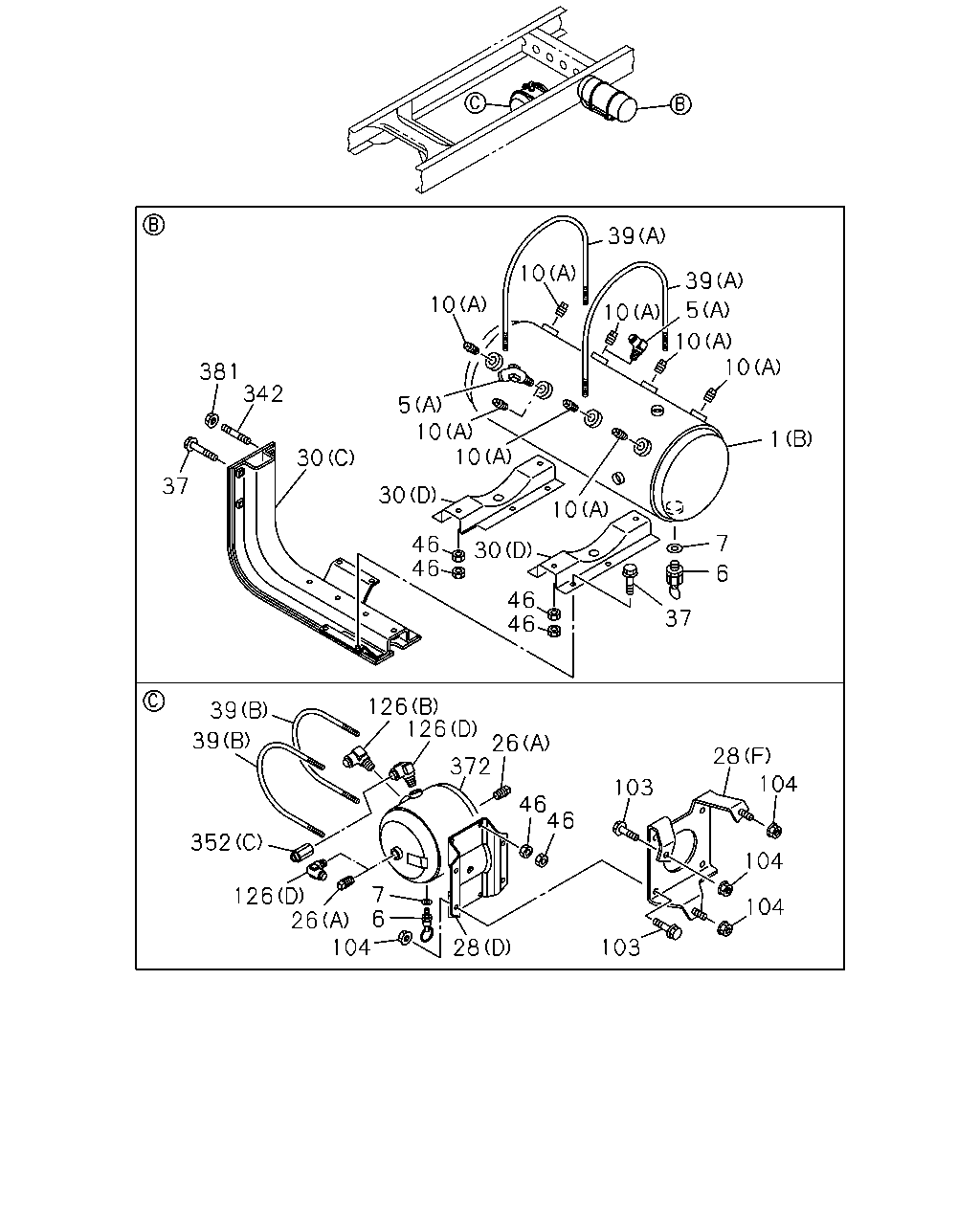

26	PLUG; SUB AIR TANK TRANSMISSION-FULLER RTO11908(Y5L) (A) PT3/8	9-09204-517-0	01	1	1009-	●	●
26	PLUG; SUB AIR TANK WHEEL BASE 6600MM(66W) (A) PT3/8	9-09204-517-0	03	1	1009-	●	●
26	PLUG; SUB AIR TANK ZF9S1310 M/T(Y5K) (A) PT3/8	9-09204-517-0	02	1	1009-1302	●	●
26	PLUG; SUB AIR TANK WHEEL BASE 4900MM(49W) (A) PT3/8	9-09204-517-0	02	1	1009-1302		●
26	PLUG; SUB AIR TANK ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) (A) PT3/8	9-09204-517-0	02	1	1303-	●	●
26	PLUG; SUB AIR TANK WHEEL BASE 4900MM(49W) (A) PT3/8	9-09204-517-0	02	1	1303-		●
26	PLUG; SUB AIR TANK WHEEL BASE 4900MM(49W) (B) PT1/4	9-99204-513-0	01	1	1009-		●
27	UNION; ELBOW,AIR TANK WHEEL BASE 6600MM(66W) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1009-	●	●
27	UNION; ELBOW,AIR TANK WHEEL BASE 6600MM(66W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-	●	●
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	1009-	●	●
28	BRACKET; AIR TANK (D)	8-98092-756-1	01	1	1009-	●	●
28	BRACKET; AIR TANK (E)	8-98093-562-1	01	1	1009-	●	●
28	BRACKET; AIR TANK (F)	8-98100-984-0	01	1	1009-	●	●
28	BRACKET; AIR TANK (B)	8-98112-257-0	01	1	1009-	●	●
28	BRACKET; AIR TANK WHEEL BASE 6600MM(66W) (C)	8-97621-120-1	01	1	1009-1010	●	●
28	BRACKET; AIR TANK WHEEL BASE 6600MM(66W) (C)	8-97621-120-1	01	1	1011-	●
29	BRACKET; AIR TANK WHEEL BASE 4900MM(49W)	8-97620-998-0	01	1	1009-		●
30	BRACKET; AIR TANK,SUB (C)	8-97618-393-0	01	1	1009-	●
30	BRACKET; AIR TANK,SUB EXC. ENGINE REAR PTO(SV1) (C)	8-97618-393-0	01	1	1009-		●
30	BRACKET; AIR TANK,SUB (D)	8-97618-394-0	02	1	1009-	●
30	BRACKET; AIR TANK,SUB EXC. ENGINE REAR PTO(SV1) (D)	8-97618-394-0	02	1	1009-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 6600MM(66W) (A)	8-97618-390-1	01	1	1009-	●	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 6600MM(66W) (B)	8-97618-391-1	01	1	1009-	●	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 4900MM(49W) (E)	8-98100-865-0	01	1	1009-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 4900MM(49W) (F)	8-98100-866-0	01	1	1009-		●
31	BOLT; BRKT TO FRAME M8X20 FLANGE	0-28650-820-0	01	1	1009-	●	●
39	U-BOLT; AIR TANK ENGINE REAR PTO(SV1) (A) L=253	1-48317-248-1	04	1	1204-		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1009-1203	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1009-1203	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1009-1203	●
39	U-BOLT; AIR TANK EXC. ENGINE REAR PTO(SV1) (A) L=253	1-48317-248-1	02	1	1009-1203		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1204-	●	●
39	U-BOLT; AIR TANK WHEEL BASE 6600MM(66W) (A) L=253	1-48317-248-1	02	1	1204-	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1204-		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	04	1	1009-1203	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	06	1	1204-	●
39	U-BOLT; AIR TANK EXC. ENGINE REAR PTO(SV1) (A) L=253	1-48317-248-1	06	1	1204-		●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1009-	●	●
46	NUT; U-BOLT ENGINE REAR PTO(SV1) M8	0-91110-508-0	16	1	1204-		●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-1203	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-1203	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-1203	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-1203	●
46	NUT; U-BOLT EXC. ENGINE REAR PTO(SV1) M8	0-91110-508-0	08	1	1009-1203		●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1204-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1204-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1204-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1009-1203	●	●
46	NUT; U-BOLT M8	0-91110-508-0	24	1	1204-	●
46	NUT; U-BOLT EXC. ENGINE REAR PTO(SV1) M8	0-91110-508-0	24	1	1204-		●
80	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1009-	●	●
80	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X20 FLANGE	0-28650-820-0	02	1	1009-1010	●	●
80	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X20 FLANGE	0-28650-820-0	02	1	1011-	●
126	CONNECTOR; ELBOW (D) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1009-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	1009-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1009-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1009-	●
126	CONNECTOR; ELBOW TRANSMISSION-FULLER RTO11908(Y5L) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1009-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-		●
126	CONNECTOR; ELBOW ENGINE REAR PTO(SV1) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-		●
131	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	02	1	1009-	●
131	NUT; BRKT FIX WHEEL BASE 6600MM(66W) M12 FLANGE	0-91180-212-0	02	1	1009-		●
131	NUT; BRKT FIX WHEEL BASE 4900MM(49W) M12 FLANGE	0-91180-212-0	03	1	1009-		●
136	BRACKET; CLIP L=55 B=25	1-47478-439-0	01	1	1009-	●	●
137	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	02	1	1009-	●
137	BOLT; BRKT WHEEL BASE 6600MM(66W) M12X30 FLANGE	0-28651-230-0	02	1	1009-		●
137	BOLT; BRKT WHEEL BASE 4900MM(49W) M12X30 FLANGE	0-28651-230-0	04	1	1009-		●
164	CONNECTOR; SUB AIR TANK WHEEL BASE 4900MM(49W) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1009-		●
164	CONNECTOR; SUB AIR TANK WHEEL BASE 4900MM(49W) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1009-		●
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB STAMP 5.5	8-97609-249-0	01	1	1009-	●	●

51 166 126 10 10 5 5 39 39 5 5 39 166 126 10 10 8 1 7 6 126 10 8 126 1 166 8 5 7 6 10 10 39 5 126 166 10 10 5 10 5 39 8 3 1 7 6 164 11 28 192 80 184 278 104 39 5 119 49 36 36 119 28 192 57 184 28 51 51 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

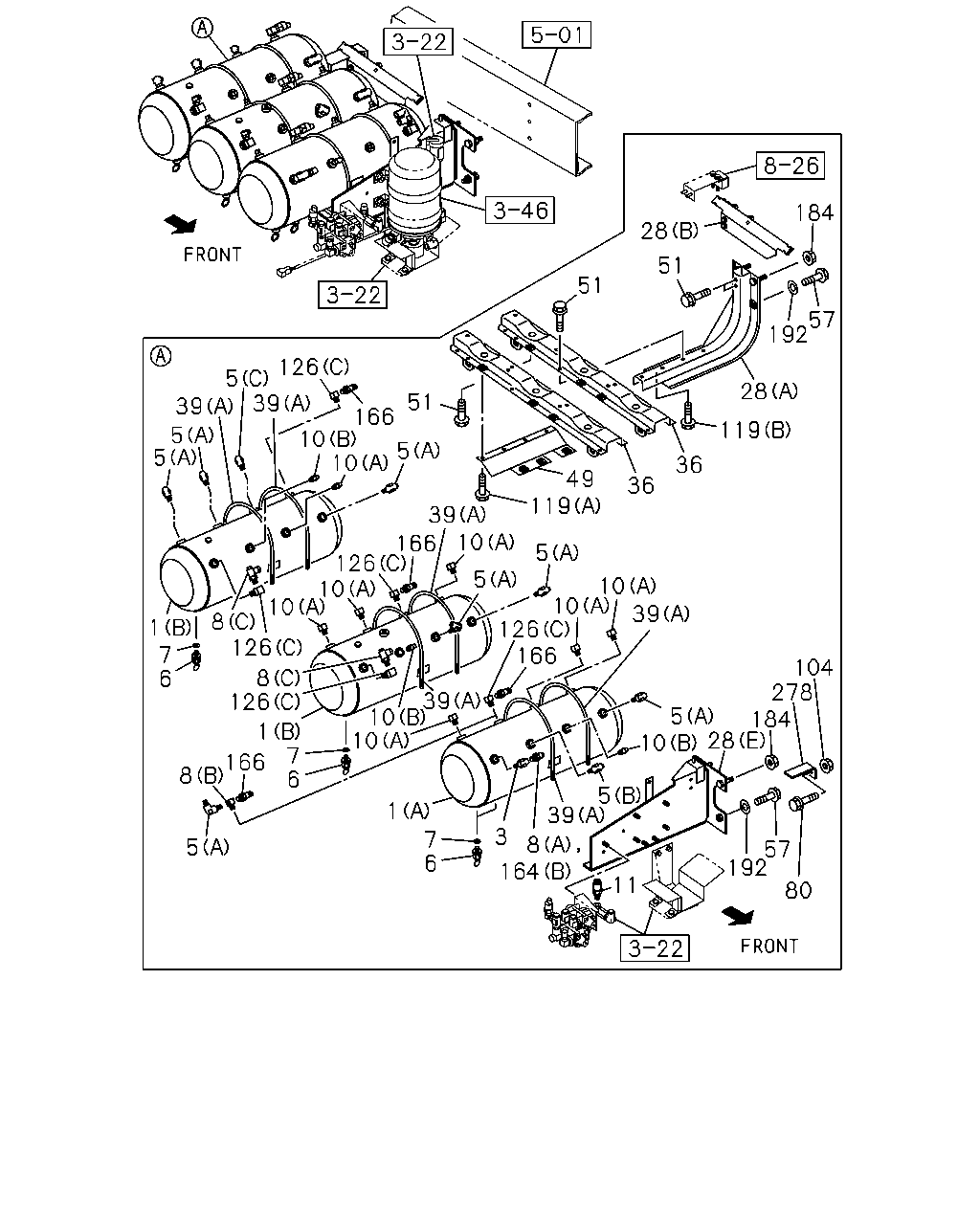

1	TANK ASM; AIR (A)	8-97617-854-0	01	1	1009-1106	●	●
1	TANK ASM; AIR (A)	8-98187-712-0	01	1	1107-	●	●
1	TANK ASM; AIR (B)	8-97617-855-1	01	1	1009-1106	●	●
1	TANK ASM; AIR (B)	8-97617-855-1	01	1	1009-1106	●	●
1	TANK ASM; AIR (B)	8-97617-855-1	01	1	1009-1106	●
1	TANK ASM; AIR WHEEL BASE 6600MM(66W) (B)	8-97617-855-1	01	1	1009-1106		●
1	TANK ASM; AIR WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (B)	8-97617-855-1	01	1	1009-1106		●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1107-1203	●	●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1107-1203	●	●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1107-1203	●
1	TANK ASM; AIR WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (B)	8-98187-713-0	01	1	1107-1203		●
1	TANK ASM; AIR WHEEL BASE 6600MM(66W) (B)	8-98187-713-0	01	1	1107-1203		●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1204-	●	●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1204-	●	●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1204-	●
1	TANK ASM; AIR EXC. ENGINE REAR PTO(SV1) (B)	8-98187-713-0	01	1	1204-		●
3	VALVE; CHECK,AIR TANK	1-48320-031-1	01	1	1009-	●	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-1203	●
5	UNION; AIR TANK WHEEL BASE 6600MM(66W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-1203		●
5	UNION; AIR TANK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-1203		●
5	UNION; AIR TANK ENGINE REAR PTO(SV1) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-1203		●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1204-	●	●
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-	●	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-	●	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-	●
5	UNION; AIR TANK EXC. ENGINE REAR PTO(SV1) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-		●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1009-	●	●
5	UNION; AIR TANK (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1009-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1009-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-1203	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-1203	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-1203	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6600MM(66W)	1-48312-015-0	01	1	1009-1203	●	●
6	COCK; DRAIN,AIR TANK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L)	1-48312-015-0	01	1	1009-1203	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1)	1-48312-015-0	01	1	1009-1203		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1204-1302	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1204-1302	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1204-1302	●	●
6	COCK; DRAIN,AIR TANK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L)	1-48312-015-0	01	1	1204-1302	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6600MM(66W)	1-48312-015-0	01	1	1204-1302	●
6	COCK; DRAIN,AIR TANK EXC. ENGINE REAR PTO(SV1)	1-48312-015-0	01	1	1204-1302		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1303-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1303-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1303-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1303-	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6600MM(66W)	1-48312-015-0	01	1	1303-	●
6	COCK; DRAIN,AIR TANK EXC. ENGINE REAR PTO(SV1)	1-48312-015-0	01	1	1303-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1009-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-1203	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-1203	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-1203	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1009-1203	●	●
7	GASKET; DRAIN COCK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) ID=14	1-09630-145-0	01	1	1009-1203	●	●
7	GASKET; DRAIN COCK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) ID=14	1-09630-145-0	01	1	1009-1203		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1204-1302	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1204-1302	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1204-1302	●	●
7	GASKET; DRAIN COCK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) ID=14	1-09630-145-0	01	1	1204-1302	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1204-1302	●
7	GASKET; DRAIN COCK EXC. ENGINE REAR PTO(SV1) ID=14	1-09630-145-0	01	1	1204-1302		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1303-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1303-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1303-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1303-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1303-	●
7	GASKET; DRAIN COCK EXC. ENGINE REAR PTO(SV1) ID=14	1-09630-145-0	01	1	1303-		●
8	CONNECTOR; AIR TANK (B) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	01	1	1009-	●
8	CONNECTOR; AIR TANK EXC. ENGINE REAR PTO(SV1) (B) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	01	1	1009-		●
8	CONNECTOR; AIR TANK (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1009-	●	●
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-	●	●
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-	●	●
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	06	1	1009-1203	●
10	PLUG; AIR TANK WHEEL BASE 6600MM(66W) (A) PT3/8	9-09204-517-0	06	1	1009-1203		●
10	PLUG; AIR TANK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (A) PT3/8	9-09204-517-0	06	1	1009-1203		●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	06	1	1204-	●
10	PLUG; AIR TANK EXC. ENGINE REAR PTO(SV1) (A) PT3/8	9-09204-517-0	06	1	1204-		●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	1009-	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	1009-	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	1009-	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1009-1203	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1009-1203	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1009-1203	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1009-1203	●
10	PLUG; AIR TANK WHEEL BASE 6600MM(66W) (B) PT1/4	9-99204-513-0	01	1	1009-1203		●
10	PLUG; AIR TANK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (B) PT1/4	9-99204-513-0	01	1	1009-1203		●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1204-	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1204-	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1204-	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1204-	●
10	PLUG; AIR TANK EXC. ENGINE REAR PTO(SV1) (B) PT1/4	9-99204-513-0	01	1	1204-		●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	1009-	●	●
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	1009-	●	●
28	BRACKET; AIR TANK (D)	8-98092-756-1	01	1	1009-	●	●
28	BRACKET; AIR TANK (E)	8-98093-562-1	01	1	1009-	●	●
28	BRACKET; AIR TANK (F)	8-98100-984-0	01	1	1009-	●	●
28	BRACKET; AIR TANK (B)	8-98112-257-0	01	1	1009-	●	●
28	BRACKET; AIR TANK WHEEL BASE 6600MM(66W) (C)	8-97621-120-1	01	1	1009-1010	●	●
28	BRACKET; AIR TANK WHEEL BASE 6600MM(66W) (C)	8-97621-120-1	01	1	1011-	●
36	STAY; MAIN TANK	8-97618-091-1	02	1	1009-	●	●
39	U-BOLT; AIR TANK ENGINE REAR PTO(SV1) (A) L=253	1-48317-248-1	04	1	1204-		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1009-1203	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1009-1203	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1009-1203	●
39	U-BOLT; AIR TANK EXC. ENGINE REAR PTO(SV1) (A) L=253	1-48317-248-1	02	1	1009-1203		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1204-	●	●
39	U-BOLT; AIR TANK WHEEL BASE 6600MM(66W) (A) L=253	1-48317-248-1	02	1	1204-	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1204-		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	04	1	1009-1203	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	06	1	1204-	●
39	U-BOLT; AIR TANK EXC. ENGINE REAR PTO(SV1) (A) L=253	1-48317-248-1	06	1	1204-		●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1009-	●	●
49	BRACKET; AIR TANK	8-98110-683-0	01	1	1009-	●	●
51	BOLT; STAY TO BRKT M8X20 FLANGE	0-28650-820-0	10	1	1009-	●	●
57	BOLT; BRKT,AIR TANK TO FRAME M14X45	1-09000-764-0	04	1	1009-	●	●
80	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1009-	●	●
80	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X20 FLANGE	0-28650-820-0	02	1	1009-1010	●	●
80	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X20 FLANGE	0-28650-820-0	02	1	1011-	●
104	NUT; BRKT M10	0-91110-510-0	04	1	1009-	●	●
104	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-	●	●
104	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1009-	●	●
119	BOLT; STAY (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-	●	●
119	BOLT; STAY (B) M8X25 FLANGE	0-28650-825-0	03	1	1009-	●	●
126	CONNECTOR; ELBOW (D) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1009-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	1009-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1009-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1009-	●
126	CONNECTOR; ELBOW TRANSMISSION-FULLER RTO11908(Y5L) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1009-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-		●
126	CONNECTOR; ELBOW ENGINE REAR PTO(SV1) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-		●
164	CONNECTOR; SUB AIR TANK WHEEL BASE 4900MM(49W) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1009-		●
164	CONNECTOR; SUB AIR TANK WHEEL BASE 4900MM(49W) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1009-		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1009-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1009-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1009-	●
184	NUT; BRKT M14	1-09440-072-0	04	1	1009-	●	●
192	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1009-	●	●
278	BRACKET; CONNECTOR L=75	1-47478-323-0	01	1	1009-	●	●

39 10 10 5 10 10 10 7 6 1 10 10 5 39 10 37 46 46 46 46 30 30 30 342 381 37 39 39 352 126 26 104 126 126 26 372 46 46 28 7 6 103 103 28 104 104 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (A)	8-97617-854-0	01	1	1009-1106	●	●
1	TANK ASM; AIR (A)	8-98187-712-0	01	1	1107-	●	●
1	TANK ASM; AIR (B)	8-97617-855-1	01	1	1009-1106	●	●
1	TANK ASM; AIR (B)	8-97617-855-1	01	1	1009-1106	●	●
1	TANK ASM; AIR (B)	8-97617-855-1	01	1	1009-1106	●
1	TANK ASM; AIR WHEEL BASE 6600MM(66W) (B)	8-97617-855-1	01	1	1009-1106		●
1	TANK ASM; AIR WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (B)	8-97617-855-1	01	1	1009-1106		●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1107-1203	●	●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1107-1203	●	●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1107-1203	●
1	TANK ASM; AIR WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (B)	8-98187-713-0	01	1	1107-1203		●
1	TANK ASM; AIR WHEEL BASE 6600MM(66W) (B)	8-98187-713-0	01	1	1107-1203		●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1204-	●	●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1204-	●	●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1204-	●
1	TANK ASM; AIR EXC. ENGINE REAR PTO(SV1) (B)	8-98187-713-0	01	1	1204-		●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-1203	●
5	UNION; AIR TANK WHEEL BASE 6600MM(66W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-1203		●
5	UNION; AIR TANK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-1203		●
5	UNION; AIR TANK ENGINE REAR PTO(SV1) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-1203		●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1204-	●	●
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-	●	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-	●	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-	●
5	UNION; AIR TANK EXC. ENGINE REAR PTO(SV1) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-		●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1009-	●	●
5	UNION; AIR TANK (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1009-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1009-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-1203	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-1203	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1009-1203	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6600MM(66W)	1-48312-015-0	01	1	1009-1203	●	●
6	COCK; DRAIN,AIR TANK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L)	1-48312-015-0	01	1	1009-1203	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1)	1-48312-015-0	01	1	1009-1203		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1204-1302	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1204-1302	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1204-1302	●	●
6	COCK; DRAIN,AIR TANK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L)	1-48312-015-0	01	1	1204-1302	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6600MM(66W)	1-48312-015-0	01	1	1204-1302	●
6	COCK; DRAIN,AIR TANK EXC. ENGINE REAR PTO(SV1)	1-48312-015-0	01	1	1204-1302		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1303-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1303-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1303-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1303-	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6600MM(66W)	1-48312-015-0	01	1	1303-	●
6	COCK; DRAIN,AIR TANK EXC. ENGINE REAR PTO(SV1)	1-48312-015-0	01	1	1303-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1009-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-1203	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-1203	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-1203	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1009-1203	●	●
7	GASKET; DRAIN COCK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) ID=14	1-09630-145-0	01	1	1009-1203	●	●
7	GASKET; DRAIN COCK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) ID=14	1-09630-145-0	01	1	1009-1203		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1204-1302	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1204-1302	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1204-1302	●	●
7	GASKET; DRAIN COCK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) ID=14	1-09630-145-0	01	1	1204-1302	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1204-1302	●
7	GASKET; DRAIN COCK EXC. ENGINE REAR PTO(SV1) ID=14	1-09630-145-0	01	1	1204-1302		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1303-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1303-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1303-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1303-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1303-	●
7	GASKET; DRAIN COCK EXC. ENGINE REAR PTO(SV1) ID=14	1-09630-145-0	01	1	1303-		●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	06	1	1009-1203	●
10	PLUG; AIR TANK WHEEL BASE 6600MM(66W) (A) PT3/8	9-09204-517-0	06	1	1009-1203		●
10	PLUG; AIR TANK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (A) PT3/8	9-09204-517-0	06	1	1009-1203		●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	06	1	1204-	●
10	PLUG; AIR TANK EXC. ENGINE REAR PTO(SV1) (A) PT3/8	9-09204-517-0	06	1	1204-		●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	1009-	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	1009-	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	1009-	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1009-1203	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1009-1203	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1009-1203	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1009-1203	●
10	PLUG; AIR TANK WHEEL BASE 6600MM(66W) (B) PT1/4	9-99204-513-0	01	1	1009-1203		●
10	PLUG; AIR TANK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (B) PT1/4	9-99204-513-0	01	1	1009-1203		●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1204-	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1204-	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1204-	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1204-	●
10	PLUG; AIR TANK EXC. ENGINE REAR PTO(SV1) (B) PT1/4	9-99204-513-0	01	1	1204-		●
26	PLUG; SUB AIR TANK TRANSMISSION-FULLER RTO11908(Y5L) (A) PT3/8	9-09204-517-0	01	1	1009-	●	●
26	PLUG; SUB AIR TANK WHEEL BASE 6600MM(66W) (A) PT3/8	9-09204-517-0	03	1	1009-	●	●
26	PLUG; SUB AIR TANK ZF9S1310 M/T(Y5K) (A) PT3/8	9-09204-517-0	02	1	1009-1302	●	●
26	PLUG; SUB AIR TANK WHEEL BASE 4900MM(49W) (A) PT3/8	9-09204-517-0	02	1	1009-1302		●
26	PLUG; SUB AIR TANK ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) (A) PT3/8	9-09204-517-0	02	1	1303-	●	●
26	PLUG; SUB AIR TANK WHEEL BASE 4900MM(49W) (A) PT3/8	9-09204-517-0	02	1	1303-		●
26	PLUG; SUB AIR TANK WHEEL BASE 4900MM(49W) (B) PT1/4	9-99204-513-0	01	1	1009-		●
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	1009-	●	●
28	BRACKET; AIR TANK (D)	8-98092-756-1	01	1	1009-	●	●
28	BRACKET; AIR TANK (E)	8-98093-562-1	01	1	1009-	●	●
28	BRACKET; AIR TANK (F)	8-98100-984-0	01	1	1009-	●	●
28	BRACKET; AIR TANK (B)	8-98112-257-0	01	1	1009-	●	●
28	BRACKET; AIR TANK WHEEL BASE 6600MM(66W) (C)	8-97621-120-1	01	1	1009-1010	●	●
28	BRACKET; AIR TANK WHEEL BASE 6600MM(66W) (C)	8-97621-120-1	01	1	1011-	●
30	BRACKET; AIR TANK,SUB (C)	8-97618-393-0	01	1	1009-	●
30	BRACKET; AIR TANK,SUB EXC. ENGINE REAR PTO(SV1) (C)	8-97618-393-0	01	1	1009-		●
30	BRACKET; AIR TANK,SUB (D)	8-97618-394-0	02	1	1009-	●
30	BRACKET; AIR TANK,SUB EXC. ENGINE REAR PTO(SV1) (D)	8-97618-394-0	02	1	1009-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 6600MM(66W) (A)	8-97618-390-1	01	1	1009-	●	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 6600MM(66W) (B)	8-97618-391-1	01	1	1009-	●	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 4900MM(49W) (E)	8-98100-865-0	01	1	1009-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 4900MM(49W) (F)	8-98100-866-0	01	1	1009-		●
37	BOLT; AIR TANK M10X25 FLANGE	0-28651-025-0	08	1	1009-	●
37	BOLT; AIR TANK EXC. ENGINE REAR PTO(SV1) M10X25 FLANGE	0-28651-025-0	08	1	1009-		●
37	BOLT; AIR TANK M10X40 FLANGE	0-28651-040-0	02	1	1009-	●
37	BOLT; AIR TANK EXC. ENGINE REAR PTO(SV1) M10X40 FLANGE	0-28651-040-0	02	1	1009-		●
39	U-BOLT; AIR TANK ENGINE REAR PTO(SV1) (A) L=253	1-48317-248-1	04	1	1204-		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1009-1203	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1009-1203	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1009-1203	●
39	U-BOLT; AIR TANK EXC. ENGINE REAR PTO(SV1) (A) L=253	1-48317-248-1	02	1	1009-1203		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1204-	●	●
39	U-BOLT; AIR TANK WHEEL BASE 6600MM(66W) (A) L=253	1-48317-248-1	02	1	1204-	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1204-		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	04	1	1009-1203	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	06	1	1204-	●
39	U-BOLT; AIR TANK EXC. ENGINE REAR PTO(SV1) (A) L=253	1-48317-248-1	06	1	1204-		●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1009-	●	●
46	NUT; U-BOLT ENGINE REAR PTO(SV1) M8	0-91110-508-0	16	1	1204-		●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-1203	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-1203	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-1203	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-1203	●
46	NUT; U-BOLT EXC. ENGINE REAR PTO(SV1) M8	0-91110-508-0	08	1	1009-1203		●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1204-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1204-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1204-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1009-1203	●	●
46	NUT; U-BOLT M8	0-91110-508-0	24	1	1204-	●
46	NUT; U-BOLT EXC. ENGINE REAR PTO(SV1) M8	0-91110-508-0	24	1	1204-		●
103	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1009-	●	●
103	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1009-	●	●
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE	0-28650-825-0	02	1	1009-	●	●
104	NUT; BRKT M10	0-91110-510-0	04	1	1009-	●	●
104	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-	●	●
104	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1009-	●	●
126	CONNECTOR; ELBOW (D) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1009-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	1009-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1009-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1009-	●
126	CONNECTOR; ELBOW TRANSMISSION-FULLER RTO11908(Y5L) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1009-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-		●
126	CONNECTOR; ELBOW ENGINE REAR PTO(SV1) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-		●
342	STUD M10X30 L=45	8-98035-675-0	02	1	1009-	●
342	STUD EXC. ENGINE REAR PTO(SV1) M10X30 L=45	8-98035-675-0	02	1	1009-		●
352	CONNECTOR; STRAIGHT (C) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1009-	●	●
352	CONNECTOR; STRAIGHT ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1009-	●	●
352	CONNECTOR; STRAIGHT ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1009-		●
372	TANK; AIR,ACCESORY	8-98090-803-1	01	1	1009-	●	●
381	NUT; SUB TANK M10 FLANGE	0-91180-210-0	02	1	1009-	●
381	NUT; SUB TANK EXC. ENGINE REAR PTO(SV1) M10 FLANGE	0-91180-210-0	02	1	1009-		●

126 176 126 126 176 369 101 101 126 176 369 176 257 107 257 102 103 107 100 352 352 352 176 352 126 369 257 126 101 101 369 176 257 107 352 107 102 103 100 352

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE	0-28050-880-0	04	1	1009-	●	●
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8X140 FLANGE	0-28055-814-0	02	1	1009-	●	●
101	NUT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	1009-	●	●
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA)	8-98034-539-2	01	1	1009-1504	●	●
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA)	8-98273-170-0	01	1	1505-	●	●
103	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1009-	●	●
103	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1009-	●	●
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE	0-28650-825-0	02	1	1009-	●	●
107	MODULATOR; RR ANTILOCK BRAKE SYSTEM(BFA)	1-48240-115-0	02	1	1009-1504	●	●
107	MODULATOR; RR ANTILOCK BRAKE SYSTEM(BFA)	8-98215-454-0	02	1	1505-	●	●
126	CONNECTOR; ELBOW (D) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1009-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	1009-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1009-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1009-	●
126	CONNECTOR; ELBOW TRANSMISSION-FULLER RTO11908(Y5L) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1009-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-		●
126	CONNECTOR; ELBOW ENGINE REAR PTO(SV1) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-		●
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (B) PT3/8	1-09664-210-0	02	1	1009-	●
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1009-	●	●
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1009-	●	●
257	GASKET; PLUG ANTILOCK BRAKE SYSTEM(BFA) ID=22.5	9-09571-422-0	02	1	1009-	●	●
352	CONNECTOR; STRAIGHT (C) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1009-	●	●
352	CONNECTOR; STRAIGHT ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1009-	●	●
352	CONNECTOR; STRAIGHT ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1009-		●
369	CONNECTOR; 3WAY ANTILOCK BRAKE SYSTEM(BFA) PT3/8 3WAY	1-09661-300-0	02	1	1009-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
