◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11317 - FXZ(AUST)EURO5 ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#71894) — 82 parça

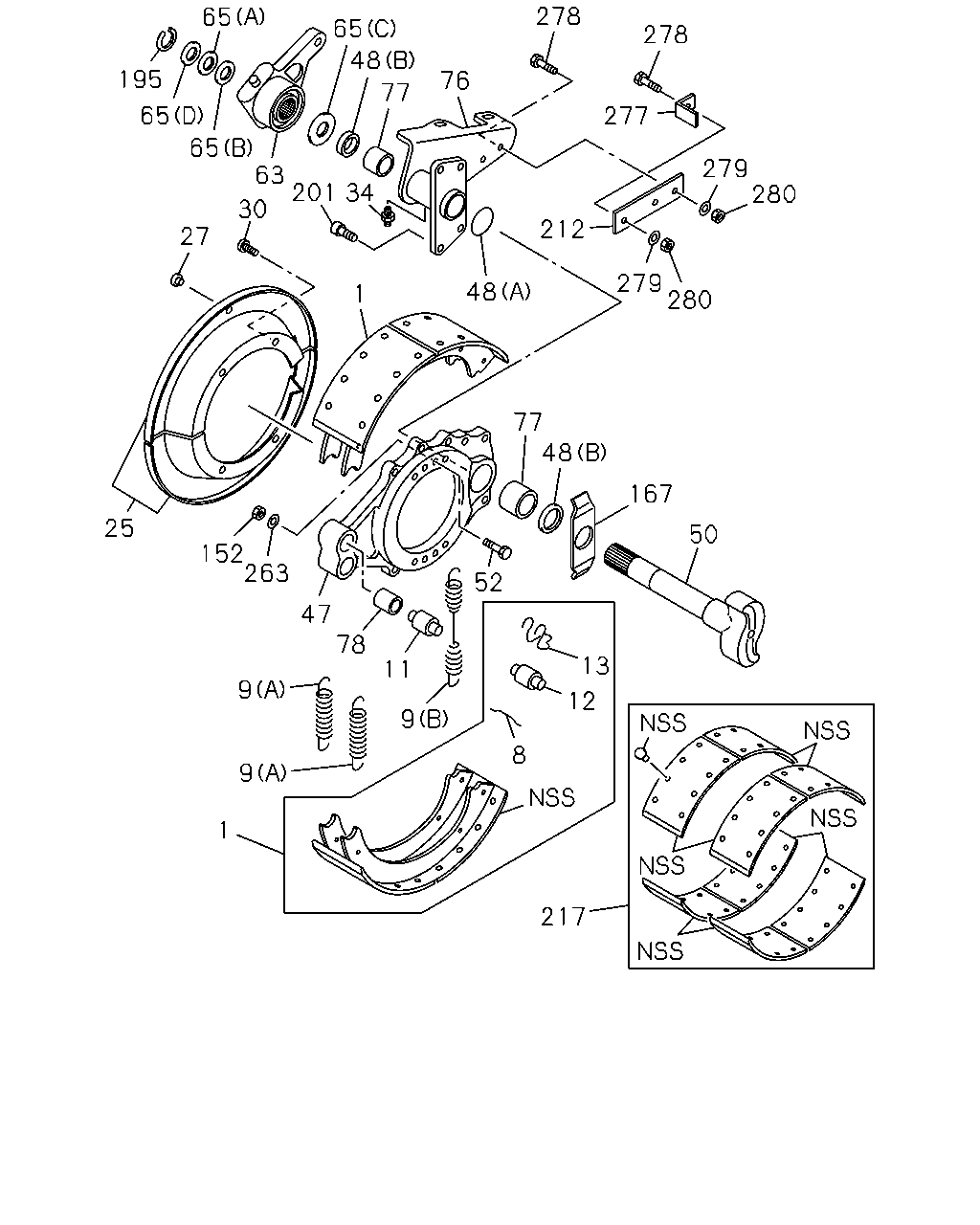

çizim 189992
278 278 279 280 280 279 212 277 76 77 48 65 65 65 195 65 30 27 63 201 34 48 77 48 167 50 12 13 8 217 52 11 9 78 47 263 152 25 9 9 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR 1-47120-734-0 04 1 1009- ● ●
1 SHOE; BRK,RR 1-47120-734-0 04 1 1009- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-116-0 04 1 1009- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-116-0 04 1 1009- ● ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 04 1 1009- ● ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 04 1 1009- ● ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 02 1 1009- ● ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 02 1 1009- ● ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 04 1 1009- ● ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 04 1 1009- ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-141-0 04 1 1009- ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-141-0 04 1 1009- ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 04 1 1009- ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 04 1 1009- ● ●
25 COVER SET; RR BRK DRUM 1-47151-774-0 02 1 1009- ● ●
25 COVER SET; RR BRK DRUM 1-47151-774-0 02 1 1009- ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 1009- ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 1009- ● ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 1009- ● ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 1009- ● ●
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 1009- ● ●
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 1009- ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-374-0 01 1 1009- ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-374-0 01 1 1009- ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 02 1 1009- ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 02 1 1009- ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 04 1 1009- ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 04 1 1009- ● ●
50 CAMSHAFT; BRK,RR BRK 1-47141-139-0 01 1 1009- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-139-0 01 1 1009- ●
50 CAMSHAFT; BRK,RR BRK 1-47149-102-0 01 1 1009- ●
50 CAMSHAFT; BRK,RR BRK 1-47149-102-0 01 1 1009- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-124-0 01 1 1009- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-124-0 01 1 1009- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-125-0 01 1 1009- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-125-0 01 1 1009- ●
52 BOLT; ANCHOR BRKT 1-47139-122-0 16 1 1009- ● ●
52 BOLT; ANCHOR BRKT 1-47139-122-0 16 1 1009- ● ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-106-0 02 1 1009- ● ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-106-0 02 1 1009- ● ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.06" 		1-47139-121-0 02 1 1009- ● ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.06" 		1-47139-121-0 02 1 1009- ● ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47149-059-0 02 1 1009- ● ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47149-059-0 02 1 1009- ● ●
65 SPACER; SLACK ADJ,BRK
(D) T=0.03" 		1-47149-060-0 02 1 1009- ● ●
65 SPACER; SLACK ADJ,BRK
(D) T=0.03" 		1-47149-060-0 02 1 1009- ● ●
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-065-0 02 1 1009- ● ●
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-065-0 02 1 1009- ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FORWARD 		1-47145-022-0 01 1 1009- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FORWARD 		1-47145-023-0 01 1 1009- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
REARWARD 		1-47145-024-0 01 1 1009- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
REARWARD 		1-47145-025-0 01 1 1009- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FORWARD 		1-47145-020-0 01 1 1009- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FORWARD 		1-47145-021-0 01 1 1009- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
REARWARD 		1-47145-033-0 01 1 1009- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
REARWARD 		1-47145-034-0 01 1 1009- ●
77 BUSHING 1-47146-012-0 04 1 1009- ● ●
77 BUSHING 1-47146-012-0 04 1 1009- ● ●
78 BUSHING; BRKT 1-47139-117-0 04 1 1009- ● ●
78 BUSHING; BRKT 1-47139-117-0 04 1 1009- ● ●
152 NUT; ANCHOR BRKT 1-41229-169-0 16 1 1009- ● ●
152 NUT; ANCHOR BRKT 1-41229-169-0 16 1 1009- ● ●
167 WASHER; ADJ CAM 1-47149-077-0 02 1 1009- ● ●
167 WASHER; ADJ CAM 1-47149-077-0 02 1 1009- ● ●
195 RING; SNAP,CM/SHF 1-87050-005-0 02 1 1009- ● ●
195 RING; SNAP,CM/SHF 1-87050-005-0 02 1 1009- ● ●
201 BOLT; BRKT,POWER CHAMBER 1-47139-119-0 08 1 1009- ● ●
201 BOLT; BRKT,POWER CHAMBER 1-47139-119-0 08 1 1009- ● ●
212 STAY 1-47149-081-0 02 1 1009- ● ●
212 STAY 1-47149-081-0 02 1 1009- ● ●
217 LINING KIT; RR BRK 1-87050-157-0 01 1 1009- ● ●
217 LINING KIT; RR BRK 1-87050-157-0 01 1 1009- ● ●
263 WASHER; PL,ANCHOR BRKT 1-41519-038-0 16 1 1009- ● ●
263 WASHER; PL,ANCHOR BRKT 1-41519-038-0 16 1 1009- ● ●
277 SUPPORT; BRKT 1-47149-084-0 02 1 1009-1203 ● ●
277 SUPPORT; BRKT 1-47149-084-0 02 1 1009-1203 ● ●
278 BOLT; SUPPORT 1-41329-038-0 03 1 1009- ● ●
278 BOLT; SUPPORT 1-41329-038-0 03 1 1009- ● ●
279 WASHER; SUPPORT 1-47149-083-0 03 1 1009- ● ●
279 WASHER; SUPPORT 1-47149-083-0 03 1 1009- ● ●
280 NUT; SUPPORT 1-47149-082-0 03 1 1009- ● ●
280 NUT; SUPPORT 1-47149-082-0 03 1 1009- ● ●
