Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11317 - FXZ(AUST)EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE
▶

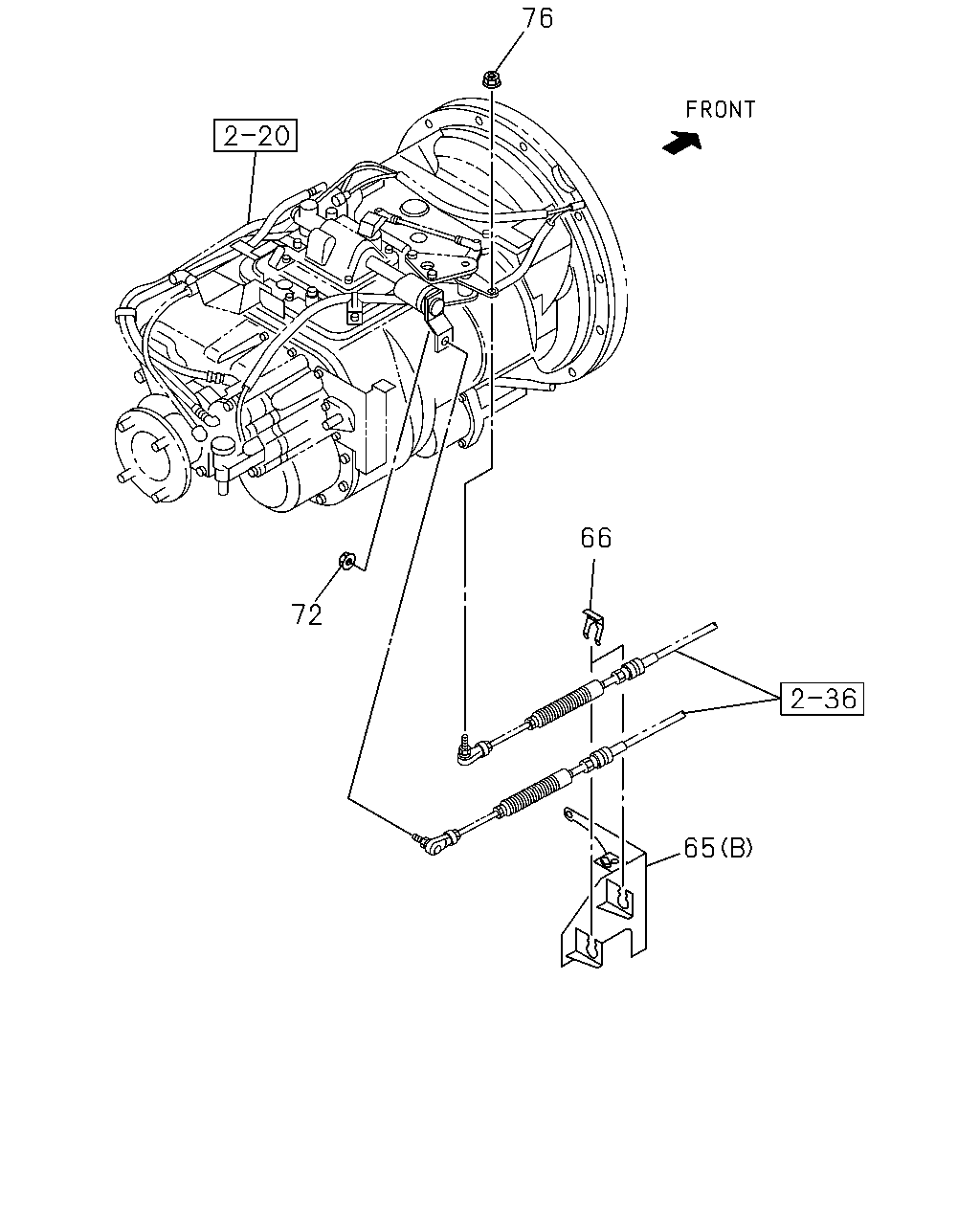

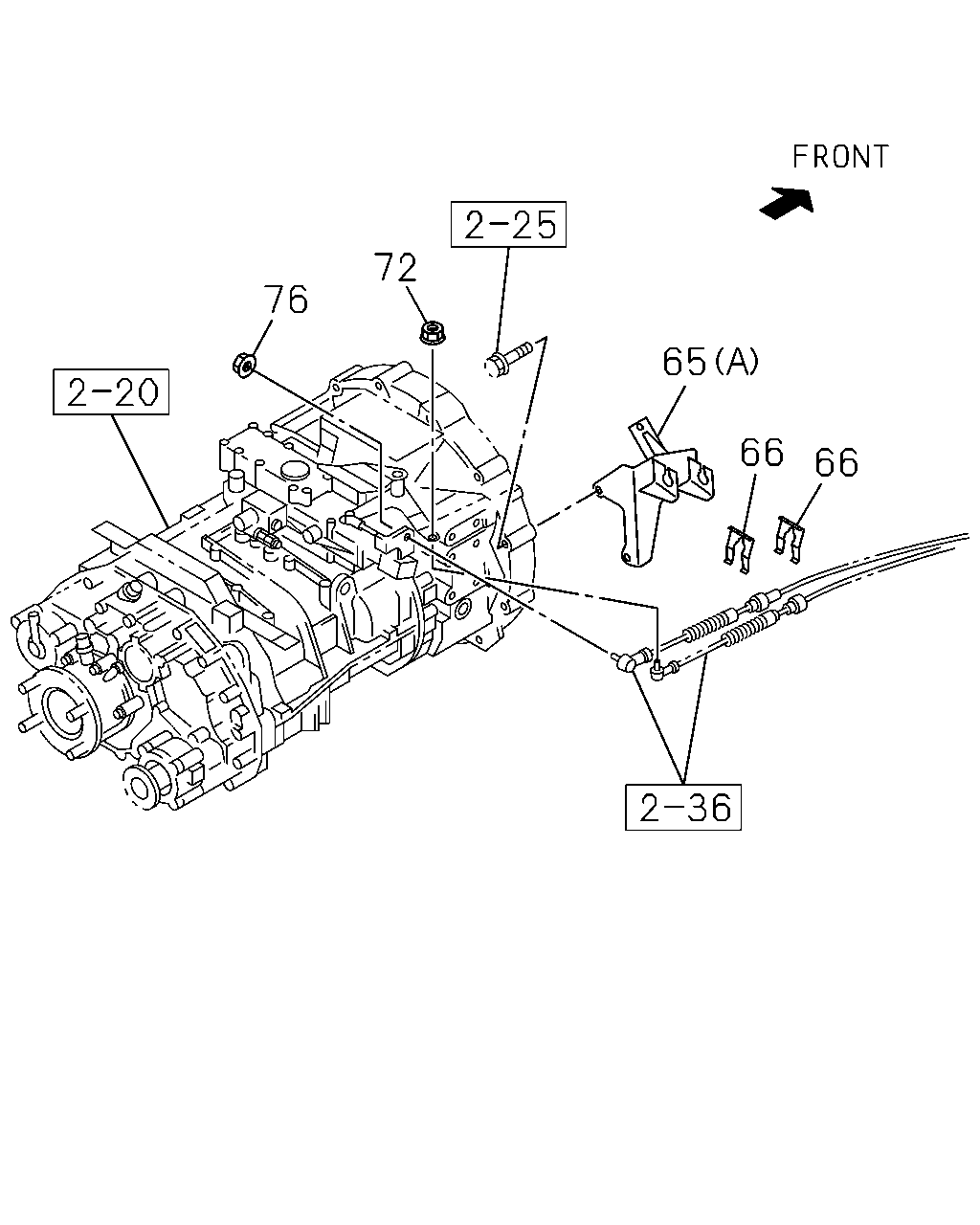

2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE
(#71890) — 20 parça
Tümü
A - FGY5MX
B - FGZ5MX
◀
[237A] FULLER (10 parça)
[237A] ZF (10 parça)
▶
76
66
72
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
65
BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) (A)
8-98079-344-1
01
1
1009-
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (A)
8-98079-344-1
01
1
1009-
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) (B)
8-98055-457-2
01
1
1009-
●
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (A)
8-98082-465-3
01
1
1009-
●
66
CLIP; SELECT BRKT
ID=22.2
1-09701-209-1
02
1
1009-1302
●
●
66
CLIP; SELECT BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=22.2
1-09701-209-1
02
1
1303-
●
●
72
NUT; TRANS CONT,SELECT
M8 FLANGE
1-09440-062-1
01
1
1009-1302
●
●
72
NUT; TRANS CONT,SELECT
TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE
1-09440-062-1
01
1
1303-
●
●
76
NUT; BALL JOINT,SELECT WIRE
M10 FLANGE
1-09440-061-0
01
1
1009-1302
●
●
76
NUT; BALL JOINT,SELECT WIRE
TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE
1-09440-061-0
01
1
1303-
●
●
76
72
65
66
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
65
BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) (A)
8-98079-344-1
01
1
1009-
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (A)
8-98079-344-1
01
1
1009-
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) (B)
8-98055-457-2
01
1
1009-
●
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (A)
8-98082-465-3
01
1
1009-
●
66
CLIP; SELECT BRKT
ID=22.2
1-09701-209-1
02
1
1009-1302
●
●
66
CLIP; SELECT BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=22.2
1-09701-209-1
02
1
1303-
●
●
72
NUT; TRANS CONT,SELECT
M8 FLANGE
1-09440-062-1
01
1
1009-1302
●
●
72
NUT; TRANS CONT,SELECT
TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE
1-09440-062-1
01
1
1303-
●
●
76
NUT; BALL JOINT,SELECT WIRE
M10 FLANGE
1-09440-061-0
01
1
1009-1302
●
●
76
NUT; BALL JOINT,SELECT WIRE
TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE
1-09440-061-0
01
1
1303-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
