0-66 — GENERATOR (#7189) — 73 parça

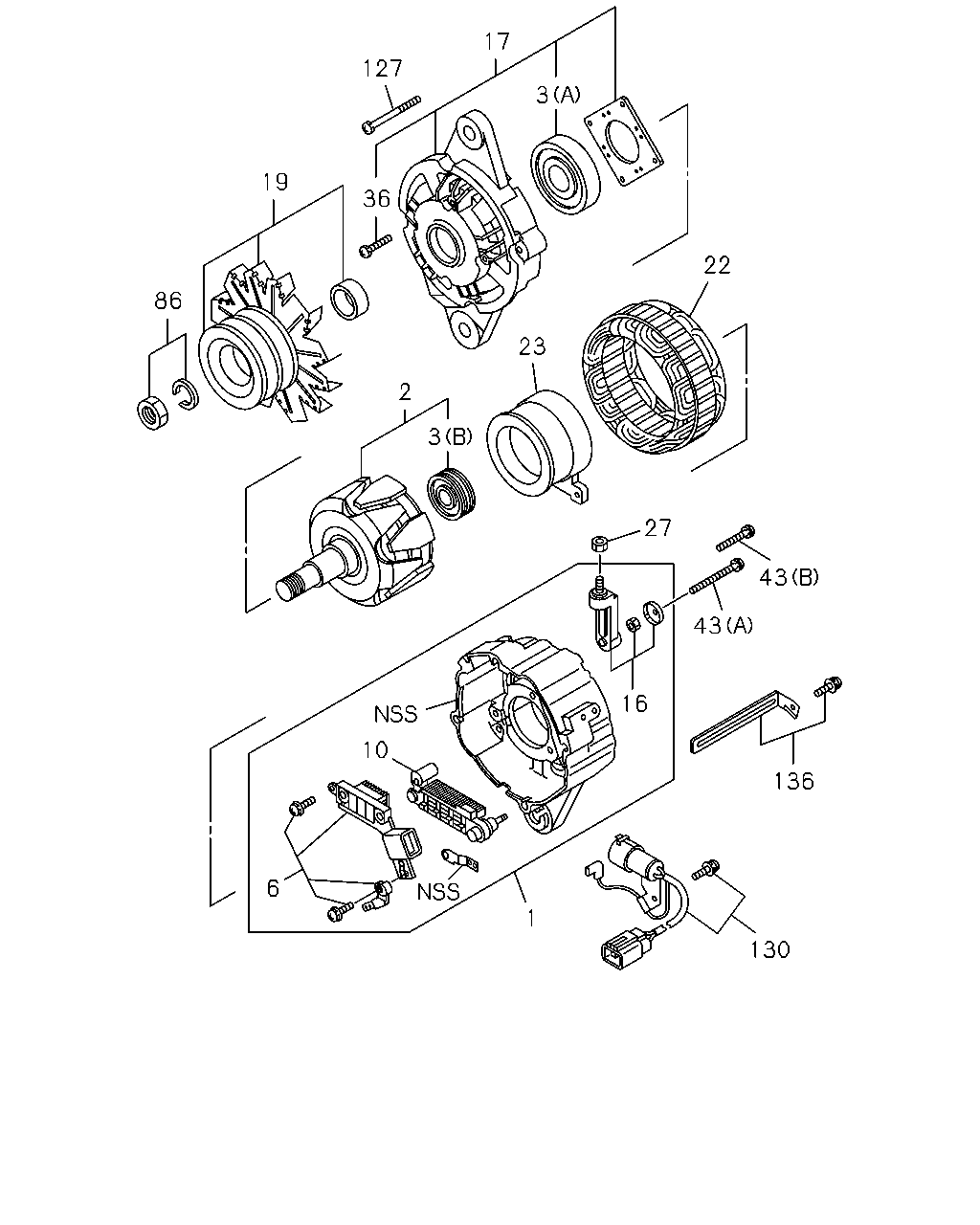

17 127 3 19 36 22 86 23 2 3 27 43 43 16 10 136 6 1 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN NIKKO ASM PART: A = 1-81200-470-3	1-81214-339-0	01	1	-
1	COVER ASM; RR,GEN MITSUBISHI ASM PART: B = 1-81200-522-0	1-81222-135-0	01	1	-
2	ROTOR; GEN NIKKO ASM PART: A = 1-81200-470-3	1-81211-121-0	01	1	-
2	ROTOR; GEN MITSUBISHI ASM PART: B = 1-81200-522-0	1-81221-102-0	01	1	-
3	BEARING; ROTOR,GEN (A) NIKKO ASM PART: A = 1-81200-470-3	1-81229-723-0	01	1	-
3	BEARING; ROTOR,GEN (B) NIKKO ASM PART: A = 1-81200-470-3	1-81229-740-0	01	1	-
3	BEARING; ROTOR,GEN (A) MITSUBISHI ASM PART: B = 1-81200-522-0	1-81229-769-0	01	1	-
3	BEARING; ROTOR,GEN (B) MITSUBISHI ASM PART: B = 1-81200-522-0	1-81229-770-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN NIKKO ASM PART: A = 1-81200-470-3	1-81260-015-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN MITSUBISHI ASM PART: B = 1-81200-522-0	1-81260-017-0	01	1	-
10	RECTIFIER; GEN NIKKO ASM PART: A = 1-81200-470-3	1-81219-117-0	01	1	-
10	RECTIFIER; GEN MITSUBISHI ASM PART: B = 1-81200-522-0	1-81219-126-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN MITSUBISHI ASM PART: B = 1-81200-522-0	1-81229-804-0	01	1	-
17	COVER ASM; FRT,GEN NIKKO ASM PART: A = 1-81200-470-3	1-81213-094-0	01	1	-
17	COVER ASM; FRT,GEN MITSUBISHI ASM PART: B = 1-81200-522-0	1-81213-101-0	01	1	-
19	PULLEY; GEN NIKKO ASM PART: A = 1-81200-470-3	1-81222-101-0	01	1	-
19	PULLEY; GEN MITSUBISHI ASM PART: B = 1-81200-522-0	1-81222-130-0	01	1	-
22	STATOR; GEN NIKKO ASM PART: A = 1-81200-470-3	1-81211-122-0	01	1	-
22	STATOR; GEN MITSUBISHI ASM PART: B = 1-81200-522-0	1-81211-129-0	01	1	-
23	COIL; ROTOR GEN MITSUBISHI ASM PART: B = 1-81200-522-0	1-81212-016-0	01	1	-
23	COIL; ROTOR GEN NIKKO ASM PART: A = 1-81200-470-3	1-81222-102-0	01	1	-
27	NUT; RECTIFIER,GEN MITSUBISHI ASM PART: B = 1-81200-522-0	1-81229-772-0	01	1	-
36	SCREW; FRT COVER MITSUBISHI ASM PART: B = 1-81200-522-0	1-81229-768-0	01	1	-
43	SCREW; RR END COVER (C) NIKKO ASM PART: A = 1-81200-470-3	1-81229-733-0	03	1	-
43	SCREW; RR END COVER (B) MITSUBISHI ASM PART: B = 1-81200-522-0	1-81229-773-0	01	1	-
43	SCREW; RR END COVER (A) MITSUBISHI ASM PART: B = 1-81200-522-0	1-81229-774-0	01	1	-
86	NUT SET; PULLEY,GEN MITSUBISHI ASM PART: B = 1-81200-522-0	8-97178-134-0	01	1	-
127	BOLT SET; GEN MITSUBISHI ASM PART: B = 1-81200-522-0	1-81229-767-0	01	1	-
130	CONNECTOR; GEN MITSUBISHI ASM PART: B = 1-81200-522-0	1-81229-810-0	01	1	-
136	CLAMP; GENERATOR MITSUBISHI ASM PART: B = 1-81200-522-0	1-81229-775-0	01	1	-

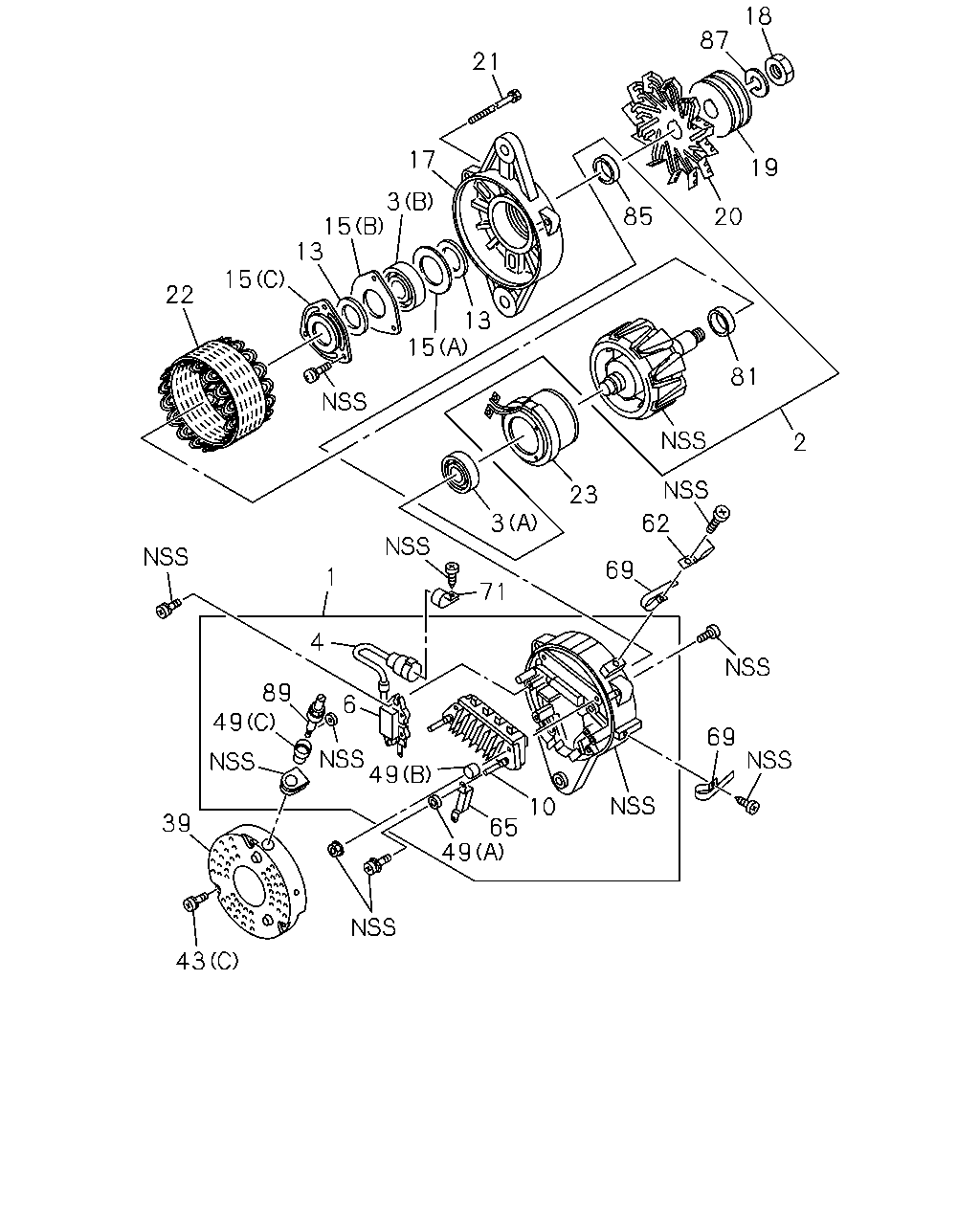

18 87 21 17 19 3 1 13 85 20 15 22 13 15 81 2 23 3 62 69 1 71 4 89 49 6 69 49 10 39 65 49 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN NIKKO ASM PART: A = 1-81200-470-3	1-81214-339-0	01	1	-
1	COVER ASM; RR,GEN MITSUBISHI ASM PART: B = 1-81200-522-0	1-81222-135-0	01	1	-
2	ROTOR; GEN NIKKO ASM PART: A = 1-81200-470-3	1-81211-121-0	01	1	-
2	ROTOR; GEN MITSUBISHI ASM PART: B = 1-81200-522-0	1-81221-102-0	01	1	-
3	BEARING; ROTOR,GEN (A) NIKKO ASM PART: A = 1-81200-470-3	1-81229-723-0	01	1	-
3	BEARING; ROTOR,GEN (B) NIKKO ASM PART: A = 1-81200-470-3	1-81229-740-0	01	1	-
3	BEARING; ROTOR,GEN (A) MITSUBISHI ASM PART: B = 1-81200-522-0	1-81229-769-0	01	1	-
3	BEARING; ROTOR,GEN (B) MITSUBISHI ASM PART: B = 1-81200-522-0	1-81229-770-0	01	1	-
4	TERMINAL; BRUSH,GEN NIKKO ASM PART: A = 1-81200-470-3	1-81229-726-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN NIKKO ASM PART: A = 1-81200-470-3	1-81260-015-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN MITSUBISHI ASM PART: B = 1-81200-522-0	1-81260-017-0	01	1	-
10	RECTIFIER; GEN NIKKO ASM PART: A = 1-81200-470-3	1-81219-117-0	01	1	-
10	RECTIFIER; GEN MITSUBISHI ASM PART: B = 1-81200-522-0	1-81219-126-0	01	1	-
13	GASKET; ROTOR,GEN NIKKO ASM PART: A = 1-81200-470-3	1-81229-644-0	02	1	-
15	RETAINER; ROTOR,GEN (A) NIKKO ASM PART: A = 1-81200-470-3	1-81229-526-0	01	1	-
15	RETAINER; ROTOR,GEN (C) NIKKO ASM PART: A = 1-81200-470-3	1-81229-643-0	01	1	-
15	RETAINER; ROTOR,GEN (B) NIKKO ASM PART: A = 1-81200-470-3	8-97094-161-0	01	1	-
17	COVER ASM; FRT,GEN NIKKO ASM PART: A = 1-81200-470-3	1-81213-094-0	01	1	-
17	COVER ASM; FRT,GEN MITSUBISHI ASM PART: B = 1-81200-522-0	1-81213-101-0	01	1	-
18	NUT; PULLEY,GEN NIKKO ASM PART: A = 1-81200-470-3	1-81229-474-0	01	1	-
19	PULLEY; GEN NIKKO ASM PART: A = 1-81200-470-3	1-81222-101-0	01	1	-
19	PULLEY; GEN MITSUBISHI ASM PART: B = 1-81200-522-0	1-81222-130-0	01	1	-
20	FAN; GEN NIKKO ASM PART: A = 1-81200-470-3	1-81223-019-0	01	1	-
21	BOLT; THROUGH,GEN NIKKO ASM PART: A = 1-81200-470-3	1-81229-382-0	03	1	-
22	STATOR; GEN NIKKO ASM PART: A = 1-81200-470-3	1-81211-122-0	01	1	-
22	STATOR; GEN MITSUBISHI ASM PART: B = 1-81200-522-0	1-81211-129-0	01	1	-
23	COIL; ROTOR GEN MITSUBISHI ASM PART: B = 1-81200-522-0	1-81212-016-0	01	1	-
23	COIL; ROTOR GEN NIKKO ASM PART: A = 1-81200-470-3	1-81222-102-0	01	1	-
39	COVER; END,RR COVER,GEN NIKKO ASM PART: A = 1-81200-470-3	1-81214-343-0	01	1	-
43	SCREW; RR END COVER (C) NIKKO ASM PART: A = 1-81200-470-3	1-81229-733-0	03	1	-
43	SCREW; RR END COVER (B) MITSUBISHI ASM PART: B = 1-81200-522-0	1-81229-773-0	01	1	-
43	SCREW; RR END COVER (A) MITSUBISHI ASM PART: B = 1-81200-522-0	1-81229-774-0	01	1	-
49	BUSHING; RECTIFIER,GEN (A) NIKKO ASM PART: A = 1-81200-470-3	1-81229-727-0	01	1	-
49	BUSHING; RECTIFIER,GEN (B) NIKKO ASM PART: A = 1-81200-470-3	1-81229-728-0	02	1	-
49	BUSHING; RECTIFIER,GEN (C) NIKKO ASM PART: A = 1-81200-470-3	1-81229-729-0	01	1	-
62	CLIP; TERMINAL,BRUSH,GEN NIKKO ASM PART: A = 1-81200-470-3	1-81118-011-0	03	1	-
65	CONDENSER; GEN NIKKO ASM PART: A = 1-81200-470-3	1-84132-012-0	01	1	-
69	CLIP; WIRE,GEN NIKKO ASM PART: A = 1-81200-470-3	1-81229-516-0	02	1	-
71	HOLDER; TERMINAL,GEN NIKKO ASM PART: A = 1-81200-470-3	1-81217-053-0	01	1	-
81	SPACER; ROTOR,GEN NIKKO ASM PART: A = 1-81200-470-3	1-81229-642-0	01	1	-
85	SPACER; PULLEY,GEN NIKKO ASM PART: A = 1-81200-470-3	1-81229-722-0	01	1	-
87	WASHER; PULLEY,GEN NIKKO ASM PART: A = 1-81200-470-3	1-81229-479-0	01	1	-
89	BOLT; RECTIFIER,GEN NIKKO ASM PART: A = 1-81200-470-3	1-81229-731-0	01	1	-
