◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11317 - FXZ(AUST)EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#71888) — 101 parça
çizim 113855
535 536 34 173 538 173 537 364
BalonParca AdiParca NoAdetTipApplied Date A B
34 NUT
TRANSMISSION-FULLER RTO11908(Y5L) (A) 		1-33619-809-0 01 1 1009- ● ●
34 NUT
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		1-87061-098-0 01 1 1009- ● ●
173 SCREW; COVER
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-813-0 02 1 1009- ● ●
364 GASKET; COVER
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87060-993-0 02 1 1009-1508 ● ●
535 REPAIR KIT; MASTER VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-812-0 01 1 1009- ● ●
536 CONNECTOR ASM; ROADRANGER VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-814-0 04 1 1009- ● ●
537 UNION
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-815-0 01 1 1009-1508 ● ●
538 VALVE ASM; ROADRANGER
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-816-0 01 1 1009- ● ●
çizim 113922
18 546 407 420 406 516 515 539
BalonParca AdiParca NoAdetTipApplied Date A B
18 BOOT; CHANGE LEVER
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-516-0 01 1 1009-1203 ● ●
406 VALVE ASM; SLAVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-508-0 01 1 1204- ● ●
406 VALVE ASM; SLAVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-508-0 01 1 1009-1203 ● ●
407 BOLT; VALVE
TRANSMISSION-FULLER RTO11908(Y5L) (A) 		1-87061-096-0 02 1 1009- ● ●
407 BOLT; VALVE
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		1-87061-533-0 03 1 1009- ● ●
407 BOLT; VALVE
TRANSMISSION-FULLER RTO11908(Y5L) (C) 		1-87061-539-0 04 1 1009- ● ●
420 PLUG; VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-473-0 01 1 1009- ● ●
515 REPAIR KIT; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-512-0 01 1 1009- ● ●
516 PISTON; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-472-0 01 1 1009- ● ●
539 CAP; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-016-0 01 1 1009- ● ●
546 CAP; ASM
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-516-0 01 1 1204- ● ●

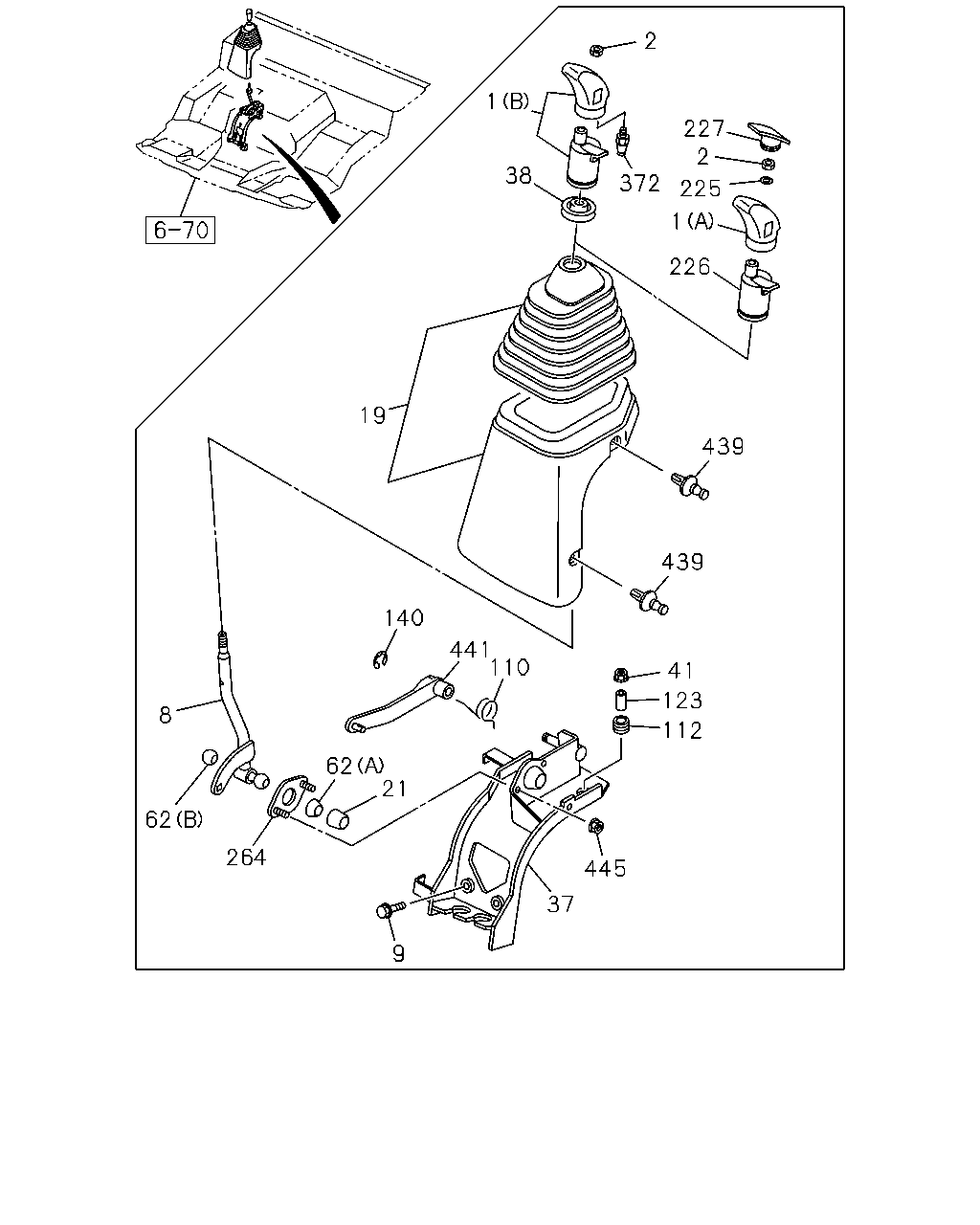

çizim 113971
41 123 112 439 439 226 225 2 227 1 372 2 1 38 19 140 441 110 445 37 21 62 264 62 8 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		1-33611-110-0 01 1 1009-1311 ● ●
1 KNOB; CHANGE LEVER
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		8-98224-292-0 01 1 1312- ● ●
1 KNOB; CHANGE LEVER
ZF9S1310 M/T(Y5K) (A) 		1-33611-038-0 01 1 1009- ● ●
2 NUT; KNOB
TRANSMISSION-FULLER RTO11908(Y5L) 1/2-13UNC 		1-33619-033-0 01 1 1009- ● ●
2 NUT; KNOB
ZF9S1310 M/T(Y5K) M10 FLANGE 		0-91180-210-0 01 1 1009- ● ●
8 LEVER; CHANGE
TRANSMISSION-FULLER RTO11908(Y5L) 		8-98079-301-0 01 1 1009-1502 ● ●
8 LEVER; CHANGE
TRANSMISSION-FULLER RTO11908(Y5L) 		8-98296-344-0 01 1 1503- ● ●
8 LEVER; CHANGE
ZF9S1310 M/T(Y5K) 		8-98079-300-0 01 1 1009-1502 ● ●
8 LEVER; CHANGE
ZF9S1310 M/T(Y5K) 		8-98221-569-0 01 1 1503- ● ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1009-1302 ● ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1303- ● ●
19 COVER; CHANGE LEVER
GRAY 		8-97416-183-1 01 1 1009-1203 ● ●
19 COVER; CHANGE LEVER
FULLER M/T<X9B>,ZF M/T<X9E> GRAY 		8-97416-183-2 01 1 1204- ● ●
21 SEAT; CHANGE LEVER
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-429-0 01 1 1009- ● ●
37 BRACKET; CHANGE LEVER SUPPORT
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		8-98079-298-0 01 1 1009-1311 ● ●
37 BRACKET; CHANGE LEVER SUPPORT
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		8-98245-920-0 01 1 1312-1502 ● ●
37 BRACKET; CHANGE LEVER SUPPORT
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		8-98296-342-0 01 1 1503- ● ●
38 HOLDER; BOOT CHANGE LEVER
FULLER M/T<X9B> 		1-79996-383-0 01 1 1009- ● ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1009-1302 ● ●
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1303- ● ●
62 SEAT; BALL,CHANGE LEVER
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) 		1-33619-427-0 01 1 1009- ● ●
62 SEAT; BALL,CHANGE LEVER
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) 		8-97049-147-0 01 1 1009- ● ●
110 SPRING; RETURN,CHANGE LEVER
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-435-0 01 1 1009- ● ●
112 RUBBER; CUSHION
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-442-0 04 1 1009- ● ●
123 COLLAR; DIST,CHANGE LEVER
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-443-0 04 1 1009- ● ●
140 RING; SNAP
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) ID=10 		0-91805-510-0 01 1 1009- ● ●
225 WASHER; PL,KNOB
ZF9S1310 M/T(Y5K) ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 1009- ● ●
226 VALVE; SELECTOR
ZF9S1310 M/T(Y5K) 		1-33710-008-0 01 1 1009- ● ●
227 COVER; KNOB
ZF9S1310 M/T(Y5K) 		8-98013-168-0 01 1 1009- ● ●
264 PLATE; COVER
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-430-0 01 1 1009- ● ●
372 CONNECTOR; CHANGE LEVER
TRANSMISSION-FULLER RTO11908(Y5L) 		8-98114-396-0 04 1 1009- ● ●
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1009-1203 ● ●
439 FASTENER; COVER
FULLER M/T<X9B>,ZF M/T<X9E> GRAY 		8-97407-955-0 04 1 1204- ● ●
441 LEVER; SELECT
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		8-98079-302-0 01 1 1009- ● ●
445 NUT; PLATE
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M6 FLANGE 		0-91180-106-0 02 1 1009- ● ●

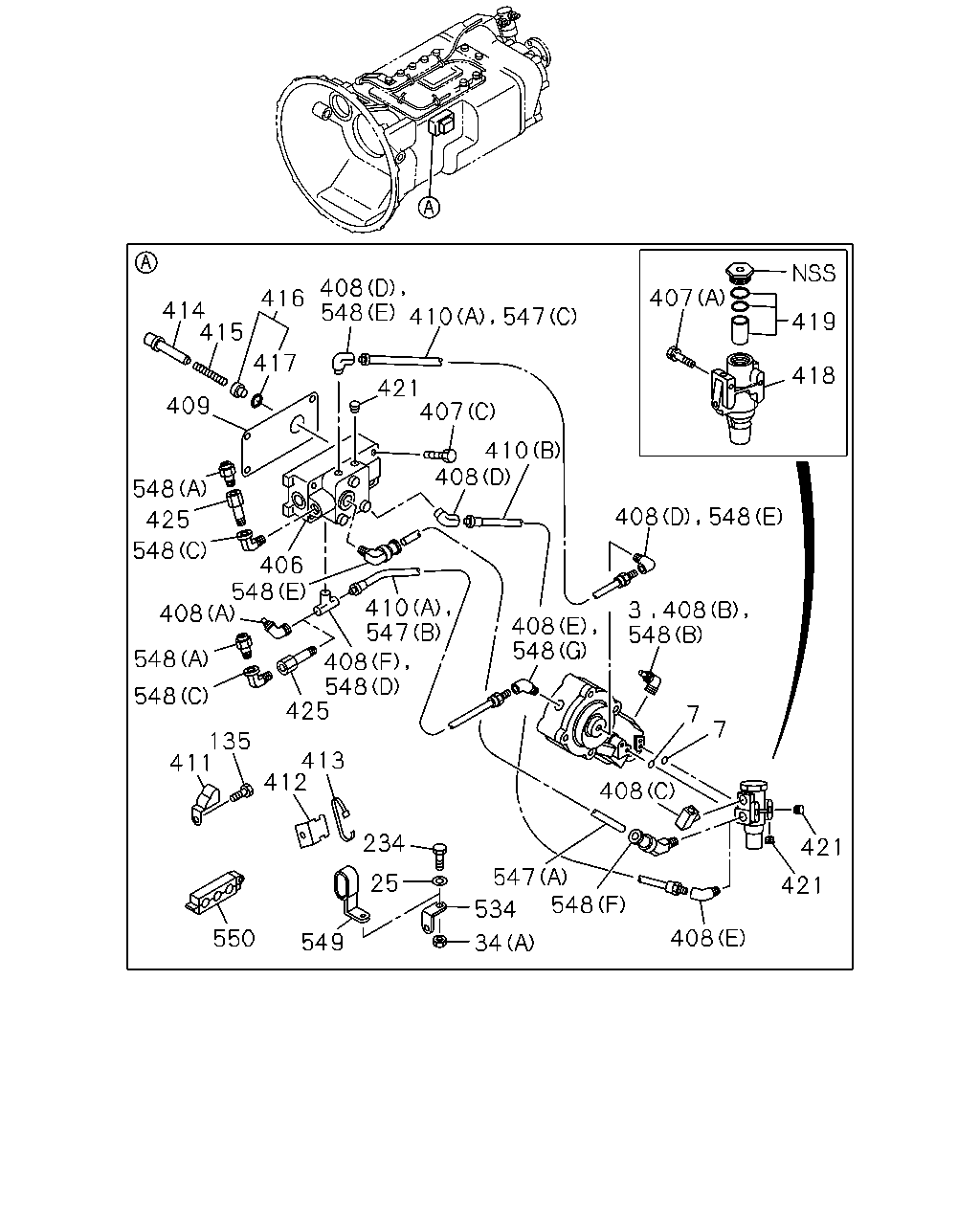

çizim 189860
407 419 418 548 408 408 3 548 408 548 7 7 421 421 408 548 547 534 34 549 25 234 413 412 550 411 135 548 548 425 548 408 547 410 408 548 406 548 425 548 409 414 415 417 416 408 548 410 547 421 407 410 408 408
BalonParca AdiParca NoAdetTipApplied Date A B
3 CONNECTOR; CONT TUBE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-533-0 01 1 1009- ● ●
7 GASKET; CONNECTOR
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87060-996-0 02 1 1009- ● ●
25 WASHER
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-808-0 01 1 1009- ● ●
34 NUT
TRANSMISSION-FULLER RTO11908(Y5L) (A) 		1-33619-809-0 01 1 1009- ● ●
34 NUT
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		1-87061-098-0 01 1 1009- ● ●
135 BOLT
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-806-0 01 1 1009-1508 ● ●
234 BOLT; BRKT
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-807-0 01 1 1009- ● ●
406 VALVE ASM; SLAVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-508-0 01 1 1204- ● ●
406 VALVE ASM; SLAVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-508-0 01 1 1009-1203 ● ●
407 BOLT; VALVE
TRANSMISSION-FULLER RTO11908(Y5L) (A) 		1-87061-096-0 02 1 1009- ● ●
407 BOLT; VALVE
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		1-87061-533-0 03 1 1009- ● ●
407 BOLT; VALVE
TRANSMISSION-FULLER RTO11908(Y5L) (C) 		1-87061-539-0 04 1 1009- ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) (A) 		1-33619-532-0 06 1 1009-1508 ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) (A) 		1-33619-532-0 03 1 1509- ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		1-33619-533-0 01 1 1009-1508 ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) (C) 		1-33619-810-0 01 1 1009-1508 ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) (D) 		1-87061-113-0 06 1 1009-1508 ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) (E) 		1-87061-114-0 02 1 1009-1508 ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) (F) 		1-87061-186-0 01 1 1009-1508 ● ●
409 GASKET; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-170-0 01 1 1009- ● ●
410 HOSE; AIR
TRANSMISSION-FULLER RTO11908(Y5L) (A) 		1-33619-805-0 02 1 1009-1508 ● ●
410 HOSE; AIR
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		1-87061-067-0 01 1 1009-1508 ● ●
411 CLAMP; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-045-0 01 1 1009-1508 ● ●
412 BRACKET; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-044-0 01 1 1009-1508 ● ●
413 CLIP; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-043-0 01 1 1009-1508 ● ●
414 PIN; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-185-0 01 1 1009- ● ●
415 SPRING; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-187-0 01 1 1009- ● ●
416 SLEEVE; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-748-0 01 1 1009- ● ●
417 GASKET; SLEEVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-747-0 01 1 1009- ● ●
418 VALVE ASM; AIR FILTER REG
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33549-543-0 01 1 1009- ● ●
419 ELEMENT KIT; REG VLV
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-100-0 02 1 1009-1508 ● ●
419 ELEMENT KIT; REG VLV
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-100-0 01 1 1509- ● ●
421 PLUG; REG VLV
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-090-0 03 1 1009- ● ●
425 ADAPTER; CONNECTER
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-291-0 03 1 1009- ● ●
534 EYE; LIFTING
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87060-783-0 01 1 1009-1508 ● ●
547 TUBE; NYLON
TRANSMISSION-FULLER RTO11908(Y5L) (A) 		8-98336-342-0 01 1 1509- ● ●
547 TUBE; NYLON
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		8-98336-343-0 01 1 1509- ● ●
547 TUBE; NYLON
TRANSMISSION-FULLER RTO11908(Y5L) (C) 		8-98336-344-0 01 1 1509- ● ●
548 CONNECTOR; NYLON TUBE
TRANSMISSION-FULLER RTO11908(Y5L) (A) 		1-33619-532-0 03 1 1509- ● ●
548 CONNECTOR; NYLON TUBE
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		1-33619-533-0 01 1 1509- ● ●
548 CONNECTOR; NYLON TUBE
TRANSMISSION-FULLER RTO11908(Y5L) (C) 		1-87061-113-0 03 1 1509- ● ●
548 CONNECTOR; NYLON TUBE
TRANSMISSION-FULLER RTO11908(Y5L) (D) 		1-87061-186-0 01 1 1509- ● ●
548 CONNECTOR; NYLON TUBE
TRANSMISSION-FULLER RTO11908(Y5L) (E) 		8-98336-345-0 03 1 1509- ● ●
548 CONNECTOR; NYLON TUBE
TRANSMISSION-FULLER RTO11908(Y5L) (F) 		8-98336-346-0 02 1 1509- ● ●
548 CONNECTOR; NYLON TUBE
TRANSMISSION-FULLER RTO11908(Y5L) (G) 		8-98336-354-0 01 1 1509- ● ●
549 CLAMP; NYLON TUBE
TRANSMISSION-FULLER RTO11908(Y5L) 		8-98336-347-0 01 1 1509- ● ●
550 CLIP; NYLON TUBE
TRANSMISSION-FULLER RTO11908(Y5L) 		8-98336-349-0 01 1 1509- ● ●
