◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11317 - FXZ(AUST)EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30B - GEAR SHIFTER AND QUADRANT BOX ▶
2-30B — GEAR SHIFTER AND QUADRANT BOX (#71887) — 130 parça

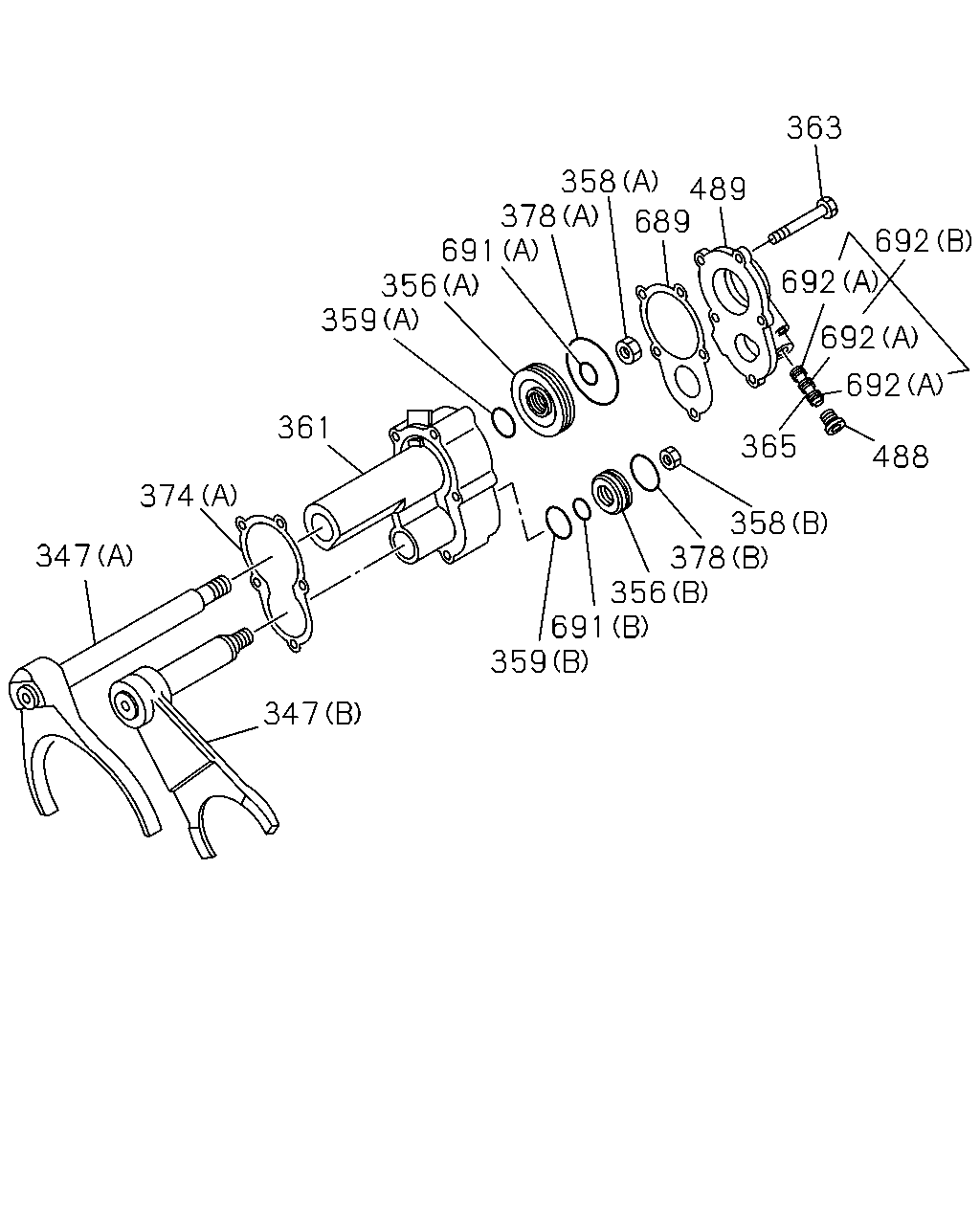

çizim 114117
363 692 489 358 378 689 691 356 359 361 374 347 347 359 356 691 378 358 365 488 692 692 692
BalonParca AdiParca NoAdetTipApplied Date
347 ARM; SHIFT,RANGE CHANGE
(A) 		1-87061-077-0 01 1 1009-
347 ARM; SHIFT,RANGE CHANGE
(B) 		1-87061-078-0 01 1 1009-
347 ARM; SHIFT,RANGE CHANGE
(C) 		1-87061-143-0 01 1 1009-
356 PISTON; AIR CYL
(B) 		1-33519-180-0 01 1 1009-
356 PISTON; AIR CYL
(A) 		1-87061-121-0 01 1 1009-
358 NUT; SHIFT ROD
(B) 		1-87061-089-0 01 1 1009-
358 NUT; SHIFT ROD
(A) 		1-87061-222-0 01 1 1009-
359 GASKET; AIR CYL
(B) 		1-87061-125-0 01 1 1009-
359 GASKET; AIR CYL
(A) 		1-87061-136-0 01 1 1009-
361 CYLINDER; AIR,SHIFT 1-87061-023-0 01 1 1009-
363 BOLT; AIR CYL 1-33519-182-0 05 1 1009-
365 VALVE; AIR CYL 1-33519-183-0 01 1 1009-
374 GASKET
(B) ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-402-0 01 1 1509-
374 GASKET
(A) 		1-87061-025-0 01 1 1009-
378 GASKET; PISTON
(B) 		1-87061-009-0 01 1 1009-
378 GASKET; PISTON
(A) 		1-87061-122-0 01 1 1009-
488 PLUG; AIR CYL 1-87060-998-0 01 1 1009-
489 COVER; AIR CYL 1-87061-022-0 01 1 1009-
689 GASKET; COVER 1-87061-024-0 01 1 1009-
691 GASKET; YOKE
(B) 		1-33519-181-0 01 1 1009-
691 GASKET; YOKE
(A) 		1-87061-123-0 01 1 1009-
692 GASKET; VALVE
(B) 		1-33619-811-0 01 1 1009-1508
692 GASKET; VALVE
(A) 		1-87060-994-0 03 1 1009-

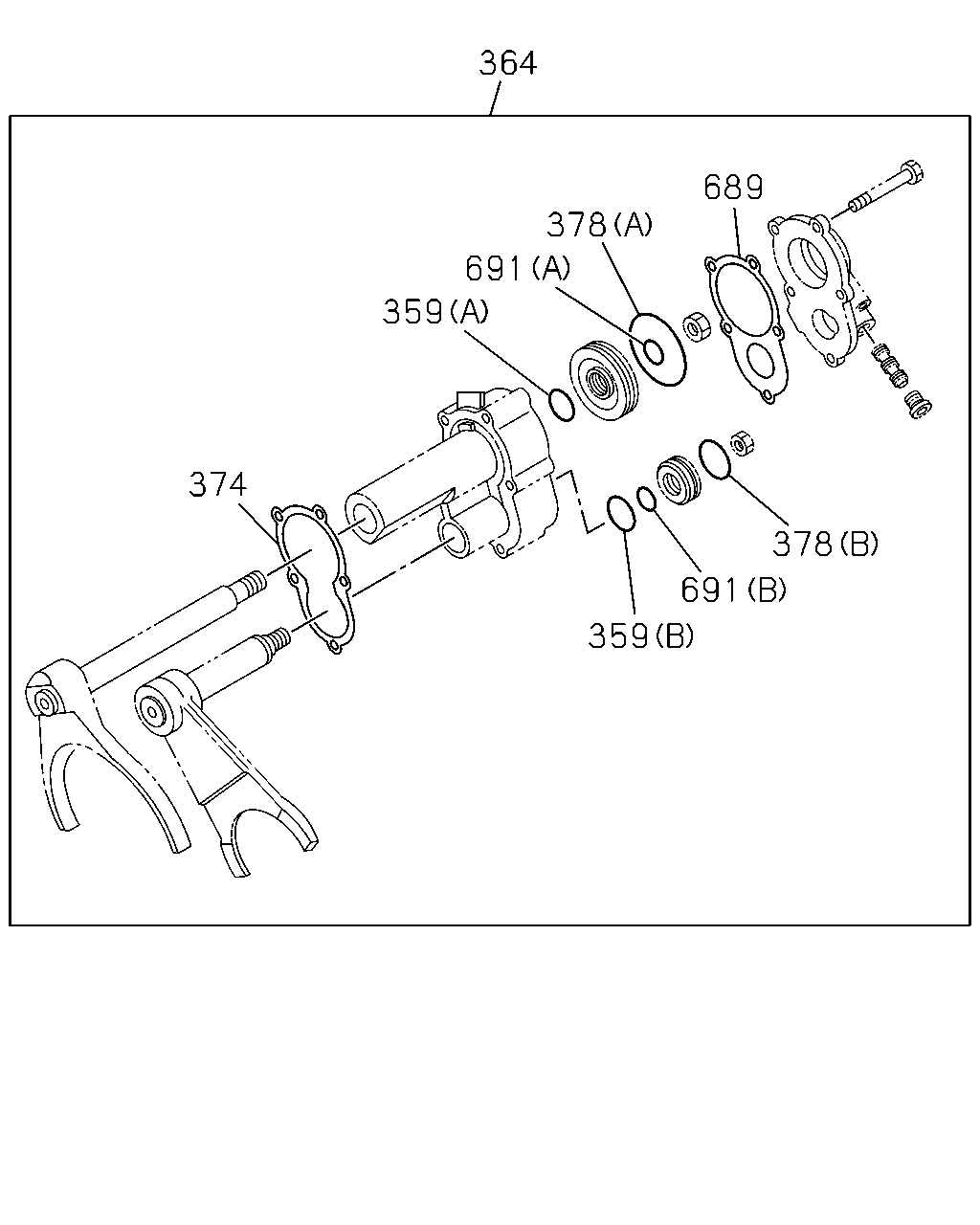

çizim 189985
689 378 691 359 364 378 691 359 374
BalonParca AdiParca NoAdetTipApplied Date
359 GASKET; AIR CYL
(B) 		1-87061-125-0 01 1 1009-
359 GASKET; AIR CYL
(A) 		1-87061-136-0 01 1 1009-
364 SEAL KIT; AIR CYL 1-87061-217-0 01 1 1009-1508
374 GASKET
(B) ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-402-0 01 1 1509-
374 GASKET
(A) 		1-87061-025-0 01 1 1009-
378 GASKET; PISTON
(B) 		1-87061-009-0 01 1 1009-
378 GASKET; PISTON
(A) 		1-87061-122-0 01 1 1009-
689 GASKET; COVER 1-87061-024-0 01 1 1009-
691 GASKET; YOKE
(B) 		1-33519-181-0 01 1 1009-
691 GASKET; YOKE
(A) 		1-87061-123-0 01 1 1009-

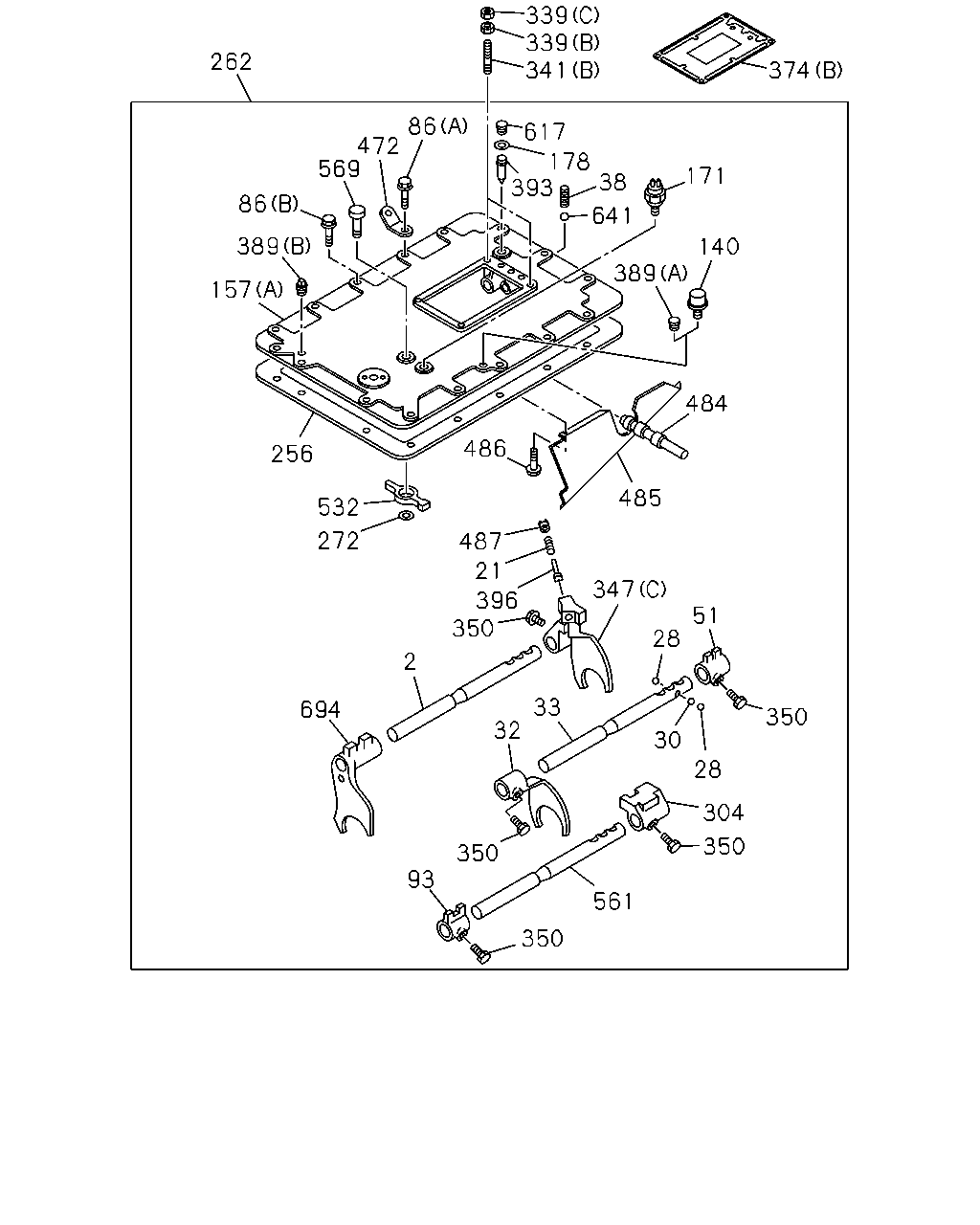

çizim 189990
339 339 341 374 171 617 86 472 569 262 86 157 389 256 486 485 484 347 487 396 21 532 272 28 51 350 28 30 33 32 2 694 350 93 561 350 304 350 393 178 38 641 389 140 350
BalonParca AdiParca NoAdetTipApplied Date
2 ROD; SHIFT,1ST & REV 1-33531-477-0 01 1 1009-
21 SPRING; COIL COMP SLEEVE 1-87061-207-0 01 1 1009-1508
28 BALL; INTER LK 1-87061-224-0 02 1 1009-
30 PIN; INTER LK 1-87060-808-0 01 1 1009-
32 ARM; SHIFT,1ST & 2ND 1-33511-623-0 01 1 1009-
33 ROD; SHIFT,LOW & 2ND 1-33531-476-0 01 1 1009-
38 SPRING; DETENT 1-87061-140-0 03 1 1009-
51 BLOCK; SHIFT,1ST & 2ND 1-87061-126-0 01 1 1009-
86 SCREW; TAPER,ARM TO ROD
(B) 		1-87060-778-0 16 1 1009-
86 SCREW; TAPER,ARM TO ROD
(A) 		1-87061-229-0 02 1 1009-
93 BLOCK; SHIFT,REV & 5TH 1-33549-367-0 01 1 1009-
140 BREATHER; AIR,TRANS 1-33549-405-0 01 1 1009-1508
157 BOX; QUAD,TRANS
(B) 		1-33541-398-1 01 1 1009-
157 BOX; QUAD,TRANS
(A) 		1-33619-751-0 01 1 1009-
171 SWITCH; NEUTRAL 1-87061-488-0 01 1 1009-
178 GASKET; PLUG 1-87060-781-0 01 1 1009-
256 GASKET; QUAD BOX TO TRANS CASE 1-33619-817-0 01 1 1009-1508
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-402-0 01 1 1509-
262 BOX ASM; SHIFT CONT 1-33510-016-0 01 1 1009-1508
262 BOX ASM; SHIFT CONT 1-33510-017-0 01 1 1509-
272 RING; SNAP,QUAD BOX 1-33539-077-0 01 1 1009-
304 BLOCK; SHIFT SHAFT 1-33549-366-0 01 1 1009-
339 NUT; QUAD BOX
(B) 3/8 UNF 		1-33549-068-0 02 1 1509-
339 NUT; QUAD BOX
(C) 5/8 UNF 		1-33549-069-0 02 1 1509-
339 NUT; QUAD BOX
(A) M10 		0-91110-510-0 02 1 1009-
341 STUD; QUAD BOX
(B) 		1-33549-067-0 02 1 1509-
341 STUD; QUAD BOX
(A) 		1-09305-004-0 02 1 1009-
347 ARM; SHIFT,RANGE CHANGE
(A) 		1-87061-077-0 01 1 1009-
347 ARM; SHIFT,RANGE CHANGE
(B) 		1-87061-078-0 01 1 1009-
347 ARM; SHIFT,RANGE CHANGE
(C) 		1-87061-143-0 01 1 1009-
350 SCREW; SHIFT ARM 1-87061-202-0 05 1 1009-
374 GASKET
(B) ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-402-0 01 1 1509-
374 GASKET
(A) 		1-87061-025-0 01 1 1009-
389 PLUG; QUAD BOX,NEUTRAL SW
(B) 		1-87061-091-0 01 1 1009-
389 PLUG; QUAD BOX,NEUTRAL SW
(A) 		1-87061-304-0 01 1 1009-
393 PIN; SW 1-87061-139-0 01 1 1009-
396 PLUNGER; SHIFT ROD 1-87061-112-0 01 1 1009-1508
472 EYE; LIFTING 1-87060-783-0 02 1 1009-
484 SHAFT; AIR VALVE 1-87061-551-0 01 1 1009-
485 TROUGH; OIL 1-87061-006-0 01 1 1009-
486 BOLT; OIL TROUGH 1-87061-093-0 02 1 1009-
487 PLUG; SHIFT BLOCK 1-87061-213-0 01 1 1009-1508
532 PLATE; SHIFT FORK 1-33539-078-0 01 1 1009-
561 ROD; SHIFT 1-33531-475-0 01 1 1009-
569 PIN; QUADRANT BOX 1-33549-365-0 01 1 1009-
617 PLUG 1-33619-818-0 01 1 1009-
641 BALL 1-87060-789-0 03 1 1009-
694 ARM; SHIFT,3RD & OD 1-33511-654-0 01 1 1009-

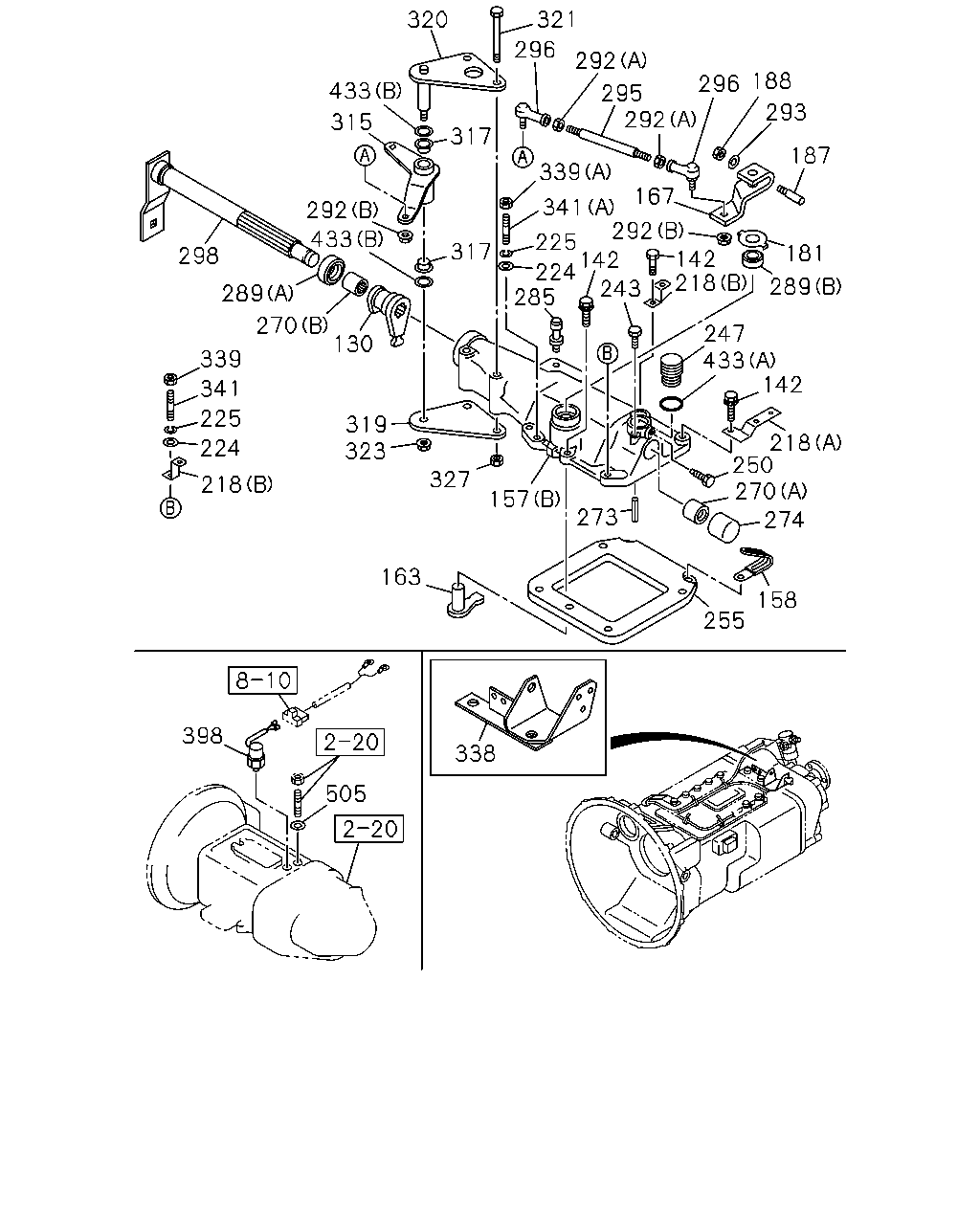

çizim 189993
255 158 274 270 250 218 142 433 247 218 142 181 187 293 188 296 292 295 292 296 321 320 433 315 317 339 341 167 292 142 225 285 224 292 130 270 289 298 433 317 243 289 157 327 323 319 339 225 341 224 218 163 338 398 273 505
BalonParca AdiParca NoAdetTipApplied Date
130 LEVER; SHIFT,INTERNAL 1-33521-109-0 01 1 1009-
142 BOLT; QUAD BOX
M10X28 W/LK&PL WASHER 		0-50641-028-0 04 1 1009-
157 BOX; QUAD,TRANS
(B) 		1-33541-398-1 01 1 1009-
157 BOX; QUAD,TRANS
(A) 		1-33619-751-0 01 1 1009-
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 1009-
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 1009-
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 1009-
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 1009-
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 1009-
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 1009-
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82569-341-0 01 1 1009-
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 03 1 1009-
224 WASHER; PL,QUAD BOX
ID=10.5 		0-91610-510-0 02 1 1009-
225 WASHER; LK,QUAD BOX
ID=10.2 		0-91510-810-0 02 1 1009-
243 BOLT; COVER
M6X12 W/LK&PL WASHER 		0-50640-612-0 01 1 1009-
247 BUSHING ASM; DETENT 1-33529-019-0 01 1 1009-
250 SCREW; BUSHING 9-06130-618-0 01 1 1009-
255 PLATE; DIST,QUAD BOX 1-33549-070-1 01 1 1009-
270 BEARING; NEEDLE,QUAD BOX
(A) NTN 		1-09811-006-0 01 1 1009-
270 BEARING; NEEDLE,QUAD BOX
(A) NSK 		1-09811-057-0 01 1 1009-
270 BEARING; NEEDLE,QUAD BOX
(B) NTN 		1-09811-260-0 01 1 1009-
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 1009-
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 1009-
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 1009-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
(B) OD=30 		1-09625-386-0 01 1 1009-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
(A) OD=41 		1-09625-647-0 01 1 1009-
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1009-
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 1009-
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 1009-
295 ROD; LINK,RELAY LEVER 9-08400-816-0 01 1 1009-
296 ROD END 1-09760-108-0 02 1 1009-
298 SHAFT; SHIFT LEVER 1-33522-148-0 01 1 1009-
315 LEVER; SELECT 8-98077-805-0 01 1 1009-
317 BUSHING; LEVER 1-09330-119-0 02 1 1009-
319 BRACKET; SELECT LEVER 1-33657-640-0 01 1 1009-
320 SHAFT; LEVER 1-33619-629-0 01 1 1009-
321 BOLT; BRKT,RELAY LEVER
M10X80 FLANGE 		0-28051-080-0 02 1 1009-
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 1009-
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91180-210-0 02 1 1009-
338 BRACKET; FLEX TUBE 1-47478-877-0 01 1 1009-
339 NUT; QUAD BOX
(B) 3/8 UNF 		1-33549-068-0 02 1 1509-
339 NUT; QUAD BOX
(C) 5/8 UNF 		1-33549-069-0 02 1 1509-
339 NUT; QUAD BOX
(A) M10 		0-91110-510-0 02 1 1009-
341 STUD; QUAD BOX
(B) 		1-33549-067-0 02 1 1509-
341 STUD; QUAD BOX
(A) 		1-09305-004-0 02 1 1009-
398 SWITCH; REV LAMP 1-82440-102-0 01 1 1009-
433 GASKET; BUSHING
(A) 		1-09623-130-0 01 1 1009-
433 GASKET; BUSHING
(B) 		1-09623-636-0 02 1 1009-
505 SPACER; BRKT 1-53459-587-0 01 1 1009-
