2-30A — GEAR SHIFTER AND QUADRANT BOX (#71886) — 196 parça

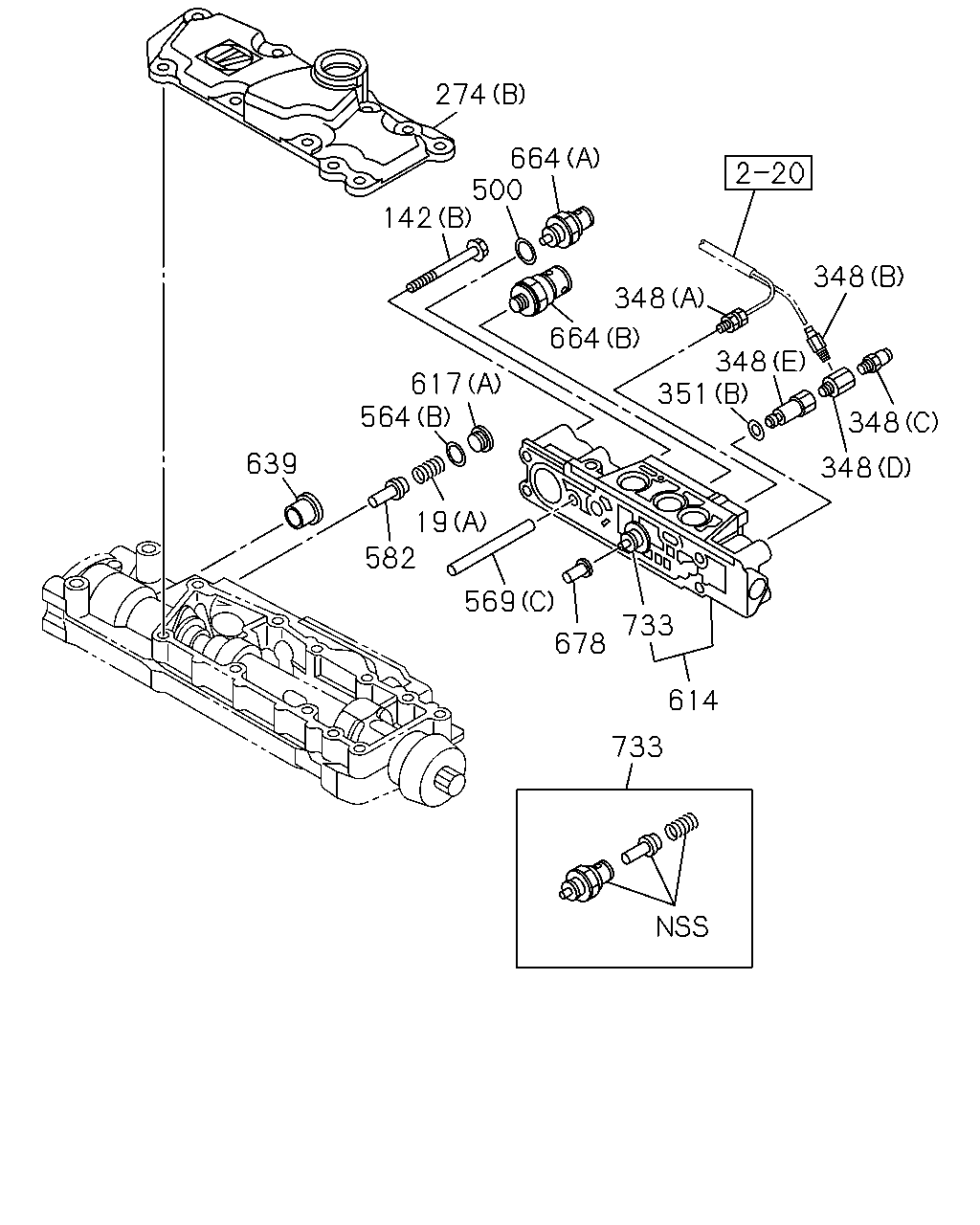

çizim 109688
274 664 500 142 664 348 348 348 351 348 348 733 678 614 733 569 582 19 564 639 617
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) 		1-33539-022-0 01 1 1009-
19 SPRING; COIL COMP
(B) 		1-33539-027-0 01 1 1009-
19 SPRING; COIL COMP
(C) 		1-33539-098-0 01 1 1009-
142 BOLT; QUAD BOX
(B) 		1-33549-467-0 05 1 1009-1305
142 BOLT; QUAD BOX
(B) M8X70 		1-33549-616-0 05 1 1306-
142 BOLT; QUAD BOX
(A) 		1-33549-476-0 17 1 1009-1305
142 BOLT; QUAD BOX
(A) M8X80 		1-33549-614-0 17 1 1306-
274 COVER; SHAFT,QUAD BOX
(A) 		1-33549-531-0 01 1 1009-
274 COVER; SHAFT,QUAD BOX
(B) 		1-33549-535-0 01 1 1009-
348 CONNECTOR; AIR HOSE
(A) 		1-09660-466-0 01 1 1009-
348 CONNECTOR; AIR HOSE
(B) 		1-09661-174-0 01 1 1009-
348 CONNECTOR; AIR HOSE
(C) 		1-09661-481-0 01 1 1009-
348 CONNECTOR; AIR HOSE
(D) 		8-94338-417-0 01 1 1009-
348 CONNECTOR; AIR HOSE
(E) 		8-98068-125-0 01 1 1009-
351 GASKET; CONNECTOR
(C) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1009-
351 GASKET; CONNECTOR
(B) ID=12.2 		1-09630-084-0 01 1 1009-1312
351 GASKET; CONNECTOR
(B) ID=12.2 		8-98251-344-0 01 1 1401-
351 GASKET; CONNECTOR
(A) 		1-33549-444-0 04 1 1009-1106
351 GASKET; CONNECTOR
(A) 		1-33549-578-0 04 1 1107-
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 1009-
564 SEAL; RING
(A) 		1-33549-444-0 01 1 1009-1106
564 SEAL; RING
(A) 		1-33549-578-0 01 1 1107-
564 SEAL; RING
(B) T=2.0 		1-82449-010-0 01 1 1009-
569 PIN; QUADRANT BOX
(A) 		1-33529-106-0 01 1 1009-
569 PIN; QUADRANT BOX
(B) 		1-33549-452-0 01 1 1009-
569 PIN; QUADRANT BOX
(C) 		1-33549-468-0 01 1 1009-
582 BOLT; SPRING GUIDE 1-33549-471-0 01 1 1009-
614 VALVE ASM 1-33549-549-0 01 1 1009-
617 PLUG
(A) 		1-33119-171-0 01 1 1009-1305
617 PLUG
(A) 		1-33119-619-0 01 1 1306-
617 PLUG
(B) 		1-34129-061-0 01 1 1009-1305
617 PLUG
(B) 		1-33539-109-0 01 1 1306-
639 CAP 1-33549-465-0 01 1 1009-1106
639 CAP 1-33549-576-0 01 1 1107-
664 SWITCH
(A) 		1-33119-587-0 01 1 1009-
664 SWITCH
(B) 		1-33549-470-0 01 1 1009-
678 TAPPET 1-33549-466-0 01 1 1009-
733 REPAIR KIT 1-33549-617-0 01 1 1306-

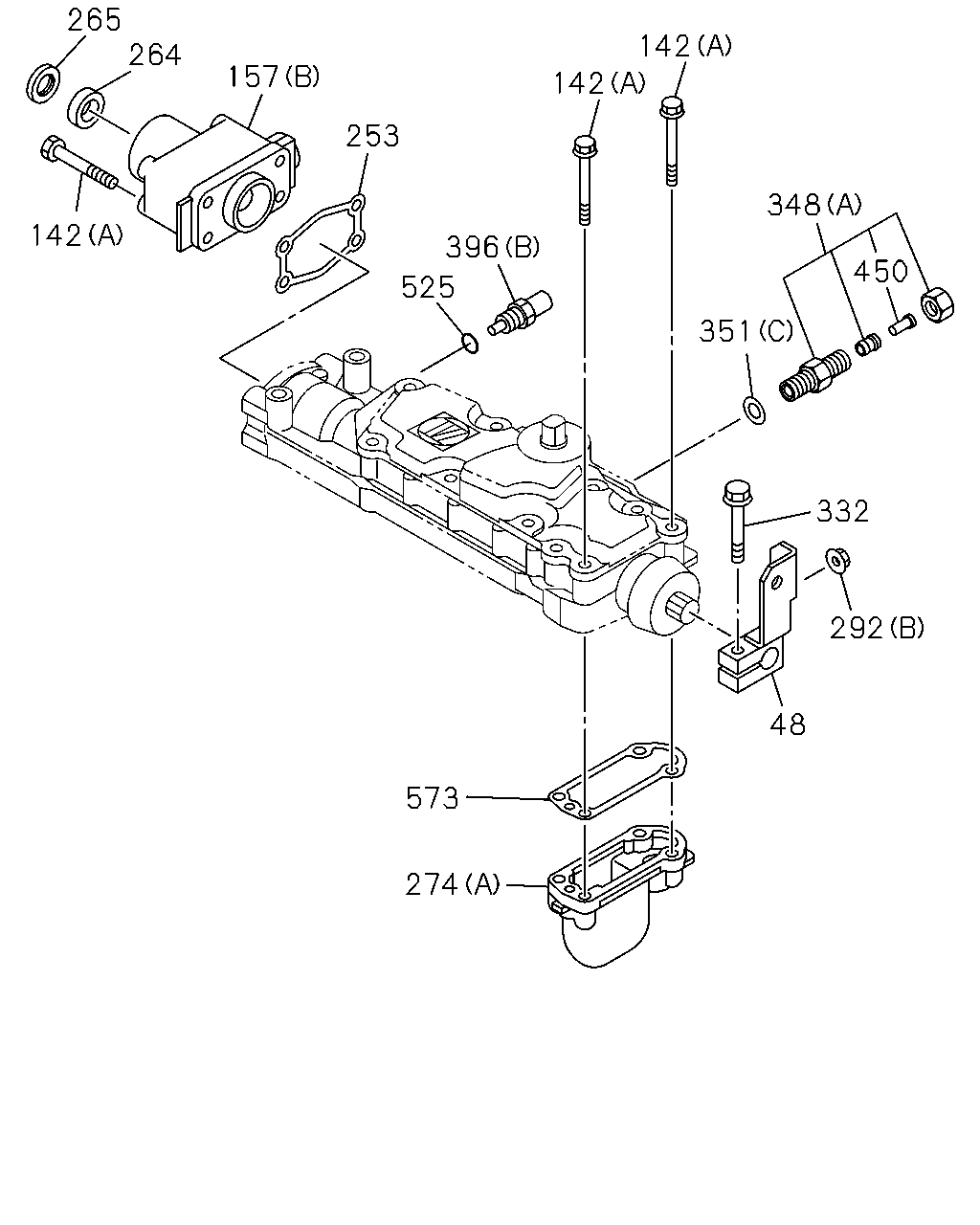

çizim 113349
265 157 264 142 253 396 525 142 142 348 450 351 332 292 48 573 274
BalonParca AdiParca NoAdetTipApplied Date
48 LEVER; 4TH,SHIFT 8-98081-185-1 01 1 1009-
142 BOLT; QUAD BOX
(B) 		1-33549-467-0 05 1 1009-1305
142 BOLT; QUAD BOX
(B) M8X70 		1-33549-616-0 05 1 1306-
142 BOLT; QUAD BOX
(A) 		1-33549-476-0 17 1 1009-1305
142 BOLT; QUAD BOX
(A) M8X80 		1-33549-614-0 17 1 1306-
157 BOX; QUAD,TRANS
(A) 		1-33549-445-0 01 1 1009-
157 BOX; QUAD,TRANS
(B) 		1-33549-568-0 01 1 1009-1305
157 BOX; QUAD,TRANS
(B) 		1-33549-612-0 01 1 1306-
253 GASKET; SIDE COVER 1-33544-054-0 01 1 1009-
264 SEAL; DUST,SHAFT 1-33549-119-0 01 1 1009-
265 SEAL; OIL,SHIFT 1-33549-118-0 01 1 1009-
274 COVER; SHAFT,QUAD BOX
(A) 		1-33549-531-0 01 1 1009-
274 COVER; SHAFT,QUAD BOX
(B) 		1-33549-535-0 01 1 1009-
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1009-
332 BOLT; 4TH,SHIFT LEVER
M10X45 W/PL WASHER 		8-98038-710-0 01 1 1009-
348 CONNECTOR; AIR HOSE
(A) 		1-09660-466-0 01 1 1009-
348 CONNECTOR; AIR HOSE
(B) 		1-09661-174-0 01 1 1009-
348 CONNECTOR; AIR HOSE
(C) 		1-09661-481-0 01 1 1009-
348 CONNECTOR; AIR HOSE
(D) 		8-94338-417-0 01 1 1009-
348 CONNECTOR; AIR HOSE
(E) 		8-98068-125-0 01 1 1009-
351 GASKET; CONNECTOR
(C) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1009-
351 GASKET; CONNECTOR
(B) ID=12.2 		1-09630-084-0 01 1 1009-1312
351 GASKET; CONNECTOR
(B) ID=12.2 		8-98251-344-0 01 1 1401-
351 GASKET; CONNECTOR
(A) 		1-33549-444-0 04 1 1009-1106
351 GASKET; CONNECTOR
(A) 		1-33549-578-0 04 1 1107-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-073-0 01 1 1009-1305
396 PLUNGER; SHIFT ROD
(A) 		1-33519-189-0 01 1 1306-
396 PLUNGER; SHIFT ROD
(B) 		1-33529-067-0 01 1 1009-1305
396 PLUNGER; SHIFT ROD
(B) 		1-33529-132-0 01 1 1306-
450 INSERT; SHIFT ARM
ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 1009-
525 RING; DETENT 1-33549-497-0 01 1 1009-
573 GASKET; SERVO UNIT 1-33549-332-0 01 1 1009-

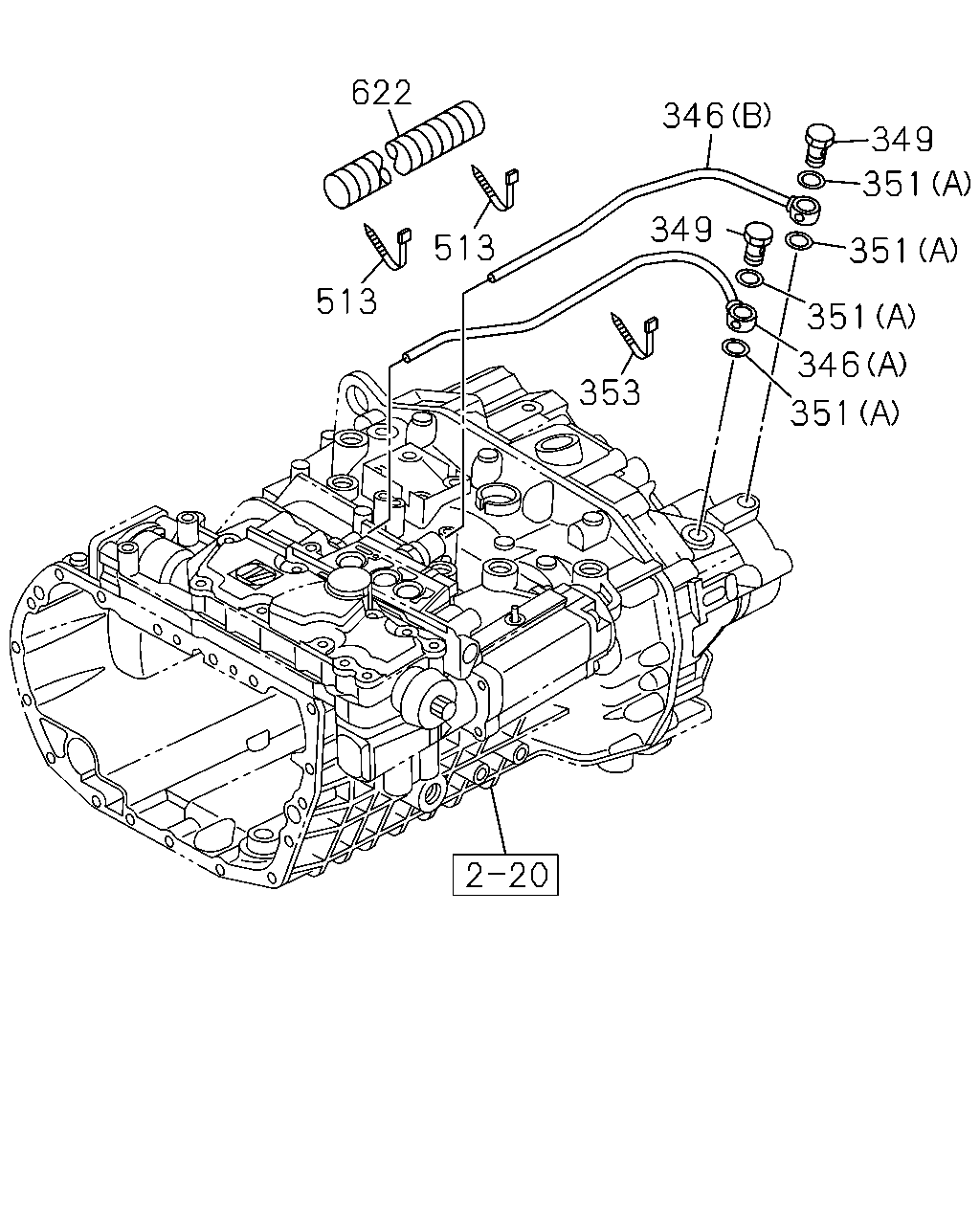

çizim 113366
349 346 351 351 351 351 346 349 513 513 353 622
BalonParca AdiParca NoAdetTipApplied Date
346 HOSE; AIR
(A) 		1-33549-473-0 01 1 1009-
346 HOSE; AIR
(B) 		1-33549-474-0 01 1 1009-
349 BOLT; EYE,AIR HOSE 1-33549-155-0 02 1 1009-1106
349 BOLT; EYE,AIR HOSE 1-33549-573-0 02 1 1107-1305
349 BOLT; EYE,AIR HOSE
M14 		1-33549-592-0 02 1 1306-
351 GASKET; CONNECTOR
(C) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1009-
351 GASKET; CONNECTOR
(B) ID=12.2 		1-09630-084-0 01 1 1009-1312
351 GASKET; CONNECTOR
(B) ID=12.2 		8-98251-344-0 01 1 1401-
351 GASKET; CONNECTOR
(A) 		1-33549-444-0 04 1 1009-1106
351 GASKET; CONNECTOR
(A) 		1-33549-578-0 04 1 1107-
353 CLIP; AIR HOSE 1-33549-475-0 02 1 1009-1106
353 CLIP; AIR HOSE 1-33549-530-0 02 1 1107-
513 CLIP; BAND
L=250 		5-09707-030-1 05 1 1009-
622 TUBE; CORRUGATE
L=100 ID=22 L=350 		1-83129-017-0 01 1 1009-

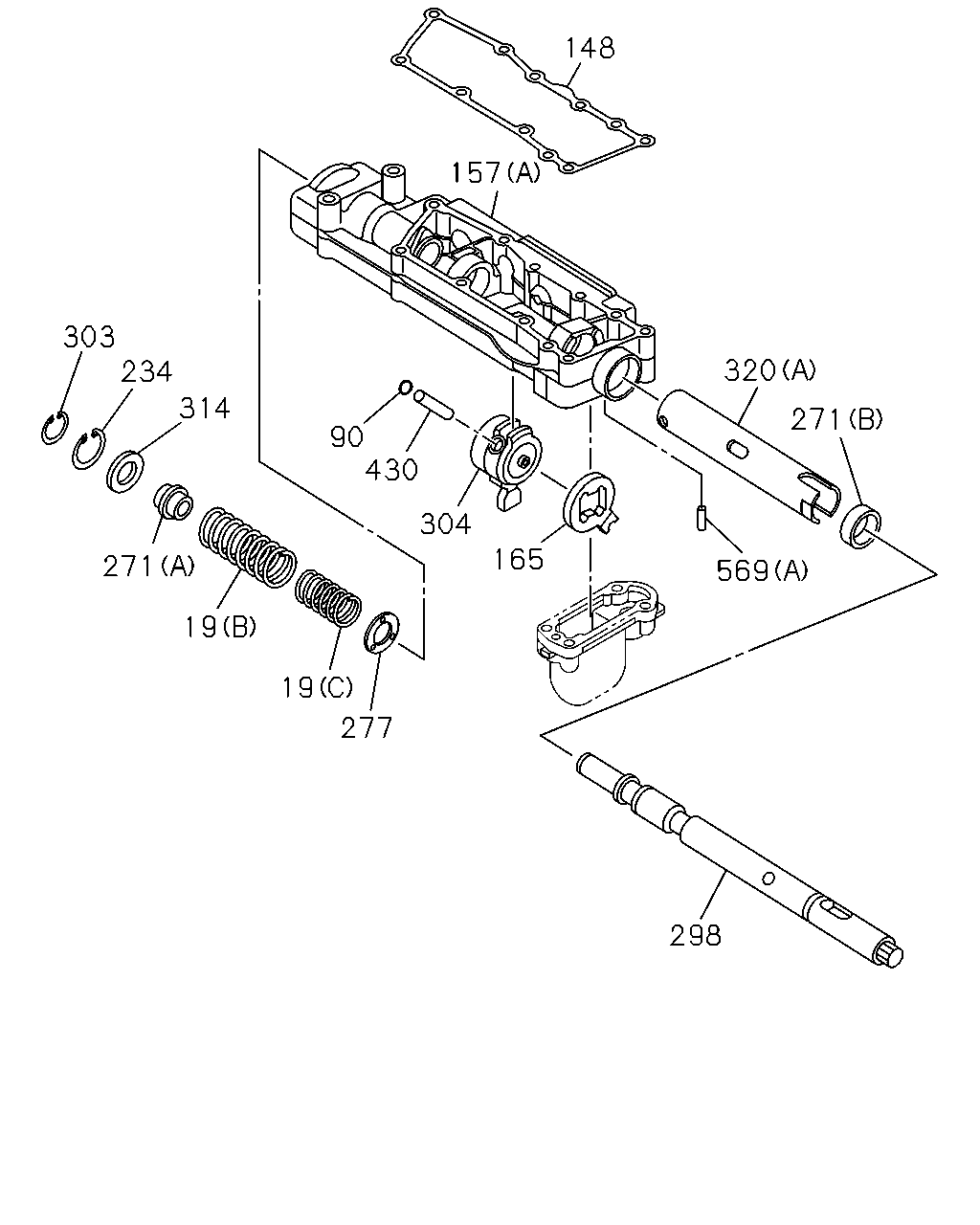

çizim 113388
148 157 320 271 569 165 304 430 90 314 234 303 271 19 19 277 298
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) 		1-33539-022-0 01 1 1009-
19 SPRING; COIL COMP
(B) 		1-33539-027-0 01 1 1009-
19 SPRING; COIL COMP
(C) 		1-33539-098-0 01 1 1009-
90 RING; SNAP,SHIFT ROD 1-33529-109-0 01 1 1009-
148 GASKET; QUAD BOX 1-33544-056-0 01 1 1009-
157 BOX; QUAD,TRANS
(A) 		1-33549-445-0 01 1 1009-
157 BOX; QUAD,TRANS
(B) 		1-33549-568-0 01 1 1009-1305
157 BOX; QUAD,TRANS
(B) 		1-33549-612-0 01 1 1306-
165 LEVER; SHIFT 1-33549-533-0 01 1 1009-
234 RING; SNAP 1-44519-224-0 01 1 1009-
271 BUSHING; QUAD BOX
(A) 		1-33539-099-0 01 1 1009-
271 BUSHING; QUAD BOX
(B) 		1-33549-318-0 01 1 1009-
277 PLATE; SPRING SEAT 1-33539-026-0 01 1 1009-1305
277 PLATE; SPRING SEAT 1-33539-112-0 01 1 1306-
298 SHAFT; SHIFT LEVER 1-33522-207-0 01 1 1009-
303 RING; SNAP,SHAFT 1-33539-101-0 01 1 1009-
304 BLOCK; SHIFT SHAFT 1-33549-532-0 01 1 1009-
314 WASHER; SHAFT 1-33539-100-0 01 1 1009-
320 SHAFT; LEVER
(A) 		1-33549-447-0 01 1 1009-
320 SHAFT; LEVER
(B) 		1-33619-524-0 01 1 1009-
430 PIN; SPR,SHIFT ROD 1-33549-449-0 01 1 1009-
569 PIN; QUADRANT BOX
(A) 		1-33529-106-0 01 1 1009-
569 PIN; QUADRANT BOX
(B) 		1-33549-452-0 01 1 1009-
569 PIN; QUADRANT BOX
(C) 		1-33549-468-0 01 1 1009-

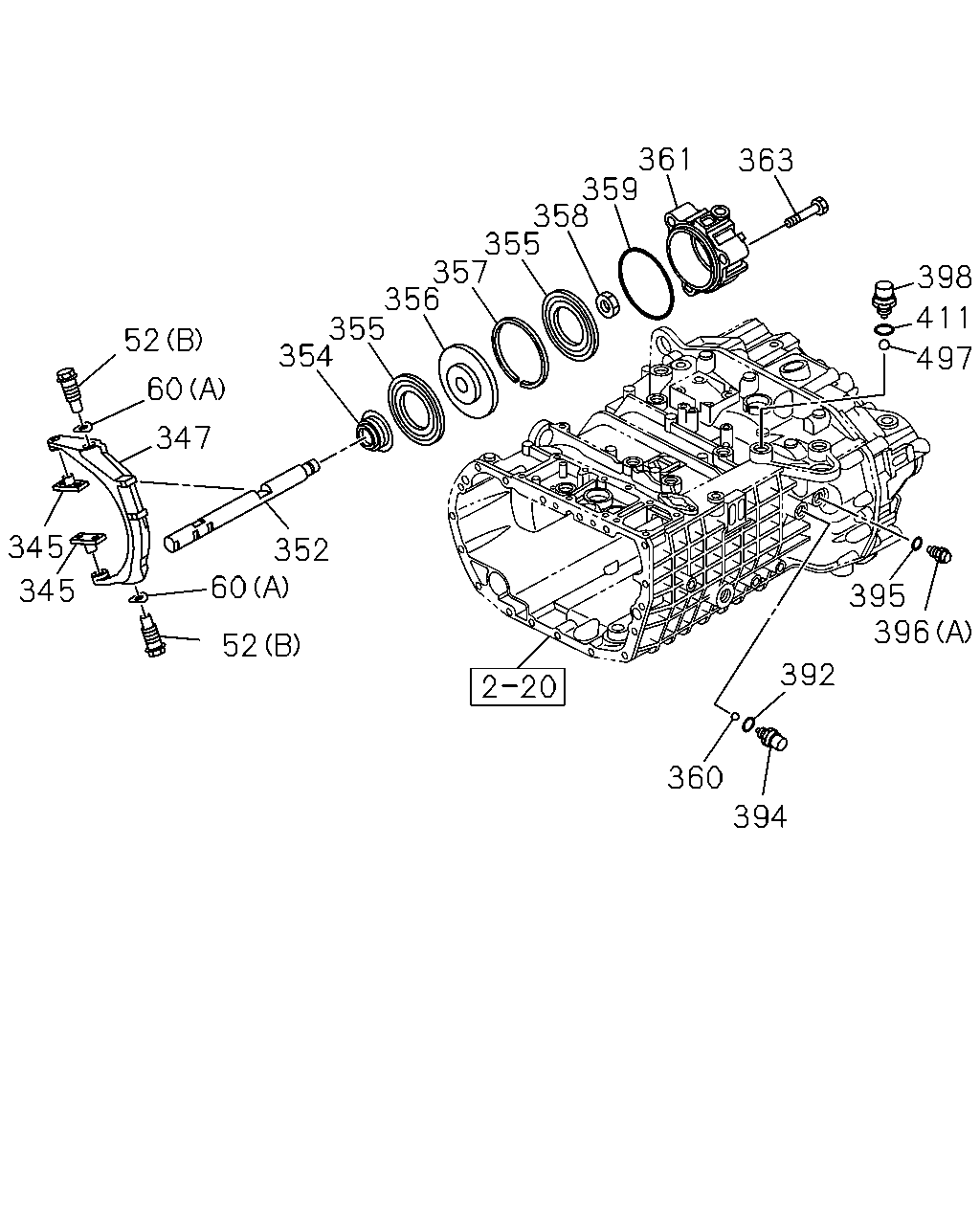

çizim 113806
396 395 392 360 394 497 411 398 363 361 359 358 355 357 356 355 354 52 347 352 60 52 345 60 345
BalonParca AdiParca NoAdetTipApplied Date
52 BOLT; SHIFT ARM
(B) 		1-33519-058-0 02 1 1009-1106
52 BOLT; SHIFT ARM
(B) 		1-33519-187-0 02 1 1107-1305
52 BOLT; SHIFT ARM
(B) 		1-33519-196-0 02 1 1306-
52 BOLT; SHIFT ARM
(A) 		1-33519-084-0 07 1 1009-1305
52 BOLT; SHIFT ARM
(A) 		1-33519-190-0 07 1 1306-
60 WASHER; LK
(A) 		1-33519-059-0 02 1 1009-1106
60 WASHER; LK
(B) 		1-33519-085-0 07 1 1009-1305
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-095-0 02 1 1009-
347 ARM; SHIFT,RANGE CHANGE 1-33511-529-0 01 1 1009-
352 ROD; SHIFT,RANGE CHANGE 1-33531-495-0 01 1 1009-1305
352 ROD; SHIFT,RANGE CHANGE 1-33531-497-0 01 1 1306-
354 SEAL; AIR CYL 1-33519-045-0 01 1 1009-
355 CUP; PISTON,AIR CYL 1-33519-088-0 02 1 1009-1305
356 PISTON; AIR CYL 1-33519-087-0 01 1 1009-1305
356 PISTON; AIR CYL 1-33519-197-0 01 1 1306-
357 RING; GUIDE,AIR CYL 1-33519-090-0 01 1 1009-1305
358 NUT; SHIFT ROD 1-33519-049-0 01 1 1009-1305
358 NUT; SHIFT ROD 1-33519-188-0 01 1 1306-
359 GASKET; AIR CYL 1-33519-093-0 01 1 1009-
360 BALL; AIR CYL 1-33119-252-0 01 1 1009-
361 CYLINDER; AIR,SHIFT 1-33519-092-0 01 1 1009-
363 BOLT; AIR CYL
M10X70 		1-33119-522-0 03 1 1009-1305
363 BOLT; AIR CYL
M10X70 		1-33119-616-0 03 1 1306-
392 GASKET; PLUG & SW 1-33119-249-0 01 1 1009-
394 SWITCH; RANGE CHANGE 1-33119-587-0 01 1 1009-
395 GASKET; PLUNGER 1-33549-497-0 01 1 1009-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-073-0 01 1 1009-1305
396 PLUNGER; SHIFT ROD
(A) 		1-33519-189-0 01 1 1306-
396 PLUNGER; SHIFT ROD
(B) 		1-33529-067-0 01 1 1009-1305
396 PLUNGER; SHIFT ROD
(B) 		1-33529-132-0 01 1 1306-
398 SWITCH; REV LAMP 1-38119-062-0 01 1 1009-
411 GASKET; REV LAMP SW 1-33119-249-0 01 1 1009-
497 BALL; SWITCH 1-33119-252-0 01 1 1009-
çizim 114017
433 320 321 317 433 317 315 319 323 505
BalonParca AdiParca NoAdetTipApplied Date
315 LEVER; SELECT 8-98087-673-0 01 1 1009-
317 BUSHING; LEVER 1-09330-119-0 02 1 1009-
319 BRACKET; SELECT LEVER 1-33657-612-0 01 1 1009-
320 SHAFT; LEVER
(A) 		1-33549-447-0 01 1 1009-
320 SHAFT; LEVER
(B) 		1-33619-524-0 01 1 1009-
321 BOLT; BRKT,RELAY LEVER
M8X110 FLANGE 		0-28055-811-0 02 1 1009-
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 1009-
433 GASKET; BUSHING 1-09623-594-0 02 1 1009-
505 SPACER; BRKT 1-11349-149-0 02 1 1009-

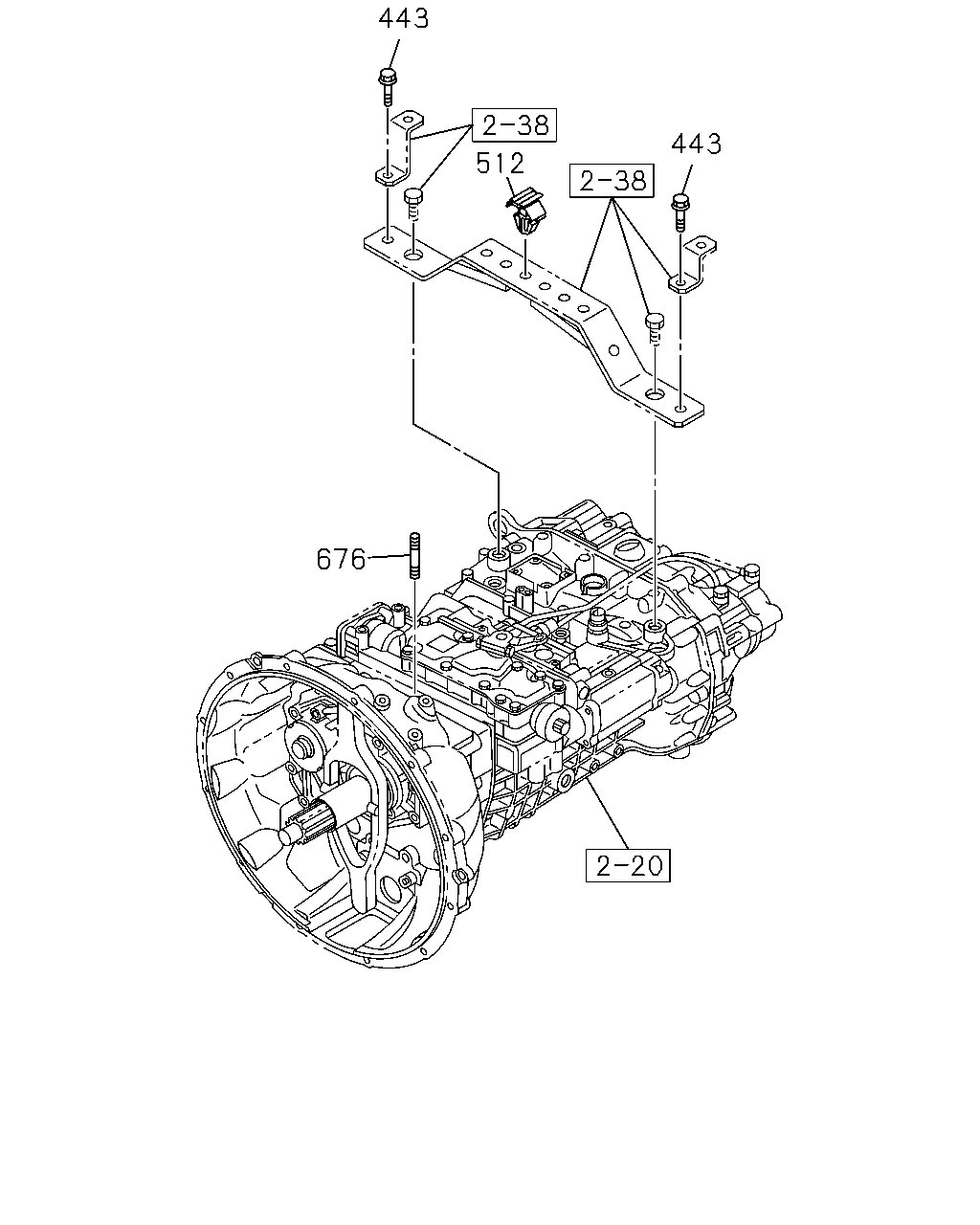

çizim 114236
443 512 443 676
BalonParca AdiParca NoAdetTipApplied Date
443 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1009-
512 CLIP; PIPE
OD=9 H=6 		1-09709-178-0 05 1 1009-
676 STUD
M8X14,M8X14 L=33 		1-09300-058-1 01 1 1009-

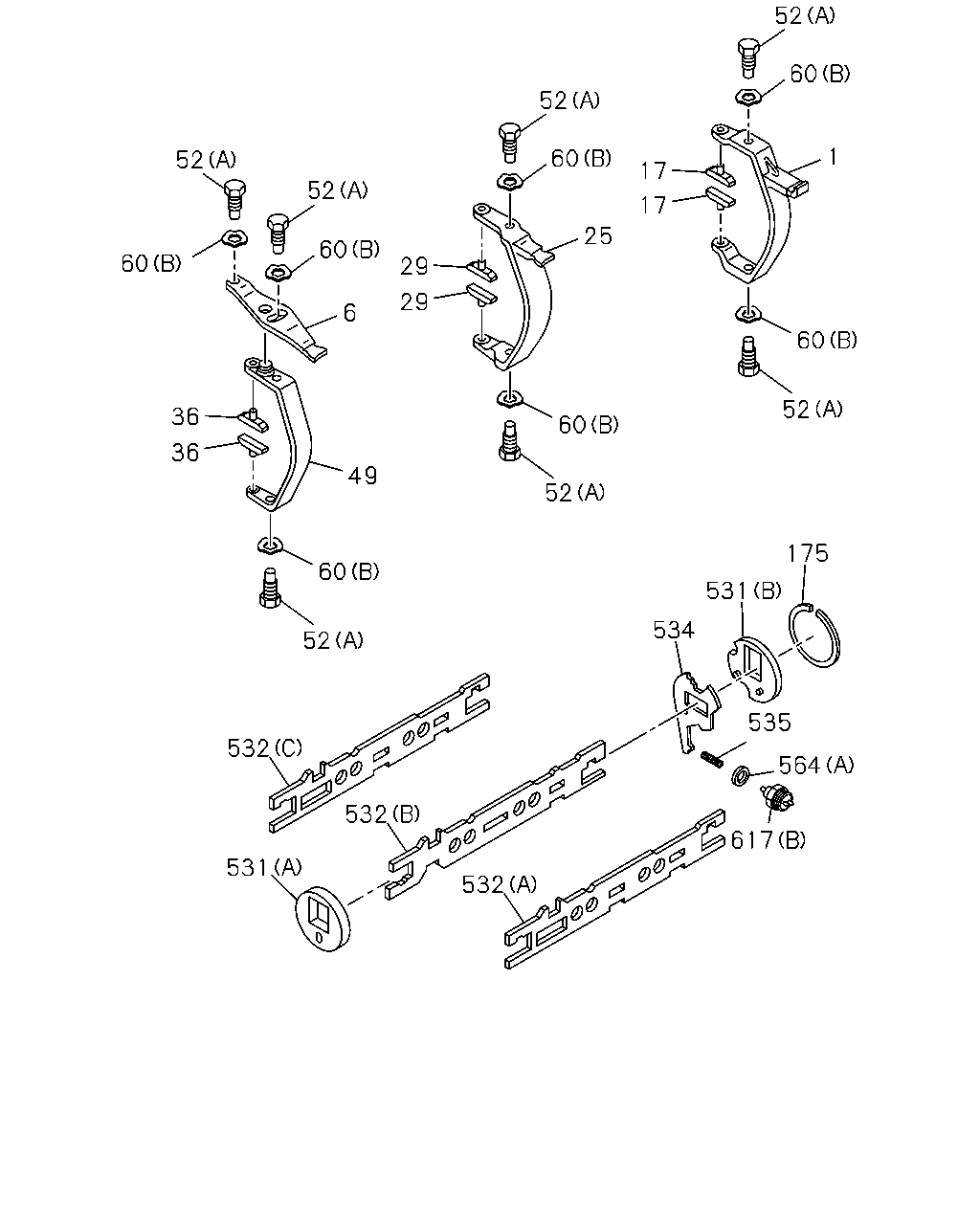

çizim 189987
52 60 1 60 52 60 52 175 531 534 29 29 60 25 52 17 17 52 60 6 52 60 36 49 60 52 36 532 532 532 531 535 564 617
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV 1-33511-657-0 01 1 1009-
6 LEVER; RELAY 1-33511-641-0 01 1 1009-1106
6 LEVER; RELAY 1-33511-658-0 01 1 1107-
17 BLOCK; SHIFT,1ST & REV 1-33519-172-0 02 1 1009-
25 ARM; SHIFT,2ND & 3RD 1-33511-642-0 01 1 1009-
29 BLOCK; SHIFT,2ND & 3RD 1-33519-081-0 02 1 1009-
36 BLOCK; SHIFT,4TH & 5TH 1-33519-170-0 02 1 1009-
49 ARM; SHIFT,4TH & 5TH 1-33511-640-0 01 1 1009-
52 BOLT; SHIFT ARM
(B) 		1-33519-058-0 02 1 1009-1106
52 BOLT; SHIFT ARM
(B) 		1-33519-187-0 02 1 1107-1305
52 BOLT; SHIFT ARM
(B) 		1-33519-196-0 02 1 1306-
52 BOLT; SHIFT ARM
(A) 		1-33519-084-0 07 1 1009-1305
52 BOLT; SHIFT ARM
(A) 		1-33519-190-0 07 1 1306-
60 WASHER; LK
(A) 		1-33519-059-0 02 1 1009-1106
60 WASHER; LK
(B) 		1-33519-085-0 07 1 1009-1305
175 RING; STOPPER,SHIFT LEVER 1-33539-097-0 01 1 1009-1106
175 RING; STOPPER,SHIFT LEVER 1-33539-103-0 01 1 1107-
531 PLATE; BEARING
(A) 		1-33539-044-0 01 1 1009-
531 PLATE; BEARING
(B) 		1-33539-047-0 01 1 1009-
532 PLATE; SHIFT FORK
(A) 		1-33531-492-0 01 1 1009-
532 PLATE; SHIFT FORK
(B) 		1-33531-493-0 01 1 1009-
532 PLATE; SHIFT FORK
(C) 		1-33531-494-0 01 1 1009-
534 LEVER; LOCK,SHIFT PLATE 1-33539-087-0 01 1 1009-
535 SPRING; LEVER 1-33539-049-0 01 1 1009-
564 SEAL; RING
(A) 		1-33549-444-0 01 1 1009-1106
564 SEAL; RING
(A) 		1-33549-578-0 01 1 1107-
564 SEAL; RING
(B) T=2.0 		1-82449-010-0 01 1 1009-
617 PLUG
(A) 		1-33119-171-0 01 1 1009-1305
617 PLUG
(A) 		1-33119-619-0 01 1 1306-
617 PLUG
(B) 		1-34129-061-0 01 1 1009-1305
617 PLUG
(B) 		1-33539-109-0 01 1 1306-

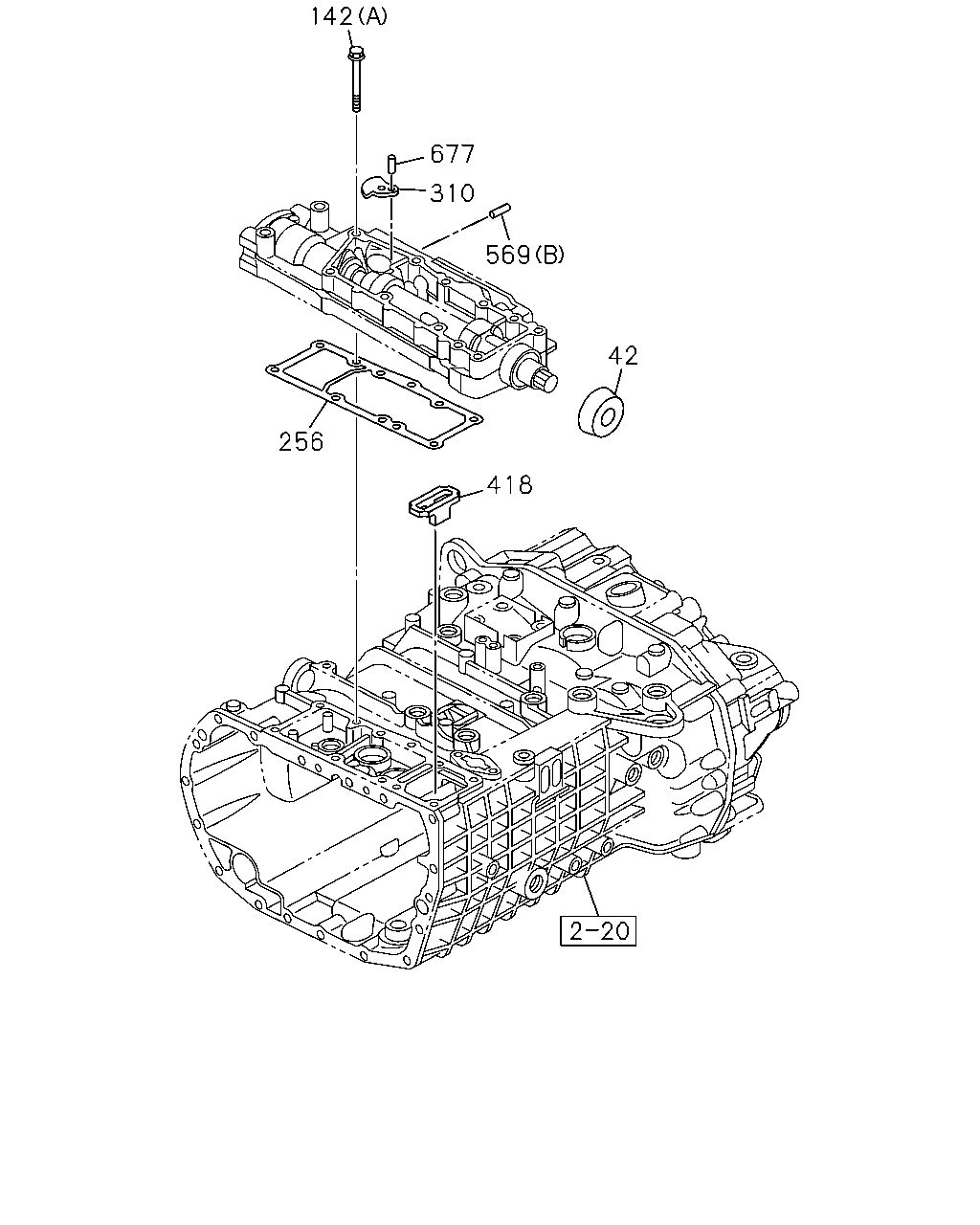

çizim 189989
142 677 569 310 42 418 256
BalonParca AdiParca NoAdetTipApplied Date
42 CAP; QUAD BOX 1-33549-548-0 01 1 1009-
142 BOLT; QUAD BOX
(B) 		1-33549-467-0 05 1 1009-1305
142 BOLT; QUAD BOX
(B) M8X70 		1-33549-616-0 05 1 1306-
142 BOLT; QUAD BOX
(A) 		1-33549-476-0 17 1 1009-1305
142 BOLT; QUAD BOX
(A) M8X80 		1-33549-614-0 17 1 1306-
256 GASKET; QUAD BOX TO TRANS CASE 1-33542-062-0 01 1 1009-
310 PLATE; LOCK,SHIFT LEVER 1-33549-453-0 01 1 1009-
418 PIECE; DIST,QUAD BOX 1-33549-454-0 01 1 1009-
569 PIN; QUADRANT BOX
(A) 		1-33529-106-0 01 1 1009-
569 PIN; QUADRANT BOX
(B) 		1-33549-452-0 01 1 1009-
569 PIN; QUADRANT BOX
(C) 		1-33549-468-0 01 1 1009-
677 PIN; PLATE 1-33549-452-0 01 1 1009-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
