◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11317 - FXZ(AUST)EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26B - MANUAL TRANSMISSION GEAR ▶
2-26B — MANUAL TRANSMISSION GEAR (#71885) — 118 parça

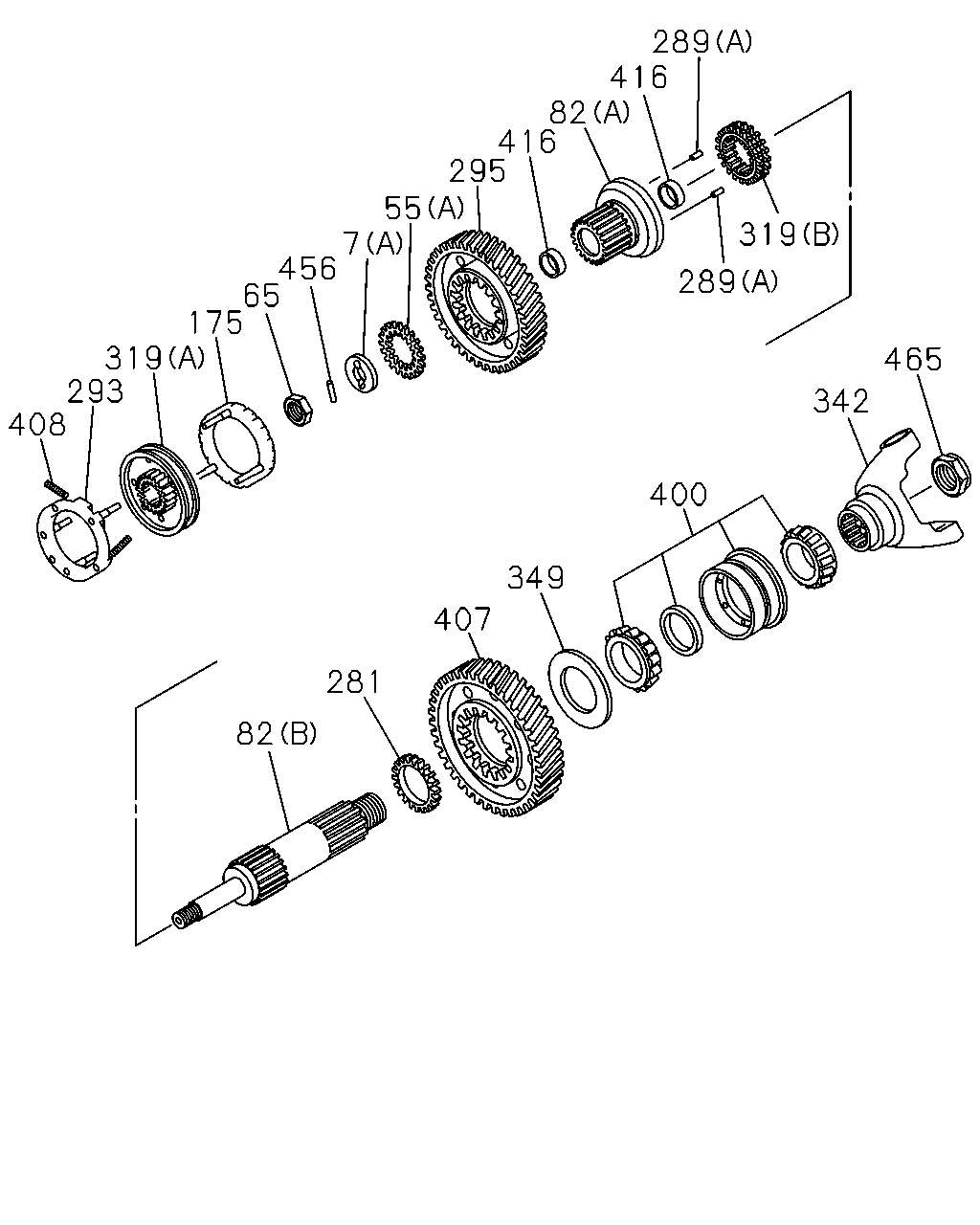

çizim 109656
408 293 319 175 65 456 7 55 295 416 82 416 289 319 289 465 342 400 349 407 281 82
BalonParca AdiParca NoAdetTipApplied Date
7 WASHER; THRUST,MAINSHAFT
(B) 		1-33239-369-0 01 1 1009-
7 WASHER; THRUST,MAINSHAFT
(A) 		1-87061-031-0 01 1 1009-
55 WASHER; THRUST,MAINSHAFT
(B) 		1-33239-325-0 04 1 1009-
55 WASHER; THRUST,MAINSHAFT
(A) 		1-87061-032-0 01 1 1009-
65 NUT; MAINSHAFT 1-87061-042-0 01 1 1009-
82 SHAFT; MAIN,TRANS
(C) 		1-33231-343-0 01 1 1009-
82 SHAFT; MAIN,TRANS
(B) 		1-33239-370-0 01 1 1009-
82 SHAFT; MAIN,TRANS
(A) 		1-87061-214-0 01 1 1009-
175 SYNCHRONIZER; LOW-REV 1-33260-161-0 01 1 1009-
281 WASHER; THRUST,MAINSHAFT 1-87061-035-0 01 1 1009-
289 PIN; MAINSHAFT
(A) 		1-87061-058-0 02 1 1009-
289 PIN; MAINSHAFT
(B) 		1-87061-204-0 01 1 1009-
293 SYNCHRONIZER; LOW HIGH 1-33260-160-0 01 1 1009-
295 GEAR; LOW,DRIVEN 1-33239-367-0 01 1 1009-
319 CLUTCH; SLIDING
(C) 		1-33261-291-0 01 1 1009-1508
319 CLUTCH; SLIDING
(D) 		1-33239-385-0 02 1 1509-
319 CLUTCH; SLIDING
(A) 		1-87061-008-0 01 1 1009-
319 CLUTCH; SLIDING
(B) 		1-87061-039-0 01 1 1009-
319 CLUTCH; SLIDING
(D) 		1-87061-142-0 02 1 1009-1508
319 CLUTCH; SLIDING
(C) 		1-33261-307-0 01 1 1509-
342 FLANGE; OUTPUT 1-37243-353-0 01 1 1009-
349 WASHER; LK,SHAFT 1-87061-037-0 01 1 1009-
400 BEARING; OUTPUT SHAFT RR 1-33239-331-0 01 1 1009-
407 GEAR; PRIMARY MAIN 1-87061-040-0 01 1 1009-
408 SPRING 1-87061-137-0 03 1 1009-
416 BUSHING; OUTPUT SHAFT 1-87061-034-0 02 1 1009-
456 PIN; DOWEL 1-87061-003-0 01 1 1009-
465 NUT; FLANGE 1-33239-332-0 01 1 1009-1508
465 NUT; FLANGE 1-33239-384-0 01 1 1509-

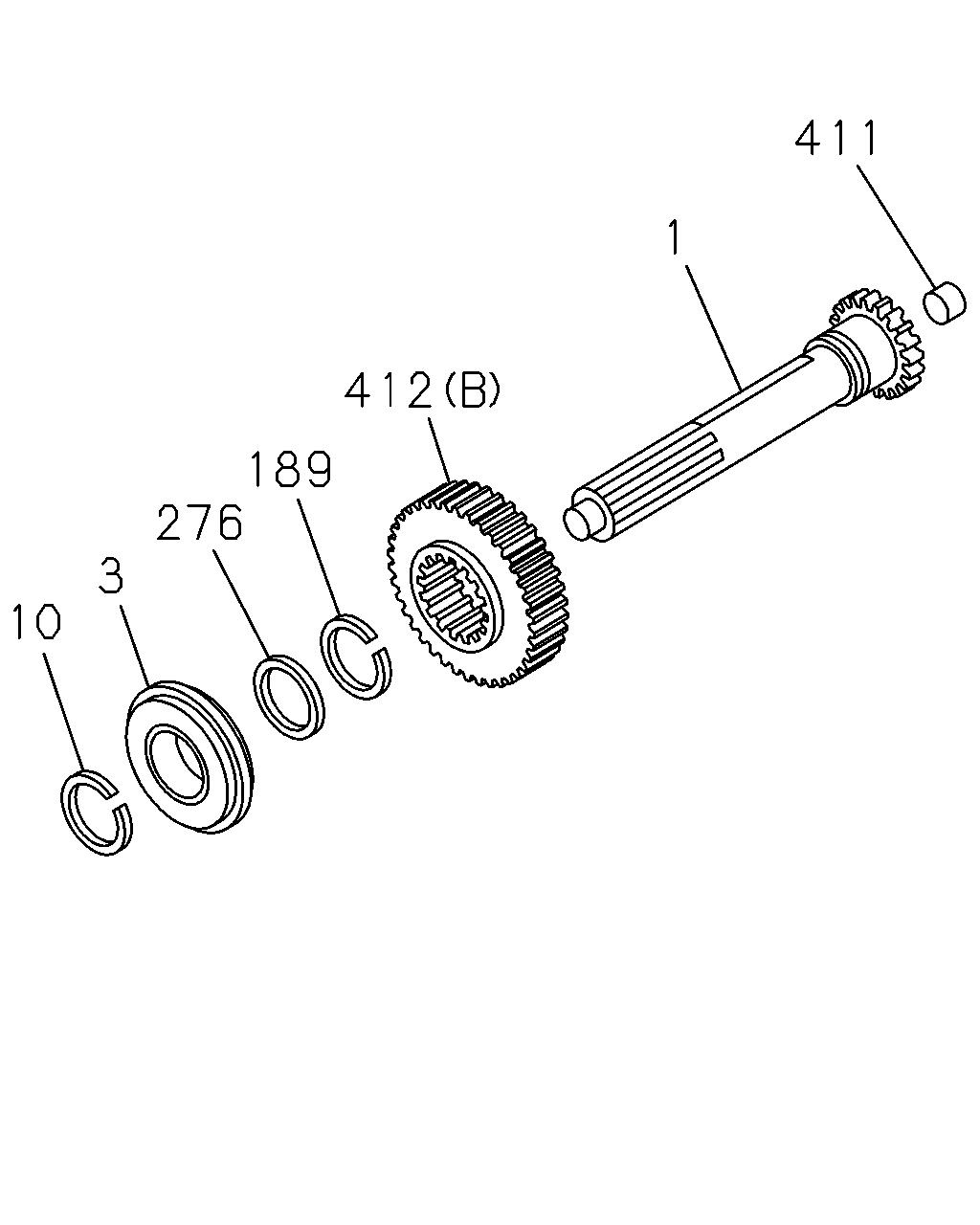

çizim 109755
10 3 276 189 412 1 411
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS 1-33259-130-0 01 1 1009-
3 BEARING; TOP GEAR SHAFT 1-33259-131-0 01 1 1009-
10 RING; SNAP,PILOT BRG 1-87061-002-0 01 1 1009-
189 RING; SNAP,REV,GEAR 1-87061-135-0 02 1 1009-
276 SPACER; BRG TO DRIVE GEAR 1-87061-152-0 01 1 1009-
411 BUSHING; TOP GEAR SHAFT 1-87061-153-0 01 1 1009-
412 GEAR; DRIVE
(B) 		1-33259-129-0 01 1 1009-1508
412 GEAR; DRIVE
(B) 		1-87061-065-0 01 1 1509-
412 GEAR; DRIVE
(A) 		1-87061-019-0 01 1 1009-

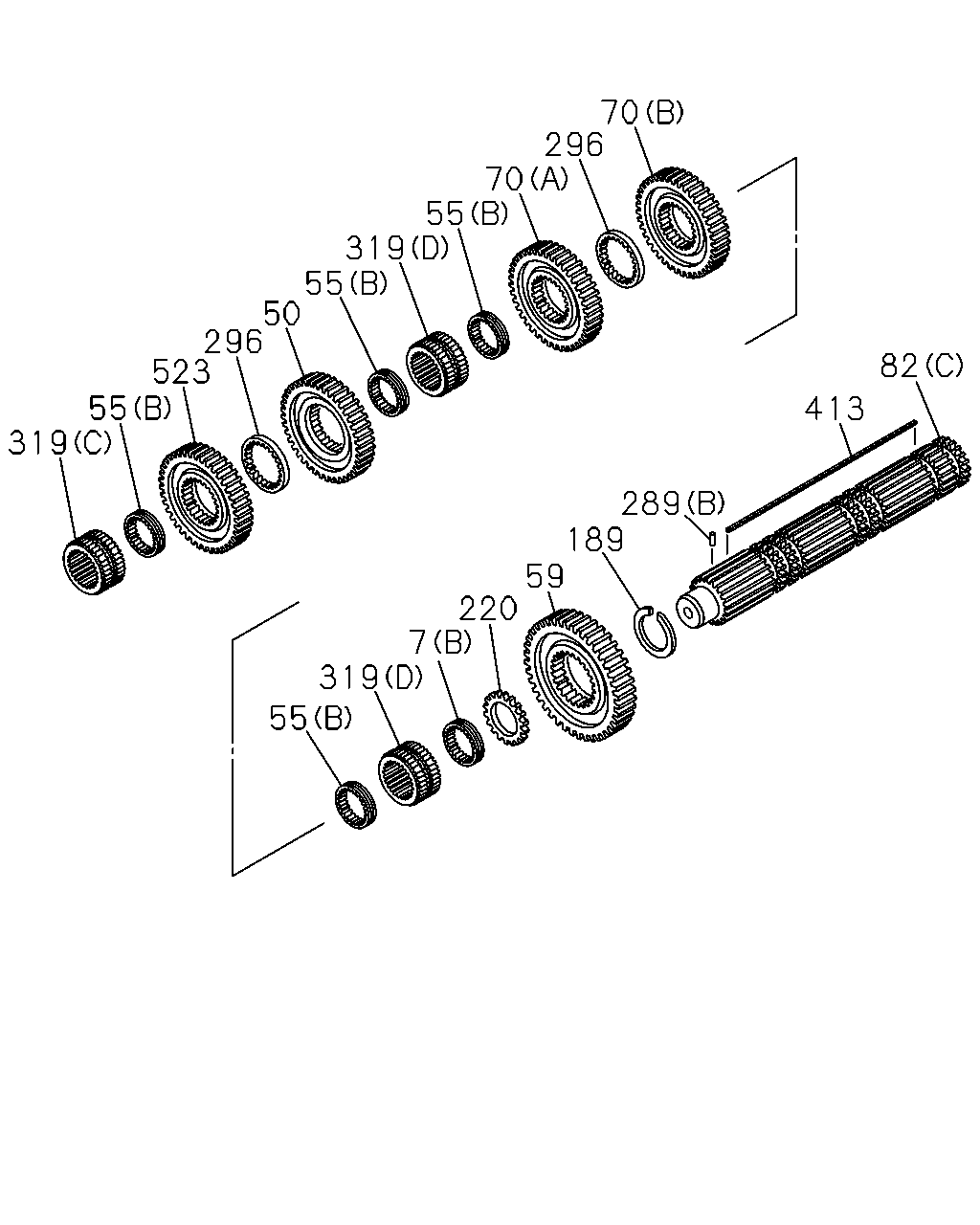

çizim 109840
319 55 523 296 50 55 319 55 70 296 70 82 413 289 189 59 220 7 319 55
BalonParca AdiParca NoAdetTipApplied Date
7 WASHER; THRUST,MAINSHAFT
(B) 		1-33239-369-0 01 1 1009-
7 WASHER; THRUST,MAINSHAFT
(A) 		1-87061-031-0 01 1 1009-
50 GEAR; 2ND,MAINSHAFT 1-33251-443-0 01 1 1009-
55 WASHER; THRUST,MAINSHAFT
(B) 		1-33239-325-0 04 1 1009-
55 WASHER; THRUST,MAINSHAFT
(A) 		1-87061-032-0 01 1 1009-
59 GEAR; REV MAINSHAFT 1-87061-248-0 01 1 1009-
70 GEAR; 1ST,MAINSHAFT
(B) 		1-33251-441-0 01 1 1009-
70 GEAR; 1ST,MAINSHAFT
(A) 		1-33251-442-0 01 1 1009-
82 SHAFT; MAIN,TRANS
(C) 		1-33231-343-0 01 1 1009-
82 SHAFT; MAIN,TRANS
(B) 		1-33239-370-0 01 1 1009-
82 SHAFT; MAIN,TRANS
(A) 		1-87061-214-0 01 1 1009-
189 RING; SNAP,REV,GEAR 1-87061-135-0 02 1 1009-
220 SPACER; REV GEAR,COUNTER 1-87061-134-0 01 1 1009-
289 PIN; MAINSHAFT
(A) 		1-87061-058-0 02 1 1009-
289 PIN; MAINSHAFT
(B) 		1-87061-204-0 01 1 1009-
296 WASHER; THRUST 1-33239-323-0 02 1 1009-
319 CLUTCH; SLIDING
(C) 		1-33261-291-0 01 1 1009-1508
319 CLUTCH; SLIDING
(D) 		1-33239-385-0 02 1 1509-
319 CLUTCH; SLIDING
(A) 		1-87061-008-0 01 1 1009-
319 CLUTCH; SLIDING
(B) 		1-87061-039-0 01 1 1009-
319 CLUTCH; SLIDING
(D) 		1-87061-142-0 02 1 1009-1508
319 CLUTCH; SLIDING
(C) 		1-33261-307-0 01 1 1509-
413 KEY; MAIN SHAFT 1-33239-368-0 01 1 1009-1508
413 KEY; MAIN SHAFT 8-98338-297-0 01 1 1509-
523 GEAR; OD,MAINSHAFT 1-33251-444-0 01 1 1009-

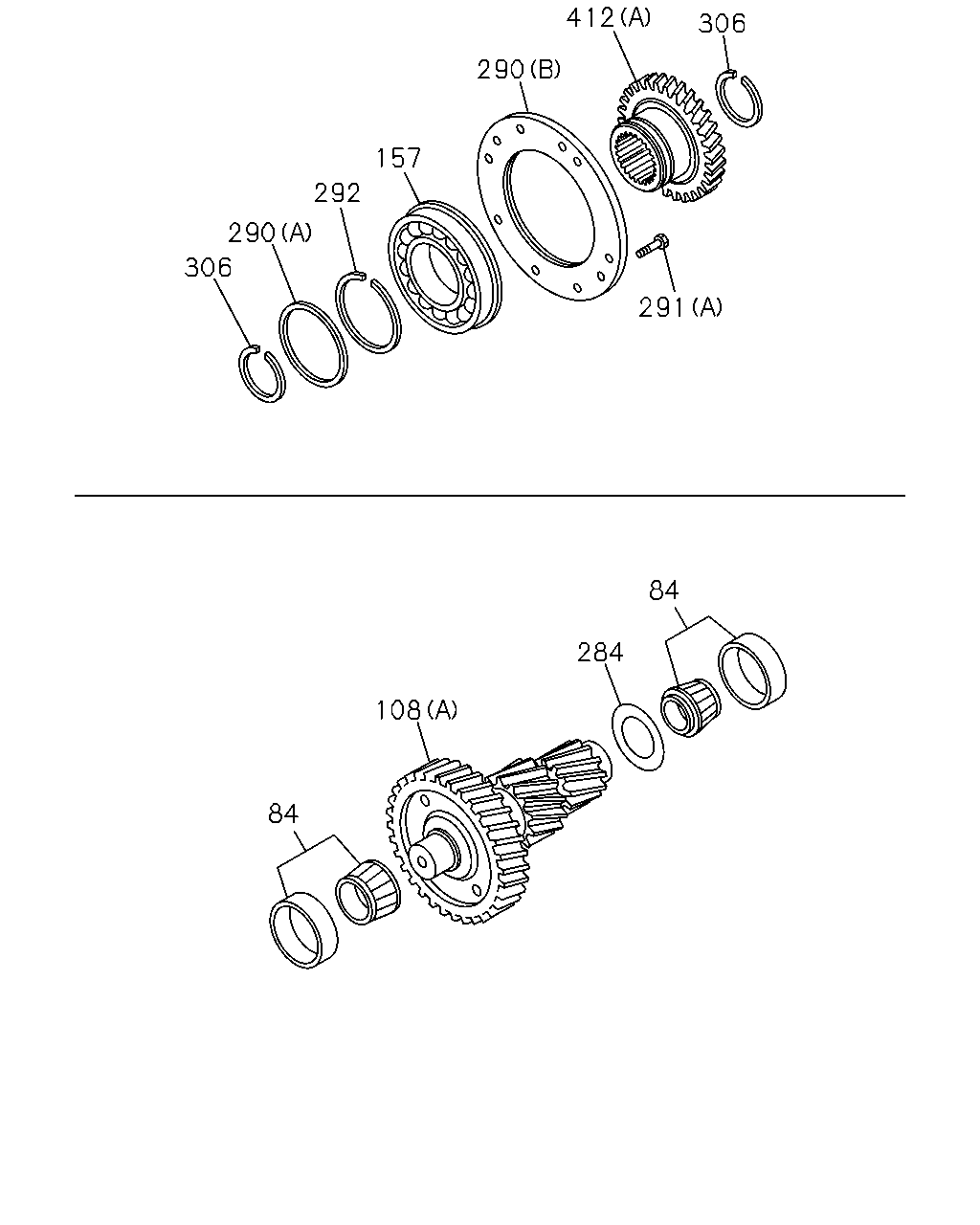

çizim 109861
306 290 292 157 290 412 306 291 84 284 108 84
BalonParca AdiParca NoAdetTipApplied Date
84 BEARING; COUNTER SHAFT,FRT 1-33312-012-0 04 1 1009-
108 SHAFT; COUNTER
(A) 		1-33311-350-0 02 1 1009-1508
108 SHAFT; COUNTER
(B) 		1-87061-245-0 02 1 1509-
108 SHAFT; COUNTER
(B) 		1-33311-351-0 02 1 1009-1508
108 SHAFT; COUNTER
(A) 		8-98338-499-0 02 1 1509-
157 BEARING; BALL,OUTPUT SHAFT 1-38249-039-0 01 1 1009-
284 WASHER; COUNTER SHAFT 1-87061-027-0 02 1 1009-
290 RETAINER; BRG
(C) 		1-33319-259-0 02 1 1009-
290 RETAINER; BRG
(A) 		1-87061-018-0 01 1 1009-
290 RETAINER; BRG
(B) 		1-87061-149-0 01 1 1009-
291 BOLT; RET
(A) 		1-33239-337-0 06 1 1009-
291 BOLT; RET
(B) 		1-87060-772-0 02 1 1009-
292 RING; SNAP,BRG OUTER 1-87061-154-0 01 1 1009-
306 RING; SNAP,MAINSHAFT 1-87061-160-0 02 1 1009-
412 GEAR; DRIVE
(B) 		1-33259-129-0 01 1 1009-1508
412 GEAR; DRIVE
(B) 		1-87061-065-0 01 1 1509-
412 GEAR; DRIVE
(A) 		1-87061-019-0 01 1 1009-

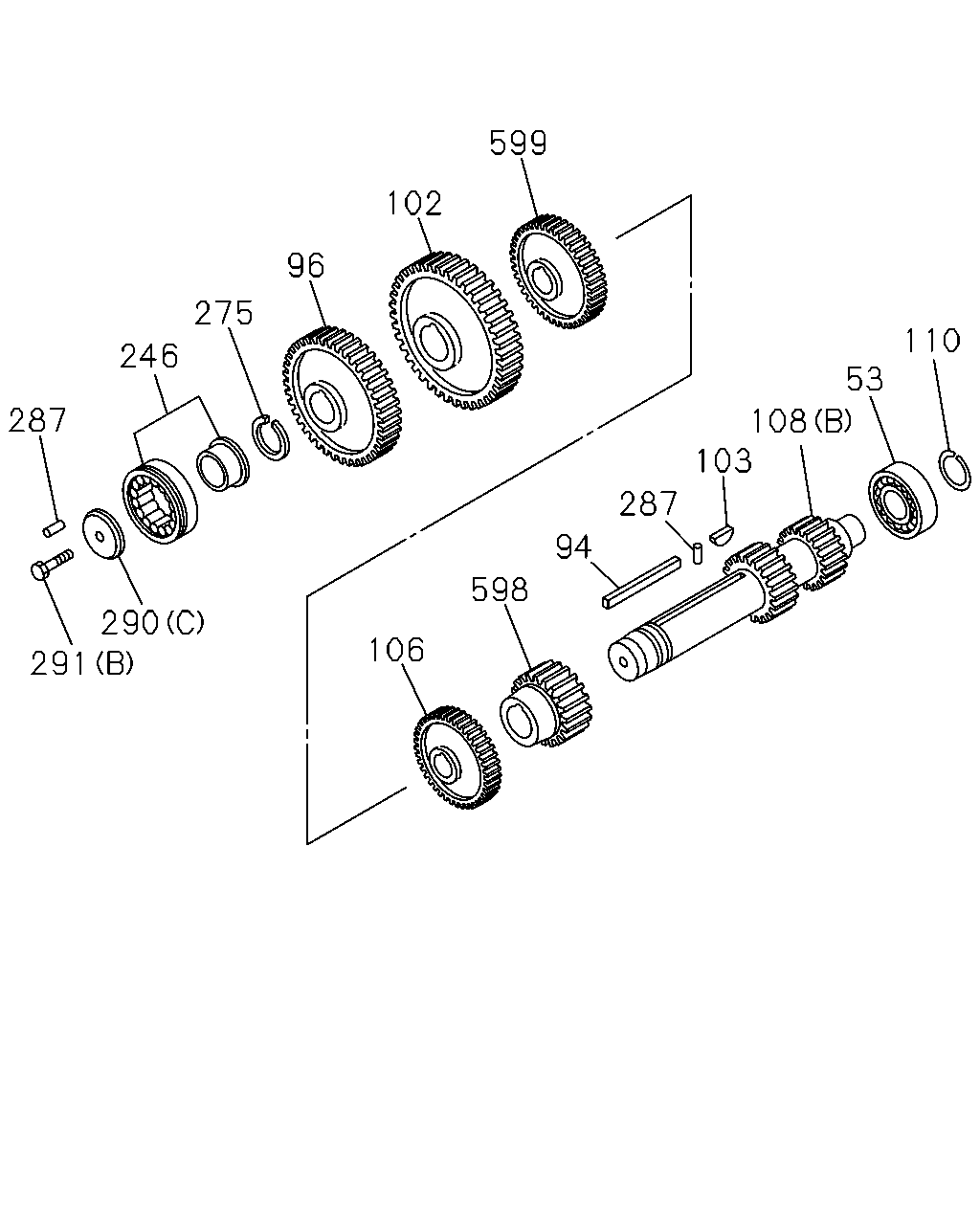

çizim 109891
287 290 291 246 275 96 102 599 110 53 108 103 287 94 598 106
BalonParca AdiParca NoAdetTipApplied Date
53 BEARING; NEEDLE,LOW & REV 1-33312-010-0 02 1 1009-
94 KEY; FEATHER,COUNTER SHAFT 1-33319-258-0 02 1 1009-
96 GEAR; COUNTER DRIVE 1-33311-353-0 02 1 1009-1508
96 GEAR; COUNTER DRIVE 1-87061-017-0 02 1 1509-
102 GEAR; PTO DRIVE,COUNTER 1-87061-141-0 01 1 1009-
103 KEY; COUNTER GEAR 1-87060-771-0 02 1 1009-1508
103 KEY; COUNTER GEAR 1-33319-052-0 02 1 1509-
106 GEAR; 2ND,COUNTER 1-33333-169-0 02 1 1009-
108 SHAFT; COUNTER
(A) 		1-33311-350-0 02 1 1009-1508
108 SHAFT; COUNTER
(B) 		1-87061-245-0 02 1 1509-
108 SHAFT; COUNTER
(B) 		1-33311-351-0 02 1 1009-1508
108 SHAFT; COUNTER
(A) 		8-98338-499-0 02 1 1509-
110 RING; SNAP,COUNTER BRG 1-87061-119-0 02 1 1009-
246 BEARING; ROLLER,COUNTER SHAFT FRT 1-33312-013-0 02 1 1009-
275 RING; SNAP,COUNTER GEAR BRG 1-87061-168-0 02 1 1009-
287 PIN; COUNTER GEAR 1-87061-205-0 02 1 1009-
290 RETAINER; BRG
(C) 		1-33319-259-0 02 1 1009-
290 RETAINER; BRG
(A) 		1-87061-018-0 01 1 1009-
290 RETAINER; BRG
(B) 		1-87061-149-0 01 1 1009-
291 BOLT; RET
(A) 		1-33239-337-0 06 1 1009-
291 BOLT; RET
(B) 		1-87060-772-0 02 1 1009-
598 GEAR; 1ST,COUNTER 1-33311-352-0 02 1 1009-1508
598 GEAR; 1ST,COUNTER 1-87061-062-0 02 1 1509-
599 GEAR; OD,COUNTER 1-87061-183-0 02 1 1009-1508
599 GEAR; OD,COUNTER 8-98338-498-0 02 1 1509-

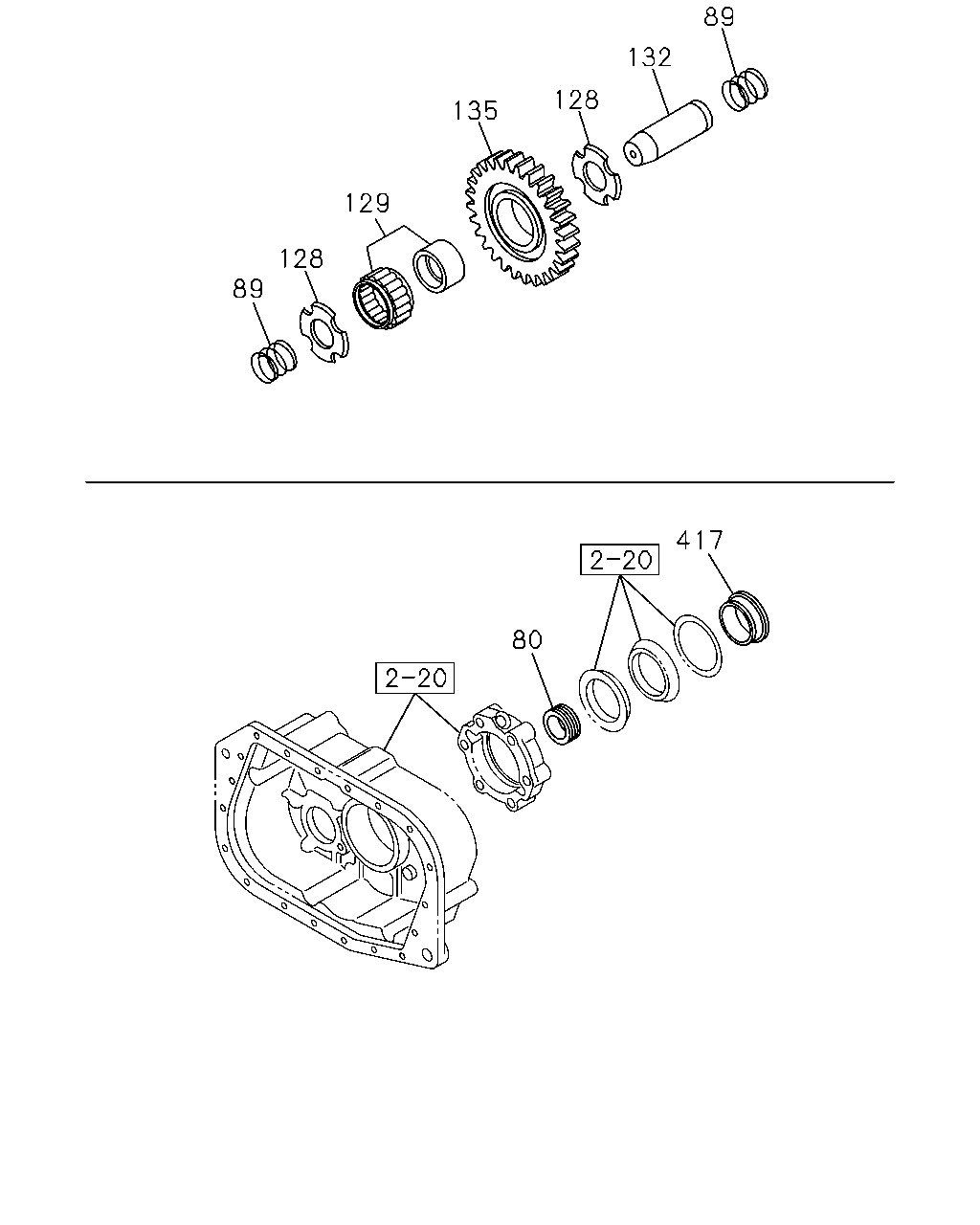

çizim 189983
89 128 129 135 128 132 89 417 80
BalonParca AdiParca NoAdetTipApplied Date
80 GEAR; SPD DRIVE 1-87061-211-0 01 1 1009-
89 RING; RET,THRUST RING 1-33389-069-0 04 1 1009-1508
89 RING; RET,THRUST RING 1-33389-069-0 02 1 1509-
128 WASHER; THRUST,REV SHAFT 1-33363-041-0 04 1 1009-1508
128 WASHER; THRUST,REV SHAFT 1-33363-041-0 02 1 1509-
129 BEARING; NEEDLE,IDLER 1-87061-118-0 02 1 1009-1508
129 BEARING; NEEDLE,IDLER 8-98336-368-0 01 1 1509-
132 SHAFT; REV 1-33389-085-0 02 1 1009-1508
132 SHAFT; REV 1-33389-085-0 01 1 1509-
135 GEAR; REV IDLER 1-87061-254-0 02 1 1009-1508
135 GEAR; REV IDLER 1-87061-254-0 01 1 1509-
417 SPACER; OUTPUT SHAFT 1-33159-061-0 01 1 1009-

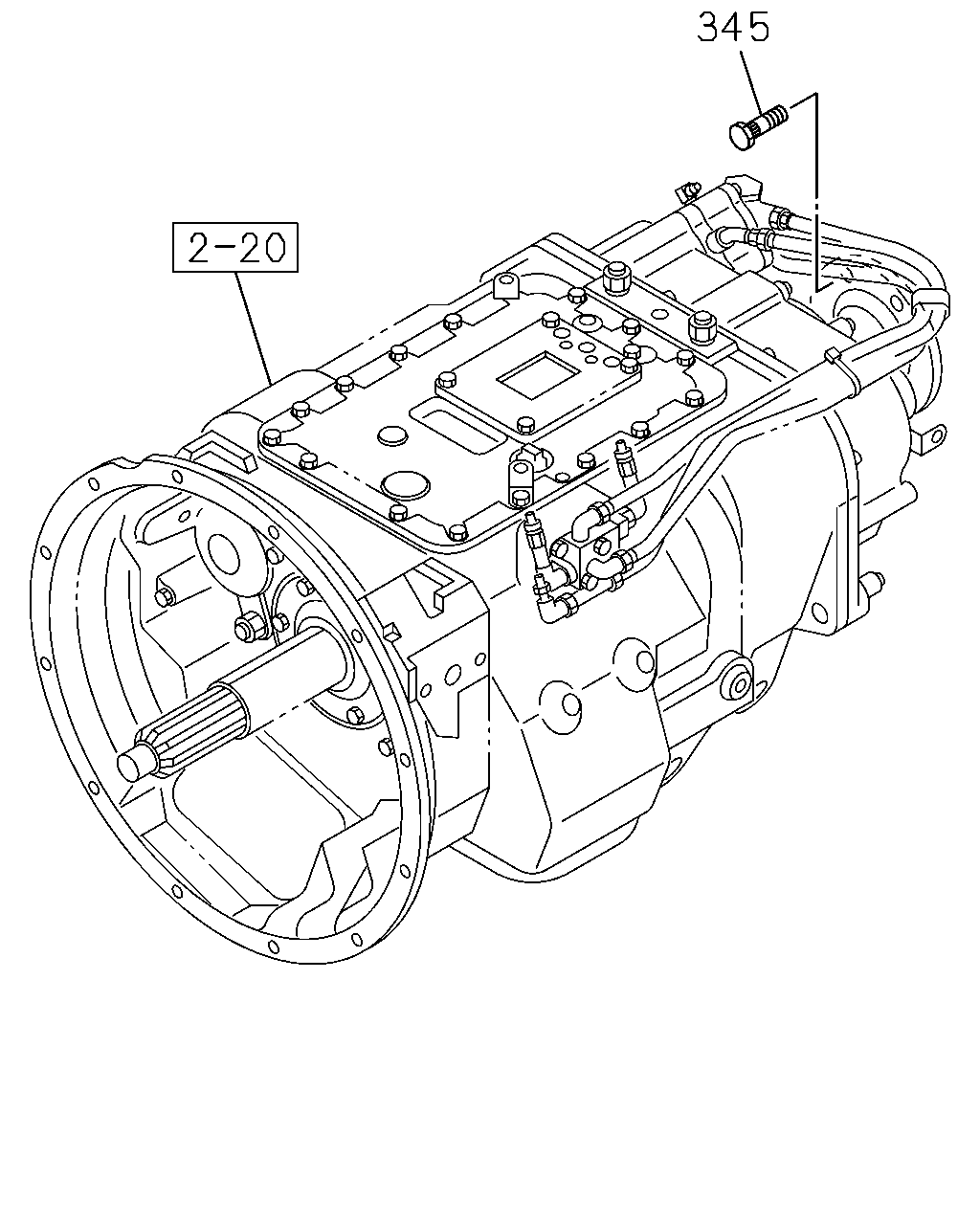

çizim 189986
345
BalonParca AdiParca NoAdetTipApplied Date
345 BOLT; FLANGE TO YOKE
M14X48.5 		1-09046-013-0 04 1 1009-
