2-26A — MANUAL TRANSMISSION GEAR (#71884) — 229 parça

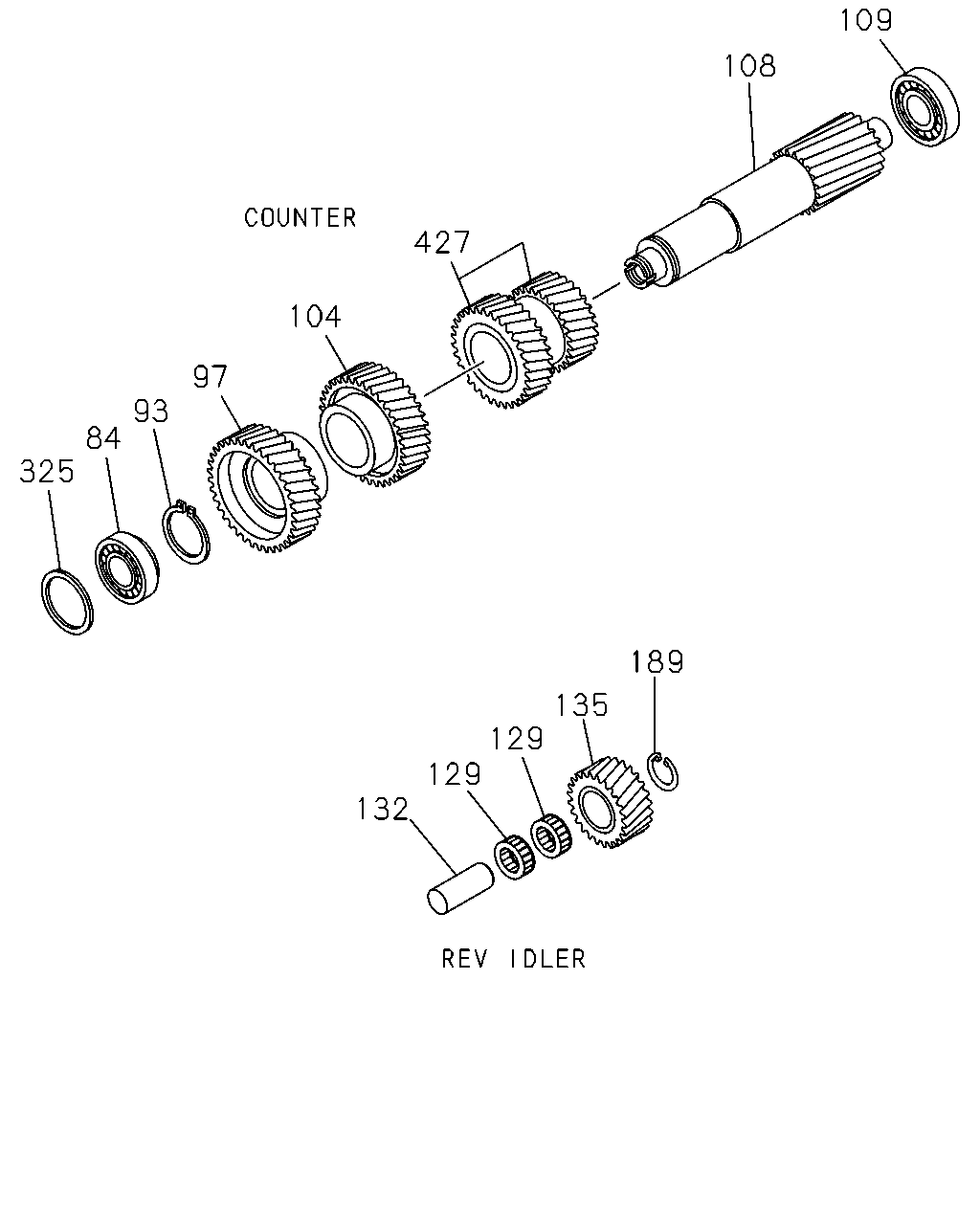

çizim 109691
132 129 129 135 189 104 427 97 93 84 325 108 109
BalonParca AdiParca NoAdetTipApplied Date
84 BEARING; COUNTER SHAFT,FRT 1-33312-016-0 01 1 1009-
93 RING; SNAP,COUNTER FRT BRG
T=2.6 		1-33319-264-0 01 1 1306-
93 RING; SNAP,COUNTER FRT BRG
T=2.0 		1-33319-251-0 01 1 1009-
93 RING; SNAP,COUNTER FRT BRG
T=2.5 		1-33319-252-0 01 1 1009-
93 RING; SNAP,COUNTER FRT BRG
T=2.4 		1-33319-253-0 01 1 1009-
93 RING; SNAP,COUNTER FRT BRG
T=2.3 		1-33319-254-0 01 1 1009-
93 RING; SNAP,COUNTER FRT BRG
T=2.2 		1-33319-255-0 01 1 1009-
93 RING; SNAP,COUNTER FRT BRG
T=2.1 		1-33319-256-0 01 1 1009-
97 GEAR; 5TH,COUNTER 1-33338-398-0 01 1 1009-
104 GEAR; 4TH,COUNTER 1-33338-397-0 01 1 1009-
108 SHAFT; COUNTER 1-33311-347-0 01 1 1009-
109 BEARING; COUNTER SHAFT,RR 1-33312-006-0 01 1 1009-
129 BEARING; NEEDLE,IDLER 1-33369-026-0 02 1 1009-
132 SHAFT; REV 1-33351-024-0 01 1 1009-
135 GEAR; REV IDLER 1-33361-092-0 01 1 1009-1106
135 GEAR; REV IDLER 1-33361-096-0 01 1 1107-
189 RING; SNAP,REV,GEAR 1-44519-224-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 1009-1106
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98080-571-0 01 1 1107-
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 1009-
427 GEAR; 2ND & 3RD,COUNTER 1-33332-131-0 01 1 1009-1305
427 GEAR; 2ND & 3RD,COUNTER 1-33332-132-0 01 1 1306-

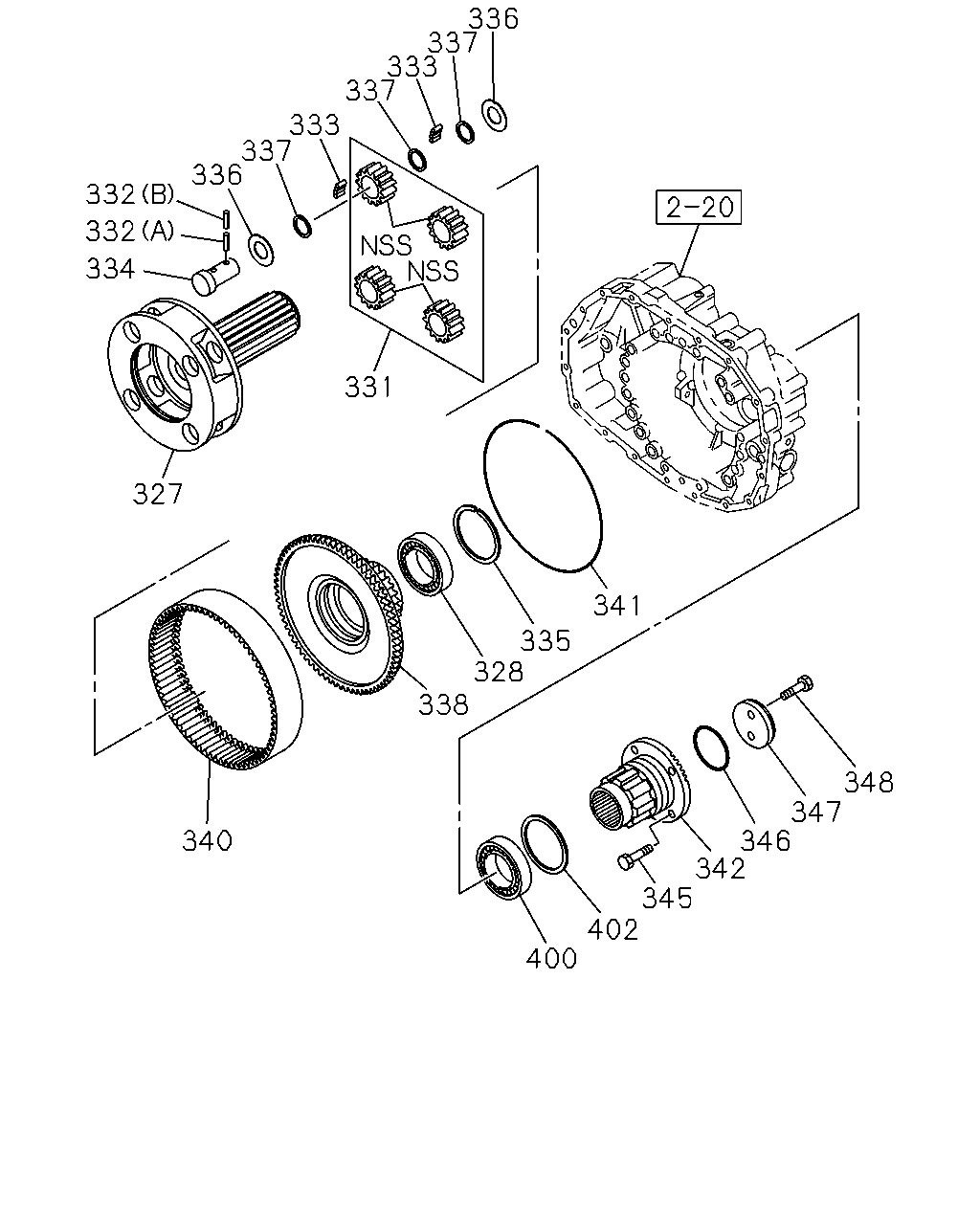

çizim 109699
400 402 345 342 346 347 348 341 335 328 338 340 331 327 334 332 336 337 333 332 337 333 337 336
BalonParca AdiParca NoAdetTipApplied Date
327 CARRIER; PLANETARY GEAR 1-33231-338-0 01 1 1009-
328 BEARING; CARRIER 1-33339-094-0 01 1 1009-
331 GEAR SET; PLANETARY 1-33239-350-0 01 1 1009-
332 PIN; LOCK,SHAFT
(A) 		1-33239-178-0 04 1 1009-
332 PIN; LOCK,SHAFT
(B) 		1-33239-179-0 04 1 1009-
333 ROLLER; PLANETARY GEAR 1-33239-232-0 AR 1 1009-
334 SHAFT; PLANETARY GEAR 1-33239-359-0 04 1 1009-
335 RING; SNAP,BEARING
T=2.50 		1-33339-075-0 01 1 1009-
335 RING; SNAP,BEARING
T=2.40 		1-33339-076-0 01 1 1009-
335 RING; SNAP,BEARING
T=2.30 		1-33339-077-0 01 1 1009-
335 RING; SNAP,BEARING
T=2.20 		1-33339-078-0 01 1 1009-
335 RING; SNAP,BEARING
T=2.10 		1-33339-079-0 01 1 1009-
335 RING; SNAP,BEARING
T=2.00 		1-33339-080-0 01 1 1009-
336 WASHER; THRUST,PLANETARY GEAR 1-33239-174-0 08 1 1009-
337 WASHER; PLANETARY GEAR,INNER 1-33239-176-0 12 1 1009-
338 CARRIER; RING GEAR 1-33331-275-0 01 1 1009-
340 GEAR; RING 1-33339-095-0 01 1 1009-1106
340 GEAR; RING 1-33339-099-0 01 1 1107-
341 WIRE; LOCK,CARRIER 1-33339-096-0 01 1 1009-
342 FLANGE; OUTPUT 1-37243-429-0 01 1 1009-
345 BOLT; FLANGE TO YOKE 1-37249-147-0 04 1 1009-
346 GASKET; FLANGE 1-37249-156-0 01 1 1009-
347 WASHER; FLANGE 1-09509-060-0 01 1 1009-
348 BOLT; SHAFT 1-37249-207-0 02 1 1009-1106
348 BOLT; SHAFT 1-37249-215-0 02 1 1107-
400 BEARING; OUTPUT SHAFT RR 1-33139-212-0 01 1 1009-
402 SHIM
T=2.20 		1-33139-064-0 01 1 1009-1106
402 SHIM
T=2.10 		1-33139-065-0 01 1 1009-1106
402 SHIM
T=2.00 		1-33139-066-0 01 1 1009-1106
402 SHIM
T=1.90 		1-33139-067-0 01 1 1009-1106
402 SHIM
T=1.80 		1-33139-068-0 01 1 1009-1106
402 SHIM
T=1.70 		1-33139-069-0 01 1 1009-1106
402 SHIM
T=1.60 		1-33139-070-0 01 1 1009-1106
402 SHIM
T=1.50 		1-33139-071-0 01 1 1009-1106
402 SHIM
T=1.40 		1-33139-072-0 01 1 1009-1106
402 SHIM
T=1.30 		1-33139-073-0 01 1 1009-1106
çizim 109805
339 66 324 42 66 126 339 408 408 323
BalonParca AdiParca NoAdetTipApplied Date
42 SLEEVE 1-33262-195-0 01 1 1009-
66 RING; BLOCK,SYN 1-33339-069-0 02 1 1009-
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 1009-
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 1009-
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 1009-
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 1009-
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 1009-
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 1009-
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 1009-
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 1009-
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 1009-
323 INSERT
(B) 		1-33263-027-0 09 1 1009-
323 INSERT
(A) 		1-33263-030-0 06 1 1009-
324 HUB; CLU 1-33261-230-0 01 1 1009-
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-453-0 01 1 1009-
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-632-0 01 1 1009-
408 SPRING
(B) 		1-33269-038-0 09 1 1009-
408 SPRING
(C) 		1-33269-039-0 09 1 1009-
408 SPRING
(A) 		1-33269-042-0 06 1 1009-

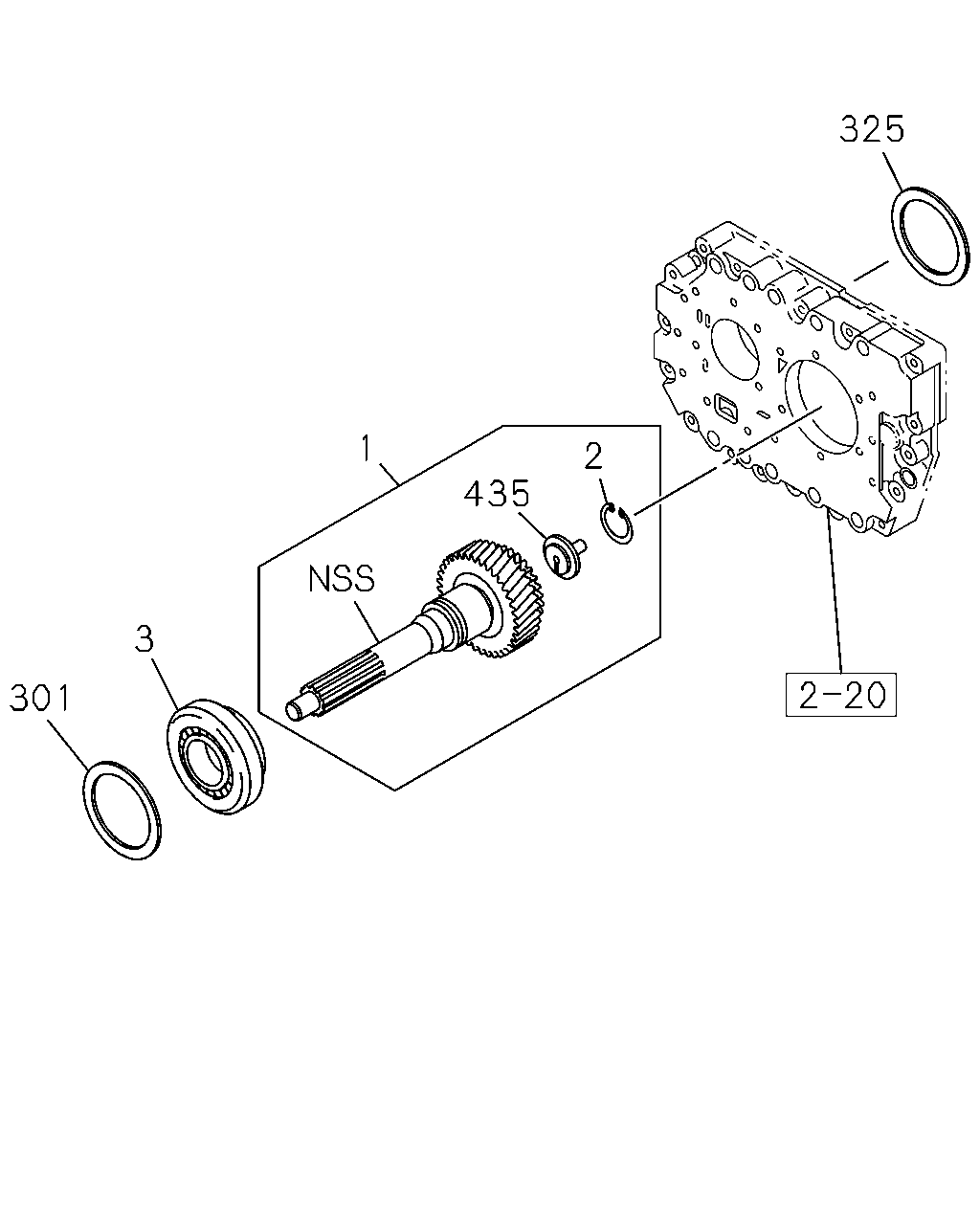

çizim 189980
2 435 1 3 301 325
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS 1-33215-038-0 01 1 1009-
2 RING; SNAP,TOP GEAR SHAFT 1-33219-159-0 01 1 1009-
3 BEARING; TOP GEAR SHAFT 1-33219-320-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=1.20 		1-33139-047-0 01 1 1306-
301 SHIM; TOP GEAR SHAFT
T=1.10 		1-33139-050-0 01 1 1306-
301 SHIM; TOP GEAR SHAFT
T=1.15 		1-33139-204-0 01 1 1306-
301 SHIM; TOP GEAR SHAFT
T=1.25 		1-33139-205-0 01 1 1306-
301 SHIM; TOP GEAR SHAFT
T=1.80 		1-33139-039-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=1.70 		1-33139-041-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=1.60 		1-33139-042-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=1.50 		1-33139-043-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=1.40 		1-33139-045-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=1.30 		1-33139-046-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=1.45 		1-33139-201-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=1.55 		1-33139-202-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=1.35 		1-33139-206-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=2.30 		1-33139-223-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=2.25 		1-33139-224-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=2.20 		1-33139-225-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=2.15 		1-33139-226-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=2.10 		1-33139-227-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=2.05 		1-33139-228-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=2.00 		1-33139-229-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=1.95 		1-33139-230-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=1.90 		1-33139-231-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=1.85 		1-33139-232-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=1.75 		1-33139-233-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=1.65 		1-33139-234-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 1009-1106
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98080-571-0 01 1 1107-
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 1009-
435 PIPE; INPUTSHAFT 1-33219-158-0 01 1 1009-

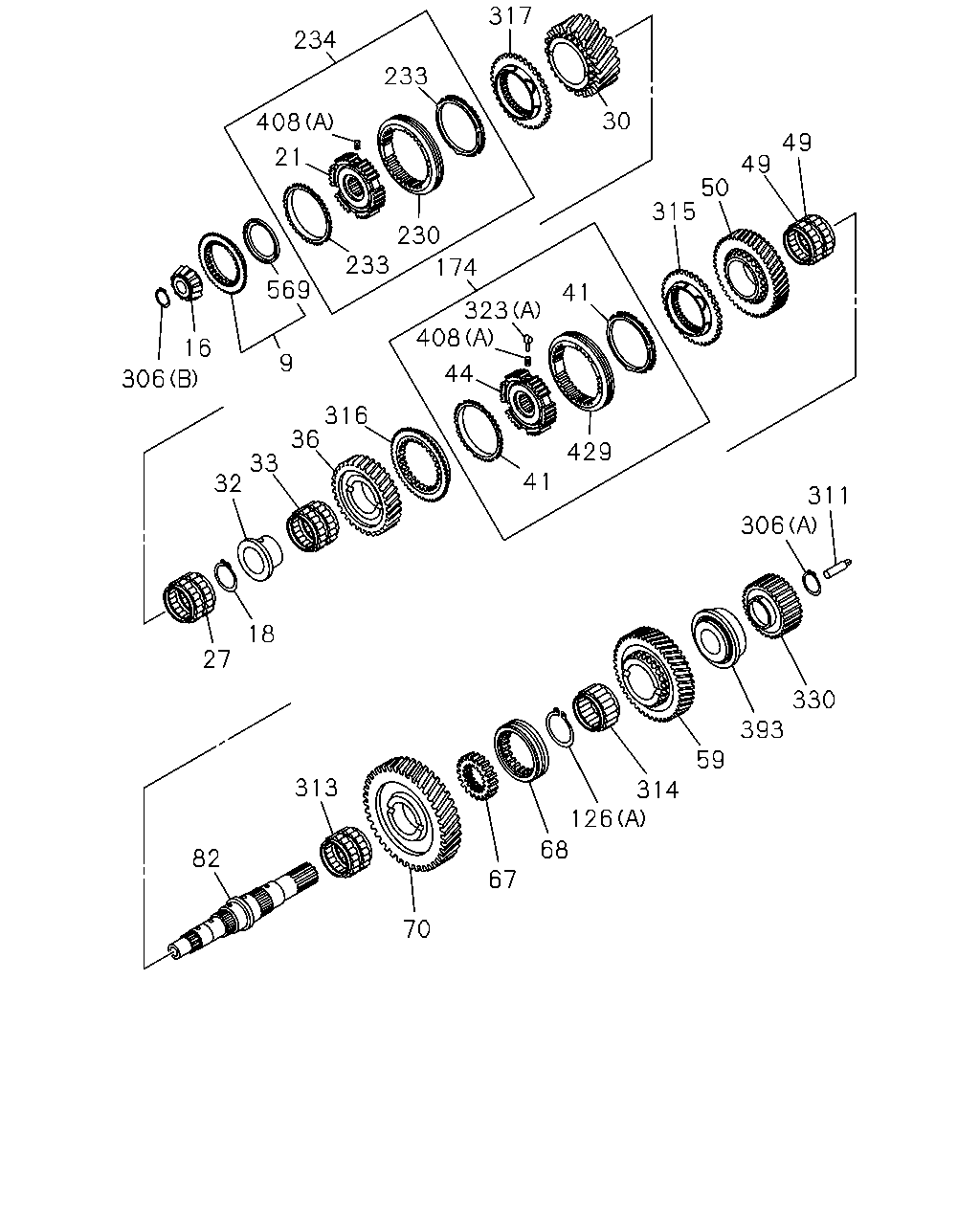

çizim 189984
70 67 68 126 314 59 393 330 306 311 41 429 44 408 323 41 174 315 50 49 49 30 317 233 230 233 569 9 16 306 21 408 234 18 27 32 33 36 316 313 82
BalonParca AdiParca NoAdetTipApplied Date
9 CLUTCH; DOG,TOP GEAR 1-33265-631-0 01 1 1009-
16 BEARING; PILOT,MAINSHAFT 1-33239-212-0 01 1 1009-
18 RING; SNAP,CLU HUB
T=2.4 		1-33259-054-0 01 1 1009-
18 RING; SNAP,CLU HUB
T=2.3 		1-33259-060-0 01 1 1009-
18 RING; SNAP,CLU HUB
T=2.2 		1-33259-061-0 01 1 1009-
18 RING; SNAP,CLU HUB
T=2.1 		1-33259-062-0 01 1 1009-
18 RING; SNAP,CLU HUB
T=2.0 		1-33259-063-0 01 1 1009-
18 RING; SNAP,CLU HUB
T=1.9 		1-33259-064-0 01 1 1009-
21 HUB; CLU,4TH & 5TH 1-33261-295-0 01 1 1009-
27 BEARING; 4TH GEAR 1-33259-128-0 02 1 1009-
30 GEAR; 4TH,MAINSHAFT 1-33251-436-0 01 1 1009-
32 COLLAR; 3RD GEAR 1-33259-059-0 01 1 1009-1305
32 COLLAR; 3RD GEAR 1-33259-140-0 01 1 1306-
33 BEARING; NEEDLE,3RD GEAR 1-33259-127-0 01 1 1009-
36 GEAR; 3RD,MAINSHAFT 1-33252-478-0 01 1 1009-
41 RING; BLOCK,2ND & 3RD 1-33265-498-0 02 1 1009-
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-231-0 01 1 1009-1106
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-303-0 01 1 1107-
49 BEARING; NEEDLE,2ND GEAR 1-33259-126-0 02 1 1009-
50 GEAR; 2ND,MAINSHAFT 1-33251-435-0 01 1 1009-1106
50 GEAR; 2ND,MAINSHAFT 1-33251-448-0 01 1 1107-
59 GEAR; REV MAINSHAFT 1-33257-100-0 01 1 1009-1106
59 GEAR; REV MAINSHAFT 1-33257-101-0 01 1 1107-
67 HUB; CLU,1ST TO REV 1-33259-048-0 01 1 1009-1106
67 HUB; CLU,1ST TO REV 1-33259-135-0 01 1 1107-
68 SLEEVE; 1ST TO REV 1-33259-049-0 01 1 1009-
70 GEAR; 1ST,MAINSHAFT 1-33251-434-0 01 1 1009-
82 SHAFT; MAIN,TRANS 1-33231-337-0 01 1 1009-
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 1009-
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 1009-
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 1009-
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 1009-
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 1009-
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 1009-
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 1009-
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 1009-
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 1009-
174 SYNCHRONIZER ASM; 2ND-3RD 1-33260-169-0 01 1 1009-1106
230 SLEEVE; 4TH TO 5TH 1-33262-239-0 01 1 1009-
233 RING; BLOCK 4TH TO 5TH 1-33269-096-0 02 1 1009-
234 SYNCHRONIZER ASM; 4TH TO 5TH 1-33260-170-0 01 1 1009-1106
306 RING; SNAP,MAINSHAFT
(A) T=3.20 		1-33319-061-0 01 1 1009-1305
306 RING; SNAP,MAINSHAFT
(A) T=3.15 		1-33319-062-0 01 1 1009-1305
306 RING; SNAP,MAINSHAFT
(A) T=3.10 		1-33319-063-0 01 1 1009-1305
306 RING; SNAP,MAINSHAFT
(A) T=3.05 		1-33319-064-0 01 1 1009-1305
306 RING; SNAP,MAINSHAFT
(A) T=3.00 		1-33319-065-0 01 1 1009-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.95 		1-33319-066-0 01 1 1009-
306 RING; SNAP,MAINSHAFT
(A) T=2.90 		1-33319-067-0 01 1 1009-
306 RING; SNAP,MAINSHAFT
(A) T=2.85 		1-33319-068-0 01 1 1009-
306 RING; SNAP,MAINSHAFT
(A) T=2.80 		1-33319-069-0 01 1 1009-
306 RING; SNAP,MAINSHAFT
(A) T=2.75 		1-33319-070-0 01 1 1009-
306 RING; SNAP,MAINSHAFT
(A) T=2.70 		1-33319-071-0 01 1 1009-
306 RING; SNAP,MAINSHAFT
(A) T=2.65 		1-33319-072-0 01 1 1009-
306 RING; SNAP,MAINSHAFT
(A) T=2.60 		1-33319-073-0 01 1 1009-
306 RING; SNAP,MAINSHAFT
(A) T=2.55 		1-33319-074-0 01 1 1009-
306 RING; SNAP,MAINSHAFT
(A) T=2.50 		1-33319-075-0 01 1 1009-
306 RING; SNAP,MAINSHAFT
(A) T=2.45 		1-33319-076-0 01 1 1009-
306 RING; SNAP,MAINSHAFT
(A) T=2.40 		1-33319-077-0 01 1 1009-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.35 		1-33319-078-0 01 1 1009-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.30 		1-33319-079-0 01 1 1009-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.25 		1-33319-080-0 01 1 1009-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.20 		1-33319-081-0 01 1 1009-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.15 		1-33319-082-0 01 1 1009-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.10 		1-33319-083-0 01 1 1009-1305
306 RING; SNAP,MAINSHAFT
(B) T=2.5 		1-43319-021-0 01 1 1009-
306 RING; SNAP,MAINSHAFT
(B) T=2.4 		1-43319-101-0 01 1 1009-
306 RING; SNAP,MAINSHAFT
(B) T=2.3 		1-43319-102-0 01 1 1009-
306 RING; SNAP,MAINSHAFT
(B) T=2.0 		1-43319-103-0 01 1 1009-
306 RING; SNAP,MAINSHAFT
(B) T=2.1 		1-43319-104-0 01 1 1009-
306 RING; SNAP,MAINSHAFT
(B) T=2.2 		1-43319-105-0 01 1 1009-
311 PIPE; MAINSHAFT 1-33239-349-0 01 1 1009-
313 BEARING; NEEDLE,LOW GEAR 1-33259-124-0 01 1 1009-
314 BEARING; NEEDLE,REV GEAR 1-33259-125-0 01 1 1009-
315 CLUTCH; DOG,2ND GEAR 1-33265-629-0 01 1 1009-
316 CLUTCH; DOG,3RD GEAR 1-33265-629-0 01 1 1009-
317 CLUTCH; DOG,4TH GEAR 1-33265-630-0 01 1 1009-
323 INSERT
(B) 		1-33263-027-0 09 1 1009-
323 INSERT
(A) 		1-33263-030-0 06 1 1009-
330 GEAR; SUN 1-33259-134-0 01 1 1009-
393 BEARING; MAINSHAFT END 1-33259-104-0 01 1 1009-
408 SPRING
(B) 		1-33269-038-0 09 1 1009-
408 SPRING
(C) 		1-33269-039-0 09 1 1009-
408 SPRING
(A) 		1-33269-042-0 06 1 1009-
429 SLEEVE; 2ND & 3RD 1-33262-192-0 01 1 1009-1106
429 SLEEVE; 2ND & 3RD 1-33262-244-0 01 1 1107-
569 DAM; OIL 1-33269-097-0 01 1 1009-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
