◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11317 - FXZ(AUST)EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#71877) — 30 parça

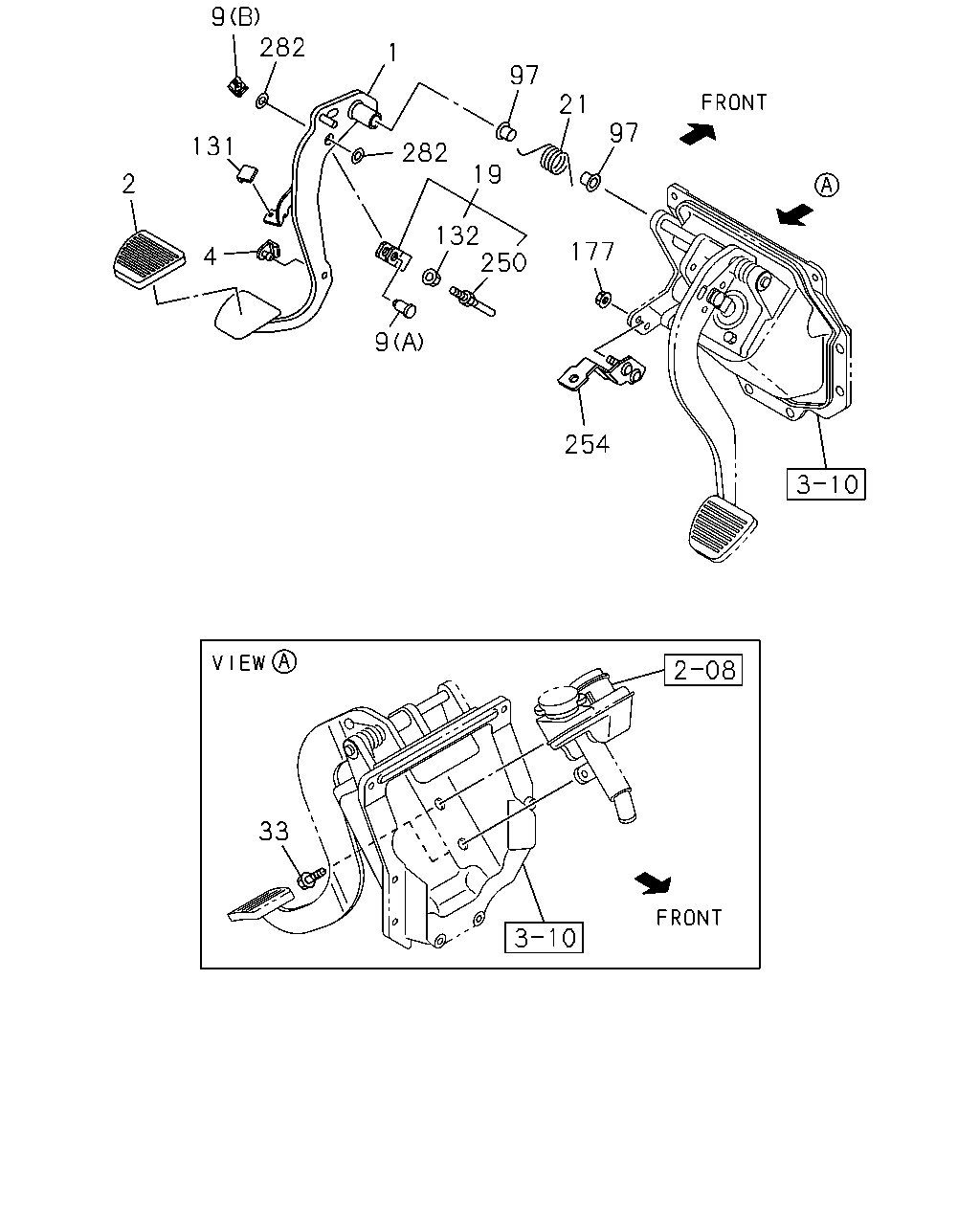

çizim 98633
97 21 97 177 250 19 282 1 282 9 131 2 4 132 9 254 33
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU
TRANSMISSION-FULLER RTO11908(Y5L) 		8-97613-941-1 01 1 1009- ● ●
1 PEDAL; CLU
ZF9S1310 M/T(Y5K) 		8-98099-809-0 01 1 1009- ● ●
2 COVER; CLU PEDAL 8-98056-865-0 01 1 1009-1302 ● ●
2 COVER; CLU PEDAL
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		8-98056-865-0 01 1 1303- ● ●
4 STOPPER; CLU PEDAL 8-98079-251-0 01 1 1009-1302 ● ●
4 STOPPER; CLU PEDAL
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		8-98079-251-0 01 1 1303- ● ●
9 PIN; CLU PEDAL
(B) 		8-98007-161-0 01 1 1009-1302 ● ●
9 PIN; CLU PEDAL
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) 		8-98007-161-0 01 1 1303- ● ●
9 PIN; CLU PEDAL
(A) 		8-98147-657-0 01 1 1009-1302 ● ●
9 PIN; CLU PEDAL
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) 		8-98147-657-0 01 1 1303- ● ●
19 ROD ASM; PUSH,CLU 8-98021-406-1 01 1 1009-1302 ● ●
19 ROD ASM; PUSH,CLU
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		8-98021-406-1 01 1 1303- ● ●
21 SPRING; RETURN,CLU PEDAL 8-98021-560-0 01 1 1009-1302 ● ●
21 SPRING; RETURN,CLU PEDAL
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		8-98021-560-0 01 1 1303- ● ●
33 BOLT; CLU M/CYL TO BRKT
M12X20 FLANGE 		0-28051-220-0 02 1 1009-1203 ● ●
33 BOLT; CLU M/CYL TO BRKT
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) M12X20 FLANGE 		0-28051-220-0 02 1 1204- ● ●
97 BUSHING; CLU PEDAL SHAFT 8-94238-596-0 02 1 1009-1302 ● ●
97 BUSHING; CLU PEDAL SHAFT
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		8-94238-596-0 02 1 1303- ● ●
131 STOPPER; CLU SW 8-97302-305-0 01 1 1009-1302 ● ●
131 STOPPER; CLU SW
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		8-97302-305-0 01 1 1303- ● ●
132 NUT; LK,PUSH ROD
M8 FLANGE 		0-91180-108-0 01 1 1009-1302 ● ●
132 NUT; LK,PUSH ROD
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE 		0-91180-108-0 01 1 1303- ● ●
177 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-1302 ● ●
177 NUT; BRKT
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE 		0-91180-108-0 02 1 1303- ● ●
250 ROD; PUSH,CLU 8-97615-589-0 01 1 1009-1302 ● ●
250 ROD; PUSH,CLU
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		8-97615-589-0 01 1 1303- ● ●
254 BRACKET; CLU SENSOR 8-98021-377-1 01 1 1009-1302 ● ●
254 BRACKET; CLU SENSOR
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		8-98021-377-1 01 1 1303- ● ●
282 SPACER; CLU PEDAL 8-98070-329-0 02 1 1009-1302 ● ●
282 SPACER; CLU PEDAL
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		8-98070-329-0 02 1 1303- ● ●
