Sayfa 1-41 - Isuzu EPC

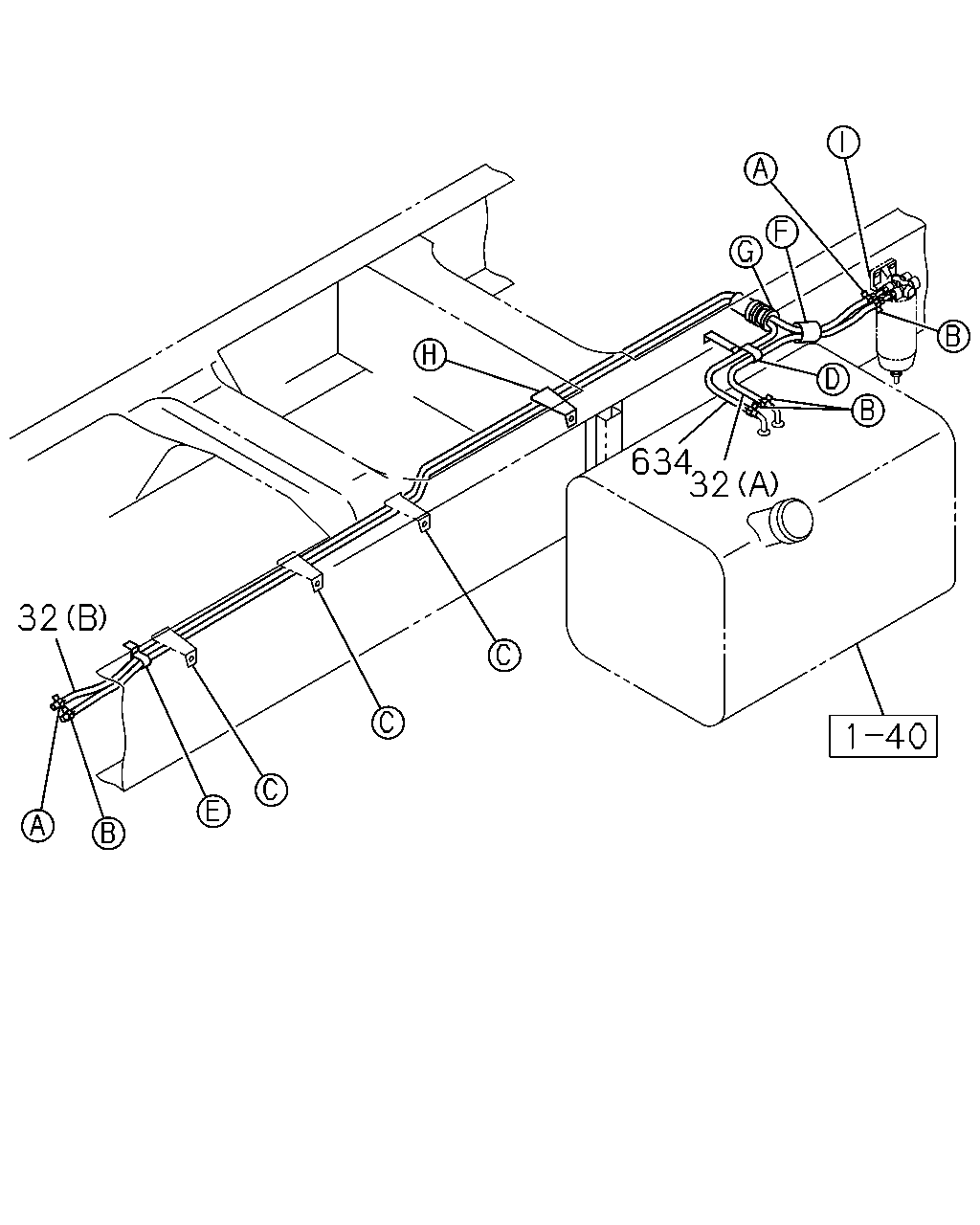

1-41 — FUEL PIPING; CHASSIS (#71870) — 232 parça

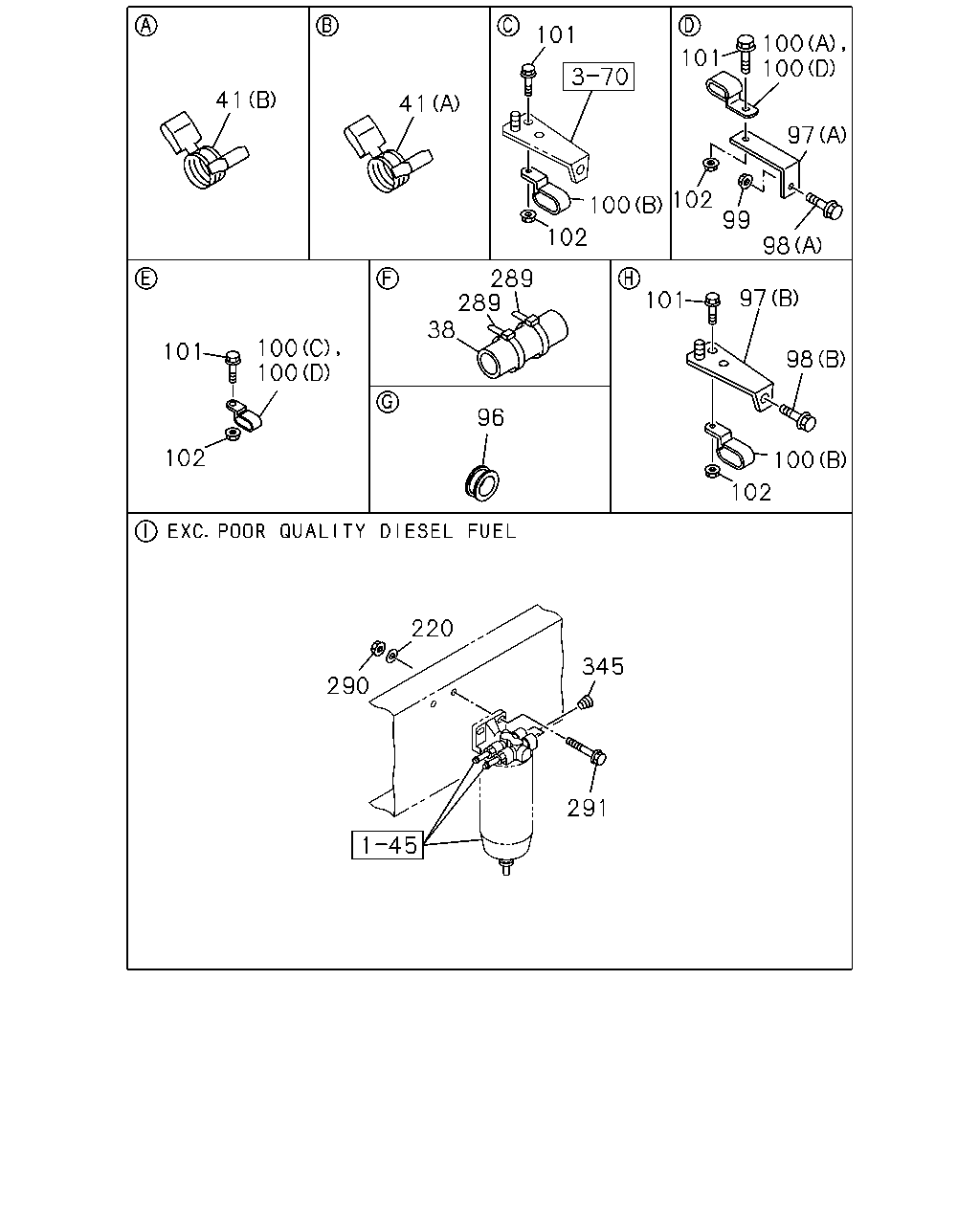

41 41 101 101 100 102 102 100 100 97 99 98 101 97 98 100 102 289 289 38 96 100 100 101 102 220 290 345 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	SLEEVE; RUBBER,RUBBER HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1103-1203	●
38	SLEEVE; RUBBER,RUBBER HOSE POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1103-1203		●
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> EXC. POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1103-1203		●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1009-1102	●	●
38	SLEEVE; RUBBER,RUBBER HOSE POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1103-1203	●
38	SLEEVE; RUBBER,RUBBER HOSE POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1103-1203		●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1204-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	1009-1203	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	04	1	1204-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	1009-	●	●
96	GROMMET; PIPE,FUEL TANK ID=32 OD=40 T=18	1-09891-003-0	01	1	1009-1203	●	●
96	GROMMET; PIPE,FUEL TANK ID=39 OD=45 T=19	1-09332-077-0	01	1	1204-	●	●
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> (C)	8-98186-645-0	01	1	1103-1203	●
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (C)	8-98186-645-0	01	1	1103-1203		●
97	BRACKET; CLIP (C)	8-98186-645-0	01	1	1204-	●
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) (C)	8-98186-645-0	01	1	1204-		●
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (C)	8-98186-646-0	01	1	1103-1203		●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (C)	8-98186-647-0	01	1	1103-1203		●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) (C)	8-98186-647-0	01	1	1204-		●
97	BRACKET; CLIP (A)	1-47475-927-0	01	1	1009-1010	●
97	BRACKET; CLIP FUEL TANK 400L<SDH> (A)	1-47475-927-0	01	1	1009-1010		●
97	BRACKET; CLIP (A) L=68	1-47475-525-0	01	1	1011-1203	●
97	BRACKET; CLIP FUEL TANK 400L<SDH> (A) L=68	1-47475-525-0	01	1	1011-1203		●
97	BRACKET; CLIP (A) L=68	1-47475-525-0	01	1	1204-	●	●
97	BRACKET; CLIP (B)	8-97609-096-0	01	1	1009-1203	●
97	BRACKET; CLIP FUEL TANK 400L<SDH> (B)	8-97609-096-0	01	1	1009-1203		●
97	BRACKET; CLIP (B)	8-97609-096-0	01	1	1204-	●	●
98	BOLT; BRKT,FUEL PIPE (A) M8X25 FLANGE	0-28650-825-0	01	1	1009-1203	●
98	BOLT; BRKT,FUEL PIPE FUEL TANK 400L<SDH> (A) M8X25 FLANGE	0-28650-825-0	01	1	1009-1203		●
98	BOLT; BRKT,FUEL PIPE (A) M8X25 FLANGE	0-28650-825-0	01	1	1204-	●	●
98	BOLT; BRKT,FUEL PIPE (B) M8X30 FLANGE	0-28650-830-0	01	1	1009-1203	●
98	BOLT; BRKT,FUEL PIPE FUEL TANK 400L<SDH> (B) M8X30 FLANGE	0-28650-830-0	01	1	1009-1203		●
98	BOLT; BRKT,FUEL PIPE (B) M8X30 FLANGE	0-28650-830-0	01	1	1204-	●	●
99	NUT; BRKT,CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	1009-1203	●
99	NUT; BRKT,CLIP,FUEL TANK FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1009-1203		●
99	NUT; BRKT,CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	1204-	●	●
100	CLIP; FUEL PIPE (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1009-1102	●
100	CLIP; FUEL PIPE FUEL TANK 400L<SDH> (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1009-1102		●
100	CLIP; FUEL PIPE (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1103-1203	●
100	CLIP; FUEL PIPE FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1103-1203		●
100	CLIP; FUEL PIPE WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1103-1203		●
100	CLIP; FUEL PIPE (B) ID=19X32 H=17.5 L=50.5	1-09701-320-0	04	1	1009-1203	●
100	CLIP; FUEL PIPE FUEL TANK 400L<SDH> (B) ID=19X32 H=17.5 L=50.5	1-09701-320-0	04	1	1009-1203		●
100	CLIP; FUEL PIPE (B) ID=19X35 H=17.5 L=47.5	8-98202-741-0	04	1	1204-1302	●	●
100	CLIP; FUEL PIPE (B) ID=19X35 H=17.5 L=47.5	8-98202-741-0	04	1	1303-	●	●
100	CLIP; FUEL PIPE (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1009-1102	●	●
100	CLIP; FUEL PIPE WHEEL BASE 6600MM(66W) (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1103-1203	●
100	CLIP; FUEL PIPE FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1103-1203		●
100	CLIP; FUEL PIPE WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1103-1203		●
100	CLIP; FUEL PIPE (D) ID=19X35 H=17.5 L=22.5	8-98202-740-0	02	1	1204-	●	●
100	CLIP; FUEL PIPE FUEL TANK 200L AL<THF> (B) ID=19X32 H=17.5 L=50.5	1-09701-320-0	01	1	1009-1203		●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	05	1	1009-1203	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 400L<SDH> M8X20 FLANGE	0-28650-820-0	05	1	1009-1203		●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	05	1	1204-	●	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 200L AL<THF> M8X20 FLANGE	0-28650-820-0	01	1	1009-1203		●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	06	1	1009-1203	●
102	NUT; CLIP,FUEL PIPE FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	06	1	1009-1203		●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	06	1	1204-	●	●
102	NUT; CLIP,FUEL PIPE FUEL TANK 200L AL<THF> M8 FLANGE	0-91180-108-0	02	1	1009-1203		●
220	WASHER; PL POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	04	1	1103-1203	●	●
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	04	1	1204-	●	●
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	02	1	1009-1102	●	●
220	WASHER; PL EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1103-1203	●	●
289	CLIP; BAND,HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	04	1	1103-1203	●
289	CLIP; BAND,HOSE POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> L=250	5-09707-030-1	04	1	1103-1203		●
289	CLIP; BAND,HOSE FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> EXC. POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	04	1	1103-1203		●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	04	1	1009-1102	●	●
289	CLIP; BAND,HOSE POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	02	1	1103-1203	●
289	CLIP; BAND,HOSE POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> L=250	5-09707-030-1	02	1	1103-1203		●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	1204-	●	●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	1009-1102	●	●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	1103-1203	●
290	NUT; FILTER TO BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE	0-91180-210-0	02	1	1103-1203		●
290	NUT; FILTER TO BRKT POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> M10 FLANGE	0-91180-210-0	02	1	1103-1203		●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	1204-	●	●
291	BOLT; FILER TO BRKT POOR QUALITY DIESEL FUEL<KF0> M10X90 FLANGE	0-28051-090-0	02	1	1103-1203	●	●
291	BOLT; FILER TO BRKT M10X90 FLANGE	0-28051-090-0	02	1	1204-	●	●
291	BOLT; FILER TO BRKT M10X60 FLANGE	0-28051-060-0	02	1	1009-1102	●	●
291	BOLT; FILER TO BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> M10X60 FLANGE	0-28051-060-0	02	1	1103-1203	●	●
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1009-1102	●	●
345	PLUG EXC. POOR QUALITY DIESEL FUEL<KF0> NPTF3/8-18	8-97329-623-0	02	1	1103-1203	●	●

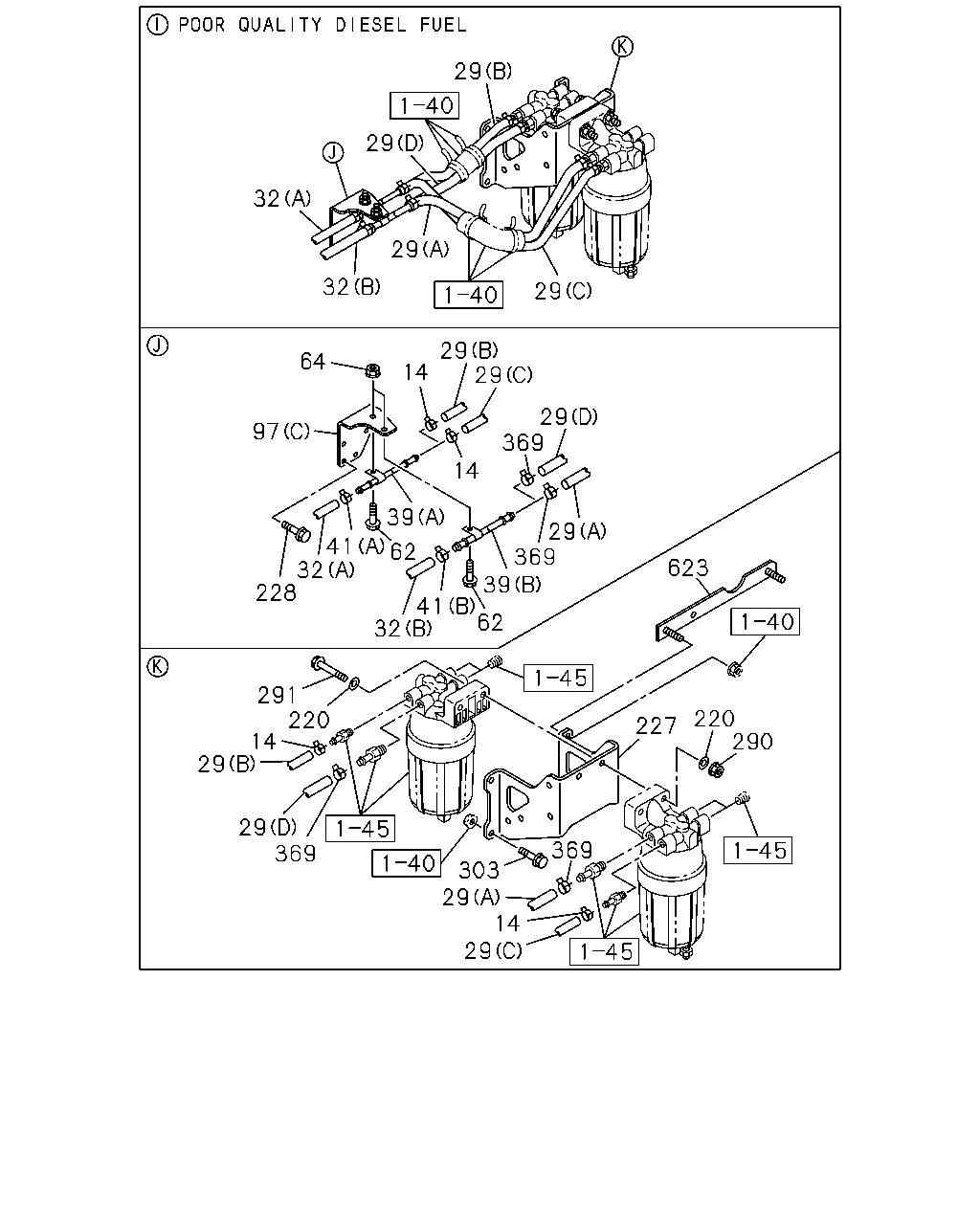

29 29 32 29 32 29 64 97 14 29 29 369 14 39 41 32 228 62 32 29 369 39 62 41 29 291 220 14 29 29 369 623 227 290 220 303 29 14 369 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	CLIP; HOSE POOR QUALITY DIESEL FUEL<KF0> ID=14	1-09704-102-0	04	1	1103-1203	●	●
14	CLIP; HOSE ID=16	8-94238-568-0	04	1	1204-	●	●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> (A)	8-98186-638-1	01	1	1103-1203	●
29	HOSE; FUEL WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> (A)	8-98186-638-1	01	1	1103-1203		●
29	HOSE; FUEL (A)	8-98202-626-0	01	1	1204-	●
29	HOSE; FUEL WHEEL BASE 6600MM(66W) (A)	8-98202-626-0	01	1	1204-		●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> (B)	8-98188-442-0	01	1	1103-1203	●
29	HOSE; FUEL WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> (B)	8-98188-442-0	01	1	1103-1203		●
29	HOSE; FUEL (B)	8-98202-999-0	01	1	1204-	●
29	HOSE; FUEL WHEEL BASE 6600MM(66W) (B)	8-98202-999-0	01	1	1204-		●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> (C)	8-98188-447-0	01	1	1103-1203	●
29	HOSE; FUEL WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> (C)	8-98188-447-0	01	1	1103-1203		●
29	HOSE; FUEL (C)	8-98203-001-0	01	1	1204-	●
29	HOSE; FUEL WHEEL BASE 6600MM(66W) (C)	8-98203-001-0	01	1	1204-		●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> (D)	8-98188-458-0	01	1	1103-1203	●
29	HOSE; FUEL WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> (D)	8-98188-458-0	01	1	1103-1203		●
29	HOSE; FUEL (D) L=290	8-98203-007-0	01	1	1204-	●
29	HOSE; FUEL WHEEL BASE 6600MM(66W) (D) L=290	8-98203-007-0	01	1	1204-		●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (B)	8-98188-441-0	01	1	1103-1203		●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (C)	8-98188-446-0	01	1	1103-1203		●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (D)	8-98188-456-0	01	1	1103-1203		●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (A)	8-98188-460-0	01	1	1103-1203		●
29	HOSE; FUEL WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B)	8-98186-639-1	01	1	1103-1203		●
29	HOSE; FUEL WHEEL BASE 4900MM(49W) (B)	8-98202-627-0	01	1	1204-		●
29	HOSE; FUEL WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (C)	8-98186-640-1	01	1	1103-1203		●
29	HOSE; FUEL WHEEL BASE 4900MM(49W) (C)	8-98202-628-0	01	1	1204-		●
29	HOSE; FUEL WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (D)	8-98186-641-1	01	1	1103-1203		●
29	HOSE; FUEL WHEEL BASE 4900MM(49W) (D)	8-98202-629-0	01	1	1204-		●
29	HOSE; FUEL WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A)	8-98186-642-1	01	1	1103-1203		●
29	HOSE; FUEL WHEEL BASE 4900MM(49W) (A)	8-98202-630-0	01	1	1204-		●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (A) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1203	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1203		●
32	PIPE; DELIVERY,FUEL TANK (A) L=580 SERVICED BY L=3000	0-01859-300-0	01	1	1204-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) (A) L=580 SERVICED BY L=3000	0-01859-300-0	01	1	1204-		●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (B) L=1800 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1203	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=1800 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1203		●
32	PIPE; DELIVERY,FUEL TANK (B) L=1850 SERVICED BY L=3000	0-01859-300-0	01	1	1204-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) (B) L=1850 SERVICED BY L=3000	0-01859-300-0	01	1	1204-		●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (B) L=1000 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1203		●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (A)	8-98186-644-1	01	1	1103-1203		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A) L=450 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1203		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W) (A) L=450 SERVICED BY L=3000	0-01859-300-0	01	1	1204-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=2100 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1203		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W) (B) L=2150 SERVICED BY L=3000	0-01859-300-0	01	1	1204-		●
32	PIPE; DELIVERY,FUEL TANK (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1102	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1102		●
32	PIPE; DELIVERY,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1203	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1203		●
32	PIPE; DELIVERY,FUEL TANK (B) L=2400 SERVICED BY L=3000	0-01262-300-0	01	1	1009-1102	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (B) L=2400 SERVICED BY L=3000	0-01262-300-0	01	1	1009-1102		●
32	PIPE; DELIVERY,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=2400 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1203	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=2400 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1203		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> (A) L=500 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1102		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=500 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1203		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> (B) L=1300 SERVICED BY L=3000	0-01262-300-0	01	1	1009-1102		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=1300 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1203		●
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (A)	8-98186-862-0	01	1	1103-1203	●
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (A)	8-98186-862-0	01	1	1103-1203		●
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A)	8-98186-862-0	01	1	1103-1203		●
39	PIPE; FUEL (A)	8-98186-862-1	01	1	1204-	●	●
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (B)	8-98186-864-0	01	1	1103-1203	●
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (B)	8-98186-864-0	01	1	1103-1203		●
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B)	8-98186-864-0	01	1	1103-1203		●
39	PIPE; FUEL (B)	8-98186-864-1	01	1	1204-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	1009-1203	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	04	1	1204-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	1009-	●	●
62	BOLT; CLIP FIX POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE	0-28650-820-0	02	1	1103-1203	●
62	BOLT; CLIP FIX POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> M8X20 FLANGE	0-28650-820-0	02	1	1103-1203		●
62	BOLT; CLIP FIX POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> M8X20 FLANGE	0-28650-820-0	02	1	1103-1203		●
62	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	02	1	1204-	●	●
64	NUT; CLIP POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE	0-91180-108-0	02	1	1103-1203	●
64	NUT; CLIP POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> M8 FLANGE	0-91180-108-0	02	1	1103-1203		●
64	NUT; CLIP POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	02	1	1103-1203		●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1204-	●	●
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> (C)	8-98186-645-0	01	1	1103-1203	●
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (C)	8-98186-645-0	01	1	1103-1203		●
97	BRACKET; CLIP (C)	8-98186-645-0	01	1	1204-	●
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) (C)	8-98186-645-0	01	1	1204-		●
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (C)	8-98186-646-0	01	1	1103-1203		●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (C)	8-98186-647-0	01	1	1103-1203		●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) (C)	8-98186-647-0	01	1	1204-		●
97	BRACKET; CLIP (A)	1-47475-927-0	01	1	1009-1010	●
97	BRACKET; CLIP FUEL TANK 400L<SDH> (A)	1-47475-927-0	01	1	1009-1010		●
97	BRACKET; CLIP (A) L=68	1-47475-525-0	01	1	1011-1203	●
97	BRACKET; CLIP FUEL TANK 400L<SDH> (A) L=68	1-47475-525-0	01	1	1011-1203		●
97	BRACKET; CLIP (A) L=68	1-47475-525-0	01	1	1204-	●	●
97	BRACKET; CLIP (B)	8-97609-096-0	01	1	1009-1203	●
97	BRACKET; CLIP FUEL TANK 400L<SDH> (B)	8-97609-096-0	01	1	1009-1203		●
97	BRACKET; CLIP (B)	8-97609-096-0	01	1	1204-	●	●
220	WASHER; PL POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	04	1	1103-1203	●	●
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	04	1	1204-	●	●
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	02	1	1009-1102	●	●
220	WASHER; PL EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1103-1203	●	●
227	BRACKET; FUEL SEDIMENTER POOR QUALITY DIESEL FUEL<KF0>	8-98184-813-0	01	1	1103-1203	●
227	BRACKET; FUEL SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH>	8-98184-813-0	01	1	1103-1203		●
227	BRACKET; FUEL SEDIMENTER	8-98184-813-0	01	1	1204-	●	●
227	BRACKET; FUEL SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF>	8-98184-812-0	01	1	1103-1203		●
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> M8X30 FLANGE	0-28650-830-0	02	1	1103-1203	●
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	02	1	1103-1203		●
228	BOLT; BRKT,SEDIMENTER M8X30 FLANGE	0-28650-830-0	02	1	1204-	●	●
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> M12X35 FLANGE	0-28651-235-0	02	1	1103-1203		●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	1009-1102	●	●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	1103-1203	●
290	NUT; FILTER TO BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE	0-91180-210-0	02	1	1103-1203		●
290	NUT; FILTER TO BRKT POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> M10 FLANGE	0-91180-210-0	02	1	1103-1203		●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	1204-	●	●
291	BOLT; FILER TO BRKT POOR QUALITY DIESEL FUEL<KF0> M10X90 FLANGE	0-28051-090-0	02	1	1103-1203	●	●
291	BOLT; FILER TO BRKT M10X90 FLANGE	0-28051-090-0	02	1	1204-	●	●
291	BOLT; FILER TO BRKT M10X60 FLANGE	0-28051-060-0	02	1	1009-1102	●	●
291	BOLT; FILER TO BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> M10X60 FLANGE	0-28051-060-0	02	1	1103-1203	●	●
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> M10X40 FLANGE	0-28051-040-0	04	1	1103-1203	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> M10X40 FLANGE	0-28051-040-0	04	1	1103-1203		●
303	BOLT; BRKT M10X40 FLANGE	0-28051-040-0	04	1	1204-	●
303	BOLT; BRKT WHEEL BASE 6600MM(66W) M10X40 FLANGE	0-28051-040-0	04	1	1204-		●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> M10X40 FLANGE	0-28051-040-0	02	1	1103-1203		●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) M10X40 FLANGE	0-28051-040-0	02	1	1204-		●
369	CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> ID=19	8-94238-569-0	04	1	1103-1203	●	●
369	CLAMP; HOSE,FUEL ID=19	8-94238-569-0	04	1	1204-	●	●
623	PLATE; STUD BOLT WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH>	8-98185-380-0	01	1	1103-1203		●
623	PLATE; STUD BOLT WHEEL BASE 4900MM(49W)	8-98185-380-0	01	1	1204-		●

32 634 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (A) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1203	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1203		●
32	PIPE; DELIVERY,FUEL TANK (A) L=580 SERVICED BY L=3000	0-01859-300-0	01	1	1204-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) (A) L=580 SERVICED BY L=3000	0-01859-300-0	01	1	1204-		●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (B) L=1800 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1203	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=1800 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1203		●
32	PIPE; DELIVERY,FUEL TANK (B) L=1850 SERVICED BY L=3000	0-01859-300-0	01	1	1204-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) (B) L=1850 SERVICED BY L=3000	0-01859-300-0	01	1	1204-		●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (B) L=1000 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1203		●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (A)	8-98186-644-1	01	1	1103-1203		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A) L=450 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1203		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W) (A) L=450 SERVICED BY L=3000	0-01859-300-0	01	1	1204-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=2100 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1203		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W) (B) L=2150 SERVICED BY L=3000	0-01859-300-0	01	1	1204-		●
32	PIPE; DELIVERY,FUEL TANK (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1102	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1102		●
32	PIPE; DELIVERY,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1203	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1203		●
32	PIPE; DELIVERY,FUEL TANK (B) L=2400 SERVICED BY L=3000	0-01262-300-0	01	1	1009-1102	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (B) L=2400 SERVICED BY L=3000	0-01262-300-0	01	1	1009-1102		●
32	PIPE; DELIVERY,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=2400 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1203	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=2400 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1203		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> (A) L=500 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1102		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=500 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1203		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> (B) L=1300 SERVICED BY L=3000	0-01262-300-0	01	1	1009-1102		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=1300 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1203		●
634	HOSE; RUBBER RETURN L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1203	●
634	HOSE; RUBBER RETURN FUEL TANK 400L<SDH> L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1203		●
634	HOSE; RUBBER RETURN L=1850 SERVICED BY L=3000	0-01859-300-0	01	1	1204-	●	●
634	HOSE; RUBBER RETURN FUEL TANK 200L AL<THF> L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1203		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
