1-40 — FUEL TANK (#71869) — 66 parça

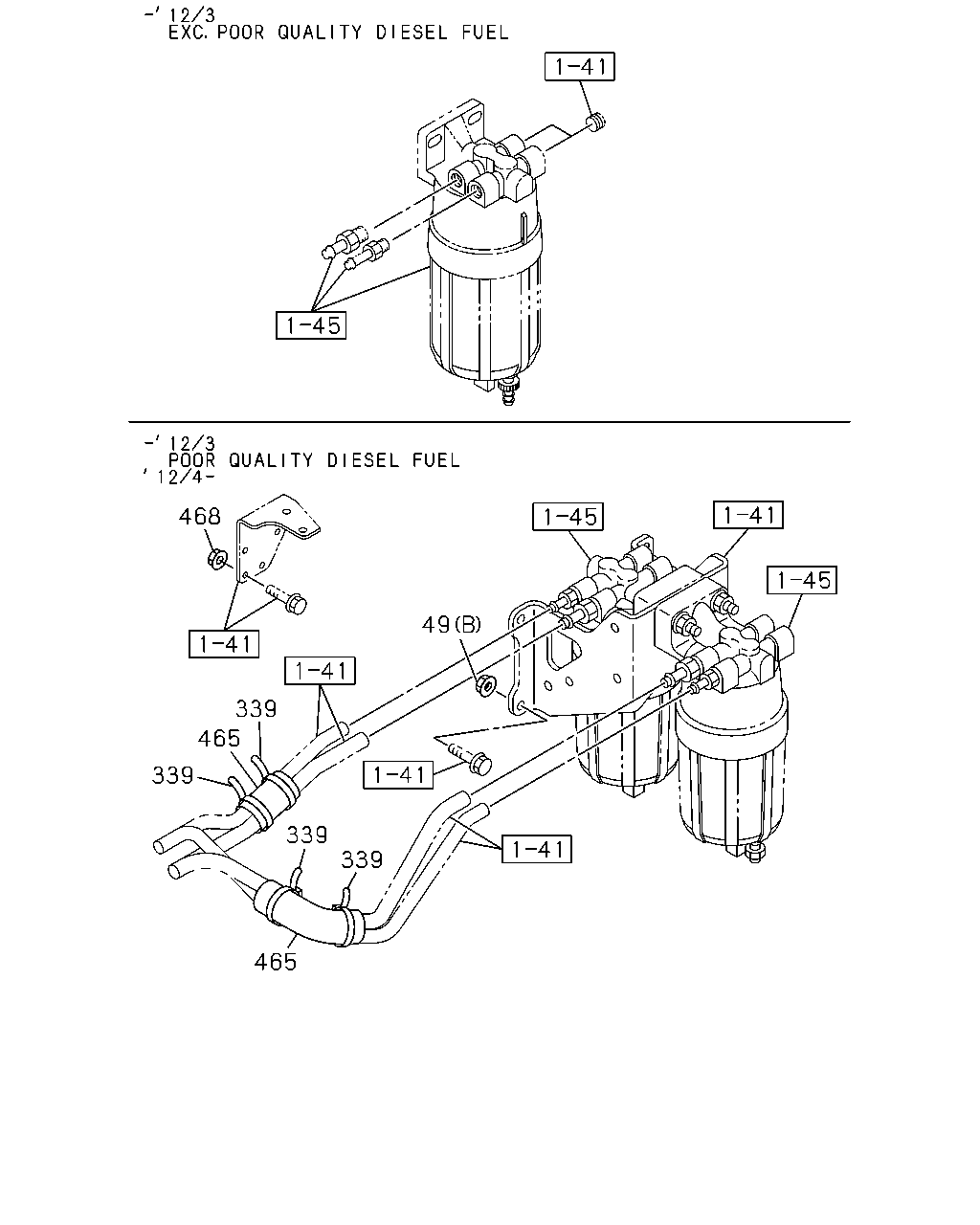

çizim 92834
339 465 339 339 339 465 468 49
BalonParca AdiParca NoAdetTipApplied Date A B
49 NUT; BRKT
POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE 		0-91180-110-0 03 1 1103-1203 ●
49 NUT; BRKT
WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE 		0-91180-110-0 03 1 1103-1203 ●
49 NUT; BRKT
WHEEL BASE 4900MM(49W) (B) M10 FLANGE 		0-91180-110-0 04 1 1204-1208 ●
49 NUT; BRKT
WHEEL BASE 4900MM(49W) (B) M10 FLANGE 		0-91180-210-0 04 1 1209- ●
49 NUT; BRKT
WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) M10 FLANGE 		0-91180-110-0 04 1 1103-1203 ●
49 NUT; BRKT
WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (B) M10 FLANGE 		0-91180-110-0 02 1 1103-1203 ●
49 NUT; BRKT
(A) M12 		0-91110-512-0 08 1 1009- ● ●
339 CLIP; BAND,FUEL HOSE
POOR QUALITY DIESEL FUEL<KF0> L=250 		5-09707-030-1 04 1 1103-1203 ● ●
339 CLIP; BAND,FUEL HOSE
L=250 		5-09707-030-1 04 1 1204- ● ●
465 SLEEVE; RUBBER
POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1103-1203 ● ●
465 SLEEVE; RUBBER
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1204- ● ●
468 NUT
POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> M12 FLANGE 		0-91180-112-0 02 1 1103-1203 ●

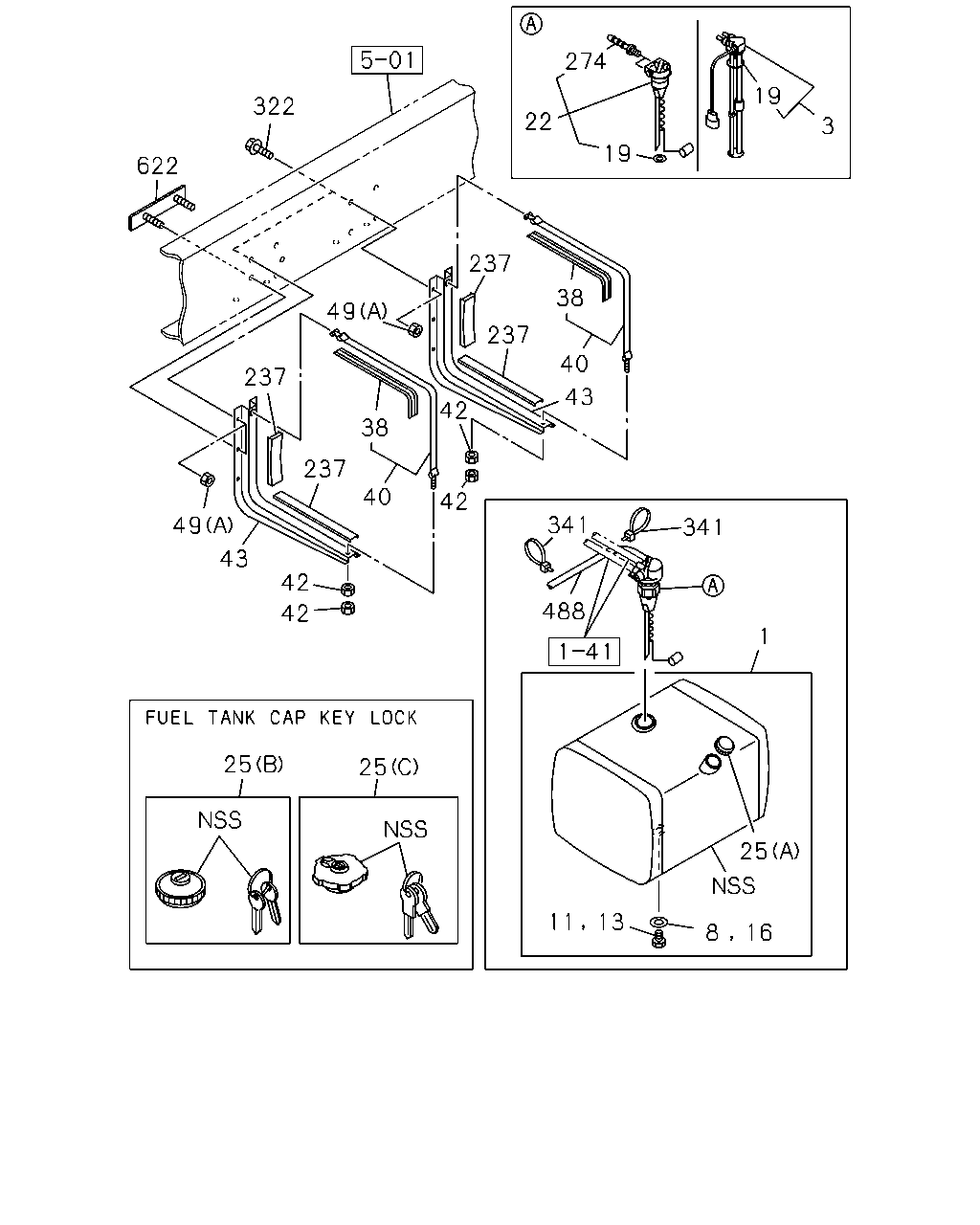

çizim 92894
341 1 488 341 25 16 8 13 11 25 25 40 237 38 42 42 42 43 42 49 237 49 237 237 38 40 19 43 22 274 19 3 322 622
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
1050X680X625 400L 		1-87411-699-1 01 1 1009-1109 ●
1 TANK; FUEL
FUEL TANK 400L<SDH> 1050X680X625 400L 		1-87411-699-1 01 1 1009-1109 ●
1 TANK; FUEL
1050X680X625 400L 		1-87411-788-2 01 1 1110-1203 ●
1 TANK; FUEL
FUEL TANK 400L<SDH> 1050X680X625 400L 		1-87411-788-2 01 1 1110-1203 ●
1 TANK; FUEL
1050X680X625 400L 		1-87411-788-3 01 1 1204- ● ●
1 TANK; FUEL
FUEL TANK 200L AL<THF> 514X685X625 200L 		1-87412-051-0 01 1 1009-1203 ●
3 UNIT; FUEL TANK,SUB 8-98217-749-0 01 1 1211- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
ID=18.2 T=1.6 		8-98030-453-0 01 1 1211- ● ●
11 PLUG; DRAIN,FUEL TANK
M18X12 		0-92002-418-0 01 1 1211- ● ●
13 PLUG; SCREW,SUB TANK JOINT
M18X12 		0-92002-418-0 01 1 1009-1210 ● ●
16 GASKET; PLUG
ID=18.2 T=1.6 		8-98030-453-0 01 1 1009-1210 ● ●
19 GASKET; FUEL TANK UNIT
ID=58 		1-83149-005-0 01 1 1009-1210 ● ●
19 GASKET; FUEL TANK UNIT
ID=54.5 		8-98299-580-0 01 1 1211- ● ●
22 UNIT; FUEL TANK 1-83141-132-0 01 1 1009-1210 ● ●
25 CAP; FILLER,FUEL TANK
(A) 		8-98182-306-0 01 1 1204- ● ●
25 CAP; FILLER,FUEL TANK
(A) 		8-98115-780-0 01 1 1009-1109 ●
25 CAP; FILLER,FUEL TANK
FUEL TANK 400L<SDH> (A) 		8-98115-780-0 01 1 1009-1109 ●
25 CAP; FILLER,FUEL TANK
(A) 		8-98182-306-0 01 1 1110-1203 ●
25 CAP; FILLER,FUEL TANK
FUEL TANK 400L<SDH> (A) 		8-98182-306-0 01 1 1110-1203 ●
25 CAP; FILLER,FUEL TANK
FUEL TANK CAP KEY LOCK<N05> (C) 		8-98108-595-0 01 1 1009-1203 ●
25 CAP; FILLER,FUEL TANK
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> (C) 		8-98108-595-0 01 1 1009-1203 ●
25 CAP; FILLER,FUEL TANK
FUEL TANK CAP KEY LOCK<N05> (C) 		8-98108-595-0 01 1 1204- ● ●
25 CAP; FILLER,FUEL TANK
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L AL<THF> (B) 		1-22440-057-2 01 1 1009-1203 ●
25 CAP; FILLER,FUEL TANK
FUEL TANK 200L AL<THF> (A) 		1-22440-056-0 01 1 1009-1203 ●
38 INSULATION; SUPPORT BELT
L=1156 		1-22553-039-1 02 1 1009- ● ●
40 BELT; SUPPORT,FUEL TANK
L=1210 		1-22550-261-0 02 1 1009-1110 ● ●
40 BELT; SUPPORT,FUEL TANK
L=1210 		8-98202-448-0 02 1 1111- ● ●
42 NUT; SUPPORT BELT
M10 		0-91110-510-0 04 1 1009- ● ●
43 BRACKET; FUEL TANK 1-53461-525-1 02 1 1009-1203 ●
43 BRACKET; FUEL TANK
FUEL TANK 400L<SDH> 		1-53461-525-1 02 1 1009-1203 ●
43 BRACKET; FUEL TANK 1-53461-525-1 02 1 1204- ● ●
43 BRACKET; FUEL TANK
FUEL TANK 200L AL<THF> 		1-53461-529-1 02 1 1009-1203 ●
49 NUT; BRKT
POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE 		0-91180-110-0 03 1 1103-1203 ●
49 NUT; BRKT
WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE 		0-91180-110-0 03 1 1103-1203 ●
49 NUT; BRKT
WHEEL BASE 4900MM(49W) (B) M10 FLANGE 		0-91180-110-0 04 1 1204-1208 ●
49 NUT; BRKT
WHEEL BASE 4900MM(49W) (B) M10 FLANGE 		0-91180-210-0 04 1 1209- ●
49 NUT; BRKT
WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) M10 FLANGE 		0-91180-110-0 04 1 1103-1203 ●
49 NUT; BRKT
WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (B) M10 FLANGE 		0-91180-110-0 02 1 1103-1203 ●
49 NUT; BRKT
(A) M12 		0-91110-512-0 08 1 1009- ● ●
237 GASKET; BRKT TO FUEL TANK 1-22553-037-0 04 1 1009-1203 ●
237 GASKET; BRKT TO FUEL TANK
FUEL TANK 400L<SDH> 		1-22553-037-0 04 1 1009-1203 ●
237 GASKET; BRKT TO FUEL TANK 1-22553-037-1 04 1 1204- ● ●
237 GASKET; BRKT TO FUEL TANK
FUEL TANK 200L AL<THF> L=450 		1-22553-042-0 02 1 1009-1203 ●
237 GASKET; BRKT TO FUEL TANK
FUEL TANK 200L AL<THF> L=540 		1-22553-064-0 02 1 1009-1203 ●
274 CONNECTOR; ELBOW,FUEL TANK PIPE 1-83149-006-0 02 1 1204-1210 ● ●
322 BOLT; BRKT FIX
M12X40 FLANGE 		0-28051-240-0 10 1 1009-1203 ●
322 BOLT; BRKT FIX
FUEL TANK 400L<SDH> M12X40 FLANGE 		0-28051-240-0 10 1 1009-1203 ●
322 BOLT; BRKT FIX
M12X40 FLANGE 		0-28051-240-0 10 1 1204- ● ●
322 BOLT; BRKT FIX
FUEL TANK 200L AL<THF> M12X40 FLANGE 		0-28051-240-0 08 1 1009-1203 ●
341 CLIP; BAND,RUBBER HOSE
L=350 		1-09707-183-0 02 1 1009- ● ●
488 HOSE; RUBBER 8-98134-936-0 01 1 1009- ● ●
622 STUD; BRACKET 1-53461-534-0 01 1 1009-1203 ●
622 STUD; BRACKET
FUEL TANK 400L<SDH> 		1-53461-534-0 01 1 1009-1203 ●
622 STUD; BRACKET 1-53461-534-0 01 1 1204- ● ●
