1-10 — RADIATOR
(#71864) — 67 parça
◀

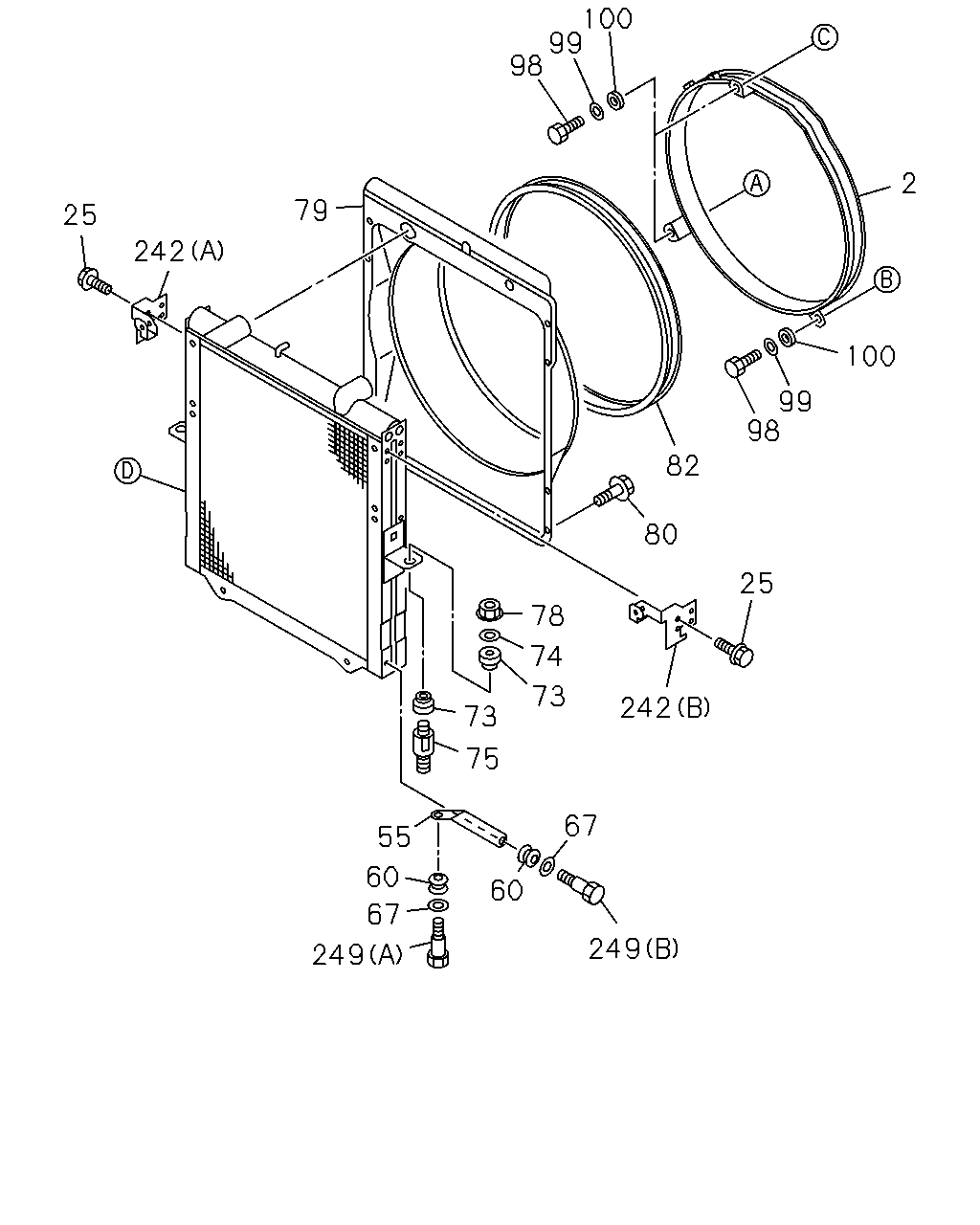

[110A] NO.1 (20 parça)

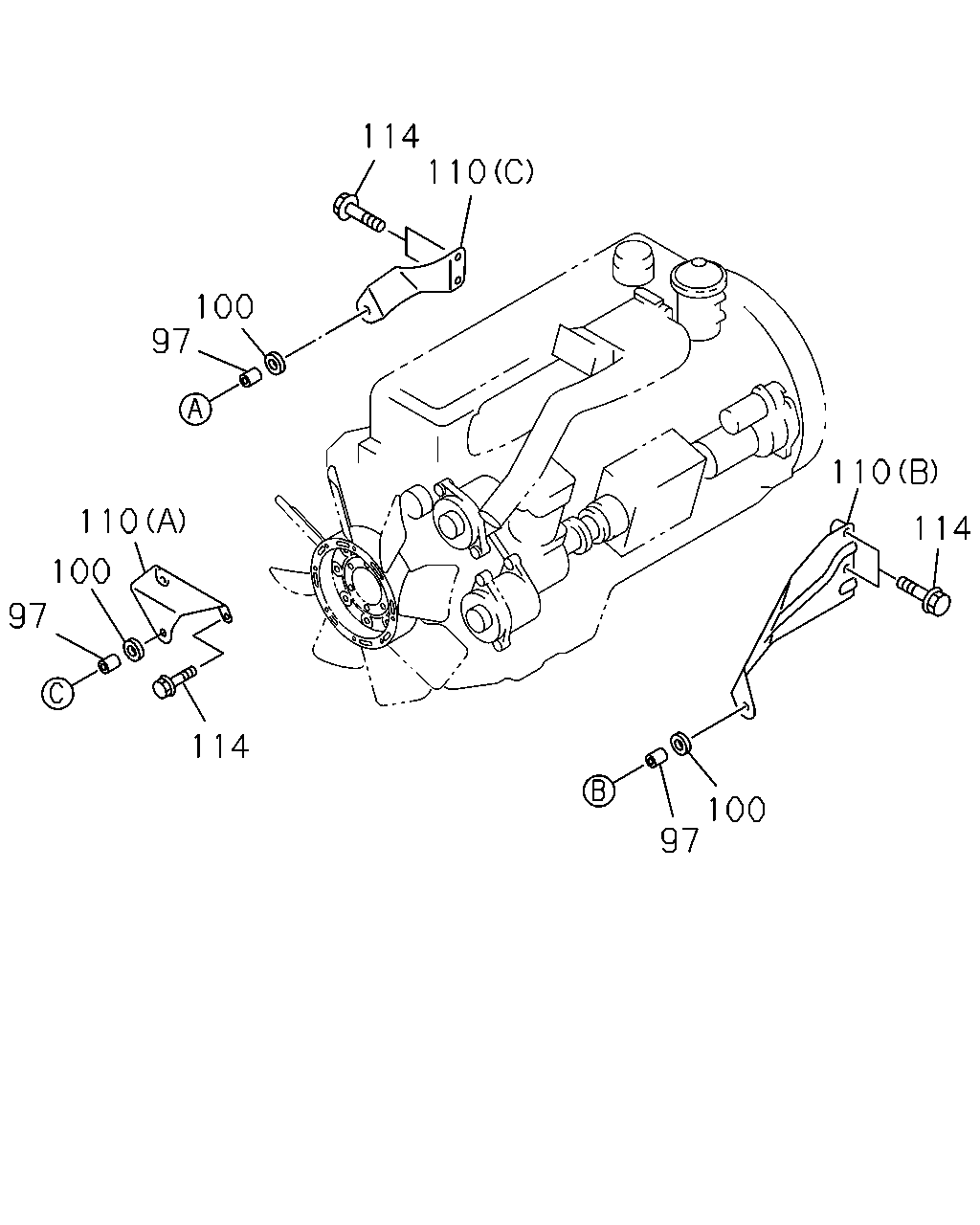

[110A] NO.2 (13 parça)
[110A] NO.3 (14 parça)
[110A] NO.4 (14 parça)

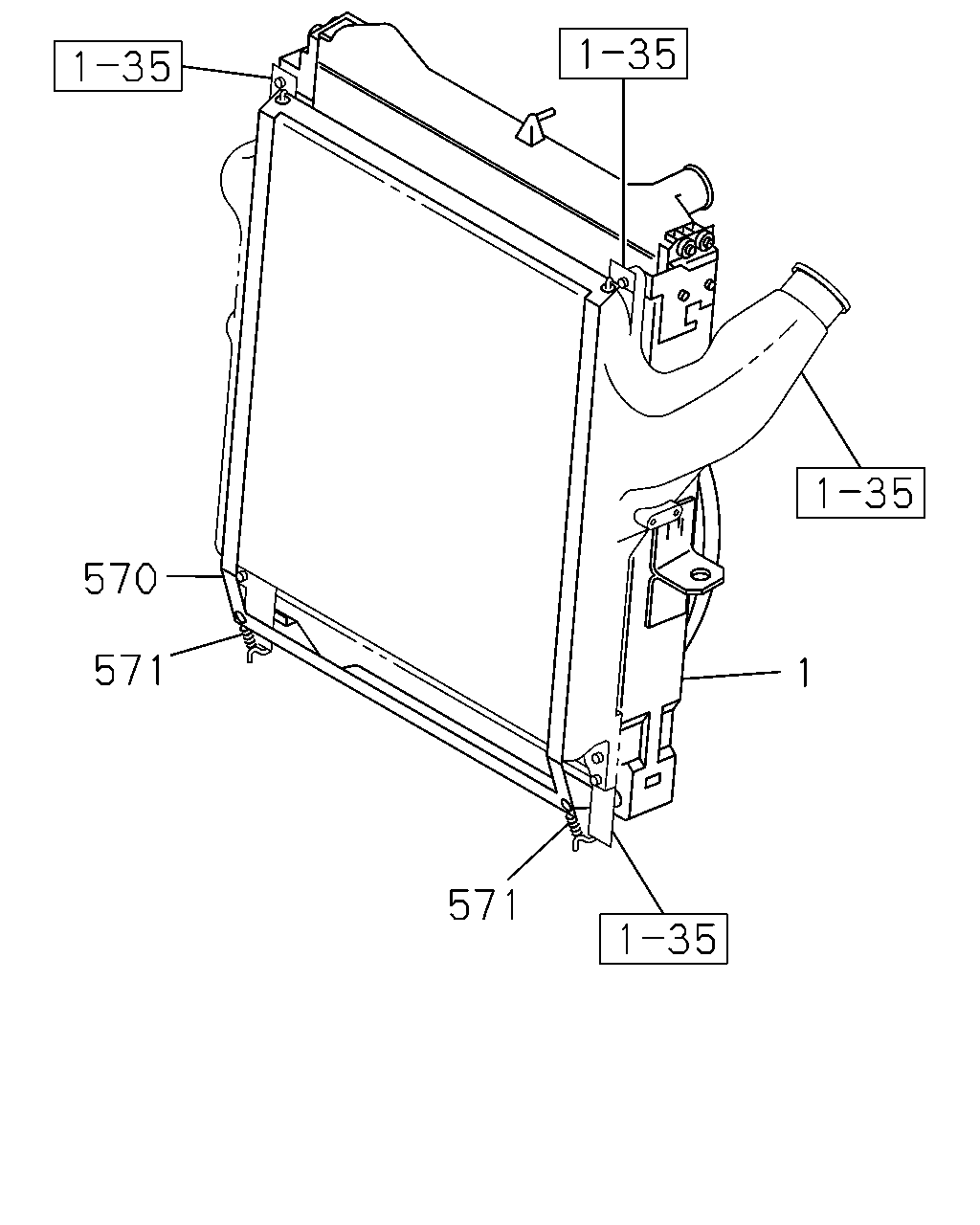

[110A] NO.5 (6 parça)
▶
100
99
98
2
100
99
98
82
80
25
242
78
74
73
73
75
67
249
60
55
60
67
249
25
242
79
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GUIDE; FAN
8-97615-753-1
01
1
1009-
25
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
04
1
1009-
55
STAY; RAD TO UPR MBR
8-98055-802-0
01
1
1009-
55
STAY; RAD TO UPR MBR
8-98055-805-0
01
1
1009-
60
GROMMET
1-09332-117-0
04
1
1009-
67
WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26
0-91610-612-0
04
1
1009-
73
RUBBER; CUSHION,RAD MTG
T=14
1-21467-004-0
04
1
1009-
74
WASHER; PL,CUSHION RUBBER
ID=11 OD=54
1-09503-154-2
02
1
1009-
75
BOLT; CUSHION RUBBER,RAD MTG
1-21466-005-0
02
1
1009-
78
NUT; CUSHION RUBBER
M10 FLANGE
0-91180-210-0
02
1
1009-
79
GUIDE; FAN,RAD
1-21551-545-1
01
1
1009-
80
BOLT; FAN GUIDE
M8X16 FLANGE
0-28050-816-0
06
1
1009-
82
COVER; FAN,RAD
1-21559-491-1
01
1
1009-
98
BOLT; RAD FAN GUIDE
M10X45 FLANGE
0-28051-045-0
03
1
1009-
99
WASHER; PL
ID=10.5 OD=26
0-91614-710-0
03
1
1009-
100
RUBBER; MTG
1-09337-017-0
06
1
1009-
242
BRACKET; RAD
(A)
8-98089-511-1
01
1
1009-
242
BRACKET; RAD
(B)
8-98089-512-1
01
1
1009-
249
BOLT; STAY,RAD MBR
(A) M8X30
1-09009-020-1
02
1
1009-
249
BOLT; STAY,RAD MBR
(B) M8X26
1-09009-175-0
02
1
1009-
114
110
100
97
110
100
97
114
97
100
110
114
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
97
TUBE; DIST,FAN GUIDE
ID=11.8 L=27
1-21559-149-0
03
1
1009-
100
RUBBER; MTG
1-09337-017-0
06
1
1009-
110
STAY; FAN GUIDE
(A)
8-97604-861-1
01
1
1009-
110
STAY; FAN GUIDE
(B)
8-97607-503-0
01
1
1009-
110
STAY; FAN GUIDE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C)
8-97607-501-0
01
1
1009-1302
110
STAY; FAN GUIDE
(C)
8-97607-501-0
01
1
1303-
110
STAY; FAN GUIDE
HEATER & DEFROSTER(C41) (C)
8-97607-500-0
01
1
1009-1302
114
BOLT; STAY
M10X20 FLANGE
0-28151-020-0
02
1
1009-1302
114
BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M10X20 FLANGE
0-28151-020-0
02
1
1009-1302
114
BOLT; STAY
M10X20 FLANGE
0-28151-020-0
04
1
1303-
114
BOLT; STAY
M10X40 FLANGE
0-28151-040-0
02
1
1009-1302
114
BOLT; STAY
HEATER & DEFROSTER(C41) M10X40 FLANGE
0-28151-040-0
02
1
1009-1302
114
BOLT; STAY
M10X40 FLANGE
0-28151-040-0
02
1
1303-
526
1
528
529
267
232
89
528
267
235
89
51
527
529
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
8-98060-764-4
01
1
1009-1203
1
RADIATOR ASM
8-98203-777-0
01
1
1204-
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1009-
89
BOLT
(A) M6X12 FLANGE
0-28050-612-0
02
1
1009-
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
04
1
1009-
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
04
1
1009-
235
WASHER; CUSHION RUBBER
1-21469-133-0
02
1
1009-
267
RUBBER; CUSHION
(A)
1-21469-130-0
04
1
1009-
267
RUBBER; CUSHION
(B)
1-21469-131-0
02
1
1009-
526
TANK; UPR,RADIATOR CORE
1-21414-031-1
01
1
1009-
527
TANK; LWR,RADIATOR CORE
1-21415-031-2
01
1
1009-
528
PLATE; SIDE,RADIATOR CORE
8-98060-765-2
01
1
1009-
528
PLATE; SIDE,RADIATOR CORE
8-98060-766-2
01
1
1009-
529
GASKET; CORE,RADIATOR
1-21439-121-0
02
1
1009-
1
526
528
529
232
89
528
267
235
89
51
527
267
529
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
8-98060-764-4
01
1
1009-1203
1
RADIATOR ASM
8-98203-777-0
01
1
1204-
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1009-
89
BOLT
(A) M6X12 FLANGE
0-28050-612-0
02
1
1009-
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
04
1
1009-
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
04
1
1009-
235
WASHER; CUSHION RUBBER
1-21469-133-0
02
1
1009-
267
RUBBER; CUSHION
(A)
1-21469-130-0
04
1
1009-
267
RUBBER; CUSHION
(B)
1-21469-131-0
02
1
1009-
526
TANK; UPR,RADIATOR CORE
1-21414-031-1
01
1
1009-
527
TANK; LWR,RADIATOR CORE
1-21415-031-2
01
1
1009-
528
PLATE; SIDE,RADIATOR CORE
8-98060-765-2
01
1
1009-
528
PLATE; SIDE,RADIATOR CORE
8-98060-766-2
01
1
1009-
529
GASKET; CORE,RADIATOR
1-21439-121-0
02
1
1009-
1
571
571
570
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
8-98060-764-4
01
1
1009-1203
1
RADIATOR ASM
8-98203-777-0
01
1
1204-
570
SCREEN ASM; RADIATOR
RADIATOR PROTECTOR<YC6>
8-98202-048-1
01
1
1204-1501
570
SCREEN ASM; RADIATOR
RADIATOR PROTECTOR<YC6>
8-98287-800-0
01
1
1502-
571
SPRING; RADIATOR SCREEN
RADIATOR PROTECTOR<YC6>
8-98202-052-0
02
1
1204-1209
571
SPRING; RADIATOR SCREEN
RADIATOR PROTECTOR<YC6>
8-98211-362-0
02
1
1210-
