0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#71859) — 79 parça

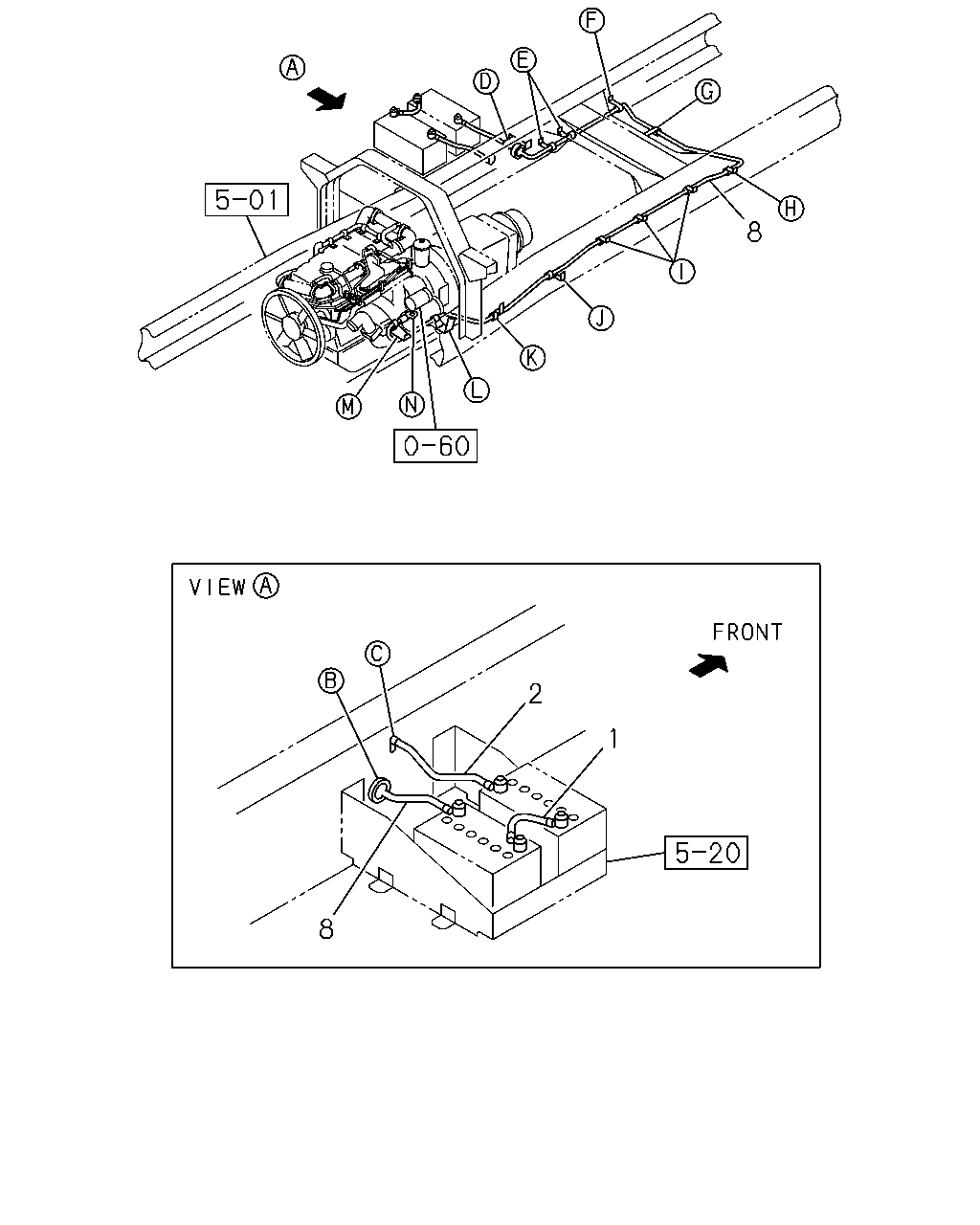

çizim 73438
8 2 1 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; BATTERY
BATTERY 115E41L<8MA> L=265 		1-82650-388-1 01 1 1009- ● ●
1 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=265 		8-98168-288-0 01 1 1009- ● ●
2 CABLE; BATTERY
L=250 		8-98105-795-0 01 1 1009- ● ●
8 CABLE; BATTERY,STARTER
L=4630 		8-98075-618-3 01 1 1009- ●
8 CABLE; BATTERY,STARTER
EXC. ENGINE REAR PTO(SV1) L=4630 		8-98075-618-3 01 1 1009- ●
8 CABLE; BATTERY,STARTER
ENGINE REAR PTO(SV1) L=4680 		8-98105-931-3 01 1 1009- ●

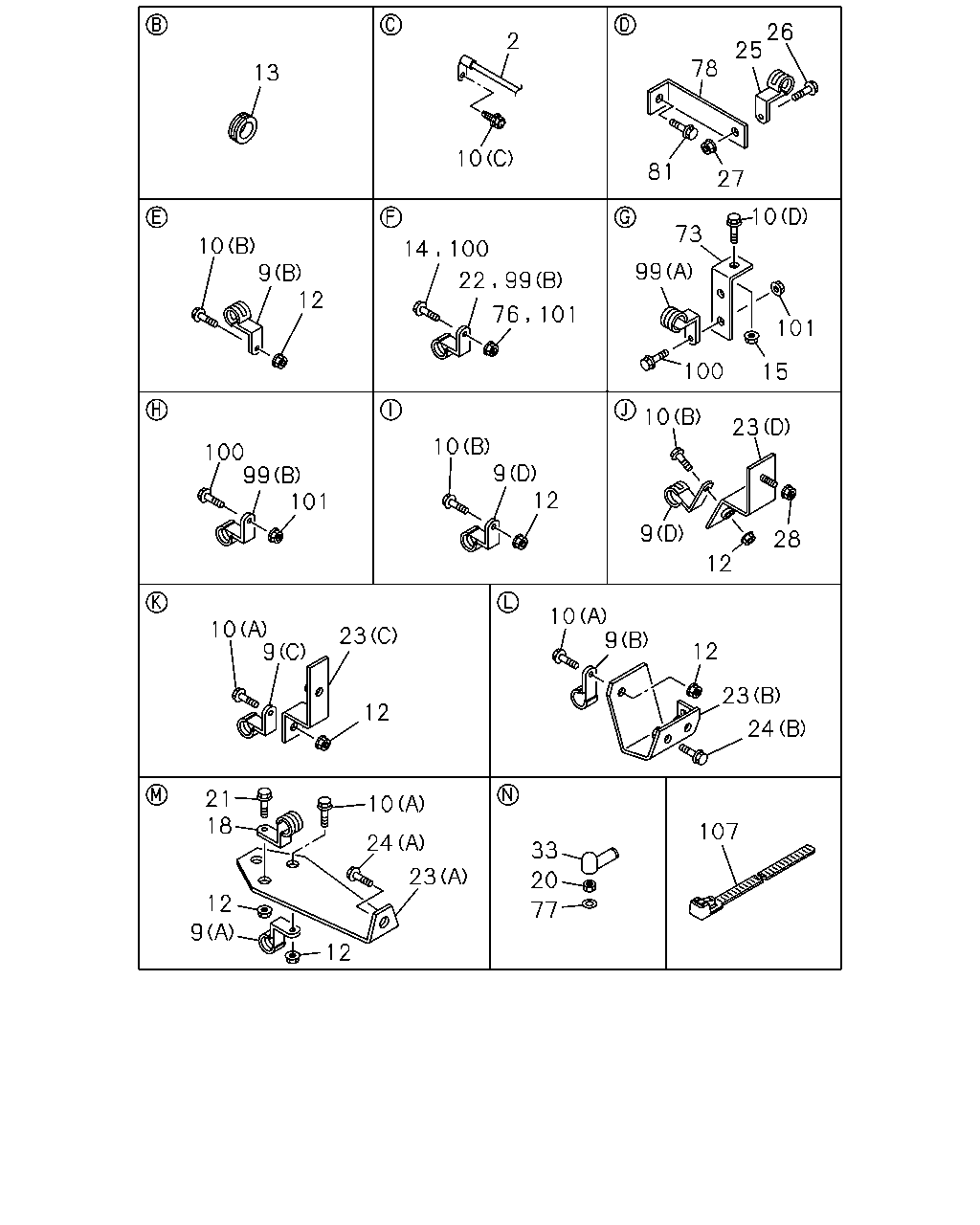

çizim 189966
13 2 10 81 78 27 25 26 10 101 15 100 99 73 101 76 22 100 14 99 10 12 9 100 101 99 10 12 9 10 9 23 28 12 24 23 12 9 10 12 23 9 10 21 18 12 9 12 23 24 10 33 20 77 107
BalonParca AdiParca NoAdetTipApplied Date A B
2 CABLE; BATTERY
L=250 		8-98105-795-0 01 1 1009- ● ●
9 CLIP; BATTERY CABLE
WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> (C) ID=18 L=25 H=50 		1-09701-096-0 02 1 1103-1203 ●
9 CLIP; BATTERY CABLE
WHEEL BASE 4900MM(49W) (C) ID=18 L=25 H=50 		1-09701-096-0 02 1 1204- ●
9 CLIP; BATTERY CABLE
(C) ID=18 L=25 H=50 		1-09701-096-0 03 1 1009-1102 ● ●
9 CLIP; BATTERY CABLE
(C) ID=18 L=25 H=50 		1-09701-096-0 03 1 1103-1203 ●
9 CLIP; BATTERY CABLE
WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> (C) ID=18 L=25 H=50 		1-09701-096-0 03 1 1103-1203 ●
9 CLIP; BATTERY CABLE
EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=18 L=25 H=50 		1-09701-096-0 03 1 1103-1203 ●
9 CLIP; BATTERY CABLE
WHEEL BASE 6600MM(66W) (C) ID=18 L=25 H=50 		1-09701-096-0 03 1 1204- ● ●
9 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009- ● ●
9 CLIP; BATTERY CABLE
(B) ID=18 L=28 		1-09701-067-0 01 1 1009- ● ●
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 H=30 		1-09701-110-0 02 1 1009-1302 ● ●
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 H=30 		1-09701-110-0 02 1 1303- ● ●
10 BOLT; BATTERY CABLE CLIP
WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> (B) M8X30 FLANGE 		0-28650-830-0 02 1 1103-1203 ●
10 BOLT; BATTERY CABLE CLIP
WHEEL BASE 4900MM(49W) (B) M8X30 FLANGE 		0-28650-830-0 02 1 1204- ●
10 BOLT; BATTERY CABLE CLIP
(D) M8X25 FLANGE 		0-28650-825-0 01 1 1009- ● ●
10 BOLT; BATTERY CABLE CLIP
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 1009-1201 ● ●
10 BOLT; BATTERY CABLE CLIP
(C) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202- ● ●
10 BOLT; BATTERY CABLE CLIP
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1009- ● ●
10 BOLT; BATTERY CABLE CLIP
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1009-1102 ● ●
10 BOLT; BATTERY CABLE CLIP
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1103-1203 ●
10 BOLT; BATTERY CABLE CLIP
WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> (B) M8X30 FLANGE 		0-28650-830-0 03 1 1103-1203 ●
10 BOLT; BATTERY CABLE CLIP
EXC. POOR QUALITY DIESEL FUEL<KF0> (B) M8X30 FLANGE 		0-28650-830-0 03 1 1103-1203 ●
10 BOLT; BATTERY CABLE CLIP
WHEEL BASE 6600MM(66W) (B) M8X30 FLANGE 		0-28650-830-0 03 1 1204- ● ●
12 NUT; BATTERY CABLE CLIP
WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE 		0-91180-108-0 03 1 1103-1203 ●
12 NUT; BATTERY CABLE CLIP
WHEEL BASE 4900MM(49W) M8 FLANGE 		0-91180-108-0 03 1 1204- ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 04 1 1009-1102 ● ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 04 1 1103-1203 ●
12 NUT; BATTERY CABLE CLIP
WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE 		0-91180-108-0 04 1 1103-1203 ●
12 NUT; BATTERY CABLE CLIP
EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE 		0-91180-108-0 04 1 1103-1203 ●
12 NUT; BATTERY CABLE CLIP
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 04 1 1204- ● ●
13 GROMMET; BATTERY CABLE
ID=32 OD=40 T=23 		1-09332-112-0 01 1 1009-1203 ● ●
13 GROMMET; BATTERY CABLE
ID=39 OD=45 T=19 		1-09332-077-0 01 1 1204- ● ●
14 BOLT; BRKT CLIP
M8X35 FLANGE 		0-28650-835-0 01 1 1009- ● ●
15 NUT; BRKT CLIP
M8 FLANGE 		0-91180-108-0 01 1 1009-1203 ● ●
15 NUT; BRKT CLIP
M8 FLANGE 		0-91180-108-0 01 1 1009-1203 ● ●
15 NUT; BRKT CLIP
M8 FLANGE 		0-91180-108-0 02 1 1204- ● ●
18 CLIP; BATTERY CABLE
ID=20 H=23 L=27 		1-09700-861-0 01 1 1009- ● ●
20 NUT; STARTER CABLE
M10 		8-98011-328-0 01 1 1009- ● ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28650-820-0 01 1 1009- ● ●
22 CLIP; BATTERY CABLE
ID=18 L=28 H=30 		1-09701-110-0 01 1 1009- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(B) 		1-47471-215-1 01 1 1009- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(C) L=85 H=40 		1-47476-676-0 01 1 1009- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(A) 		1-47479-779-0 01 1 1009- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(D) 		1-82698-614-0 01 1 1009- ● ●
24 BOLT; BRKT TO FRAME
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1009- ● ●
24 BOLT; BRKT TO FRAME
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1009- ● ●
25 CLIP; BATTERY CABLE TO BRKT
ID=18 L=25 H=50 		1-09701-096-0 02 1 1009- ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1009- ● ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009- ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 1009- ● ●
33 CAP; INSULATOR 1-82699-431-0 01 1 1009- ● ●
73 BRACKET; BATTERY CABLE 1-47478-901-0 01 1 1009-1404 ● ●
73 BRACKET; BATTERY CABLE 8-98259-391-0 01 1 1405- ● ●
76 NUT; BATTERY CABLE
M8 FLANGE 		0-91180-108-0 01 1 1009- ● ●
77 WASHER; LK,STARTER CABLE
ID=10.2 		0-91510-810-0 01 1 1009- ● ●
78 BRACKET; CLIP BATTERY
L=95 		1-82699-085-0 01 1 1009- ● ●
81 BOLT; BATTERY CABLE
M8X20 FLANGE 		0-28650-820-0 01 1 1009- ● ●
99 CLIP; BATTERY CABLE
WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> (B) ID=18 L=25 H=50 		1-09701-096-0 01 1 1103-1203 ●
99 CLIP; BATTERY CABLE
WHEEL BASE 4900MM(49W) (B) ID=18 L=25 H=50 		1-09701-096-0 01 1 1204- ●
99 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009- ● ●
99 CLIP; BATTERY CABLE
(B) ID=18 L=25 H=50 		1-09701-096-0 02 1 1009- ● ●
100 BOLT; BATTERY CABLE CLIP
WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> M8X30 FLANGE 		0-28650-830-0 01 1 1103-1203 ●
100 BOLT; BATTERY CABLE CLIP
WHEEL BASE 4900MM(49W) M8X30 FLANGE 		0-28650-830-0 01 1 1204- ●
100 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 1009-1203 ● ●
100 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 1204- ● ●
101 NUT; BATTERY CABLE CLIP
WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE 		0-91180-108-0 04 1 1103-1203 ●
101 NUT; BATTERY CABLE CLIP
WHEEL BASE 4900MM(49W) M8 FLANGE 		0-91180-108-0 04 1 1204- ●
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1009-1102 ● ●
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1103-1203 ●
101 NUT; BATTERY CABLE CLIP
WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE 		0-91180-108-0 03 1 1103-1203 ●
101 NUT; BATTERY CABLE CLIP
EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE 		0-91180-108-0 03 1 1103-1203 ●
101 NUT; BATTERY CABLE CLIP
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 03 1 1204- ● ●
107 CLIP; BAND
L=350 		1-09707-183-0 01 1 1009- ● ●
