◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11317 - FXZ(AUST)EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#71858) — 71 parça

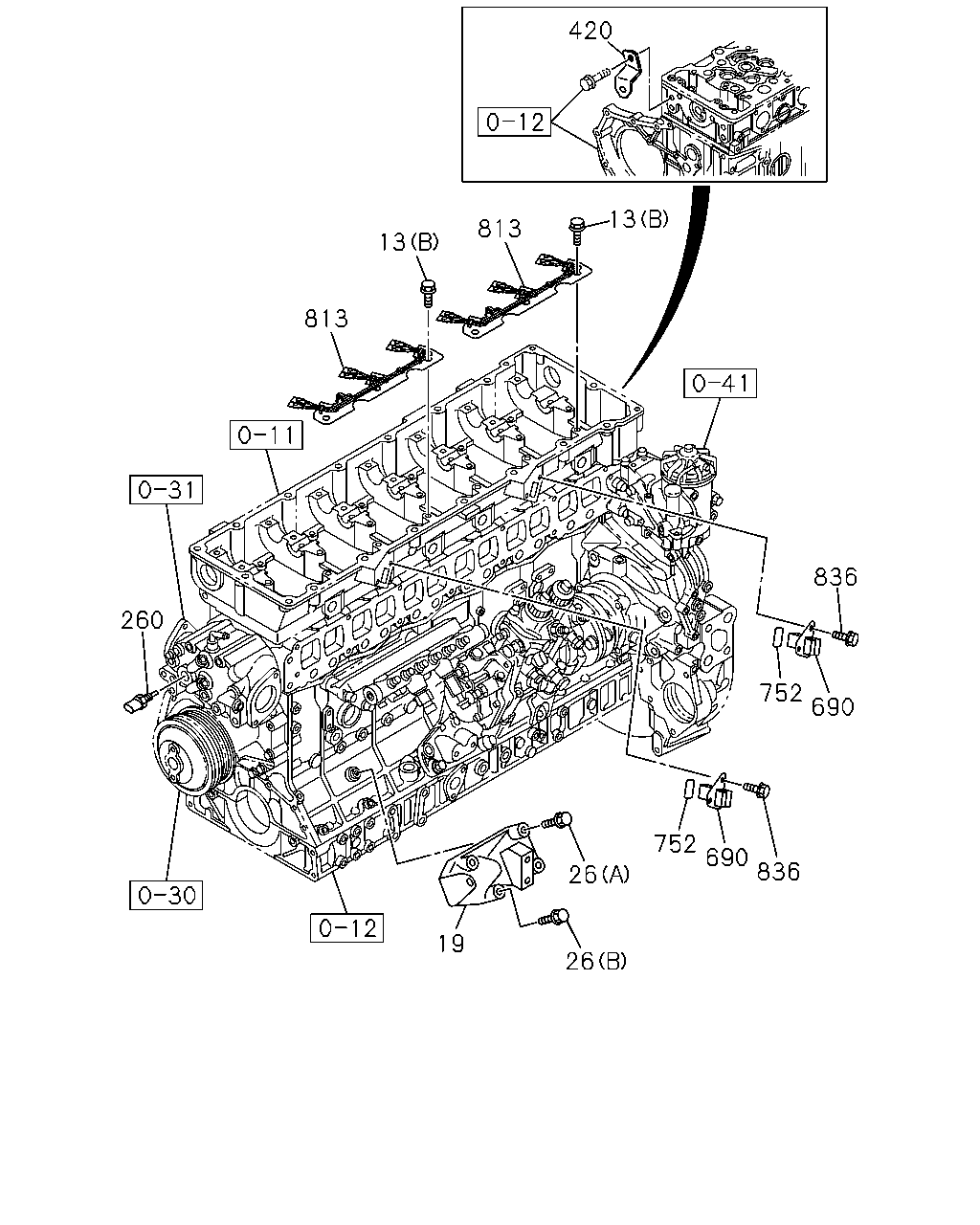

çizim 72571
26 26 752 690 836 690 752 836 19 13 813 13 813 260 420
BalonParca AdiParca NoAdetTipApplied Date A B
13 BOLT; BRKT
(C) M8X20 FLANGE 		0-28050-820-0 04 1 1009- ● ●
13 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 06 1 1009- ● ●
13 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1009- ● ●
19 BRACKET; GEN 8-97605-943-0 01 1 1009- ● ●
26 BOLT; GEN BRKT
(A) M12X50 FLANGE 		0-28151-250-0 03 1 1009- ● ●
26 BOLT; GEN BRKT
(B) M12X70 FLANGE 		0-28151-270-0 01 1 1009- ● ●
260 SENSOR; WATER TEMP
MITSUBISHI 		8-98023-883-0 01 1 1009-1406 ● ●
260 SENSOR; WATER TEMP
NISHIDA 		8-98260-257-0 01 1 1407- ● ●
420 BRACKET; HARNESS
ENGINE REAR PTO(SV1) 		8-98024-768-1 01 1 1009- ●
690 CONNECTOR 8-94390-858-1 02 1 1009- ● ●
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 1009- ● ●
813 HARNESS; INJECTOR 8-97603-762-1 02 1 1009- ● ●
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 04 1 1009- ● ●

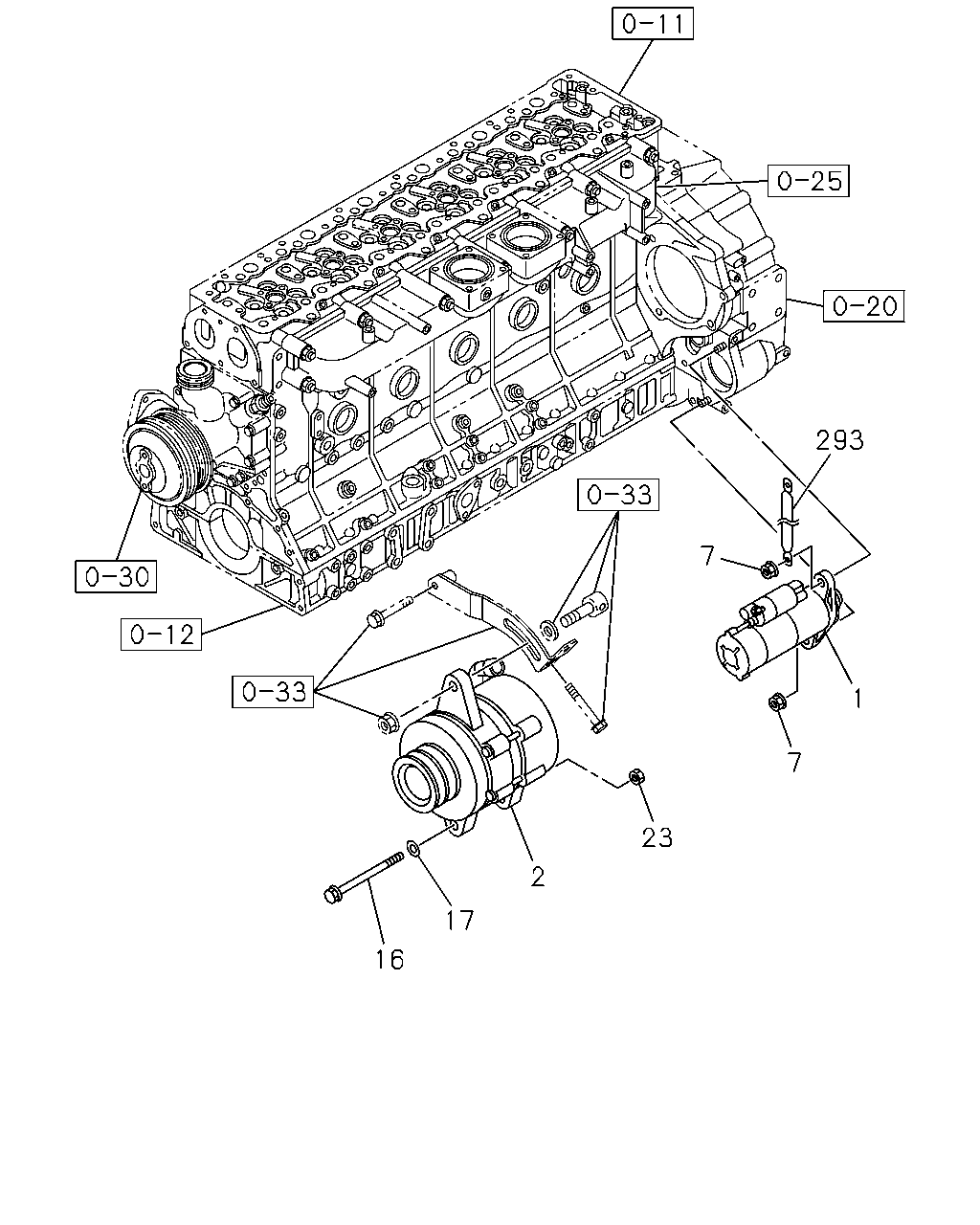

çizim 72962
23 2 17 16 7 1 7 293
BalonParca AdiParca NoAdetTipApplied Date A B
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		1-81100-432-2 01 1 1009-1209 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98222-203-2 01 1 1210- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A MITSUBISHI 		8-98127-497-0 01 1 1009-1112 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A MITSUBISHI 		8-98200-164-0 01 1 1201-1203 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A MITSUBISHI 		8-98127-498-0 01 1 1009-1203 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO 		8-98169-360-2 01 1 1204- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A MITSUBISHI 		8-98127-499-0 01 1 1009- ● ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 02 1 1009- ● ●
16 BOLT; GEN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M14X123 		9-09801-204-1 01 1 1009-1203 ● ●
16 BOLT; GEN
GENERATOR 24V60A(KG2) M14X123 		9-09801-204-1 01 1 1204- ● ●
16 BOLT; GEN
GENERATOR 24V90A(K44) M14X157 		1-09040-106-0 01 1 1009- ● ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 1009- ● ●
23 NUT; GEN
M14 FLANGE 		0-91150-114-0 01 1 1009- ● ●
293 CABLE; STARTER EARTH 8-97633-822-0 01 1 1009- ●
293 CABLE; STARTER EARTH
EXC. ENGINE REAR PTO(SV1) 		8-97633-822-0 01 1 1009- ●
293 CABLE; STARTER EARTH
ENGINE REAR PTO(SV1) 		1-82650-410-1 01 1 1009- ●

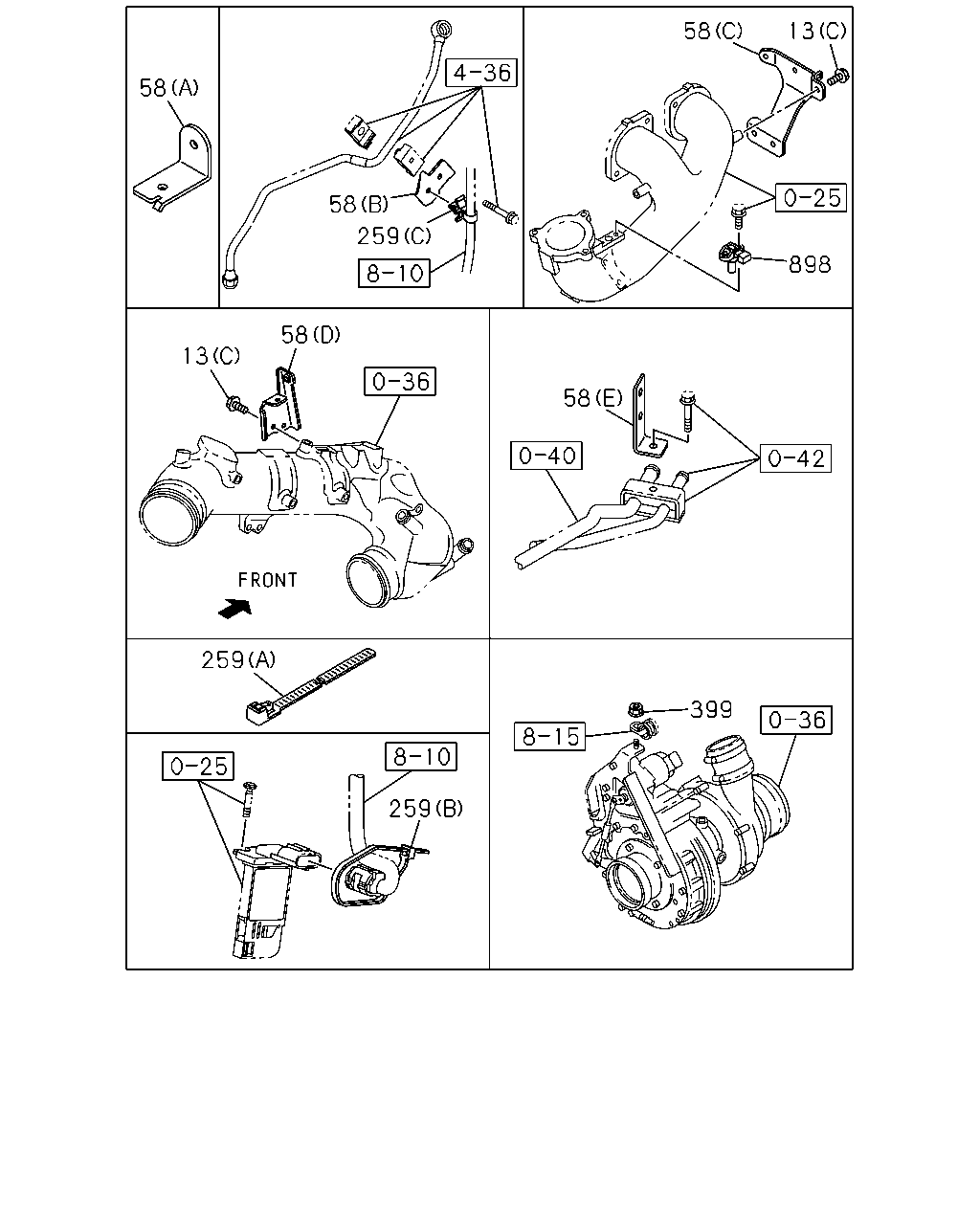

çizim 73213
58 58 58 13 898 259 13 58 58 259 259 399
BalonParca AdiParca NoAdetTipApplied Date A B
13 BOLT; BRKT
(C) M8X20 FLANGE 		0-28050-820-0 04 1 1009- ● ●
13 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 06 1 1009- ● ●
13 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1009- ● ●
58 BRACKET; CLIP
(B) 		8-97625-412-0 02 1 1009- ●
58 BRACKET; CLIP
EXC. ENGINE REAR PTO(SV1) (B) 		8-97625-412-0 02 1 1009- ●
58 BRACKET; CLIP
(D) 		8-97628-321-1 01 1 1009- ● ●
58 BRACKET; CLIP
(C) 		8-97633-824-1 01 1 1009- ● ●
58 BRACKET; CLIP
(A) 		8-97633-825-1 01 1 1009- ● ●
58 BRACKET; CLIP
ENGINE REAR PTO(SV1) (B) 		8-97625-412-0 01 1 1009- ●
58 BRACKET; CLIP
ENGINE REAR PTO(SV1) (E) 		8-98021-694-1 01 1 1009- ●
259 CLIP; BAND,HARNESS TO OIL PIPE
(A) L=250 		5-09707-030-1 09 1 1009-1205 ● ●
259 CLIP; BAND,HARNESS TO OIL PIPE
(A) L=250 		8-98216-430-0 09 1 1206- ● ●
259 CLIP; BAND,HARNESS TO OIL PIPE
(B) L=251 		8-97619-917-0 01 1 1009- ● ●
259 CLIP; BAND,HARNESS TO OIL PIPE
(C) L=109.5 		8-97807-385-0 01 1 1009- ● ●
259 CLIP; BAND,HARNESS TO OIL PIPE
ENGINE REAR PTO(SV1) (A) L=250 		5-09707-030-1 01 1 1009-1205 ●
259 CLIP; BAND,HARNESS TO OIL PIPE
ENGINE REAR PTO(SV1) (A) L=250 		8-98216-430-0 01 1 1206- ●
399 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1009- ● ●
898 SENSOR; BOOST 8-98009-418-0 01 1 1009- ● ●

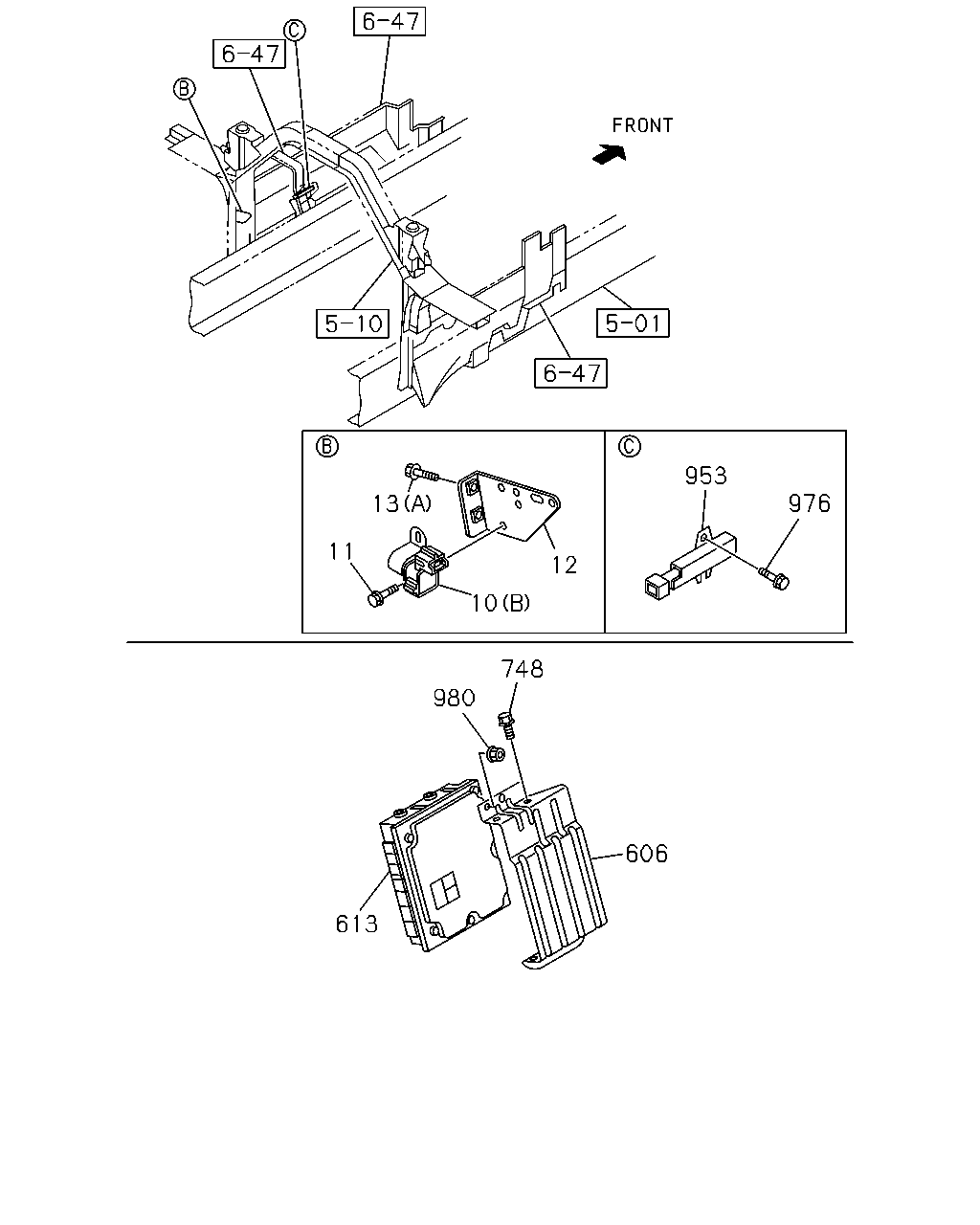

çizim 73291
606 613 980 10 12 953 976 13 11 748
BalonParca AdiParca NoAdetTipApplied Date A B
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 1009- ● ●
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-98167-173-0 01 1 1009- ● ●
11 BOLT; RELAY STARTER
M8X25 FLANGE 		0-28650-825-0 02 1 1009- ● ●
12 BRACKET; STARTER RELAY 8-97620-875-2 01 1 1009- ● ●
13 BOLT; BRKT
(C) M8X20 FLANGE 		0-28050-820-0 04 1 1009- ● ●
13 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 06 1 1009- ● ●
13 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1009- ● ●
606 BRACKET; CONT UNIT 8-98168-567-0 01 1 1009- ● ●
613 CONTROL UNIT; ENG
A/T ALLISON 4430(Y5V) 		8-97642-453-0 01 1 1303- ● ●
613 CONTROL UNIT; ENG 8-97636-973-2 01 1 1009-1203 ● ●
613 CONTROL UNIT; ENG
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		8-97636-973-2 01 1 1204- ● ●
748 BOLT; CONT UNIT
M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 1009- ● ●
953 RESISTOR; CONT UNIT 8-97357-613-0 01 1 1009- ● ●
976 BOLT; RESISTOR
M6X20 FLANGE 		0-28650-620-0 02 1 1009- ● ●
980 NUT; CONT UNIT
M8 FLANGE 		0-91180-108-0 04 1 1009- ● ●
çizim 189962
10
BalonParca AdiParca NoAdetTipApplied Date A B
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 1009- ● ●
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-98167-173-0 01 1 1009- ● ●
çizim 189964
441 428
BalonParca AdiParca NoAdetTipApplied Date A B
428 CLIP; HARNESS
ID=32 L=35 		1-09701-244-0 03 1 1009- ● ●
441 BOLT; HARNESS TO FRAME
M8X20 FLANGE 		0-28650-820-0 01 1 1009- ● ●
441 BOLT; HARNESS TO FRAME
M8X35 FLANGE 		0-28650-835-0 02 1 1009- ● ●

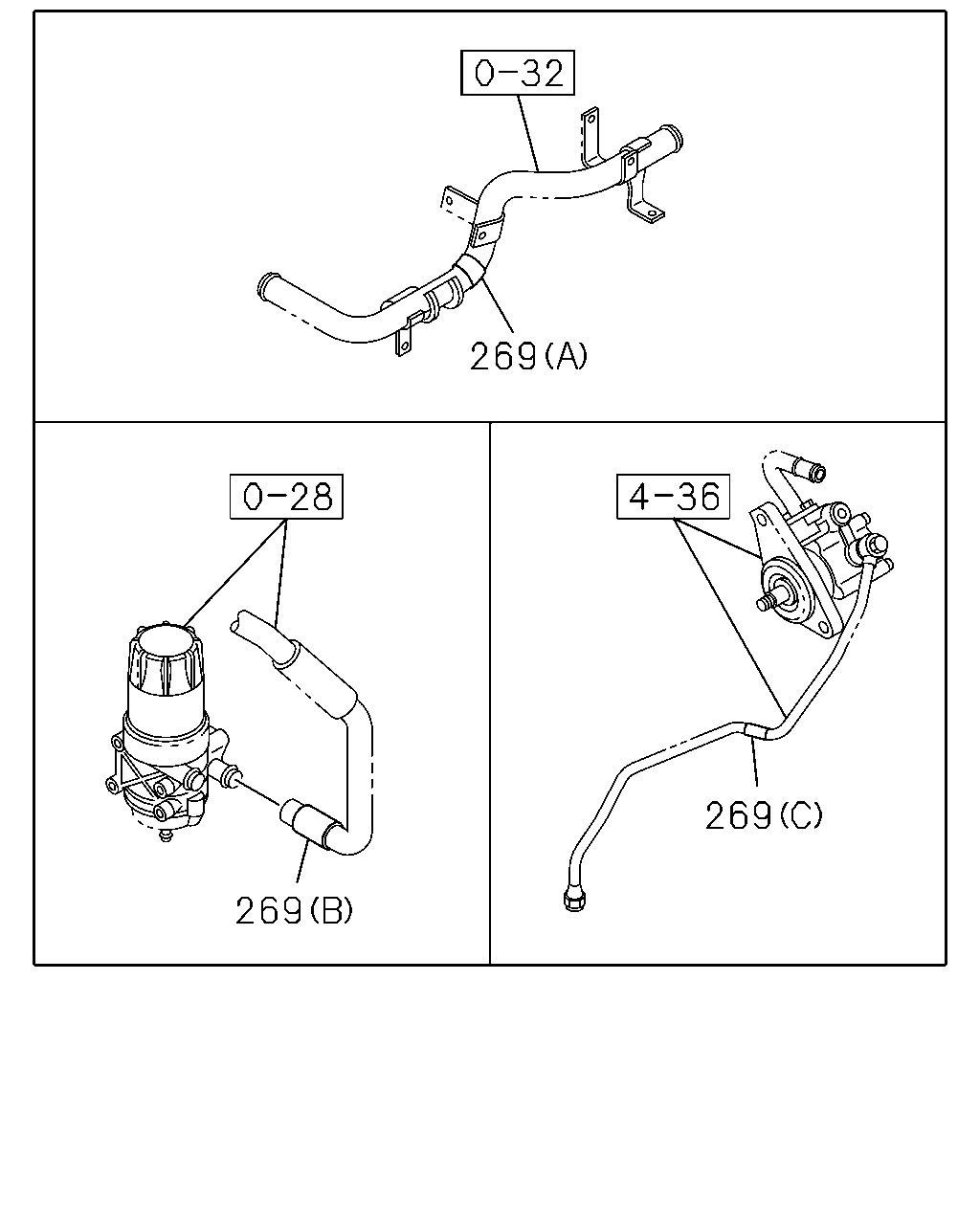

çizim 189965
269 269 269
BalonParca AdiParca NoAdetTipApplied Date A B
269 SLEEVE; RUBBER,CABLE
(A) ID=17 OD=21 L=40 		1-09337-012-0 01 1 1009- ● ●
269 SLEEVE; RUBBER,CABLE
(B) ID=32 OD=36 L=50 		1-09337-023-0 01 1 1009- ● ●
269 SLEEVE; RUBBER,CABLE
(C) ID=10 OD=14 L=30 		9-09956-682-0 02 1 1009- ● ●
269 SLEEVE; RUBBER,CABLE
ENGINE REAR PTO(SV1) (C) ID=10 OD=14 L=30 		9-09956-682-0 01 1 1009- ●
