Isuzu WW
▶
TRUCKS
▶
FVR
▶
11370 - FVR(RHD)W/DOC EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#71849) — 25 parça
◀

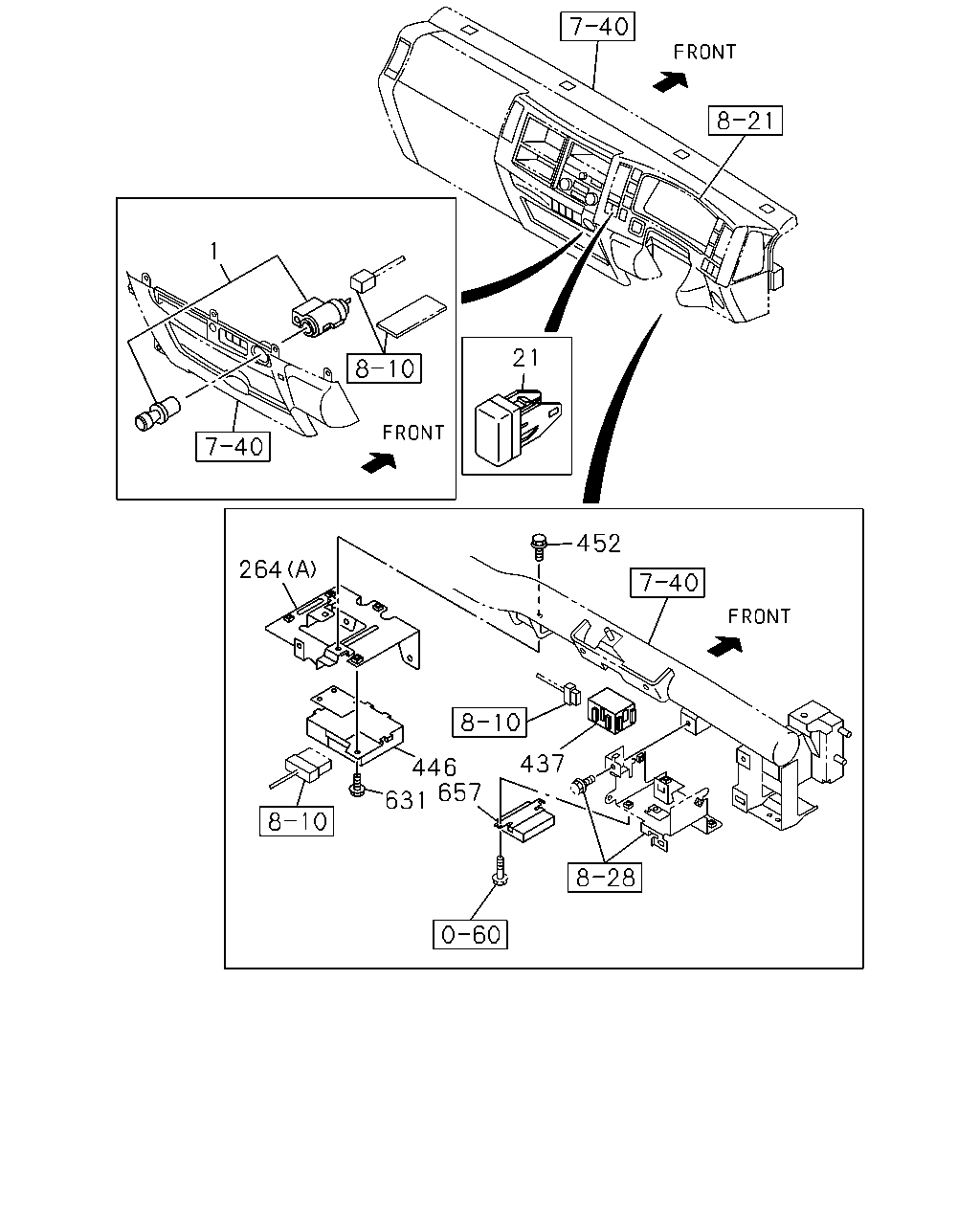

[826A] FRONT SIDE NO.1 (10 parça)

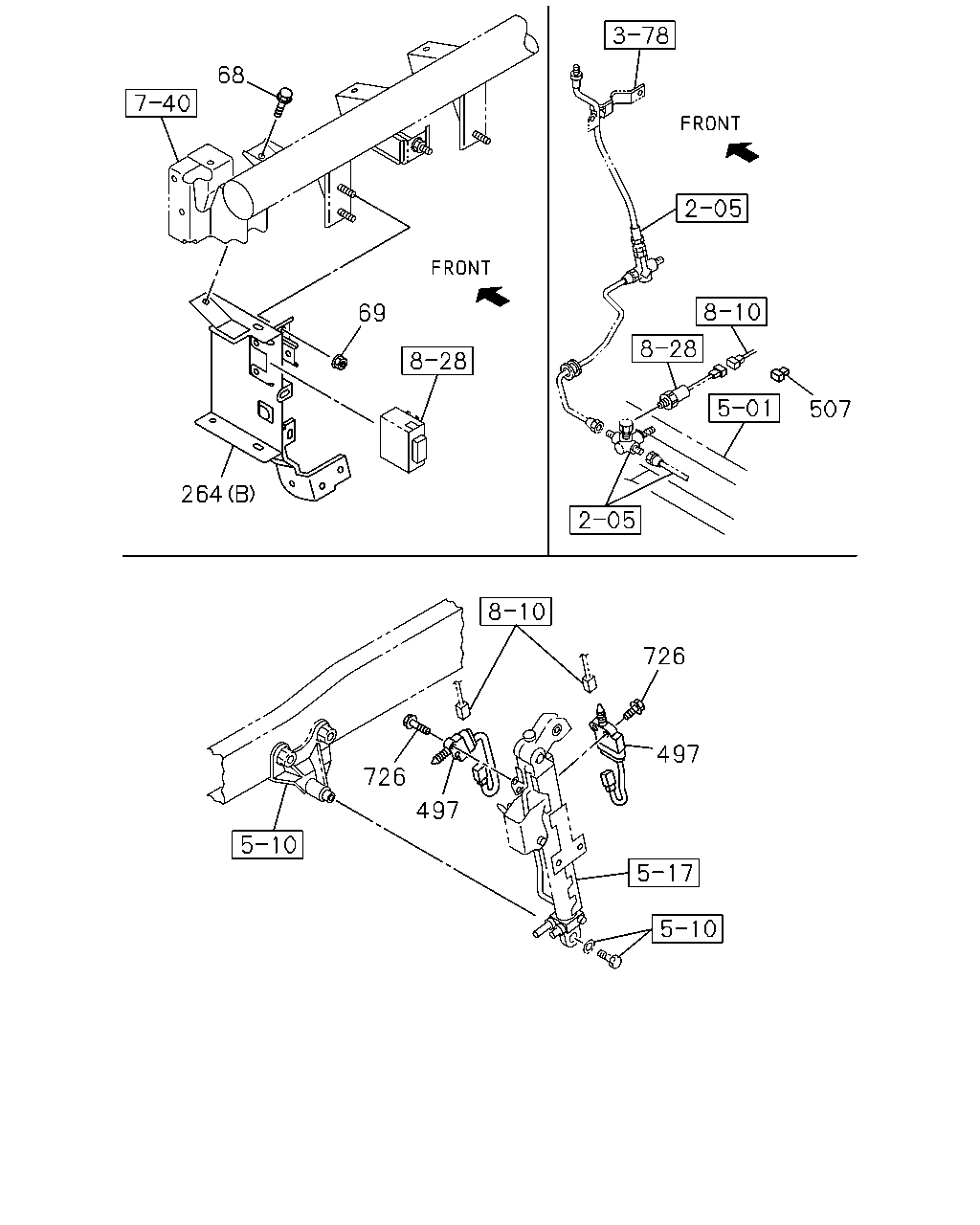

[826A] FRONT SIDE NO.3 AND FRAME SIDE (7 parça)

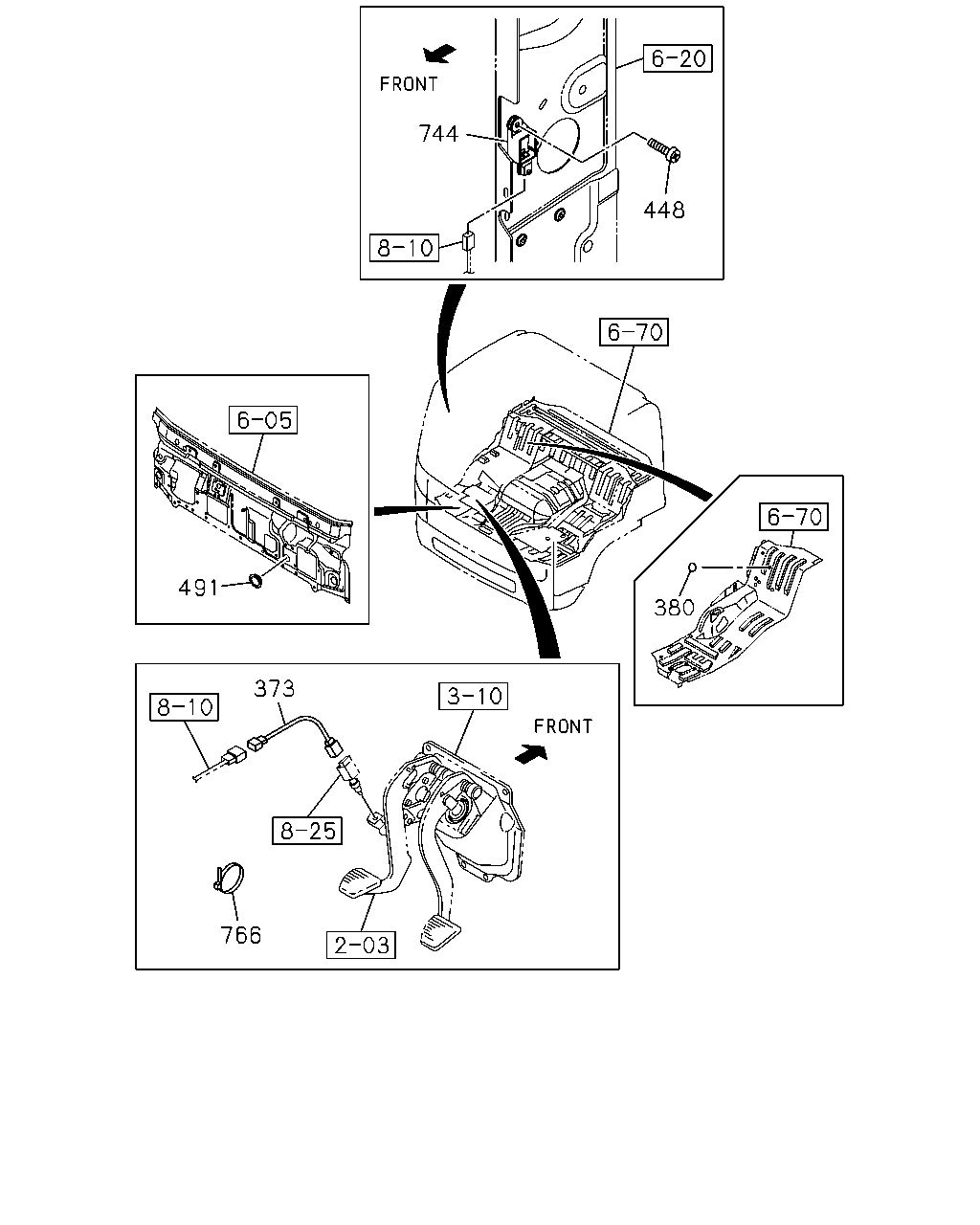

[826A] FRONT SIDE NO.2 (6 parça)

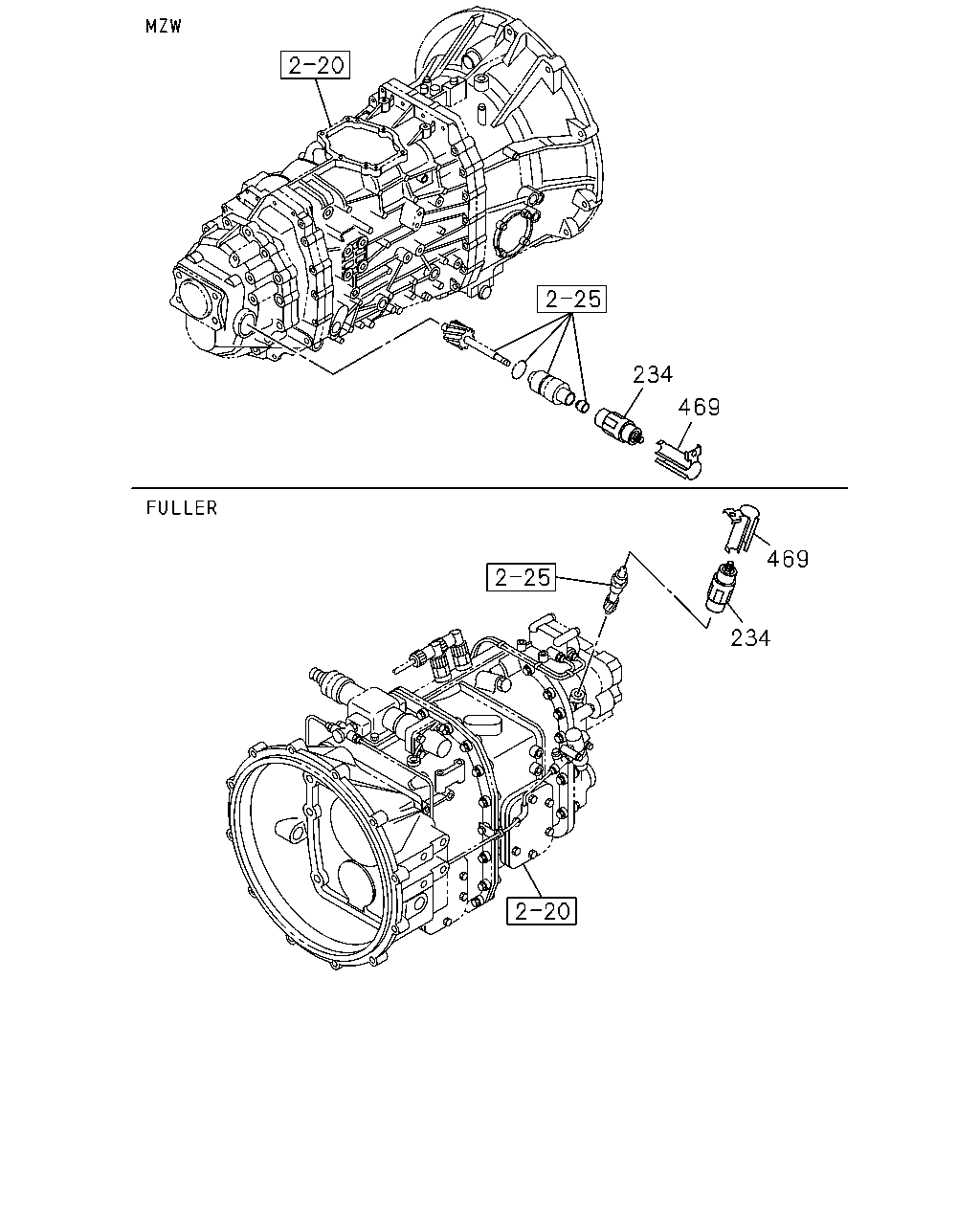

[826A] SENSOR;VEHICLE SPEED (2 parça)
▶
1
21
452
446
657
631
264
437
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LIGHTER; CIGAR
8-98142-962-0
01
1
1103-
21
COVER; HOLE
8-98025-954-1
01
1
1103-
264
BRACKET; CONT UNIT
(B)
8-97609-985-9
01
1
1103-
264
BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A)
8-98064-901-0
01
1
1103-
437
CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO
8-97359-129-0
01
1
1103-
446
CONTROL UNIT; HSA
H.S.A SYSTEM<6EP>
8-98136-318-1
01
1
1103-
452
BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE
0-28650-616-0
02
1
1103-
631
BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE
0-28650-616-0
02
1
1103-
657
CONTROL UNIT; MIMAMORI
8-98013-144-8
01
1
1103-1401
657
CONTROL UNIT; MIMAMORI
8-98260-912-0
01
1
1402-
68
69
507
264
726
497
726
497
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
68
BOLT; BRKT
M6X16 FLANGE
0-28650-616-0
01
1
1103-
69
NUT; BRKT
M6 FLANGE
0-91180-106-0
01
1
1103-
264
BRACKET; CONT UNIT
(B)
8-97609-985-9
01
1
1103-
264
BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A)
8-98064-901-0
01
1
1103-
497
SWITCH; CAB TILT
AUTO CAB TILT<WV2> STAMP NO
1-82380-172-1
02
1
1103-
507
CONNECTOR
EXC. H.S.A SYSTEM<6EP>
1-82690-666-0
01
1
1103-
726
BOLT; SW,CAB TILT
AUTO CAB TILT<WV2> M6X25 FLANGE
0-28050-625-0
04
1
1103-
744
448
491
380
373
766
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
373
HARNESS; CLU SWITCH
8-98059-419-2
01
1
1103-
380
SEAL
OD=25 BLACK
1-76798-019-0
01
1
1103-
448
BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/PL WASHER
8-97105-796-1
02
1
1103-
491
PLUG; HOLE,CONT UNIT
OD=60
8-98054-651-0
01
1
1103-
744
SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)
8-97386-841-2
01
1
1103-
766
BAND; CLIP
EXC. H.S.A SYSTEM<6EP> L=140
5-09707-031-1
01
1
1103-
234
469
469
234
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
234
SENSOR; VEHICLE SPD
25 PULSE ALUMINUM
8-97328-058-1
01
1
1103-
469
PROTECTOR; SPEED SENSOR
8-98119-901-0
01
1
1103-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
