Isuzu WW
▶
TRUCKS
▶
FVR
▶
11370 - FVR(RHD)W/DOC EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#71848) — 52 parça
◀
[825A] SWITCH NO.2 (21 parça)
[825A] SWITCH NO.3 AND OTHER PARTS (6 parça)
[825A] RELAY;CAB HARNESS (10 parça)
[825A] RELAY;FRAME HARNESS (2 parça)
[825A] SWITCH NO.1 (13 parça)
▶
497
249
497
77
96
372
497
436
257
253
257

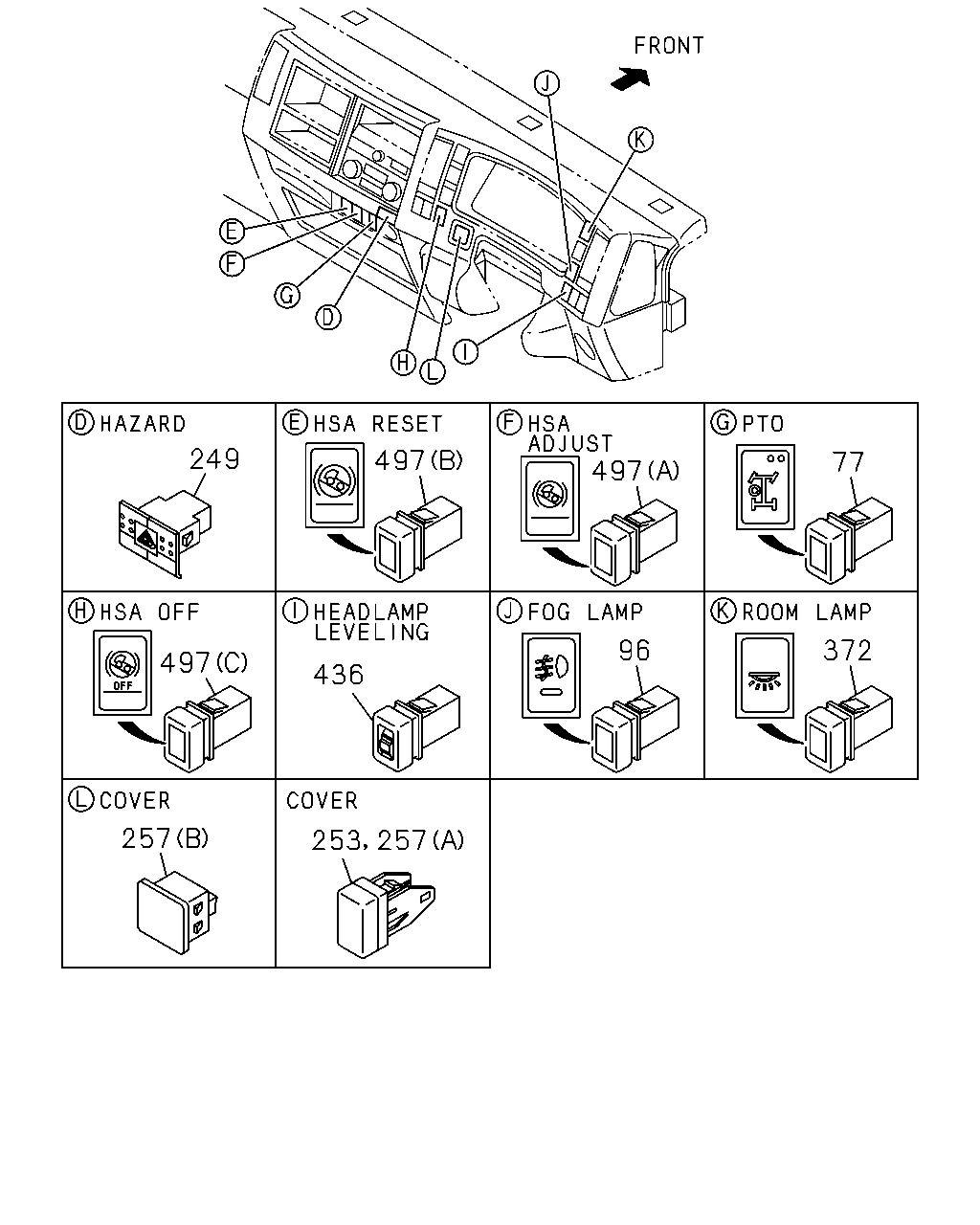

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
77
SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
8-97615-488-2
01
1
1103-
96
SWITCH; FOG LAMP
8-97387-031-4
01
1
1103-
249
SWITCH; HAZARD
8-97386-922-1
01
1
1103-
253
COVER; SW HOLE
8-98025-954-1
01
1
1103-
253
COVER; SW HOLE
8-98025-954-1
01
1
1103-
253
COVER; SW HOLE
8-98025-954-1
01
1
1103-
253
COVER; SW HOLE
8-98025-954-1
01
1
1103-
257
COVER; HOLE,SW
(A)
8-98025-954-1
03
1
1103-
257
COVER; HOLE,SW
(B)
8-98029-914-1
01
1
1103-
257
COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (A)
8-98025-954-1
01
1
1103-
257
COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)
8-98025-954-1
01
1
1103-
257
COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (A)
8-98025-954-1
01
1
1103-
257
COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (A)
8-98025-954-1
01
1
1103-
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
1103-
257
COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (A)
8-98025-954-1
01
1
1103-
257
COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A)
8-98025-954-1
01
1
1103-
372
SWITCH; ROOM LAMP
FLUORESCENT LAMP<6UC>
8-97386-917-2
01
1
1103-
436
SWITCH; HEADLAMP LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-97386-981-2
01
1
1103-
497
SWITCH; HSA
H.S.A SYSTEM<6EP> (C) OFF
8-97386-923-2
01
1
1103-
497
SWITCH; HSA
H.S.A SYSTEM<6EP> (B) RESET
8-98119-946-0
01
1
1103-
497
SWITCH; HSA
H.S.A SYSTEM<6EP> (A) ADJUST
8-98119-947-1
01
1
1103-
30
29
64
237
65
370

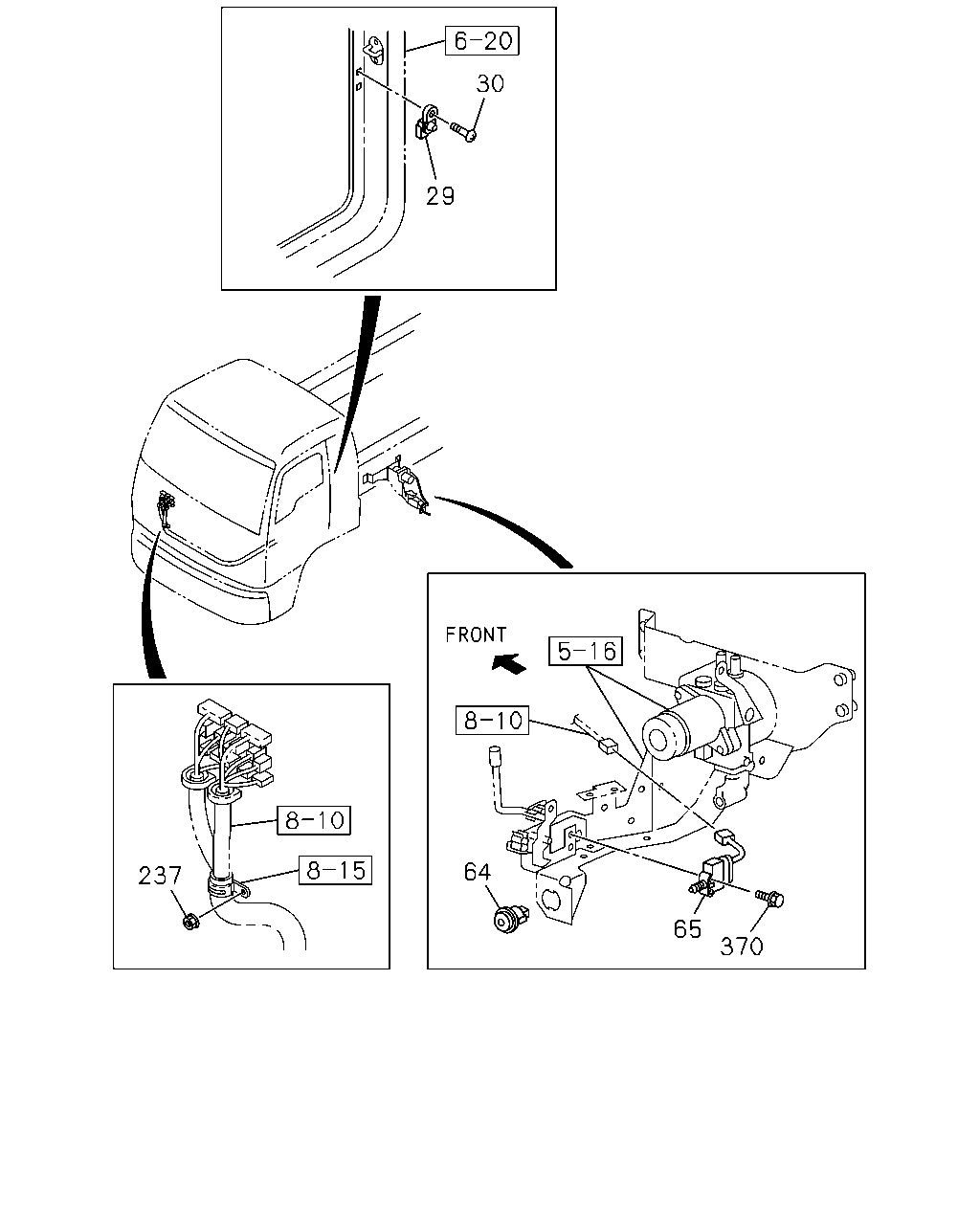

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
BLACK
8-98022-211-0
01
1
1103-
30
SCREW; DOOR SW
M5X18
8-98047-201-0
01
1
1103-
64
SWITCH; CAB TILT MAIN
AUTO CAB TILT<WV2>
1-82380-173-2
01
1
1103-
65
SWITCH; CAB TILT LK
AUTO CAB TILT<WV2> STAMP NO
1-82380-172-1
01
1
1103-
237
NUT
M8 FLANGE
0-91180-108-0
01
1
1103-
370
BOLT; SW
AUTO CAB TILT<WV2> M6X30 FLANGE
0-28650-630-0
02
1
1103-
317
610
99
12
595
610
606
164
606

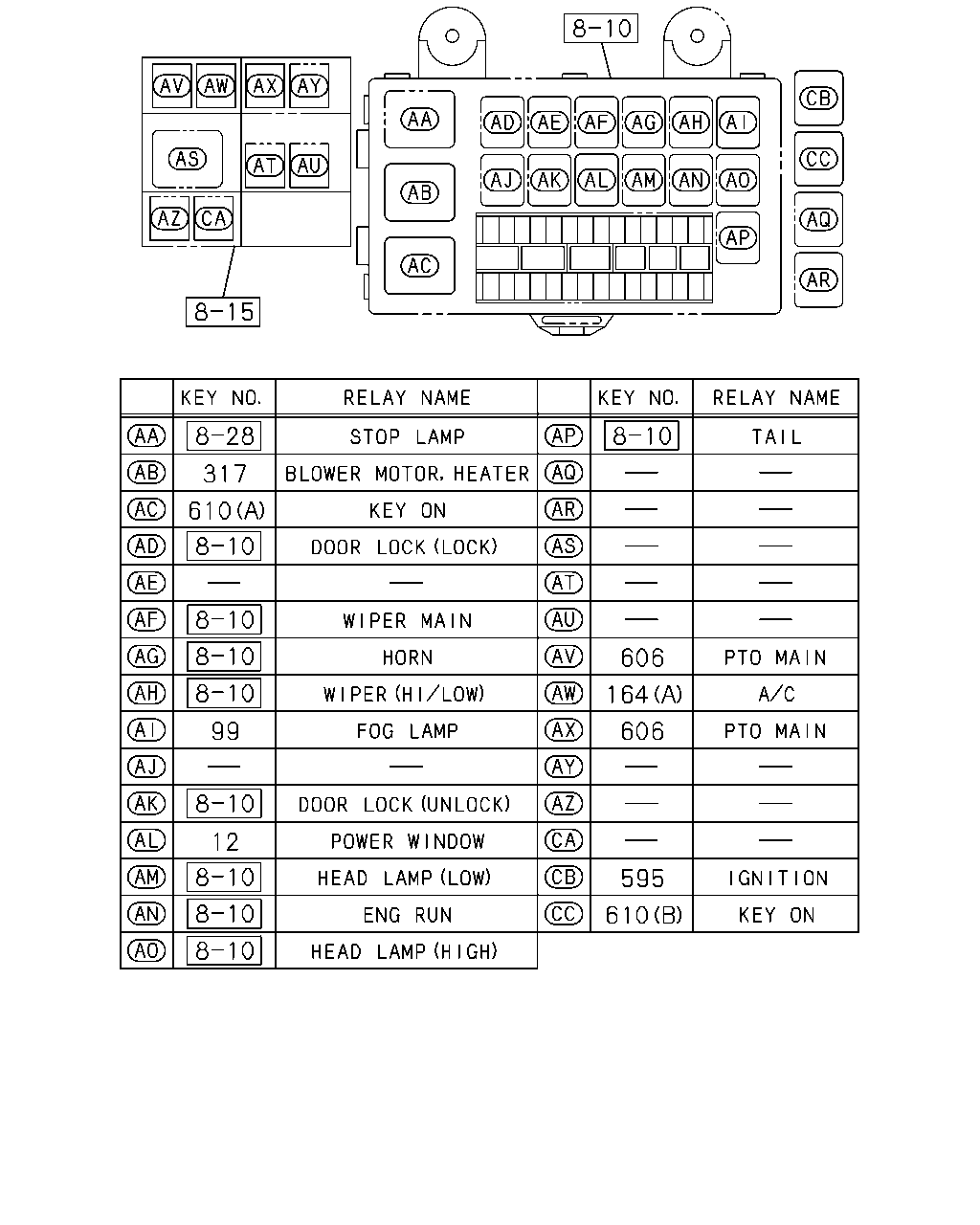

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
RELAY; POWER WINDOW
24V 10A PANASONIC
8-97173-035-1
01
1
1103-
99
RELAY; FOG LAMP
24V 10A PANASONIC
8-97173-035-1
01
1
1103-
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC
8-97173-035-1
01
1
1103-
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1103-
317
RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1103-
595
RELAY; IGNITION
24V 10A PANASONIC
8-97173-035-1
01
1
1207-
606
RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC
8-97173-035-1
01
1
1103-
606
RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC
8-97173-035-1
01
1
1103-
610
RELAY; KEY ON
(B) 24V 10A PANASONIC
8-97173-035-1
01
1
1207-
610
RELAY; KEY ON
(A) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1103-
164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC
8-97173-035-1
01
1
1103-
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1103-
1
8
263
3
10
21
8
263
10

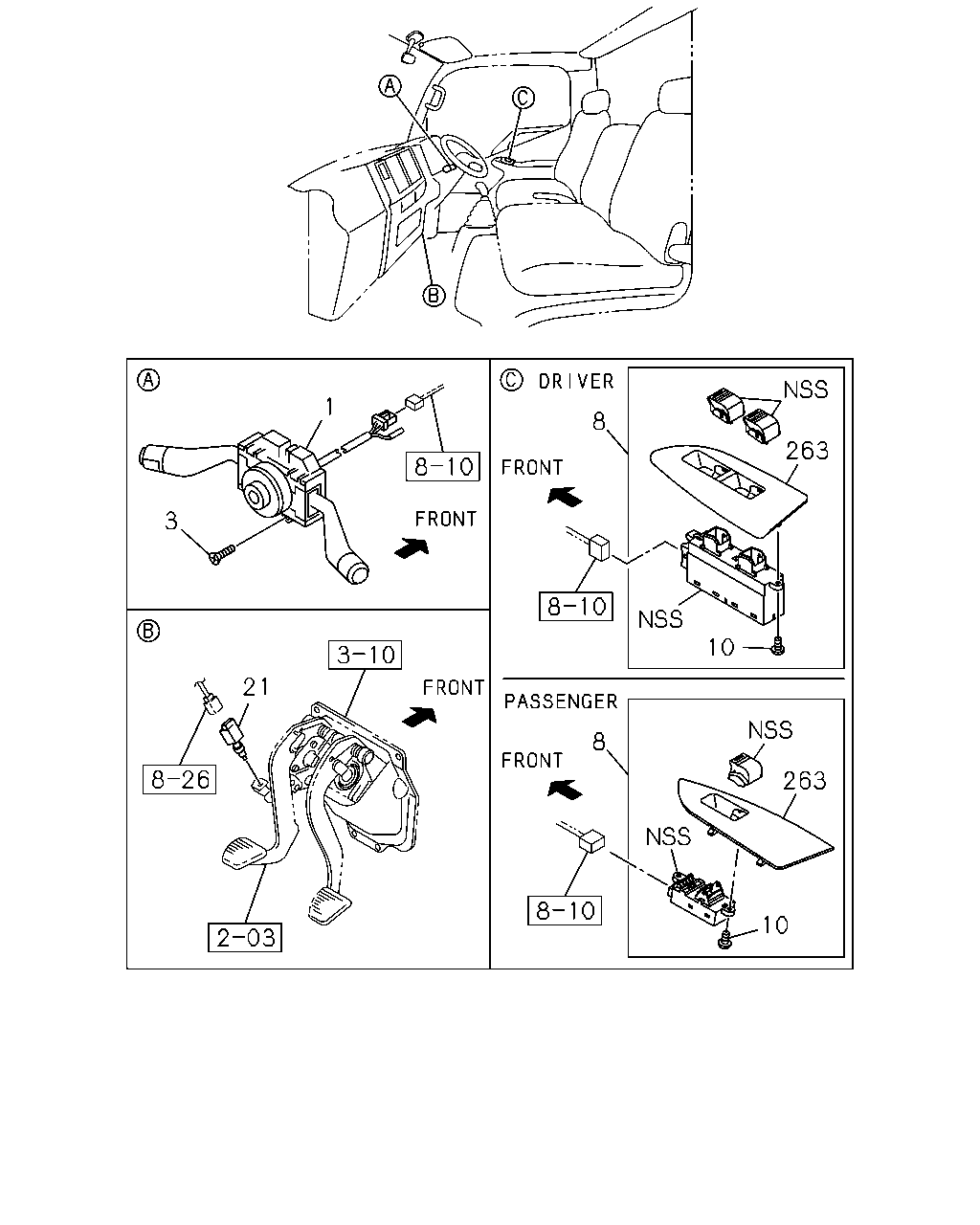

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)
8-98146-618-0
01
1
1103-1210
1
SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)
8-98217-820-0
01
1
1211-1310
1
SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)
8-98243-691-0
01
1
1311-
1
SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)
8-98060-302-1
01
1
1103-1310
1
SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)
8-98243-704-0
01
1
1311-
3
SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES
8-98061-743-0
02
1
1103-
8
SWITCH; POWER WINDOW
PASSENGER
8-97387-034-2
01
1
1103-
8
SWITCH; POWER WINDOW
DRIVER
8-98159-543-0
01
1
1103-
10
SCREW; POWER WINDOW SW
8-98153-865-0
03
1
1103-
21
SWITCH; CLU
TRANSMISSION SIDE PTO WO/LEVER(SH5)
8-94337-761-0
01
1
1103-
21
SWITCH; CLU
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)
8-97358-248-0
01
1
1103-
263
COVER; SW
DRIVER
8-98153-836-0
01
1
1103-
263
COVER; SW
PASSENGER
8-98153-841-0
01
1
1103-
