Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#71846) — 251 parça

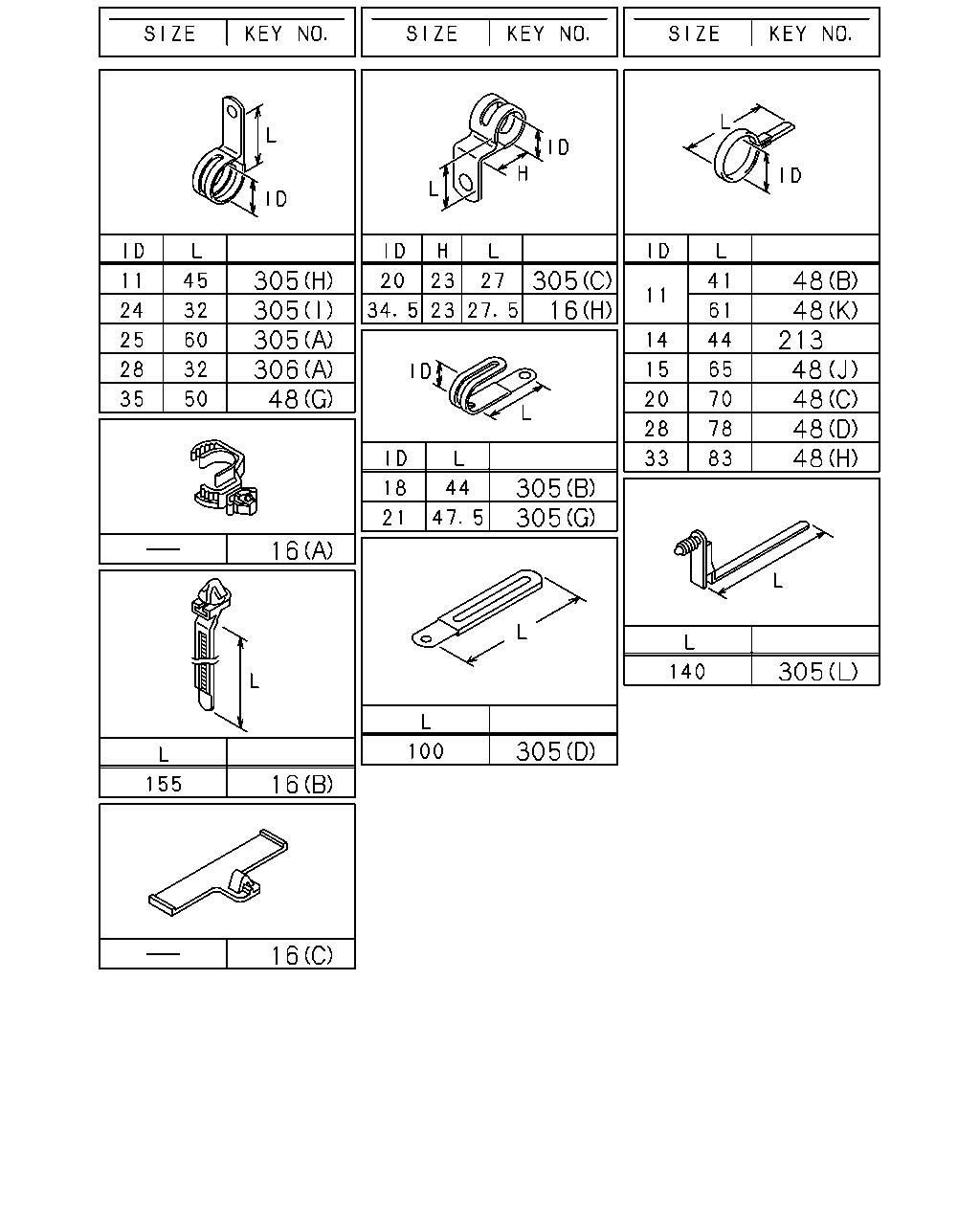

305 305 305 306 48 305 16 48 48 213 48 48 48 48 305 305 16 305 305 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (D) ID=16 L=28	0-95235-556-0	02	1	1103-
16	CLIP; HARNESS (E) ID=14 H=50 L=20	1-09700-843-0	02	1	1103-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1103-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1103-
16	CLIP; HARNESS (I) L=250	5-09707-030-1	03	1	1103-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1103-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1103-
16	CLIP; HARNESS (F) L=40.6	8-97229-357-0	02	1	1103-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1103-
16	CLIP; HARNESS EXC. CAB SUSPENSION FULL FLOATING<W16> (G) L=350	1-09707-183-0	02	1	1103-
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	01	1	1306-
48	CLIP; FRAME HARNESS (G) ID=35 L=50	1-09701-214-0	01	1	1103-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1103-
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	07	1	1103-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	02	1	1103-1201
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	02	1	1202-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	10	1	1103-
48	CLIP; FRAME HARNESS AUTO CAB TILT<WV2> (B) ID=11 L=41	1-09700-403-0	01	1	1103-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	1103-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (J) ID=15 L=65	1-09700-466-0	01	1	1103-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=11 L=61	1-09700-484-0	01	1	1103-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=20 L=70	1-09700-485-0	01	1	1103-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=20 L=70	1-09700-485-0	03	1	1103-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=28 L=78	1-09700-858-0	02	1	1103-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H) ID=33 L=83	1-09701-291-0	03	1	1103-
48	CLIP; FRAME HARNESS CAB SUSPENSION SEMI FLOATING<SDK> (E) L=350	1-09707-183-0	01	1	1103-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (L) ID=16 L=40	0-95235-576-0	03	1	1103-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (M) L=180	1-09707-162-1	01	1	1103-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (N) OD=9 H=6	1-09709-178-0	01	1	1103-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) OD=9 H=13.5	1-09709-180-0	01	1	1103-
48	CLIP; FRAME HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) OD=9 H=9.5	1-09709-179-0	01	1	1103-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1103-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1103-
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	1103-
305	CLIP; ENG HARNESS (I) ID=24 L=32	1-09700-766-1	01	1	1103-
305	CLIP; ENG HARNESS (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1103-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1103-
305	CLIP; ENG HARNESS (E) ID=19 H=33 L=45	1-09701-045-0	01	1	1103-
305	CLIP; ENG HARNESS (F) OD=9 H=6	1-09709-178-0	01	1	1103-
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	1103-
305	CLIP; ENG HARNESS (D) L=100	8-94443-021-1	01	1	1103-
305	CLIP; ENG HARNESS (L) L=140	8-97122-360-0	01	1	1103-
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1103-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1103-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1103-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1103-

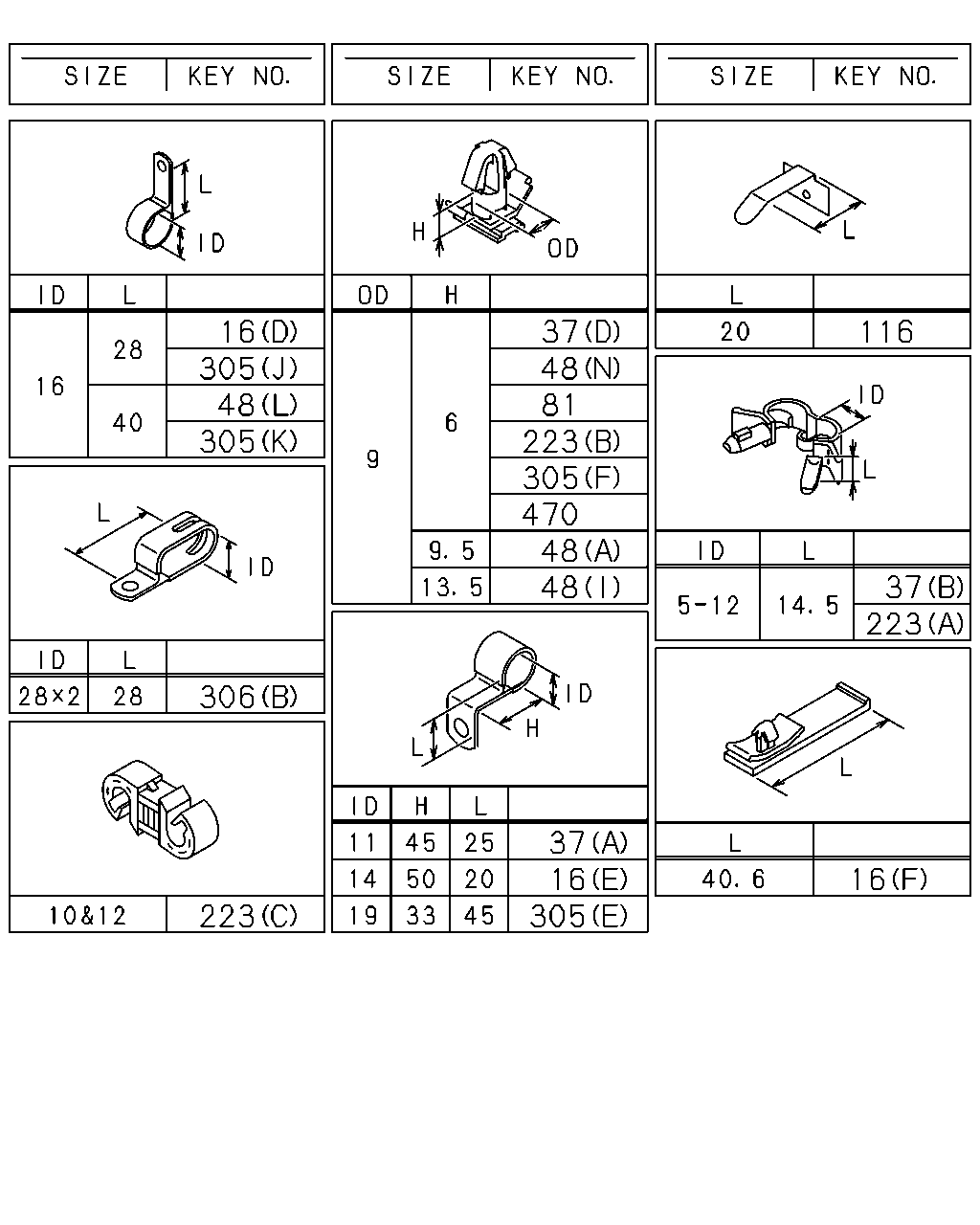

16 305 48 305 37 48 81 223 305 470 48 48 116 37 223 306 37 16 305 16 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (D) ID=16 L=28	0-95235-556-0	02	1	1103-
16	CLIP; HARNESS (E) ID=14 H=50 L=20	1-09700-843-0	02	1	1103-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1103-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1103-
16	CLIP; HARNESS (I) L=250	5-09707-030-1	03	1	1103-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1103-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1103-
16	CLIP; HARNESS (F) L=40.6	8-97229-357-0	02	1	1103-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1103-
16	CLIP; HARNESS EXC. CAB SUSPENSION FULL FLOATING<W16> (G) L=350	1-09707-183-0	02	1	1103-
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (A) ID=11 H=45 L=25	1-09700-866-0	01	1	1103-
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (B) ID=5-12 L=14.5	1-09987-221-0	02	1	1103-
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (C) L=250	5-09707-030-1	01	1	1103-
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (D) OD=9 H=6	8-97368-793-0	02	1	1103-
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	01	1	1306-
48	CLIP; FRAME HARNESS (G) ID=35 L=50	1-09701-214-0	01	1	1103-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1103-
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	07	1	1103-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	02	1	1103-1201
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	02	1	1202-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	10	1	1103-
48	CLIP; FRAME HARNESS AUTO CAB TILT<WV2> (B) ID=11 L=41	1-09700-403-0	01	1	1103-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	1103-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (J) ID=15 L=65	1-09700-466-0	01	1	1103-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=11 L=61	1-09700-484-0	01	1	1103-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=20 L=70	1-09700-485-0	01	1	1103-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=20 L=70	1-09700-485-0	03	1	1103-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=28 L=78	1-09700-858-0	02	1	1103-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H) ID=33 L=83	1-09701-291-0	03	1	1103-
48	CLIP; FRAME HARNESS CAB SUSPENSION SEMI FLOATING<SDK> (E) L=350	1-09707-183-0	01	1	1103-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (L) ID=16 L=40	0-95235-576-0	03	1	1103-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (M) L=180	1-09707-162-1	01	1	1103-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (N) OD=9 H=6	1-09709-178-0	01	1	1103-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) OD=9 H=13.5	1-09709-180-0	01	1	1103-
48	CLIP; FRAME HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) OD=9 H=9.5	1-09709-179-0	01	1	1103-
81	CLIP; HARNESS OD=9 H=6	1-09709-178-0	01	1	1103-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1103-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=9 H=6	1-09709-178-0	01	1	1103-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	1103-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=10 & 12	1-09709-278-1	01	1	1103-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1103-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1103-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1103-
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	1103-
305	CLIP; ENG HARNESS (I) ID=24 L=32	1-09700-766-1	01	1	1103-
305	CLIP; ENG HARNESS (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1103-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1103-
305	CLIP; ENG HARNESS (E) ID=19 H=33 L=45	1-09701-045-0	01	1	1103-
305	CLIP; ENG HARNESS (F) OD=9 H=6	1-09709-178-0	01	1	1103-
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	1103-
305	CLIP; ENG HARNESS (D) L=100	8-94443-021-1	01	1	1103-
305	CLIP; ENG HARNESS (L) L=140	8-97122-360-0	01	1	1103-
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1103-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1103-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1103-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1103-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1103-

139 127 47 524 219 294 525 294 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1103-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1103-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1103-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1103-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1103-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1103-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	02	1	1103-
139	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) M8X35 FLANGE	0-28650-835-0	01	1	1103-
139	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) (H) M10X16 FLANGE	0-28051-016-0	03	1	1103-
139	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) (I) M10X20 FLANGE	0-28751-020-0	01	1	1103-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1103-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1103-
219	NUT M8 FLANGE	0-91180-108-0	02	1	1103-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1103-
294	NUT AUTO CAB TILT<WV2> (A) M8 FLANGE	0-91180-108-0	01	1	1103-
294	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91180-108-0	01	1	1103-
294	NUT EXC. CAB SUSPENSION FULL FLOATING<W16> (A) M8 FLANGE	0-91180-108-0	01	1	1103-
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	1103-
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1103-
294	NUT CAB SUSPENSION FULL FLOATING<W16> (A) M8 FLANGE	0-91180-108-0	02	1	1103-
294	NUT FULLER FSO5206B OD M/T(Y4V) (B) M10 FLANGE	0-91180-210-0	01	1	1103-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	1103-
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	01	1	1103-
525	NUT; CLIP AUTO CAB TILT<WV2> T=8.0 M8 FLANGE	0-91180-108-0	01	1	1103-
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	1103-
525	NUT; CLIP T=8.5 M8 FLANGE	5-09440-010-0	01	1	1103-

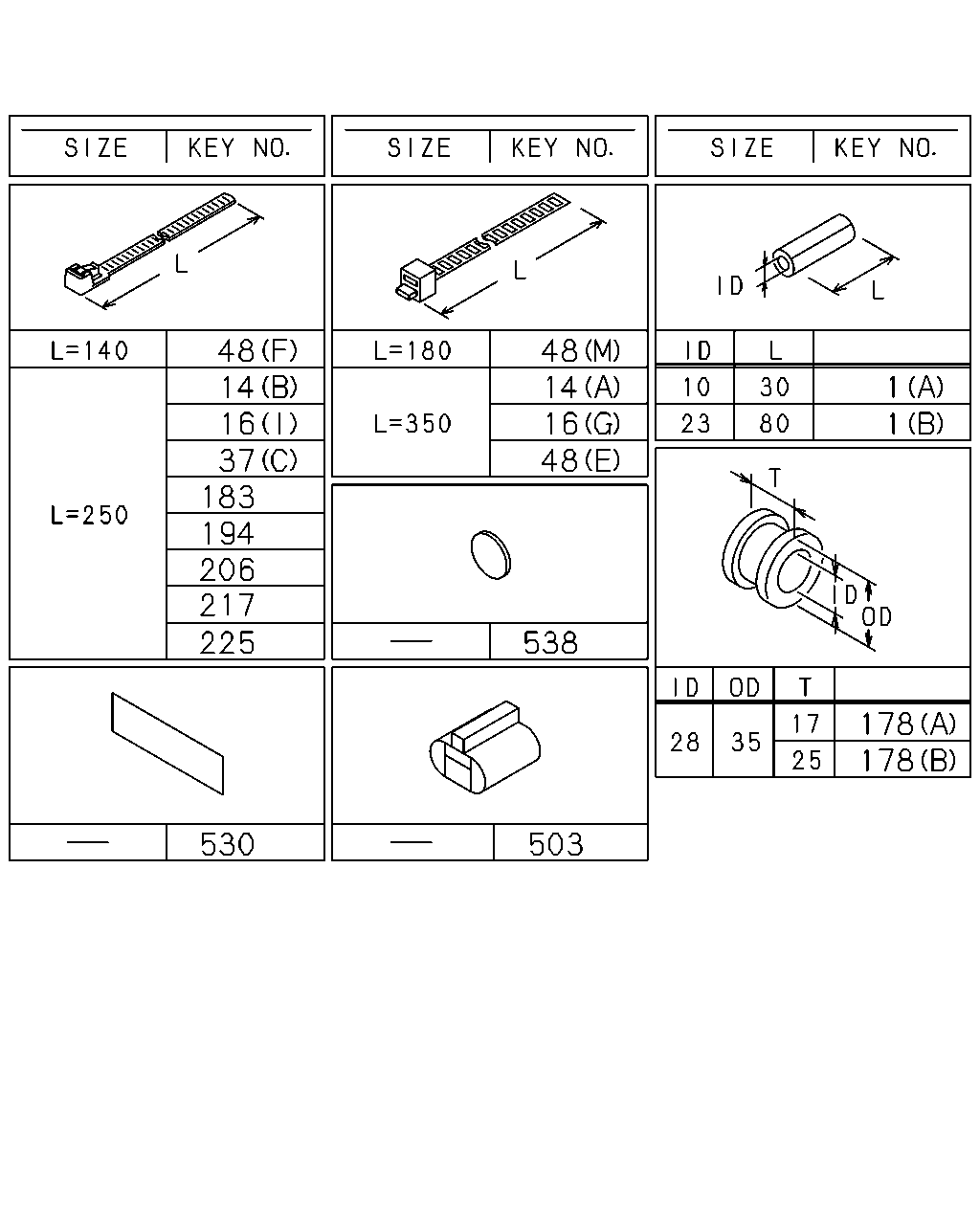

48 14 16 37 183 194 206 217 225 48 14 16 48 1 1 538 178 178 530 503

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	1103-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1103-
14	CLIP; BAND,HARNESS (A) L=350	1-09707-183-0	01	1	1103-
14	CLIP; BAND,HARNESS (B) L=250	5-09707-030-1	13	1	1103-1205
14	CLIP; BAND,HARNESS (B) L=250	8-98216-430-0	13	1	1206-
14	CLIP; BAND,HARNESS FULLER FSO5206B OD M/T(Y4V) (B) L=250	5-09707-030-1	01	1	1103-
16	CLIP; HARNESS (D) ID=16 L=28	0-95235-556-0	02	1	1103-
16	CLIP; HARNESS (E) ID=14 H=50 L=20	1-09700-843-0	02	1	1103-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1103-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1103-
16	CLIP; HARNESS (I) L=250	5-09707-030-1	03	1	1103-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1103-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1103-
16	CLIP; HARNESS (F) L=40.6	8-97229-357-0	02	1	1103-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1103-
16	CLIP; HARNESS EXC. CAB SUSPENSION FULL FLOATING<W16> (G) L=350	1-09707-183-0	02	1	1103-
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (A) ID=11 H=45 L=25	1-09700-866-0	01	1	1103-
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (B) ID=5-12 L=14.5	1-09987-221-0	02	1	1103-
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (C) L=250	5-09707-030-1	01	1	1103-
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (D) OD=9 H=6	8-97368-793-0	02	1	1103-
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	01	1	1306-
48	CLIP; FRAME HARNESS (G) ID=35 L=50	1-09701-214-0	01	1	1103-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1103-
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	07	1	1103-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	02	1	1103-1201
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	02	1	1202-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	10	1	1103-
48	CLIP; FRAME HARNESS AUTO CAB TILT<WV2> (B) ID=11 L=41	1-09700-403-0	01	1	1103-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	1103-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (J) ID=15 L=65	1-09700-466-0	01	1	1103-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=11 L=61	1-09700-484-0	01	1	1103-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=20 L=70	1-09700-485-0	01	1	1103-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=20 L=70	1-09700-485-0	03	1	1103-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=28 L=78	1-09700-858-0	02	1	1103-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H) ID=33 L=83	1-09701-291-0	03	1	1103-
48	CLIP; FRAME HARNESS CAB SUSPENSION SEMI FLOATING<SDK> (E) L=350	1-09707-183-0	01	1	1103-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (L) ID=16 L=40	0-95235-576-0	03	1	1103-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (M) L=180	1-09707-162-1	01	1	1103-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (N) OD=9 H=6	1-09709-178-0	01	1	1103-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) OD=9 H=13.5	1-09709-180-0	01	1	1103-
48	CLIP; FRAME HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) OD=9 H=9.5	1-09709-179-0	01	1	1103-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	02	1	1103-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1103-
178	GROMMET; HARNESS AUTO CAB TILT<WV2> (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1103-
178	GROMMET; HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1103-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1103-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1103-
183	CLIP; CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> L=250	5-09707-030-1	01	1	1103-
194	CLIP; BAND AUTO CAB TILT<WV2> L=250	5-09707-030-1	02	1	1103-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	1103-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1103-
225	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=250	5-09707-030-1	03	1	1103-
225	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	5-09707-030-1	08	1	1103-
503	CONNECTOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-82690-668-0	01	1	1103-
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	1103-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	1103-1305
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1103-

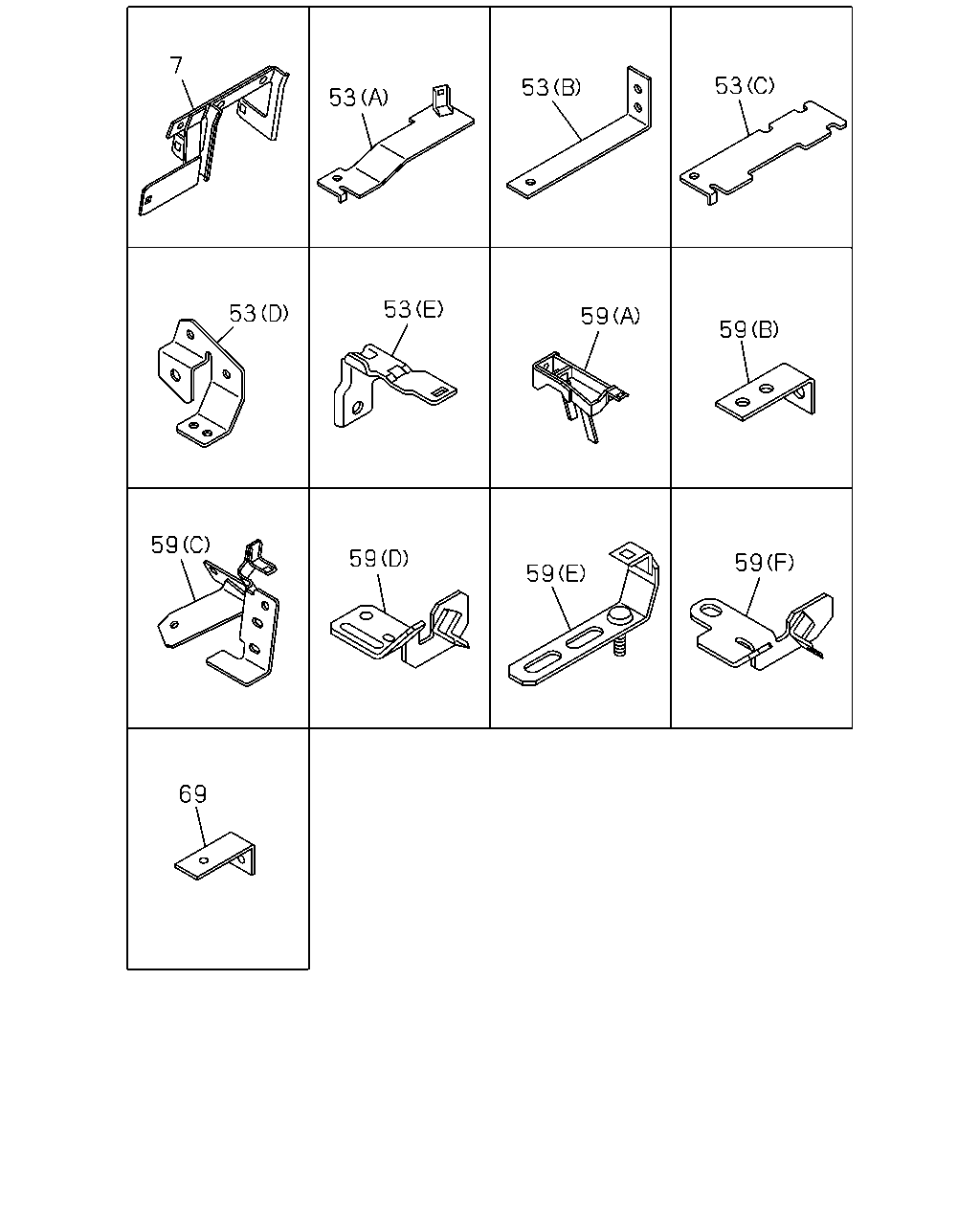

69 59 59 59 59 59 59 53 53 53 53 53 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1103-
53	BRACKET; HARNESS (E)	8-98052-458-0	01	1	1103-
53	BRACKET; HARNESS CAB SUSPENSION FULL FLOATING<W16> (B)	1-47479-674-0	01	1	1103-
53	BRACKET; HARNESS CAB SUSPENSION FULL FLOATING<W16> (A)	8-98107-610-1	01	1	1103-
53	BRACKET; HARNESS EXC. CAB SUSPENSION FULL FLOATING<W16> (C)	8-98127-093-0	01	1	1103-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-98084-590-0	01	1	1103-
59	BRACKET; FRAME HARNESS (A)	8-97609-264-2	01	1	1103-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	1103-1502
59	BRACKET; FRAME HARNESS (F)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (E)	8-98047-730-0	02	1	1103-
59	BRACKET; FRAME HARNESS (C)	8-98107-611-0	01	1	1103-
59	BRACKET; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=62	1-21464-170-2	01	1	1103-
69	BRACKET; CLIP L=55	1-47475-304-0	01	1	1103-

304 304 304 313 304 139 38 516 377 358 386 38 139 139 38 313 242 150 38 150 38 313 139 139 313 139 313 139 38 386 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1103-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	04	1	1103-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	1103-
38	BOLT; CLIP,HARNESS (C) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	1103-1201
38	BOLT; CLIP,HARNESS (F) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
38	BOLT; CLIP,HARNESS AUTO CAB TILT<WV2> (D) M8X30 FLANGE	0-28650-830-0	01	1	1103-
38	BOLT; CLIP,HARNESS FULLER FSO5206B OD M/T(Y4V) (E) M8X16 FLANGE	0-28050-816-0	03	1	1103-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1103-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1103-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1103-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1103-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1103-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	02	1	1103-
139	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) M8X35 FLANGE	0-28650-835-0	01	1	1103-
139	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) (H) M10X16 FLANGE	0-28051-016-0	03	1	1103-
139	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) (I) M10X20 FLANGE	0-28751-020-0	01	1	1103-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1103-
150	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1103-
150	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1103-
242	BOLT; BRKT,HARNESS CAB SUSPENSION FULL FLOATING<W16> M8X20 FLANGE	0-28650-820-0	02	1	1103-
242	BOLT; BRKT,HARNESS EXC. CAB SUSPENSION FULL FLOATING<W16> M8X20 FLANGE	0-28650-820-0	01	1	1103-
304	BOLT; ENG HARNESS CLIP (D) M6X12 FLANGE	0-28050-612-0	01	1	1103-
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	02	1	1103-
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	03	1	1103-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	1103-
313	BOLT; BRKT (A) M8X45 FLANGE	0-28050-845-0	01	1	1103-
313	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	01	1	1103-
313	BOLT; BRKT (D) M8X30 FLANGE	0-28650-830-0	01	1	1103-
313	BOLT; BRKT (E) M8X35 FLANGE	0-28650-835-0	01	1	1103-
313	BOLT; BRKT AUTO CAB TILT<WV2> (B) M8X20 FLANGE	0-28650-820-0	01	1	1103-
358	BOLT; EARTH AUTO CAB TILT<WV2> M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1103-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1103-
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1103-1202
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-
516	BOLT; HARNESS M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1103-

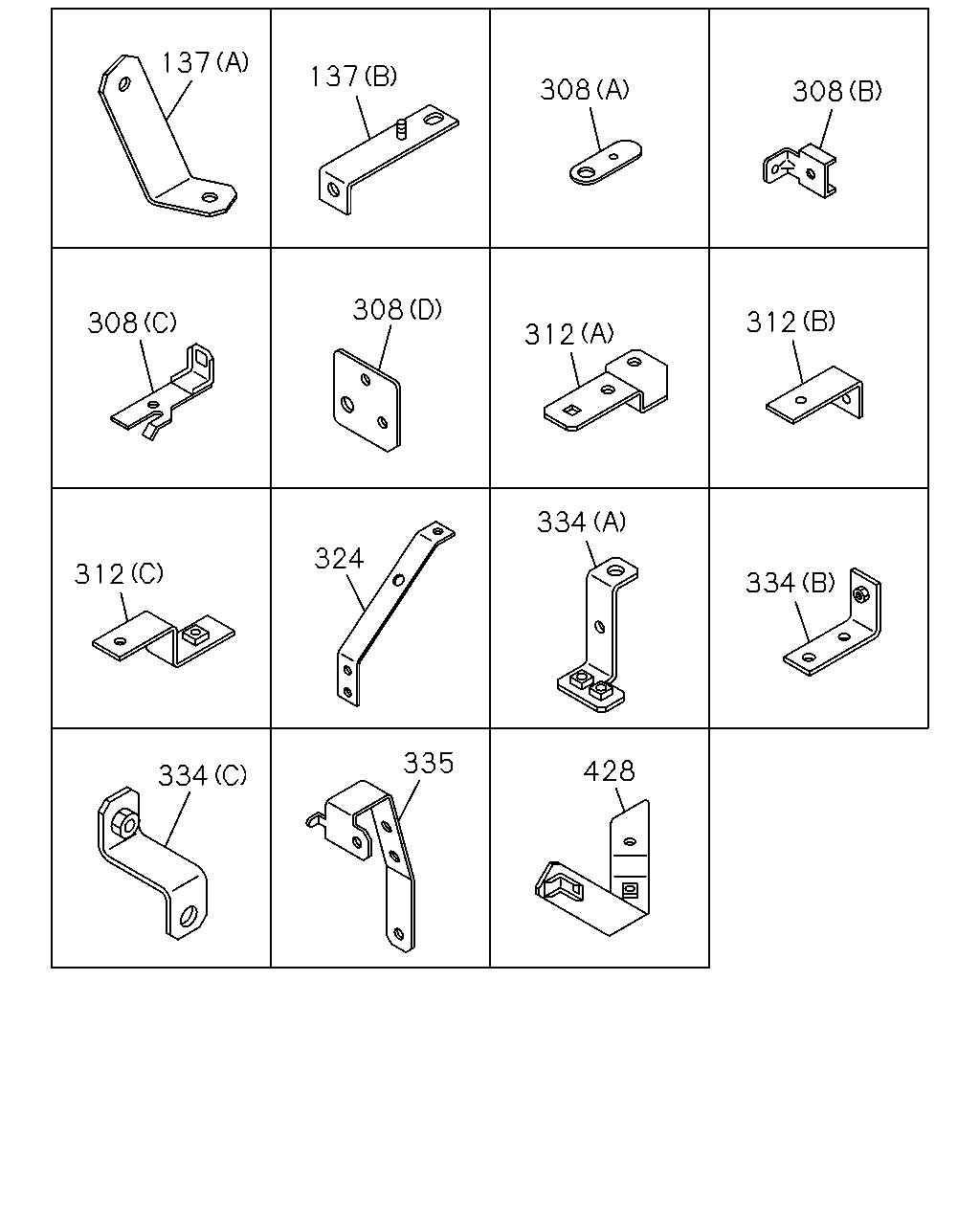

137 137 308 308 312 308 308 312 334 334 428 335 324 312 334

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; HARNESS CLAMP (A)	8-97614-728-1	01	1	1103-
137	BRACKET; HARNESS CLAMP (B)	8-97624-013-0	01	1	1103-
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1103-
308	BRACKET; CLIP,ENG HARNESS (B)	8-97614-078-0	01	1	1103-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98021-291-2	01	1	1103-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	1103-
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	1103-
312	BRACKET; CLIP HARNESS (C)	8-97609-110-1	01	1	1103-
312	BRACKET; CLIP HARNESS AUTO CAB TILT<WV2> (A)	8-97620-519-0	01	1	1103-
324	BRACKET; CLIP	1-47479-430-0	02	1	1212-1212
334	BRACKET FULLER FSO5206B OD M/T(Y4V) (C)	1-47475-868-0	02	1	1103-
334	BRACKET FULLER FSO5206B OD M/T(Y4V) (B)	1-47477-698-0	02	1	1103-
334	BRACKET FULLER FSO5206B OD M/T(Y4V) (A)	1-82699-639-1	01	1	1103-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1103-
428	BRACKET	8-97620-514-0	01	1	1103-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
