◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11370 - FVR(RHD)W/DOC EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#71845) — 251 parça

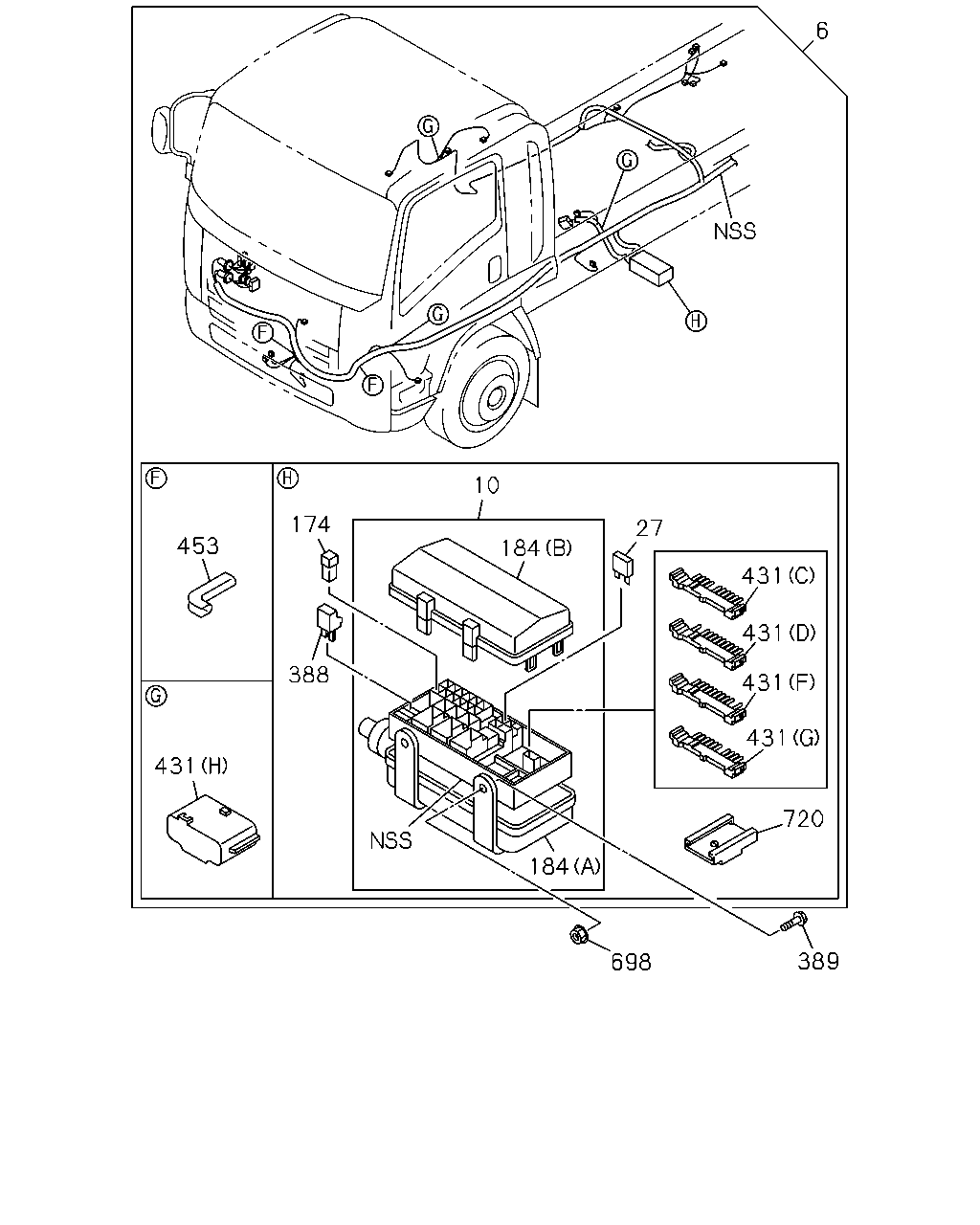

çizim 136135
6 10 174 27 453 184 431 431 388 431 431 431 720 184 389 698
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) CAB SUSPENSION FULL FLOATING<W16> 		8-98177-534-1 01 1 1103-
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) EXC. CAB SUSPENSION FULL FLOATING<W16> 		8-98177-535-1 01 1 1103-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB SUSPENSION FULL FLOATING<W16> 		8-98177-538-1 01 1 1103-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CAB SUSPENSION FULL FLOATING<W16> 		8-98177-539-1 01 1 1103-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB SUSPENSION FULL FLOATING<W16> 		8-98177-536-1 01 1 1103-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CAB SUSPENSION FULL FLOATING<W16> 		8-98177-537-1 01 1 1103-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1103-
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 1103-
27 FUSE UNIT
15A BLUE 		8-98054-258-0 02 1 1103-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1107-
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 01 1 1103-
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 01 1 1103-
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1103-
174 FUSE; SLOW BLOW
60A YELLOW 60A YELLOW 		8-97219-407-0 02 1 1103-1106
174 FUSE; SLOW BLOW
60A YELLOW 60A YELLOW 		8-97219-407-0 01 1 1107-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1103-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1103-
388 DIODE; RELAY BOX
BLACK 4P-1.5A 		8-94381-730-0 02 1 1103-1511
388 DIODE; RELAY BOX
BLACK 4P-1.5A 		8-94381-730-0 01 1 1512-
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 1103-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1103-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 1103-1206
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) (F) 10P GREEN 		1-82698-579-0 01 1 1207-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 02 1 1103-1206
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) (C) 10P BLUE 		1-82699-598-0 02 1 1207-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 1103-1206
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) (G) 10P GREEN 		1-82699-599-0 01 1 1207-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1103-1206
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) (D) 10P BROWN 		1-82699-601-0 09 1 1207-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1103-1206
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) (E) 10P 		8-97077-943-0 02 1 1207-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1103-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1103-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1103-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 05 1 1103-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1103-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1103-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 1103-
453 PROTECTOR; HARNESS 1-82699-709-0 01 1 1103-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1103-
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1103-

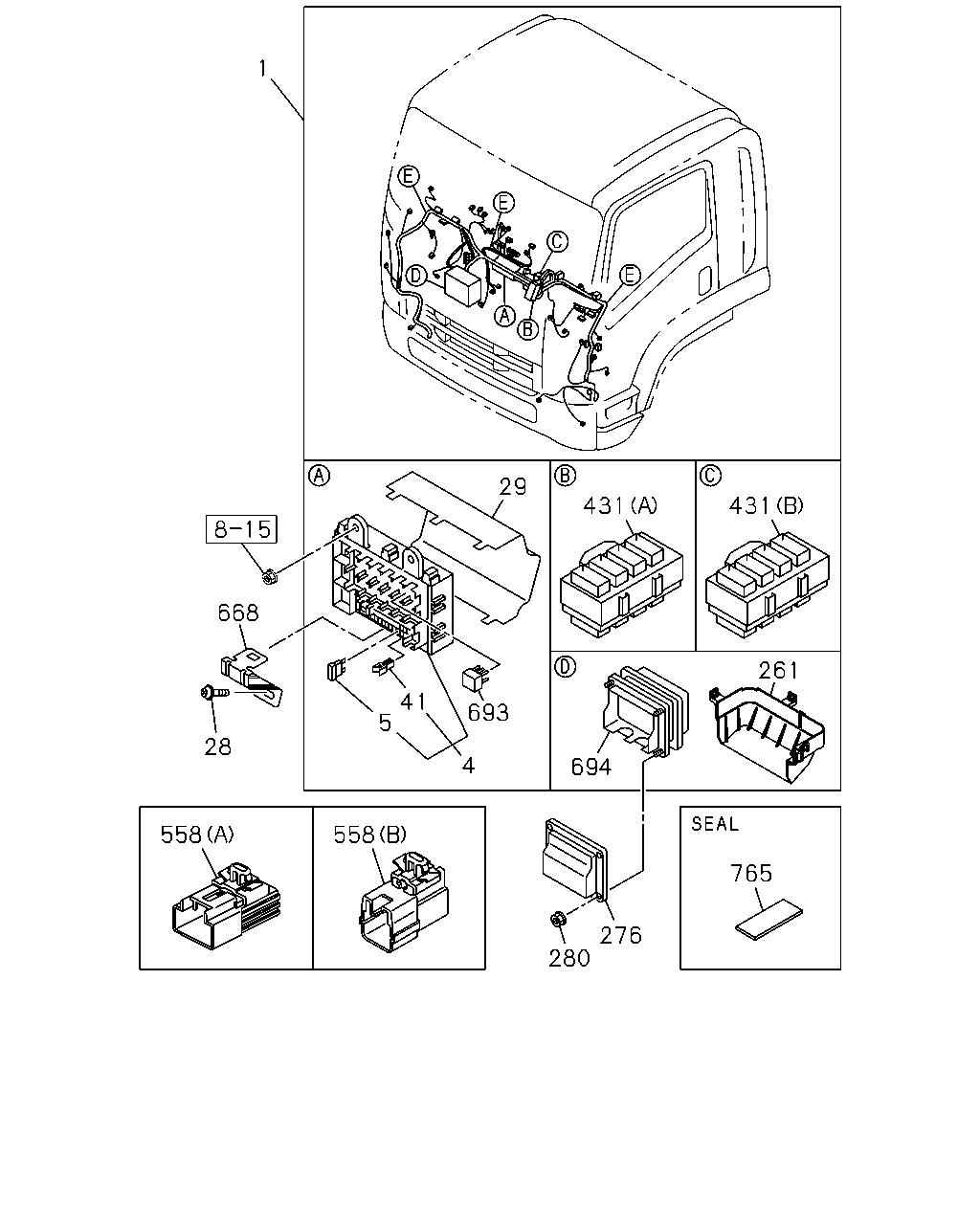

çizim 136495
1 668 28 558 558 41 5 4 693 29 431 694 280 276 431 261 765
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> 		8-98188-029-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98188-029-0 01 1 1204-1206
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98212-247-0 01 1 1207-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> 		8-98188-031-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) 		8-98188-031-0 01 1 1204-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98187-949-0 01 1 1110-1203
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98187-949-0 01 1 1204-1206
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98212-245-0 01 1 1207-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) 		8-98116-594-1 01 1 1103-1109
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) EXC. IN HOUSE PRODUCTION<TKF> 		8-98116-594-1 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98116-592-1 01 1 1103-1109
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. IN HOUSE PRODUCTION<TKF> 		8-98116-592-1 01 1 1110-1203
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-933-2 01 1 1103-1109
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),IN HOUSE PRODUCTION<TKF> 		8-98084-933-2 01 1 1110-1203
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1103-
5 FUSE; FACIA HARNESS
EXC. AIR BAG DRIVER & PASSENGER(AK5) 25A WHITE 		8-98062-982-0 AR 1 1207-
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1103-
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1103-
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1103-
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 02 1 1103-1206
5 FUSE; FACIA HARNESS
AIR BAG DRIVER & PASSENGER(AK5) 25A WHITE 		8-98062-982-0 02 1 1207-
28 SCREW; FUSE BOX
M6X16 FLANGE 		0-28650-616-0 01 1 1103-
29 COVER; FUSE BOX 8-98056-968-0 01 1 1103-
41 PULLER; FUSE 8-98054-260-0 01 1 1103-
261 COVER; CONNECTOR BOX
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98065-986-1 01 1 1207-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1103-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1103-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 1103-1206
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) (F) 10P GREEN 		1-82698-579-0 01 1 1207-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 02 1 1103-1206
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) (C) 10P BLUE 		1-82699-598-0 02 1 1207-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 1103-1206
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) (G) 10P GREEN 		1-82699-599-0 01 1 1207-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1103-1206
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) (D) 10P BROWN 		1-82699-601-0 09 1 1207-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1103-1206
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) (E) 10P 		8-97077-943-0 02 1 1207-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1103-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1103-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1103-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 05 1 1103-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1103-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1103-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 1103-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 1103-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 1103-
668 BRACKET; HARNESS 8-98095-653-2 01 1 1103-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1103-
694 BOX ASM; CONNECTOR
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98057-771-0 01 1 1207-
694 BOX ASM; CONNECTOR 8-98063-269-1 01 1 1103-1206
694 BOX ASM; CONNECTOR
AIR BAG DRIVER & PASSENGER(AK5) 		8-98063-269-1 01 1 1207-
765 TAPE
100X40 		1-72498-022-1 01 1 1409-

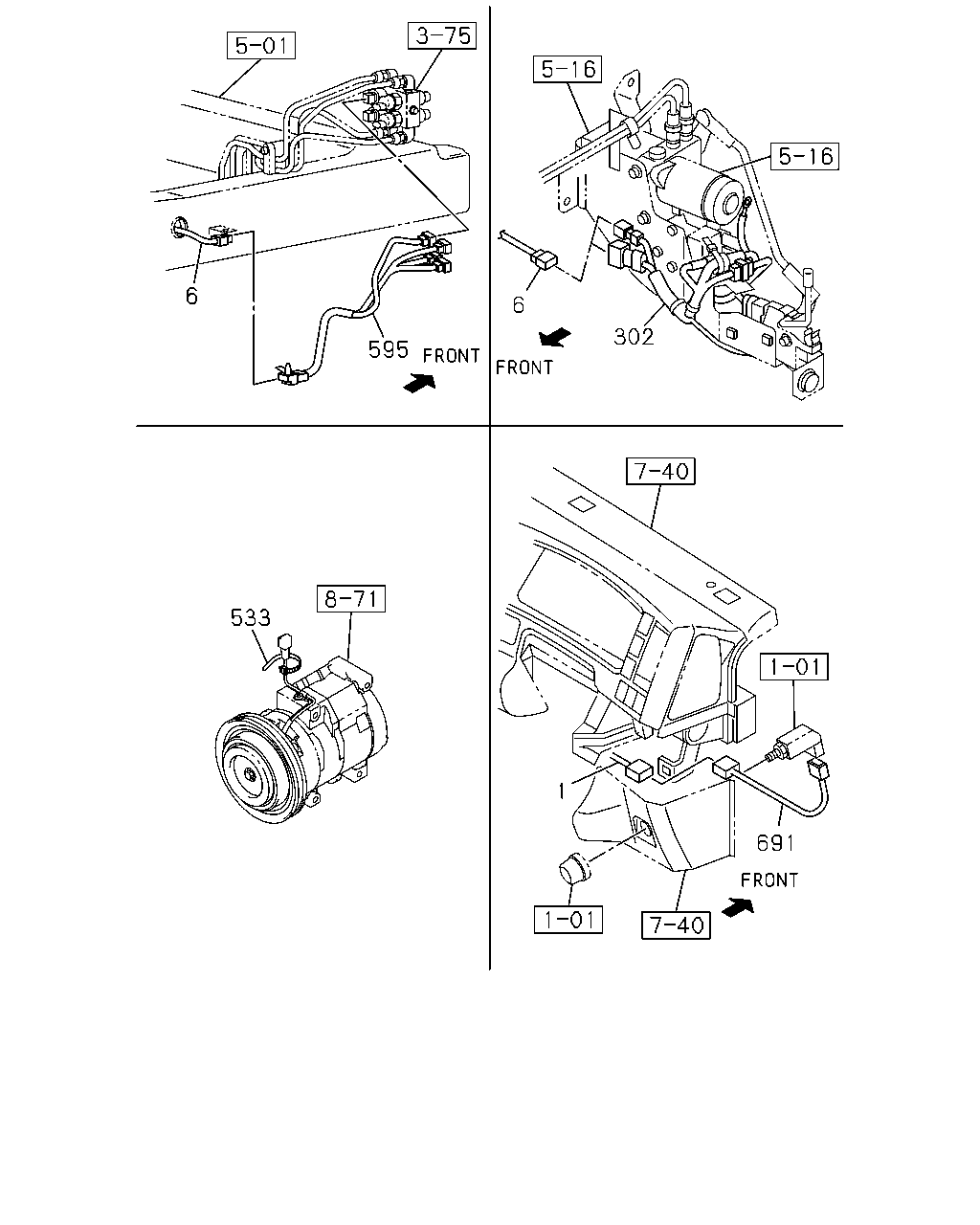

çizim 136598
6 6 302 595 533 1 691
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> 		8-98188-029-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98188-029-0 01 1 1204-1206
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98212-247-0 01 1 1207-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> 		8-98188-031-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) 		8-98188-031-0 01 1 1204-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98187-949-0 01 1 1110-1203
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98187-949-0 01 1 1204-1206
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98212-245-0 01 1 1207-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) 		8-98116-594-1 01 1 1103-1109
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) EXC. IN HOUSE PRODUCTION<TKF> 		8-98116-594-1 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98116-592-1 01 1 1103-1109
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. IN HOUSE PRODUCTION<TKF> 		8-98116-592-1 01 1 1110-1203
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-933-2 01 1 1103-1109
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),IN HOUSE PRODUCTION<TKF> 		8-98084-933-2 01 1 1110-1203
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) CAB SUSPENSION FULL FLOATING<W16> 		8-98177-534-1 01 1 1103-
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) EXC. CAB SUSPENSION FULL FLOATING<W16> 		8-98177-535-1 01 1 1103-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB SUSPENSION FULL FLOATING<W16> 		8-98177-538-1 01 1 1103-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CAB SUSPENSION FULL FLOATING<W16> 		8-98177-539-1 01 1 1103-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB SUSPENSION FULL FLOATING<W16> 		8-98177-536-1 01 1 1103-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CAB SUSPENSION FULL FLOATING<W16> 		8-98177-537-1 01 1 1103-
302 HARNESS; POWER CAB TILT
AUTO CAB TILT<WV2> 		8-97620-490-1 01 1 1103-
533 CLIP
L=180 		1-09707-162-1 01 1 1103-1206
533 CLIP
AIR CONDITIONER MANUAL CONTROL(C60) L=180 		1-09707-162-1 01 1 1207-
595 HARNESS; WARNING,BRK 8-97620-487-1 01 1 1103-
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 1103-

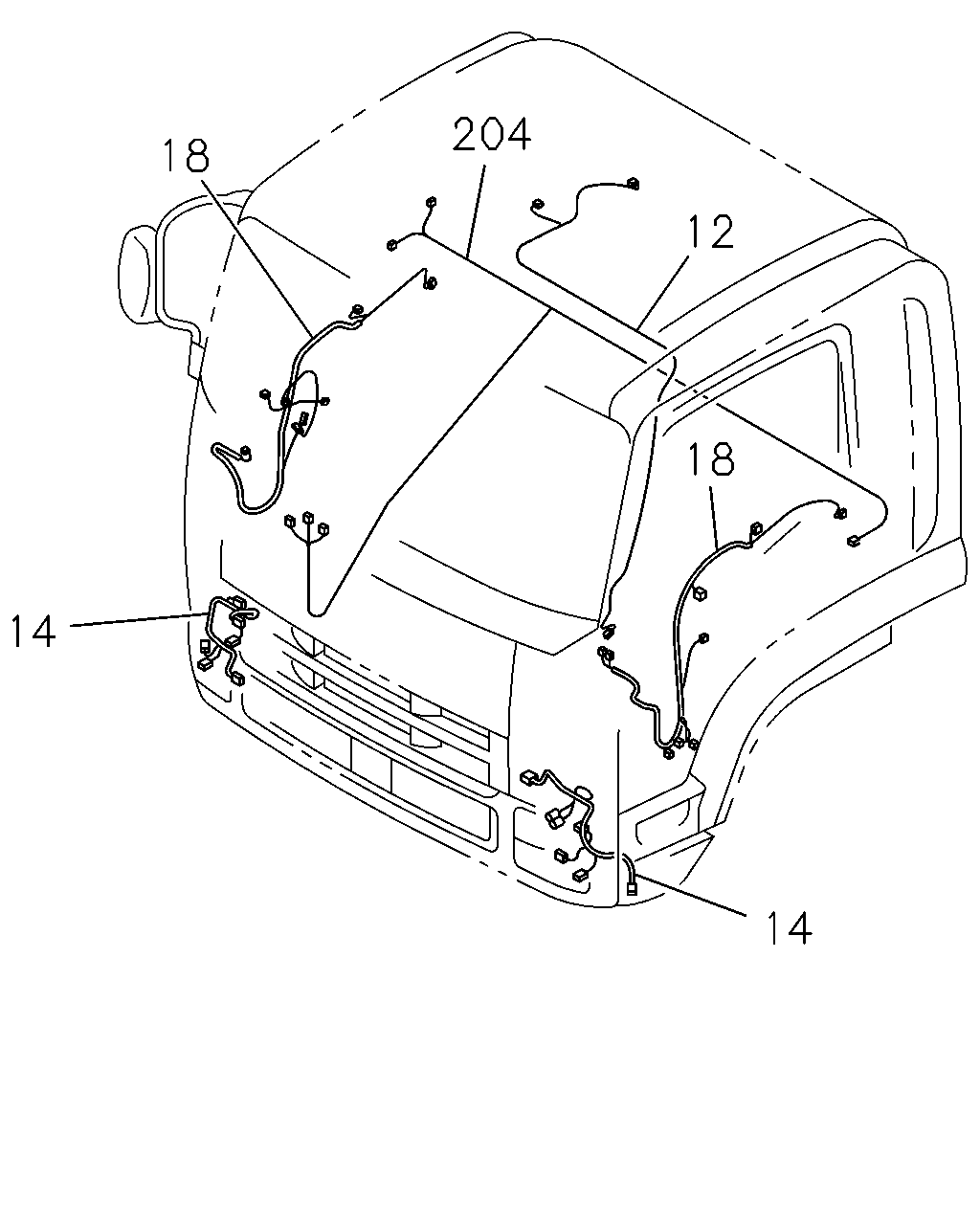

çizim 136633
204 18 12 18 14 14
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
FLUORESCENT LAMP<6UC> 		8-98048-931-2 01 1 1103-
12 HARNESS; ROOF
EXC. FLUORESCENT LAMP<6UC> 		8-98041-949-2 01 1 1103-
14 HARNESS; HEADLAMP
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-94270-986-0 02 1 1307-
14 HARNESS; HEADLAMP 8-98069-166-0 02 1 1103-1306
14 HARNESS; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98069-166-1 02 1 1307-
18 HARNESS; DOOR 8-98084-283-3 01 1 1103-1202
18 HARNESS; DOOR 8-98108-439-1 01 1 1203-
18 HARNESS; DOOR 8-98084-288-3 01 1 1103-1202
18 HARNESS; DOOR 8-98108-440-1 01 1 1203-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-284-0 01 1 1103-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) 		8-98085-279-1 01 1 1103-
204 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-274-0 01 1 1103-

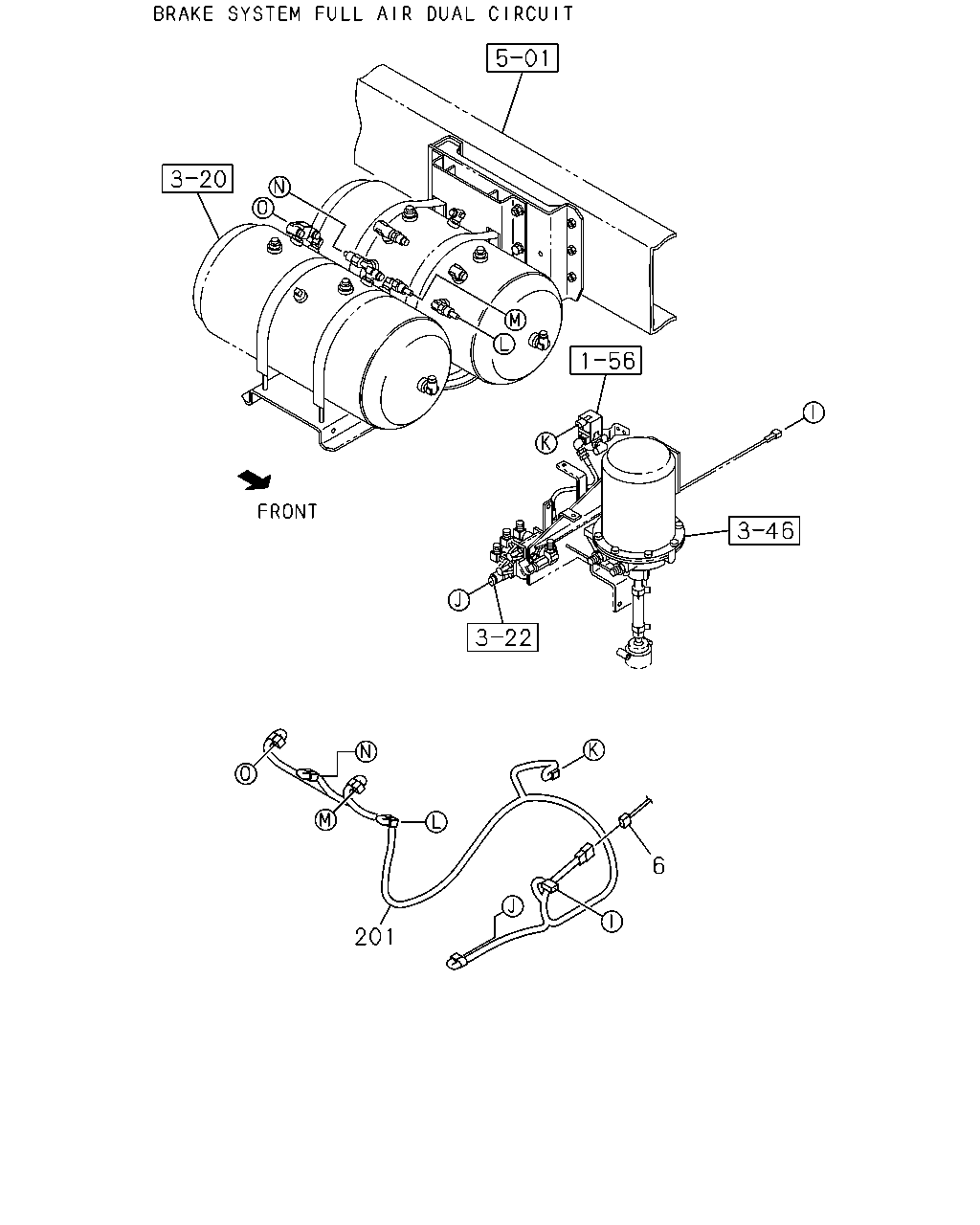

çizim 136648
6 201
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) CAB SUSPENSION FULL FLOATING<W16> 		8-98177-534-1 01 1 1103-
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) EXC. CAB SUSPENSION FULL FLOATING<W16> 		8-98177-535-1 01 1 1103-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB SUSPENSION FULL FLOATING<W16> 		8-98177-538-1 01 1 1103-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CAB SUSPENSION FULL FLOATING<W16> 		8-98177-539-1 01 1 1103-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB SUSPENSION FULL FLOATING<W16> 		8-98177-536-1 01 1 1103-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CAB SUSPENSION FULL FLOATING<W16> 		8-98177-537-1 01 1 1103-
201 HARNESS; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98113-697-2 01 1 1103-
201 HARNESS; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98184-703-0 01 1 1103-

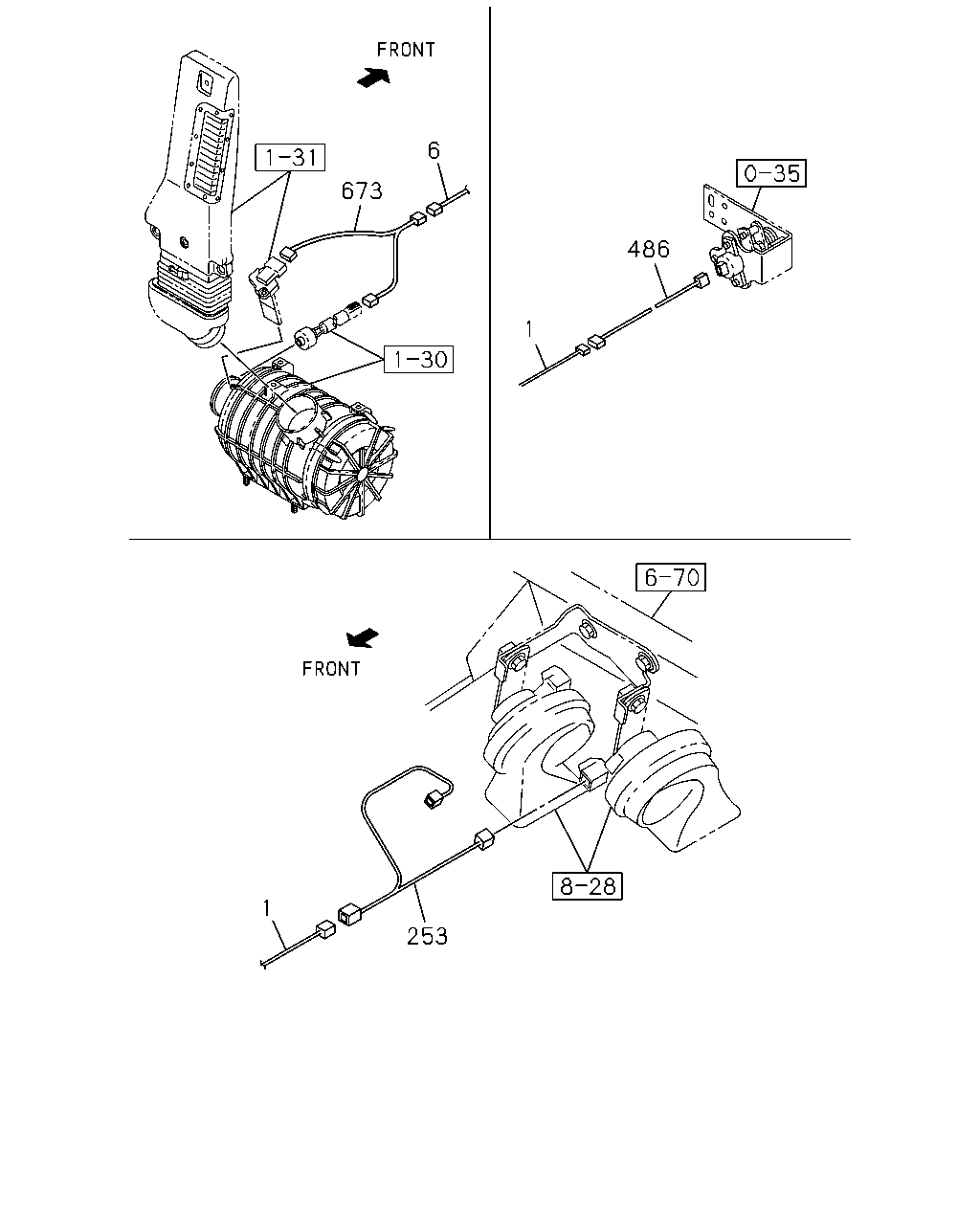

çizim 136684
6 673 486 1 1 253
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> 		8-98188-029-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98188-029-0 01 1 1204-1206
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98212-247-0 01 1 1207-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> 		8-98188-031-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) 		8-98188-031-0 01 1 1204-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98187-949-0 01 1 1110-1203
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98187-949-0 01 1 1204-1206
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98212-245-0 01 1 1207-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) 		8-98116-594-1 01 1 1103-1109
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) EXC. IN HOUSE PRODUCTION<TKF> 		8-98116-594-1 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98116-592-1 01 1 1103-1109
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. IN HOUSE PRODUCTION<TKF> 		8-98116-592-1 01 1 1110-1203
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-933-2 01 1 1103-1109
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),IN HOUSE PRODUCTION<TKF> 		8-98084-933-2 01 1 1110-1203
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) CAB SUSPENSION FULL FLOATING<W16> 		8-98177-534-1 01 1 1103-
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) EXC. CAB SUSPENSION FULL FLOATING<W16> 		8-98177-535-1 01 1 1103-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB SUSPENSION FULL FLOATING<W16> 		8-98177-538-1 01 1 1103-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CAB SUSPENSION FULL FLOATING<W16> 		8-98177-539-1 01 1 1103-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB SUSPENSION FULL FLOATING<W16> 		8-98177-536-1 01 1 1103-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CAB SUSPENSION FULL FLOATING<W16> 		8-98177-537-1 01 1 1103-
253 HARNESS; EXT,HORN 8-98074-080-3 01 1 1103-
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82675-898-0 01 1 1103-
673 HARNESS; EXT,SENSOR 8-98098-510-0 01 1 1103-

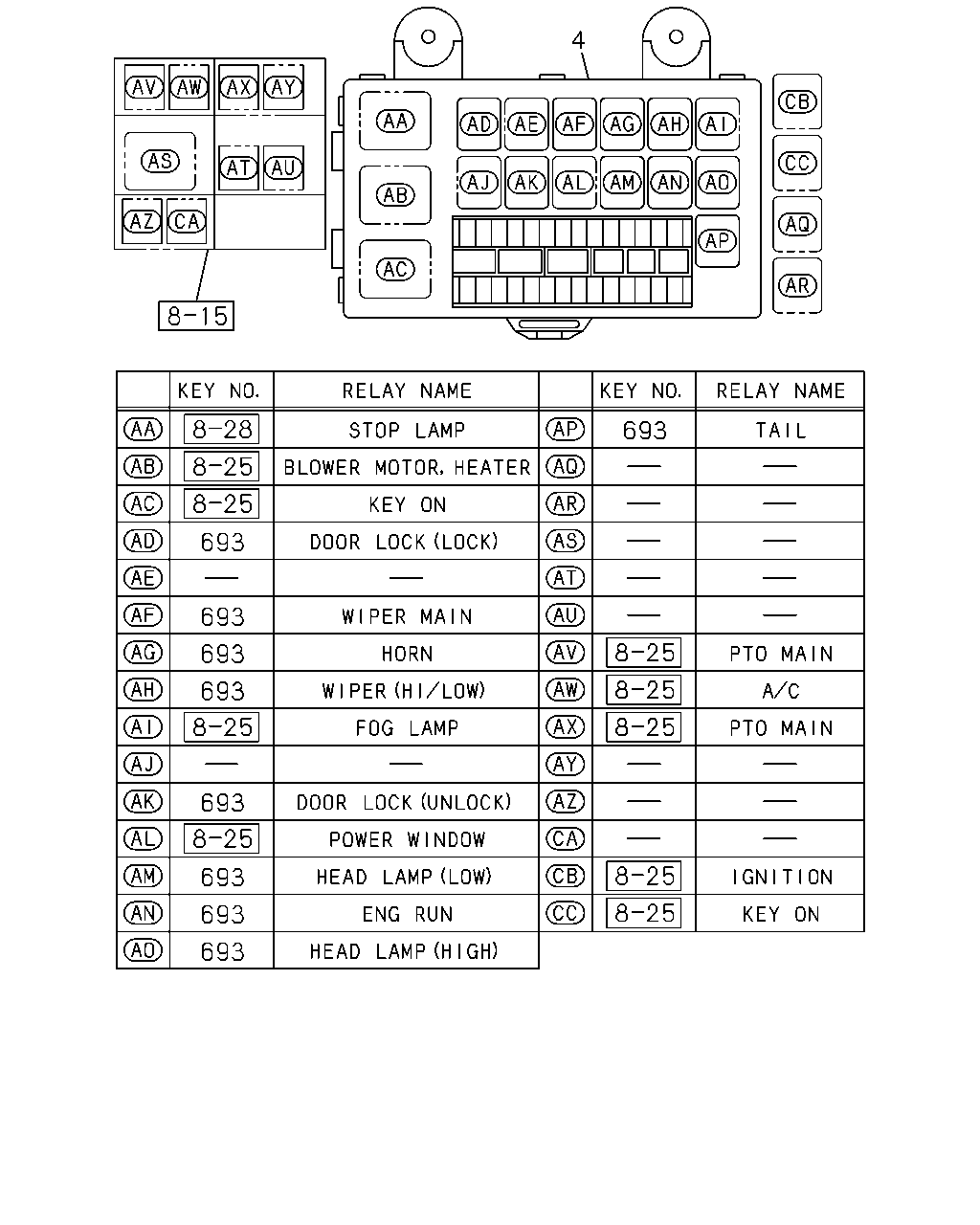

çizim 136870
693 693 693 693 693 693 693 693 693 4
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1103-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1103-

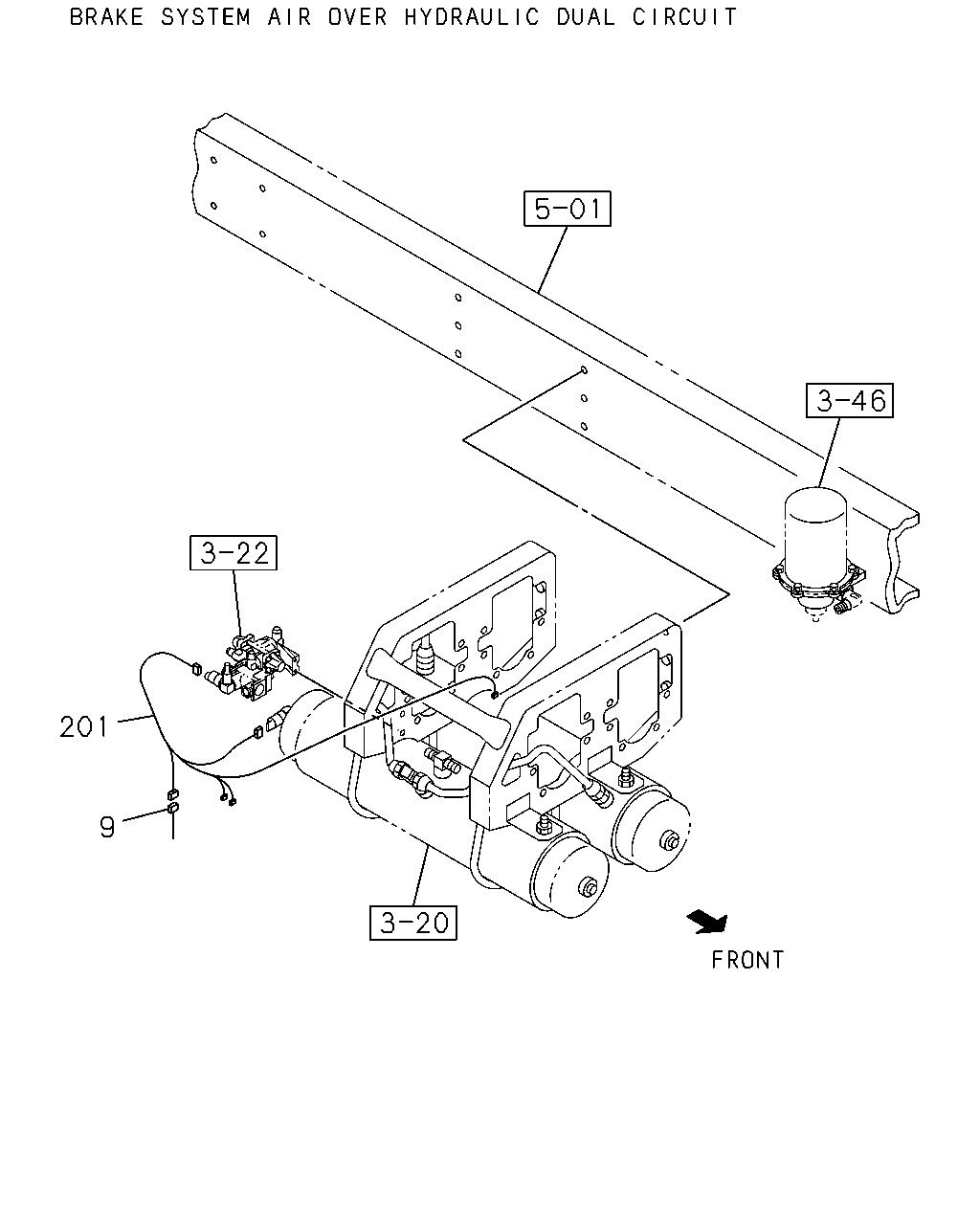

çizim 137094
201 9
BalonParca AdiParca NoAdetTipApplied Date
9 HARNESS; FRAME,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98168-633-0 01 1 1103-
9 HARNESS; FRAME,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98168-644-0 01 1 1103-
201 HARNESS; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98113-697-2 01 1 1103-
201 HARNESS; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98184-703-0 01 1 1103-

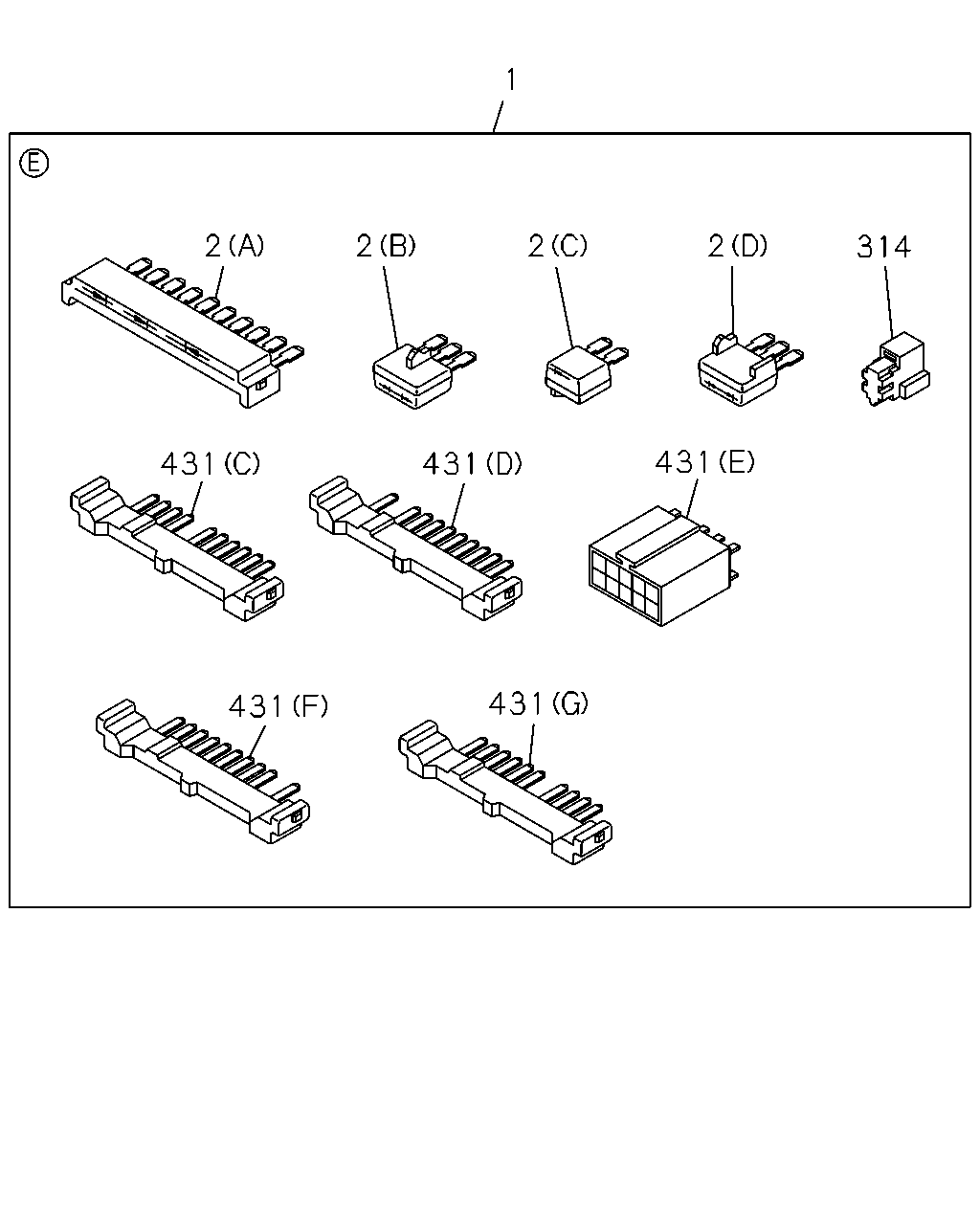

çizim 190389
1 2 2 2 2 314 431 431 431 431 431
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> 		8-98188-029-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98188-029-0 01 1 1204-1206
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98212-247-0 01 1 1207-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> 		8-98188-031-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) 		8-98188-031-0 01 1 1204-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98187-949-0 01 1 1110-1203
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98187-949-0 01 1 1204-1206
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98212-245-0 01 1 1207-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) 		8-98116-594-1 01 1 1103-1109
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) EXC. IN HOUSE PRODUCTION<TKF> 		8-98116-594-1 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98116-592-1 01 1 1103-1109
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. IN HOUSE PRODUCTION<TKF> 		8-98116-592-1 01 1 1110-1203
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-933-2 01 1 1103-1109
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),IN HOUSE PRODUCTION<TKF> 		8-98084-933-2 01 1 1110-1203
2 DIODE; CABLE HARNESS
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) BLACK 10P 		1-82699-703-0 AR 1 1207-
2 DIODE; CABLE HARNESS
EXC. AIR BAG DRIVER & PASSENGER(AK5) (D) BLACK 3P-1.5A 		8-94416-438-1 AR 1 1207-
2 DIODE; CABLE HARNESS
EXC. AIR BAG DRIVER & PASSENGER(AK5) (C) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1207-
2 DIODE; CABLE HARNESS
EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1207-
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 1103-1206
2 DIODE; CABLE HARNESS
AIR BAG DRIVER & PASSENGER(AK5) (A) BLACK 10P 		1-82699-703-0 01 1 1207-
2 DIODE; CABLE HARNESS
(D) BLACK 3P-1.5A 		8-94416-438-1 01 1 1103-1206
2 DIODE; CABLE HARNESS
AIR BAG DRIVER & PASSENGER(AK5) (D) BLACK 3P-1.5A 		8-94416-438-1 01 1 1207-
2 DIODE; CABLE HARNESS
(C) BLACK 2P-1.5A 		8-94422-639-1 03 1 1103-1206
2 DIODE; CABLE HARNESS
AIR BAG DRIVER & PASSENGER(AK5) (C) BLACK 2P-1.5A 		8-94422-639-1 03 1 1207-
2 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 01 1 1103-1206
2 DIODE; CABLE HARNESS
AIR BAG DRIVER & PASSENGER(AK5) (B) BLACK 3P-1.5A 		8-94422-640-1 01 1 1207-
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 1103-1206
314 RESISTOR; HARNESS
AIR BAG DRIVER & PASSENGER(AK5) BLUE 		1-82691-204-0 01 1 1207-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 1103-1206
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) (F) 10P GREEN 		1-82698-579-0 01 1 1207-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 02 1 1103-1206
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) (C) 10P BLUE 		1-82699-598-0 02 1 1207-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 1103-1206
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) (G) 10P GREEN 		1-82699-599-0 01 1 1207-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1103-1206
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) (D) 10P BROWN 		1-82699-601-0 09 1 1207-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1103-1206
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) (E) 10P 		8-97077-943-0 02 1 1207-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1103-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1103-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1103-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 05 1 1103-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1103-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1103-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 1103-

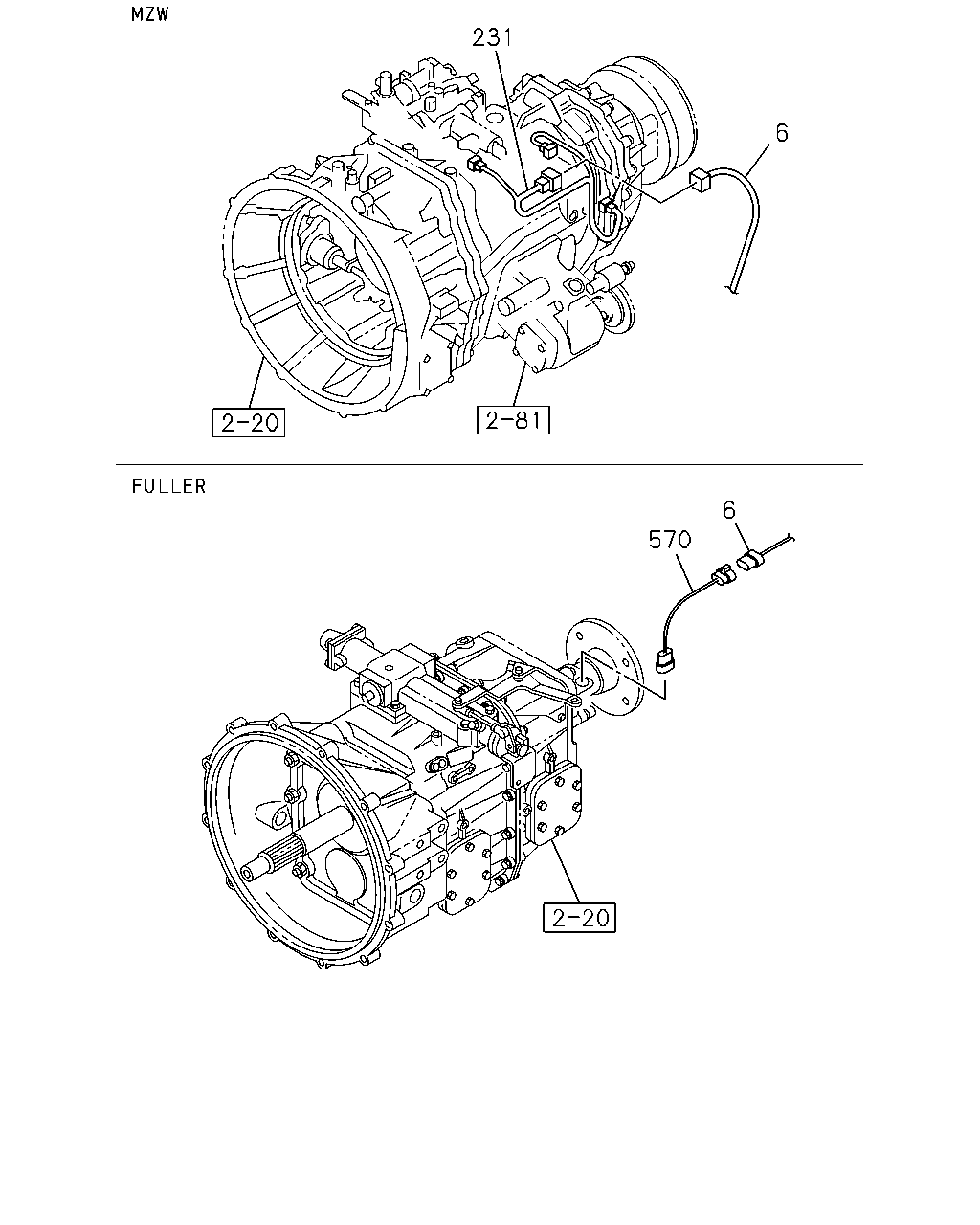

çizim 190391
231 6 6 570
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) CAB SUSPENSION FULL FLOATING<W16> 		8-98177-534-1 01 1 1103-
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) EXC. CAB SUSPENSION FULL FLOATING<W16> 		8-98177-535-1 01 1 1103-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB SUSPENSION FULL FLOATING<W16> 		8-98177-538-1 01 1 1103-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CAB SUSPENSION FULL FLOATING<W16> 		8-98177-539-1 01 1 1103-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB SUSPENSION FULL FLOATING<W16> 		8-98177-536-1 01 1 1103-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CAB SUSPENSION FULL FLOATING<W16> 		8-98177-537-1 01 1 1103-
231 HARNESS; TRANS
MZW6P M/T(RSZ) 		8-97618-932-2 01 1 1103-
570 HARNESS; SPEED SENSOR
FULLER FSO5206B OD M/T(Y4V) 		1-82670-012-0 01 1 1103-

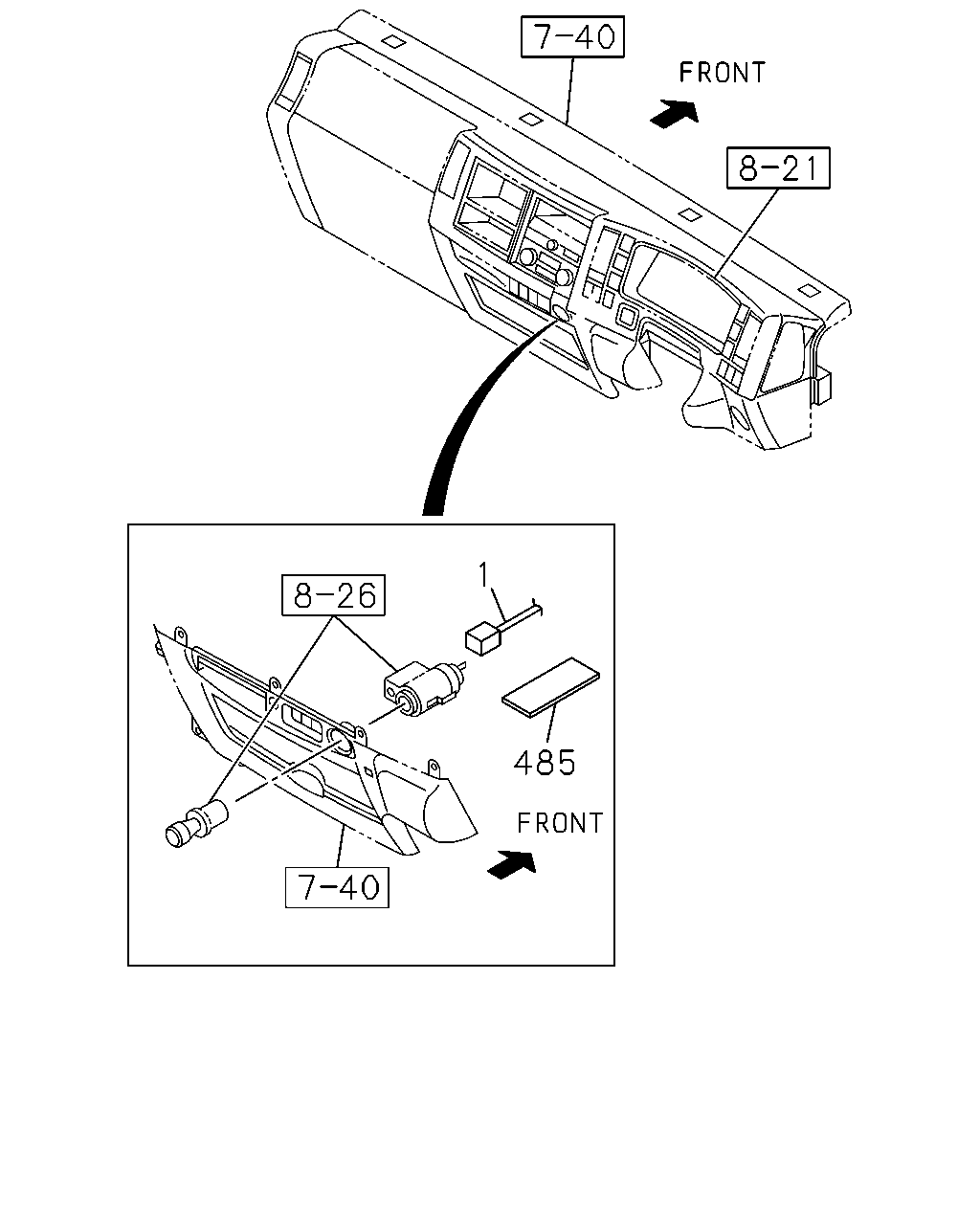

çizim 190392
1 485
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> 		8-98188-029-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98188-029-0 01 1 1204-1206
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98212-247-0 01 1 1207-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> 		8-98188-031-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) 		8-98188-031-0 01 1 1204-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98187-949-0 01 1 1110-1203
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98187-949-0 01 1 1204-1206
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98212-245-0 01 1 1207-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) 		8-98116-594-1 01 1 1103-1109
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) EXC. IN HOUSE PRODUCTION<TKF> 		8-98116-594-1 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98116-592-1 01 1 1103-1109
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. IN HOUSE PRODUCTION<TKF> 		8-98116-592-1 01 1 1110-1203
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-933-2 01 1 1103-1109
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),IN HOUSE PRODUCTION<TKF> 		8-98084-933-2 01 1 1110-1203
485 SEAL; CONNECTOR
180X40 		1-72498-019-1 01 1 1103-

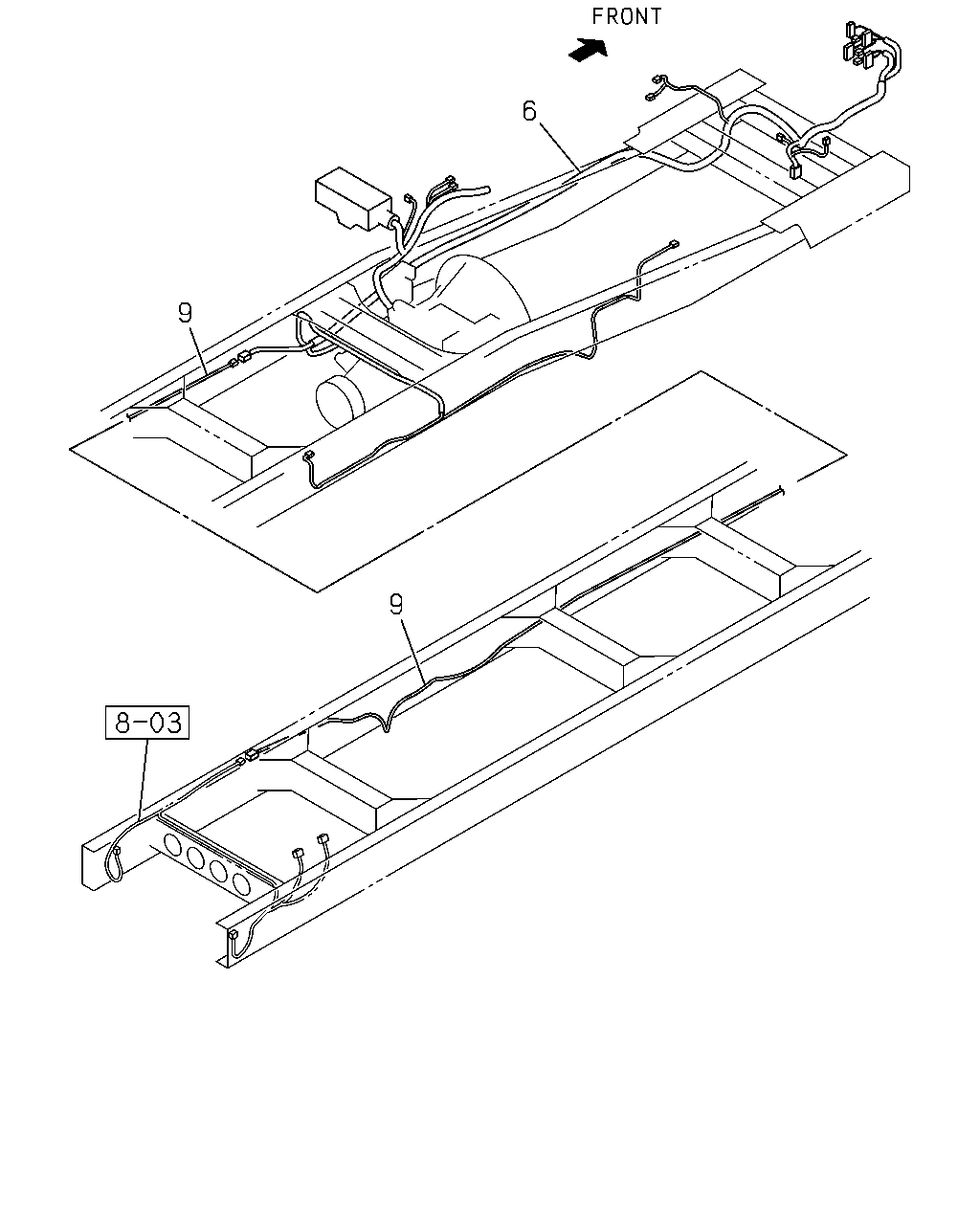

çizim 190394
6 9 9
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) CAB SUSPENSION FULL FLOATING<W16> 		8-98177-534-1 01 1 1103-
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) EXC. CAB SUSPENSION FULL FLOATING<W16> 		8-98177-535-1 01 1 1103-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB SUSPENSION FULL FLOATING<W16> 		8-98177-538-1 01 1 1103-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CAB SUSPENSION FULL FLOATING<W16> 		8-98177-539-1 01 1 1103-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB SUSPENSION FULL FLOATING<W16> 		8-98177-536-1 01 1 1103-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CAB SUSPENSION FULL FLOATING<W16> 		8-98177-537-1 01 1 1103-
9 HARNESS; FRAME,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98168-633-0 01 1 1103-
9 HARNESS; FRAME,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98168-644-0 01 1 1103-

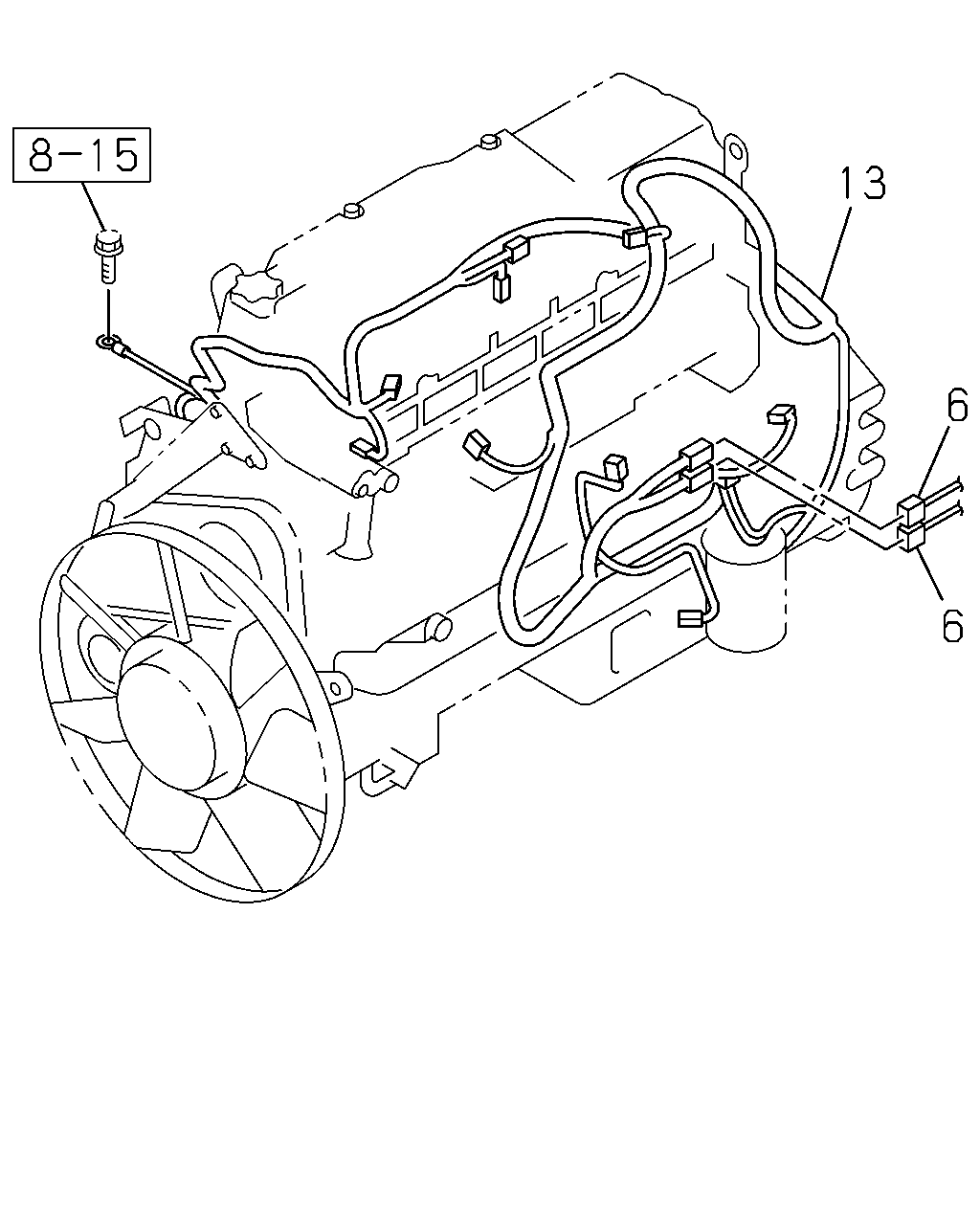

çizim 190396
13 6 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) CAB SUSPENSION FULL FLOATING<W16> 		8-98177-534-1 01 1 1103-
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) EXC. CAB SUSPENSION FULL FLOATING<W16> 		8-98177-535-1 01 1 1103-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB SUSPENSION FULL FLOATING<W16> 		8-98177-538-1 01 1 1103-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CAB SUSPENSION FULL FLOATING<W16> 		8-98177-539-1 01 1 1103-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB SUSPENSION FULL FLOATING<W16> 		8-98177-536-1 01 1 1103-
6 HARNESS; FRAME
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CAB SUSPENSION FULL FLOATING<W16> 		8-98177-537-1 01 1 1103-
13 HARNESS; ENG
GENERATOR 24V50A(K89) 		8-98177-208-1 01 1 1103-
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) 		8-98177-209-1 01 1 1103-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
