1 |

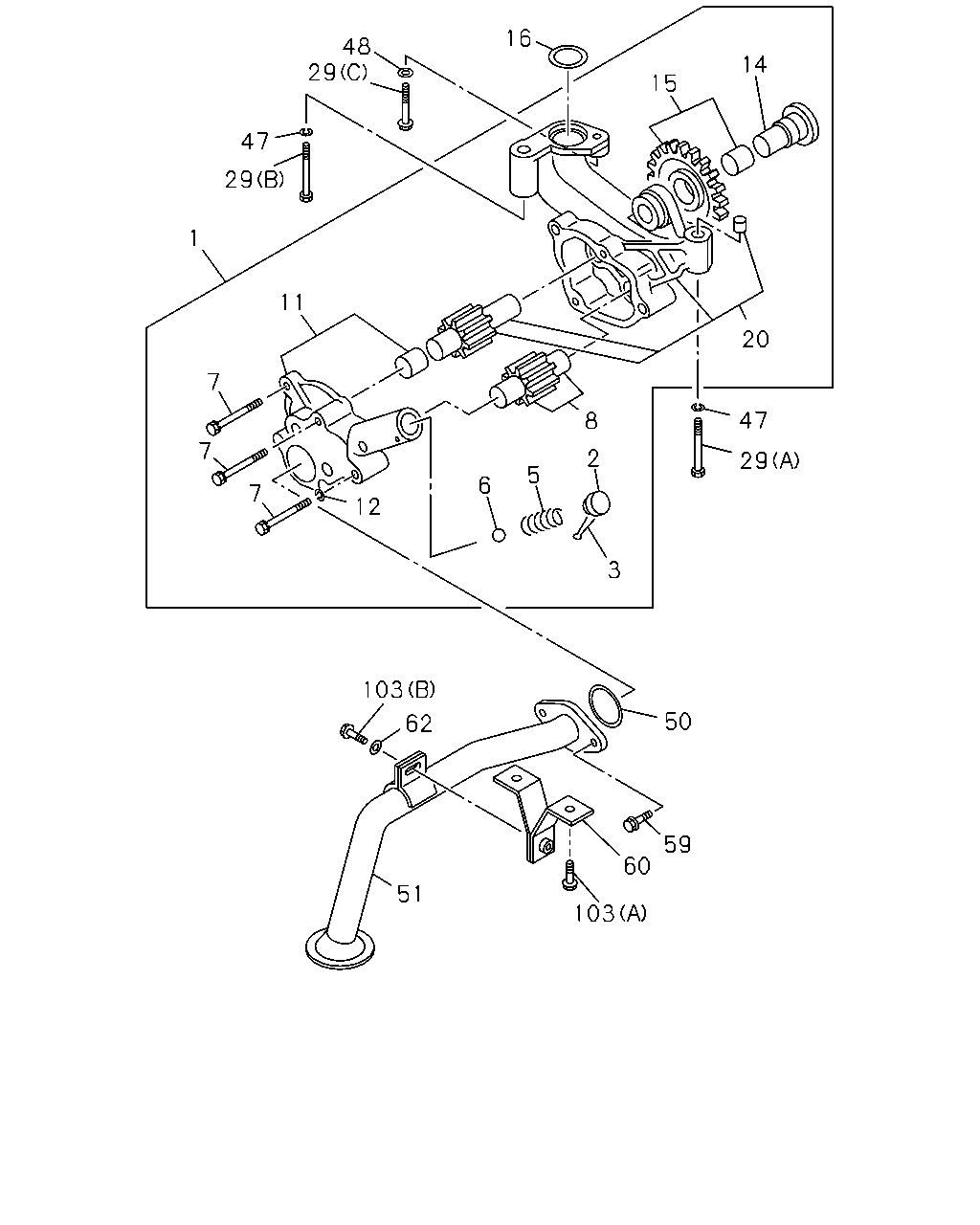

PUMP ASM; OIL
DUMP TRUCK<RA1>
|
1-13100-286-0 |
01 |
1 |
9906- |
| |
1 |
PUMP ASM; OIL
MIXER TRUCK<RA2>
|
1-13100-285-0 |
01 |
1 |
9907- |
| |
2 |
SEAT; SPR
|
1-13165-014-0 |
01 |
1 |
9906- |
| |
3 |
PIN; SPLIT
|
9-08114-040-0 |
01 |
1 |
9906- |
| |
5 |
SPRING; COIL
|
1-09580-552-0 |
01 |
1 |
9906- |
| |
6 |
VALVE ASM; RELIEF,OIL PUMP
|
1-13161-026-0 |
01 |
1 |
9906- |
| |
7 |
BOLT; COVER,OIL PUMP
M10X55
|
0-16806-055-0 |
01 |
1 |
9906- |
| |
7 |
BOLT; COVER,OIL PUMP
M10X70
|
0-16806-070-0 |
01 |
1 |
9906- |
| |
7 |
BOLT; COVER,OIL PUMP
M10X35 W/LK WASHER
|
0-50051-035-0 |
01 |
1 |
9906- |
| |
7 |
BOLT; COVER,OIL PUMP
M10X45 W/LK WASHER
|
0-50051-045-0 |
01 |
1 |
9906- |
| |
8 |
GEAR; DRIVEN,OIL PUMP
DUMP TRUCK<RA1>
|
1-13125-049-0 |
01 |
1 |
9906- |
| |
8 |
GEAR; DRIVEN,OIL PUMP
MIXER TRUCK<RA2>
|
1-13125-046-0 |
01 |
1 |
9907- |
| |
11 |
COVER ASM; OIL PUMP
|
1-13113-070-0 |
01 |
1 |
9906- |
| |
12 |
WASHER; LK,BOLT COVER
ID=10.2
|
9-09150-510-0 |
02 |
1 |
9906- |
| |
14 |
SPINDLE; DRIVEN GEAR
|
1-13129-010-1 |
01 |
1 |
9906- |
| |
15 |
GEAR ASM; IDLE
|
1-13128-027-0 |
01 |
1 |
9906- |
| |
16 |
GASKET; OIL PUMP,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=31.2
|
1-09623-220-0 |
01 |
1 |
9906- |
| |
20 |
GEAR; DRIVE,OIL PUMP
DUMP TRUCK<RA1>
|
1-13110-052-0 |
01 |
1 |
9906- |
| |
20 |
GEAR; DRIVE,OIL PUMP
MIXER TRUCK<RA2>
|
1-13110-051-0 |
01 |
1 |
9907- |
| |
29 |
BOLT; OIL PUMP
(A)
M12X55
|
9-01666-255-0 |
01 |
1 |
9906- |
| |
29 |
BOLT; OIL PUMP
(B)
M12X70
|
9-01666-270-0 |
01 |
1 |
9906- |
| |
29 |
BOLT; OIL PUMP
(C)
M10X30
|
9-02361-030-0 |
01 |
1 |
9906- |
| |
47 |
WASHER; LK,OIL PUMP
ID=12.5
|
9-09851-682-0 |
02 |
1 |
9906- |
| |
48 |
WASHER; PL,OIL PUMP
ID=10
|
1-09503-033-1 |
01 |
1 |
9906- |
| |
50 |
GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-09623-397-0 |
01 |
1 |
9906- |
| |
51 |
STRAINER & PIPE ASM; OIL
|
1-13140-112-2 |
01 |
1 |
9906- |
| |
59 |
BOLT; BRKT,STRAINER
M8X18 FLANGE
|
0-28080-818-0 |
02 |
1 |
9906- |
| |
60 |
BRACKET; OIL STRAINER
|
1-13145-048-0 |
01 |
1 |
9906- |
| |
62 |
WASHER; PL,STAY
ID=8.4 OD=18
|
9-09160-608-0 |
01 |
1 |
9906- |
| |
103 |
BOLT; STRAINER
(A)
M8X18 FLANGE
|
0-28080-818-0 |
02 |
1 |
9906- |
| |
103 |
BOLT; STRAINER
(B)
M8X25 W/LK WASHER
|
0-50040-825-0 |
01 |
1 |
9906- |
