Isuzu WW
▶
TRUCKS
▶
FVR
▶
11370 - FVR(RHD)W/DOC EURO4
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-20 - MIRROR AND MIRROR STAY
▶
7-20 — MIRROR AND MIRROR STAY
(#71833) — 58 parça
◀

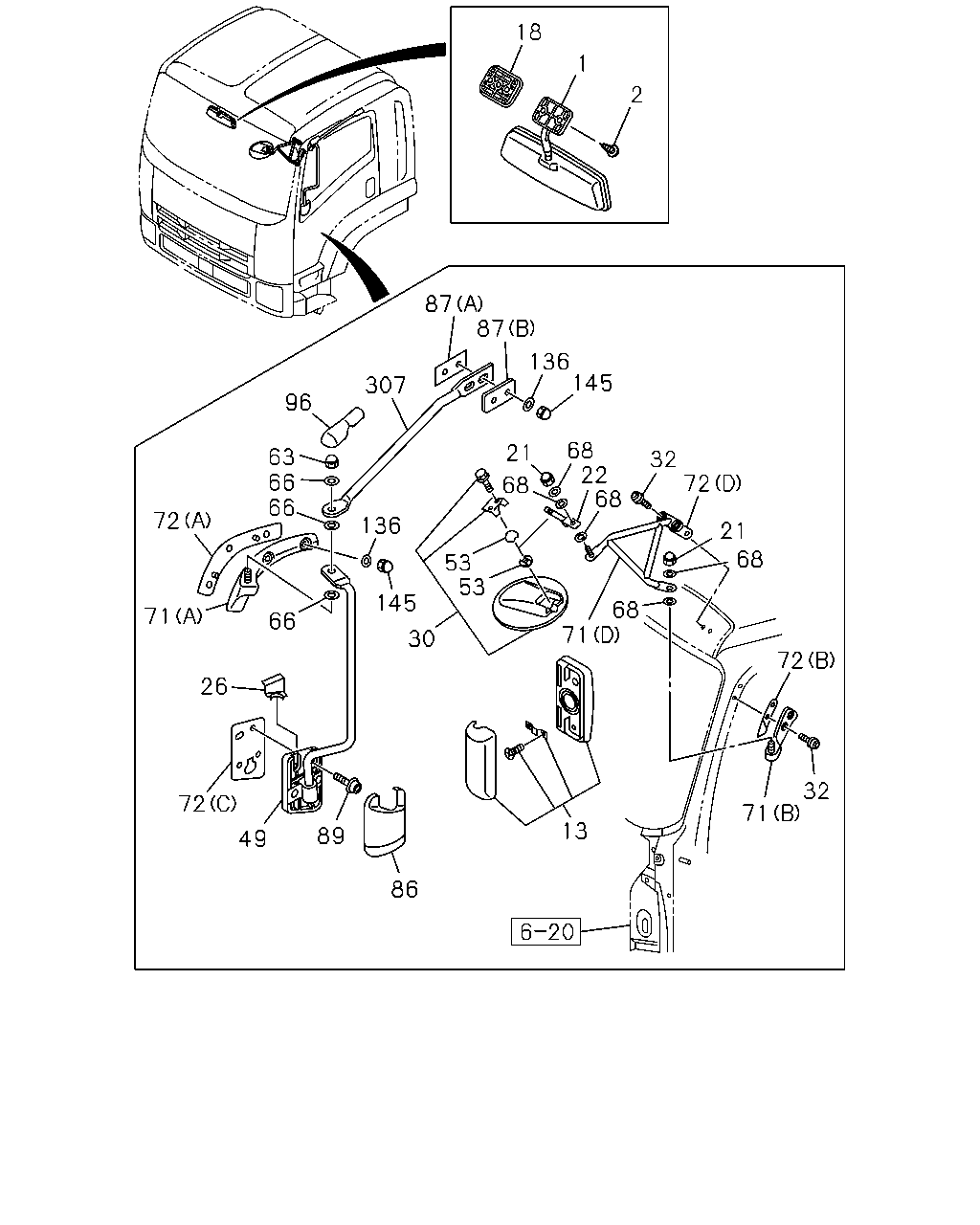

[720A] NO.2 (9 parça)

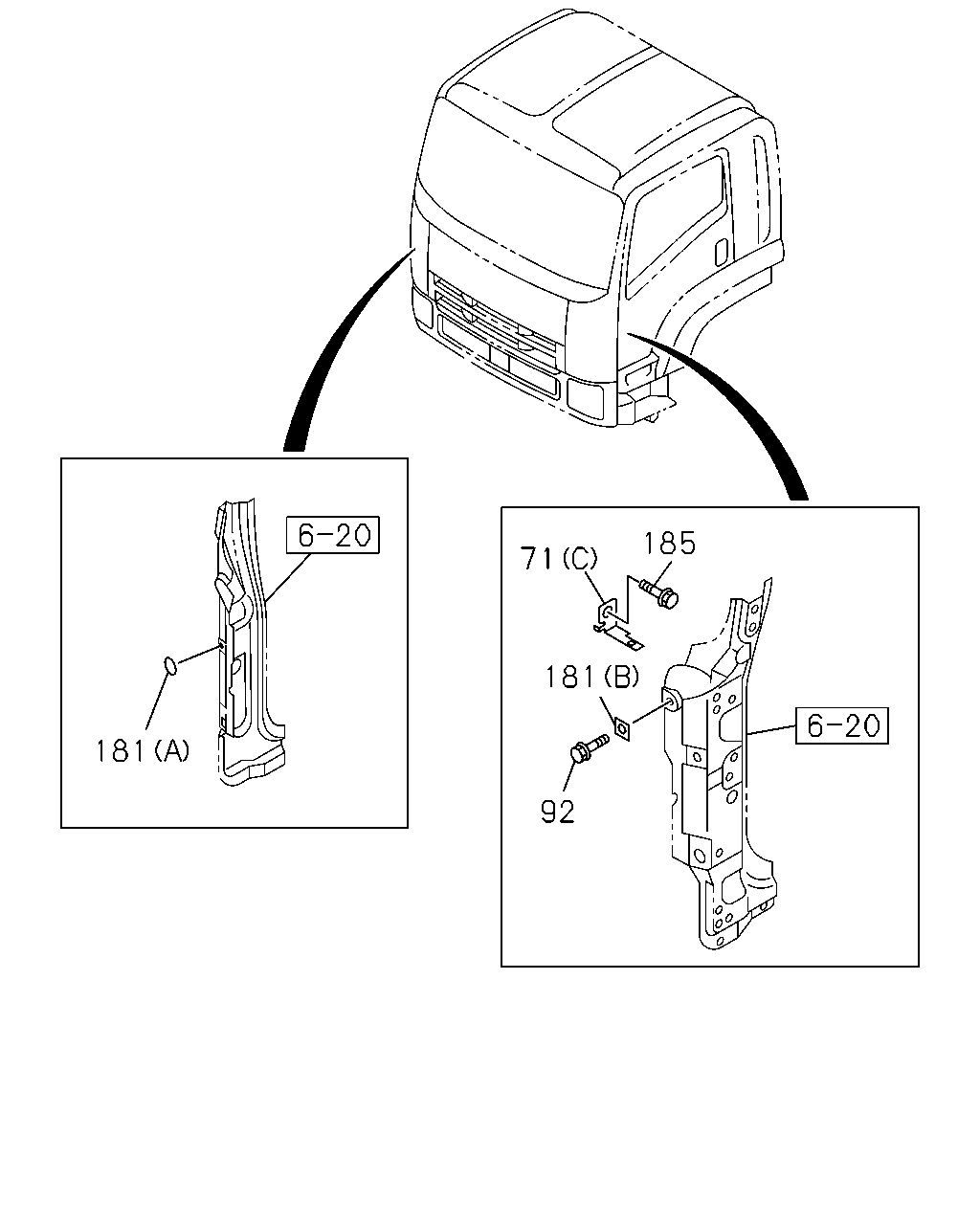

[720A] NO.1 (49 parça)
▶
185
71
181
181
92
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
71
BRACKET; OUTSIDE MIRROR
(C)
8-98039-277-2
02
1
1103-1202
71
BRACKET; OUTSIDE MIRROR
(A)
8-98031-794-2
01
1
1103-
71
BRACKET; OUTSIDE MIRROR
(B)
8-98060-240-0
01
1
1103-
71
BRACKET; OUTSIDE MIRROR
(D)
8-98092-492-3
01
1
1103-
71
BRACKET; OUTSIDE MIRROR
(A)
8-98031-793-2
01
1
1103-
92
BOLT; STAY BRKT,MIRROR
M8X16 FLANGE
8-98076-109-0
01
1
1103-
181
SEAL; BRKT
(B) 25X25
8-94272-533-0
01
1
1103-
181
SEAL; BRKT
(A) OD=25 BLACK
1-76798-019-0
01
1
1103-
185
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
02
1
1103-1202
18
1
2
87
87
136
145
307
96
68
22
68
21
63
66
66
32
72
68
72
136
21
68
53
53
145
68
71
71
66
30
72
26
32
71
72
13
89
49
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
MIRROR; ROOM
DARK GRAY
8-98097-534-1
01
1
1103-
2
SCREW; MIRROR TO BODY
M6X26
8-98033-674-0
02
1
1103-
13
MIRROR ASM; OUTSIDE RR VIEW
8-98055-992-1
01
1
1103-
13
MIRROR ASM; OUTSIDE RR VIEW
8-98055-991-1
01
1
1103-
18
CLIP; MIRROR
DARK GRAY
8-97408-241-0
01
1
1103-
21
NUT; MIRROR
M10 CAP NUT
1-09984-134-0
02
1
1103-
22
STAY; OUTSIDE MIRROR
8-98092-493-0
01
1
1103-
26
COVER; OUTSIDE MIRROR
8-98031-806-0
01
1
1103-
26
COVER; OUTSIDE MIRROR
8-98031-805-0
01
1
1103-
30
MIRROR; UNDER
8-98055-994-0
01
1
1103-1504
30
MIRROR; UNDER
8-98309-725-0
01
1
1505-
32
SCREW; UNDER MIRROR
M8X26 W/PL WASHER
8-98067-249-2
04
1
1103-
49
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
8-98166-206-0
01
1
1304-
49
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
8-98166-207-0
01
1
1304-
49
STAY; MIRROR SIDE
8-98060-216-1
01
1
1103-1202
49
STAY; MIRROR SIDE
8-98166-195-0
01
1
1203-1303
49
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
8-98166-195-0
01
1
1304-
49
STAY; MIRROR SIDE
8-98060-215-1
01
1
1103-1202
49
STAY; MIRROR SIDE
8-98166-194-0
01
1
1203-1303
49
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
8-98166-194-0
01
1
1304-
53
PIVOT; SIDE MIRROR
ID=19.1
1-71737-633-2
02
1
1103-
63
NUT; STAY
M10 CAP NUT
1-09984-134-0
02
1
1103-
66
WASHER; PL
ID=10.5 OD=26 T=2.6
1-09985-204-0
06
1
1103-
68
WASHER; STAY
ID=10.5 OD=26 T=2.6
1-09985-204-0
04
1
1103-
71
BRACKET; OUTSIDE MIRROR
(C)
8-98039-277-2
02
1
1103-1202
71
BRACKET; OUTSIDE MIRROR
(A)
8-98031-794-2
01
1
1103-
71
BRACKET; OUTSIDE MIRROR
(B)
8-98060-240-0
01
1
1103-
71
BRACKET; OUTSIDE MIRROR
(D)
8-98092-492-3
01
1
1103-
71
BRACKET; OUTSIDE MIRROR
(A)
8-98031-793-2
01
1
1103-
72
SHEET
(A)
8-98031-797-0
01
1
1103-
72
SHEET
(D)
8-98060-245-1
01
1
1103-
72
SHEET
(B)
8-98064-776-0
01
1
1103-
72
SHEET
(C)
8-98101-865-0
01
1
1103-1202
72
SHEET
(C)
8-98116-605-0
01
1
1203-1303
72
SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C)
8-98116-605-0
01
1
1304-
72
SHEET
(A)
8-98031-796-0
01
1
1103-
72
SHEET
(C)
8-98101-864-0
01
1
1103-1202
72
SHEET
(C)
8-98116-604-0
01
1
1203-1303
72
SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C)
8-98116-604-0
01
1
1304-
86
COVER; STAY,OUTSIDE MIRROR
8-98031-803-2
01
1
1103-
86
COVER; STAY,OUTSIDE MIRROR
8-98031-802-2
01
1
1103-
87
SPACER
(A)
8-98063-786-0
02
1
1103-
87
SPACER
(B)
8-98063-789-0
02
1
1103-
89
SCREW; BRKT,OUTSIDE MIRROR
M8X23
8-97310-216-1
08
1
1103-
96
CAP; MIRROR STAY
8-98080-173-0
02
1
1103-
136
WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6
1-09985-191-0
10
1
1103-
145
NUT; CAP,SUB STAY
M8 CAP NUT
8-98059-914-0
10
1
1103-
307
STAY; MIRROR SUPPORT
8-98063-785-2
01
1
1103-
307
STAY; MIRROR SUPPORT
8-98063-784-2
01
1
1103-
