◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11370 - FVR(RHD)W/DOC EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#71832) — 9 parça

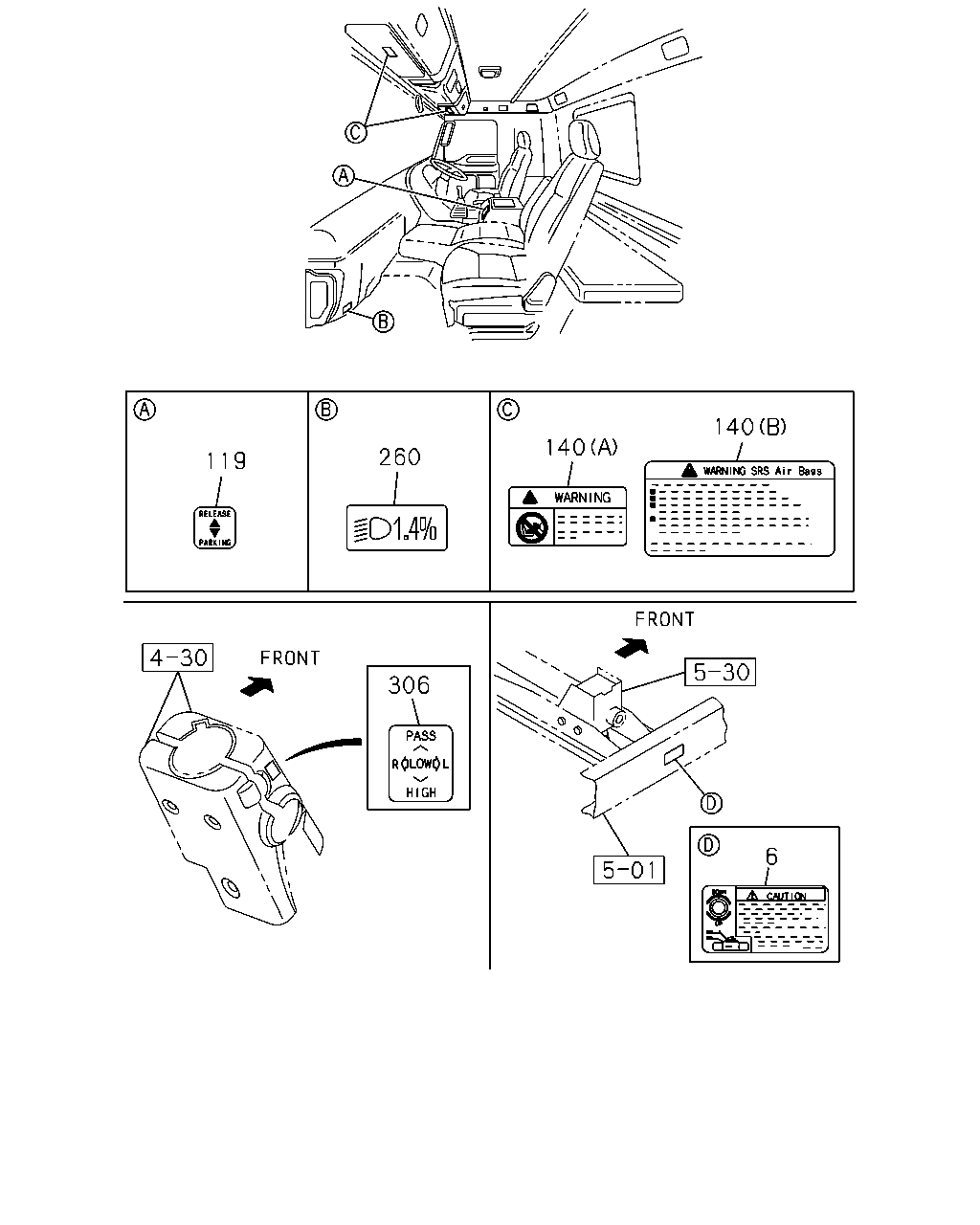

çizim 132648
140 140 260 119 306 6
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 1103-
119 PLATE; CAUTION,HAND BRK LEVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85881-759-0 01 1 1103-
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98080-839-0 02 1 1103-
140 PLATE; CAUTION,SRS
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98139-964-0 01 1 1103-
260 PLATE; CAUTION,HEAD LAMP LEVELING 8-98008-779-0 01 1 1103-
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1103-
çizim 190377
35 49 35
BalonParca AdiParca NoAdetTipApplied Date
35 PLATE; CAUTION,CAB
AUTO CAB TILT<WV2> (B) 		8-98017-667-1 01 1 1103-
35 PLATE; CAUTION,CAB
EXC. AUTO CAB TILT<WV2> (A) 		8-98065-363-0 01 1 1103-
49 PLATE; CAUTION,FUSE BOX 8-98122-353-0 01 1 1103-
