Isuzu WW
▶
TRUCKS
▶
FVR
▶
11370 - FVR(RHD)W/DOC EURO4
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-75 - MAT AND CARPET
▶

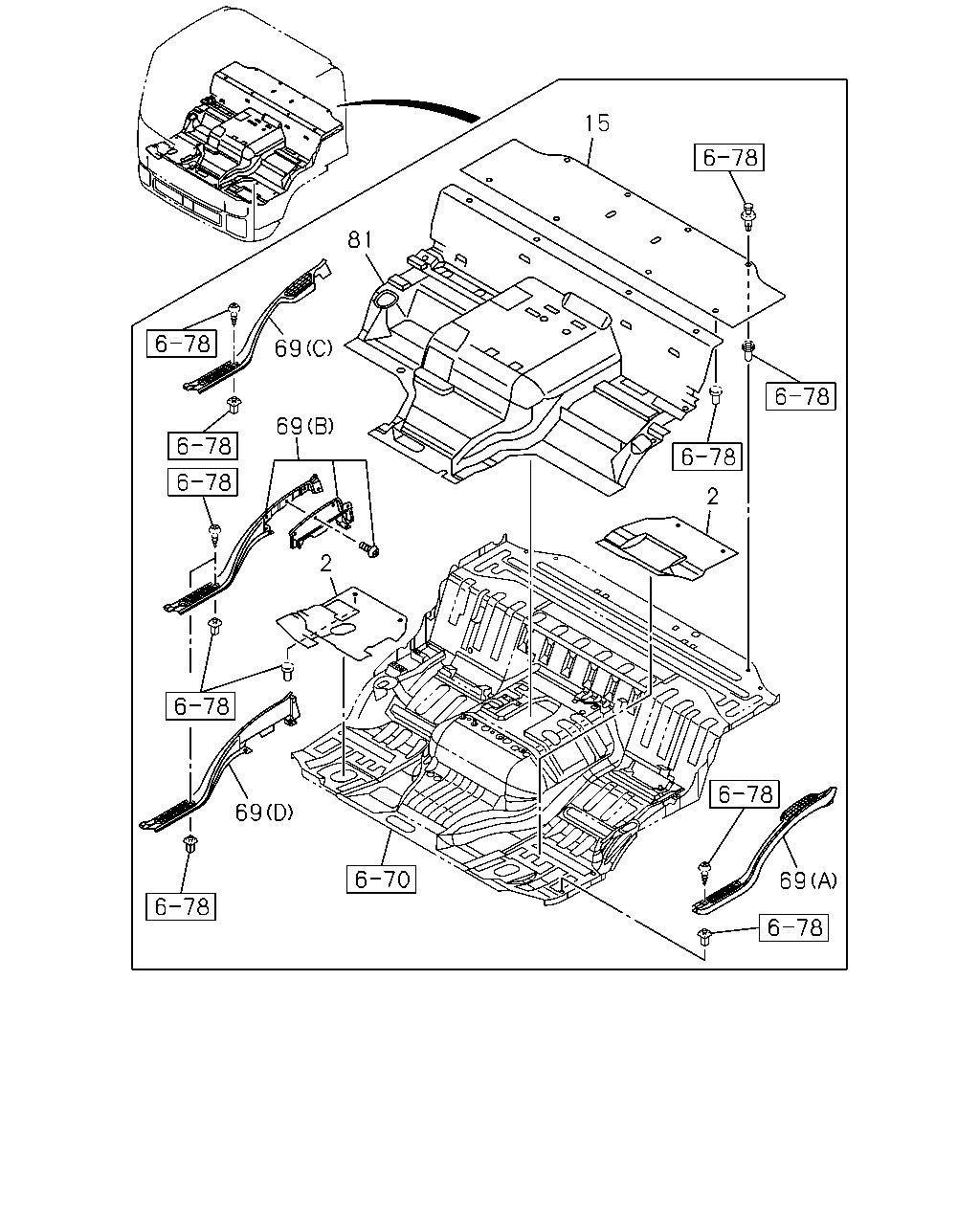

6-75 — MAT AND CARPET
(#71824) — 14 parça
69
2
69
2
69
69
81
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY
8-97407-746-5
01
1
1103-
2
MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY
8-97407-747-2
01
1
1103-
2
MAT; FLOOR
EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY
8-97418-947-0
01
1
1103-
2
MAT; FLOOR
EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY
8-97418-949-0
01
1
1103-
15
MAT; FLOOR REAR
FLOOR COVER<6WX> EXC. MATTRESS SLEEPER CAB<E40> GRAY
8-97407-404-1
01
1
1103-
15
MAT; FLOOR REAR
VINYL CARPET<B30>,FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> DARK GRAY
8-97418-951-0
01
1
1103-
69
COVER; TRIM,FLOOR MAT,DOOR SIDE
(A) GRAY
8-97407-413-1
01
1
1103-
69
COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (B) GRAY
8-97407-414-3
01
1
1103-1503
69
COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (D) GRAY
8-97465-138-0
01
1
1504-
69
COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. DUMP CONTROL LEVER<RC4> (C) GRAY
8-97407-412-1
01
1
1103-
81
MAT; FLOOR,CENTER
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GRAY
8-97407-406-3
01
1
1103-
81
MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY
8-97407-410-3
01
1
1103-
81
MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) VINYL CARPET<B30> DARK GRAY
8-97418-941-0
01
1
1103-
81
MAT; FLOOR,CENTER
VINYL CARPET<B30> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DARK GRAY
8-97418-940-0
01
1
1103-
