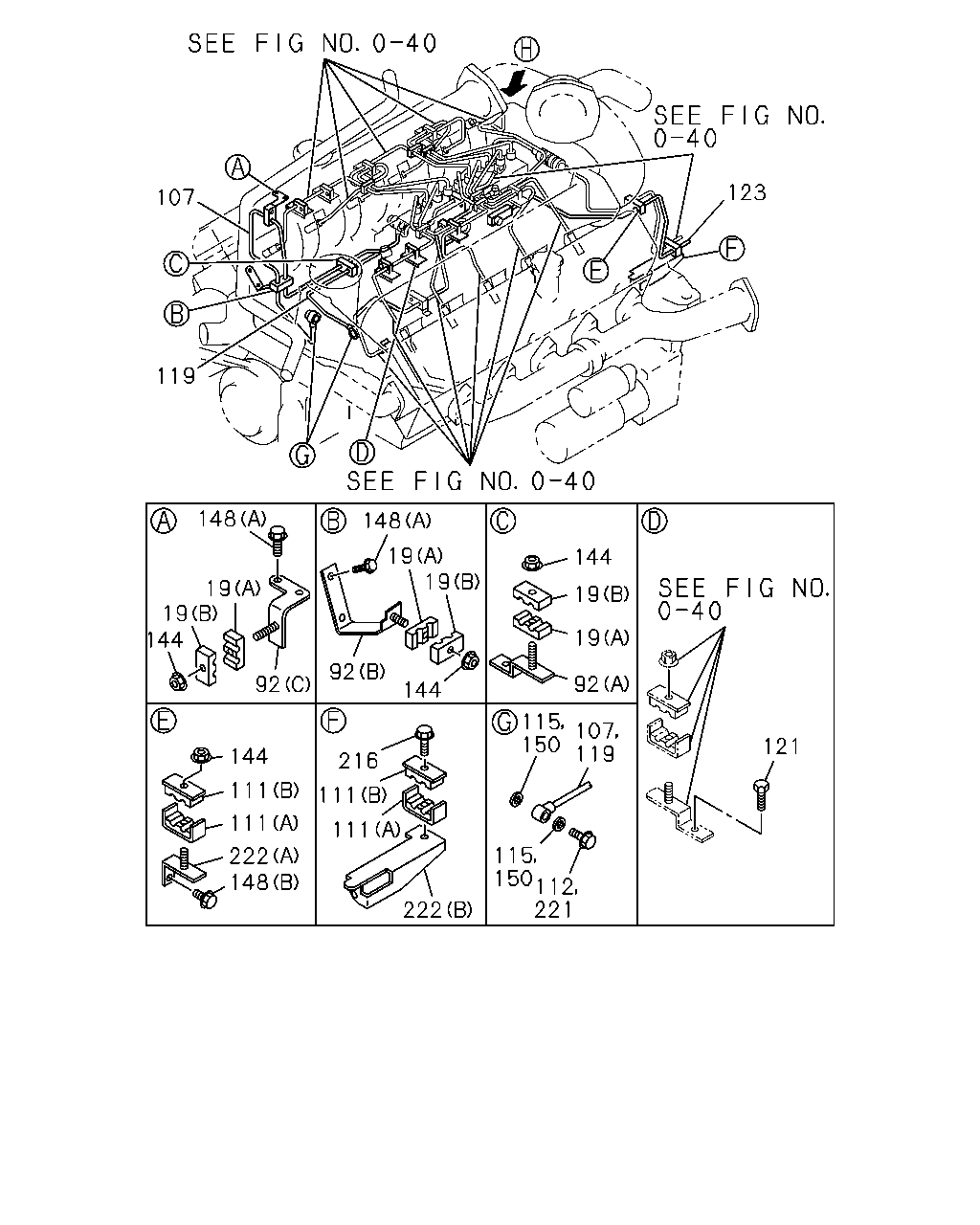

0-42 — FUEL PUMP AND PIPE (#7182) — 36 parça

123 107 119 148 19 19 144 92 92 144 19 19 148 144 19 92 19 107 119 115 150 115 150 112 221 121 216 111 111 222 148 144 111 111 222

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	9906-
19	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-2	03	1	9906-
92	BRACKET; FUEL PIPE (A)	1-15419-363-1	01	1	9906-9910
92	BRACKET; FUEL PIPE (A)	1-15419-622-0	01	1	9911-
92	BRACKET; FUEL PIPE (B)	1-15419-384-1	01	1	9906-
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9906-
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9906-
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9906-
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9906-
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-726-2	01	1	9906-
111	CLIP; FUEL PIPE (A)	1-09701-193-1	02	1	9906-
111	CLIP; FUEL PIPE (B)	1-09701-194-1	02	1	9906-
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9906-
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9906-
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-641-1	01	1	9906-
121	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	9906-
123	PIPE; FUEL,FUEL FILTER LEAK OFF DUMP TRUCK<RA1>	1-15415-659-1	01	1	9906-
123	PIPE; FUEL,FUEL FILTER LEAK OFF MIXER TRUCK<RA2>	1-15415-722-1	01	1	9907-
144	NUT; CLIP M6 FLANGE	0-91150-106-0	04	1	9906-
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	9906-
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	04	1	9906-
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9906-
216	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28080-635-0	01	1	9906-
221	BOLT; FUEL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9906-
222	BRACKET; CLIP (A)	1-15419-383-1	01	1	9906-
222	BRACKET; CLIP DUMP TRUCK<RA1> (B)	1-15419-402-1	01	1	9906-
222	BRACKET; CLIP MIXER TRUCK<RA2> (B)	1-13319-027-0	01	1	9907-

92 148 92 92 148 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
92	BRACKET; FUEL PIPE (A)	1-15419-363-1	01	1	9906-9910
92	BRACKET; FUEL PIPE (A)	1-15419-622-0	01	1	9911-
92	BRACKET; FUEL PIPE (B)	1-15419-384-1	01	1	9906-
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9906-
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9906-
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9906-
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9906-
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	9906-
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	04	1	9906-
