0-41 — FUEL FILTER AND BRACKET (#7181) — 21 parça

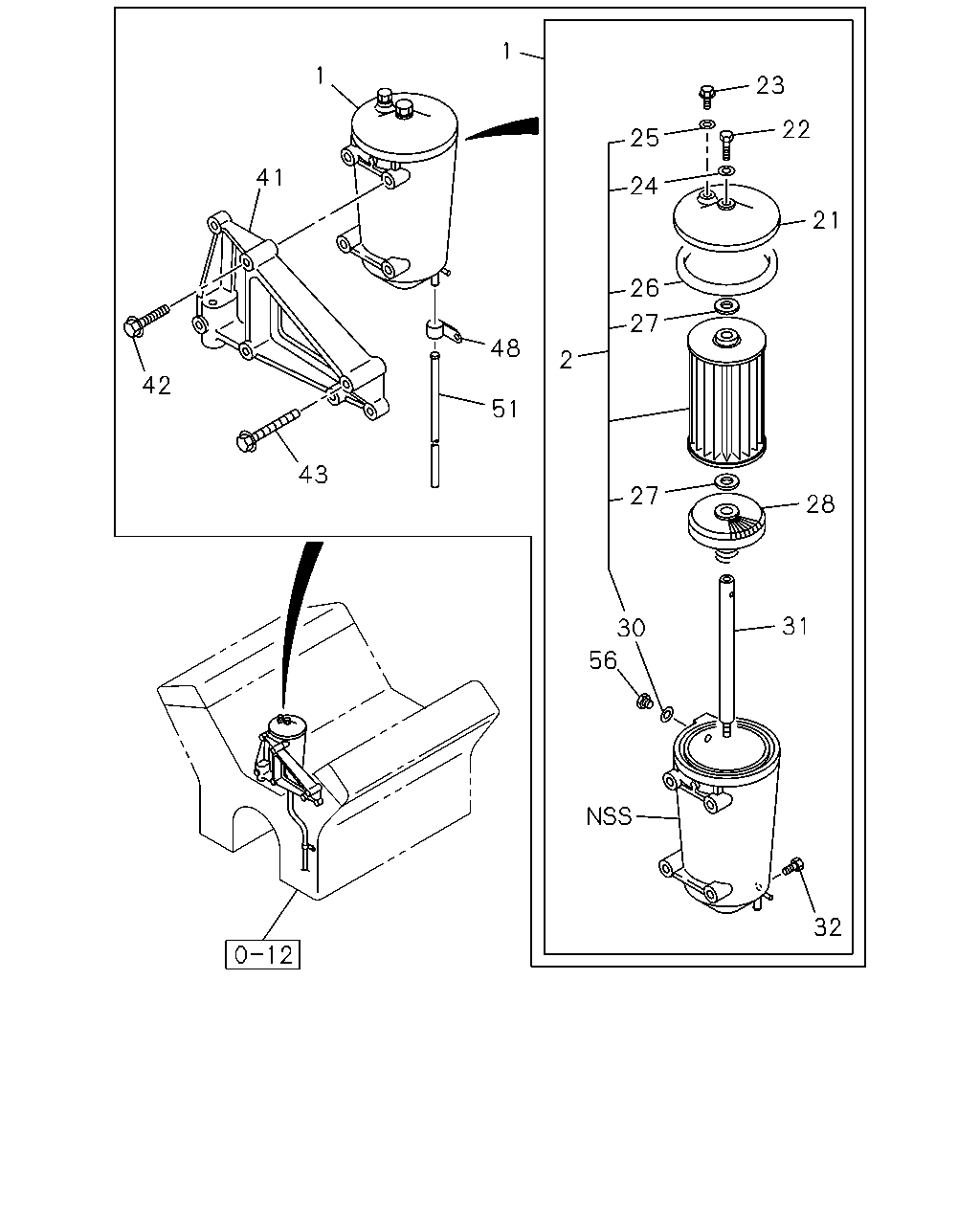

çizim 43666
1 1 23 22 25 41 24 21 26 27 48 2 42 51 43 27 28 31 30 56 32
BalonParca AdiParca NoAdetTipApplied Date
1 FILTER ASM; FUEL 1-13200-820-2 01 1 9906-
2 ELEMENT KIT; FUEL FILTER 1-87810-976-0 01 1 9906-
21 COVER; UPR,FUEL FILTER 1-13212-049-1 01 1 9906-
22 BOLT; CENTER TUBE,COVER 1-13219-045-0 01 1 9906-
23 PLUG; COVER 1-13219-074-0 01 1 9906-
24 GASKET; CENTER TUBE BOLT
ID=10.2 		1-09630-083-0 01 1 9906-
25 GASKET; AIR DRAIN PLUG
ID=10.2 		1-09630-083-0 01 1 9906-
26 GASKET; COVER TO BODY 9-09720-797-0 01 1 9906-
27 GASKET; ELEMENT 1-09630-007-0 02 1 9906-
28 STRAINER; WATER,FUEL FILTER 1-13251-001-0 01 1 9906-
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 9906-
31 TUBE; CENTER BOLT 1-13231-026-0 01 1 9906-
32 BOLT; DRAIN,FUEL FILTER 1-13219-030-0 01 1 9906-
41 BRACKET; FUEL FILTER 1-19755-090-0 01 1 9906-
42 BOLT; FUEL FILTER
M10X28 		0-28081-028-0 01 1 9906-
42 BOLT; FUEL FILTER
M10X60 FLANGE 		0-28081-060-0 03 1 9906-
43 BOLT; BRKT
M10X40 FLANGE 		0-28181-040-0 02 1 9906-
43 BOLT; BRKT
M10X75 FLANGE 		8-94399-669-1 02 1 9906-
48 CLIP; VINYL PIPE 9-09915-274-1 01 1 9906-
51 PIPE; VINYL
L=750 SERVICED BY L=10000 		9-09914-909-0 01 1 9906-
56 PLUG; FUEL FILTER
M14X9 		9-99202-314-0 01 1 9906-
