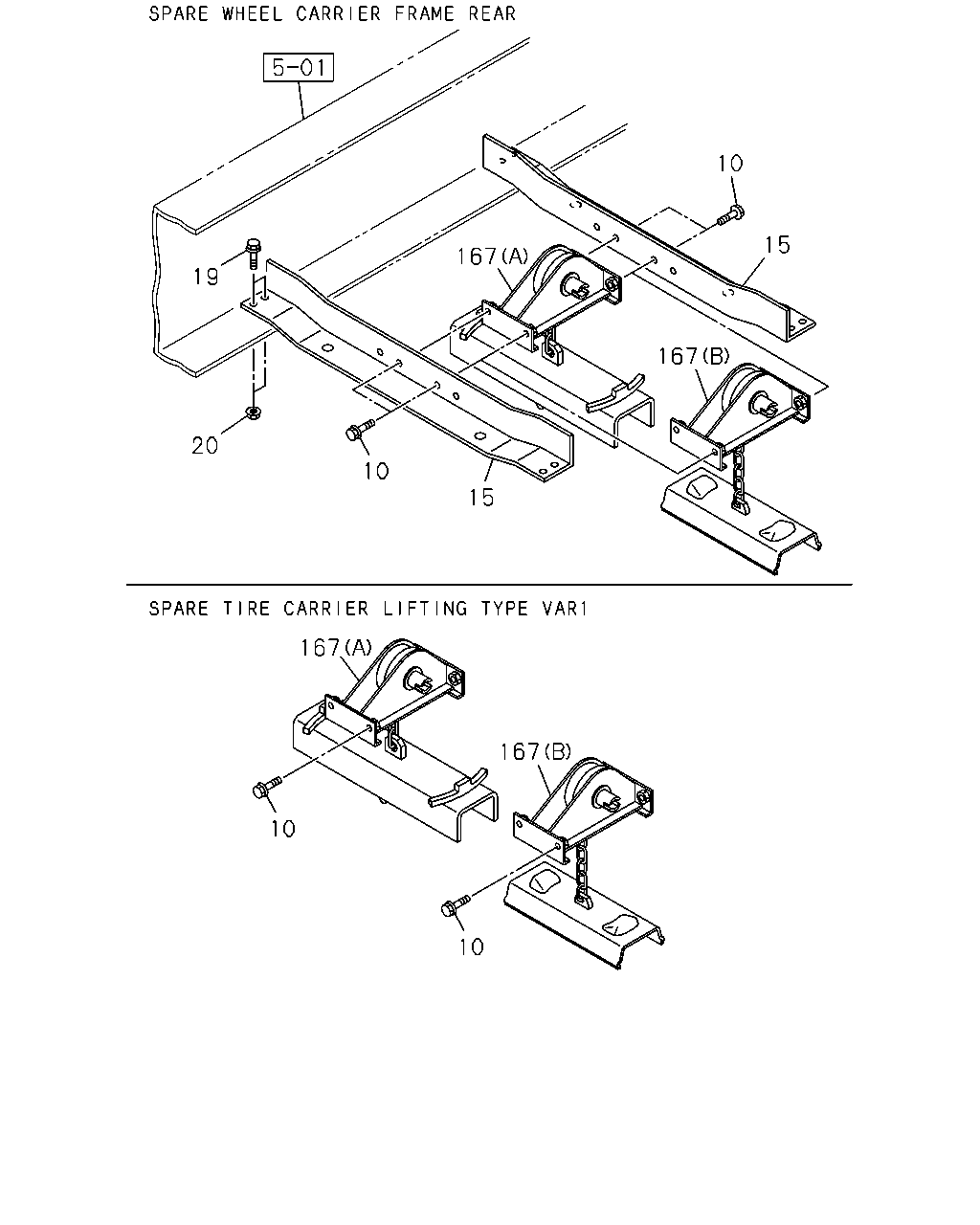

5-30 — SPARE TIRE CARRIER AND COVER (#71808) — 11 parça

10 15 167 19 167 20 10 15 167 167 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE	0-28651-230-0	04	1	1103-1107
10	BOLT; TIRE HANGER SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE	0-28651-230-0	04	1	1108-
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) M12X30 FLANGE	0-28651-230-0	04	1	1108-
15	MEMBER; CROSS,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>	1-53631-395-1	02	1	1103-1107
15	MEMBER; CROSS,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU)	1-53631-395-1	02	1	1108-
19	BOLT; C/MBR SPARE WHEEL CARRIER FRAME REAR<P10> M10X30 FLANGE	0-28051-030-0	08	1	1103-1107
19	BOLT; C/MBR SPARE WHEEL CARRIER FRAME REAR<P10> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) M10X30 FLANGE	0-28051-030-0	08	1	1108-
20	NUT; C/MBR SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE	0-91180-210-0	08	1	1103-1107
20	NUT; C/MBR SPARE WHEEL CARRIER FRAME REAR<P10> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) M10 FLANGE	0-91180-210-0	08	1	1108-
167	HANGER; TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A)	1-53630-210-4	01	1	1103-
167	HANGER; TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B)	1-53630-208-3	01	1	1103-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
