◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11370 - FVR(RHD)W/DOC EURO4 ▶ 5 - Frame, Cab Mounting ▶ 5-17 - CYLINDER; CAB TILT ▶
5-17 — CYLINDER; CAB TILT (#71806) — 27 parça

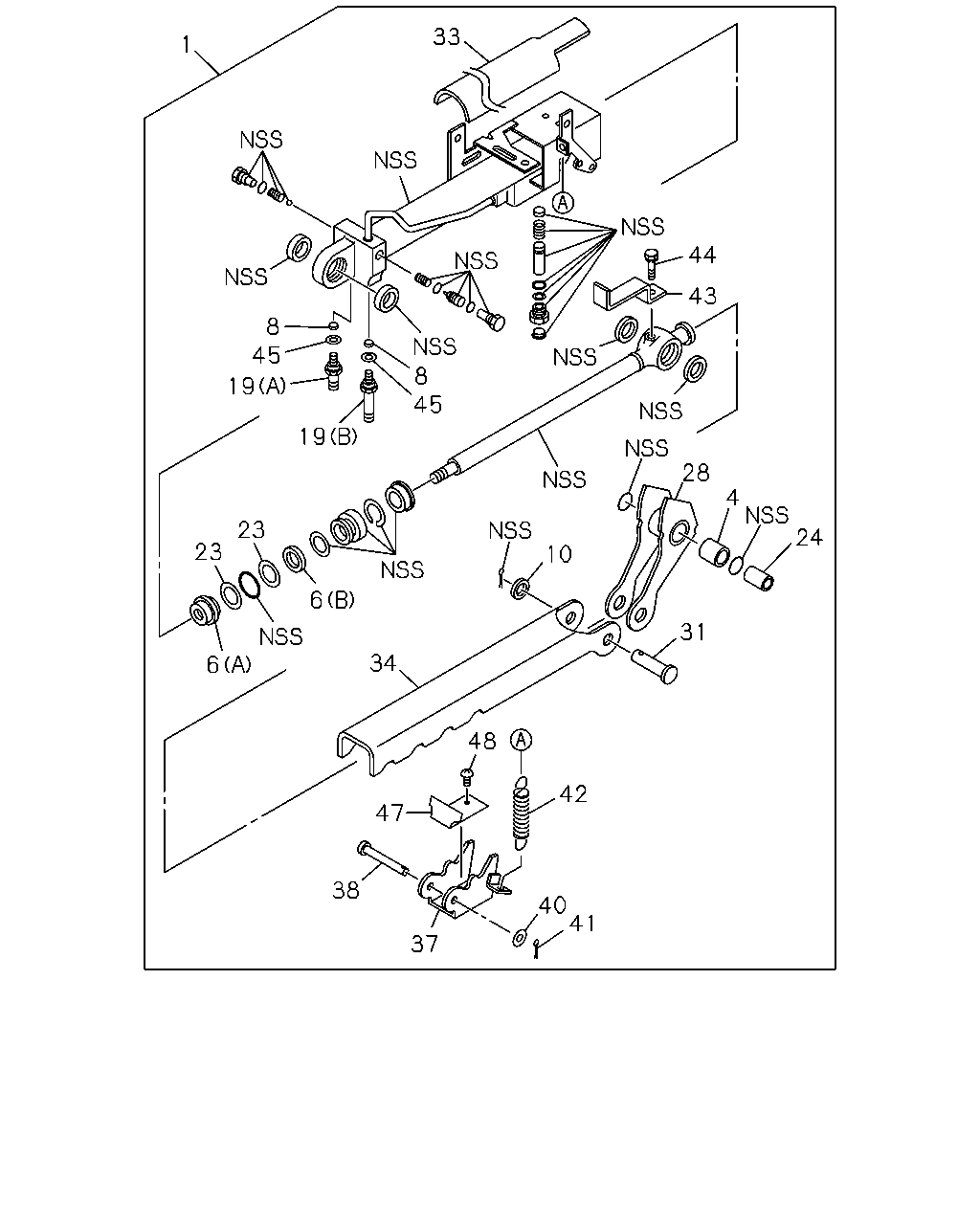

çizim 126101
33 1 44 43 8 45 8 45 19 19 28 4 24 23 23 10 6 31 34 6 48 42 47 38 40 41 37
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER; OIL,CAB TILT
AUTO CAB TILT<WV2> 		8-98020-528-0 01 1 1103-
4 BUSHING; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-405-0 01 1 1103-
6 PISTON; OIL CYL
AUTO CAB TILT<WV2> (A) 		8-98134-365-0 01 1 1103-
6 PISTON; OIL CYL
AUTO CAB TILT<WV2> (B) 		8-98134-367-0 01 1 1103-
8 FILTER; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-102-0 02 1 1103-
10 WASHER; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-401-0 01 1 1103-
19 NIPPLE; OIL CYL
AUTO CAB TILT<WV2> (A) 		1-53457-044-0 01 1 1103-
19 NIPPLE; OIL CYL
AUTO CAB TILT<WV2> (B) 		1-53457-045-0 01 1 1103-
23 RING; SNAP
AUTO CAB TILT<WV2> 		1-53457-048-0 02 1 1103-
24 COLLAR; LEVER
AUTO CAB TILT<WV2> 		1-53458-398-0 01 1 1103-
28 LEVER; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-583-0 01 1 1103-
31 PIN; OIL CYL
AUTO CAB TILT<WV2> 		1-53457-172-0 01 1 1103-
33 COVER; CYL
AUTO CAB TILT<WV2> 		1-53458-590-0 01 1 1103-
34 STOPPER; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-582-0 01 1 1103-
37 LEVER; STOPPER
AUTO CAB TILT<WV2> 		1-53457-170-0 01 1 1103-
38 PIN; STOPPER
AUTO CAB TILT<WV2> 		1-53458-550-0 01 1 1103-
40 WASHER; STOPPER PIN
AUTO CAB TILT<WV2> 		1-53458-045-0 01 1 1103-
41 PIN; SPLIT
AUTO CAB TILT<WV2> 		1-53458-545-0 01 1 1103-
42 SPRING; LOCK LEVER
AUTO CAB TILT<WV2> 		1-53457-168-0 01 1 1103-
43 PLATE; SW
AUTO CAB TILT<WV2> 		1-53457-167-0 01 1 1103-
44 BOLT; SW PLATE
AUTO CAB TILT<WV2> M6X12 		1-53458-542-0 01 1 1103-
45 GASKET; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-073-0 02 1 1103-
47 PLATE; THRUST,OIL CYL
AUTO CAB TILT<WV2> 		1-53457-169-0 01 1 1103-
48 SCREW; OIL CYL
AUTO CAB TILT<WV2> M5X8 		1-53458-005-0 02 1 1103-

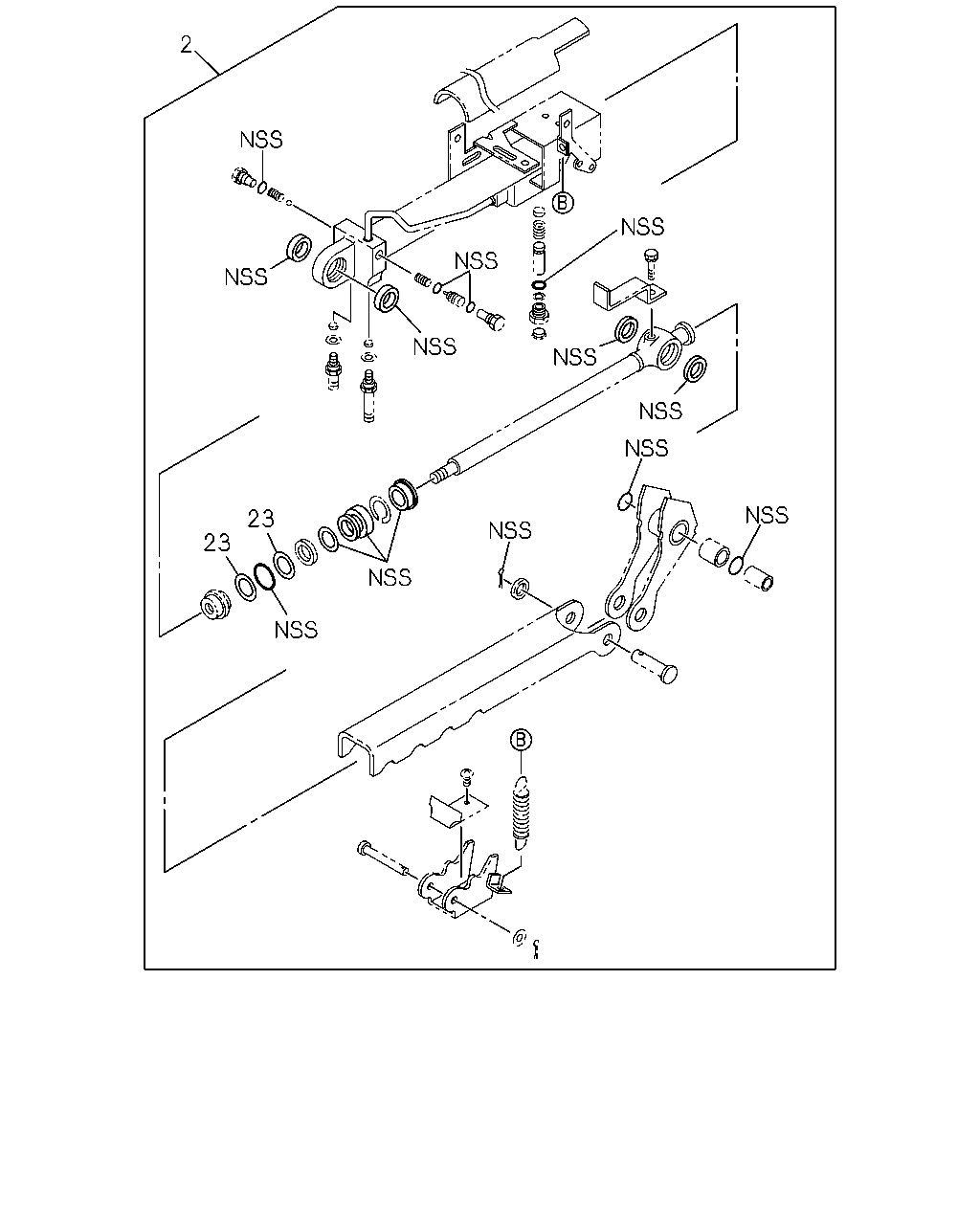

çizim 190365
2 23 23
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; OIL CYL
AUTO CAB TILT<WV2> 		1-85579-068-0 01 1 1103-
23 RING; SNAP
AUTO CAB TILT<WV2> 		1-53457-048-0 02 1 1103-

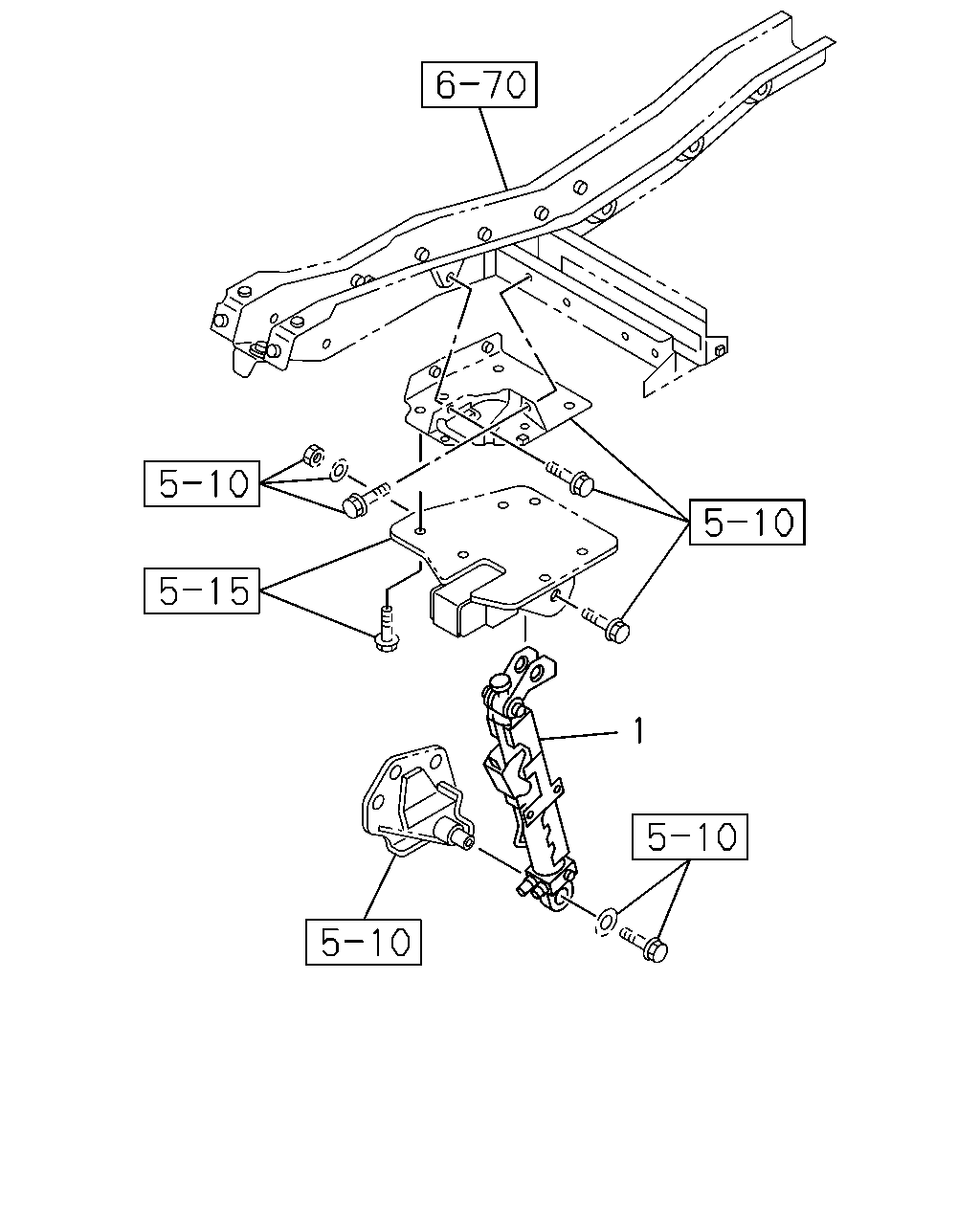

çizim 190368
1
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER; OIL,CAB TILT
AUTO CAB TILT<WV2> 		8-98020-528-0 01 1 1103-
