Isuzu WW
▶
TRUCKS
▶
FVR
▶
11370 - FVR(RHD)W/DOC EURO4
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#71802) — 64 parça
◀

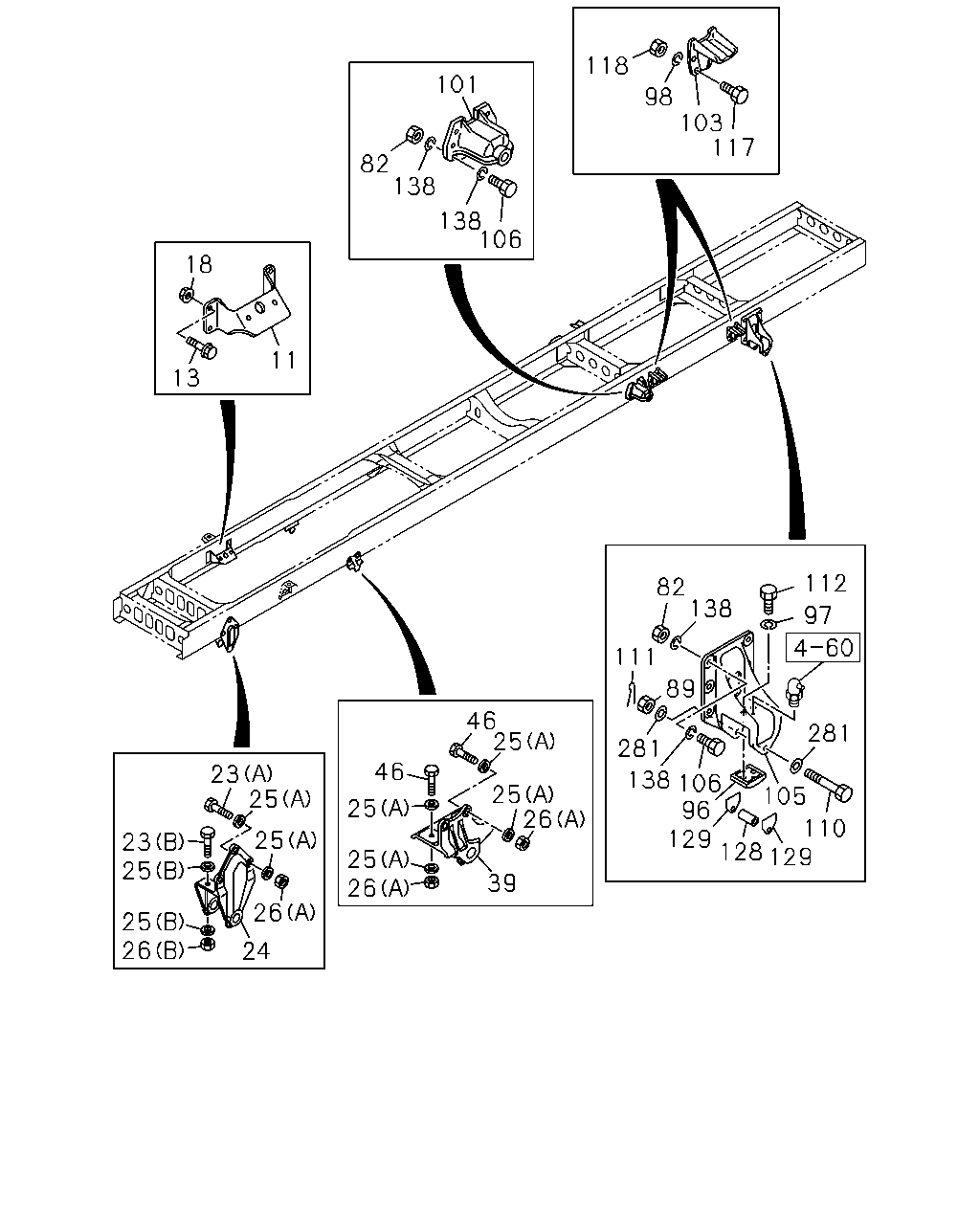

[501A] BRACKET AND OTHER PARTS (34 parça)

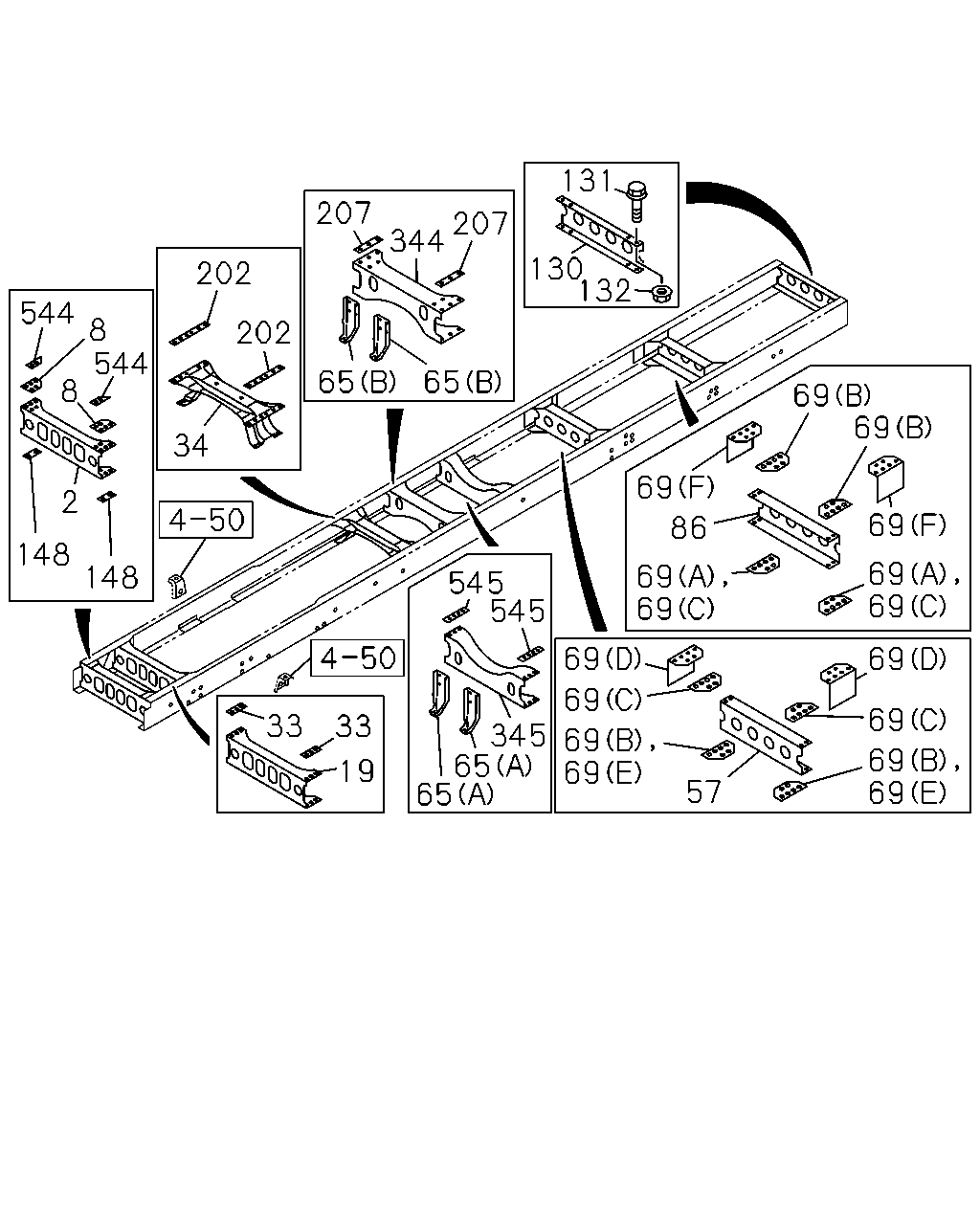

[501A] CROSS MEMBER (30 parça)
▶
118
101
98
103
117
82
138
138
106
18
11
13
112
82
138
97
111
89
46
25
281
281
46
23
25
25
138
106
96
129
25
26
105
25
110
128
129
23
25
25
26
39
26
25
26
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
8-97619-550-0
02
1
1103-
11
BRACKET; ENG MTG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
8-97619-549-0
02
1
1103-
13
BOLT; BRKT,ENG MTG
M12X35 FLANGE
0-28661-235-0
08
1
1103-
18
NUT; BRKT,ENG MTG
M12 FLANGE
0-91180-212-0
08
1
1103-
23
BOLT; BRKT,SPR
(A) M14X50
0-20951-450-0
06
1
1103-
23
BOLT; BRKT,SPR
(B) M16X60
0-20951-660-0
04
1
1103-
24
BRACKET; FRT SPR,FRT
8-98018-840-0
01
1
1103-
24
BRACKET; FRT SPR,FRT
8-98018-841-0
01
1
1103-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1103-
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
28
1
1103-
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
14
1
1103-
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
1103-
39
BRACKET; FRT SPR,RR
8-98043-648-0
01
1
1103-
39
BRACKET; FRT SPR,RR
8-98043-649-0
01
1
1103-
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
08
1
1103-
82
NUT; BRKT
M14
0-91110-514-0
24
1
1103-
89
NUT; LEAF SPR STOPPER
M14 SLOTTED
0-91116-514-0
02
1
1103-
96
PAD; RR SPR
1-53359-047-0
02
1
1103-
97
WASHER; LK,PAD
ID=14.2
0-91510-514-0
04
1
1103-
98
WASHER; LK,STOPPER
ID=14.2
0-91510-814-0
16
1
1103-
101
BRACKET; RR SPR,FRT
1-53353-078-1
02
1
1103-
103
STOPPER; SUB SPR
1-53356-057-0
04
1
1103-
105
BRACKET; RR SPR,RR
1-53354-064-1
02
1
1103-
106
BOLT; BRKT
M14X50
0-20951-450-0
24
1
1103-
110
BOLT; LEAF SPR STOPPER
1-09000-007-0
02
1
1103-
111
PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28
0-81123-028-0
02
1
1103-
112
BOLT; PAD
M14X35
0-20851-435-0
04
1
1103-
117
BOLT; STOPPER
M14X50
0-20951-450-0
16
1
1103-
118
NUT; STOPPER
M14
0-91110-514-0
16
1
1103-
128
COLLAR; RUBBER
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
1-53359-004-0
02
1
1103-
129
SHIM; SIDE
T=4.5
1-53359-061-1
02
1
1103-
129
SHIM; SIDE
T=3.2
1-53359-062-1
02
1
1103-
138
WASHER; LK,BRKT
ID=14.2
0-91510-814-0
24
1
1103-
281
WASHER; LEAF SPR STOPPER
ID=15 OD=30
9-09160-614-0
04
1
1103-
131
207
207
344
130
132
202
544
8
544
202
65
65
8
69
69
34
69
2
69
86
148
69
69
69
69
148
545
545
69
69
69
33
69
33
345
65
65
69
69
69
69
19
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-97610-852-7
01
1
1103-
8
GUSSET; 1ST C/MBR
8-97611-027-0
02
1
1103-
19
MEMBER; CROSS,2ND
8-97610-853-5
01
1
1103-
33
SPACER; 2ND C/MBR,UPR
8-97611-040-0
02
1
1103-
34
MEMBER; CROSS,3RD
8-97610-854-2
01
1
1103-
57
MEMBER; CROSS,RR SUSP FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
8-97619-888-3
01
1
1103-
57
MEMBER; CROSS,RR SUSP FRT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
8-97610-858-5
01
1
1103-
65
BRACKET; CENTER BRG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)
8-97614-133-0
02
1
1103-
65
BRACKET; CENTER BRG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)
8-97621-881-0
02
1
1103-
69
GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)
8-97619-889-0
04
1
1103-
69
GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)
8-97619-890-0
04
1
1103-
69
GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E)
8-97610-865-0
02
1
1103-
69
GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)
8-97610-866-0
02
1
1103-
69
GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)
8-97619-800-0
01
1
1103-
69
GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)
8-97619-801-0
01
1
1103-
69
GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)
8-97619-802-0
01
1
1103-
69
GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)
8-97619-803-0
01
1
1103-
86
MEMBER; CROSS,RR SUSP RR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
8-97619-888-3
01
1
1103-
86
MEMBER; CROSS,RR SUSP RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
8-97610-858-5
01
1
1103-
130
MEMBER; CROSS,END
8-97610-869-1
01
1
1103-
131
BOLT; END C/MBR
M12X30 W/LK WASHER
0-50541-230-0
04
1
1103-
132
NUT; END C/MBR
M12
0-91110-512-0
04
1
1103-
148
SPACER; C/MBR
8-97611-039-0
02
1
1103-
202
SPACER; 3RD C/MBR
8-97610-872-0
02
1
1103-
207
SPACER; 4TH C/MBR
0.25KG
8-97611-244-0
02
1
1103-
344
MEMBER; CROSS,4TH
8-97611-238-1
01
1
1103-
345
MEMBER; CROSS,5TH
8-97611-238-1
01
1
1103-
544
PLATE; CAB FRT MTG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
8-97615-598-0
02
1
1103-
544
PLATE; CAB FRT MTG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
8-97611-030-0
02
1
1103-
545
SPACER; 5TH C/MBR
0.24KG
8-97611-245-0
02
1
1103-
