◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11370 - FVR(RHD)W/DOC EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#71801) — 84 parça

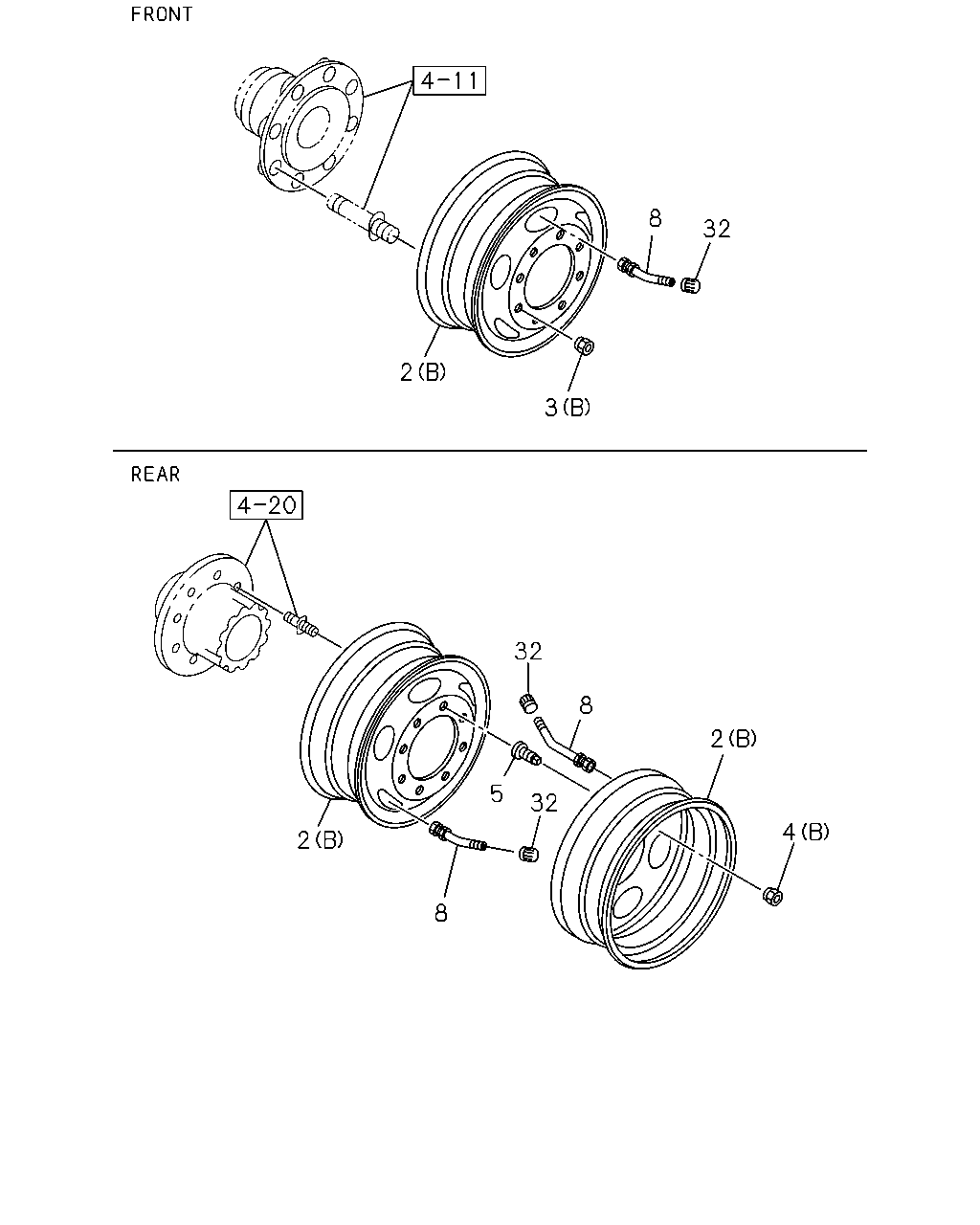

çizim 125571
8 32 2 3 32 8 2 5 32 4 2 8
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT 		1-42350-730-0 02 1 1103-1205
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT 		8-98217-247-0 02 1 1206-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT 		8-98281-497-0 02 1 1408-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR 		1-42350-730-0 04 1 1103-1205
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR 		8-98217-247-0 04 1 1206-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR 		8-98281-497-0 04 1 1408-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> (A) SPARE 		1-42350-730-0 01 1 1103-1205
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> (A) SPARE 		8-98217-247-0 01 1 1206-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> (A) SPARE 		8-98281-497-0 01 1 1408-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) FRONT 		1-42350-758-0 02 1 1103-1211
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) FRONT,REAR 		1-42350-758-0 06 1 1212-1310
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) FRONT,REAR 		8-98232-031-0 06 1 1311-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) REAR 		1-42350-758-0 04 1 1103-1211
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) SPARE 		1-42350-758-0 01 1 1103-1310
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) SPARE 		8-98232-031-0 01 1 1311-
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) M22X1.5 		1-42333-055-0 20 1 1103-
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) M24 LH THREAD 		1-42334-022-3 08 1 1103-
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) M24 		1-42333-022-3 08 1 1103-
4 NUT; WHEEL,RR AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) M22X1.5 		1-42333-055-0 20 1 1103-
4 NUT; WHEEL,RR AXLE
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) M30 LH THREAD 		8-97359-810-0 08 1 1103-
4 NUT; WHEEL,RR AXLE
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) M30 RH THREAD 		8-97359-809-0 08 1 1103-
5 NUT; WHEEL,INNER,RR AXLE
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 08 1 1103-
5 NUT; WHEEL,INNER,RR AXLE
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 08 1 1103-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> SPARE 		1-42370-019-3 01 1 1408-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> SPARE 		1-42370-048-0 01 1 1206-1310
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE 		1-42370-048-0 01 1 1311-1407
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE 		1-42370-048-0 01 1 1408-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT 		1-42370-020-3 02 1 1103-1205
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT 		1-42370-048-0 02 1 1206-1407
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT 		1-42370-019-3 02 1 1408-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR 		1-42370-020-3 04 1 1103-1205
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR 		1-42370-048-0 04 1 1206-1407
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR 		1-42370-019-3 04 1 1408-
8 VALVE; TIRE
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) FRONT,REAR 		1-42370-020-3 06 1 1103-1310
8 VALVE; TIRE
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) FRONT,REAR 		1-42370-048-0 06 1 1311-
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE 		1-42370-020-3 01 1 1103-1205
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE 		1-42370-020-3 01 1 1206-1310
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42374-001-0 02 1 1103-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42374-001-0 04 1 1103-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> 		1-42374-001-0 01 1 1103-
32 CAP; VALVE
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> 		1-42374-001-0 06 1 1103-
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) 		1-42374-001-0 07 1 1103-
çizim 125672
2 8 32 3 32 8 2 8 16 32 4 2
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT 		1-42350-730-0 02 1 1103-1205
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT 		8-98217-247-0 02 1 1206-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT 		8-98281-497-0 02 1 1408-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR 		1-42350-730-0 04 1 1103-1205
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR 		8-98217-247-0 04 1 1206-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR 		8-98281-497-0 04 1 1408-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> (A) SPARE 		1-42350-730-0 01 1 1103-1205
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> (A) SPARE 		8-98217-247-0 01 1 1206-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> (A) SPARE 		8-98281-497-0 01 1 1408-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) FRONT 		1-42350-758-0 02 1 1103-1211
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) FRONT,REAR 		1-42350-758-0 06 1 1212-1310
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) FRONT,REAR 		8-98232-031-0 06 1 1311-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) REAR 		1-42350-758-0 04 1 1103-1211
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) SPARE 		1-42350-758-0 01 1 1103-1310
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) SPARE 		8-98232-031-0 01 1 1311-
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) M22X1.5 		1-42333-055-0 20 1 1103-
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) M24 LH THREAD 		1-42334-022-3 08 1 1103-
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) M24 		1-42333-022-3 08 1 1103-
4 NUT; WHEEL,RR AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) M22X1.5 		1-42333-055-0 20 1 1103-
4 NUT; WHEEL,RR AXLE
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) M30 LH THREAD 		8-97359-810-0 08 1 1103-
4 NUT; WHEEL,RR AXLE
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) M30 RH THREAD 		8-97359-809-0 08 1 1103-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> SPARE 		1-42370-019-3 01 1 1408-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> SPARE 		1-42370-048-0 01 1 1206-1310
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE 		1-42370-048-0 01 1 1311-1407
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE 		1-42370-048-0 01 1 1408-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT 		1-42370-020-3 02 1 1103-1205
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT 		1-42370-048-0 02 1 1206-1407
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT 		1-42370-019-3 02 1 1408-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR 		1-42370-020-3 04 1 1103-1205
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR 		1-42370-048-0 04 1 1206-1407
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR 		1-42370-019-3 04 1 1408-
8 VALVE; TIRE
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) FRONT,REAR 		1-42370-020-3 06 1 1103-1310
8 VALVE; TIRE
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) FRONT,REAR 		1-42370-048-0 06 1 1311-
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE 		1-42370-020-3 01 1 1103-1205
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE 		1-42370-020-3 01 1 1206-1310
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) L=170 		8-98167-052-0 02 1 1103-1310
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) L=170 		8-98167-052-0 02 1 1311-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42374-001-0 02 1 1103-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42374-001-0 04 1 1103-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> 		1-42374-001-0 01 1 1103-
32 CAP; VALVE
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> 		1-42374-001-0 06 1 1103-
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) 		1-42374-001-0 07 1 1103-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
