Isuzu WW
▶
TRUCKS
▶
FVR
▶
11370 - FVR(RHD)W/DOC EURO4
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶

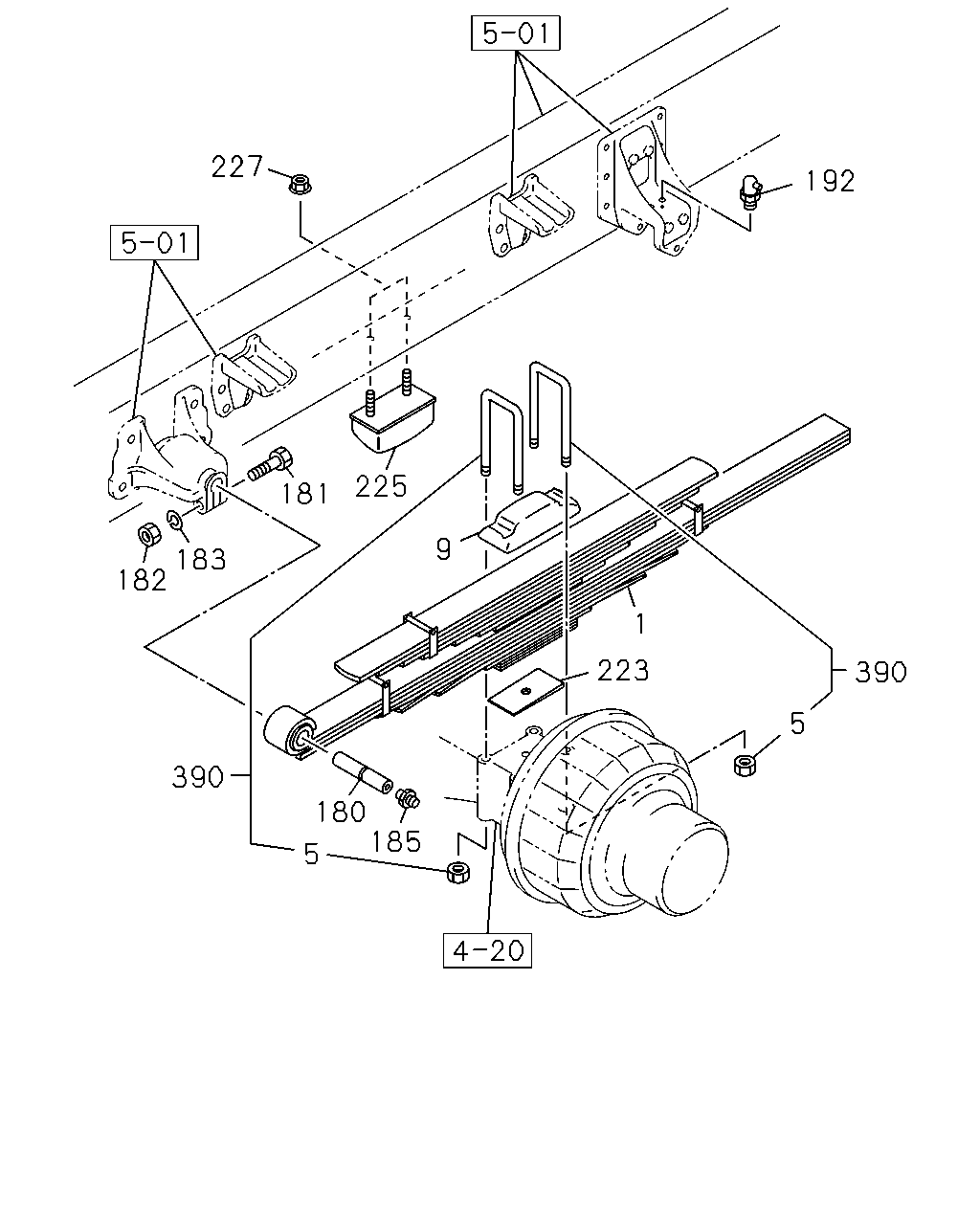

4-60 — REAR SUSPENSION
(#71799) — 15 parça
227
192
225
181
9
183
182
1
223
390
5
390
180
185
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
8-98017-566-1
02
1
1103-
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
8-98017-565-0
02
1
1103-
5
NUT; U-BOLT,RR SPR
M24
0-91112-824-0
08
1
1103-
9
PAD; U BOLT,RR SPR
1-51372-030-0
02
1
1103-
180
PIN; RR SPR
1-51361-020-0
02
1
1103-
181
BOLT; SPR & SHACKLE
M14X80
0-10856-480-0
02
1
1103-
182
NUT; PIN,RR SPR
M14
0-91110-514-0
02
1
1103-
183
WASHER; LK,PIN,RR SPR
ID=14.2
0-91510-514-0
02
1
1103-
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
0-90301-410-0
02
1
1103-
192
NIPPLE; GREASE,SHACKLE PIN
PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
02
1
1103-
223
SPACER; U BOLT,RR SPR
1-51377-371-1
02
1
1103-
225
RUBBER; CUSHION,RR SPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
1-53366-045-1
02
1
1103-
225
RUBBER; CUSHION,RR SPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
1-53366-081-1
02
1
1103-
227
NUT; CUSHION RUBBER
M12 FLANGE
0-91180-212-0
04
1
1103-
390
U-BOLT SET; RR SPRING
L=490
1-87870-036-4
04
1
1103-
