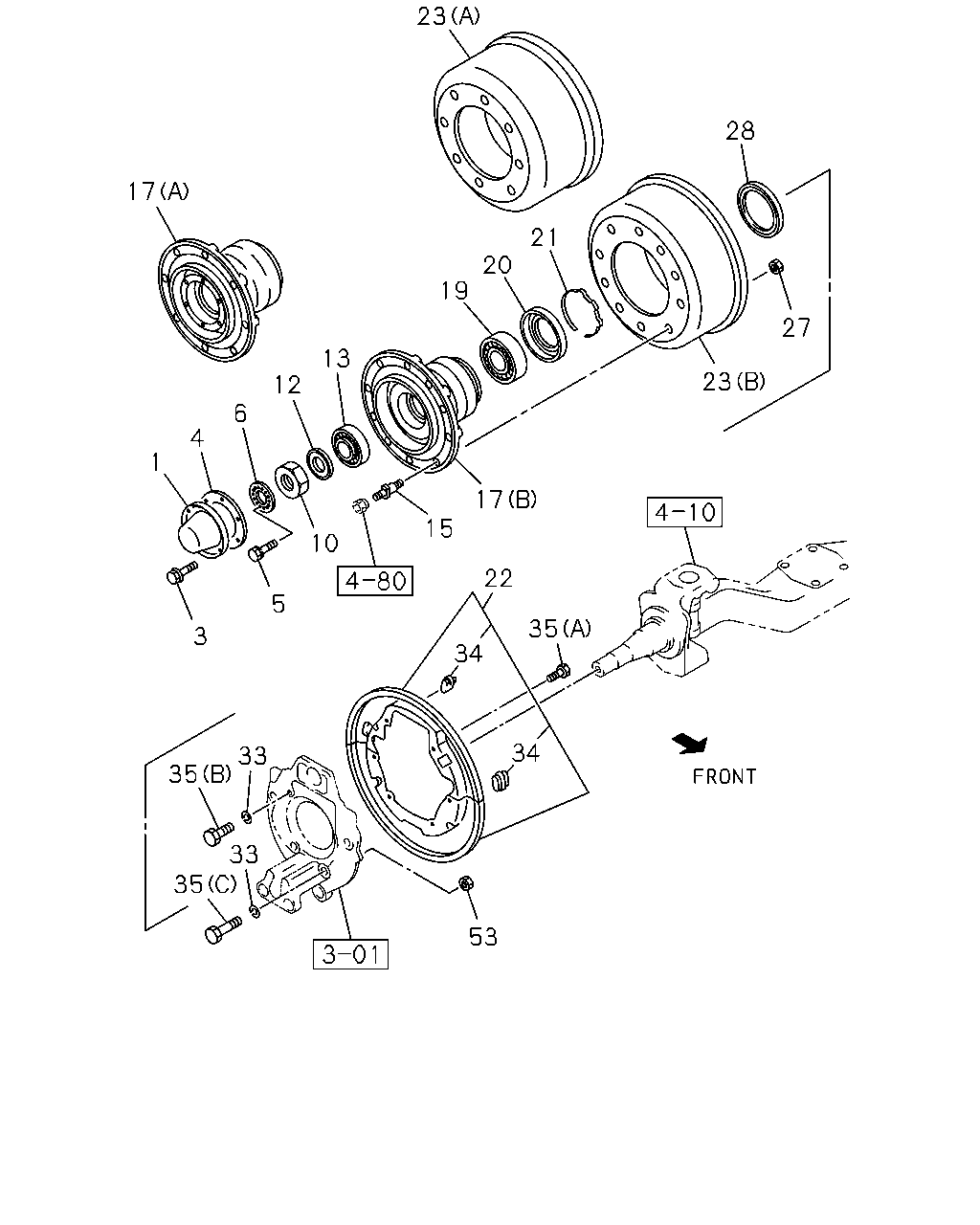

1 |
CAP; HUB,FRT AXLE
OD=156
|
9-42313-123-2 |
02 |
1 |
1103- |
| |
3 |
BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE
|
0-28050-812-0 |
12 |
1 |
1103- |
| |
4 |
GASKET; HUB CAP,FRT WHEEL
|
1-42319-185-2 |
02 |
1 |
1103- |
| |
5 |
BOLT; LK WASHER
M6X16 HEX SOCKET
|
8-98084-271-0 |
04 |
1 |
1103-1201 |
| |
5 |
BOLT; LK WASHER
M6X16 HEX SOCKET
|
8-98200-943-0 |
04 |
1 |
1202- |
| |
6 |
WASHER; LK,FRT HUB
ID=48
|
8-98084-561-0 |
02 |
1 |
1103- |
| |
10 |
NUT; FRT HUB BRG
M48
|
1-09840-012-5 |
02 |
1 |
1103- |
| |
12 |
WASHER; LK,FRT HUB BRG
ID=48
|
8-98156-755-0 |
02 |
1 |
1103- |
| |
13 |
BEARING; HUB OUTER,FRT AXLE
JTEKT
|
1-09812-234-0 |
02 |
1 |
1103- |
| |
15 |
PIN; WHEEL,FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M24X37.5,M22X57.5 RH THREAD
|
1-42331-109-1 |
08 |
1 |
1103- |
| |
15 |
PIN; WHEEL,FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M24X37.5 LH THREAD,M22X57.5 RH THREAD
|
1-42332-109-1 |
08 |
1 |
1103- |
| |
15 |
PIN; WHEEL,FRT AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M22X42.8,M22X55.5 RH THREAD
|
1-42337-067-1 |
20 |
1 |
1103- |
| |
17 |
HUB; FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-42312-128-2 |
02 |
1 |
1103- |
| |
17 |
HUB; FRT AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
1-42312-160-0 |
02 |
1 |
1103- |
| |
19 |
BEARING; HUB INNER,FRT AXLE
JTEKT
|
1-09812-231-0 |
02 |
1 |
1103- |
| |
20 |
COVER; HUB BRG INNER
|
1-42319-039-0 |
02 |
1 |
1103- |
| |
21 |
RING; SNAP,HUB
|
1-09587-017-0 |
02 |
1 |
1103- |
| |
22 |
COVER SET; FRT BRK DRUM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-47151-458-1 |
02 |
1 |
1103- |
| |
22 |
COVER SET; FRT BRK DRUM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-87831-225-0 |
02 |
1 |
1103- |
| |
23 |
DRUM; BRK,FRT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-42315-355-0 |
02 |
1 |
1103- |
| |
23 |
DRUM; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
1-42315-365-0 |
02 |
1 |
1103- |
| |
27 |
NUT; WHEEL PIN,FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M22 FLANGE
|
1-09440-065-0 |
16 |
1 |
1103- |
| |
27 |
NUT; WHEEL PIN,FRT AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M22
|
1-09400-071-0 |
20 |
1 |
1103- |
| |
28 |
SEAL; OIL,FRT HUB
OD=140
|
1-09625-041-0 |
02 |
1 |
1103- |
| |
33 |
WASHER; LK,DRUM COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=16.2
|
0-91510-816-0 |
04 |
1 |
1103- |
| |
33 |
WASHER; LK,DRUM COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=18.2
|
0-91510-818-0 |
12 |
1 |
1103- |
| |
34 |
COVER; CHECK HOLE,DRUM COVER
|
1-09333-151-0 |
04 |
1 |
1103- |
| |
35 |
BOLT; DRUM COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(C)
M16X52
|
1-09044-120-0 |
04 |
1 |
1103- |
| |
35 |
BOLT; DRUM COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
M18X65
|
1-09000-789-0 |
04 |
1 |
1103- |
| |
35 |
BOLT; DRUM COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
M18X45
|
1-09000-790-0 |
08 |
1 |
1103- |
| |
35 |
BOLT; DRUM COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
VIN MODEL YEAR 2011<VZB>
(A)
M10X12
|
1-47159-187-0 |
12 |
1 |
1103- |
| |
35 |
BOLT; DRUM COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU)
(A)
M10X12
|
1-47159-187-0 |
12 |
1 |
1103- |
| |
53 |
NUT; DRUM COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M16
|
0-91110-516-0 |
04 |
1 |
1103- |
