◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11370 - FVR(RHD)W/DOC EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#71785) — 479 parça

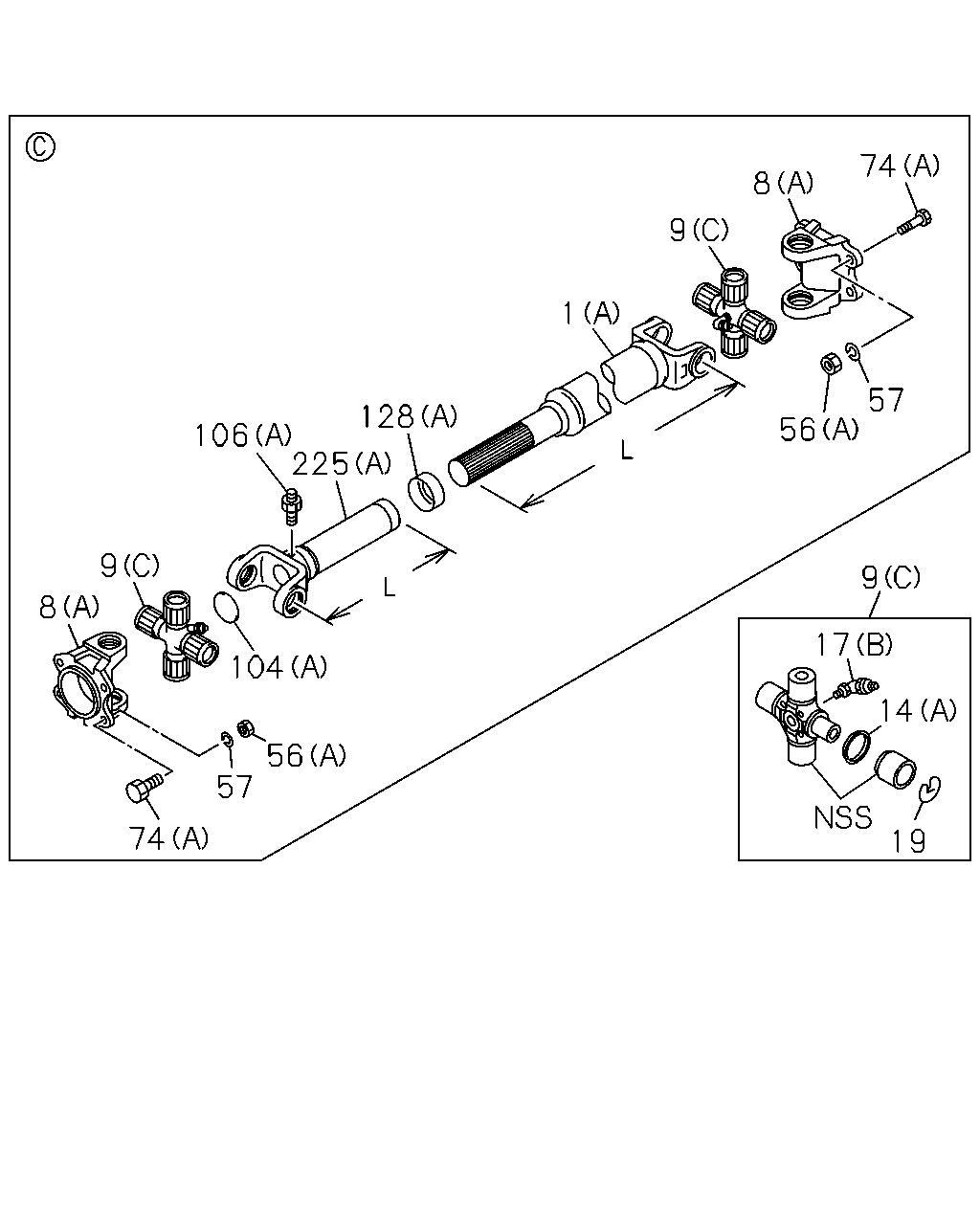

çizim 122489
74 8 9 1 57 128 56 106 225 9 9 8 17 104 14 56 57 74 19
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=1321 		8-98090-990-0 01 1 1103-
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) (D) L=1249 		8-98091-270-0 01 1 1103-
1 SHAFT; PROP
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) P60 PROP SHAFT(C2M) (D) L=1214 		1-37124-501-0 01 1 1103-
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 1103-
1 SHAFT; PROP
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (B) L=726 		1-37151-632-1 01 1 1103-1111
1 SHAFT; PROP
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (B) L=719 		8-98069-957-0 01 1 1112-
1 SHAFT; PROP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=729 		8-98069-567-0 01 1 1103-
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1103-
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1234 		8-98069-590-0 01 1 1103-
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1103-
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) END 		1-37211-056-3 02 1 1103-
8 YOKE; FLANGE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (A) 1ST 		1-37211-054-1 01 1 1103-1111
8 YOKE; FLANGE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (A) 1ST 		8-98178-052-0 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		1-37211-056-3 01 1 1103-
8 YOKE; FLANGE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		1-37211-056-3 01 1 1103-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1103-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1103-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 02 1 1103-
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (C) END 		8-98048-925-1 02 1 1103-
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-095-1 AR 1 1103-
9 JOURNAL ASM; PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (C) 1ST 		1-37300-102-1 AR 1 1103-1111
9 JOURNAL ASM; PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (C) 1ST 		8-98048-925-1 AR 1 1112-
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (C) 1ST,2ND 		8-98048-925-1 01 1 1103-
9 JOURNAL ASM; PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (C) 1ST,2ND 		8-98048-925-1 01 1 1103-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 1ST,2ND,END 		1-37300-094-1 AR 1 1103-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 1ST,2ND,END 		1-37300-094-1 AR 1 1103-
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (A) 1ST,2ND,END 		1-37300-094-1 AR 1 1103-
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) END 		8-98020-800-0 08 1 1103-
14 COVER; DUST,SPIDER
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (A) 1ST 		1-37319-012-0 04 1 1103-1111
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1103-1111
14 COVER; DUST,SPIDER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1103-1111
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1112-
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1112-
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1103-
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1103-
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) PT1/8 ELBOW 		0-90301-610-0 02 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) PT1/8 ELBOW 		0-90301-610-0 01 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) PT1/8 ELBOW 		0-90301-610-0 01 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 		0-90301-610-0 01 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1103-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1103-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1103-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1103-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1103-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1103-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1103-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1103-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1103-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1103-
56 NUT; YOKE
P46 PROP SHAFT(C4Z) (A) M14 		0-91110-514-0 08 1 1103-
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 1103-
57 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 		0-91510-614-0 08 1 1103-1103
57 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 		0-91510-814-0 08 1 1103-1202
57 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 		0-91510-614-0 08 1 1203-
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) (B) M16X48 		1-09000-383-0 04 1 1103-
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 1103-
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 04 1 1103-
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 08 1 1103-
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 08 1 1103-
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) (A) 		1-09600-064-0 01 1 1103-
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M) (B) 		1-09600-067-0 01 1 1103-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) M6 STRAIGHT 		0-90301-406-0 01 1 1103-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1103-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) MT6 STRAIGHT 		1-09380-006-0 01 1 1103-
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) (A) 		1-37247-024-0 01 1 1103-
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (B) 		1-37247-021-0 01 1 1103-
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) L=254 		8-98020-885-0 01 1 1103-
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) L=332 		1-37241-109-1 01 1 1103-
çizim 122523
56 8 9 1 128 107 9 8 106 106 225 104 74 9 17 10 14 13 84 12 83
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=1321 		8-98090-990-0 01 1 1103-
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) (D) L=1249 		8-98091-270-0 01 1 1103-
1 SHAFT; PROP
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) P60 PROP SHAFT(C2M) (D) L=1214 		1-37124-501-0 01 1 1103-
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 1103-
1 SHAFT; PROP
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (B) L=726 		1-37151-632-1 01 1 1103-1111
1 SHAFT; PROP
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (B) L=719 		8-98069-957-0 01 1 1112-
1 SHAFT; PROP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=729 		8-98069-567-0 01 1 1103-
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1103-
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1234 		8-98069-590-0 01 1 1103-
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1103-
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) END 		1-37211-056-3 02 1 1103-
8 YOKE; FLANGE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (A) 1ST 		1-37211-054-1 01 1 1103-1111
8 YOKE; FLANGE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (A) 1ST 		8-98178-052-0 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		1-37211-056-3 01 1 1103-
8 YOKE; FLANGE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		1-37211-056-3 01 1 1103-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1103-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1103-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 02 1 1103-
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (C) END 		8-98048-925-1 02 1 1103-
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-095-1 AR 1 1103-
9 JOURNAL ASM; PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (C) 1ST 		1-37300-102-1 AR 1 1103-1111
9 JOURNAL ASM; PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (C) 1ST 		8-98048-925-1 AR 1 1112-
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (C) 1ST,2ND 		8-98048-925-1 01 1 1103-
9 JOURNAL ASM; PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (C) 1ST,2ND 		8-98048-925-1 01 1 1103-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 1ST,2ND,END 		1-37300-094-1 AR 1 1103-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 1ST,2ND,END 		1-37300-094-1 AR 1 1103-
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (A) 1ST,2ND,END 		1-37300-094-1 AR 1 1103-
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1103-
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1103-
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 1103-
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1103-
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1103-
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1103-
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1103-
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1103-
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1103-
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) END 		8-98020-800-0 08 1 1103-
14 COVER; DUST,SPIDER
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (A) 1ST 		1-37319-012-0 04 1 1103-1111
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1103-1111
14 COVER; DUST,SPIDER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1103-1111
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1112-
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1112-
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1103-
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1103-
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) PT1/8 ELBOW 		0-90301-610-0 02 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) PT1/8 ELBOW 		0-90301-610-0 01 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) PT1/8 ELBOW 		0-90301-610-0 01 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 		0-90301-610-0 01 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1103-
56 NUT; YOKE
P46 PROP SHAFT(C4Z) (A) M14 		0-91110-514-0 08 1 1103-
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 1103-
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) (B) M16X48 		1-09000-383-0 04 1 1103-
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 1103-
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 04 1 1103-
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 08 1 1103-
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 08 1 1103-
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1103-
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1103-
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) (A) 		1-09600-064-0 01 1 1103-
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M) (B) 		1-09600-067-0 01 1 1103-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) M6 STRAIGHT 		0-90301-406-0 01 1 1103-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1103-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) MT6 STRAIGHT 		1-09380-006-0 01 1 1103-
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-1 01 1 1103-
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) (A) 		1-37247-024-0 01 1 1103-
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (B) 		1-37247-021-0 01 1 1103-
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) L=254 		8-98020-885-0 01 1 1103-
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) L=332 		1-37241-109-1 01 1 1103-

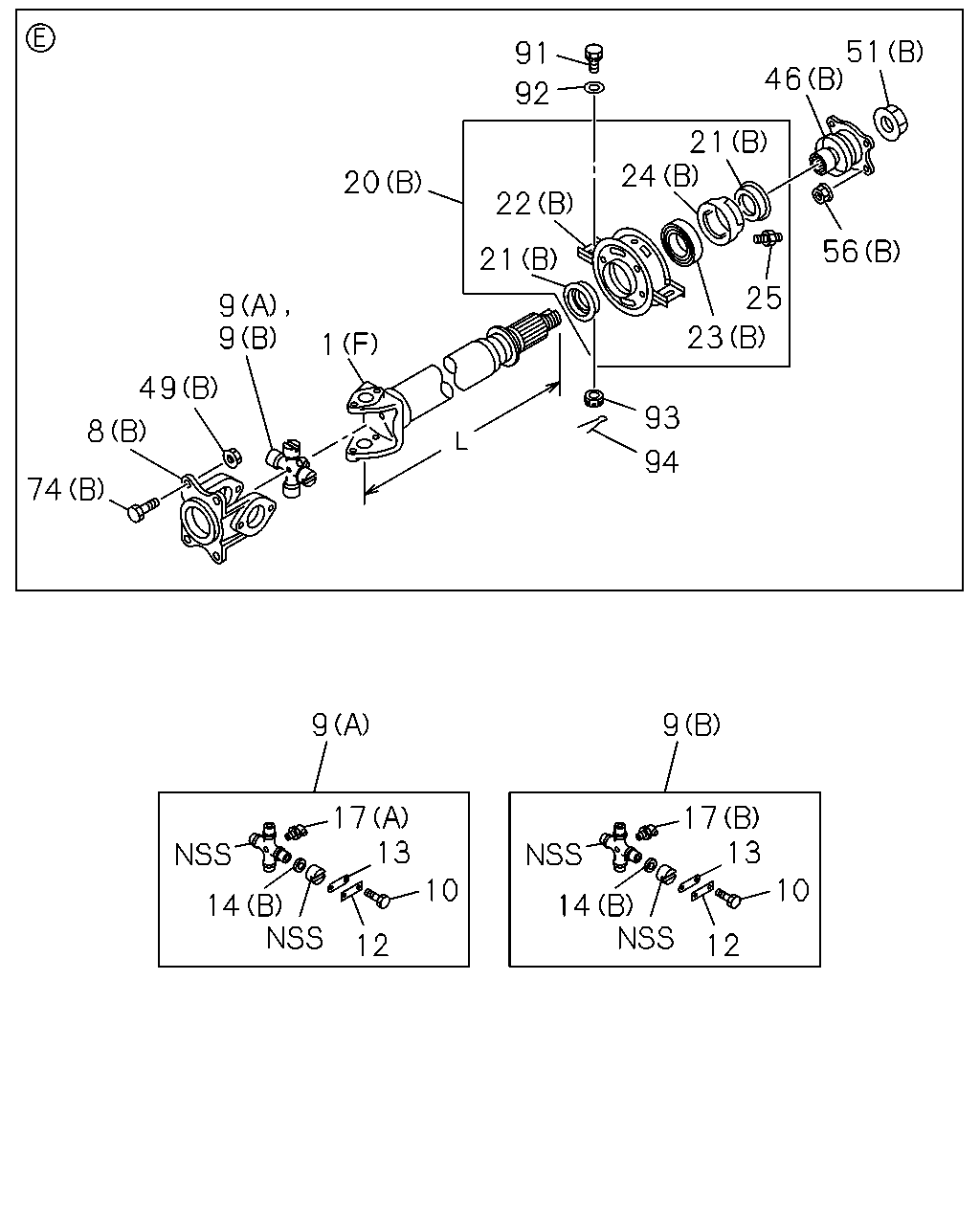

çizim 122868
51 46 91 92 21 24 20 22 56 21 25 9 9 23 1 49 93 8 94 74 9 9 17 13 17 13 10 10 14 14 12 12
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=1321 		8-98090-990-0 01 1 1103-
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) (D) L=1249 		8-98091-270-0 01 1 1103-
1 SHAFT; PROP
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) P60 PROP SHAFT(C2M) (D) L=1214 		1-37124-501-0 01 1 1103-
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 1103-
1 SHAFT; PROP
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (B) L=726 		1-37151-632-1 01 1 1103-1111
1 SHAFT; PROP
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (B) L=719 		8-98069-957-0 01 1 1112-
1 SHAFT; PROP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=729 		8-98069-567-0 01 1 1103-
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1103-
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1234 		8-98069-590-0 01 1 1103-
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1103-
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) END 		1-37211-056-3 02 1 1103-
8 YOKE; FLANGE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (A) 1ST 		1-37211-054-1 01 1 1103-1111
8 YOKE; FLANGE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (A) 1ST 		8-98178-052-0 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		1-37211-056-3 01 1 1103-
8 YOKE; FLANGE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		1-37211-056-3 01 1 1103-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1103-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1103-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 02 1 1103-
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (C) END 		8-98048-925-1 02 1 1103-
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-095-1 AR 1 1103-
9 JOURNAL ASM; PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (C) 1ST 		1-37300-102-1 AR 1 1103-1111
9 JOURNAL ASM; PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (C) 1ST 		8-98048-925-1 AR 1 1112-
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (C) 1ST,2ND 		8-98048-925-1 01 1 1103-
9 JOURNAL ASM; PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (C) 1ST,2ND 		8-98048-925-1 01 1 1103-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 1ST,2ND,END 		1-37300-094-1 AR 1 1103-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 1ST,2ND,END 		1-37300-094-1 AR 1 1103-
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (A) 1ST,2ND,END 		1-37300-094-1 AR 1 1103-
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1103-
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1103-
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 1103-
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1103-
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1103-
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1103-
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1103-
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1103-
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1103-
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) END 		8-98020-800-0 08 1 1103-
14 COVER; DUST,SPIDER
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (A) 1ST 		1-37319-012-0 04 1 1103-1111
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1103-1111
14 COVER; DUST,SPIDER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1103-1111
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1112-
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1112-
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1103-
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1103-
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) PT1/8 ELBOW 		0-90301-610-0 02 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) PT1/8 ELBOW 		0-90301-610-0 01 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) PT1/8 ELBOW 		0-90301-610-0 01 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 		0-90301-610-0 01 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1103-
20 BEARING ASM; CTR,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (A) 1ST 		1-37510-105-0 01 1 1103-1111
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 1103-1111
20 BEARING ASM; CTR,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 1103-1111
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 1112-
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 1112-
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1103-
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1103-
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1103-
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1103-
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1103-
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1103-
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1103-
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1103-
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1103-
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1103-
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1103-
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1103-
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1103-
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1103-
24 RETAINER; CENTER BRG,1ST
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (A) 1ST 		1-37529-068-0 01 1 1103-1111
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 1103-1111
24 RETAINER; CENTER BRG,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 1103-1111
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 1112-
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 1112-
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1103-
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1103-
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) 1ST,2ND 		8-98020-889-0 01 1 1103-
25 NIPPLE; GREASE,CENTER BRG
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 1ST,2ND 		8-98020-889-0 01 1 1103-
25 NIPPLE; GREASE,CENTER BRG
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) 1ST MT6 STRAIGHT 		1-09380-006-0 01 1 1103-
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 1103-
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 1103-
46 FLANGE; SPLINED,PROP SHAFT,1ST
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (A) 1ST 		1-37245-071-0 01 1 1103-1111
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 1103-1111
46 FLANGE; SPLINED,PROP SHAFT,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 1103-1111
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 1112-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 1112-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1103-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1103-
49 NUT; YOKE
P46 PROP SHAFT(C4Z) (A) M14 		0-91110-514-0 04 1 1103-
49 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 04 1 1103-
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1103-
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1103-
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1103-
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1103-
56 NUT; YOKE
P46 PROP SHAFT(C4Z) (A) M14 		0-91110-514-0 08 1 1103-
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 1103-
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) (B) M16X48 		1-09000-383-0 04 1 1103-
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 1103-
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 04 1 1103-
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 08 1 1103-
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 08 1 1103-
91 BOLT; HOLDER SET,CTR BRG
P60 PROP SHAFT(C2M) M16X45 		1-09042-030-0 02 1 1103-
92 WASHER; LK,HOLDER SET,CTR BRG
P60 PROP SHAFT(C2M) ID=17 		1-09503-241-1 02 1 1103-
93 NUT; HOLDER SET,CTR BRG
P60 PROP SHAFT(C2M) M16 SLOTTED 		0-91116-516-0 02 1 1103-1204
93 NUT; HOLDER SET,CTR BRG
P60 PROP SHAFT(C2M) M16 SLOTTED 		8-98049-689-0 02 1 1205-
94 PIN; SPLIT,HOLDER SET CTR BRG
P60 PROP SHAFT(C2M) OD=3.7 L=25 		0-81124-025-0 02 1 1103-

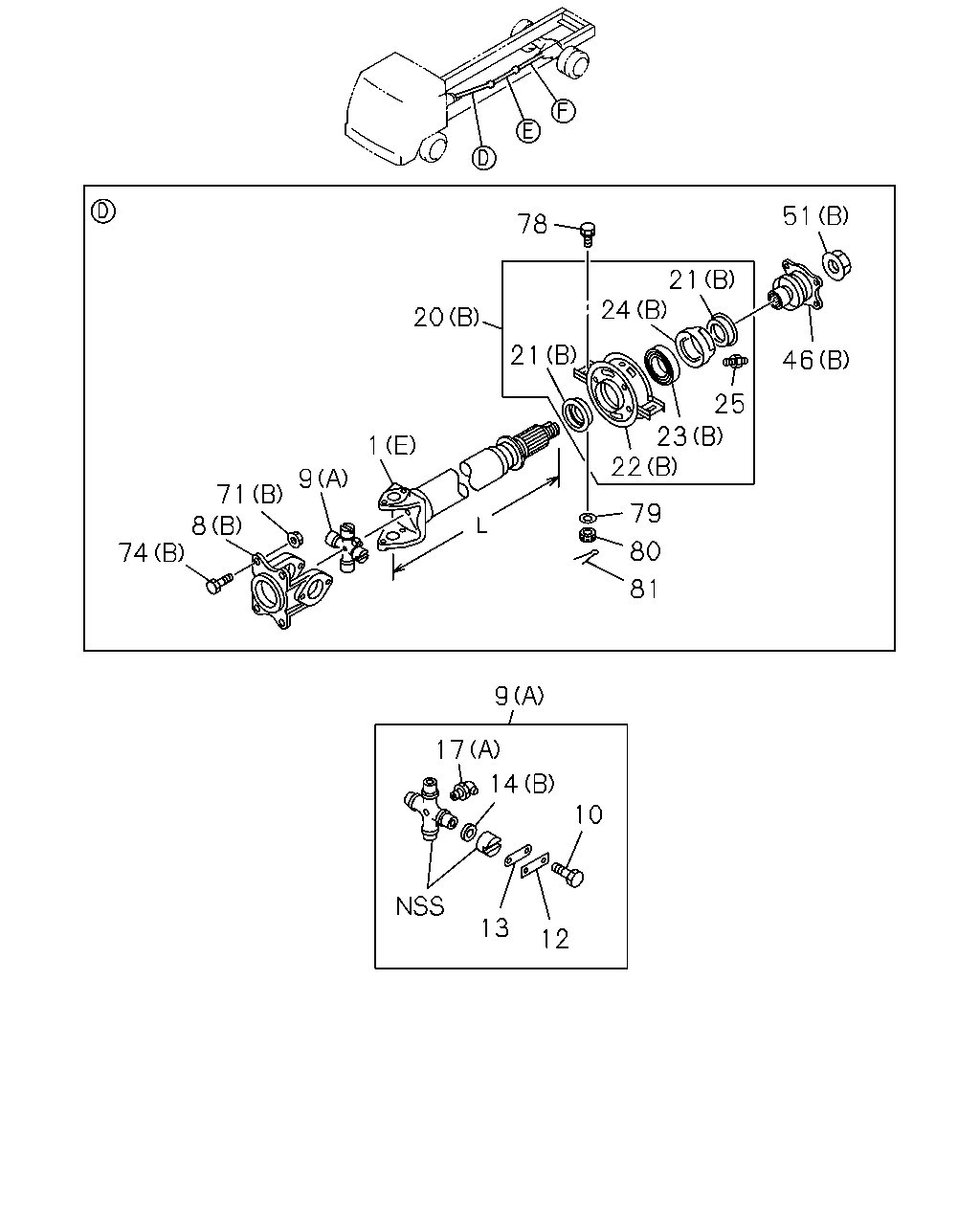

çizim 122897
51 78 21 24 20 21 46 25 23 22 1 9 71 8 74 79 80 81 9 17 14 10 13 12
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=1321 		8-98090-990-0 01 1 1103-
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) (D) L=1249 		8-98091-270-0 01 1 1103-
1 SHAFT; PROP
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) P60 PROP SHAFT(C2M) (D) L=1214 		1-37124-501-0 01 1 1103-
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 1103-
1 SHAFT; PROP
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (B) L=726 		1-37151-632-1 01 1 1103-1111
1 SHAFT; PROP
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (B) L=719 		8-98069-957-0 01 1 1112-
1 SHAFT; PROP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=729 		8-98069-567-0 01 1 1103-
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1103-
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1234 		8-98069-590-0 01 1 1103-
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1103-
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) END 		1-37211-056-3 02 1 1103-
8 YOKE; FLANGE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (A) 1ST 		1-37211-054-1 01 1 1103-1111
8 YOKE; FLANGE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (A) 1ST 		8-98178-052-0 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		1-37211-056-3 01 1 1103-
8 YOKE; FLANGE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		1-37211-056-3 01 1 1103-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1103-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1103-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 02 1 1103-
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (C) END 		8-98048-925-1 02 1 1103-
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-095-1 AR 1 1103-
9 JOURNAL ASM; PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (C) 1ST 		1-37300-102-1 AR 1 1103-1111
9 JOURNAL ASM; PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (C) 1ST 		8-98048-925-1 AR 1 1112-
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (C) 1ST,2ND 		8-98048-925-1 01 1 1103-
9 JOURNAL ASM; PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (C) 1ST,2ND 		8-98048-925-1 01 1 1103-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 1ST,2ND,END 		1-37300-094-1 AR 1 1103-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 1ST,2ND,END 		1-37300-094-1 AR 1 1103-
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (A) 1ST,2ND,END 		1-37300-094-1 AR 1 1103-
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1103-
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1103-
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 1103-
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1103-
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1103-
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1103-
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1103-
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1103-
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1103-
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) END 		8-98020-800-0 08 1 1103-
14 COVER; DUST,SPIDER
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (A) 1ST 		1-37319-012-0 04 1 1103-1111
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1103-1111
14 COVER; DUST,SPIDER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1103-1111
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1112-
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1112-
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1103-
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1103-
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) PT1/8 ELBOW 		0-90301-610-0 02 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) PT1/8 ELBOW 		0-90301-610-0 01 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) PT1/8 ELBOW 		0-90301-610-0 01 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 		0-90301-610-0 01 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1103-
20 BEARING ASM; CTR,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (A) 1ST 		1-37510-105-0 01 1 1103-1111
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 1103-1111
20 BEARING ASM; CTR,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 1103-1111
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 1112-
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 1112-
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1103-
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1103-
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1103-
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1103-
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1103-
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1103-
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1103-
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1103-
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1103-
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1103-
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1103-
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1103-
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1103-
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1103-
24 RETAINER; CENTER BRG,1ST
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (A) 1ST 		1-37529-068-0 01 1 1103-1111
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 1103-1111
24 RETAINER; CENTER BRG,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 1103-1111
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 1112-
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 1112-
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1103-
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1103-
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) 1ST,2ND 		8-98020-889-0 01 1 1103-
25 NIPPLE; GREASE,CENTER BRG
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 1ST,2ND 		8-98020-889-0 01 1 1103-
25 NIPPLE; GREASE,CENTER BRG
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) 1ST MT6 STRAIGHT 		1-09380-006-0 01 1 1103-
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 1103-
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 1103-
46 FLANGE; SPLINED,PROP SHAFT,1ST
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (A) 1ST 		1-37245-071-0 01 1 1103-1111
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 1103-1111
46 FLANGE; SPLINED,PROP SHAFT,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 1103-1111
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 1112-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 1112-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1103-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1103-
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1103-
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1103-
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1103-
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1103-
71 NUT; YOKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) M14 		0-91110-514-0 04 1 1103-
71 NUT; YOKE
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (B) M16 FLANGE 		1-09449-065-0 04 1 1103-
71 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 04 1 1103-
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) (B) M16X48 		1-09000-383-0 04 1 1103-
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 1103-
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 04 1 1103-
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 08 1 1103-
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 08 1 1103-
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M) M16X45 		1-09042-030-0 02 1 1103-
79 WASHER; PL,HOLDER SET,CENTER BRG
P60 PROP SHAFT(C2M) ID=17 		1-09503-241-1 02 1 1103-
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M) M16 SLOTTED 		0-91116-516-0 02 1 1103-1204
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M) M16 SLOTTED 		8-98049-689-0 02 1 1205-
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P60 PROP SHAFT(C2M) OD=3.7 L=25 		0-81124-025-0 02 1 1103-

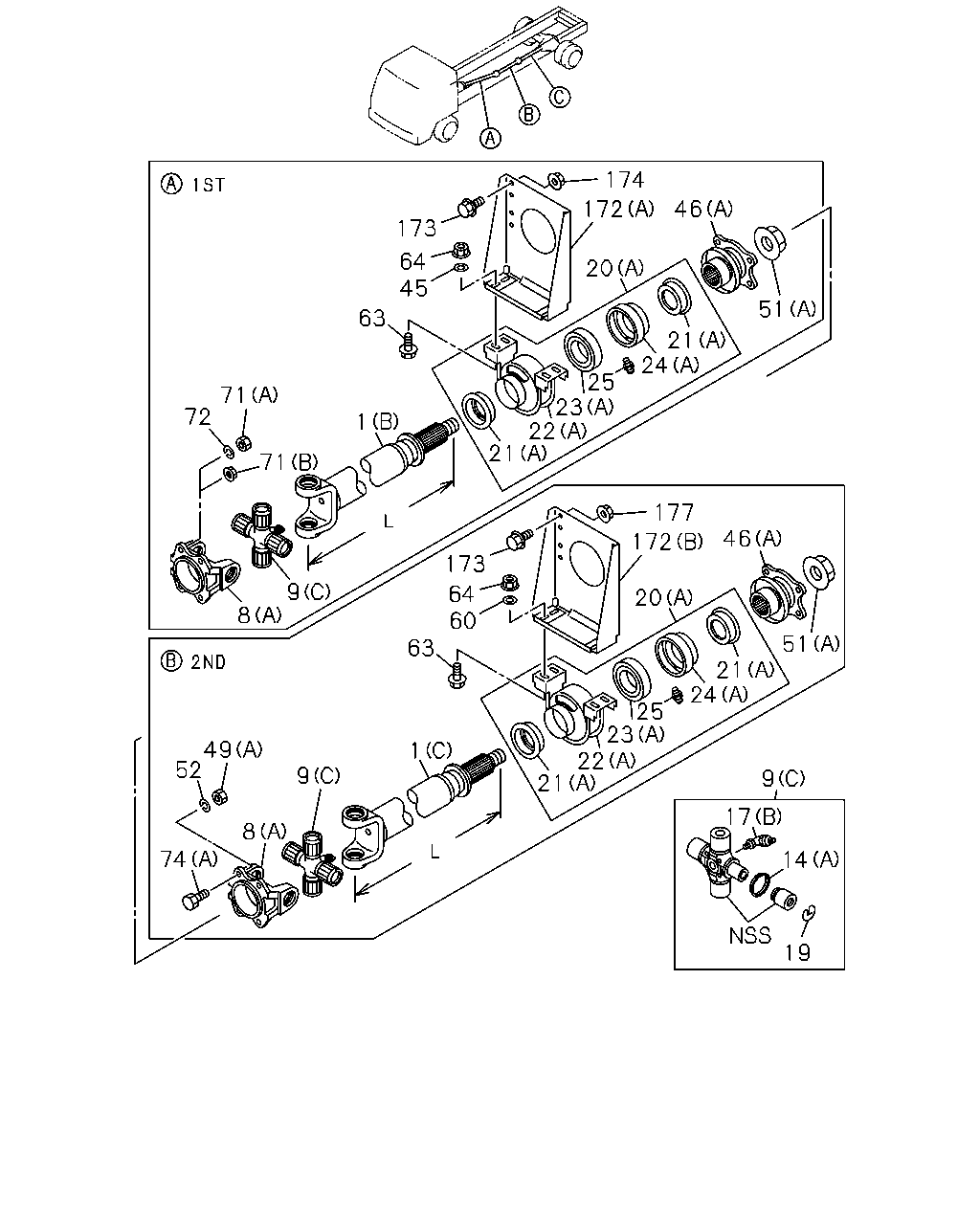

çizim 190354
174 172 46 173 64 45 20 51 63 21 24 25 23 22 21 71 72 1 71 177 46 172 173 9 64 60 20 8 51 63 21 24 25 23 22 21 49 52 1 9 9 17 8 74 14 19
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=1321 		8-98090-990-0 01 1 1103-
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) (D) L=1249 		8-98091-270-0 01 1 1103-
1 SHAFT; PROP
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) P60 PROP SHAFT(C2M) (D) L=1214 		1-37124-501-0 01 1 1103-
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 1103-
1 SHAFT; PROP
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (B) L=726 		1-37151-632-1 01 1 1103-1111
1 SHAFT; PROP
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (B) L=719 		8-98069-957-0 01 1 1112-
1 SHAFT; PROP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=729 		8-98069-567-0 01 1 1103-
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1103-
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1234 		8-98069-590-0 01 1 1103-
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1103-
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) END 		1-37211-056-3 02 1 1103-
8 YOKE; FLANGE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (A) 1ST 		1-37211-054-1 01 1 1103-1111
8 YOKE; FLANGE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (A) 1ST 		8-98178-052-0 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		1-37211-056-3 01 1 1103-
8 YOKE; FLANGE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		1-37211-056-3 01 1 1103-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1103-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1103-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 02 1 1103-
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (C) END 		8-98048-925-1 02 1 1103-
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-095-1 AR 1 1103-
9 JOURNAL ASM; PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (C) 1ST 		1-37300-102-1 AR 1 1103-1111
9 JOURNAL ASM; PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (C) 1ST 		8-98048-925-1 AR 1 1112-
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (C) 1ST,2ND 		8-98048-925-1 01 1 1103-
9 JOURNAL ASM; PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (C) 1ST,2ND 		8-98048-925-1 01 1 1103-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 1ST,2ND,END 		1-37300-094-1 AR 1 1103-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 1ST,2ND,END 		1-37300-094-1 AR 1 1103-
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (A) 1ST,2ND,END 		1-37300-094-1 AR 1 1103-
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) END 		8-98020-800-0 08 1 1103-
14 COVER; DUST,SPIDER
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (A) 1ST 		1-37319-012-0 04 1 1103-1111
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1103-1111
14 COVER; DUST,SPIDER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1103-1111
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1112-
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1112-
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1103-
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1103-
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) PT1/8 ELBOW 		0-90301-610-0 02 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) PT1/8 ELBOW 		0-90301-610-0 01 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) PT1/8 ELBOW 		0-90301-610-0 01 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 		0-90301-610-0 01 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1103-
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1103-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1103-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1103-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1103-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1103-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1103-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1103-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1103-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1103-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1103-
20 BEARING ASM; CTR,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (A) 1ST 		1-37510-105-0 01 1 1103-1111
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 1103-1111
20 BEARING ASM; CTR,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 1103-1111
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 1112-
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 1112-
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1103-
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1103-
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1103-
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1103-
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1103-
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1103-
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1103-
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1103-
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1103-
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1103-
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1103-
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1103-
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1103-
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1103-
24 RETAINER; CENTER BRG,1ST
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (A) 1ST 		1-37529-068-0 01 1 1103-1111
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 1103-1111
24 RETAINER; CENTER BRG,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 1103-1111
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 1112-
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 1112-
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1103-
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1103-
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) 1ST,2ND 		8-98020-889-0 01 1 1103-
25 NIPPLE; GREASE,CENTER BRG
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 1ST,2ND 		8-98020-889-0 01 1 1103-
25 NIPPLE; GREASE,CENTER BRG
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) 1ST MT6 STRAIGHT 		1-09380-006-0 01 1 1103-
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 1103-
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 1103-
45 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		0-91614-610-0 04 1 1103-
46 FLANGE; SPLINED,PROP SHAFT,1ST
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (A) 1ST 		1-37245-071-0 01 1 1103-1111
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 1103-1111
46 FLANGE; SPLINED,PROP SHAFT,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 1103-1111
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 1112-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 1112-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1103-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1103-
49 NUT; YOKE
P46 PROP SHAFT(C4Z) (A) M14 		0-91110-514-0 04 1 1103-
49 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 04 1 1103-
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1103-
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1103-
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1103-
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1103-
52 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 		0-91510-614-0 04 1 1103-1103
52 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 		0-91510-814-0 04 1 1103-1202
52 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 		0-91510-614-0 04 1 1203-
60 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		0-91614-610-0 04 1 1103-
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28651-035-0 04 1 1103-
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28651-035-0 04 1 1103-
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 1103-
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 1103-
71 NUT; YOKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) M14 		0-91110-514-0 04 1 1103-
71 NUT; YOKE
PARKING BRAKE DRUM 10"(B1T) P46 PROP SHAFT(C4Z) (B) M16 FLANGE 		1-09449-065-0 04 1 1103-
71 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 04 1 1103-
72 WASHER; LK,YOKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) ID=14.2 		0-91510-614-0 04 1 1103-1103
72 WASHER; LK,YOKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) ID=14.2 		0-91510-814-0 04 1 1103-1202
72 WASHER; LK,YOKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) ID=14.2 		0-91510-614-0 04 1 1203-
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) (B) M16X48 		1-09000-383-0 04 1 1103-
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 1103-
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 04 1 1103-
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 08 1 1103-
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 08 1 1103-
172 BRACKET; CENTER BRG
MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) (A) 		1-37515-102-0 01 1 1103-
172 BRACKET; CENTER BRG
MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) (B) 		1-37515-135-0 01 1 1103-
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28651-025-0 04 1 1103-
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28651-025-0 04 1 1103-
174 NUT; BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 1103-
177 NUT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 1103-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
