3-58 — FIXING PARTS; OIL PIPING
(#71780) — 17 parça
◀

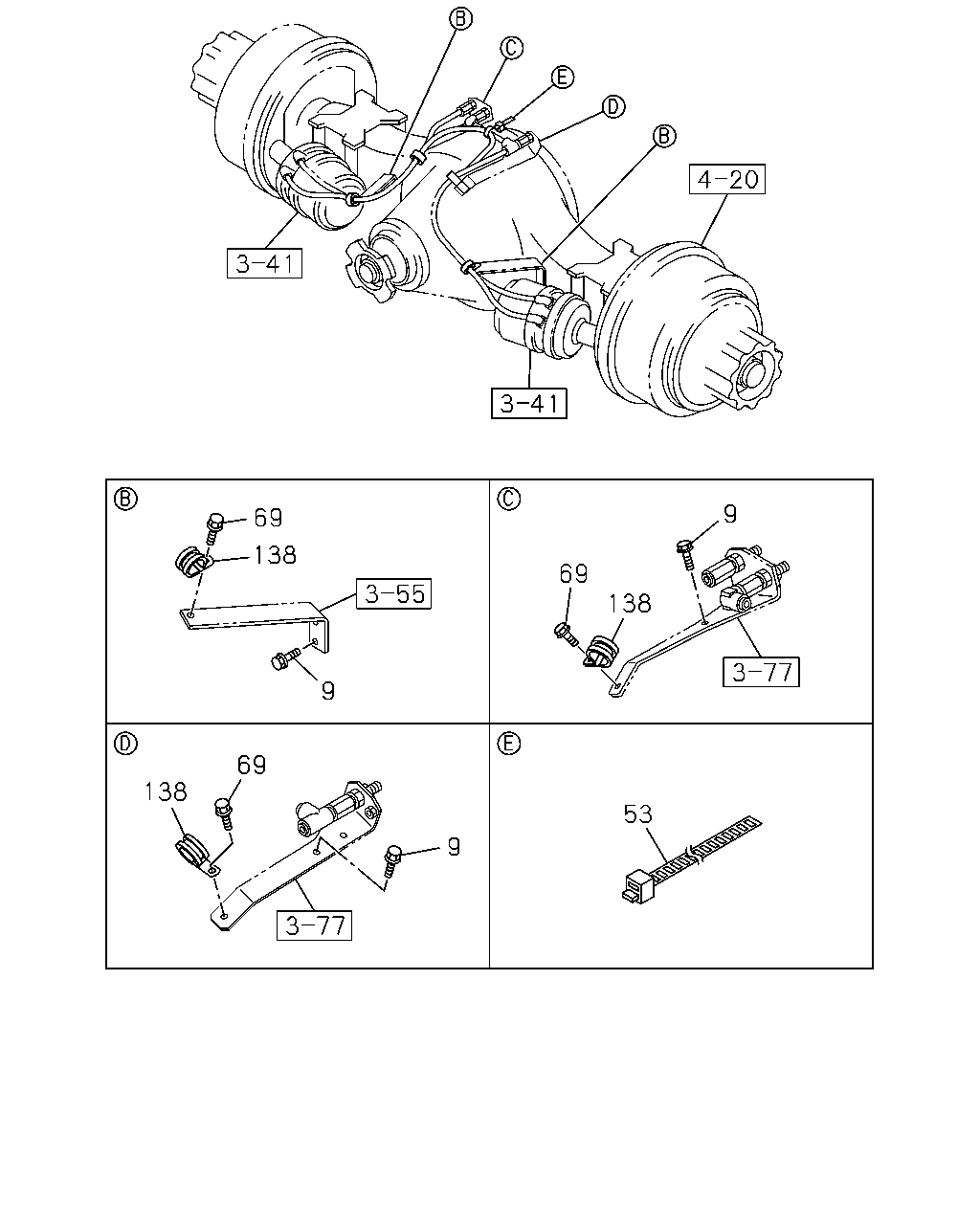

[358A] BRK SYSTEM FULL AIR DUAL CIRC (5 parça)

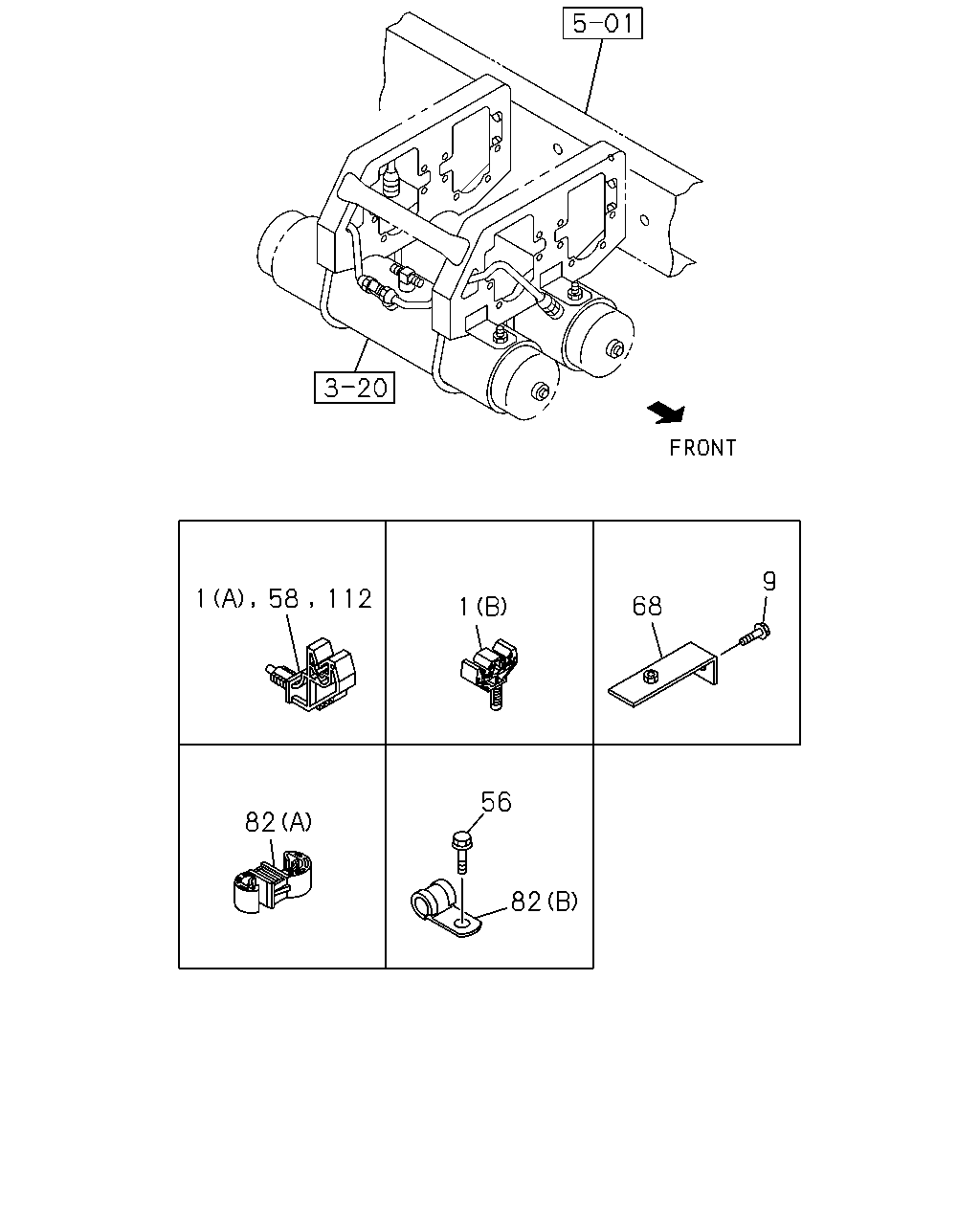

[358A] BRK SYSTEM AIR OVER HYD DUAL CIRC NO.1 (10 parça)

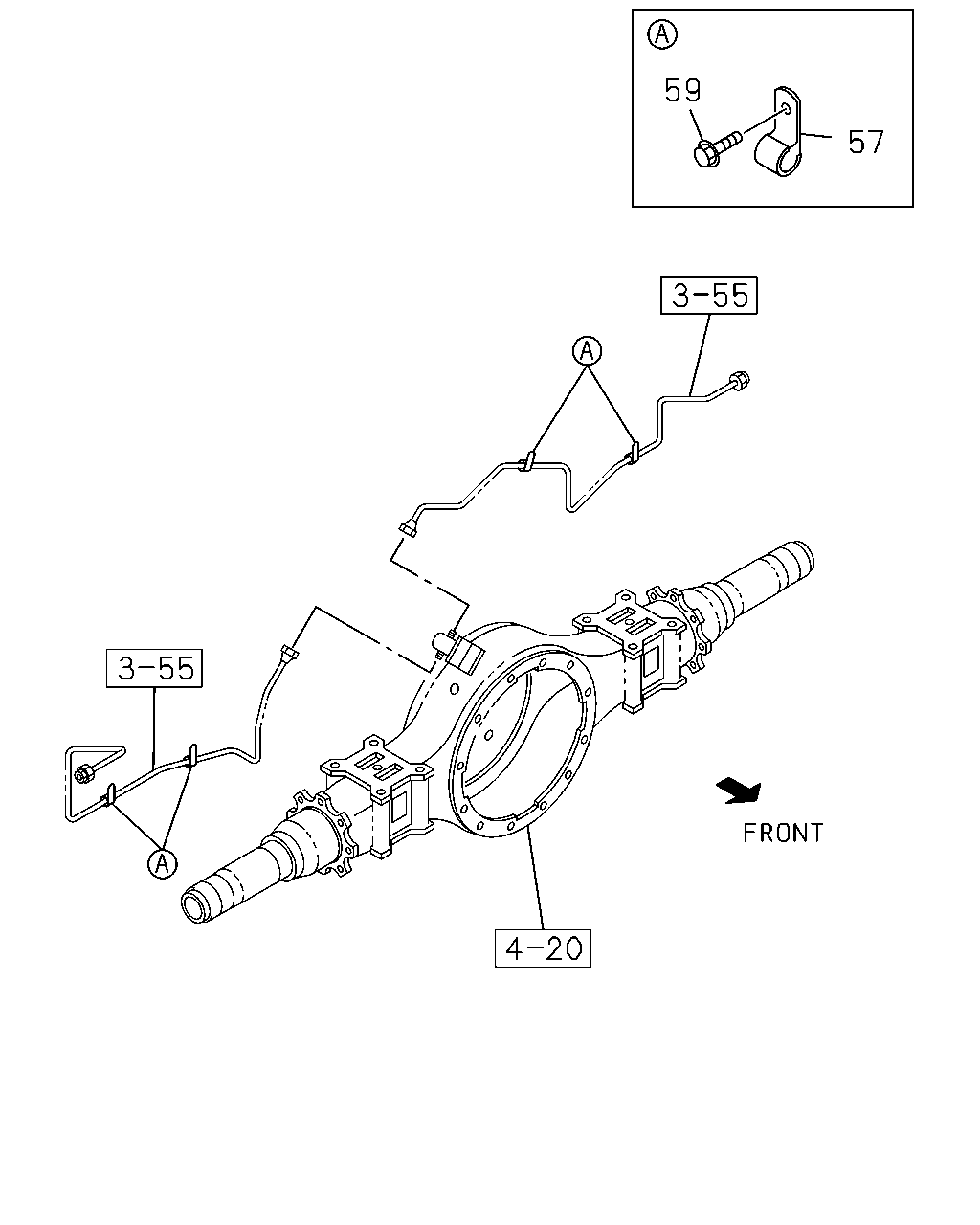

[358A] BRK SYSTEM AIR OVER HYD DUAL CIRC NO.2 (2 parça)
▶
9
69
138
69
138
9
69
138
53
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE
0-28650-830-0
01
1
1103-
9
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE
0-28050-816-0
08
1
1103-
53
CLIP; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250
1-09707-126-0
01
1
1103-
69
BOLT; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE
0-28050-820-0
04
1
1103-
138
CLIP; TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=35 L=33
1-09700-945-0
04
1
1103-
9
58
112
1
68
1
56
82
82
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLIP; OIL PIPE TO BODY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6.35
1-09701-247-1
06
1
1103-
1
CLIP; OIL PIPE TO BODY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)
8-98012-254-1
04
1
1103-
9
BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE
0-28650-830-0
01
1
1103-
9
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE
0-28050-816-0
08
1
1103-
56
BOLT; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE
0-28650-820-0
01
1
1103-
58
CLIP; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35
1-09701-247-1
06
1
1103-
68
BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
1-47475-519-0
01
1
1103-
82
CLIP; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=7 L=16
0-95234-625-0
01
1
1103-
82
CLIP; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6.35 & 6.35
1-09709-273-1
01
1
1103-
112
CLIP; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35
1-09701-247-1
06
1
1103-
59
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
57
CLIP; BRK PIPE,RR AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 L=20
0-95234-635-0
04
1
1103-
59
BOLT; BRK PIPE,RR AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X10 FLANGE
0-28050-810-0
04
1
1103-
