10819 - CXZ RHD SINGAPORE
▶
0 - Engine, Emission, Engine Electrical
▶
0-38 - AIR COMPRESSOR PIPING; ENGINE SIDE
▶

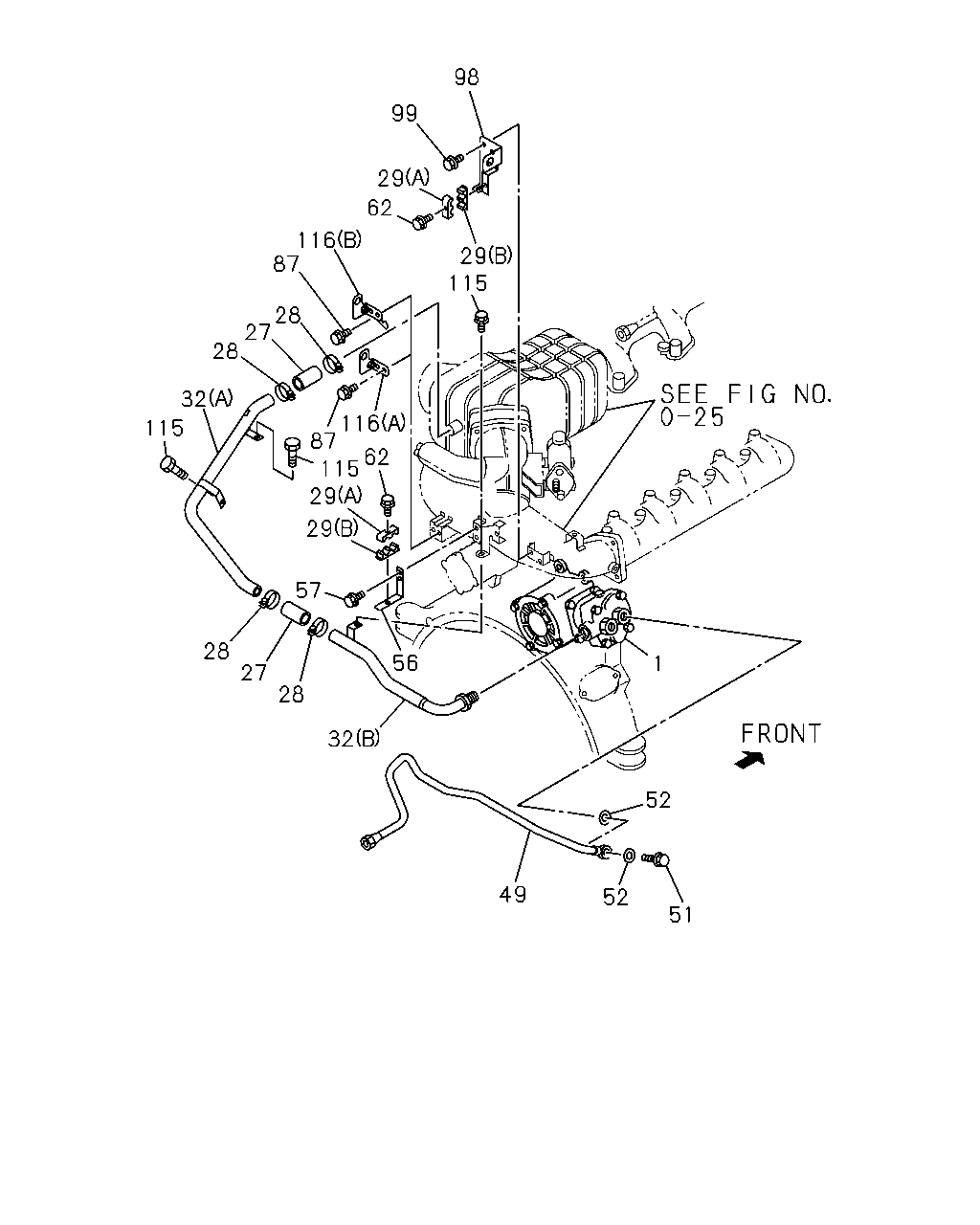

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE
(#7178) — 28 parça
◀
[038A] FIXING;AIR CMPR (8 parça)
[038A] FIXING;PIPE,CLIP AND BRACKET (20 parça)
▶
2
12
13
15
14
16
1
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
1-19100-177-5
01
1
9906-
2
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6
1-09623-423-0
01
1
9906-
5
BOLT; AIR CMPR FIX
M12X35 FLANGE
0-28181-235-0
04
1
9906-
12
KEY; AIR CMPR GEAR
9-08055-516-0
01
1
9906-
13
GEAR; AIR CMPR DRIVE
Z=26
1-12524-044-1
01
1
9906-
14
NUT; GEAR
M20
9-99111-520-0
01
1
9906-
15
WASHER; GEAR
ID=21
9-09164-520-0
01
1
9906-
16
ADAPTER
1-12539-010-0
01
1
9906-
52
51
52
49
32
28
27
28
57
29
29
115
62
87
116
56
1
115
29
29
62
99
98
116
87
28
27
28
32
115
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
1-19100-177-5
01
1
9906-
27
HOSE; AIR CMPR,SUCTION
L=55
1-09360-784-0
02
1
9906-
28
CLIP; HOSE,AIR CMPR
ID=28.5
1-09707-150-0
04
1
9906-
29
CLIP; AIR PIPE
(A)
1-09701-193-1
02
1
9906-
29
CLIP; AIR PIPE
(B)
1-09701-194-1
02
1
9906-
32
PIPE; AIR,AIR CMPR
(A)
1-19192-902-0
01
1
9906-
32
PIPE; AIR,AIR CMPR
(B)
1-19192-983-0
01
1
9906-
49
PIPE; AIR,CHARGE
DUMP TRUCK<RA1>
1-19192-928-0
01
1
9906-
49
PIPE; AIR,CHARGE
MIXER TRUCK<RA2>
1-19192-956-0
01
1
9907-
51
BOLT; EYE,AIR PIPE TO CMPR
M24X39
1-09675-175-1
01
1
9906-
52
GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32
9-09571-424-0
02
1
9906-
56
BRACKET; AIR PIPE FIX
1-19199-228-0
01
1
9906-
57
BOLT; BRKT,AIR PIPE
M6X12 FLANGE
0-28080-612-0
02
1
9906-
62
BOLT; CLIP
M6X35 FLANGE
0-28080-635-0
02
1
9906-
87
BOLT; BRKT FIX
M8X16 FLANGE
0-28080-816-0
02
1
9906-
98
BRACKET; AIR & OIL PIPE
1-19199-227-0
01
1
9906-
99
BOLT; BRKT AIR PIPE
M8X16 FLANGE
0-28080-816-0
02
1
9906-
115
BOLT; AIR PIPE
M6X12 FLANGE
0-28080-612-0
03
1
9906-
116
BRACKET; AIR PIPE
DUMP TRUCK<RA1> (A)
1-22196-326-1
01
1
9906-
116
BRACKET; AIR PIPE
MIXER TRUCK<RA2> (B)
1-13319-028-0
01
1
9907-
