3-55 — BRAKE PIPING; OIL,REAR
(#71779) — 17 parça
◀

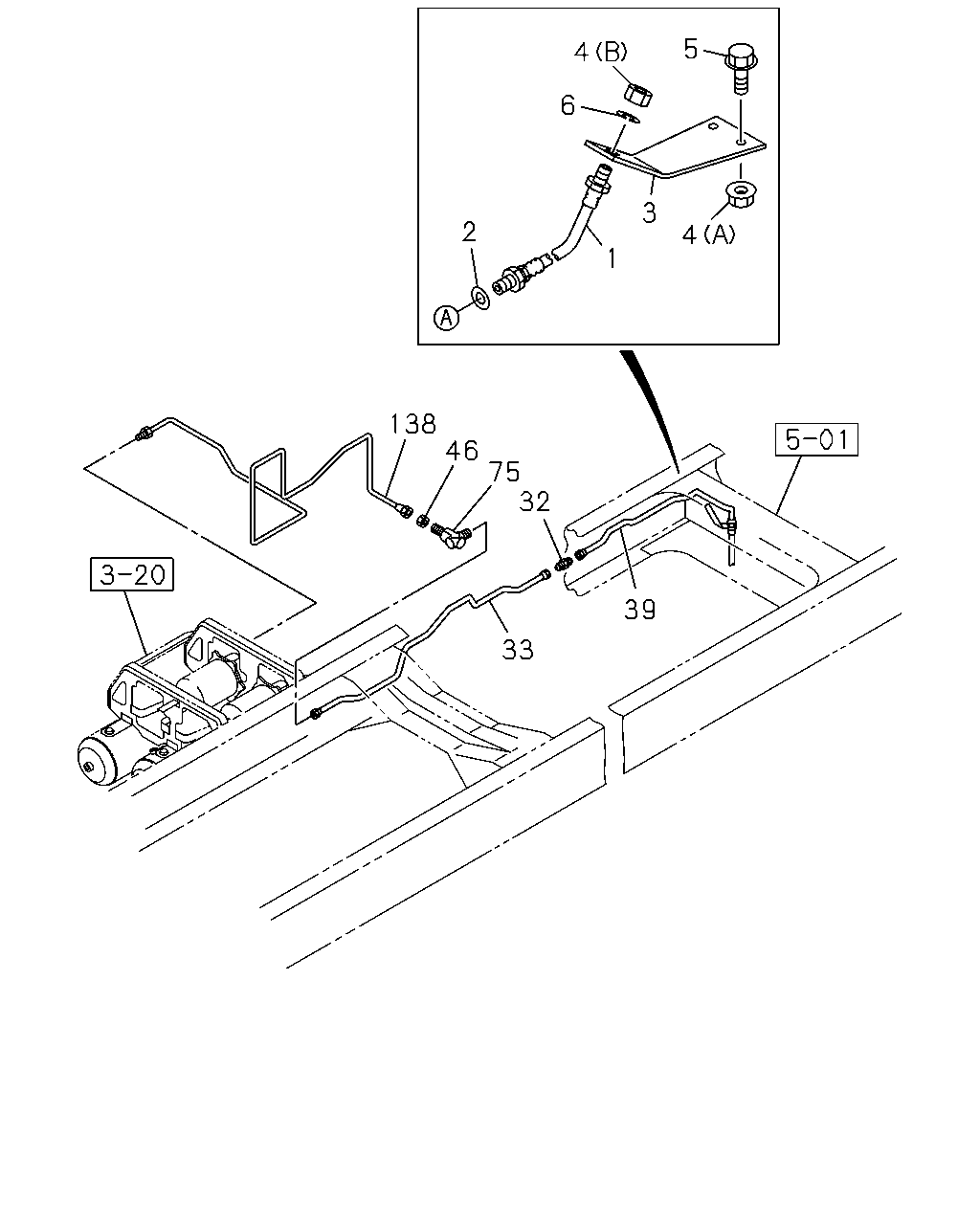

[355A] BRK SYSTEM AIR OVER HYD DUAL CIRC NO.1 (13 parça)

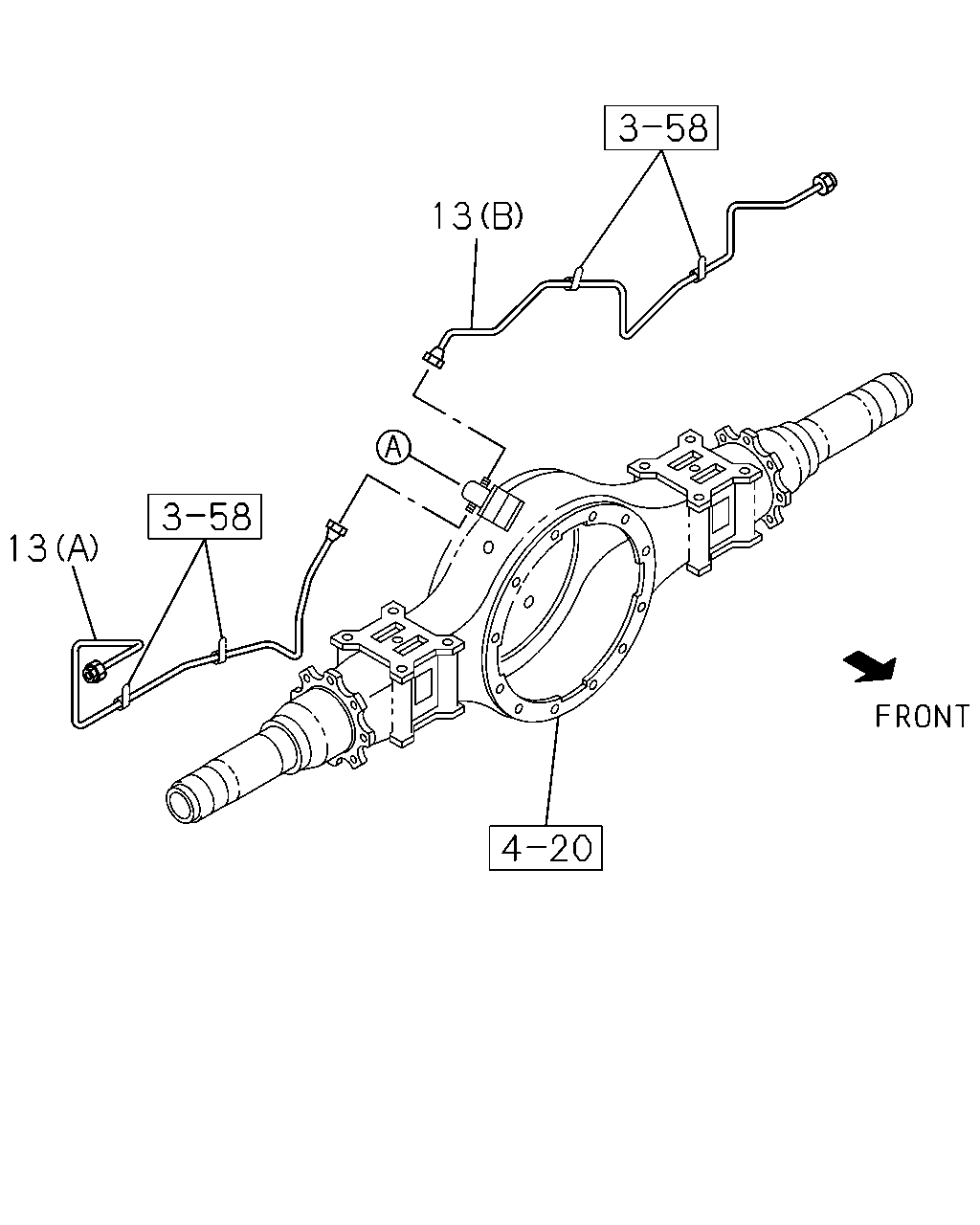

[355A] BRK SYSTEM AIR OVER HYD DUAL CIRC NO.2 (2 parça)

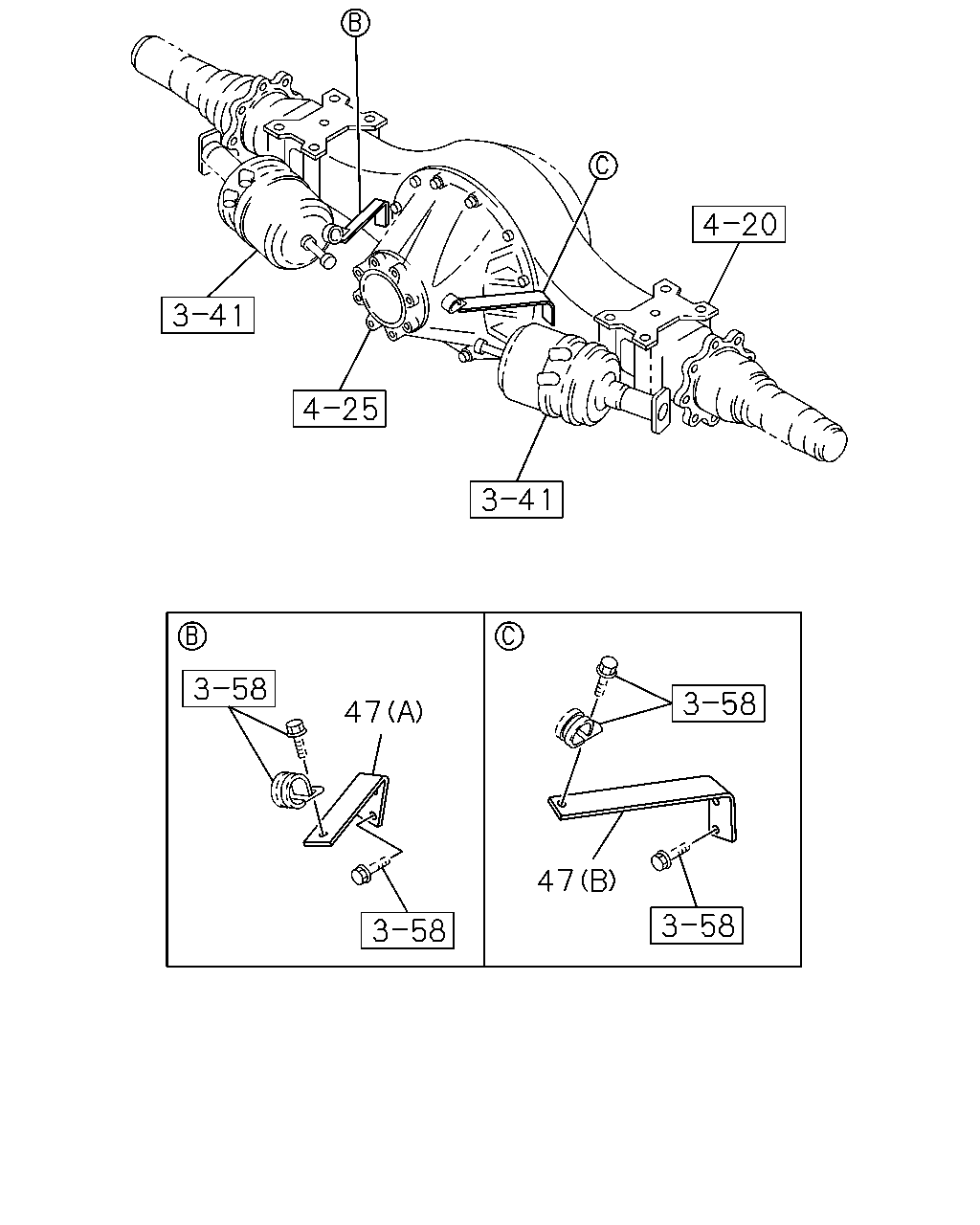

[355A] BRK SYSTEM FULL AIR DUAL CIRC (2 parça)
▶
5
4
6
3
2
4
1
138
46
75
32
39
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=700
0-05212-700-0
01
1
1103-
2
GASKET; FLEX HOSE,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 OD=17
9-09920-472-0
01
1
1103-
3
BRACKET; FLEX HOSE,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
1-47465-251-0
01
1
1103-
4
NUT; BRKT,FLEX HOSE,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8 FLANGE
0-91180-108-0
02
1
1103-
4
NUT; BRKT,FLEX HOSE,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12
9-09840-280-0
01
1
1103-
5
BOLT; BRKT,FLEX HOSE,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE
0-28650-825-0
02
1
1103-
6
WASHER; LK,FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2
0-91510-812-0
01
1
1103-
32
UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 L=40
0-92113-006-0
01
1
1103-
33
PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2650 SERVICED BY L=2650
1-47428-743-0
01
1
1103-
39
PIPE; OIL,UNION TO RR FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2138 SERVICED BY L=2200
1-47428-740-0
01
1
1103-
46
NUT; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12
9-09840-280-0
01
1
1103-
75
UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 ELBOW
0-92125-206-0
01
1
1103-
138
PIPE; HYDRAULIC UNIT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=504 SERVICED BY L=550
1-47428-724-0
01
1
1103-
13
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
PIPE; BRK,RR AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=935
8-98003-970-0
01
1
1103-
13
PIPE; BRK,RR AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=1212
8-98003-971-0
01
1
1103-
47
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
47
BRACKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)
1-42129-515-2
01
1
1103-
47
BRACKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)
1-42129-516-2
01
1
1103-
