Isuzu WW
▶
TRUCKS
▶
FVR
▶
11370 - FVR(RHD)W/DOC EURO4
▶
3 - Brakes, Brake System
▶
3-40 - FRONT BRAKE POWER CHAMBER
▶

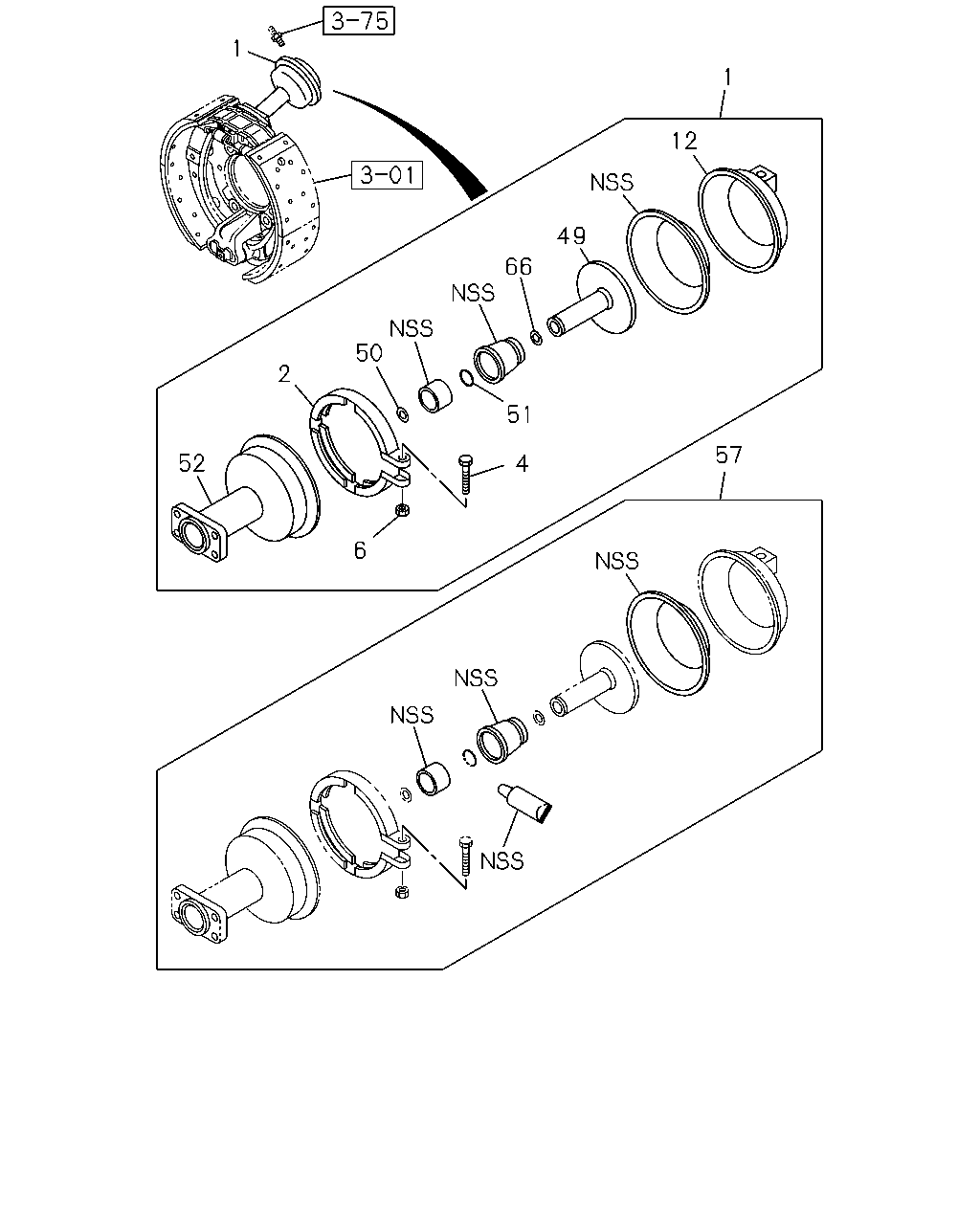

3-40 — FRONT BRAKE POWER CHAMBER
(#71775) — 12 parça
1
1
12
49
66
50
2
51
57
52
4
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
8-98145-680-1
02
1
1103-
2
RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
1-48269-256-0
02
1
1103-
4
BOLT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
1-48269-257-0
02
1
1103-
6
NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
1-48269-147-0
02
1
1103-
12
COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
1-48251-103-0
02
1
1103-
49
ROD; PUSH,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
8-98146-969-1
02
1
1103-
50
GUIDE; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
8-98146-963-1
02
1
1103-
51
RING; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
8-98146-966-0
02
1
1103-
52
HOUSING; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
1-48251-195-1
02
1
1103-1403
52
HOUSING; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
8-98248-793-0
02
1
1404-
57
REPAIR KIT; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
8-98146-978-0
02
1
1103-
66
SHIM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
8-98146-965-0
AR
1
1103-
