Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#71771) — 215 parça

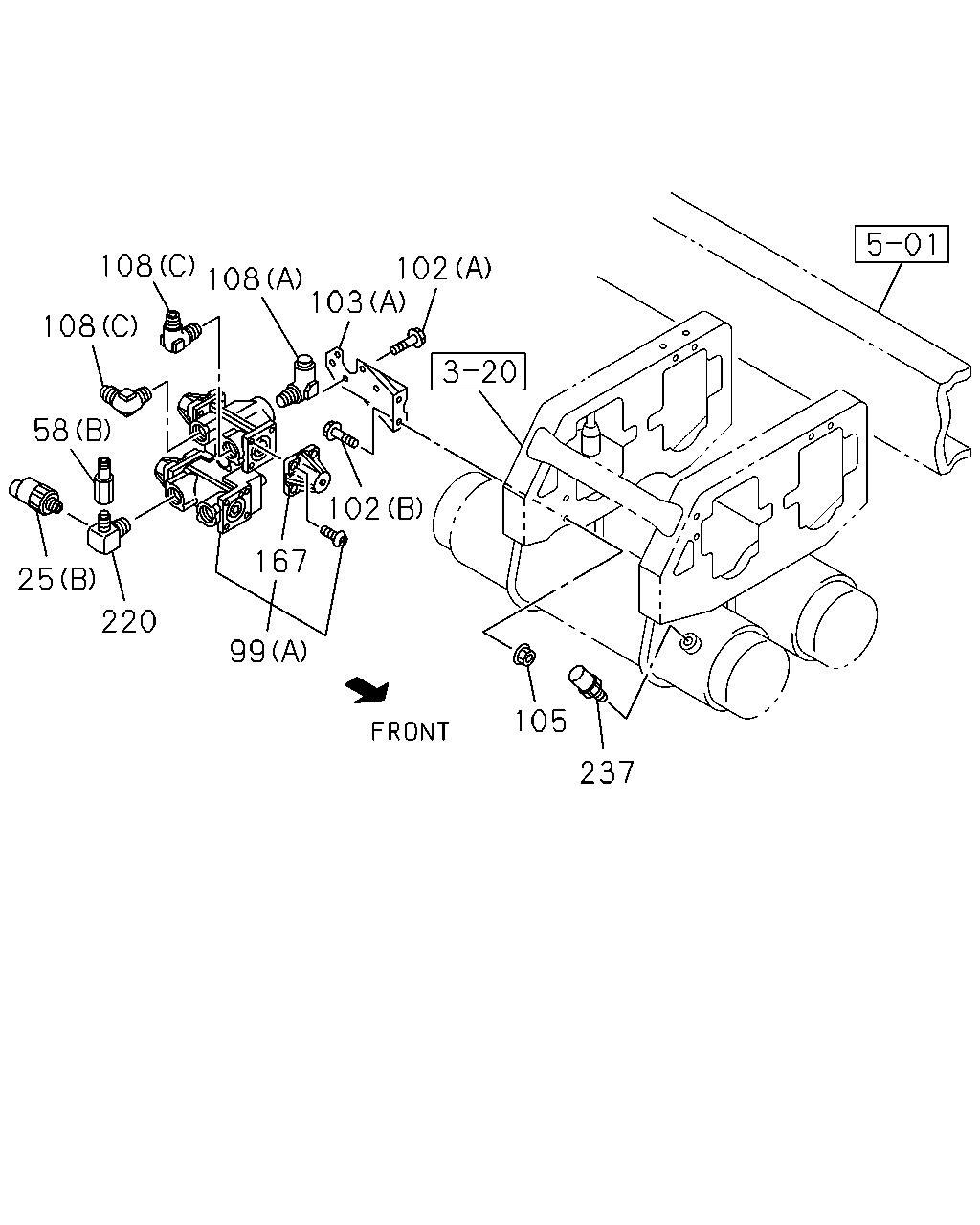

108 103 102 108 108 58 220 25 167 102 99 105 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	SWITCH; PRESSURE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) STAMP 5.5	8-97609-249-0	01	1	1103-
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B) STAMP 5.5	8-97609-249-0	01	1	1103-
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) STAMP 2.0	8-98010-856-2	01	1	1103-
58	ADAPTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1103-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1103-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1103-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1103-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (E)	8-98031-238-0	01	1	1103-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (F)	8-98148-475-0	01	1	1103-
99	VALVE; PROTECTION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48110-287-3	01	1	1103-
99	VALVE; PROTECTION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B)	1-48110-288-3	01	1	1103-
102	BOLT; PROTECTION VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X16 FLANGE	0-28050-816-0	02	1	1103-
102	BOLT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (A) M8X16 FLANGE	0-28050-816-0	02	1	1103-
102	BOLT; PROTECTION VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10X25 FLANGE	0-28651-025-0	02	1	1103-
102	BOLT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M10X35 FLANGE	0-28651-035-0	02	1	1103-
102	BOLT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (D) M8X20 FLANGE	0-28650-820-0	02	1	1103-
103	BRACKET; PROTECTION VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98098-183-0	01	1	1103-
103	BRACKET; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B)	8-98177-510-0	01	1	1103-
105	NUT; BRKT,VALVE M10 FLANGE	0-91180-210-0	02	1	1103-
108	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1103-
108	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	1103-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (D) PT3/8 ELBOW	1-09660-696-0	01	1	1103-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1103-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1103-
108	CONNECTOR; ELBOW FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1103-1503
108	CONNECTOR; ELBOW FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-
167	COVER; VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48119-625-0	03	1	1103-1506
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB>	1-48119-625-0	04	1	1103-1506
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP>	1-48219-070-0	01	1	1103-1210
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-070-0	01	1	1103-1210
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-070-0	01	1	1211-
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-070-0	01	1	1211-
220	CONNECTOR; 3WAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09656-698-0	01	1	1103-
237	VALVE; SAFETY	1-48320-012-2	01	1	1103-

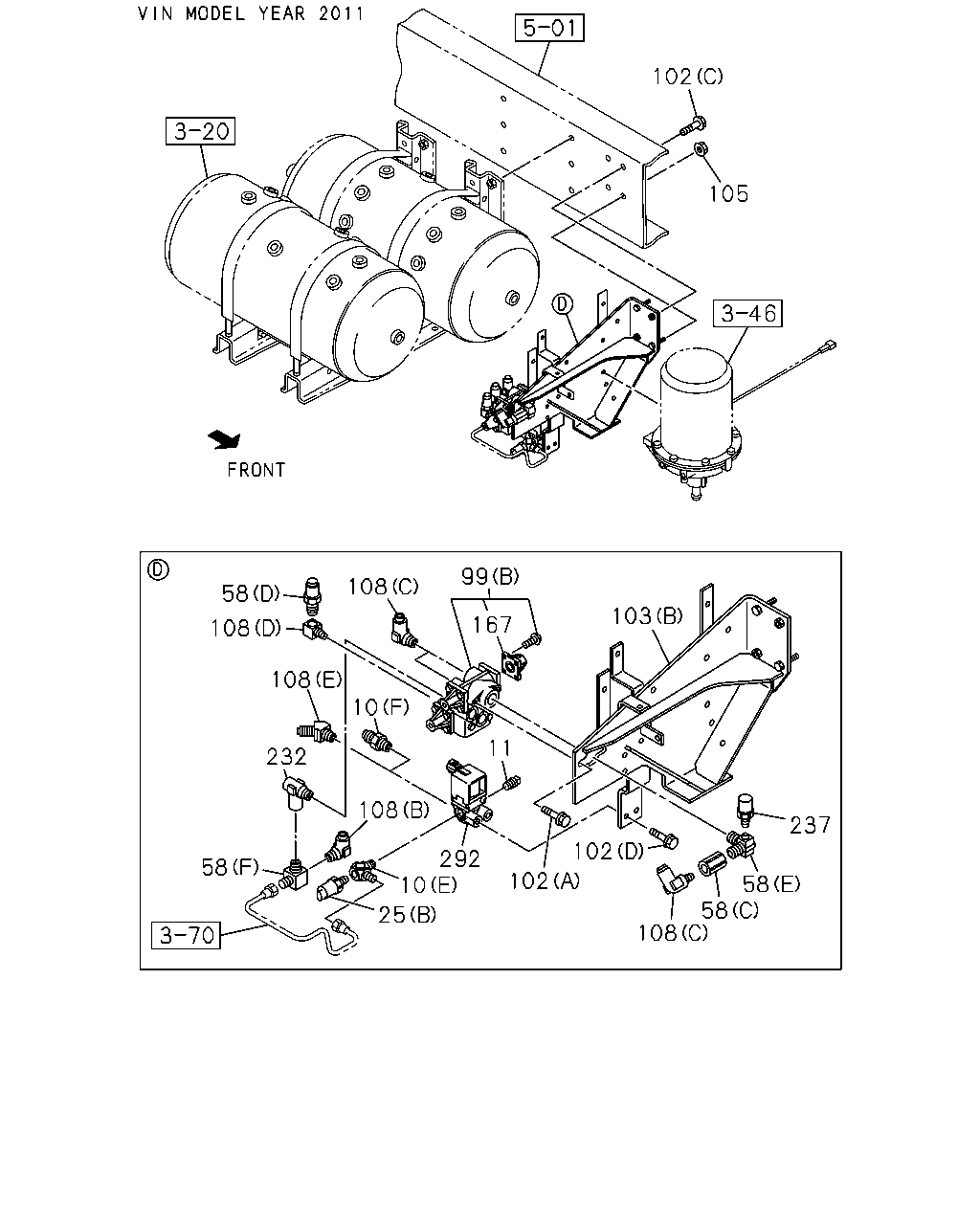

105 103 237 58 58 108 102 102 292 11 167 99 108 10 108 108 108 58 232 58 10 25 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT1/4 2WAY	1-09660-693-0	01	1	1103-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1103-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1103-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1103-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1103-
10	CONNECTOR MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1103-
11	PLUG BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> PT1/4	9-99204-513-0	01	1	1103-
25	SWITCH; PRESSURE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) STAMP 5.5	8-97609-249-0	01	1	1103-
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B) STAMP 5.5	8-97609-249-0	01	1	1103-
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) STAMP 2.0	8-98010-856-2	01	1	1103-
58	ADAPTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1103-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1103-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1103-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1103-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (E)	8-98031-238-0	01	1	1103-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (F)	8-98148-475-0	01	1	1103-
99	VALVE; PROTECTION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48110-287-3	01	1	1103-
99	VALVE; PROTECTION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B)	1-48110-288-3	01	1	1103-
102	BOLT; PROTECTION VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X16 FLANGE	0-28050-816-0	02	1	1103-
102	BOLT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (A) M8X16 FLANGE	0-28050-816-0	02	1	1103-
102	BOLT; PROTECTION VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10X25 FLANGE	0-28651-025-0	02	1	1103-
102	BOLT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M10X35 FLANGE	0-28651-035-0	02	1	1103-
102	BOLT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (D) M8X20 FLANGE	0-28650-820-0	02	1	1103-
103	BRACKET; PROTECTION VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98098-183-0	01	1	1103-
103	BRACKET; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B)	8-98177-510-0	01	1	1103-
105	NUT; BRKT,VALVE M10 FLANGE	0-91180-210-0	02	1	1103-
108	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1103-
108	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	1103-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (D) PT3/8 ELBOW	1-09660-696-0	01	1	1103-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1103-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1103-
108	CONNECTOR; ELBOW FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1103-1503
108	CONNECTOR; ELBOW FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-
167	COVER; VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48119-625-0	03	1	1103-1506
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB>	1-48119-625-0	04	1	1103-1506
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP>	1-48219-070-0	01	1	1103-1210
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-070-0	01	1	1103-1210
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-070-0	01	1	1211-
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-070-0	01	1	1211-
232	VALVE; CHECK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1103-
237	VALVE; SAFETY	1-48320-012-2	01	1	1103-
292	VALVE ASM; MAGNETIC BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB>	1-82563-871-2	01	1	1103-

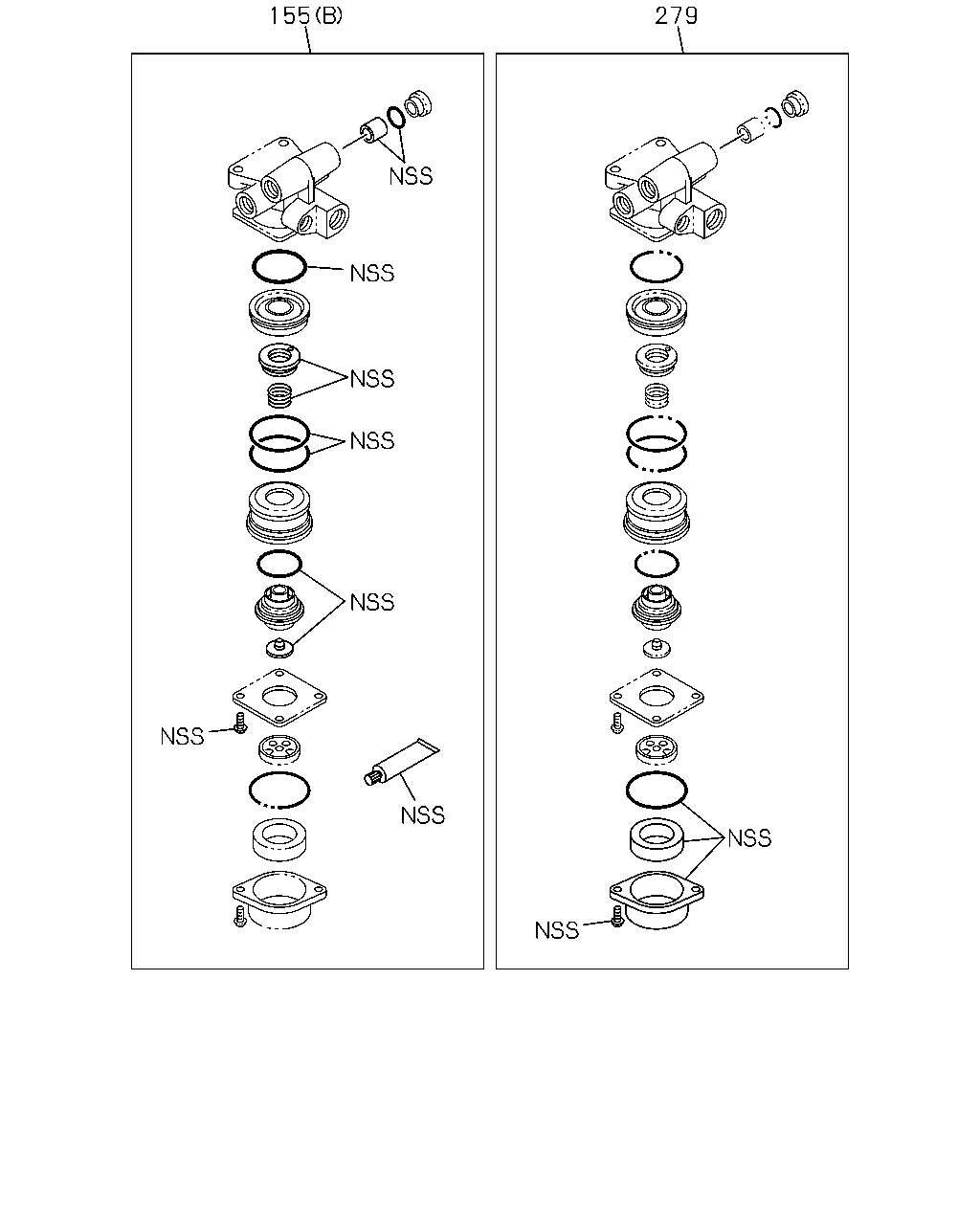

155 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

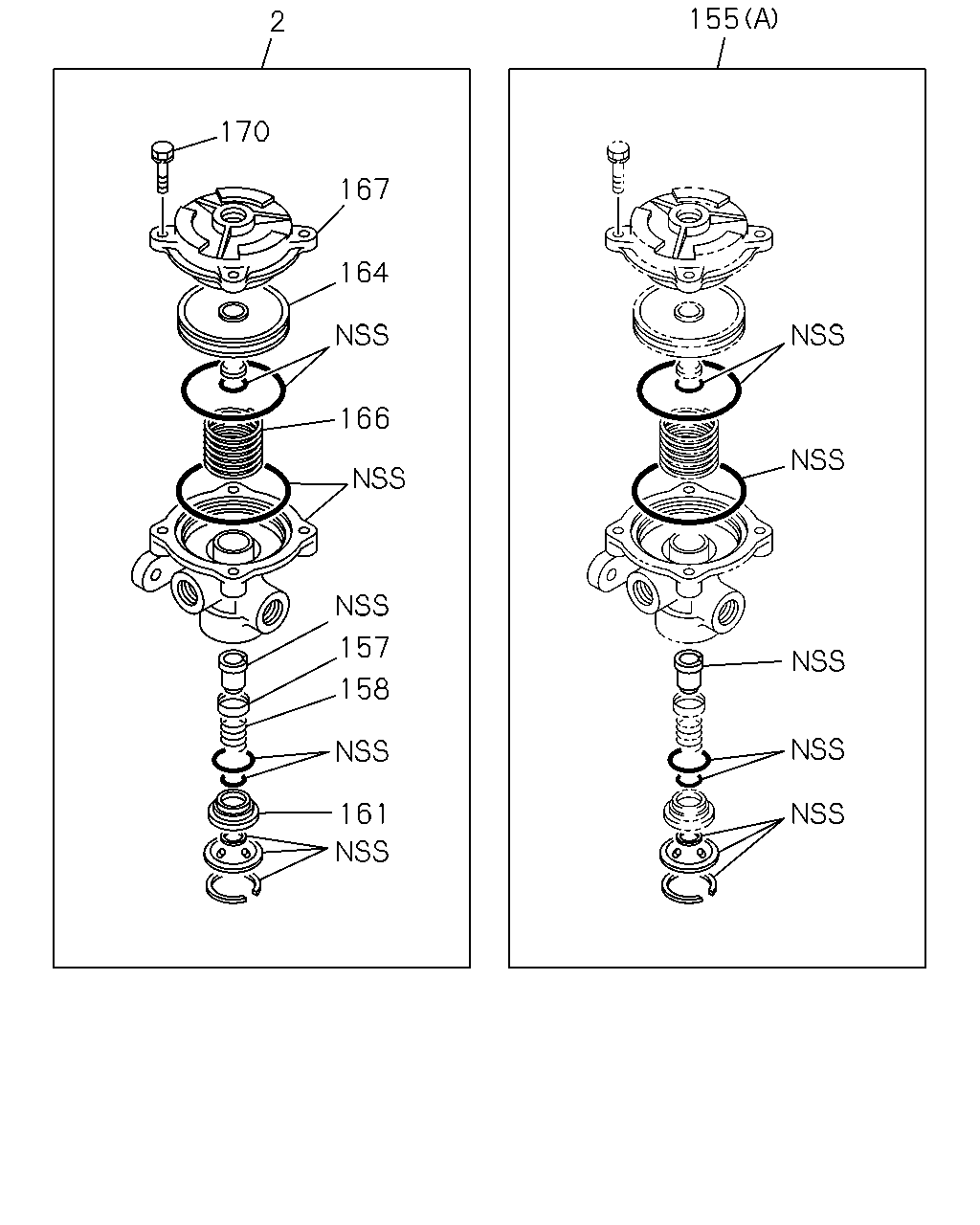

155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-85576-408-0	01	1	1103-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> (A)	1-85576-033-0	01	1	1103-1210
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1103-1210
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1211-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1211-
279	REPAIR KIT; SILENCER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-409-0	01	1	1103-

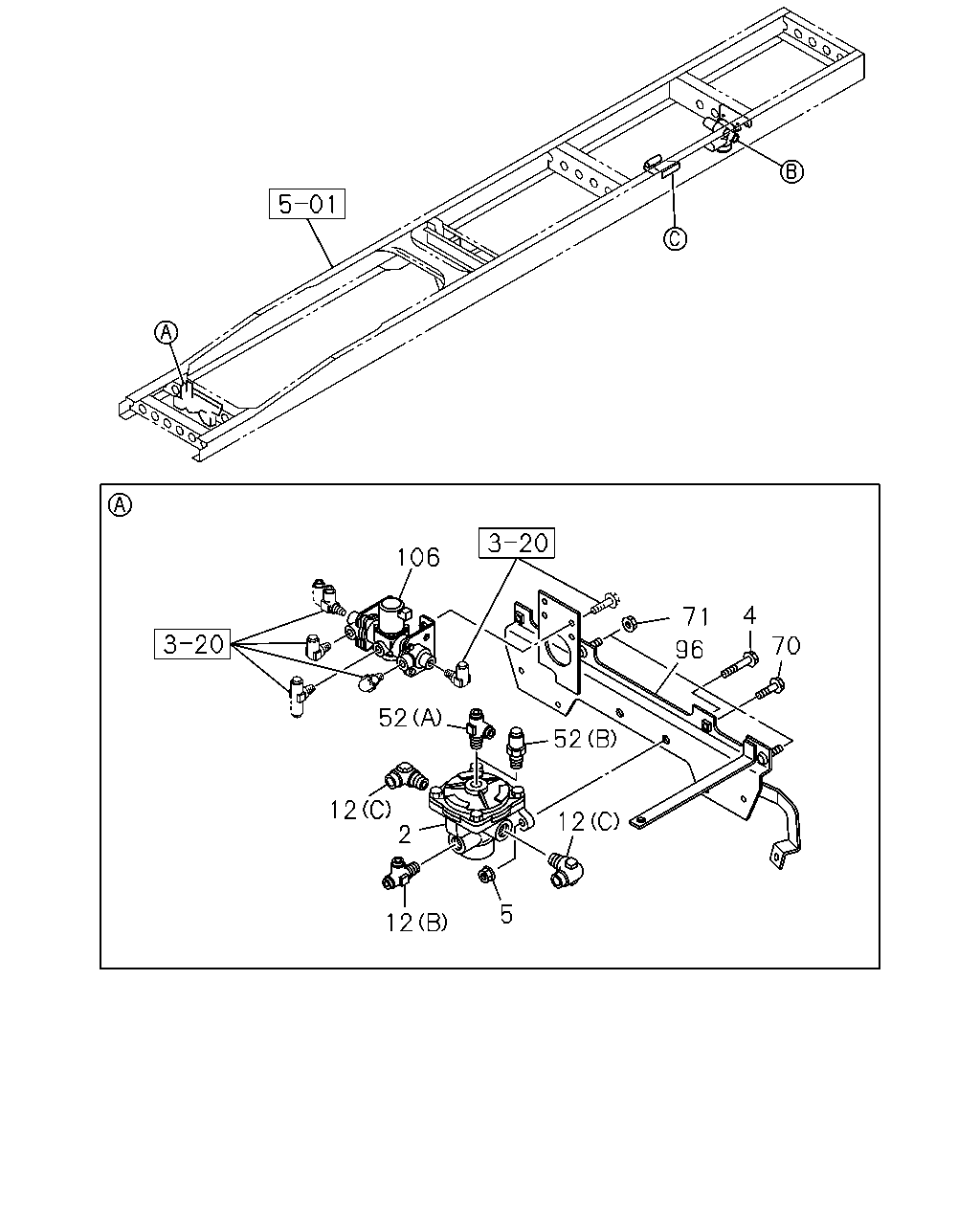

106 52 71 4 70 96 52 12 5 12 12 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP>	1-48210-875-0	01	1	1103-1210
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1103-1210
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1211-
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1211-
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> M10X35 FLANGE	0-28651-035-0	02	1	1103-1210
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1103-1210
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1211-
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1211-
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> M10 FLANGE	0-91180-210-0	02	1	1103-1210
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1103-1210
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1211-
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1211-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1103-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1103-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1103-1210
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1103-1210
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1211-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1211-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> (B)	1-09661-207-0	01	1	1103-1210
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09661-207-0	01	1	1211-
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1211-
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> (A) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	1103-
70	BOLT; AIR VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1103-
71	NUT; AIR VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	1103-
96	BRACKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP>	8-98074-613-3	01	1	1103-1210
96	BRACKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98074-613-3	01	1	1211-
106	VALVE; HSA BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	1103-

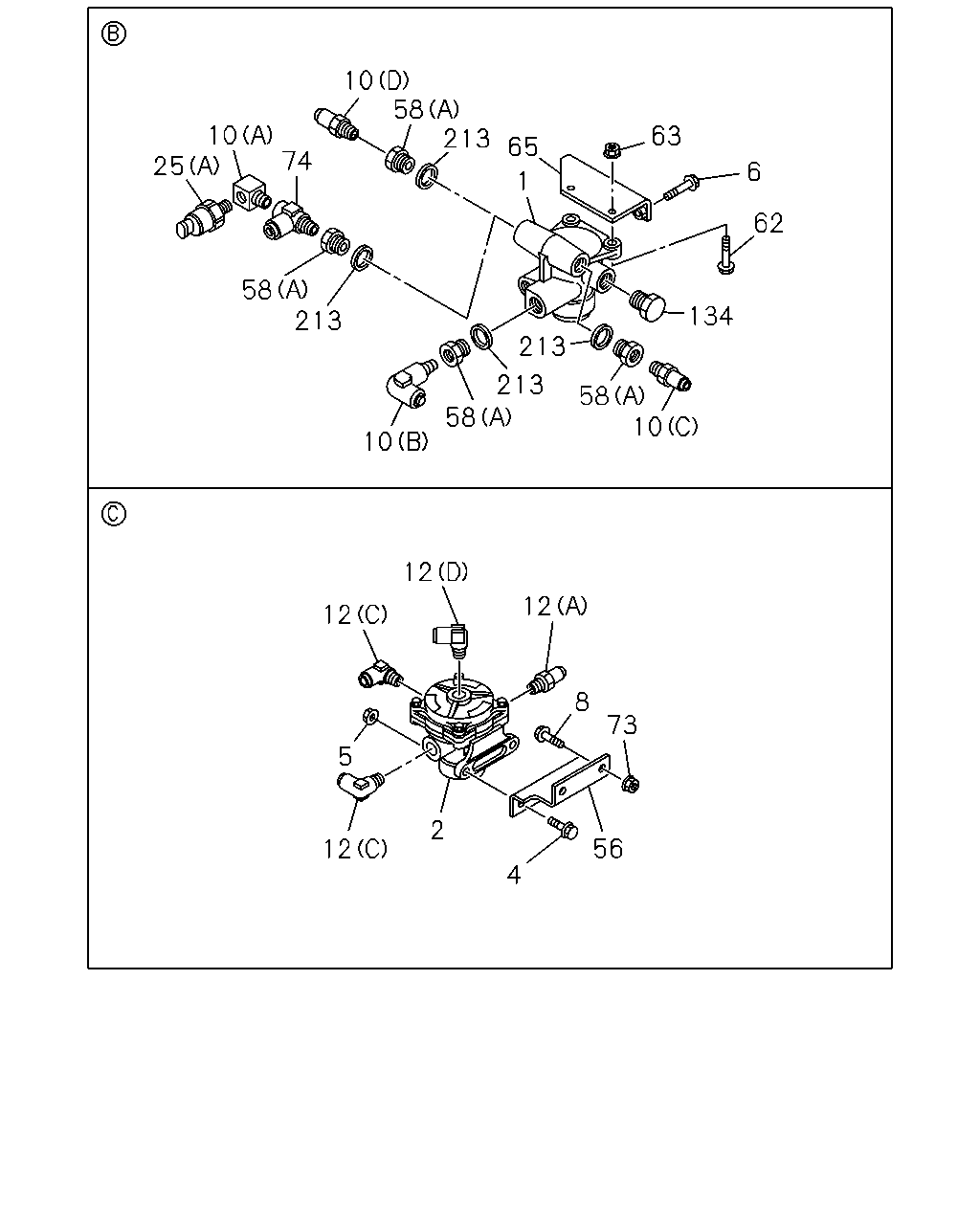

10 58 213 10 74 63 65 25 6 1 62 58 213 134 213 213 58 10 58 10 12 12 12 8 73 5 2 56 12 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48240-354-1	01	1	1103-
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP>	1-48210-875-0	01	1	1103-1210
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1103-1210
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1211-
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1211-
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> M10X35 FLANGE	0-28651-035-0	02	1	1103-1210
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1103-1210
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1211-
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1211-
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> M10 FLANGE	0-91180-210-0	02	1	1103-1210
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1103-1210
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1211-
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1211-
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE	0-28650-835-0	02	1	1103-
8	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1103-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT1/4 2WAY	1-09660-693-0	01	1	1103-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1103-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1103-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1103-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1103-
10	CONNECTOR MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1103-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1103-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1103-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1103-1210
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1103-1210
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1211-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1211-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> (B)	1-09661-207-0	01	1	1103-1210
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09661-207-0	01	1	1211-
25	SWITCH; PRESSURE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) STAMP 5.5	8-97609-249-0	01	1	1103-
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B) STAMP 5.5	8-97609-249-0	01	1	1103-
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) STAMP 2.0	8-98010-856-2	01	1	1103-
56	BRACKET; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98126-366-0	01	1	1103-
58	ADAPTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1103-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1103-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1103-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1103-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (E)	8-98031-238-0	01	1	1103-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (F)	8-98148-475-0	01	1	1103-
62	BOLT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	02	1	1103-
63	NUT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	1103-
65	BRACKET; RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47471-032-0	01	1	1103-
73	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1103-
74	CONNECTOR; 3WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & RC1/4 & R3/8 3WAY	1-09661-536-0	01	1	1103-
134	PLUG; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22	1-09661-502-0	01	1	1103-
213	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=22.5	9-09571-422-0	04	1	1103-

195 201 106 189 192 204 202 190 198 203 205 196 199 200 198 205 197 201 199 201 196 203 197 200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
106	VALVE; HSA BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	1103-
189	VALVE ASM; SOLENOID,HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-247-0	01	1	1103-
190	BODY; SOLENOID VLV,HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-234-0	01	1	1103-
192	SPRING; SOLENOID VLV,HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-181-0	01	1	1103-
195	SCREW; SOLENOID VLV,HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-191-0	04	1	1103-
196	PISTON; HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-232-0	02	1	1103-
197	SPRING; INNER,HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-161-0	02	1	1103-
198	PIN; STRAIGHT,HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-122-0	02	1	1103-
199	RETAINER; HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-121-0	02	1	1103-
200	SPRING; OUTER,HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-120-0	02	1	1103-
201	COVER; HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (A)	1-46366-118-1	02	1	1103-
201	COVER; HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (B)	1-46366-241-0	01	1	1103-
202	FILTER; HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-117-1	02	1	1103-
203	SCREW; HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-116-1	06	1	1103-
204	PIPE ASM; HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	1103-
205	BRACKET; HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (A)	1-46366-149-0	01	1	1103-
205	BRACKET; HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (B)	1-46366-150-0	01	1	1103-

188 204

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	188	REPAIR KIT; HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-85576-304-1	01	1	1103-
	204	PIPE ASM; HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	1103-

155 2 170 167 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP>	1-48210-875-0	01	1	1103-1210
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1103-1210
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1211-
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1211-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-85576-408-0	01	1	1103-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> (A)	1-85576-033-0	01	1	1103-1210
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1103-1210
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1211-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1211-
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP>	1-48213-002-0	01	1	1103-1210
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48213-002-0	01	1	1103-1210
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48213-002-0	01	1	1211-
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48213-002-0	01	1	1211-
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP>	1-47819-089-0	01	1	1103-1210
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-089-0	01	1	1103-1210
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-089-0	01	1	1211-
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-089-0	01	1	1211-
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP>	1-48129-014-0	01	1	1103-1210
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	01	1	1103-1210
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	01	1	1211-
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	01	1	1211-
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP>	1-48219-071-0	01	1	1103-1210
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	01	1	1103-1210
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	01	1	1211-
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	01	1	1211-
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP>	1-47819-090-0	01	1	1103-1210
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	01	1	1103-1210
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	01	1	1211-
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	01	1	1211-
167	COVER; VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48119-625-0	03	1	1103-1506
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB>	1-48119-625-0	04	1	1103-1506
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP>	1-48219-070-0	01	1	1103-1210
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-070-0	01	1	1103-1210
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-070-0	01	1	1211-
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-070-0	01	1	1211-
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP>	1-48219-039-0	04	1	1103-1210
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	04	1	1103-1210
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	04	1	1211-
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	04	1	1211-

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	REPAIR KIT; PROTECTION VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-85576-452-1	01	1	1103-1506
	241	REPAIR KIT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB>	1-85576-451-1	01	1	1103-1506

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
