Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#71770) — 163 parça

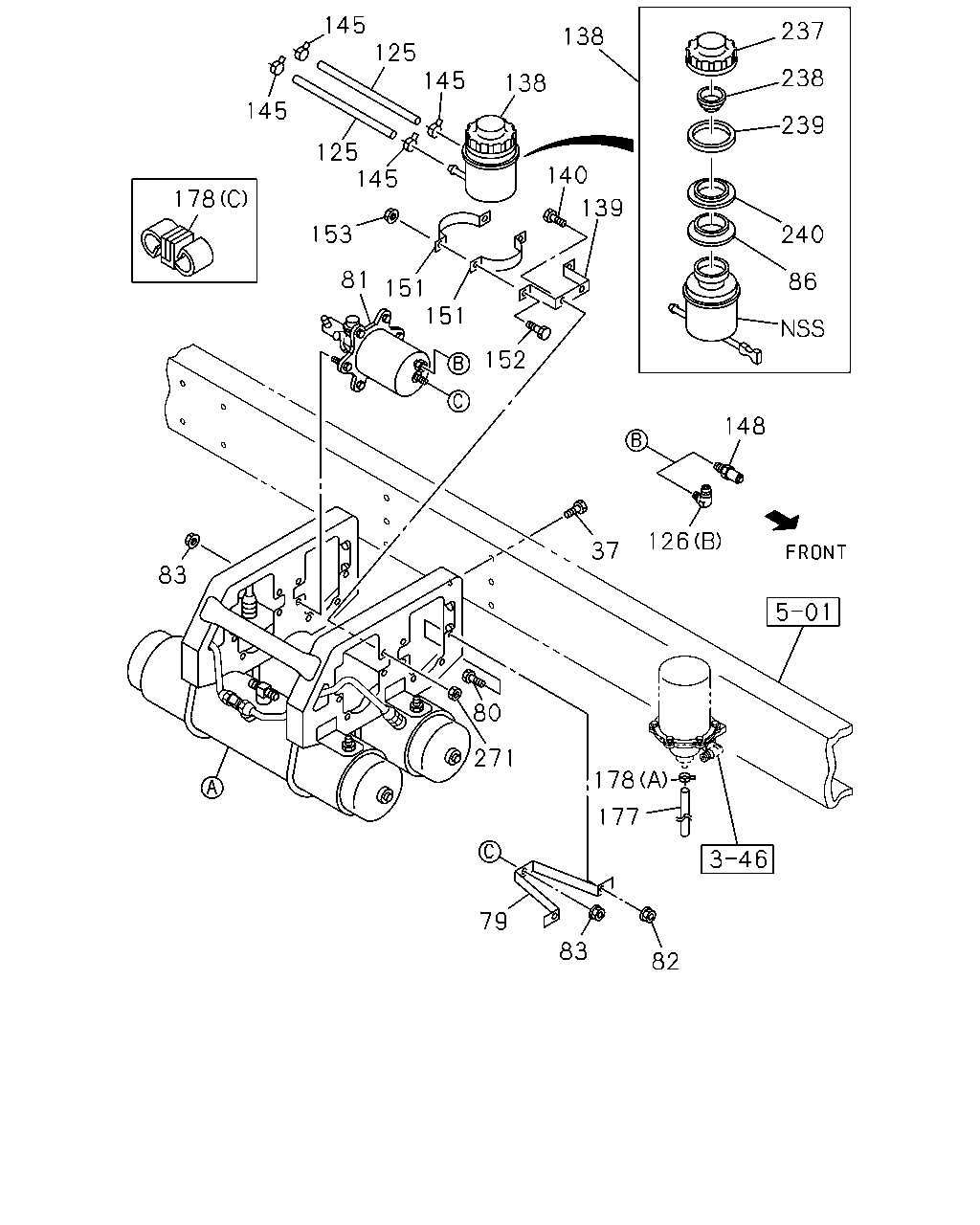

145 237 138 125 145 238 138 145 239 125 145 140 178 139 153 240 81 86 151 151 152 148 126 37 83 80 271 178 177 79 83 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40 FLANGE	0-28651-240-0	06	1	1103-
37	BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> M12X40 FLANGE	0-28651-240-0	08	1	1103-
79	STAY; AIR MASTER TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98120-254-0	02	1	1103-
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE	0-28651-025-0	04	1	1103-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47800-663-1	02	1	1103-
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	04	1	1103-
83	NUT; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	10	1	1103-
86	SEAL; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-019-0	01	1	1103-
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=270 SERVICED BY L=1800	1-09360-320-0	01	1	1103-
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98098-558-0	01	1	1103-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1103-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1103-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1103-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (D)	1-09650-275-1	01	1	1103-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (E) PT1/4 2WAY	1-09660-693-0	04	1	1103-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1103-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (G) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1103-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1103-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (H) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1103-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (I)	8-98166-127-0	01	1	1103-
138	TANK ASM; OIL,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47530-185-1	01	1	1103-
139	BRACKET; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47537-081-2	01	1	1103-
140	BOLT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE	0-28651-025-0	02	1	1103-
145	CLIP; OIL TANK TO AIR MASTER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09704-102-0	04	1	1103-
148	CONNECTOR; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1103-
151	BAND; OIL TANK,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47537-056-2	02	1	1103-
152	BOLT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1103-
153	NUT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	02	1	1103-
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1103-
178	CLIP; HOSE (A) ID=21	8-94242-034-0	01	1	1103-
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=12 & 12	1-09709-280-1	01	1	1103-
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	9-09917-171-0	01	1	1103-
237	CAP; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47525-030-0	01	1	1103-
238	PLATE; BAFFLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-022-0	01	1	1103-
239	FILTER; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-017-0	01	1	1103-
240	HOLDER; FILTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-018-0	01	1	1103-
271	NUT; BRKT,HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	02	1	1103-

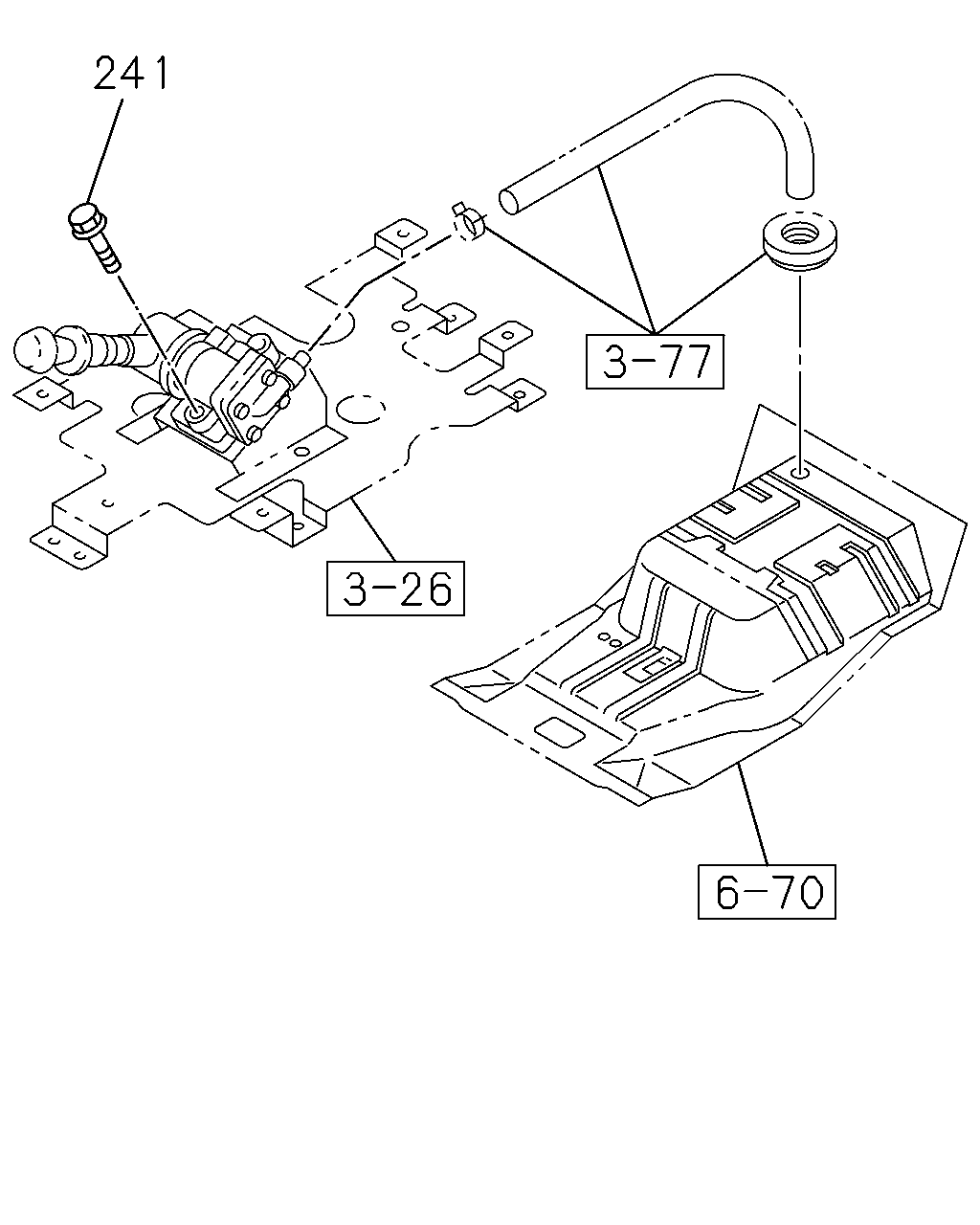

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28050-870-0	02	1	1103-

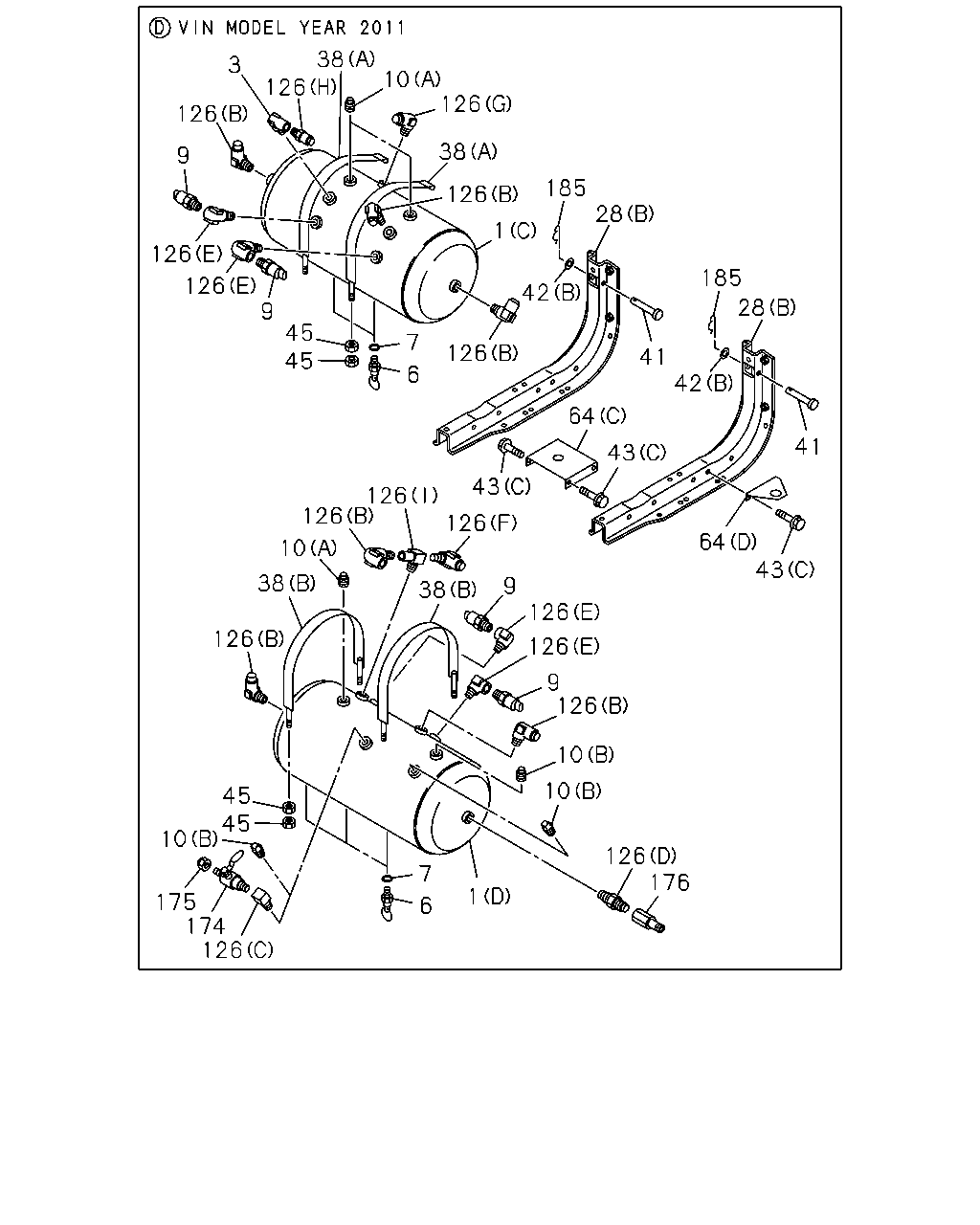

38 126 3 10 126 126 38 9 185 126 28 126 42 185 126 9 28 45 45 7 42 126 41 6 64 41 43 43 126 126 126 64 43 10 38 9 38 126 126 126 9 126 10 10 45 45 10 126 176 7 1 175 174 126 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48370-500-0	01	1	1103-
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48370-501-0	01	1	1103-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C)	1-48370-181-1	01	1	1103-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (D)	8-98184-783-0	01	1	1103-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB>	1-48320-031-1	01	1	1103-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	03	1	1103-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB>	1-48312-015-0	05	1	1103-
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	03	1	1103-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	05	1	1103-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) STAMP 5.5	8-97609-249-0	02	1	1103-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> STAMP 5.5	8-97609-249-0	04	1	1103-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (B) PT3/8	9-09204-517-0	02	1	1103-
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT3/8	9-09204-517-0	02	1	1103-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (A) PT3/4	9-09204-526-0	03	1	1103-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	03	1	1103-
28	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-338-6	02	1	1103-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B)	1-48317-601-5	02	1	1103-
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (A)	1-48317-108-2	02	1	1103-
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B)	1-48317-109-2	02	1	1103-
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> OD=10 L=60	0-82254-060-0	02	1	1103-
42	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=8.4 OD=18	0-91610-608-0	04	1	1103-
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B) ID=10.5	0-91614-510-0	02	1	1103-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X20 FLANGE	0-28650-820-0	02	1	1103-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10X25 FLANGE	0-28651-025-0	04	1	1103-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C) M8X25 FLANGE	0-28650-825-0	06	1	1103-
45	NUT; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> M8	0-91110-508-0	12	1	1103-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48317-349-0	01	1	1103-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-53318-293-1	01	1	1103-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C)	1-48317-607-0	01	1	1103-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (D)	1-48317-691-0	01	1	1103-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1103-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1103-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1103-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (D)	1-09650-275-1	01	1	1103-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (E) PT1/4 2WAY	1-09660-693-0	04	1	1103-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1103-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (G) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1103-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1103-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (H) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1103-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (I)	8-98166-127-0	01	1	1103-
174	COCK; AIR,INFLATOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	1103-
174	COCK; AIR,INFLATOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB>	1-09680-099-0	01	1	1103-
175	CAP; AIR COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	1103-
175	CAP; AIR COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB>	9-48319-102-0	01	1	1103-
176	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1103-
185	PIN; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> L=32.6	8-98062-280-0	02	1	1103-

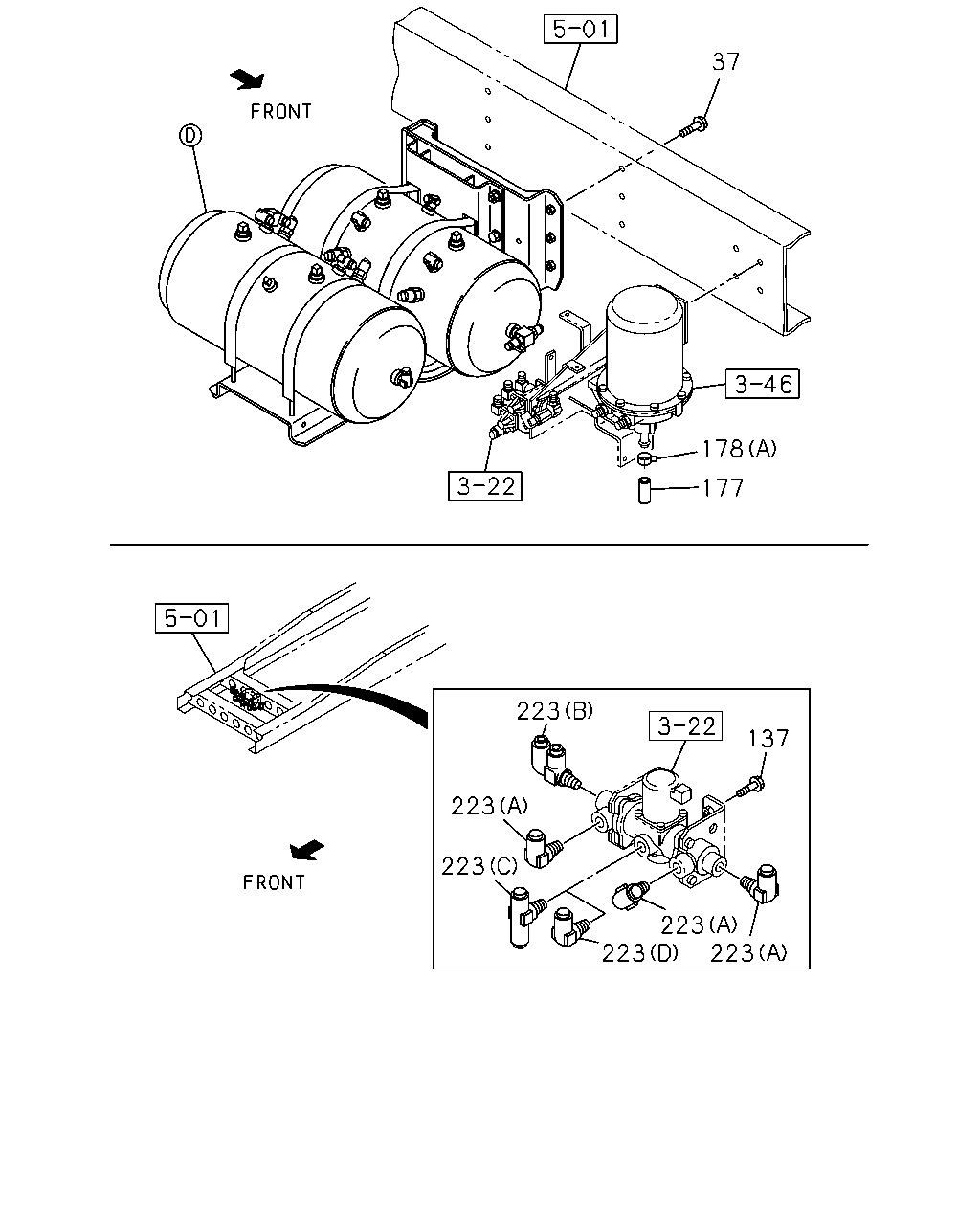

37 178 177 223 137 223 223 223 223 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40 FLANGE	0-28651-240-0	06	1	1103-
37	BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> M12X40 FLANGE	0-28651-240-0	08	1	1103-
137	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	04	1	1103-
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1103-
178	CLIP; HOSE (A) ID=21	8-94242-034-0	01	1	1103-
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=12 & 12	1-09709-280-1	01	1	1103-
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	9-09917-171-0	01	1	1103-
223	UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	1103-
223	UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1103-
223	UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1103-
223	UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EXC. RIGID SEAT WO/ARM REST<TAZ> (C)	1-09661-073-0	01	1	1103-

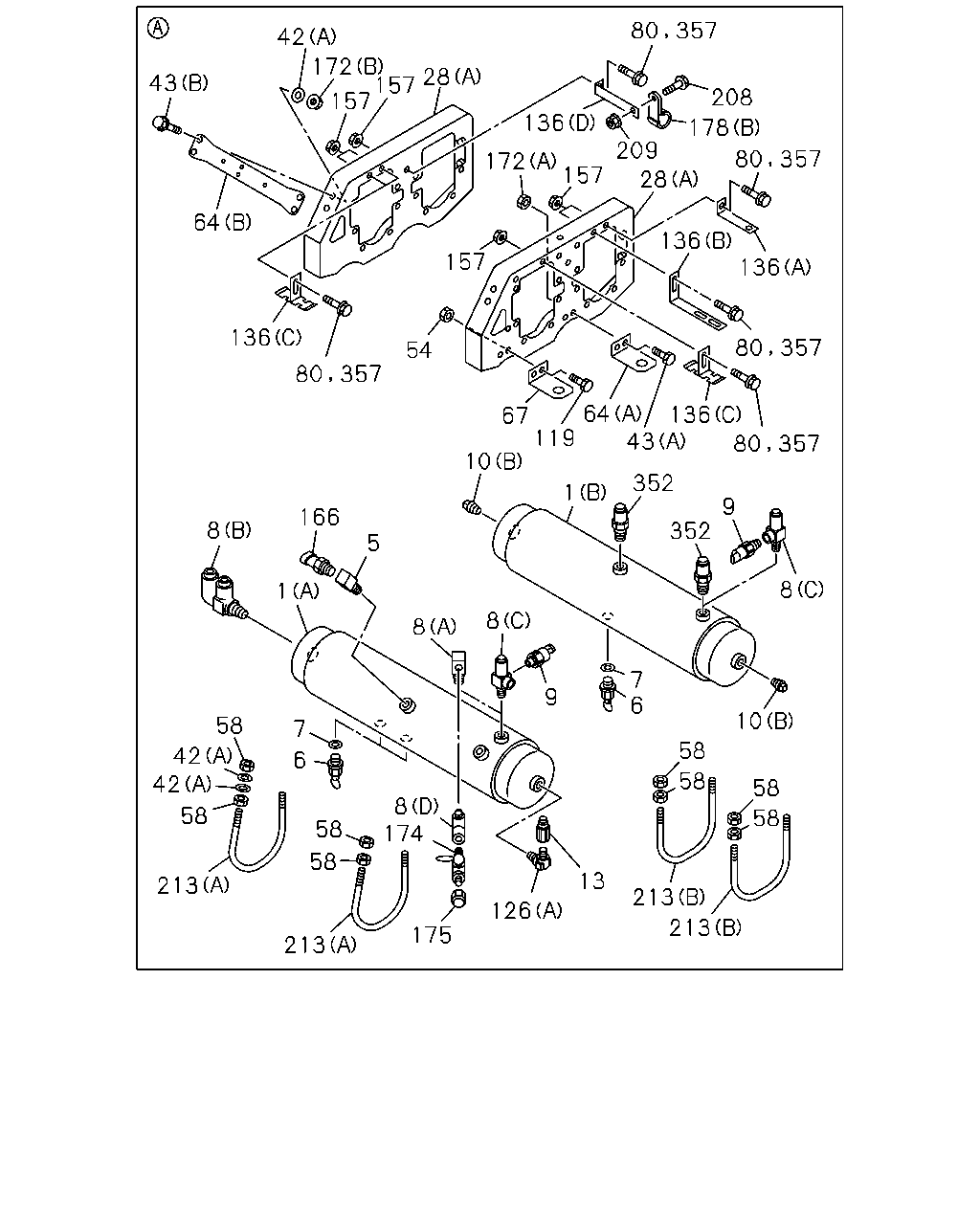

42 172 28 157 157 43 208 136 178 209 172 157 28 64 136 136 157 136 54 67 64 136 119 43 10 352 1 9 166 8 352 5 8 1 8 8 7 6 9 10 58 7 58 42 42 6 58 58 8 174 58 58 58 58 13 213 213 126 213 175 213 80 357 80 357 80 357 80 357 80 357

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48370-500-0	01	1	1103-
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48370-501-0	01	1	1103-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C)	1-48370-181-1	01	1	1103-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (D)	8-98184-783-0	01	1	1103-
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1103-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	03	1	1103-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB>	1-48312-015-0	05	1	1103-
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	03	1	1103-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	05	1	1103-
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1103-
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<SG4> (C) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1103-
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<SG4> (D) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	1103-
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<SG4> (A)	8-98166-127-0	01	1	1103-
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TIRE INFLATOR DEVICE<SG4> (C) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	02	1	1103-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) STAMP 5.5	8-97609-249-0	02	1	1103-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> STAMP 5.5	8-97609-249-0	04	1	1103-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (B) PT3/8	9-09204-517-0	02	1	1103-
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT3/8	9-09204-517-0	02	1	1103-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (A) PT3/4	9-09204-526-0	03	1	1103-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	03	1	1103-
13	ADAPTER; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1103-
28	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-338-6	02	1	1103-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B)	1-48317-601-5	02	1	1103-
42	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=8.4 OD=18	0-91610-608-0	04	1	1103-
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B) ID=10.5	0-91614-510-0	02	1	1103-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X20 FLANGE	0-28650-820-0	02	1	1103-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10X25 FLANGE	0-28651-025-0	04	1	1103-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C) M8X25 FLANGE	0-28650-825-0	06	1	1103-
54	NUT; STAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	02	1	1103-
58	NUT; BAND,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	0-91110-508-0	16	1	1103-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48317-349-0	01	1	1103-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-53318-293-1	01	1	1103-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C)	1-48317-607-0	01	1	1103-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (D)	1-48317-691-0	01	1	1103-
67	STAY; SUB TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-349-0	01	1	1103-
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE	0-28651-025-0	04	1	1103-
119	BOLT; STAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1103-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1103-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1103-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1103-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (D)	1-09650-275-1	01	1	1103-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (E) PT1/4 2WAY	1-09660-693-0	04	1	1103-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1103-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (G) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1103-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1103-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (H) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1103-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (I)	8-98166-127-0	01	1	1103-
136	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=90 B=25	1-47475-530-0	01	1	1103-
136	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=112	1-47475-694-1	01	1	1103-
136	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=150 H=30	1-47477-629-2	01	1	1103-
136	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47479-693-0	03	1	1103-
157	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	06	1	1103-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) STAMP 5.5	8-97609-249-0	01	1	1103-
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8 FLANGE	0-91180-108-0	02	1	1103-
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10 FLANGE	0-91180-210-0	04	1	1103-
174	COCK; AIR,INFLATOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	1103-
174	COCK; AIR,INFLATOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB>	1-09680-099-0	01	1	1103-
175	CAP; AIR COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	1103-
175	CAP; AIR COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB>	9-48319-102-0	01	1	1103-
178	CLIP; HOSE (A) ID=21	8-94242-034-0	01	1	1103-
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=12 & 12	1-09709-280-1	01	1	1103-
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	9-09917-171-0	01	1	1103-
208	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	01	1	1103-
209	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	1103-
213	BOLT; U AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=97.5	1-48317-323-1	02	1	1103-
213	BOLT; U AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=195	1-48317-367-2	02	1	1103-
352	CONNECTOR; STRAIGHT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1103-
357	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	06	1	1103-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
