3-11 — PARKING BRAKE CONTROL (#71769) — 45 parça

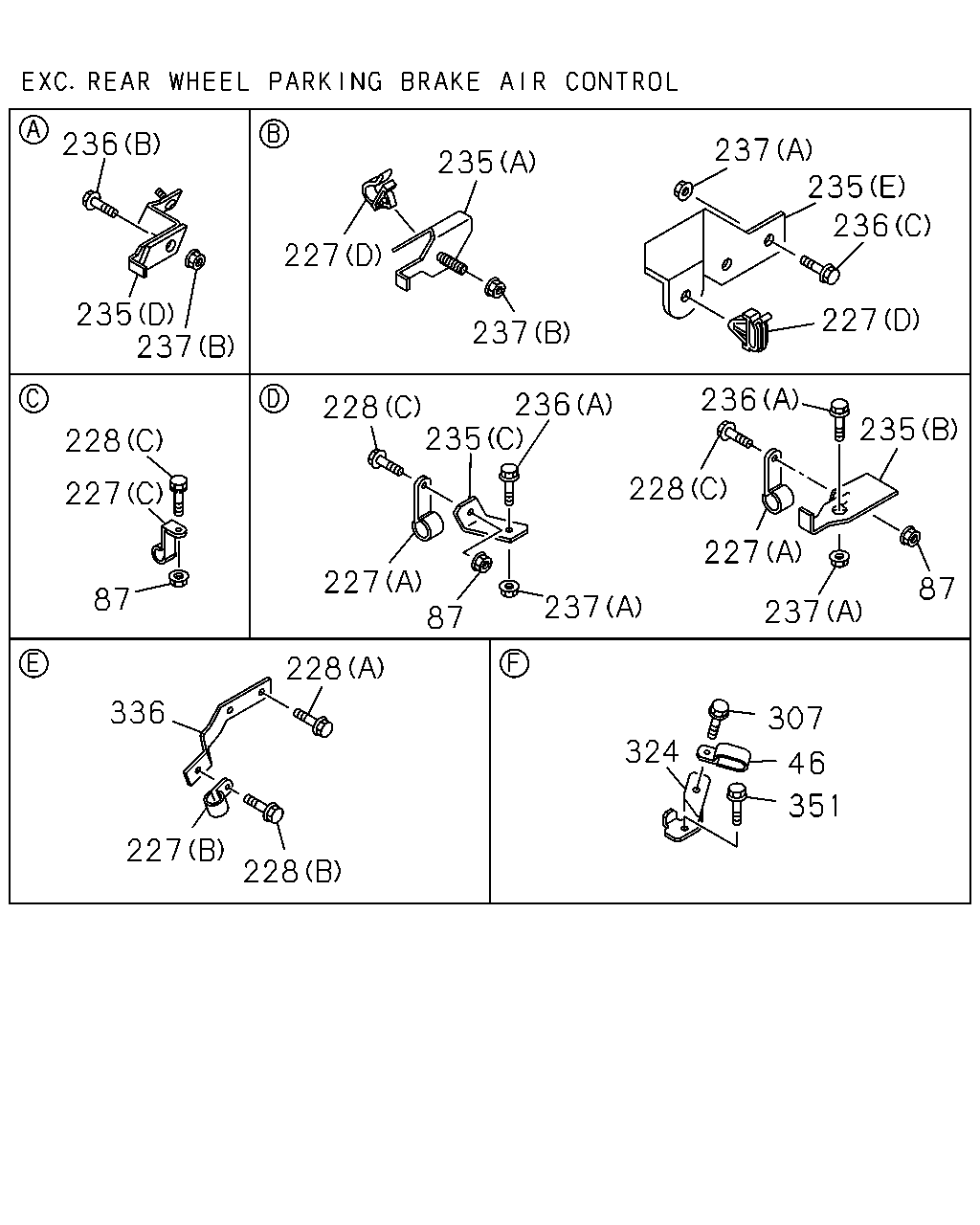

çizim 115649
236 237 235 235 236 227 235 237 227 237 236 228 236 235 235 228 228 227 227 227 87 87 87 237 237 228 336 307 324 46 351 227 228
BalonParca AdiParca NoAdetTipApplied Date
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20 		0-95235-535-0 01 1 1103-
87 NUT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 1103-
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 L=20 		0-95235-235-0 01 1 1103-
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 L=20 		0-95235-235-0 01 1 1103-
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=25 H=60 L=35 		1-09701-103-0 01 1 1103-
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) ID=9.5 		5-09709-020-0 02 1 1103-
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=14.5 L=40 		8-98119-885-0 01 1 1103-
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 FLANGE 		0-28050-816-0 01 1 1103-
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE 		0-28650-825-0 02 1 1103-
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 1103-
235 BRACKET; CONT CABLE TO FRAME
MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		8-98077-903-2 01 1 1103-
235 BRACKET; CONT CABLE TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		1-82699-199-0 01 1 1103-
235 BRACKET; CONT CABLE TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98100-153-0 01 1 1103-1111
235 BRACKET; CONT CABLE TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) 		8-98100-152-0 01 1 1112-
235 BRACKET; CONT CABLE TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98126-934-0 01 1 1103-1111
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X30 FLANGE 		0-28650-830-0 02 1 1112-
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE 		0-28650-825-0 02 1 1103-1111
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1112-
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE 		0-28651-030-0 01 1 1103-1504
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE 		0-28051-030-0 01 1 1505-
237 NUT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE 		0-91180-108-0 01 1 1103-1111
237 NUT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE 		0-91180-108-0 02 1 1112-
237 NUT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10 FLANGE 		0-91180-210-0 02 1 1103-1111
237 NUT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10 FLANGE 		0-91180-210-0 01 1 1112-
307 BOLT; BRKT,PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER 		0-51640-825-0 01 1 1103-
324 BRACKET
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98067-482-1 01 1 1103-
336 BRACKET; RADIATOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98044-680-0 01 1 1103-
351 BOLT; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER 		0-51640-825-0 03 1 1103-

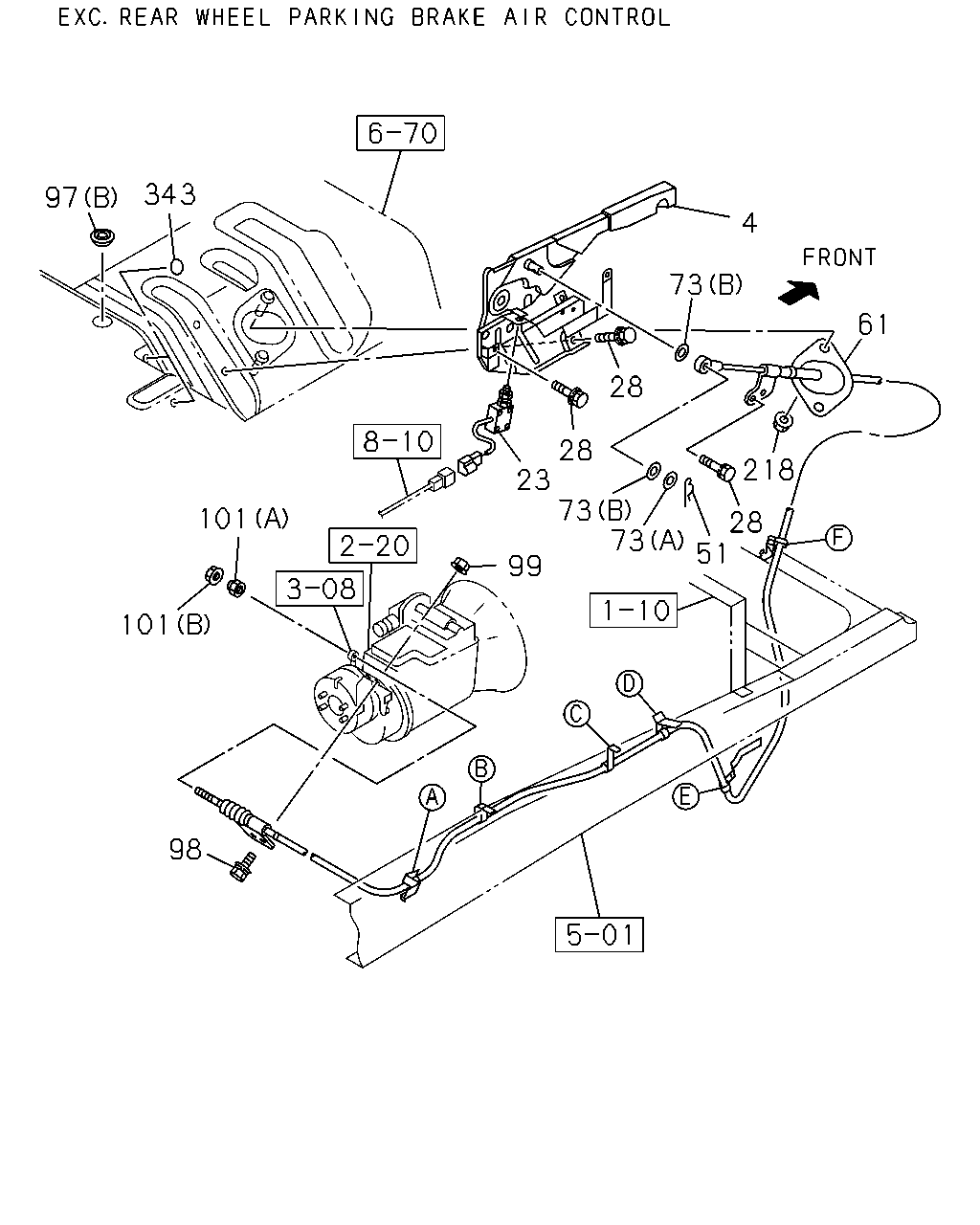

çizim 115679
343 97 4 73 61 28 28 23 73 73 218 101 28 51 99 101 98
BalonParca AdiParca NoAdetTipApplied Date
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-549-0 01 1 1103-
23 SWITCH; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82440-100-0 01 1 1103-
28 BOLT; HAND BRK LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1103-
51 PIN; JOINT,RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09987-243-1 01 1 1103-
61 CABLE; PARKING BRK
MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4615 		8-98106-061-5 01 1 1103-
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=17 OD=30 		0-91610-516-0 01 1 1103-
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=19 		8-94206-429-1 02 1 1103-
97 GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98029-219-1 01 1 1103-
97 GROMMET; PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35 		8-94122-971-0 01 1 1103-
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 02 1 1103-
99 NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 02 1 1103-
101 NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8 FLANGE 		0-91180-108-0 01 1 1103-
101 NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-46259-007-0 01 1 1103-
218 NUT; BRKT,PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 1103-
343 SEAL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 04 1 1103-
çizim 190462
97
BalonParca AdiParca NoAdetTipApplied Date
97 GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98029-219-1 01 1 1103-
97 GROMMET; PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35 		8-94122-971-0 01 1 1103-
