2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#71761) — 19 parça

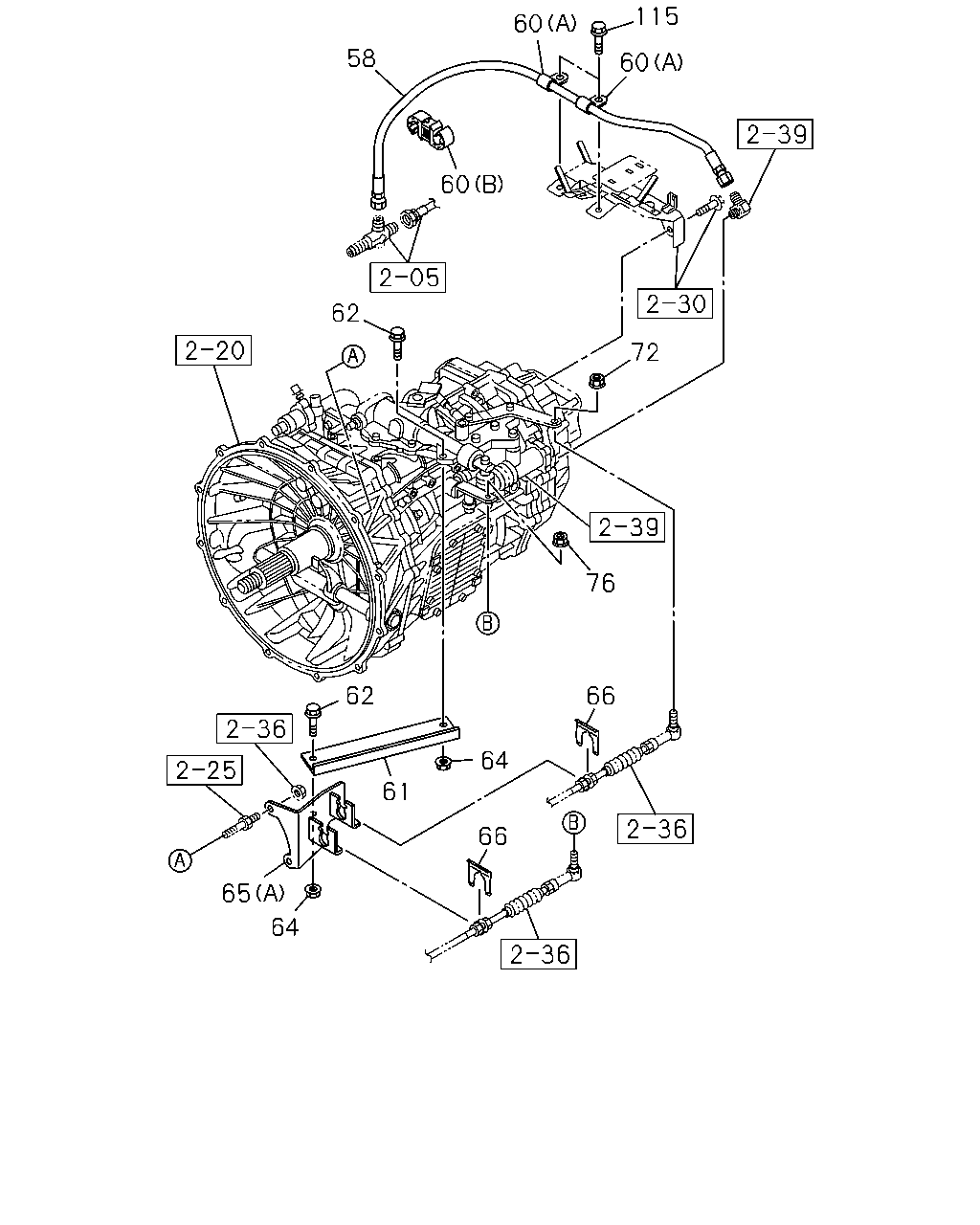

çizim 114502
115 60 58 60 60 62 72 76 62 66 64 61 66 65 64
BalonParca AdiParca NoAdetTipApplied Date
58 HOSE; FLEX,POWER ASSISTOR
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=640 		1-09363-626-1 01 1 1103-
60 CLIP; FLEX HOSE
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 L=20 		0-95235-235-0 02 1 1103-
60 CLIP; FLEX HOSE
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (B) ID=10 & 10 		1-09709-277-1 01 1 1103-
61 STAY; BRKT,TRANS CONT
MZW6P M/T(RSZ) 		1-33657-267-0 01 1 1103-
62 BOLT; STAY
MZW6P M/T(RSZ) M10X30 FLANGE 		0-28651-030-0 02 1 1103-
64 NUT; STAY
MZW6P M/T(RSZ) M10 FLANGE 		0-91180-210-0 02 1 1103-
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) (B) 		8-98131-609-0 01 1 1103-
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98010-160-0 01 1 1103-
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98017-428-0 01 1 1103-
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 1103-
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 1103-
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 1103-
115 BOLT; CLIP
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 02 1 1103-

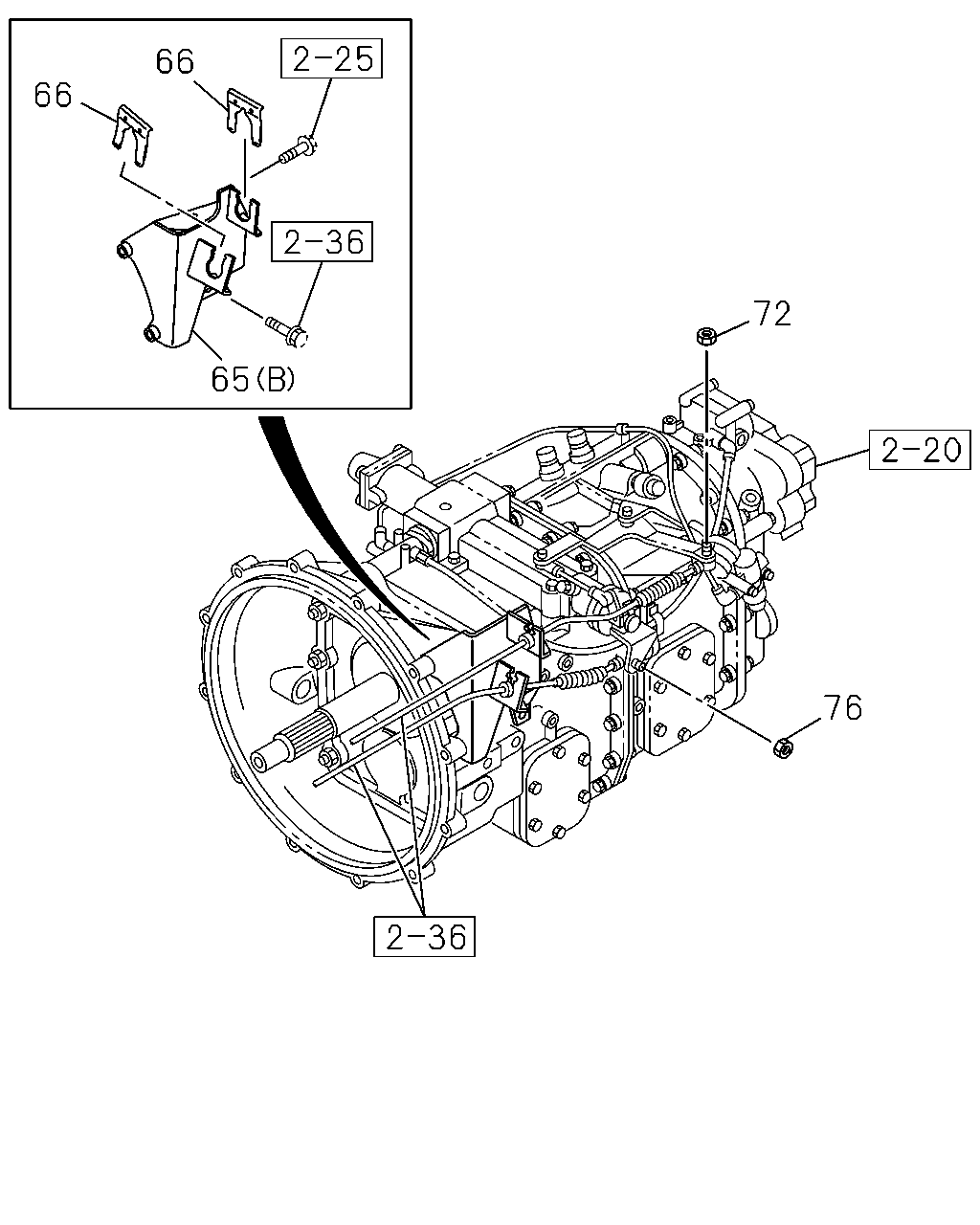

çizim 190456
66 66 72 65 76
BalonParca AdiParca NoAdetTipApplied Date
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) (B) 		8-98131-609-0 01 1 1103-
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98010-160-0 01 1 1103-
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98017-428-0 01 1 1103-
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 1103-
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 1103-
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 1103-
