2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#71760) — 117 parça

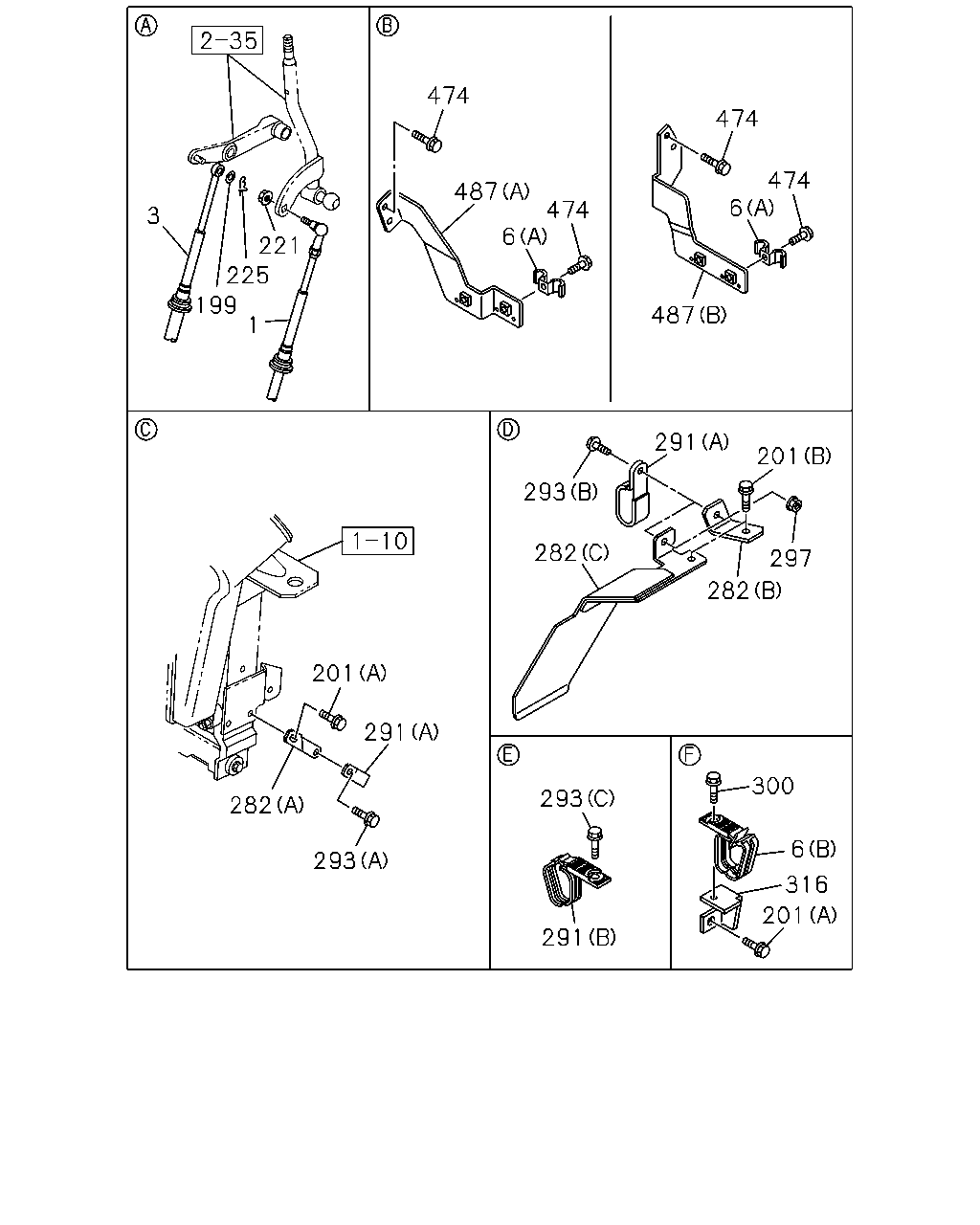

474 474 474 487 6 474 3 6 221 225 199 487 1 291 201 293 282 297 282 201 291 300 293 282 6 293 316 201 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; SHIFT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) CAB SUSPENSION FULL FLOATING<W16> L=3610	8-98047-800-3	01	1	1103-
1	CABLE; SHIFT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3545	8-98047-799-3	01	1	1103-
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> L=3550	8-98010-435-4	01	1	1103-
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3485	8-98010-434-4	01	1	1103-
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3510	8-98017-469-4	01	1	1103-
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) CAB SUSPENSION FULL FLOATING<W16> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575	8-98017-470-4	01	1	1103-
3	CABLE; SELECT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) CAB SUSPENSION FULL FLOATING<W16> L=3790	8-98047-814-2	01	1	1103-
3	CABLE; SELECT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3725	8-98047-813-2	01	1	1103-
3	CABLE; SELECT,TRANS CONT MZW6P M/T(RSZ) CAB SUSPENSION FULL FLOATING<W16> L=3755	8-98010-475-2	01	1	1103-
3	CABLE; SELECT,TRANS CONT MZW6P M/T(RSZ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3690	8-98010-474-2	01	1	1103-
6	CLIP; CABLE (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1103-
6	CLIP; CABLE MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1103-
6	CLIP; CABLE FULLER FSO5206B OD M/T(Y4V) (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1103-
199	WASHER; PL,SELECT ID=8.4 OD=16	0-91614-508-0	01	1	1103-
201	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	1103-
201	BOLT; BRKT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) M8X16 FLANGE	0-28050-816-0	01	1	1103-
201	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) (A) M8X16 FLANGE	0-28050-816-0	01	1	1103-
201	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	01	1	1103-
201	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) (C) M12X35 FLANGE	0-28151-235-0	01	1	1103-
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-062-1	01	1	1103-
225	PIN; SELECT CABLE L=27.7	8-94111-137-0	01	1	1103-
282	BRACKET; TRANS SIDE (B)	1-82699-199-0	01	1	1103-1103
282	BRACKET; TRANS SIDE (C)	8-98171-762-0	01	1	1104-
282	BRACKET; TRANS SIDE (A)	8-98010-418-0	01	1	1103-
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	0-95325-026-0	02	1	1103-
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1103-
293	BOLT; CLIP,SHIFT TO SELECT (A) M8X16 FLANGE	0-28050-816-0	01	1	1103-
293	BOLT; CLIP,SHIFT TO SELECT (C) M8X20 FLANGE	0-28050-820-0	01	1	1103-
293	BOLT; CLIP,SHIFT TO SELECT (B) M8X20 FLANGE	0-28650-820-0	01	1	1103-
297	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1103-
300	BOLT; CLIP MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	01	1	1103-
300	BOLT; CLIP FULLER FSO5206B OD M/T(Y4V) M8X20 FLANGE	0-28650-820-0	01	1	1103-
316	BRACKET; CLIP FULLER FSO5206B OD M/T(Y4V)	8-98086-439-0	01	1	1103-
316	BRACKET; CLIP MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8>	8-98073-017-1	01	1	1103-
474	BOLT; BRKT M8X25 W/WASHER	0-51640-825-0	03	1	1103-
487	BRACKET; CONT CABLE CAB SUSPENSION FULL FLOATING<W16> (A)	8-98180-729-0	01	1	1103-
487	BRACKET; CONT CABLE EXC. CAB SUSPENSION FULL FLOATING<W16> (B)	8-98183-009-0	01	1	1103-

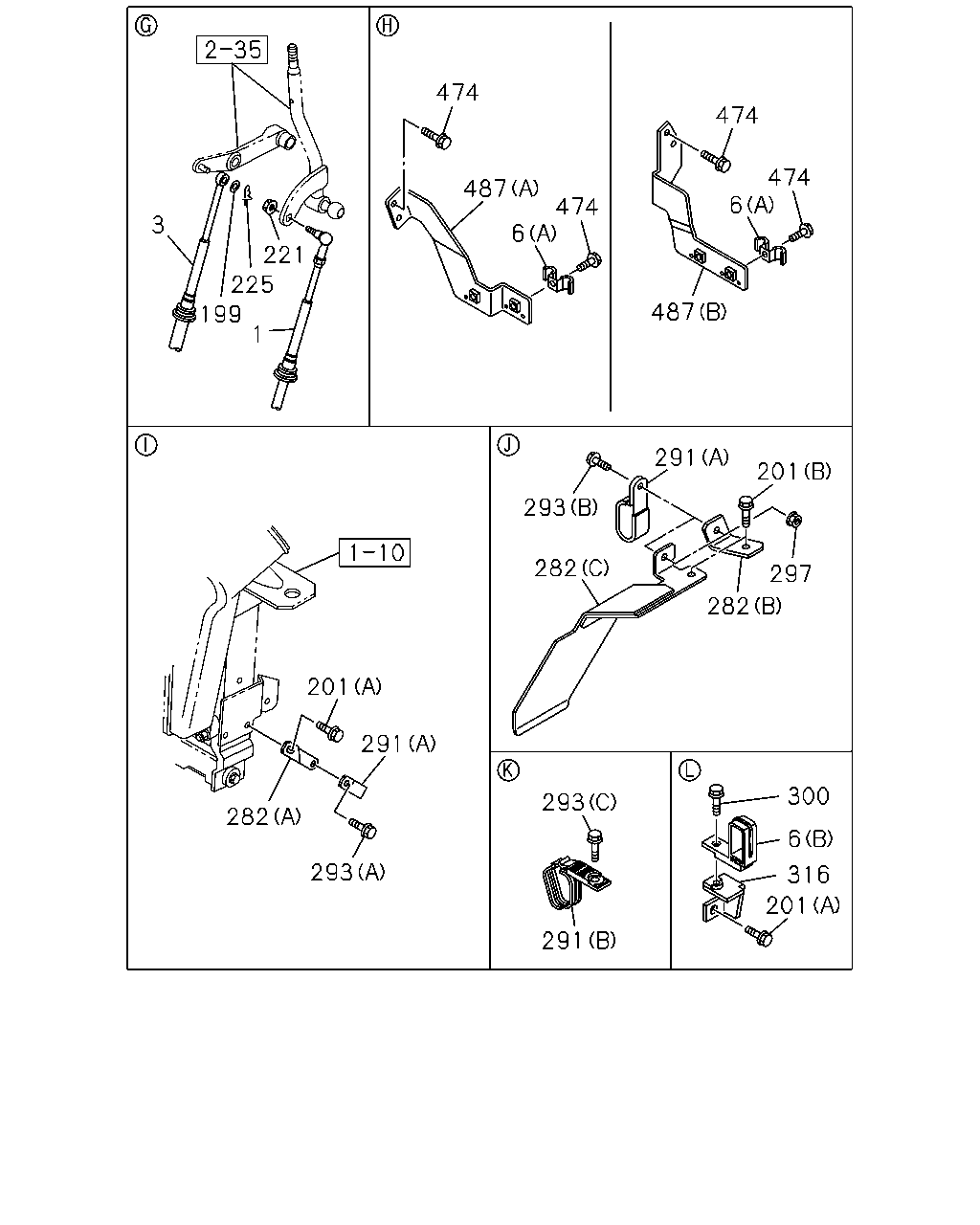

474 474 474 487 6 474 3 6 221 225 487 199 1 291 201 293 282 297 282 201 291 300 293 282 6 293 316 201 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; SHIFT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) CAB SUSPENSION FULL FLOATING<W16> L=3610	8-98047-800-3	01	1	1103-
1	CABLE; SHIFT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3545	8-98047-799-3	01	1	1103-
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> L=3550	8-98010-435-4	01	1	1103-
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3485	8-98010-434-4	01	1	1103-
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3510	8-98017-469-4	01	1	1103-
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) CAB SUSPENSION FULL FLOATING<W16> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575	8-98017-470-4	01	1	1103-
3	CABLE; SELECT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) CAB SUSPENSION FULL FLOATING<W16> L=3790	8-98047-814-2	01	1	1103-
3	CABLE; SELECT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3725	8-98047-813-2	01	1	1103-
3	CABLE; SELECT,TRANS CONT MZW6P M/T(RSZ) CAB SUSPENSION FULL FLOATING<W16> L=3755	8-98010-475-2	01	1	1103-
3	CABLE; SELECT,TRANS CONT MZW6P M/T(RSZ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3690	8-98010-474-2	01	1	1103-
6	CLIP; CABLE (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1103-
6	CLIP; CABLE MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1103-
6	CLIP; CABLE FULLER FSO5206B OD M/T(Y4V) (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1103-
199	WASHER; PL,SELECT ID=8.4 OD=16	0-91614-508-0	01	1	1103-
201	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	1103-
201	BOLT; BRKT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) M8X16 FLANGE	0-28050-816-0	01	1	1103-
201	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) (A) M8X16 FLANGE	0-28050-816-0	01	1	1103-
201	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	01	1	1103-
201	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) (C) M12X35 FLANGE	0-28151-235-0	01	1	1103-
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-062-1	01	1	1103-
225	PIN; SELECT CABLE L=27.7	8-94111-137-0	01	1	1103-
282	BRACKET; TRANS SIDE (B)	1-82699-199-0	01	1	1103-1103
282	BRACKET; TRANS SIDE (C)	8-98171-762-0	01	1	1104-
282	BRACKET; TRANS SIDE (A)	8-98010-418-0	01	1	1103-
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	0-95325-026-0	02	1	1103-
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1103-
293	BOLT; CLIP,SHIFT TO SELECT (A) M8X16 FLANGE	0-28050-816-0	01	1	1103-
293	BOLT; CLIP,SHIFT TO SELECT (C) M8X20 FLANGE	0-28050-820-0	01	1	1103-
293	BOLT; CLIP,SHIFT TO SELECT (B) M8X20 FLANGE	0-28650-820-0	01	1	1103-
297	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1103-
300	BOLT; CLIP MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	01	1	1103-
300	BOLT; CLIP FULLER FSO5206B OD M/T(Y4V) M8X20 FLANGE	0-28650-820-0	01	1	1103-
316	BRACKET; CLIP FULLER FSO5206B OD M/T(Y4V)	8-98086-439-0	01	1	1103-
316	BRACKET; CLIP MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8>	8-98073-017-1	01	1	1103-
474	BOLT; BRKT M8X25 W/WASHER	0-51640-825-0	03	1	1103-
487	BRACKET; CONT CABLE CAB SUSPENSION FULL FLOATING<W16> (A)	8-98180-729-0	01	1	1103-
487	BRACKET; CONT CABLE EXC. CAB SUSPENSION FULL FLOATING<W16> (B)	8-98183-009-0	01	1	1103-

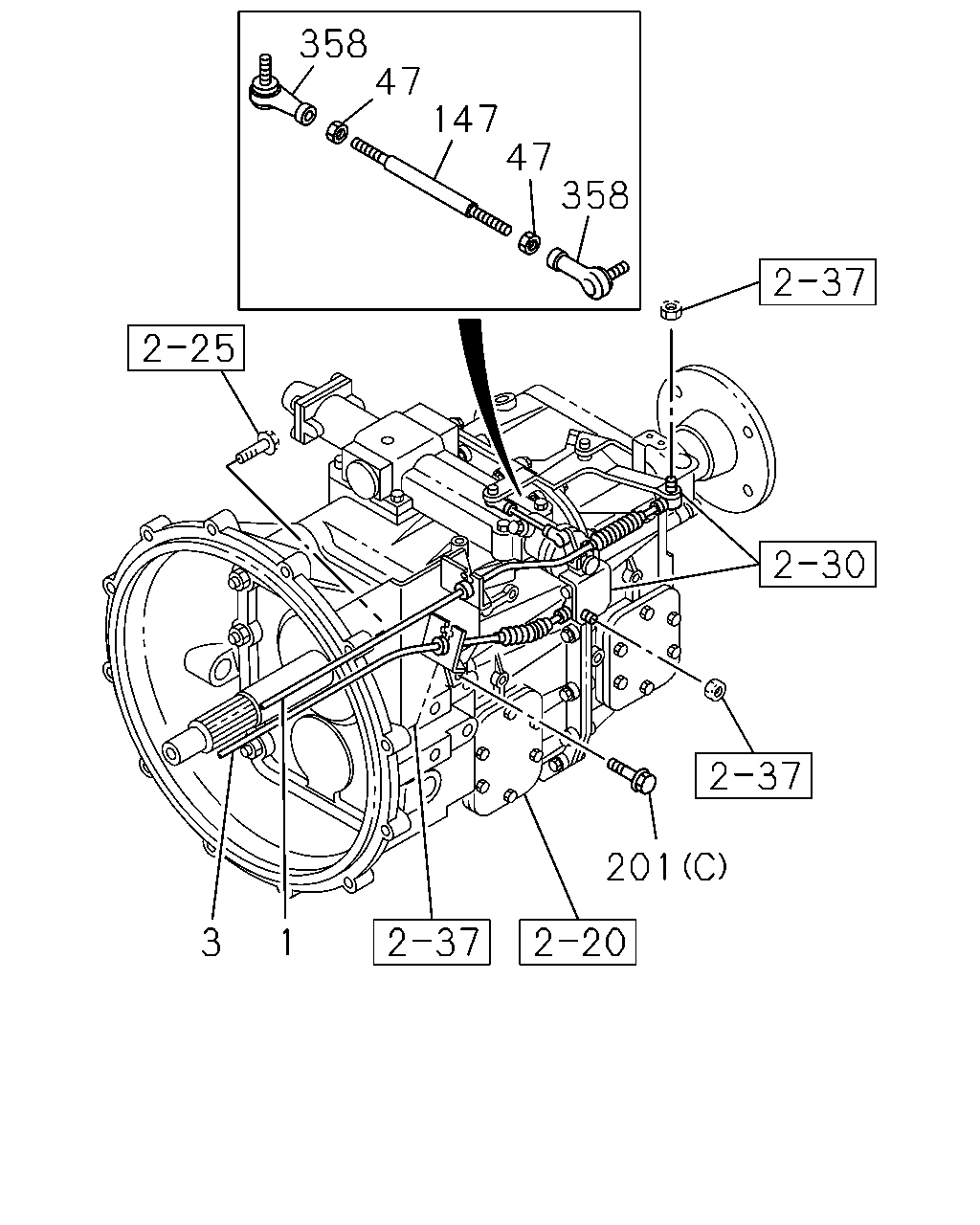

358 47 147 47 358 201 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; SHIFT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) CAB SUSPENSION FULL FLOATING<W16> L=3610	8-98047-800-3	01	1	1103-
1	CABLE; SHIFT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3545	8-98047-799-3	01	1	1103-
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> L=3550	8-98010-435-4	01	1	1103-
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3485	8-98010-434-4	01	1	1103-
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3510	8-98017-469-4	01	1	1103-
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) CAB SUSPENSION FULL FLOATING<W16> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575	8-98017-470-4	01	1	1103-
3	CABLE; SELECT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) CAB SUSPENSION FULL FLOATING<W16> L=3790	8-98047-814-2	01	1	1103-
3	CABLE; SELECT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3725	8-98047-813-2	01	1	1103-
3	CABLE; SELECT,TRANS CONT MZW6P M/T(RSZ) CAB SUSPENSION FULL FLOATING<W16> L=3755	8-98010-475-2	01	1	1103-
3	CABLE; SELECT,TRANS CONT MZW6P M/T(RSZ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3690	8-98010-474-2	01	1	1103-
47	NUT; LK,LINK ROD FULLER FSO5206B OD M/T(Y4V) M8	0-91111-508-0	02	1	1103-
147	ROD; LINK FULLER FSO5206B OD M/T(Y4V)	0-84000-808-0	01	1	1103-
201	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	1103-
201	BOLT; BRKT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) M8X16 FLANGE	0-28050-816-0	01	1	1103-
201	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) (A) M8X16 FLANGE	0-28050-816-0	01	1	1103-
201	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	01	1	1103-
201	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) (C) M12X35 FLANGE	0-28151-235-0	01	1	1103-
358	ROD END; SCREW FULLER FSO5206B OD M/T(Y4V) L=45.5	1-09760-118-1	02	1	1103-

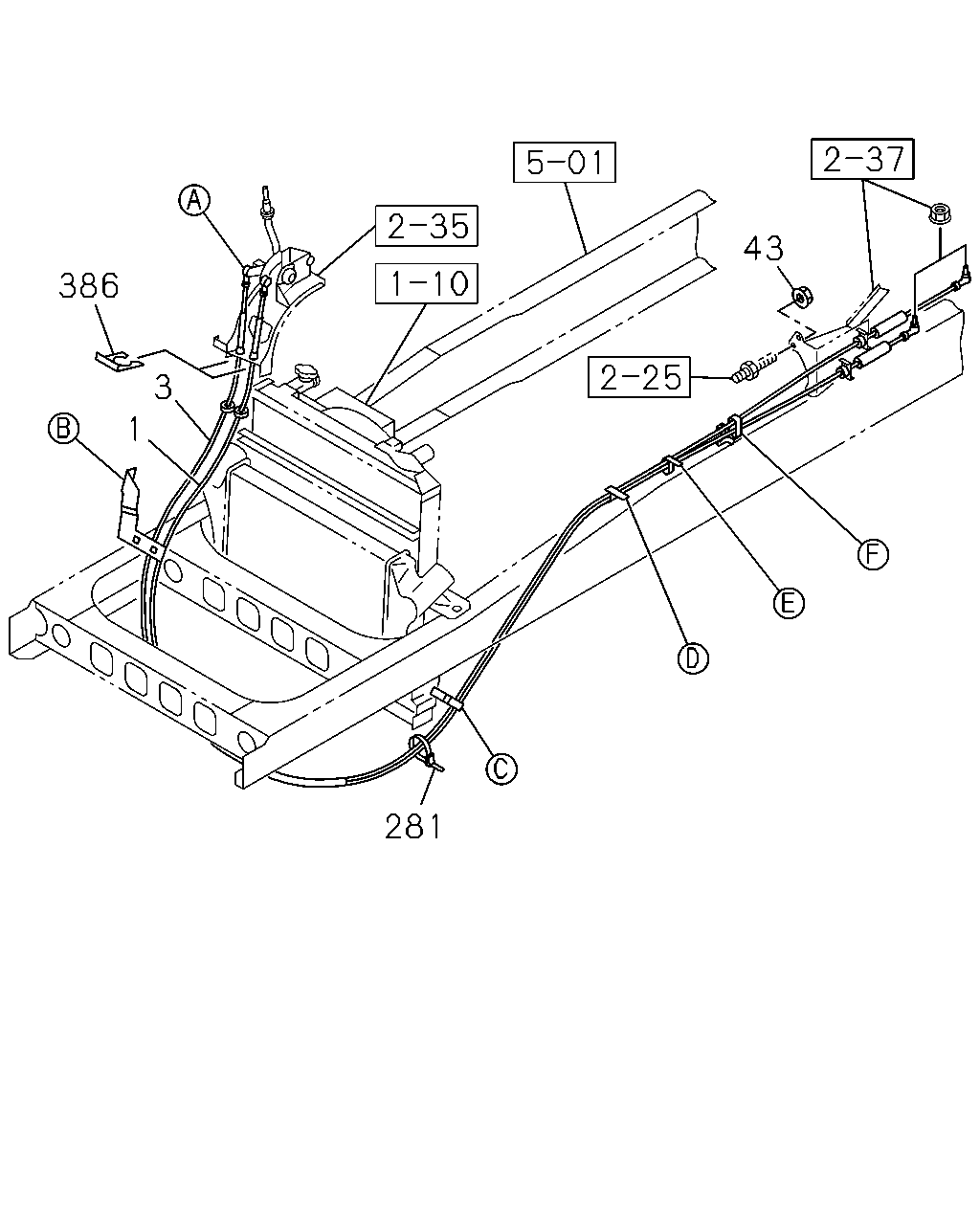

43 386 3 1 281

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; SHIFT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) CAB SUSPENSION FULL FLOATING<W16> L=3610	8-98047-800-3	01	1	1103-
1	CABLE; SHIFT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3545	8-98047-799-3	01	1	1103-
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> L=3550	8-98010-435-4	01	1	1103-
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3485	8-98010-434-4	01	1	1103-
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3510	8-98017-469-4	01	1	1103-
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) CAB SUSPENSION FULL FLOATING<W16> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575	8-98017-470-4	01	1	1103-
3	CABLE; SELECT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) CAB SUSPENSION FULL FLOATING<W16> L=3790	8-98047-814-2	01	1	1103-
3	CABLE; SELECT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3725	8-98047-813-2	01	1	1103-
3	CABLE; SELECT,TRANS CONT MZW6P M/T(RSZ) CAB SUSPENSION FULL FLOATING<W16> L=3755	8-98010-475-2	01	1	1103-
3	CABLE; SELECT,TRANS CONT MZW6P M/T(RSZ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3690	8-98010-474-2	01	1	1103-
43	NUT; BRKT MZW6P M/T(RSZ) M10 FLANGE	0-91180-210-0	02	1	1103-
281	CLIP; BAND L=300	1-09707-001-1	01	1	1103-
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	1103-

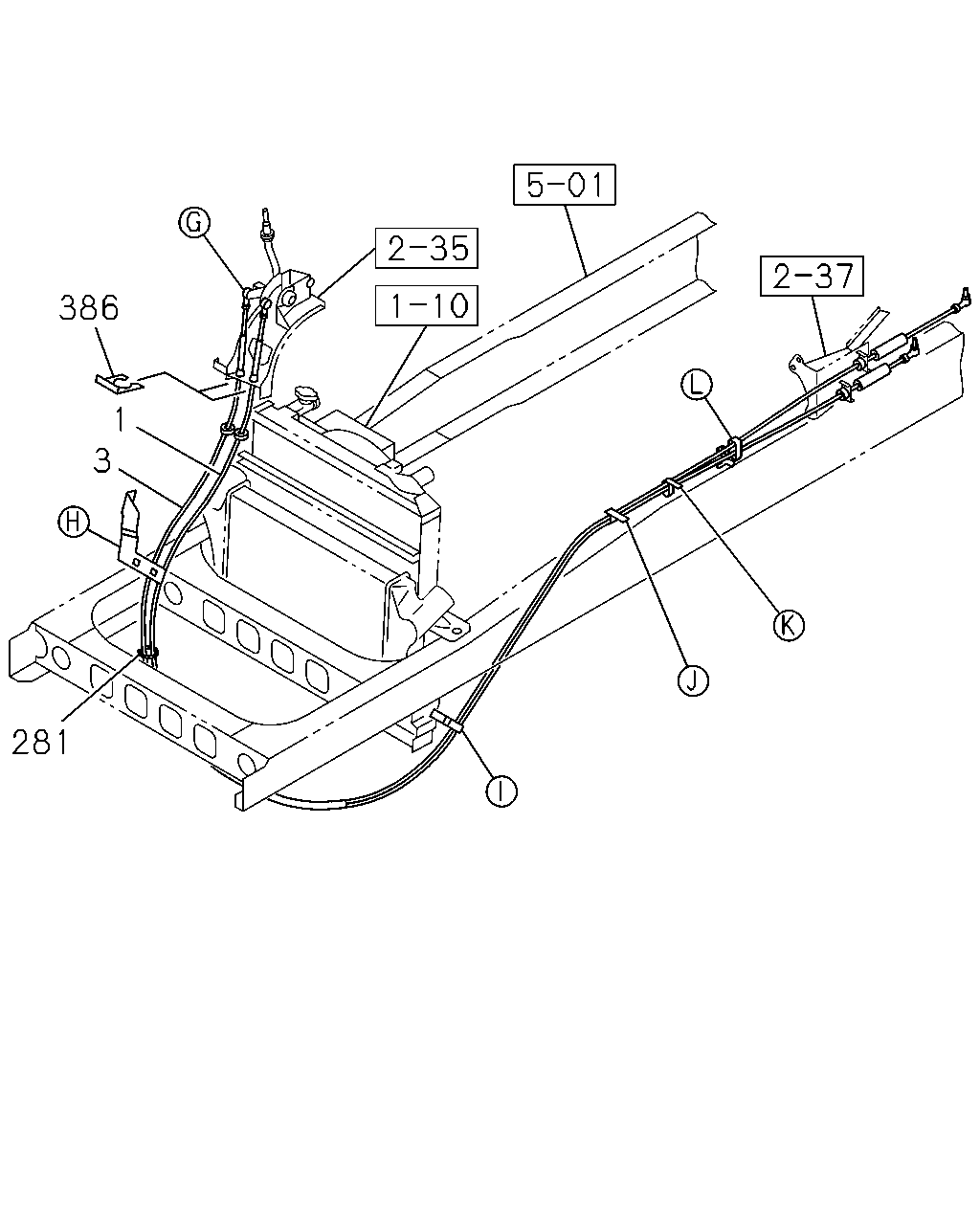

386 1 3 281

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; SHIFT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) CAB SUSPENSION FULL FLOATING<W16> L=3610	8-98047-800-3	01	1	1103-
1	CABLE; SHIFT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3545	8-98047-799-3	01	1	1103-
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> L=3550	8-98010-435-4	01	1	1103-
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3485	8-98010-434-4	01	1	1103-
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3510	8-98017-469-4	01	1	1103-
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) CAB SUSPENSION FULL FLOATING<W16> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575	8-98017-470-4	01	1	1103-
3	CABLE; SELECT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) CAB SUSPENSION FULL FLOATING<W16> L=3790	8-98047-814-2	01	1	1103-
3	CABLE; SELECT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3725	8-98047-813-2	01	1	1103-
3	CABLE; SELECT,TRANS CONT MZW6P M/T(RSZ) CAB SUSPENSION FULL FLOATING<W16> L=3755	8-98010-475-2	01	1	1103-
3	CABLE; SELECT,TRANS CONT MZW6P M/T(RSZ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3690	8-98010-474-2	01	1	1103-
281	CLIP; BAND L=300	1-09707-001-1	01	1	1103-
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	1103-
