1-50 — EXHAUST PIPE AND SILENCER (#71740) — 136 parça

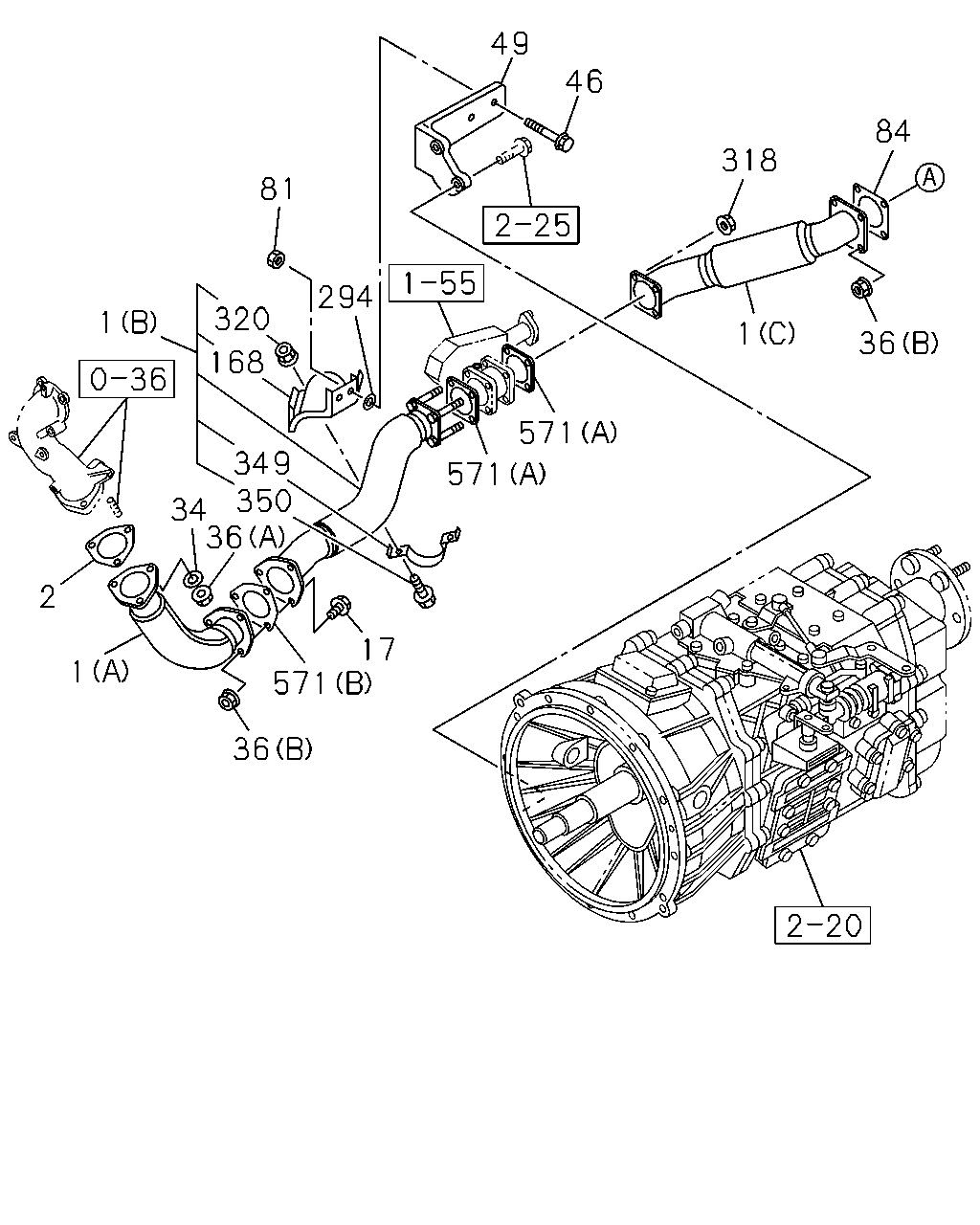

çizim 96733
49 46 84 318 81 294 320 168 1 1 36 571 349 350 34 36 571 2 17 571 1 36
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(A) 		8-98182-389-0 01 1 1103-1301
1 PIPE; EXH
(A) 		8-98234-511-0 01 1 1302-
1 PIPE; EXH
FULLER FSO5206B OD M/T(Y4V) (B) 		8-98060-615-0 01 1 1103-1301
1 PIPE; EXH
FULLER FSO5206B OD M/T(Y4V) (B) 		8-98234-515-0 01 1 1302-
1 PIPE; EXH
FULLER FSO5206B OD M/T(Y4V) (C) 		8-98090-386-0 01 1 1103-
1 PIPE; EXH
MZW6P M/T(RSZ) (C) 		8-98096-668-2 01 1 1103-
1 PIPE; EXH
MZW6P M/T(RSZ) (B) 		8-98119-515-0 01 1 1103-1209
1 PIPE; EXH
MZW6P M/T(RSZ) (B) 		8-98230-001-0 01 1 1210-1301
1 PIPE; EXH
MZW6P M/T(RSZ) (B) 		8-98234-516-1 01 1 1302-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 1103-
17 BOLT; EXH PIPE
M12X35 FLANGE 		0-28051-235-0 03 1 1103-
17 BOLT; EXH PIPE
M10X35 FLANGE 		0-28651-035-0 02 1 1103-
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 1103-
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 1103-
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 1103-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1103-
46 BOLT; BRKT,EXH PIPE
M10X25 L=40 		0-44011-025-0 02 1 1103-
49 BRACKET; EXH PIPE TO TRANS
FULLER FSO5206B OD M/T(Y4V) 		8-98123-995-0 01 1 1103-
49 BRACKET; EXH PIPE TO TRANS
MZW6P M/T(RSZ) 		8-98120-493-0 01 1 1103-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1103-1301
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1103-1301
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1103-1301
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1302-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1103-1301
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1103-1301
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1103-1301
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-
84 GASKET; EXH PIPE 8-98096-305-0 01 1 1103-
168 BRACKET; EXH PIPE,FRT
MZW6P M/T(RSZ) 		8-98071-144-0 01 1 1103-1209
168 BRACKET; EXH PIPE,FRT
MZW6P M/T(RSZ) 		8-98221-369-1 01 1 1210-
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 1103-
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 1103-
320 NUT; CLAMP,EXH PIPE
MZW6P M/T(RSZ) M10 FLANGE 		0-91180-210-0 02 1 1103-
349 CLAMP; EXH PIPE
MZW6P M/T(RSZ) 		8-98115-162-0 01 1 1103-
350 BOLT; CLAMP,EXH PIPE
MZW6P M/T(RSZ) M10X30 FLANGE 		0-28651-030-0 02 1 1103-
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 1103-
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 1103-

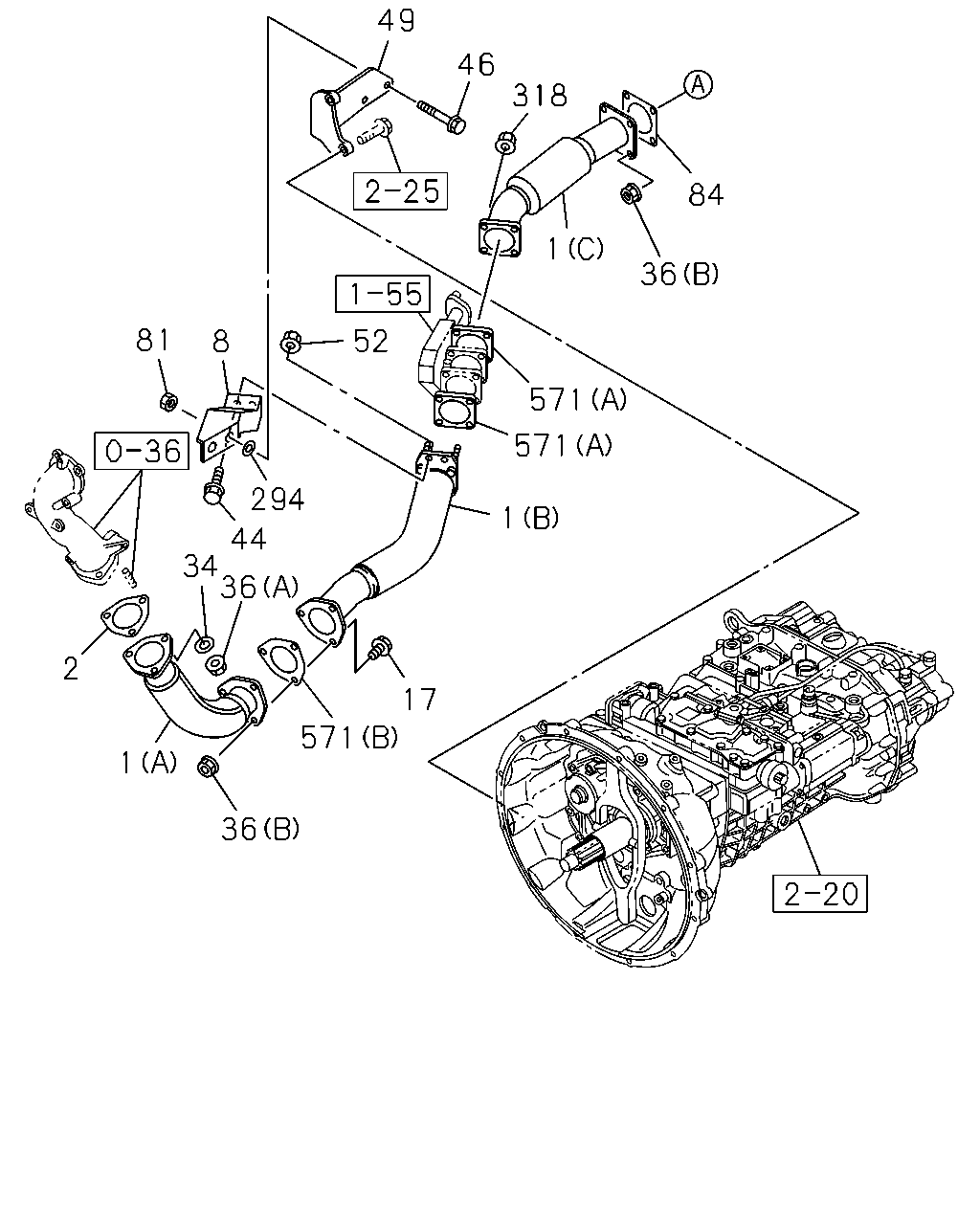

çizim 97448
49 46 318 84 1 36 81 52 8 571 571 294 1 44 34 36 2 17 571 1 36
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(A) 		8-98182-389-0 01 1 1103-1301
1 PIPE; EXH
(A) 		8-98234-511-0 01 1 1302-
1 PIPE; EXH
FULLER FSO5206B OD M/T(Y4V) (B) 		8-98060-615-0 01 1 1103-1301
1 PIPE; EXH
FULLER FSO5206B OD M/T(Y4V) (B) 		8-98234-515-0 01 1 1302-
1 PIPE; EXH
FULLER FSO5206B OD M/T(Y4V) (C) 		8-98090-386-0 01 1 1103-
1 PIPE; EXH
MZW6P M/T(RSZ) (C) 		8-98096-668-2 01 1 1103-
1 PIPE; EXH
MZW6P M/T(RSZ) (B) 		8-98119-515-0 01 1 1103-1209
1 PIPE; EXH
MZW6P M/T(RSZ) (B) 		8-98230-001-0 01 1 1210-1301
1 PIPE; EXH
MZW6P M/T(RSZ) (B) 		8-98234-516-1 01 1 1302-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 1103-
8 BRACKET; EXH PIPE
FULLER FSO5206B OD M/T(Y4V) 		8-98069-914-0 01 1 1103-
17 BOLT; EXH PIPE
M12X35 FLANGE 		0-28051-235-0 03 1 1103-
17 BOLT; EXH PIPE
M10X35 FLANGE 		0-28651-035-0 02 1 1103-
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 1103-
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 1103-
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 1103-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1103-
44 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V) M10X35 FLANGE 		0-28651-035-0 02 1 1103-
46 BOLT; BRKT,EXH PIPE
M10X25 L=40 		0-44011-025-0 02 1 1103-
49 BRACKET; EXH PIPE TO TRANS
FULLER FSO5206B OD M/T(Y4V) 		8-98123-995-0 01 1 1103-
49 BRACKET; EXH PIPE TO TRANS
MZW6P M/T(RSZ) 		8-98120-493-0 01 1 1103-
52 NUT; BRKT
FULLER FSO5206B OD M/T(Y4V) M10 FLANGE 		0-91180-210-0 02 1 1103-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1103-1301
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1103-1301
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1103-1301
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1302-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1103-1301
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1103-1301
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1103-1301
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-
84 GASKET; EXH PIPE 8-98096-305-0 01 1 1103-
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 1103-
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 1103-
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 1103-
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 1103-

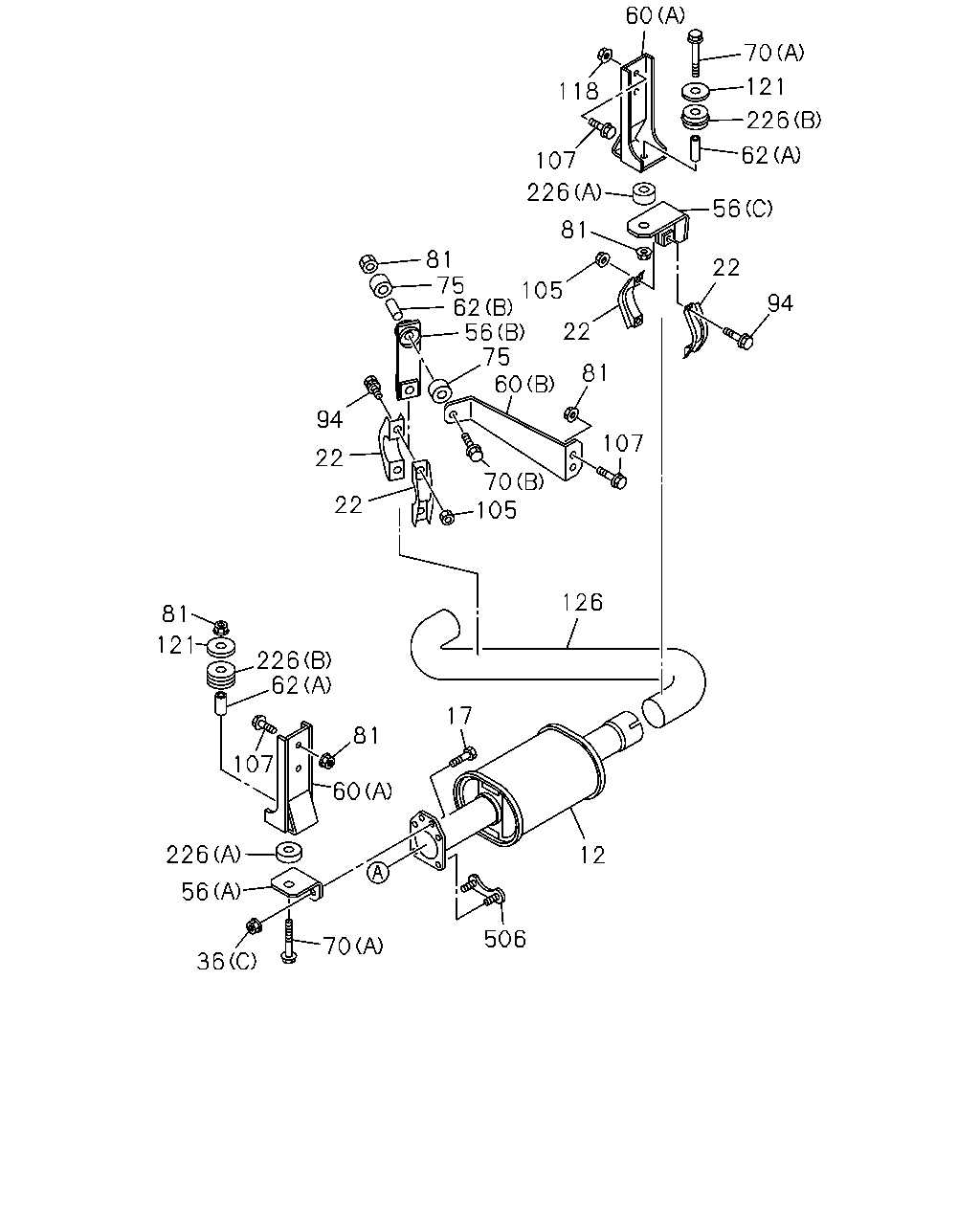

çizim 190434
60 70 121 118 226 62 107 226 56 81 81 75 105 62 56 75 60 22 94 22 81 94 107 22 70 105 22 126 81 121 226 62 17 81 107 60 226 12 56 506 70 36
BalonParca AdiParca NoAdetTipApplied Date
12 SILENCER ASM; EXH 8-98165-988-0 01 1 1103-
17 BOLT; EXH PIPE
M12X35 FLANGE 		0-28051-235-0 03 1 1103-
17 BOLT; EXH PIPE
M10X35 FLANGE 		0-28651-035-0 02 1 1103-
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 1103-
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 1103-
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 1103-
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 1103-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1103-
56 BRACKET; CLAMP,EXH PIPE
(B) 		1-22131-528-1 01 1 1103-
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 1103-
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98070-639-0 01 1 1103-1309
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98245-536-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 1103-1301
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 1103-1301
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 02 1 1302-1309
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 02 1 1310-
60 BRACKET; FRAME TO BRKT
(B) 		8-98108-507-0 01 1 1103-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1103-1301
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1103-1301
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1302-
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 1103-
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1103-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1103-1301
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1103-1301
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 1302-
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-193-0 02 1 1103-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1103-1301
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1103-1301
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1103-1301
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1302-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1103-1301
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1103-1301
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1103-1301
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1103-
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1103-
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1103-
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1103-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 1204-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1103-1203
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1103-1203
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1103-1203
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1204-
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 1103-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1103-1301
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1103-1301
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1302-
126 PIPE; EXH,RR 8-98069-920-0 01 1 1103-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1103-1301
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1103-1301
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1302-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1103-1301
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1103-1301
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1302-
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 1103-
