0-31 — THERMOSTAT AND HOUSING (#7174) — 30 parça

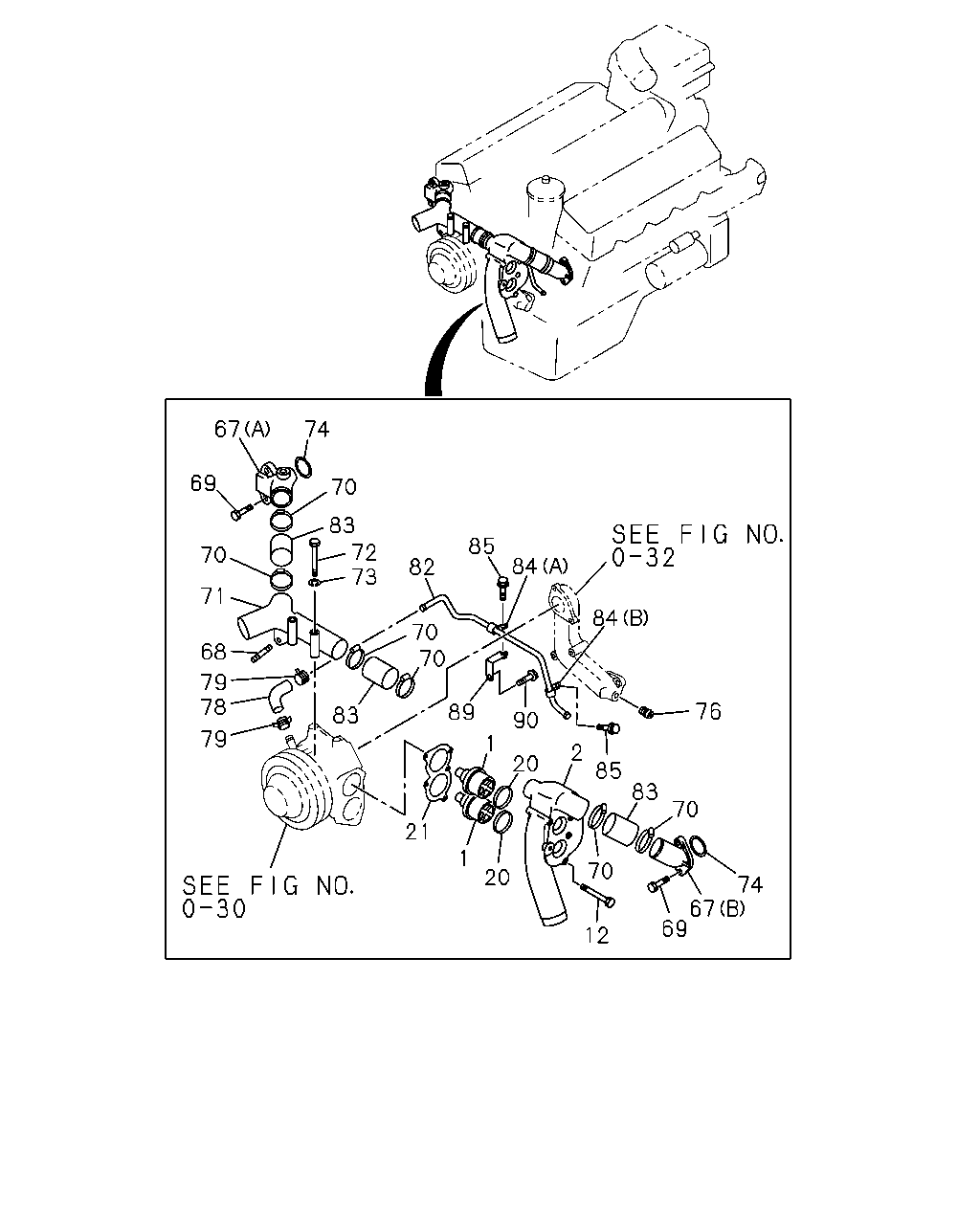

çizim 8144
82 85 84 84 76 85 2 20 1 90 89 70 70 83 79 78 79 68 71 70 69 67 74 70 83 72 73 21 1 20 70 12 69 67 74 70 83
BalonParca AdiParca NoAdetTipApplied Date
1 THERMOSTAT
76.5C 		1-13770-080-1 02 1 9906-
2 HOUSING; THERMOSTAT 1-13716-188-1 01 1 9906-0106
2 HOUSING; THERMOSTAT 1-13716-186-1 01 1 0107-
12 BOLT; HSG
M8X100 W/LK&PL WASHER 		0-50140-800-0 05 1 9906-
20 RING; SEAL 1-13779-005-0 02 1 9906-
21 GASKET; PUMP TO HSG
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13743-023-0 01 1 9906-9909
21 GASKET; PUMP TO HSG
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13743-042-0 01 1 9910-
67 DUCT; WATER,OUTLET
(B) LH BANK 		1-13711-583-0 01 1 9906-
67 DUCT; WATER,OUTLET
(A) RH BANK 		1-13711-617-2 01 1 9906-
68 STUD; ADJ PLATE
M12X25 L=43 		9-94411-225-0 01 1 9906-
69 BOLT; DUCT,WATER OUTLET
M10X30 FLANGE 		0-28181-030-0 04 1 9906-
70 CLIP; RUBBER HOSE,DUCT TO DUCT 1-09704-065-0 06 1 9906-
71 DUCT; WATER,OUTLET,CONNECTOR 1-13711-380-1 01 1 9906-0206
71 DUCT; WATER,OUTLET,CONNECTOR 1-13711-263-2 01 1 0207-
72 BOLT; CONNECTOR
M10X90 		0-16806-090-0 02 1 9906-
73 WASHER; LK,CONNECTOR
ID=10.2 		9-09150-510-0 02 1 9906-
74 GASKET; WATER OUTLET DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-425-0 02 1 9906-
76 JOINT; WATER DUCT
PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 9906-
78 HOSE; RUBBER,WATER PIPE 1-09360-378-0 01 1 9906-0103
78 HOSE; RUBBER,WATER PIPE 1-09361-081-1 01 1 0104-
79 CLIP; RUBBER HOSE
ID=20 		1-09707-084-1 02 1 9906-
82 PIPE; WATER,HTR 1-13721-369-2 01 1 9906-
83 HOSE; RUBBER,DUCT TO DUCT 1-09360-325-0 03 1 9906-0103
83 HOSE; RUBBER,DUCT TO DUCT 1-09361-080-1 03 1 0104-
84 CLIP; WATER PIPE
(A) ID=19 L=25 		1-09700-515-1 01 1 9906-
84 CLIP; WATER PIPE
(B) ID=19 L=23 		5-09700-386-0 01 1 9906-
85 BOLT; CLIP
M10X16 W/LK WASHER 		1-09033-012-0 01 1 9906-
85 BOLT; CLIP
M10X18 FLANGE 		8-94147-156-1 01 1 9906-
89 BRACKET 1-13719-027-0 01 1 9906-
90 BOLT; BRKT
M10X16 W/LK WASHER 		1-09033-012-0 01 1 9906-
